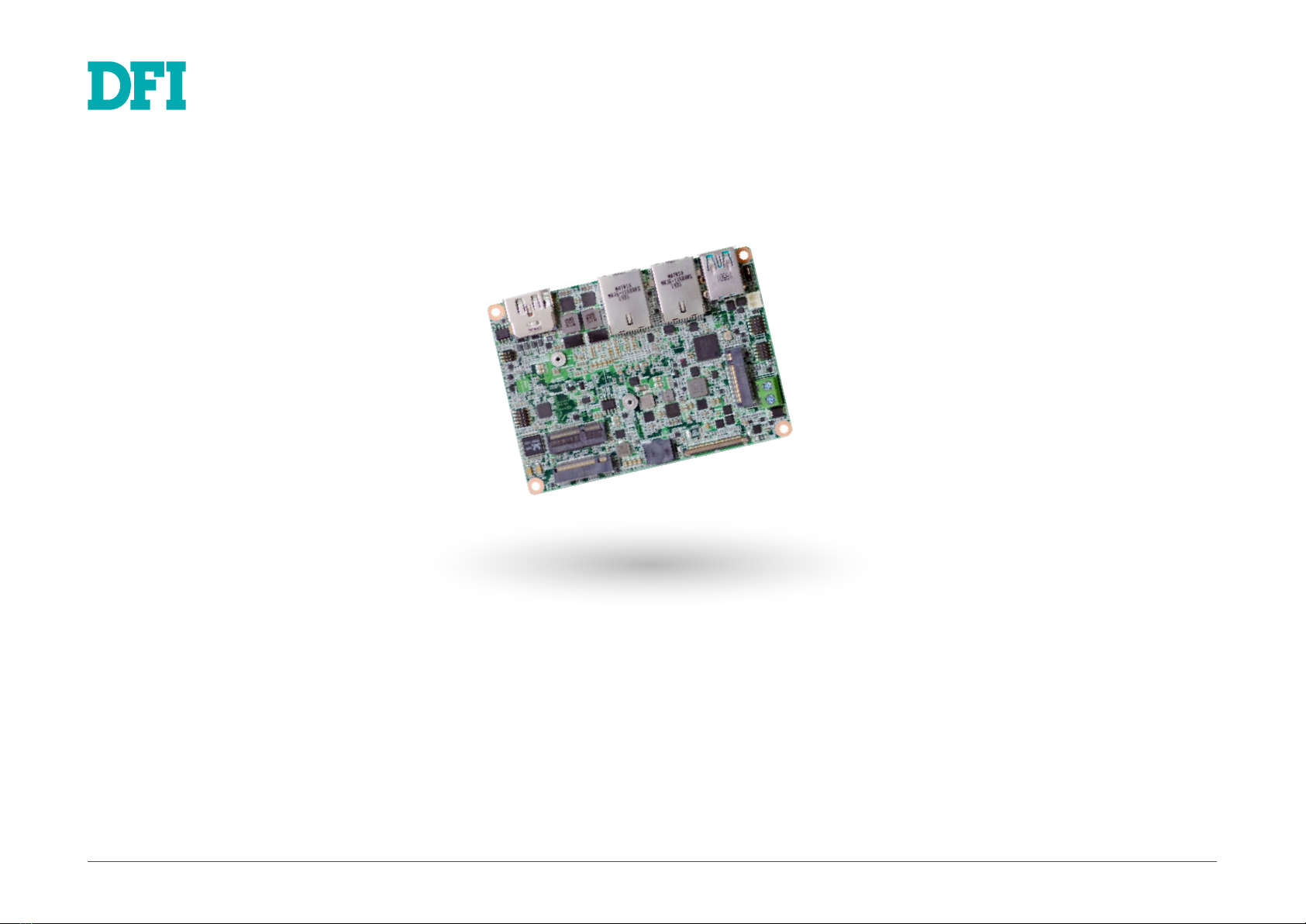

DFI WL051 User manual

WL051
A-598-M-2035
Preliminary
2.5" Pico-ITX Motherboard
User’s Manual

2User's Manual | WL051
Copyright
This publication contains information that is protected by copyright. No part of it may be
reproduced in any form or by any means or used to make any transformation/adaptation
without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes
no representations or warranties with respect to the contents or use of this manual and
specifically disclaims any express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or the results of the use of
this document. Further, the manufacturer reserves the right to revise this publication and make
changes to its contents at any time, without obligation to notify any person or entity of such
revisions or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2020. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3User's Manual | WL051
Table of Contents
Chapter 1 - Introduction................................................................................................................6
Specifications ......................................................................................................................... 6
WL051............................................................................................................................... 6
Features .................................................................................................................................. 7
Chapter 2 - Hardware Installation................................................................................................8

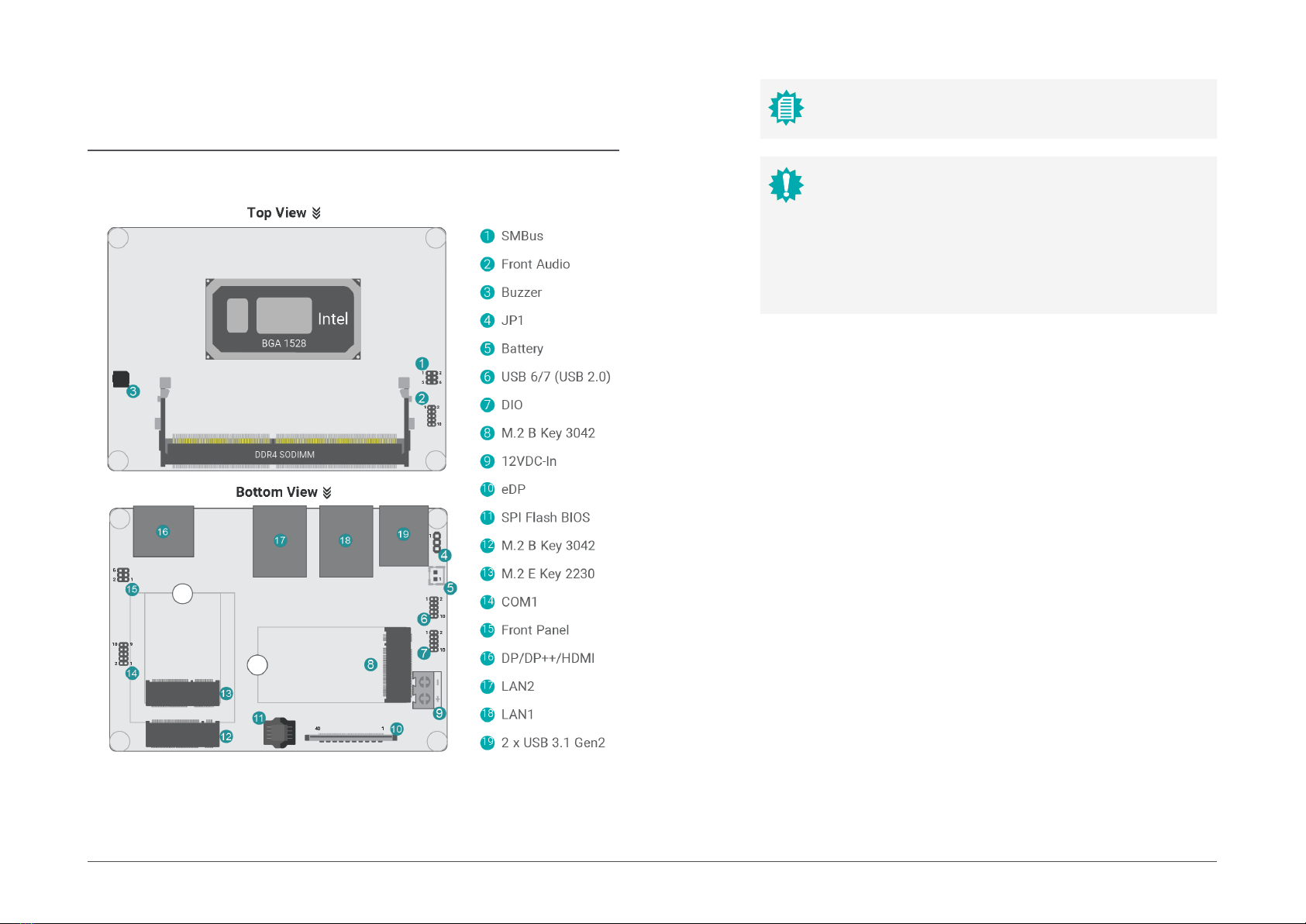

Board Layout........................................................................................................................... 8
System Memory .....................................................................................................................9

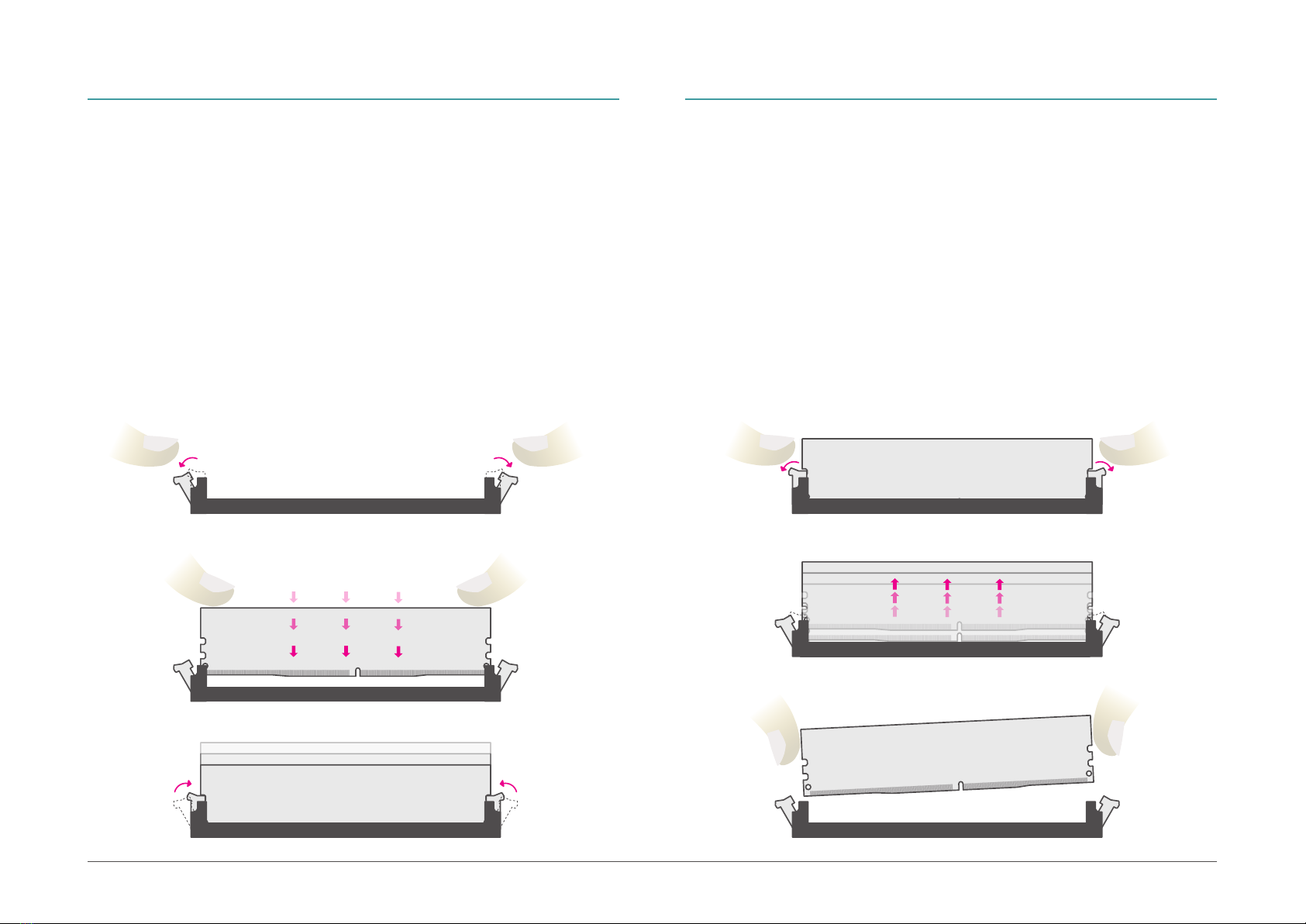

Installing the Memory Module........................................................................................9
Removing the Memory Module ....................................................................................10
Installing the Heat Sink.................................................................................................11
Jumper Settings ...................................................................................................................12
Clear CMOS....................................................................................................................12

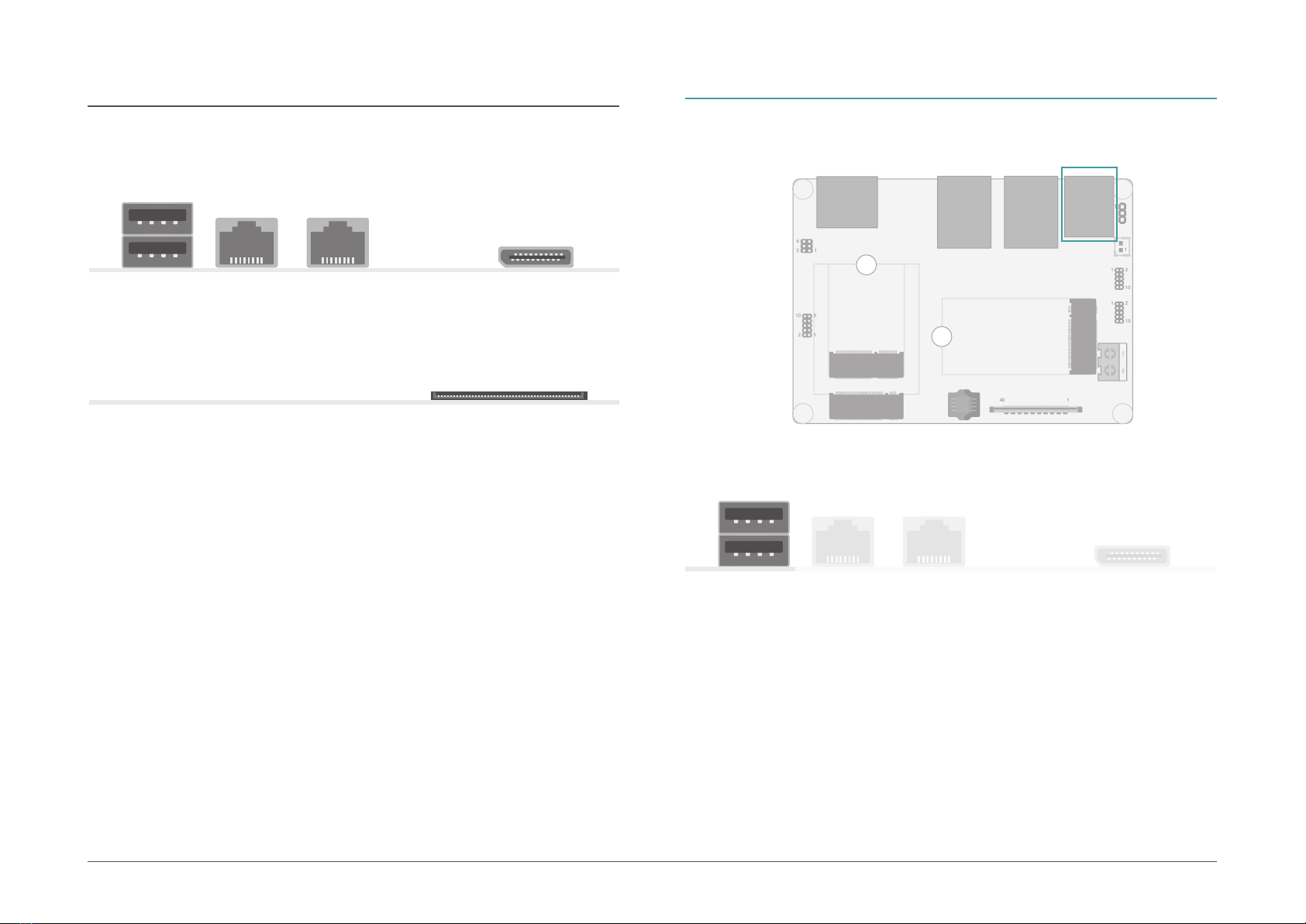

Rear I/O Ports.......................................................................................................................13
USB Ports .......................................................................................................................13
Graphics Display............................................................................................................14
Graphics Display............................................................................................................14
LAN .................................................................................................................................15
Internal I/O Connectors .......................................................................................................16
SMBus ............................................................................................................................16
USB Ports .......................................................................................................................17
Front Audio.....................................................................................................................18
Digital I/O .......................................................................................................................18

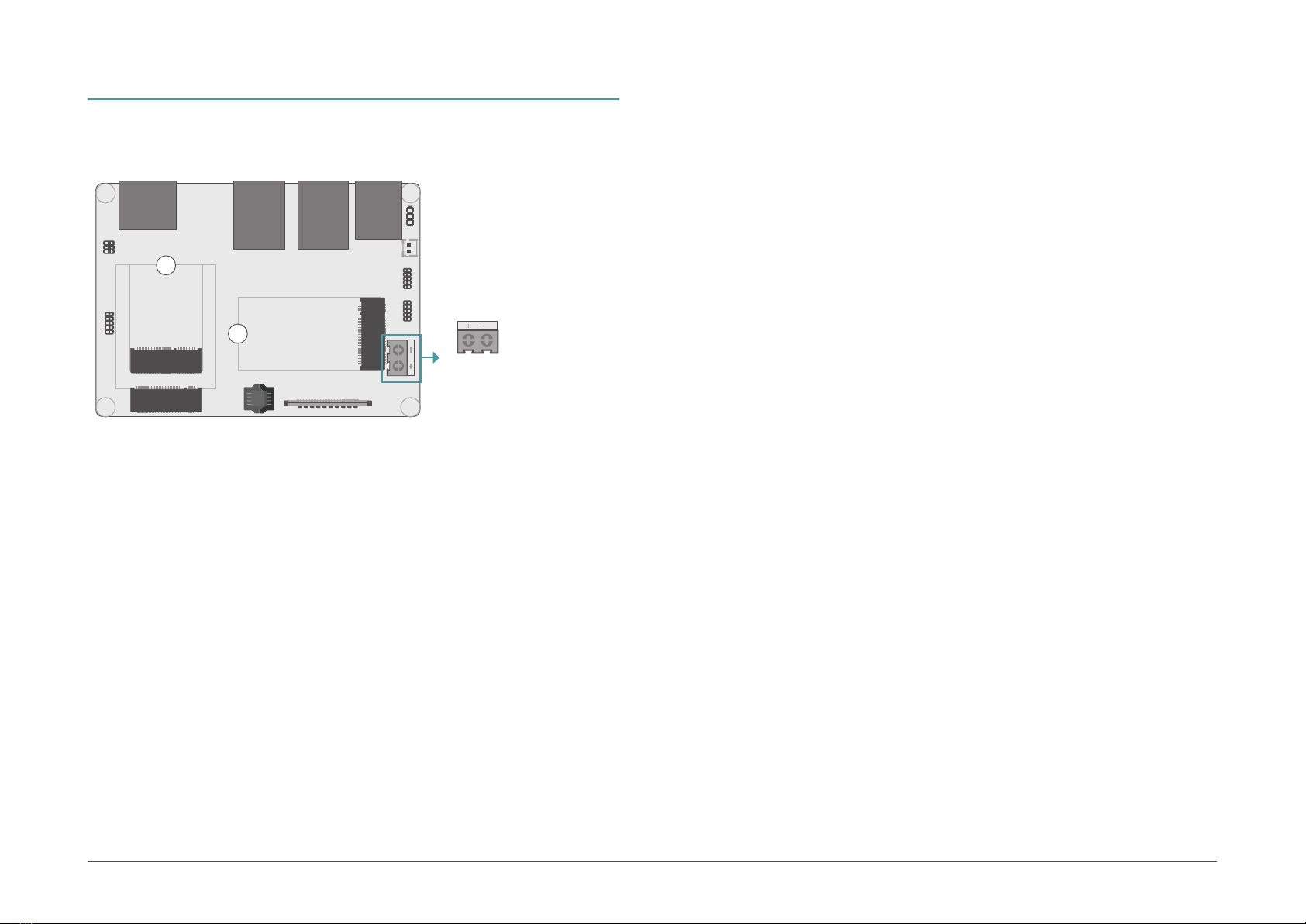

Power Connector...........................................................................................................19
Front Panel.....................................................................................................................20
Battery Header...............................................................................................................21
Chapter 3 - BIOS Settings...........................................................................................................22
Overview ...............................................................................................................................22
Main.......................................................................................................................................23
Advanced .............................................................................................................................23
RC ACPI Configuration..................................................................................................24
CPU Configuration.........................................................................................................24
Power & Performance ...................................................................................................25
PCH-FW Configuration ..................................................................................................25
Trusted Computing........................................................................................................28
NCT5525D Super IO Configuration ..............................................................................28
NCT5525D HW Monitor ................................................................................................29
Serial Port Console Redirection ...................................................................................30
USB Configuration .........................................................................................................31
CSM Configuration ........................................................................................................31
USB Power Control........................................................................................................32
Network Stack Configuration........................................................................................32
Chipset ..................................................................................................................................33
Graphics Configuration .................................................................................................33
PCH-IO Configuration....................................................................................................34
PCI Express Configuration............................................................................................34
SATA And RST Configuration .......................................................................................35
HD Audio Configuration ................................................................................................35
Security .................................................................................................................................36
Secure Boot....................................................................................................................36
Boot .......................................................................................................................................38
Save & Exit ............................................................................................................................38
Updating the BIOS................................................................................................................39
Notice: BIOS SPI ROM..........................................................................................................39
Chapter 4 - Intel AMT Settings...................................................................................................40
Overview ...............................................................................................................................40
Enable Intel®AMT in the AMI BIOS ....................................................................................40
Entering Management Engine BIOS Extension (MEBX)....................................................41
MEBX.....................................................................................................................................42
Main Menu .....................................................................................................................42
Intel(R) ME General Settings ........................................................................................42
Intel(R) Standard Manageability...................................................................................44

4User's Manual | WL051
About this Manual
This manual can be downloaded from the website.
The manual is subject to change and update without notice, and may be based on editions
that do not resemble your actual products. Please visit our website or contact our sales
representatives for the latest editions.
Warranty
1. Warranty does not cover damages or failures that arise from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper
installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any
circumstances, attempt to perform service, adjustments or repairs on the product,
whether in or out of warranty. It must be returned to the purchase point, factory or
authorized service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in
handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components,
contacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a metal part
of the system chassis. If a wrist strap is unavailable, establish and maintain
contact with the system chassis throughout any procedures requiring ESD
protection.
Safety Measures
• To avoid damage to the system, use the correct AC input voltage range.
• To reduce the risk of electric shock, unplug the power cord before removing the
system chassis cover for installation or servicing. After installation or servicing, cover
the system chassis before plugging the power cord.

5User's Manual | WL051
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 WL051 board
• 1 USB 2.0 cable (Length: 200mm, 2 ports) A81-001084-016G
• 1 COM cable (Length: 300mm, 1 port) A81-015038-016G
• 1 Heat sink (Height: 37.8mm) A71-008153-000G
• 1 DIO cable (Length: 160mm) A81-009203-018G
• 1 SMBus cable (Length: 240mm) A81-009353-016G
• 1 Audio cable (Length: 160mm) A81-022013-016G
• 1 DVD 643-WL0511-100G
Note: The items are subject to change in the developing stage.
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance with the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
When installing the system board in a new system, you will need at least the following internal
components.
• Memory module
• Storage device
• Power adaptor
External system peripherals may also be required for navigation and display, including at least
a keyboard, a mouse and a video display monitor.

6
Chapter 1
INTRODUCTION
User's Manual | WL051
Chapter 1 - Introduction
XSpecifications
WL051
SYSTEM Processor 8th Generation Intel® Core™ Processors, BGA 1528
Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W
Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W
Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W
Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz),
15W
Memory One 260-pin SODIMM up to 32GB
Single Channel DDR4 up to 2400MHz
BIOS AMI SPI 128Mbit
GRAPHICS Controller Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
Feature OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265,
VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1 x DP++/HDMI
1 x eDP
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @30Hz
eDP: resolution up to 4096x2304 @ 60Hz
Dual Displays DP++ / HDMI + eDP
EXPANSION Interface 1 x M.2 E key 2230 (PCIe x2/USB 2.0)
2 x M.2 B key 3042/2242 (PCIe x1 or SATA 3.0/USB 3.1 Gen1/USB 2.0)
AUDIO Audio Codec Realtek ALC262-VC2-GR
ETHERNET Controller 1 x Intel® I219V/I219LM (only Core i7/i5 supports iAMT)
1 x Intel® I210IT
REAR I/O Ethernet 2 x GbE (RJ-45)
USB 2 x USB 3.1 Gen 2
Display 1 x DP++ / HDMI
1 x eDP
INTERNAL I/O Serial 1 x RS-232/422/485 (1.27mm pitch)
USB 2 x USB 2.0 (1.27mm pitch)
Display 1 x eDP Connector
Audio 1 x Audio (Line-out/Mic-in)
DIO 1 x 8-bit DIO
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 sec/min
SECURITY TPM fTPM2.0
POWER Type Single 12V +/-10% DC
Connector 2-pin Terminal Block
RTC Battery CR2032 Coin Cell
Consumption TBD
OS SUPPORT
(UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
ENVIRONMENT Temperature Operating: -5 to 65°C, -30 to 80°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF TBD
MECHANICAL Dimensions 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
Height PCB: 1.6mm Top Side: 15mm, Bottom Side: 8mm
CERTIFICATIONS CE, FCC, RoHS

7
Chapter 1
INTRODUCTION
User's Manual | WL051
XFeatures
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so that
your system will continue to operate.
DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
Graphics
The integrated Intel®HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with
outstanding graphics responsiveness. These enhancements deliver the performance and
compatibility needed for today’s and tomorrow’s business applications.
Gigabit LAN
The Gigabit Ethernet Controllers support data transmission at 1Gbps.
Audio
The audio codec provides 5.1 channel High Definition audio output.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power
Management Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power
Interface) specification. ACPI has energy saving features that enables PCs to implement
Power Management and Plug-and-Play with operating systems that support OS Direct Power
Management. ACPI when enabled in the Power Management Setup will allow you to use the
Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows®without having to go
through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating
session will resume exactly where you left off the next time you power-on the system.
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the new USB 3.1 Gen 2. It is capable of running at a maximum
transmission speed of up to 10 Gbit/s (1.2 GB/s) and is faster than USB 3.1 Gen 1 (5 Gbit/s, or
625 MB/s), USB 2.0 (480 Mbit/s, or 60 MB/s) and USB 1.1 (12Mb/s). USB 3.1 reduces the time
required for data transmission, reduces power consumption, and is backward compatible with
USB 2.0. It is a marked improvement in device transfer speeds between your computer and a
wide range of simultaneously accessible external Plug and Play peripherals.
RTC Timer
The Real Time Clock (RTC) installed on the system board allows your system to automatically
power-on on the set date and time.

8
Chapter 2
HARDWARE INSTALLATION
User's Manual | WL051
Chapter 2 - Hardware Installation
XBoard Layout
Note:
Some components are optional and only available upon request.
Important:
Electrostatic discharge (ESD) can damage your board, processor,
disk drives, add-in boards, and other components. Perform
installation procedures at an ESD workstation only. If such a
station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part
of the system chassis. If a wrist strap is unavailable, establish
and maintain contact with the system chassis throughout any
procedures requiring ESD protection.

9
Chapter 2
HARDWARE INSTALLATION
User's Manual | WL051
XSystem Memory
The system board supports the following memory interface.
Before installing the memory module, please make sure that the following safety cautions are
well-attended.
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the socket on the system board
4. Make sure the notch on memory card is aligned to the key on the socket.
Socket Side View
Socket Top View
Memory Module
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1 Step 1
Step 2
Step 3
Socket Side View
Socket Top View
Memory Module
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
XSystem Memory
Installing the Memory Module
DDR4_1

10
Chapter 2
HARDWARE INSTALLATION
User's Manual | WL051
Please follow the steps below to install the memory card into the socket.
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from
the locked position.
Step 2:
Insert the memory card into the slot while making sure the notch and the key are aligned.
Press the card down firmly with fingers while applying and maintaining even pressure on both
ends.
Step 3:
The tabs snap automatically to the edges of the card and lock the card in place.
Socket Side View
Socket Top View
Memory Module
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Socket Side View
Socket Top View
Memory Module
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
XSystem Memory XInstalling the Memory Module
Socket Side View
Socket Top View
Memory Module
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Socket Side View
Socket Top View
Memory Module
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
Please follow the steps below to remove the memory card from the socket.
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from
the locked position.
Step 2:
The memory card ejects from the slot automatically.
Step 3:
Hold the card by its edges and remove it from the slot.
XSystem Memory
Removing the Memory Module
