DFI AD70-SC User manual

AD70-SC
AD70-SR
Rev. A+
System Board Users Manual
Carte Mère Manuel Pour Utilisateur
System-Platine Benut erhandbuch
Manual del Usuario de Placas Base
49310130

Copyright
This publication contains information that is protected by
copyright. No part of it may be reproduced in any form or by
any means or used to make any transformation/adaptation
without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose. The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 001. All Rights Reserved.
Trademarks
Microsoft® MS-DOS®, WindowsTM, Windows® 95, Windows® 98,
Windows® 98 SE, Windows® ME, Windows® 000 and Windows
NT® 4.0 are registered trademarks of Microsoft Corporation.
AMD, AthlonTM and DuronTM are registered trademarks of
Advanced Micro Devices, Inc. VIA is a registered trademark of
VIA Technologies, Inc. Award is a registered trademark of Award
Software, Inc. Other trademarks and registered trademarks of
products appearing in this manual are the properties of their
respective holders.
Caution
To avoid damage to the system:
 Use the correct AC input voltage range.
To reduce the risk of electric shock:
 Unplug the power cord before removing the system chassis
cover for installation or servicing. After installation or servicing,
cover the system chassis before plugging the power cord.

Battery:
 Danger of explosion if battery incorrectly replaced.
 Replace only with the same or equivalent type recommend by
the manufacturer.
 Dispose of used batteries according to the battery
manufacturers instructions.
Joystick or MIDI port:
 Do not use any joystick or MIDI device that requires more than
10A current at 5V DC. There is a risk of fire for devices that
exceed this limit.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
. Shielded interface cables must be used in order to comply with
the emission limits.

4
Quick Setup Guide

Quick Setup
Guide
Table of Contents
Chapter 1
Quick Setup Guide.............................................
Chapter 2
En lish......................................................................
Chapter 3
Français (French).................................................
Chapter 4
Deutsch (German)................................................
Chapter 5
Español (Spanish)..................................................
5
26
46
66
86
Note:
The users manual in the provided CD contains detailed information
about the system board. If, in some cases, some information doesnt
match those shown in this manual, this manual should always be
regarded as the most updated version.

5

Quick Setup Guide
Quick Setup
Guide
Chapter 1 - Quick Setup Guide
Table of Contents
1.1 System Board Layout..................................................................................................
1. Jumpers.....................................................................................................................................
1.3 Ports and Connectors................................................................................................
1.4 Award BIOS Setup Utility.......................................................................................
6
8
1
1
Important:
To ensure proper boot up and operation of your system, you must
power-off the system then turn off the power supplys switch or
unplug the AC power cord prior to altering the setting of a umper
or replacing the CPU.

6
Quick Setup Guide

Quick Setup
Guide

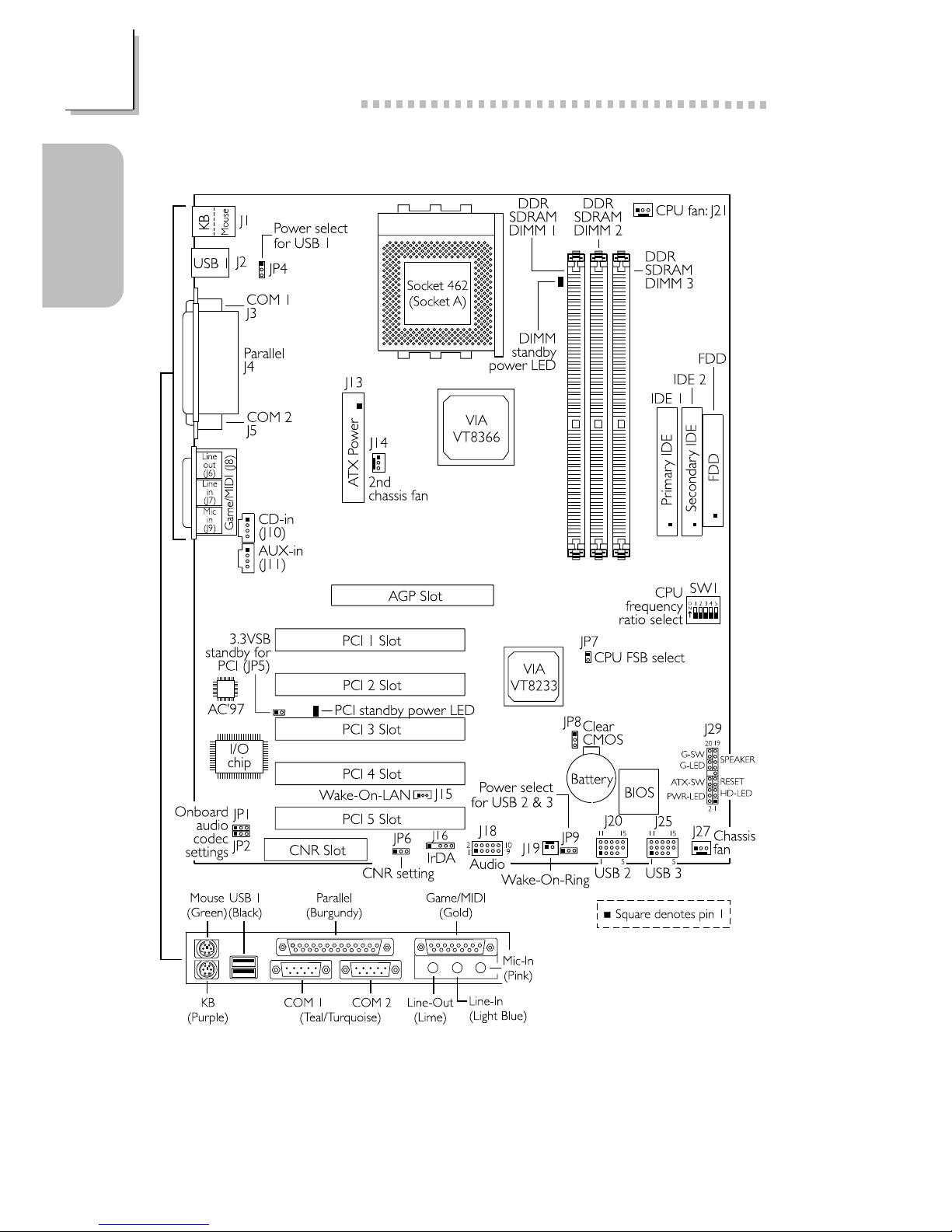

1.1 System Board Layout
AD70-SC
(Supports onboard audio; no RAID)

7

Quick Setup Guide
Quick Setup
Guide
Note:
The illustrations on the following pages are based on the AD70-SC
system board, which is the board that supports onboard audio.
AD70-SR
(Supports RAID; no onboard audio)

8
Quick Setup Guide

Quick Setup
Guide
1.2 Jumpers
1.2.1 CPU Frequency Ratio - SW1
We do not recommend that you
adjust the CPU to a higher
frequency ratio because it may result
to the CPUs or systems instability
and are not guaranteed to provide
better system performance. If you
are unable to boot up the system
with the frequency ratio you selected,
please power off the system and set
SW1 pins 1-5 to Off (Auto).
Ratio
Auto
5x
5.5x
6x
6.5x
7x
7.5x
8x
8.5x
9x
9.5x
10x
10.5x
11x
11.5x
1 x
1 .5x
1
Off
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
On
2
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
3
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
4
Off
Off
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
5
Off
On
On
On
On
Off
Off
Off
Off
Off
Off
Off
Off
On
On
On
On

9

Quick Setup Guide
Quick Setup
Guide
1.2.2 Clear CMOS Data - JP8
1.2.3 Onboard Audio Codec - JP1 and JP2 (AD70-SC)
1- On:
Enable the
Onboard Audio
Codec (default)
-3 On:
Disable the
Onboard Audio
Codec
-3 On:
Clear CMOS Data
1- On:
Normal (default)
If you are not using the onboard audio codec, set pins and 3 to On
(Disabled) and set the VIA-3058 AC97 Audio (VIA OnChip PCI
Device field) in the Integrated Peripherals submenu of the BIOS to
Disabled.
JP1
1
JP
3
JP1
1 3
JP
1
3
1
3

10
Quick Setup Guide

Quick Setup
Guide
1.2.5 Power Select for USB 1 (JP4) and
Power Select for USB 2 and USB 3 (JP9)
-3 On:
5VSB
1- On:
5V (default)
1.2.4 CPUs Front Side Bus - JP7
1
On: 100MHz
( 00MHz DDR) CPU
(default)
Off: 133MHz
( 66MHz DDR) CPU
1
To ensure proper boot up and operation of your system, you must power-
off the system then turn off the power supplys switch or unplug the AC
power cord prior to altering the setting of the jumper.
1 3
1
3
JP4
JP9
13
1
3
JP4
JP9

11

Quick Setup Guide
Quick Setup
Guide
1.2.6 CNR Settin s - JP6 (AD70-SC)
-3 On:
Secondary
1- On:
Primary (default)
1 3
1 3
1.2.7 RAID Settin s - JP10 (AD70-SR)
3 1
3 1
1- On:
Disable the
RAID function
-3 On:
Enable the
RAID function
(default)

1
Quick Setup Guide

Quick Setup
Guide
1.3 Ports and Connectors

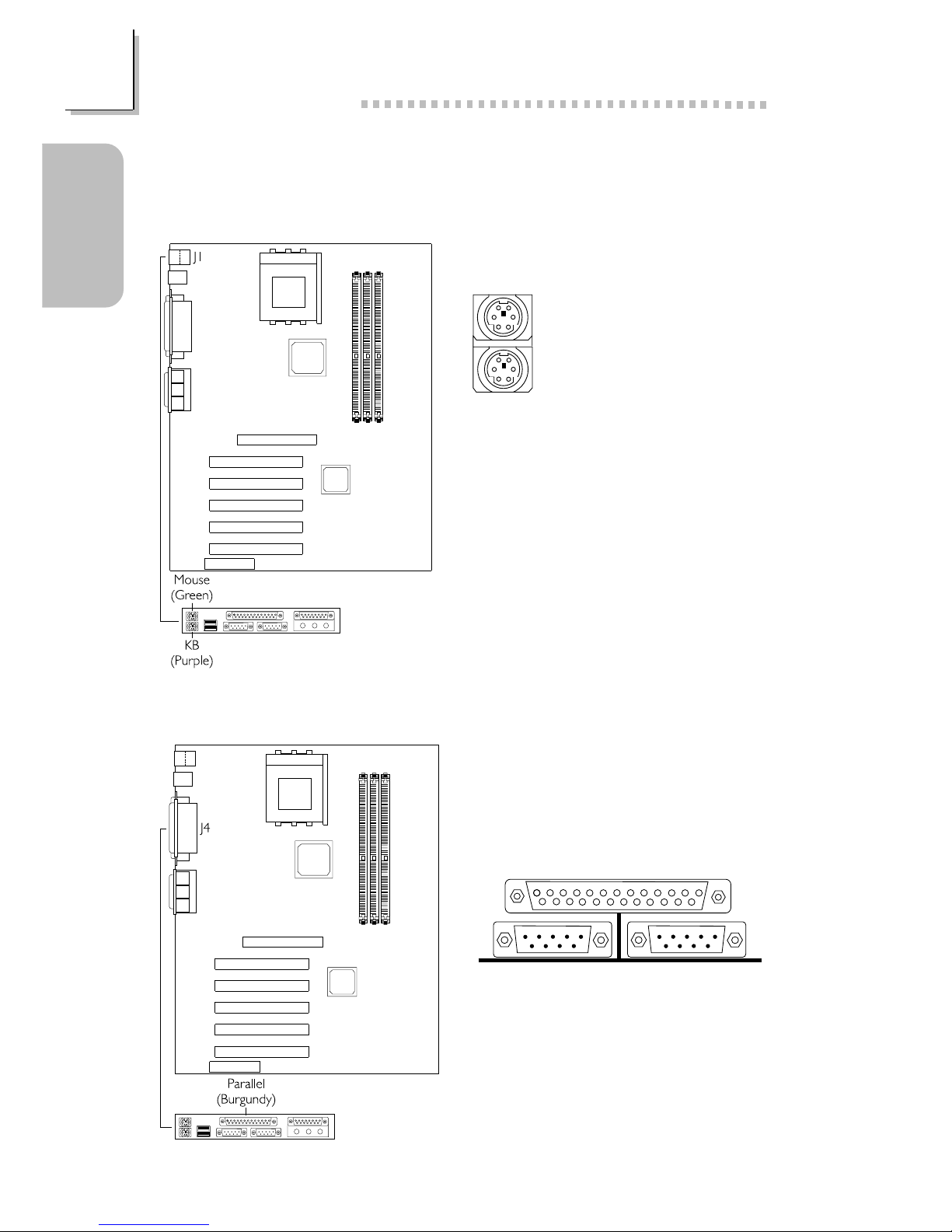

1.31 PS/2 Mouse and PS/2 Keyboard Ports
Make sure to turn off your
computer prior to connecting or
disconnecting a mouse or keyboard.
Failure to do so may damage the
system board.
PS/ Mouse
PS/ Keyboard
1.3.2 Parallel Port
Parallel Port

13

Quick Setup Guide
Quick Setup
Guide
1.3.3 Universal Serial Bus Ports
1.3.4 Serial Ports
COM 1
Serial Port COM
Serial Port
1 VCC
UP -
3 UP +
4 Ground
5 Key
6 VCC
7 UP3-
8 UP3+
9 Ground
10 Ground
11 Ground
1 Ground
13 UP +
14 UP -
15 VCC
Onboard USB Ports (USB 1)
Additional USB Ports (USB 2 / 3)

14
Quick Setup Guide

Quick Setup
Guide
1.3.5 Game/MIDI Port and Audio Jacks (AD70-SC)
1.3.6 Internal Audio Connectors (AD70-SC)
Game/MIDI Port
Audio Jacks
Line-out
Line-in
Mic-in
Additional Line-out/Mic-in (J18)
1Mic+
Ground
3 Mic Power
4 AuD_Vcc (Avcc)
5 AuD_R-Out
6 AuD_R_Return (GND)
7N. C.
8 Key
9 AuD_L_Out
10 AuD_L_Return (GND)
1 Left audio channel
Ground
3 Ground
4 Right audio channel
AUX-in / CD-in
Onboard Game/MIDI / Audio

15

Quick Setup Guide
Quick Setup
Guide
1.3.8 Floppy and IDE Disk Drive Connectors
If you encountered problems while using an ATAPI CD-ROM drive that is
set in Master mode, please set the CD-ROM drive to Slave mode. Some
ATAPI CD-ROMs may not be recognized and cannot be used if
incorrectly set in Master mode.
FDD
IDE
1.3.7 IrDA Connector
1 VCC
N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the pin functions on
some IrDA cable may be reversed
from the pin function defined on the
system board. Make sure to connect
the cable to the IrDA connector
according to their pin functions.

16
Quick Setup Guide

Quick Setup
Guide
1.3.9 RAID IDE Disk Drive Connectors (AD70-SR)
Only connect IDE hard drives to the RAID IDE connectors.
PCI slot 3 and RAID IDE use the same IRQ. If you are using add-in cards
such as PCI audio card, please do not install it into PCI slot 3.
By default, the Promise RAID controller is enabled. If you are not using this
function, set the Promise RAID Control field (Advanced BIOS Features)
to Disabled. The IRQ previously occupied by the controller will be available
for other devices.

17

Quick Setup Guide
Quick Setup
Guide

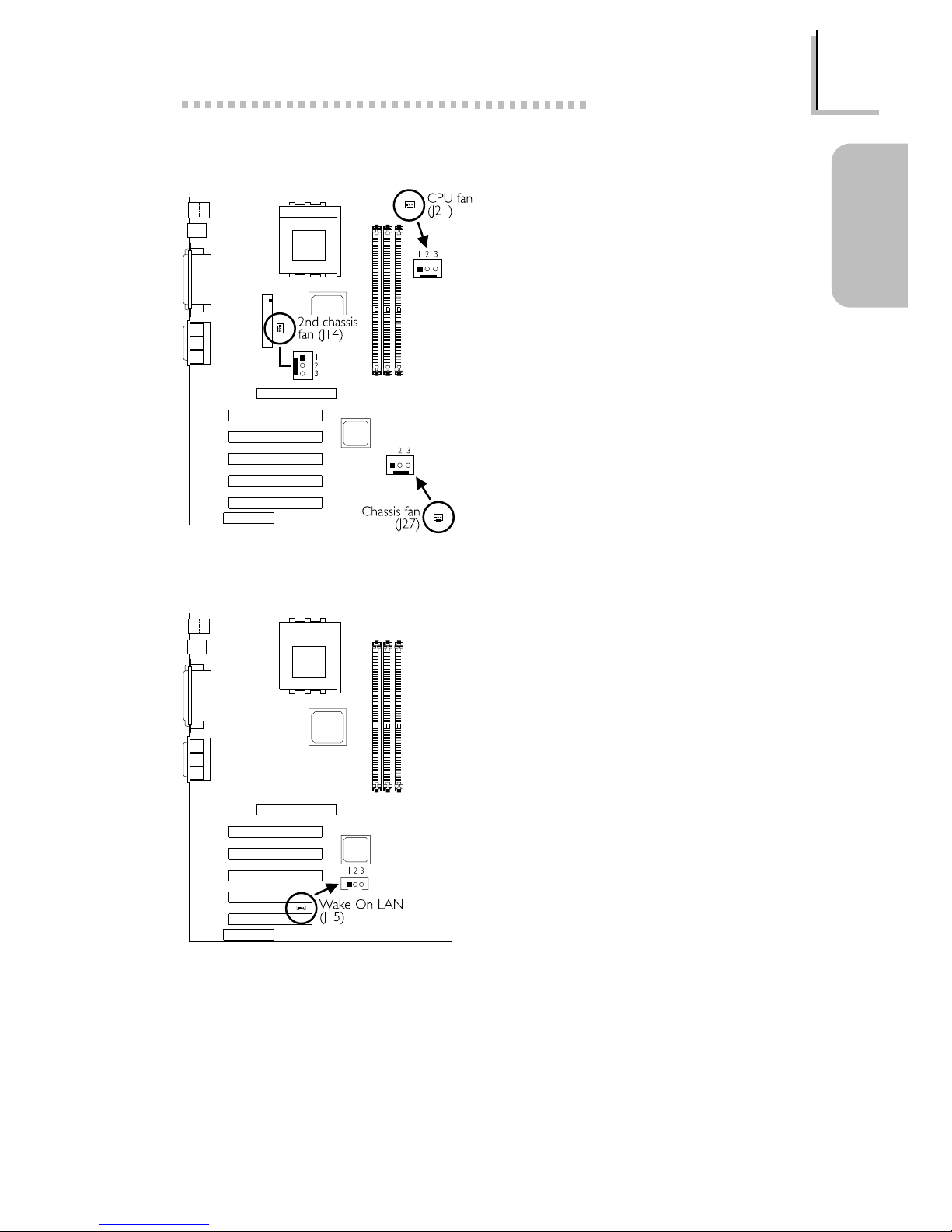

1.3.11 Wake-On-LAN Connector
The 5VSB power source of your
power supply must support
≥7 0mA.
1 +5VSB
Ground
3 WOL
1.3.10 Fan Connectors
1On
+1 V
3 Sense
1 On/Off
+1 V
3 Sense
1 Ground
+1 V
3N. C.
CPU Fan
Chassis Fan
Second Chassis Fan

18
Quick Setup Guide

Quick Setup
Guide
1.3.13 Power Connector
1 3.3V
3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW-OK
9 5VSB
10 +1 V
11 3.3V
1 -1 V
13 Ground
14 PS-ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
0 +5V
The system board requires a minimum of 300W electric current.




1.3.12 Wake-On-Rin Connector
1 Ground
RI#
If you are using a modem add-in
card, the 5VSB power source of
your power supply must support
≥7 0mA.

19

Quick Setup Guide
Quick Setup
Guide
1.3.14 DIMM and PCI Standby Power LEDs
DIMM Standby Power LED
This LED will turn red when the systems power is on or when it is in the
Suspend state (Power On Suspend or Suspend to RAM). It will not light
when the system is in the Soft-Off state.
PCI Standby Power LED
This LED will turn red when the system is in the power-on, Soft-Off or
Suspend (Power On Suspend or Suspend to RAM) state.
Important:
Lighted LEDs serve as a reminder that you must power-off the
system then turn off the power supplys switch or unplug the power
cord prior to installing any memory modules or add-in cards.
3.3VSB Standby for PCI - Jumper JP5
On: Default
3.3VSB Standby Power to
PCI slots - PCI . spec.
Off:
Non-PCI . spec.
11

0
Quick Setup Guide

Quick Setup
Guide
1.3.15 Front Panel Connectors
Pin
3
5
14
16
8
10
18
0
7
9
13
15
17
19
4
6
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
ATX-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
PWR-LED
(Power/Standby LED)
Pin Assi nment
HDD LED Power
HDD
Green LED Power
Ground
PWRBT+
PWRBT-
Ground
SMI
Ground
H/W Reset
Speaker Data
N. C.
Ground
Speaker Power
LED Power (+)
LED Power (+)
LED Power (-) or Standby Signal
