panel PC PSR108-FM Series User manual

www.panel.it 1
1
Panel PC PSR108-FM series
Celeron J1900
Resistive touchscreen
User’s manual
Version 1.1
All information contained in this manual, including all photographs, illustrations and software, is protected under international copyright laws, with all
rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written
consent from Panel S.r.l. The information contained herein is believed to be accurate as of the date of publication; however, Panel S.r.l, makes no
warranty, ex- pressed or implied, with regard to the products or documentation contained within this manual. Panel S.r.l. reserves the right to change
the contents of this manual without notice. Panel shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the
use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed. Soft- ware names, hardware names and trademarks are registered by their
respective companies.

www.panel.it 2
2
Chapter 1: Preface
1.1 Safety rules................................................................................................................4
1.2 Product checking...................................................................................................4
1.3 Package content....................................................................................................5
1.4 Declaration of conformity..................................................................................5
1.5 Warranty and RMA................................................................................................6
1.6 Technical support and assistance................................................................6
Chapter 2: Technical data
2.1 Introduction..............................................................................................................7
2.2 Products specifications.....................................................................................7
2.3 Bespoke front graphic customization........................................................7
2.4 Touchscreen specifications............................................................................8
2.5 Mechanical dimensions.....................................................................................9
2.6 Mechanical cut-out..............................................................................................10
2.7 Chemicals and solvents resistance..............................................................11
Chapter 3: Installation and wiring
3.1 Mounting distance................................................................................................13
3.2 Inclined mounting..................................................................................................13
3.3 Fasten PSR108.......................................................................................................14
3.4 Connecting DC power.......................................................................................15

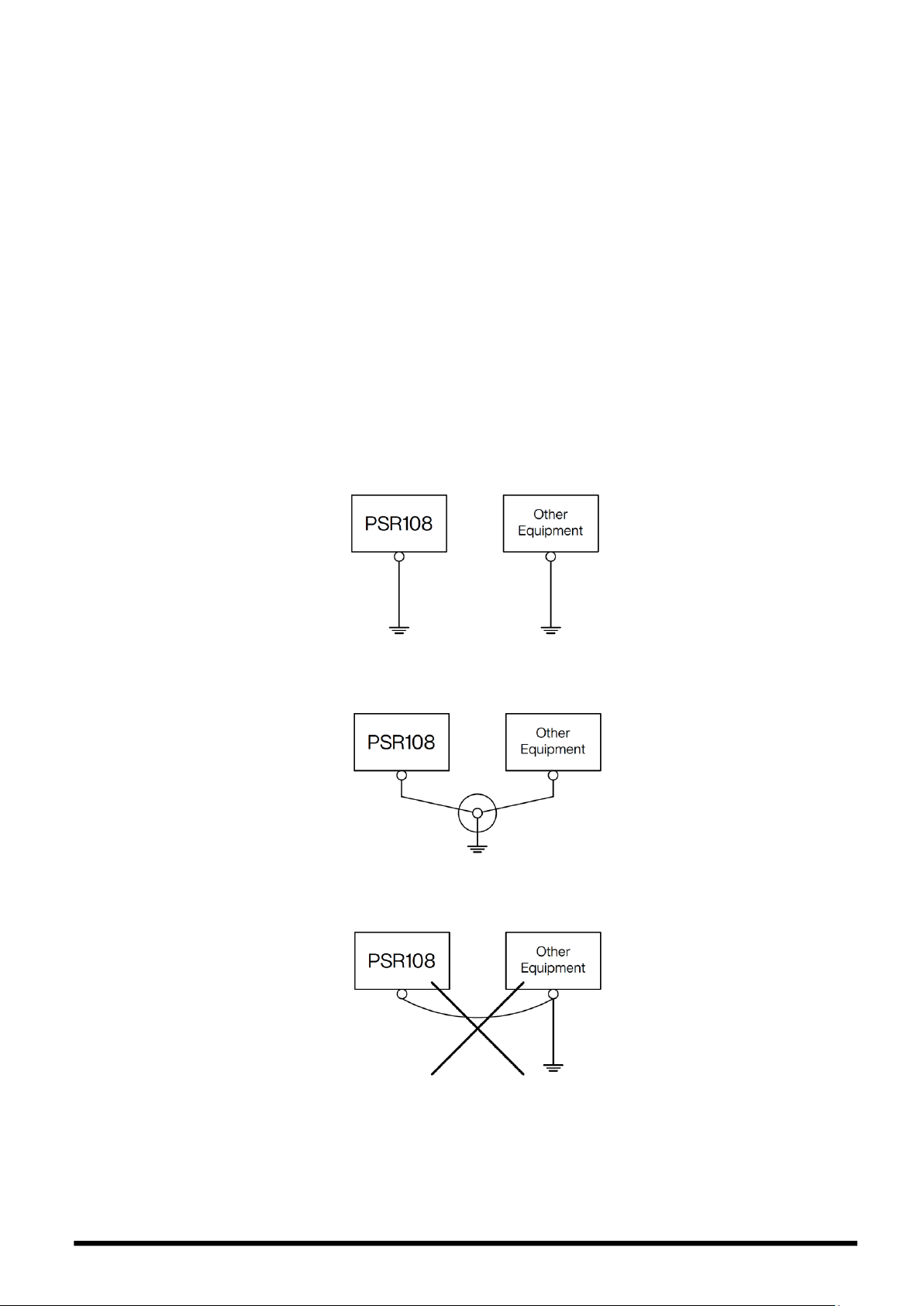

3.5 Functional ground ................................................................................................16
Chapter 4: Hardware upgrade

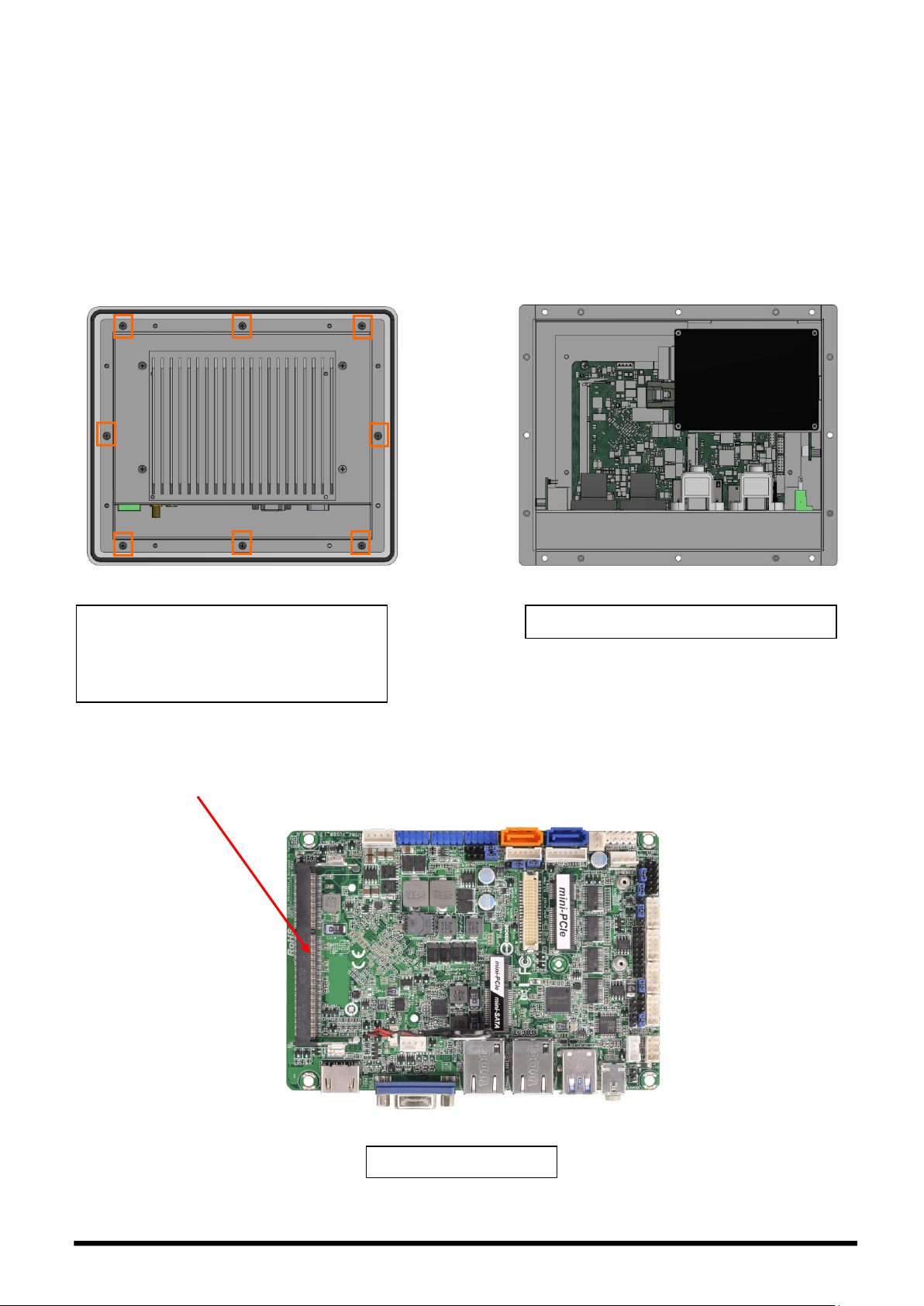

4.1 Removing the rear cover…………………………………………………………………. 17

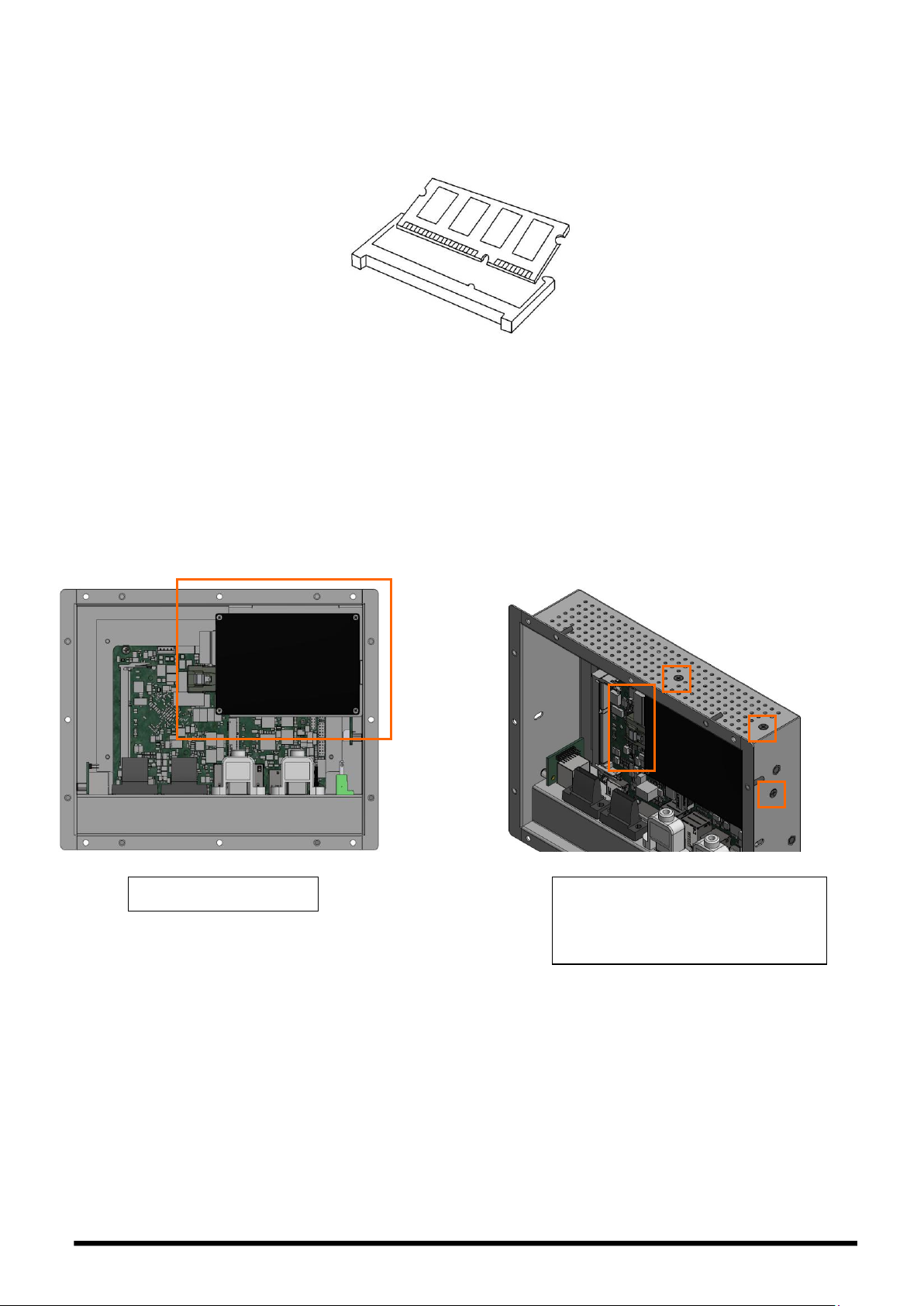

4.2 RAM installation.....................................................................................................17
4.3 HDD-SSD installation..........................................................................................18
4.4 Mini PCI-E and mSATA module installation............................................19

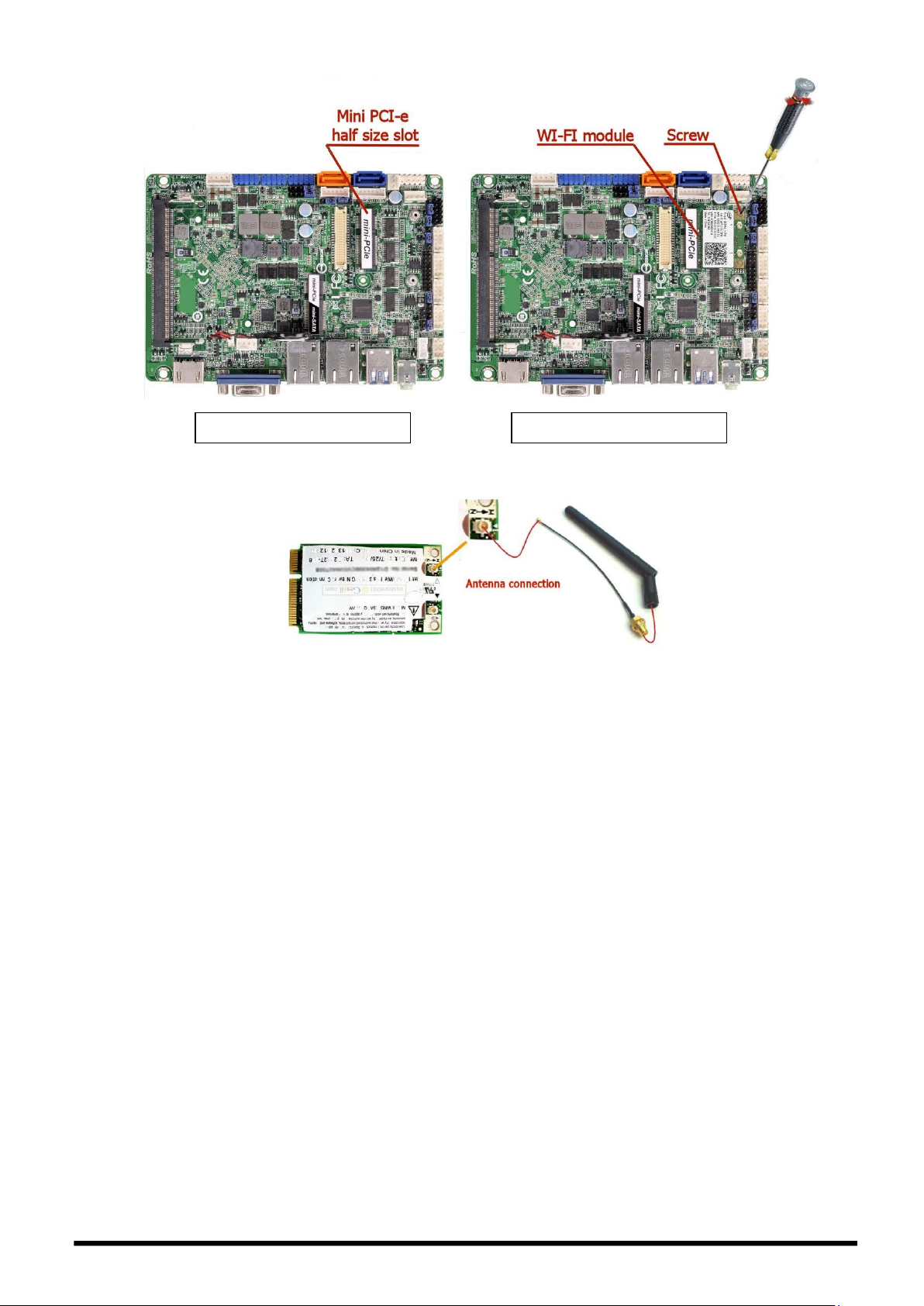

4.5 WI-FI module installation...................................................................................20
Chapter 5: Jumpers and connectors
5.1 Motherboard layout…………………………………………………………………………. 21
5.2 PSR108 I/O connectors.....................................................................................23
5.3 Motherboard jumpers setup...........................................................................24

www.panel.it 3
3
Chapter 6: System setup
6.1 Installing operating system............................................................................. 25
6.2 Bios setup..................................................................................................................25
6.3 Touchscreen driver and calibration............................................................25
Chapter 7: Maintenance
7.1 Cleaning......................................................................................................................26
7.2 Lithium battery........................................................................................................26
7.3 Spare parts...............................................................................................................26

www.panel.it 4
4
Chapter 1: Preface
1.1 Safety rules
All the Panel PC PSR108 series have been designed and built taking into account all the issues associated with an
industrial environment such as that where it is necessary to ensure the operation of the system in the presence of
vibration, moisture, dust and critical heat conditions.
Only skilled staff must make any job on the device, only after having fully read and understood the safety instructions.
Before installing and using the device, note the following precautions:
-Read all instructions carefully.
-Do not place the unit on an unstable surface, cart, or stand.
-Avoid using the system near water, in direct sunlight, or near a heating device.
-To prevent electrical shock or equipment damage, unplug the power cord from the power supply prior to
installing or wiring the PC.
-Do not disassemble or modify the Panel PC. Doing so may cause a fire or an electric shock.
All tasks such as the installation, commissioning and servicing of devices are only permitted to be carried out by
qualified personnel. Qualified personnel are those familiar with the transport, mounting, installation,
commissioning and operation of devices who also have the appropriate qualifications. National accident
prevention regulations must be observed.
1.2 Product checking
Preliminary operations to be made as soon as you receive the PANEL product:
-Check if the packing hasn’t undergone any damage due to transport.
-Verify if the packing contents correspond to the delivery note.

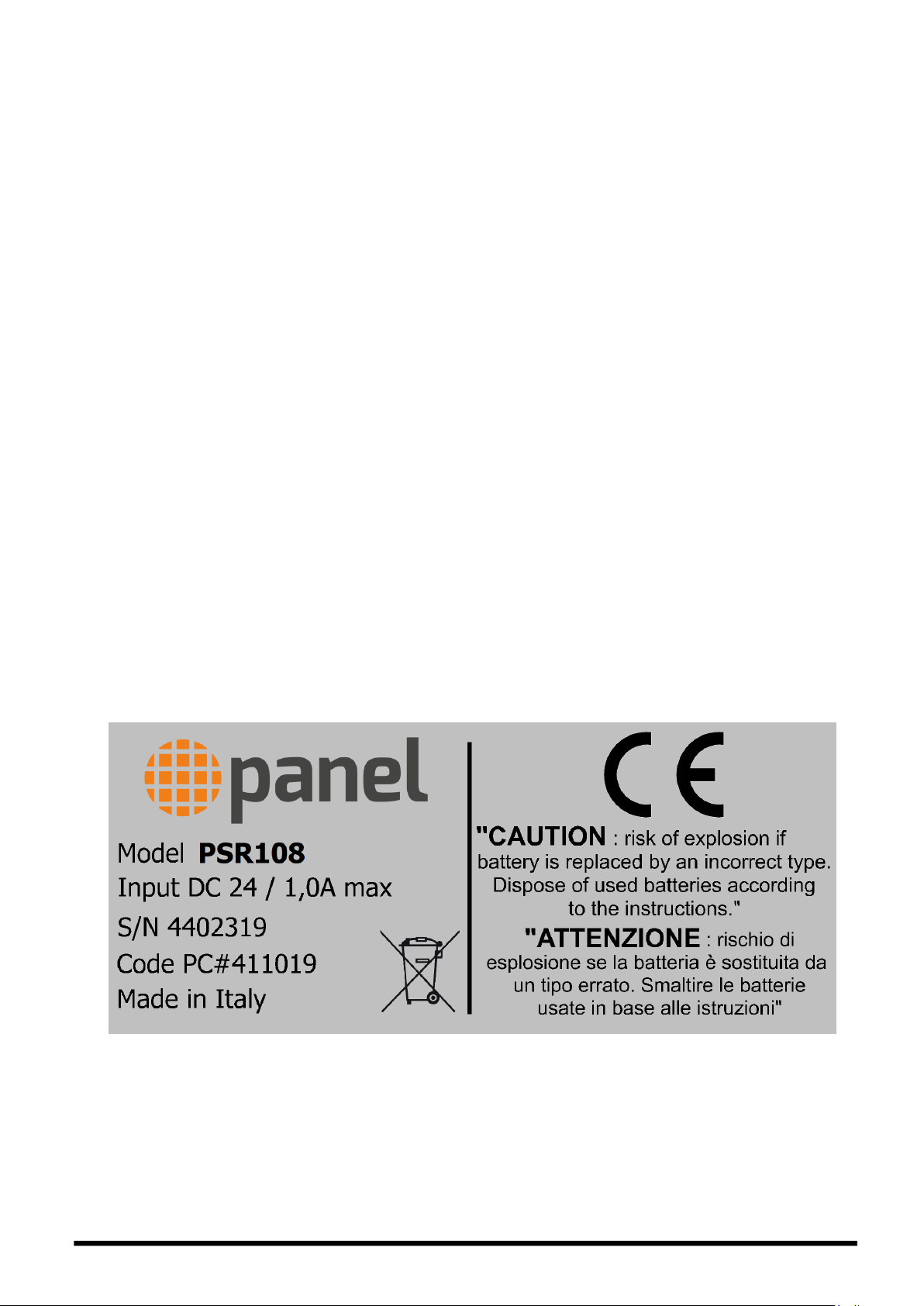

The product model, code and serial number are shown on the identification plate which is positioned on the rear.
If serious damages or inconsistency are found between the packing contents and the delivery note, please contact the
PANEL SRL sales department immediately.
It’s advisable to keep the original packing in order to use it for possible transports back in assistance.

www.panel.it 5
5
1.3 Package contents
The following items are included in the PSR108 unit’s package. Before using the PSR108, please check all the items
match the manual list.
1.4 Declaration of conformity
CE Mark, product complies with all applicable directives and their harmonized EN standards.
Doc. Int. Panel: 29102014
The products herewith complies to the requirements of:
-Low voltage directive 2006/95/EC
-EMC Directive 2004/108/EC
-RoHS Directive 2011/65/EU
-Carries marking
-EMC: EN 55022:2010 Class B
-EMC: EN 55024:2010 Class B
-LVD: EN 60950-1:2006+A11:2009+A1:2010+A12:2011
-LVD: EN 62311:2008
-LVD: EN 62479:2010
-RoHS EN 50581:2012
-Energy Use: Regulation (EC) no. 617/2013
-Energy Use: Regulation (EC) EN 62623:2013
PSR108 DC power supply
Qty 1 Panel PC
Qty 1 Quick guide
Qty 1 Connector DC supply

www.panel.it 6
6
1.5 Warranty and RMA
Panel manufactures new products that are in accordance with industry standard. Panel warrants that products will be
free from defect in material and workmanship for 2 years, beginning on the date of invoice by Panel.
PANEL will engage to repair or eventually replace, at its discretion, the whole device or its components, which show
construction defects or malfunction if these are pointed out in writing during the warranty period.
The warranty is limited to the repairing of the defective product at our headquarters or, according to PANEL
indisputable judgment, to the replacement of the product itself.
The product under warranty must reach our headquarters equipped with the indication of the anomaly found and with
the relevant authorization number (RMA form). PANEL, doesn’t carry out any repair of products if this has not been
previously authorized by the company itself.
The transport charges must be borne by the customer.
Customers must collect all the information about the problems encountered and note anything abnormal or, print out
any on-screen messages, and describe the problems at Panel RMA Service. Contact Panel service at: [e-mail]
1.6 Technical Support and Assistance
About technical support and assistance, visit Panel’s website at www.panel.it

www.panel.it 7
7
Chapter 2: Technical data
2.1 Introduction
Panel PC fanless extremely compact. The PSR108-FM is provided with Intel®Bay Trail Celeron Quad Core 2.0 GHz
CPU.
The aluminium anodized IP66 front panel is supplied with 5 wire resistive touch screen.
2.2 Products specifications
Models
PSR108
Technology construction
Standard
Display size
8.0"
Resolution
800x600
Brightness
250 cd/m²
Contrast
500:1
Max colors
262.000
Touchscreen
5 wire resistive
FM board
Chipset
Intel® Bay trail
CPU
Celeron Quad Core J1900 2.0 GHz
RAM
up to 8GB DDR3L DDR3L sodimm 1600 MHz
I/O ports
1x VGA, 2x Gigabit LAN, 1x HDMI
1x RS232, 1xRS232/422/485, 2x USB 2.0, 2x USB 3.0, 1x Line out
Expansions
1x Mini PCI-E fullsize 1x Mini PCI-E half size
Storage
C-Fast cards
-----
SSD
32, 64, 128, 256 GB size: 2.5”
Operating System
Windows 7 SP1, 7 Embedded Standard, 10 Enterprise LTSB 2016, 10 Enterprise LTSC 2019, 10 PRO, Linux
Mounting
Panel mounting
Protection grade
IP 66 (frontal)
Dimensions (WxHxD) mm
300x245x92
Weight
3,5 Kg
Rated input voltage
24 VDC
Input voltage limits
9…..36 VDC
Typical Power
27 W
Operating Temperature
0° ÷ 50 °C
Cooling Type
Fanless
Conformity
CE
2.3 Bespoke front graphics customization
Optional, provided on request

www.panel.it 8
8
2.4 Touchscreen specifications
Scope: The specification is for Five-Wire Analog Resistive touch panel.
Features
Type: Five-Wire Analog Resistive
Input Mode: Stylus or Finger
Environmental Characteristics
Operation temperature: -10 °C ~ +70 °C; Humidity 20% RH ~ 80% RH Non Condensing
Storage temperature: -40 °C ~ +80 °C; Humidity 10% RH ~ 85% RH Non Condensing
Optical Characteristics
Transparency: 80% ± 3% (Measured by BYK-Gardner)
Haze: 8% ± 3%
Electrical Characteristics
Loop resistance: X: 20 ~ 500Ω, Y: 20 ~ 500Ω
Linearity: X ≦1.5%, Y ≦1.5%
Chattering: ≦15ms
Insulation: ≧20 MΩ/25V (DC)
Endurance: No acting damage at DC 50V/60 sec.
Mechanical Characteristics
Operating force specifications: Stylus = R0.8; Condition: ≦50g
Impact: 3.0 mm DIA. Steel Ball / 9g, Height=30 cm
Static Load: 500g within 10cm2area for 30 sec
Hardness: 3H pencil, pressure 1N/45°
Speeling: 800g/cm by vertical 90°
Reliability
High temperature / Humidity: 70°C / 90% RH, 500 hrs, normal environment for 4 hrs
High temperature: 70°C / 500 hrs allow panel stays in normal environment for 4 hrs
Low temperature: -40°C / 500 hrs allow panel stays in normal environment for 4 hrs
Thermal Cycle: -40°C ~ 70℃[60 min./cycle] *100 cycles normal environment for 4 hrs
Durability
Knock Test: 35,000,000 times
5-Wire USB Touch Panel Controller
Power Requirements: DC +5V (100mA typical, 50mV peak to peak maximum ripple and noise)
Operating Temperature: -25 to 85 ℃
Storage Temperature: -25 to 85 ℃
Relative Humidity: 95% at 60 ℃, RH Non-condensing
Interface: USB: 1.1 Full Speed
Resolution: 2048×2048 resolution
Report rate: USB: Max. 200 points/sec
Response time: Max. 20 ms
MTBF: 200,000 hrs

www.panel.it 9
9
2.5 Mechanical dimensions
PSR108 display units with retaining clips
All dimensions are specified in mm
Display size
Model
A
B
C
D
E
F
G
H
I
L
M
8.0”single touch resistive
PSR108
240
200
5
10
200
220
64
10
133
180
27

www.panel.it 10
10

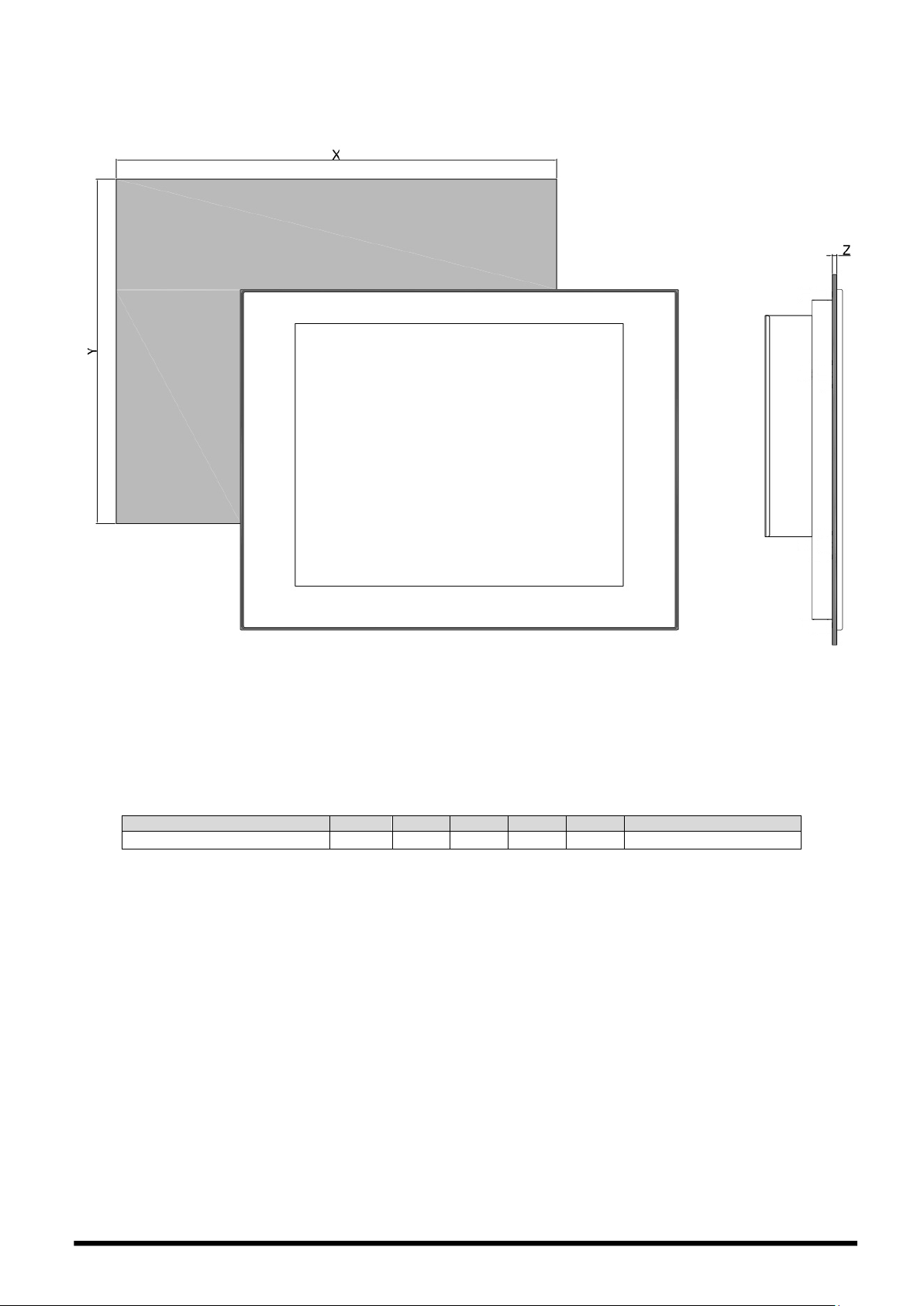

2.6 Mechanical cut-out
All dimensions are specified in mm
The cut-out tolerance values are +1 mm / -1 mm
Display size
Model
X
Y
Zmin
Zmax
Number of retaining clips
8.0”single touch resistive
PSR108
223
183
2
6
----

www.panel.it 11
11
2.7 Chemical and solvent resistance
Aluminum panel overlay
The panel overlay withstands 24 hours exposure to the following reagents at 50 °C without visible staining
The panel overlay is not resistant to the following chemicals:
Concentrated mineral acids
Concentrated caustic solution
High pressure steam at over 100 °C
Benzyl alcohol
Methylene chloride
1.1.1. Trichloroethane
Aliphatic hydrocarbons
Benzene
Cyclohexanol
Diethyl ether
Ethanol
Acetaldeyde
Acetone
Acetic acid <50%
Battery acid
Diacetone Alcohol
Dioxan
DS2 Decontamination fluid
Fabric conditioner
Acetonitrile
Alkalicarbonate
Ammonia <40%
Bichromate
Blown castor oil
Ethylacetate
Fluorochlorohydrocarbons
Glycerine
Glycol
Isopropanol
Methanol
Ferric chloride <30%
Formic acid <50%
Hydrochloric acid <10%
Hydrogen peroxide <25%
Isophorone
Lactic acid
Methylethylketone
Nitric acid <10%
Linseed oil
Paraffin oil
Petrol
Potassium
Ferrocyanide/ferricyanide
Silicone oil
Perchloroethylene
Toluene
Triacetin
Trichloroethylene
Xylene
Phosphoric acid <30%
Potassium carbonate
Sodium hypochlorite <20%
Sulphuric acid <10%
Washing powders
Water
Sea water
Cutting oil (Hysol X)
Diesel oil
Turpentine substitute
Universal brake fluid
Caustic soda <2%

www.panel.it 12
12
Resistive touchscreen overlay
The touch screen is resistant to exposure to the following chemicals with no visible signs of damage based on the
below dipping times
Chemicals
Conc. (%)
Dipping Time (H)
Ammonia
2.0
1
Caustic Soda
5.0
0.5
Hydrochloric Acid
2.5
10
Nitric Acid
2.5
1
Sulfuric Acid
5.0
2
Acetic Acid
10.0
10
Ethanol
50.0
10
Methanol
50.0
10
Gasoline
100.0
10
Kerosene
100.0
10
Acetone
100.0
1
Toluene
100.0
1
Solution of salt
3.0
10
Boil Water
100.0
0.25
Detergent (Kao Mypet)
as it is
10
Artificial Perspiration
(JIS K6772)
100.0
10
Optional graphic customization
The graphic painted customization is not resistant to the following chemicals:
Concentrated mineral acids
Concentrated caustic solution
High pressure steam at over 100 °C
Benzyl alcohol
Methylene chloride

www.panel.it 13
13
Chapter 3: Installation and wiring
3.1 Mounting distance
For easier maintenance, operation, and improved ventilation, be sure to install the PSR108 away from adjacent
structures and other equipment. See the following drawings. Be sure that the ambient operation temperature and the
ambient humidity are within their designated ranges.
All dimensions are specified in mm
3.2 Inclined mounting
When installing the PSR108 in a slanted panel, the panel face should not incline more than 30°
30°
When installing the PSR108 in a slanted panel, and the panel face inclines more than 30°, the surrounding air
temperature must not exceed 40°C. You may need to use forced air cooling (fan, A/C) to ensure the surrounding air
temperature is 40°C or below.

www.panel.it 14
14
3.3 Fasten PSR108
Insert the PSR108 into the panel cut. When inserted, fix the Panel PC as shown:
(1) Turn the clamping levers to the right side through 90°.
(2) Tighten the screws without forcing the clamping to avoid the panel bending.
The torque required to tighten these screws is 0.3 Nm.

www.panel.it 15
15
3.4 Connecting DC power
Warning!
All supplied power must be disconnected before removing device covers or components or installing/removing
accessories, hardware or cables.
The power cable must be disconnected from the device and from the voltage supply.
Verify the correct rated input 24 VDC, input voltage limits 9…..36 VDC.
The DC power cable must be secured in the terminal block (power connector) as shown in the image. Wires with a
cross section of 0.75 mm2to 2.5 mm2.

www.panel.it 16
16
3.5 Functional ground
Grounding concept Functional ground is a current path of low impedance between electrical circuits and ground. It is
used, for example, to improve immunity to disturbances and not necessarily as a protective measure. It therefore
serves only to deflect disturbances, not to provide any kind of protection against electric shock.
This device comes equipped with two functional ground connections:
-Power supply
-Ground connection
To guarantee safe conductance of electric disturbances, the following points must be observed:
The device must be connected to the central grounding point in the control cabinet using the shortest route possible.
A cable with a minimum cross section of 2.5 mm² per connection should be used.
All data cables connected to the device must be shielded.
For between the line and ground, select a power supply that is low in noise. If there is an excess amount of noise,
connect an insulating transformer.
To increase the noise resistance quality of the power cord, simply twist each power wire before attaching the ring
terminal. To avoid excess noise, make the power cord as short as possible.
This section describes the precautions for grounding the PSR108 unit:
1) Exclusive grounding (BEST)
2) Exclusive grounding (OK)
3) Common grounding (NOT OK)
Important!
The motherboard ground and others devices is connected with PSR108 ground.

www.panel.it 17
17
Chapter 4: Hardware upgrade
4.1 Removing the rear cover
Warning!
Disconnect the power supply to the Panel PC (disconnect the power cable).
Isolate the system from all potential sources of electrical power!.
Discharge any electrostatic charge on the ground connection
4.2 RAM installation
RAM Memory slot
Unscrew the eight screws used to hold the rear
cover in place. Remove the rear cover taking
care not to damage flat cable of the touch
screen.
RAM slot installation area
Internal view

www.panel.it 18
18
SO-DIMM slot supports one 204-pin DDR3 (Double Data Rate 3) single channel DDR3L SDRAM only.
Step.1)
Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot.
The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the SO-
DIMM if you force the SO-DIMM into the slot at incorrect orientation.
Step.2)
Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is
properly seated.
4.3 HDD-SSD installation
Unscrew the three screws marked above
then unplug the two SATA cables.
On the rear of the drive bay there are
further four screws that lock the SSD unit.
SATA SSD installation area

www.panel.it 19
19
4.4 Mini PCI-E and mSATA module installation
There is 1 mini-PCIe slot and 1 mini-PCIe/mini-SATA slot on this motherboard.
mini-PCIe half size slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards.
mini-PCIe/mini-SATA full size slot:
MINI_PCIE2 (mini-PCIe/mini-SATA slot; full size) is used for PCI Express mini cards or mSATA card
Installing an expansion card
1) Before installing the expansion card, please make sure that the power supply is switched off or the power cord is
unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the
card before you start the installation.
2) Remove the system unit cover (if your motherboard is already installed in a chassis).
3) Remove the bracket facing the slot that you intend to use. Keep the screws for later use.
4) Align the card connector with the slot and press firmly until the card is completely seated on the slot.
5) Fasten the card to the chassis with screws.
6) Replace the system cover
Mini PCI-E / mSATA socket
installation area
Mini PCI-E / mSATA module
mounting

www.panel.it 20
20
4.5 WI-FI module installation
Installing an expansion card
1) Before installing the expansion card, please make sure that the power supply is switched off or the power cord is
unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the
card before you start the installation.
2) Remove the system unit cover (if your motherboard is already installed in a chassis).
3) Remove the bracket facing the slot that you intend to use. Keep the screws for later use.
4) Align the card connector with the slot and press firmly until the card is completely seated on the slot.
5) Fasten the card to the chassis with screws.
6) Connect the antenna cable to the main connector of the device:
7) Replace the system cover
WI-FI module installation area
WI-FI module mounting
