dibea F20B MAX User manual

F20B MAX
Cordless Vacuum Cleaner
Please read this instruction manual carefully
before using the cleaner,
keep the manual properly for future
reference and use the cleaner
after fully understanding the whole manual
Instruction
Manual
www.dibea.com

Thank you for your trust to Dibea brand and purchase of our cordless vacuum cleaner.
Hope you will have a pleasant time with our product!
Please read this instruction manual carefully to have a good knowledge of the
operation of this product and to achieve the high performance as well. This instruction
manual includes the latest information as of the time of printing. We will take the
full responsibility for the revision, interpretation and explanation of this manual. Our
company’s strategy is to upgrade the product constantly to meet customer’s needs,
so we reserve the right to change the product after printing it without notice.
If any question or trouble with our product, please feel free to email us at dibea-
[email protected]
Preface Contents
Special declaration ………………………………………………………………………………………… 1
Guidelines on safe use ………………………………………………………………… 2
Introduction to product components …………………………………………………… 3
Host and accessories …………………………………………………………………………………… 3
Product installation and disassembly …………………………………………………… 4
Installation of electric brush ...........................................................................................4
Installation of extension aluminum tube ………………………………………………… 4
Installation of crevice nozzle …………………………………………………………………… 4
Installation, disassembly and use of product …………………………………… 5
Removal and installation of dust cup …………………………………………………… 5
Start of cleaner ……………………………………………………………………………………………… 5
Adjustment of suction power …………………………………………………………………… 5
Condition of charging and indicator light …………………………………………… 5
Use of accessories ………………………………………………………………………………………… 6
Introduction and use method of accessories ……………………………………… 6
Precautions and product maintenance ………………………………………………… 7
Daily storage…………………………………………………………………………………………………… 7
Machine cleaning ………………………………………………………………………………………… 7
Common faults and product parameters …………………………………………… 8

1 2
Special declaration
The Instruction Manual and Warranty Card clarify the agreement between the company
and the users on the incurring and termination of quality assurance liabilities and the
rights and obligations during the after-sales services. Please read the Instruction Manual
carefully before using the product. If the vacuum cleaner is damaged due to abuse,
negligence, improper use or absence of factory accessories, the user will be deprived of
the right to receive any after-sales service, and all warranty application will be declined
by Dibea (Suzhou) Service Center. In addition, this publication shall not be reproduced,
stored in any retrieval system or disseminated in any form without the permission and
authorization of the Company.
Notice: The vacuum cleaner herein is for domestic usage and
shall not be used in any factory or other business places.
Guidelines on safe use
This product is powered by a 29.6V DC lithium battery, and all other battery
models shall be avoided.
In case of any abnormality in the battery, please don’t start the product and
contact our After-Sales Department for timely replacement.
When plugging in/out the power line, please hold the power plug of charging
seat to avoid a forceful pull or twist.
Please observe the basic safety prevention measures during using,
including but not limited to the followings (Please read all the following
safety tips carefully before using):
Warning:
To reduce potential fire risks, electric shock or injury, please
observe the above rules
1、Please do not use this machine outdoors or in humid places, or grasp it with wet hands.
2、If the machine is damaged due to collision or falling, placed outdoors or fallen into water,
please stop using and send it to the service center authorized by Dibea for inspection.
3、To avoid blocking, please don’t put large objects into the suction nozzle of vacuum
cleaner. Keep the suction nozzle away from lint, hair and other objects that may cause a
blockage.
4、To avoid injury during using, keep your hair, clothes, fingers and other body parts away
from the suction nozzle and movable parts.
5、Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches, soot
and other objects.
6、Do not use the vacuum cleaner to clean flammable substances or liquids, such as gasoline
or the places where there may be gasoline, kerosene, paint, alcohol, detergent, etc.
7、Do not use the vacuum cleaner before installing the filter.
8、Please turn off the machine before connecting or replacing any accessories.
9、Keep the vacuum cleaner indoors and use it in dry rooms only.
10、Using of unknown batteries may result in damage of motor or injury of user, so please
use the recommended batteries.
11、Do not use it for other purposes unless otherwise specified in the manual.
12、Do not use the vacuum cleaner as a toy. If there are children in the using environment,
please pay special attention to the using safety.
13、Be careful when cleaning stairs.
14、To prevent injury and accident, please contact with the After-Sales Service Center of
Dibea or the authorized service center for repair if the vacuum cleaner is damaged.
15、Please use the machine correctly according to the manual. Only the accessories
recommended by the manufacturer can be used for this product.
Power supply
During using

3 4

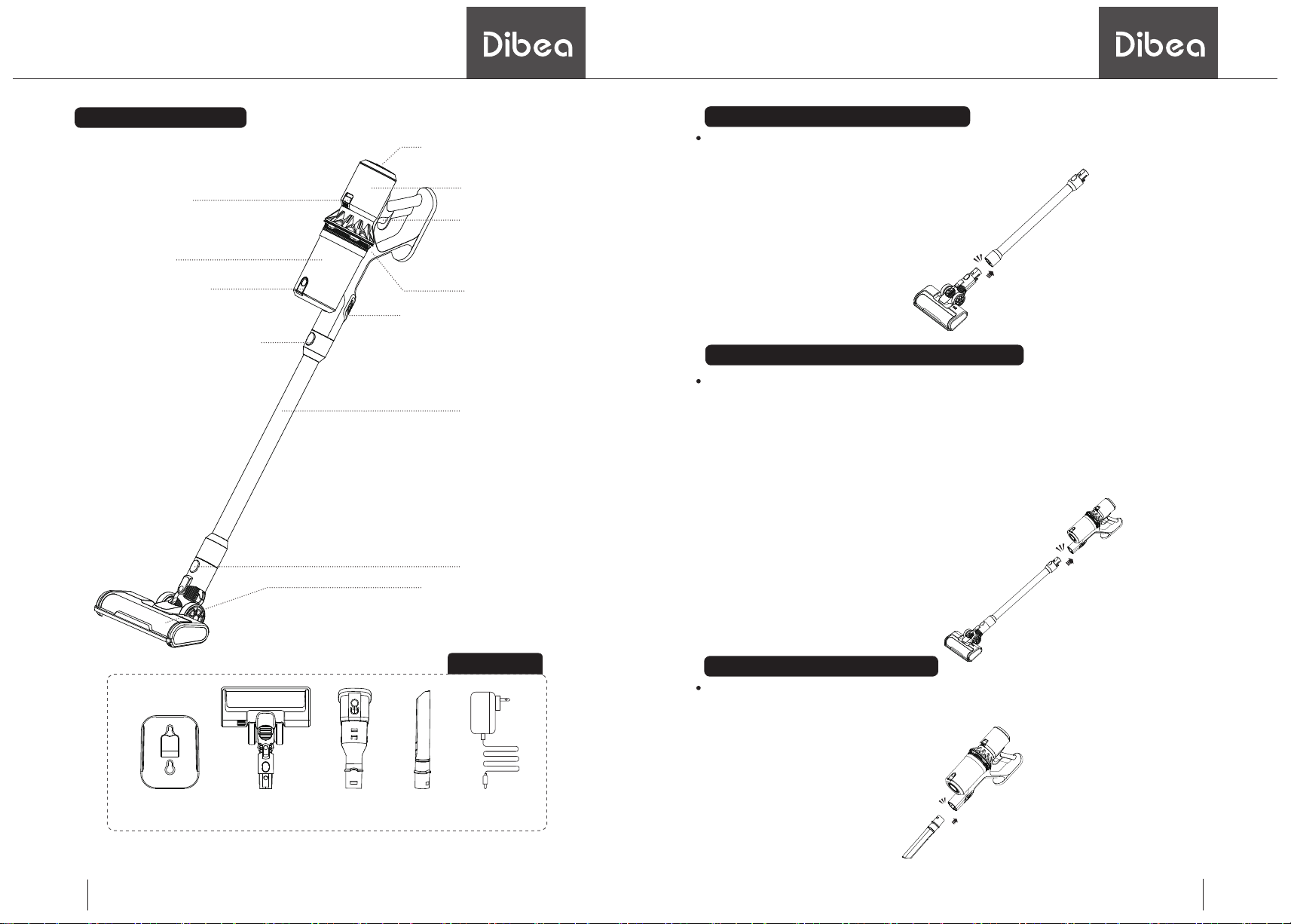

Introduction to productcomponents
Dust cup
Duct cup lock
Aluminum tube lock
Floor brush lock
Battery lock
Speed-adjustment button
Battery pack
Switch button
Electric floor brush
with plush roller bar
Wall bracket Motorized brush
Accessories
2-in-1 bristle
brush
Charger
Long crevice
nozzle
Aluminum tube
Machine body
Release button of dust cup
Installation of electric floor brush
As shown in the figure, align the electric floor brush to the extension tube connector, push
it gently. The installation is finished when a “click” is heard (for disassembly, just press the
lock button as shown in the figure, and pull it downward).
Installation of extension aluminum tube
The machine can be used as a vertical cleaner when you connect it with one end of the
extension aluminum tube (The machine is installed successfully if a “click” is heard)
and the floor brush or other accessories with the other end (as shown in the figure):
Or connect the machine with a floor brush to clean the hard ground such as floor and
ceramic tiles or undercoat carpet.
Or connect the crevice nozzle or double-effect brush to clean the area (such as
ceiling, curtain and air conditioning inlet) that is hard to clean. (During disassembly,
just press the lock button in the figure to pull it away)
扁吸安装
Installation of crevice nozzle
As shown in the figure, align the crevice nozzle to the machine body connector, and push
it gently. The installation is finished when a “click” is heard (for disassembly, just press
the lock button showed in thefigure and pull it downward).
Productinstallation and disassembly
Host and accessories
※
※

5 6
Removal and installation of dust cup
Remove the dust cup from machine body: Push the push button under
the machine body forward, and the dust cup assembly will pop up. Then
rotate thedust cup assembly anticlockwise to take downthedust cup
Installation, disassembly and use
of product
①②③
low gear
blue
middle gear
purple
high gear
red
Use of accessories
Suitable for cleaning the hard surface such as floor and ceramic
tiles and the undercoat carpet.
Suitable for cleaning various household seams and
narrow positions in the car.
Suitable for cleaning the positions that need hair brush
suchas curtain, car interior andair conditioner.
※Examples of using scenarios※
※Examples of use scenarios ※
※Examples of use scenarios ※
Quick dust removal due to the built-in independent motor and large plush
roller brush rotating at high speed
Flexible and thorough cleaning due to the horizontal rotation (270° ) and vertical
rotation (90°) of floor brush
Cleaning of dark and dead angles such as the sofa bottom due to the front high-
light LED light
One-key extensible brush can suck and clean simultaneously and remove dust
efficiently.
Slim and soft hair brush can deeply clean the fiber and other household soft
decorations such as curtain and sofa.
The fine hair brush can deeply clean small seams such as key board and
meet the refined cleaning requirement.
Deeply clean the household dead angles such as sofa seam,
supporter, window corner, car interior and other inaccessible
seams.
Convenient for installation, easy for vertical cleaning and good for lumbar
vertebra health due to theone-key snap joint.
Easy for cleaning high places such as roof, air conditioner and curtain due to
matching with different brush heads.
Introduction and usemethod of accessories
After installing all the parts, turn on the
switch button at the handle to start the
cleaner (button in the figure)
The three gears of suction power can be
selected in turn as needed by pressing
the suction adjustment button on the
top of machine body. There are three LED
indicator lights on the button: the blue
indicator light is for the low gear; the
purple indicator light is for the middle gear;
and the red indicator light is for the high
gear. (as shown in the figure)
Connect the power adapter with the charging
interface in battery pack, and connect the
power supply to start charging. (as shown in
the figure)
The three indicator lights will flash when
the machine is charging, and the power of
machine is full when the indicator lights are
normally on.
①
②
③
Start of cleaner
Adjustment of suction power
Condition of chargingand indicator light

7 8
Daily storage
Machine cleaning
For long-time storage, please place the machine in cool and dry place, and avoid direct
sunlight or humidity
Push the button under the machine body forward and the dust cup assembly will pop up
(refer to the previous installation instruction), making it easy to put the cup into a dustbin
or a garbage bag for dust removal.
As shown in the figure, press the bottom lock of dust cup to open the cup cover and
dump the dust.
Please separate the dust cup from the machine body (refer to the previous installation
instruction)
As shown in the figure, take out the top filter element of dust cup, and clean it with soft
hair brush or put the cup in warm water for washing. Before next using, please make sure
that the dust cup and filter element are dry (the filer element can be washed when the
suction power is weakened).
How to dump dust and clean the dust cup
Replace or clean the filter
Notice: Before using, please ensure all filters are installed
in correct position
①
②
③
3
During using
Please do not approach to the heater such as radiator and butt
Before using
To prevent damage caused by collision, please remove large and sharp objects. Don’t use it
for any inflammable objects or liquids, such as gasoline, cigarette or alcohol
Precautions and product maintenance
※Common faults and solutions
S/N
1
2
3
4
Fail to work
Fail to suck dust or weak
suction power
Dust leakage
Fail to suck dust after
connecting with floor brush
The battery is out of power
1、The dust cup is filled with dust
2、The battery power is low
1、The dust cup is filled with dust
2、 The battery power is low
The dust cup is filled with dust
Check whether the battery has
power or needs replacement
1、Clean the dust cup
2、Connect the power adapter
for charging
2、Connect the power adapter
for charging
Remove the dust and clean the
dust cup
If the three LED-lights on the battery pack turn red and
flash, it may have the following faults
1、Clean the dust cup and install
it correctly
Phenomenon Possible cause Solution
Common indication faults of fault indicating lamp
After the switch button is long pressed for more than 6s, the machine will be shut down
automatically and the three LED-lights turn red and flash. Press the switch button again to start the
machine
If the floor brush is blocked by foreign matters, the machine will not be shut down automatically,
but the three LED-lights will turn red and flash; shut down the machine, remove the foreign matters in
the floor bush, and press the switch button again to start the machine
If the internal temperature of machine is too high, the machine will start the overheat protection
function and be shut down automatically and the three LED-lights turn red and flash. Restart the
machine after its body is cool and it will recover to normal.
The machine will be short-circuited and shut down automatically after sucking liquid, and the
three LED-lights will turn red and flash quickly. Please don’t start/shut down the machine repeatedly.
Remove the battery for recharging and restart the machine after troubleshooting.
When the host motor is blocked by foreign matters, the machine will work intermittently in the
four “respiration” form and be shut down automatically. Please restart after removing the
foreign matters.
※Product parameters
Common faults and product
parameters
Rated power
Battery configuration
Charging time
Noise level
Outline dimension
Weight (net/gross weight)
Capacity of dust cup
400W
Li-ion 2000mAh 29.6V
2~3H
75dB
1172×256×217
2.5kg/3.8kg
500ml
※
※
※
※
※
※

Suzhou Dibea Electrical Technology Co., Ltd.
Address: 8#, 9# and 10# Building, No.20 Xingnan Road,
Wuzhong Economic Development Zone, Suzhou
E-mail:[email protected]
