Digital Watchdog NightWatch DW-ILWM1 User manual

Single wall–mount bracket for LED illuminators
DW-ILWM1
Attention: This document is intended to serve as a quick reference for initial setup.
It is recommended that the user read the entire instruction manual for complete and proper installation and usage.
Tel: [phone]
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
digital-watchdog.com
NOTE: Download all your support materials and tools in one place.
1. Go to: http://www.digital-watchdog.com/resources.
2. Search for your product by entering the part number in the ‘Search by Product’ search bar. Results
for applicable part numbers will populate automatically based on the part number you enter.
3. Click ‘Search’. All supported materials, including manuals and quick start guide (QSGs) will
appear in the results.
Quick Start Guide
WHAT’S IN THE BOX
1x single mount bracket
2x M6 serrated flanged nut
2x M6 x 0.47” (12mm) bolt
1x quick setup guide

QuickStart
Guide






1       2



34








QuickStart
Guide






1       2



34








QuickStart
Guide






1       2



34








Rev Date: 08/19
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.
Quick Start Guide
INSTALLING THE MOUNT BRACKET
Attach the wall mount bracket to the structure using suitable tapping screws (PLASTIC ANCHOR, PTS1
M6x40L) as illustrated in figure 1. The wall bracket must be attached to a structure such as hardwood, wall
stud, concrete or a suitable material capable of supporting the final mount assembly. You may need to
change the method of mounting or hardware used depending on the wall material.

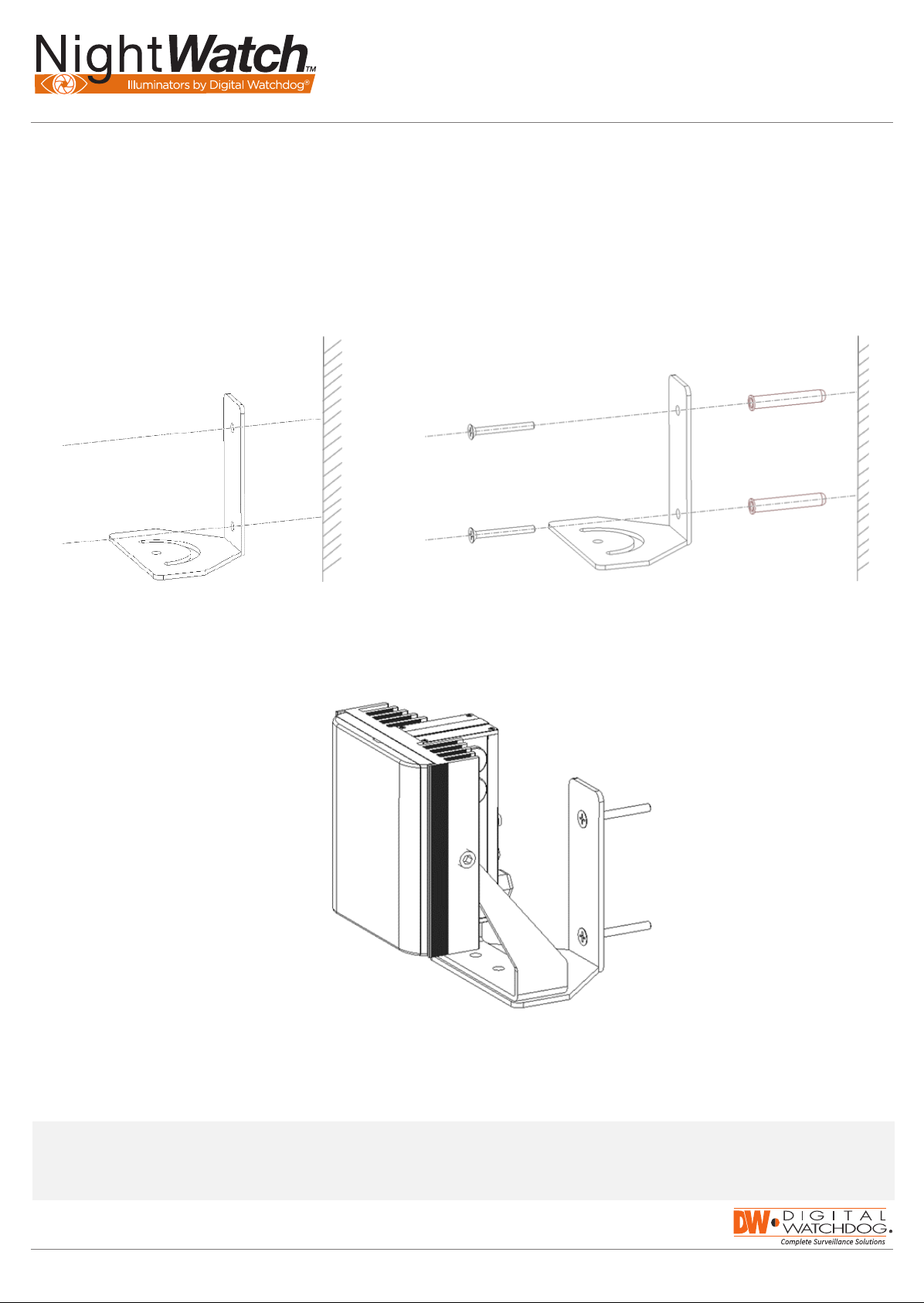

LED ILLUMINATOR INSTALLATION WITH SINGLE WALL MOUNT BRACKET
1 2
3
Use the bracket to mark and drill the necessary holes in the wall.
With the bracket secured to the wall, attach the illuminator with the supplied M6 nuts and bolts. Attach the
center bolt first then rotate the illuminator to the required horizontal position. Once the necessary position is
achieved, secure the illuminator the remaining nut and bolt in one of the outer holes.
Vertical adjustment can be made via the two hex bolts on each side of the illuminator.
NOTE: Recommended fasteners:
• Head size: minimum 0.6”
• Screw or bolt diameter: maximum 0.5”
• Fastener strength: minimum 3 lb.
