Digitus DA-12211 User manual

ON EAR BLUETOOTH
HEADSET WITH DOCKING
STATION
Quick Installation Guide
DA-12211

2
Contents
1. Product Overview .............................................3
2. Basic Operation.................................................4
3. Bluetooth Pairing and Connection ....................5
4. Connection with two devices ............................7
5. LED Indicator.....................................................8
6. Charging............................................................8
7. Product Specification ......................................10
8. Attentions and Q & A ......................................11
Introduction
The on-ear headset from DIGITUS® offers optimal
voice quality and faster connection thank s to
Bluetooth 5.0. The headset can be connected with
two devices simultaneously; for example, it can
easily and quick ly switch between two smar t-
phones. The range is up to 10 m depending on the
environment. The Bluetooth headset is compatible
with iOS and Android smartphones andcan be used
for call times of up to 17 hours thanks to the
rechargeable lithium ion battery. The headband
can be adjusted flexibly to different head sizes and
shapes, and the headset can be worn on the right
or left side thanks to the rotatable microphone.
The soft pad at the ear ensures excellent w earing
comfort.

3

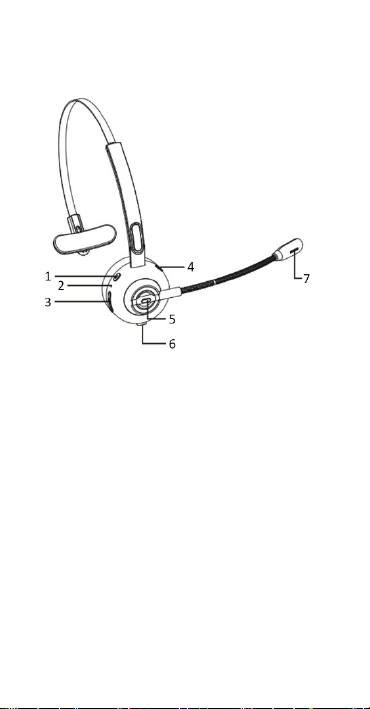

1. Product Overview
1. Volume -
2. LED Indicator
3. Micro US B
4. Volume +
5. MFB (Multi Function Button)
6. Charge Base Interface
7. Microphone
Package Contents
1. 1 x On-Ear Office Headset
2. 1 x Docking Station
3. 1 x Charging cable, USB A - Micro USB
4. 1 x QIG

4
2. Basic Operation
Button
Function
Operation
MFB
Power on
In off status, long
press 1-3 seconds
MFB to power on
Power off
In on status, long
press 5 seconds to
power off
Enter into
Pairing Mode
In off status, long
press 5-8 seconds to
enter into pairing
mode.
Or under
unconnected standby
mode, double press
the MF B to enter into
pairing mode.
Play/Pause
Short pr ess when
play music
Redial a call
Double press MFB to
dial the last call
Reconnect
When there is a
pairing record, power
on and enter into
reconnect state or
short press MFB to
reconnect under
pairing mode

5
Voice Dialing
Long press
1 second MFB then
release
Audio Switch
Long press
1 second MFB to
switch the audio
between phone and
Bluetooth headset
Answer a call
Short press
(when call coming)
Hang up a call
Short press (during a
call)
Reject a call
Long press
1 second (wh en call
coming)
Volume +
Volume up
Short press
Next song
Long press for
1 second
Volume -
Volume down
Short press
Previous song
Long press for
1 second
3. Bluetooth Pairing and Connection
A. In off status, long press 5-8 seconds to enter
into pairing mode w ith LED Blue & Red flash
alternately.
B. Search and click to connect “DA-12211” on
your phone Bluetooth lists, LED change to LED
Blue flash after connected, now you can play
music from phone to headphone.

6
C. You can press MFB/ volume+ / volume- on the
Bluetooth headset to control the answer/hang
up a call and play/pause of the music, next and
previous songs, volume up and down.
Pairing
In off status, long press MFB 5-8 seconds to
enter into pairing mode with LED Blue & Red
alternately flash.
Connection
Search and click to connect “DA-12211” on your
phone Bluetooth lists

7

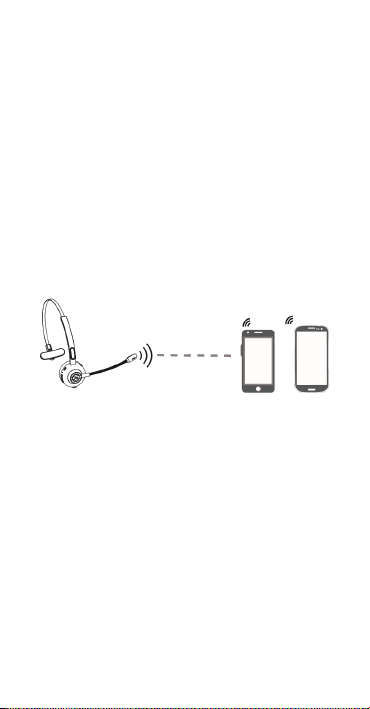

4. Connection with two devices
A. Follow par t 3 to connect with first phone, then
turn off the Bluetooth f unction of first phone.
B. Double press MFB to pair ing mode again with
Red & Blue LED flash alternately.
C. Search and click to connect “DA-12211” on
your second phone Bluetooth lists, LED
change to Blue LED low flash after connected.
D. Turn on Bluetooth function of first phone, click
to reconnect “DA-12211” on Bluetooth lists.
Headset connected with two phones now.
Notes:
Music only can be played from one phone under
two connections, when you want to play music
from another phone, you need to pause or close
the music of the previous phone. The same
operation during talking status.

8
5. LED Indicator
Mode
LED Indicator
Power on
LED Blue flashes 1
second
Power off
LED Red flashes 1
second
Pairing mode
LED Red & Blue
flashes alternately
Unconnected
standby mode
LED Blue flashes
once ev ery 2 seconds
Connected standby
mode
LED Blue flashes
once ev ery 5 seconds
Play music
LED Blue flashes
once ev ery 5 seconds
Talking
LED Blue flashes
once ev ery 5 seconds
Delete paired record
Blue and Red LED
flashes once at the
same time
Charging
Solid LED Red
Full charged
Solid LED Blue
Low Battery
Red LED flash
6. Charging
Please charge the DA-12211 at once when the Red
LED flash. Charging time about 2 hours. Solid LED
Red change to Solid LED Blue when full charged.

9
Charge Connections
Please connect to the DA-12211 charging port
through the Micro USB charging cable, the charger
can be used as car charger, travel charger,
computer US B, etc.
Charging with charger
Charging with PC
Use of charge Base
Please place the DA-12211 on the charging base,
then connect the charging base to USB charger
through the Micro USB port for charging.
Charging with charger
Charging with PC
Notes:
Please charge the DA-12211 at least one time every
2 months when don’t use it.

10
7. Product Specification
Bluetooth Version
Bluetooth V5.0
Bluetooth Chipset
CSR 8615
Operation Range
10M
Bluetooth Protocols
HSP, HFP, A2DP, AVRCP
CODEC Code
SBC
Battery Capacity
180maH/3.7V
Charging Time
2H
Stand-by Time
200H
Working Time
17H (50% Volume)
Headset Net W eight
51g
Charge Base Net
Weight
242g
Headset Dimension
163.21 x 142.27 x 48.5 mm
Charge Base
Dimension
79 x 73 x 31 mm
Notes:
Actual use time will differ from environment and
music.

11
8. Attentions and Q & A
A. How to reconnect and operation when
failed to reconnect?
When this product connected with your
mobile phone successfully at the first time, it
will search and reconnect the paired device
automatically when power on, if failed,
please pair and connect again.
B. How to Delete paired records?
In Power on state, long press the volume+
and the volume- button for 5 seconds to clear
the pairing record. The indicator Blue and
Red LED flashes once at the same time, that
means the pairing record has been clear ed,
and the item will not connect back to the
connected dev ice. When ther e are various
connection problems, try clearing the pairing
record firstly.
C. What’s the password for pairing?
Some connection devices require password
for pairing, pls try 0000 or 8888 or 1111 or
1234.
D. What devices could charge for the
headphone?
Any car charger, power bank, PC etc. which
meet DC 5V, charging current more than
500mA could be charge for this item.

12
E. Three-way calling function operation
Call coming during call, short press the MFB
to answer the new call and hang up the
current call;
Call coming during the call, double press the
MFB to answer the new call and keep the
current call;
Call with a new call coming, long press the
MFB for 1 second rejecting a new call.
When you are on a three-party call, double
press the MFB to switch audio betw een the
current call and the keep call.
Hereby Assmann Electronic GmbH, declares that the
Declaration of Conformity is part of the shipping content. If
the Declaration of Conformity is missing, you can request it
by post under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
