Digitus Quick Installation Guide DN-18602 User manual

Smart Full HD Outdoor Camera
with LED Floodlight, WiFi &
Voice Control
Quick Installation Guide
DN-18602

2
1. Introduction
The weatherproof WLAN outdoor camera from
DIGITUS® is equipped with 21 ultra-bright floodlight
LEDs and a wide-angle lens of 90° with pin-sharp Full
HD resolution. Automatic switching from day to night
vision provides a clear view even in absolute
darkness. Thanks to WLAN operation, you are 100%
flexible as far as the installation location is concerned.
All you have to do is position the camera within the
range of your wireless network and supply it with
power; alternatively, a network connection can also
be established via cable using the RJ45 port. Via
Amazon Alexa and Google Assistant, the camera
image can be displayed on corresponding Amazon
and Google displays via voice command. The camera
is also able to detect movements in the image area
and send a corresponding push notification to your
smartphone. An additional alarm sound, which is
emitted via the camera's integrated speaker, can also
be activated. The available MicroSD card slot can be
equipped with memory cards of up to 128 GB, so that
recordings can be stored over a longer period of time
and retrieved at any time. The two-way audio
transmission allows you to communicate with people
in front of the camera. The camera's live image and
all settings can be conveniently accessed and
adjusted via app - regardless of your current location
(assuming cellular reception).

3
The camera is designed for a variety of outdoor
applications, such as home, garden, garage or
carport. Thanks to the included wall mount, the
camera can be individually aligned and fixed. Go for
security and flexibility with the voice-controlled Full
HD outdoor camera from DIGITUS®.
2. Main Features
•Full HD 1080p video resolution with a wide 90°
angle of view
•Ultra-bright floodlight with 21 LEDs for optimal
illumination
•Voice control via Amazon Alexa & Google Assistant
possible
•Motion detection with push notification via app
•Supports two-way audio transmission
•Night vision mode with up to 10 m range
•Recording to MicroSD card / cloud possible
•Free Smart Life app (Tuya) available for iOS and
Android
•Easy installation possible by scanning the QR code
•Suitable for wall installation, weatherproof, IP65

4
3. Package Contents
•Smart Full HD Outdoor Camera with LED
Floodlight, WiFi & Voice Control
•Power adapter
•Mounting materials
•QIG
IMPORTANT: If any part is missing or damaged,
please contact your local dealer or reseller for
assistance.
4. Technical data
•Video resolution: 1920 x 1080p@20 BpS (FullHD)
•Optics: FOV: 90° viewing angle / 3.6 mm lens
•Sensor: 1/2.9" CMOS - 2 megapixel
•Night vision range: up to 10m
•Day / night switching: IR-CUT
•Video frame rate: mainstream 1080p@20bps,
720p@20bps
•Supports motion detection
•Infrared LEDs: 8 pcs
•Floodlight LEDs: 21 pcs (700 lumens)
•Built-in speaker and microphone
•Two-way audio communication/compression: G.711
•Connection types: Wireless LAN/LAN RJ45
•Wireless LAN: 2.4 GHz (IEEE 802.11b/g/n)
•LAN: RJ45 10/100M
•Recording modes: Manual/Motion/Schedule
•With MicroSD card slot

5
•MicroSD card storage capacity: up to 128 GB
•Supports cloud storage
•Network protocols: TCP/IP, P2P, RTSP, Private
Cloud, ONVIF
•System requirements: iOS 7 / Android 4 or higher
•Power supply camera: 12 V DC, 2 A via 5.5 mm DC
jack
•Power consumption: 15 W max.
•Power supply input voltage: 100 - 240 V, 50/60 Hz,
0,7 A via Euro plug type-C (CEE 7/16)
•Power supply output voltage: 12 V DC, 2 A, 24 W
via hollow plug 5,5 mm
•Operating temperature: -20°C ~ +55°C
•Operating humidity: 10% ~ 90%
•Protection class: IP65
5. Safety instructions
Please read these instructions carefully before first
use and retain for future reference. The safety
precautions contained herein reduce the risk of fire,
electric shock, and injury when followed correctly.
This product is designed for residential use.
This product is IP65 rated, so there is protection
against heavy rain and dust tightness.

6
6. Safety instructions for devices with
power supply unit in outdoor operation
•Do not open the device under any circumstances. It
does not contain any parts that require
maintenance. In the event of a fault, have the
device checked and repaired by a specialist.
•For safety and approval reasons, the device must
not be converted or modified.
•In case of problems, please contact our customer
service.
•Only use the device with the enclosed original
power supply unit.
•The device may only be connected to easily
accessible sockets. In case of danger, pull out the
mains plug.
•Connect protection class I devices only to properly
grounded power sources.
•Operate the device only via a residual current
circuit breaker (maximum 30 mA).
•Never handle the power plug and socket with wet
hands.
•Do not connect the device to cable drums
•The mains plug and coupling of an extension cable
must be watertight and must not be immersed in
water.
•Always lay cables to the device in such a way that
they do not pose a danger to persons or animals.

7
•Use the device only within the specified
temperature range of: -10 ~ 50°C
•When not in use, store the product in a clean and
dry place with temperatures between 0°C and
40°C.
•During thunderstorms, there is a risk of
overvoltage due to the risk of lightning strikes.
Disconnect all connections of the device during
thunderstorms.
•The device is not a toy! Keep the device out of the
reach of children. Packaging material lying around
such as plastic bags, foils or cushioning elements
such as Styrofoam can be dangerous for children.
•Sharp cleaning agents or solvents may damage the
product.
•Disconnect the product from the power source
before cleaning. Use a lint-free cloth for cleaning.
•We accept no liability for damage to property or
personal injury caused by improper handling of the
device or by failure to observe the hazard
warnings. We accept no liability for consequential
damage! In such cases, all warranty claims are
void.
7. Notes when using the APP
Read and accept the platform's privacy policy within
the app. Choose a password for your account with a
high level of security to protect it from unauthorized

8
access. The password should contain at least 8
characters; we recommend the use of upper and
lower case as well as alphanumeric characters /
special characters.
8. Statement regarding Amazon, Google,
Apple, etc.
Amazon, Alexa and all associated logos are
trademarks of Amazon.com, Inc. or its subsidiaries.
Android, Google, Google Home and Google play are
registered trademarks of Google Inc. AVM Fritz!Box is
a registered trademark of AVM Computersysteme
Vertriebs GMBH. Telekom Speedport is a registered
trademark of Deutsche Telekom AG. App Store is a
service mark of Apple Inc. registered in the U.S. and
other countries. IOS is a trademark or registered
trademark of Cisco in the U.S. and other countries
and is used under license. Google Play and the Google
Play logo are trademarks of Google Inc. All other
trademarks not listed herein are the property of their
respective owners.
The trademarks or trade names mentioned in this
manual are used to describe the operating steps and
do not imply that they are freely available. In any
case, they are the property of the respective rights
holders.

9
9. Instructions for commissioning
Hardware overview:
White light
Speaker
Bracket
Reset
Mic
Lens
LEDs
Light sensor
SD card slot
LAN port
Power

10
Reset
Long press with the needle for
5 s to reset the camera
SD card slot
Supports local SD Card storage
(max 128 GB)
Light sensor
To control the IR switch in
night
Lens
3.6mm 110 degree view lens
IR LEDs
8 pcs IR leds inside with 20 m
IR distance
White light
21 pcs White light led
Mic
Capture sound for your video
LAN port
Support RJ45 cable connection
Power
DC12V/2 A input
10. Hardware installation
Wall mounting:
Use the supplied mounting bracket to attach the
camera to the wall.
Detach the base housing from the bracket, attach the
base housing to the wall using the mounting screws.

11
Attach the cap nuts to the camera, adjust the angle of
the camera using the ball mount.
Tighten the base housing to the bracket after
adjusting the angle of the camera.

12
Note on connecting the cameras to
the network / power supply
Please make sure that you place the connection of
the cables for network and power supply in an
appropriately protected housing, to protect them
from environmental influences.
11. Setting up the Smart Life User Account
In order to use your DIGITUS® Smart Full HD Outdoor
Camera with LED Floodlight, WiFi & Voice Control,
you need to register an user account. The setup and
control can be done from your Smartphone/tablet,
with Android system 4.4.2 and above, or iOS system 8
and above.
Create a user account with your Smartphone/tablet

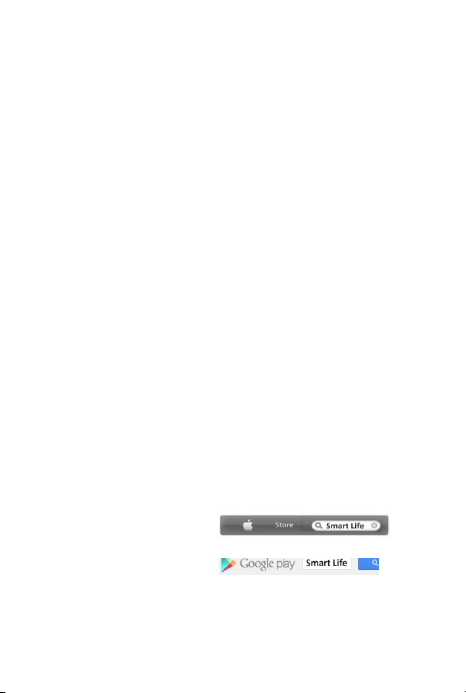

If you have an Apple® iOS device, then you will find
the "Smart Life" App on the Apple App Store®. For
Smartphones and tablets running on Google Android
OS you can find the "Smart Life"-App in the Google™
Play Store. In the search field of the respective App
Stores® enter "Smart Life".
Apple App Store®
Google™ Play

13
In the Search results the "Smart Life"-App will be
marked with this symbol.
Then please download and install the App on your
mobile device.
You can also scan below QR code to download and
install the app.
Apple App Store®
Google™ Play
Start the App and you will enter the login page. For
first time user, please create your account by
“Register”.

14
Create new account with Smart Life
Click on "Register".
1. Please enter your email or phone number, which
would be your login account.
2. Accept the Service Agreement and Privacy Policy
3. Press “Continue”, you will receive a verification
code by email or SMS. You will receive the email or
SMS immediately. If you do not receive the email,
please check your Spam Folder. If you do not
receive the SMS, please check your registered
phone number

15
4. Enter verification code

16
5. Create a password that you can remember.
(Alphabet and numerical characters are
supported).
6. Please enter a name, which you can choose freely
(e.g. home). Optionally, you can now also
determine the location and in which room your
socket is used.

17
7. Connect the camera to your Wi-Fi

18
With Smartphone/tablet
1. Please power on the camera, press the RESET
button for 5 seconds. When red and blue lights
flash slowly, the device is ready to connect.
2. Please tab the “+” icon or tab “Add Device” in the
app and follow the instructions in the app to
connect your DIGITUS® Smart Full HD Outdoor
Camera with LED Floodlight, WiFi & Voice Control
to your WiFi.

19
3. Please select “Security & Sensor” and afterwards
“Smart Camera” to start.

20
4. Confirm that the LED is fast blinking.
5. Your WiFi´s SSID will be shown to connect with.
Please make sure, your mobile device is connected
to your 2.4GHz WiFi network. 5GHz WiFi networks
will not be supported. Please key in the password
for your router/AP at home.
