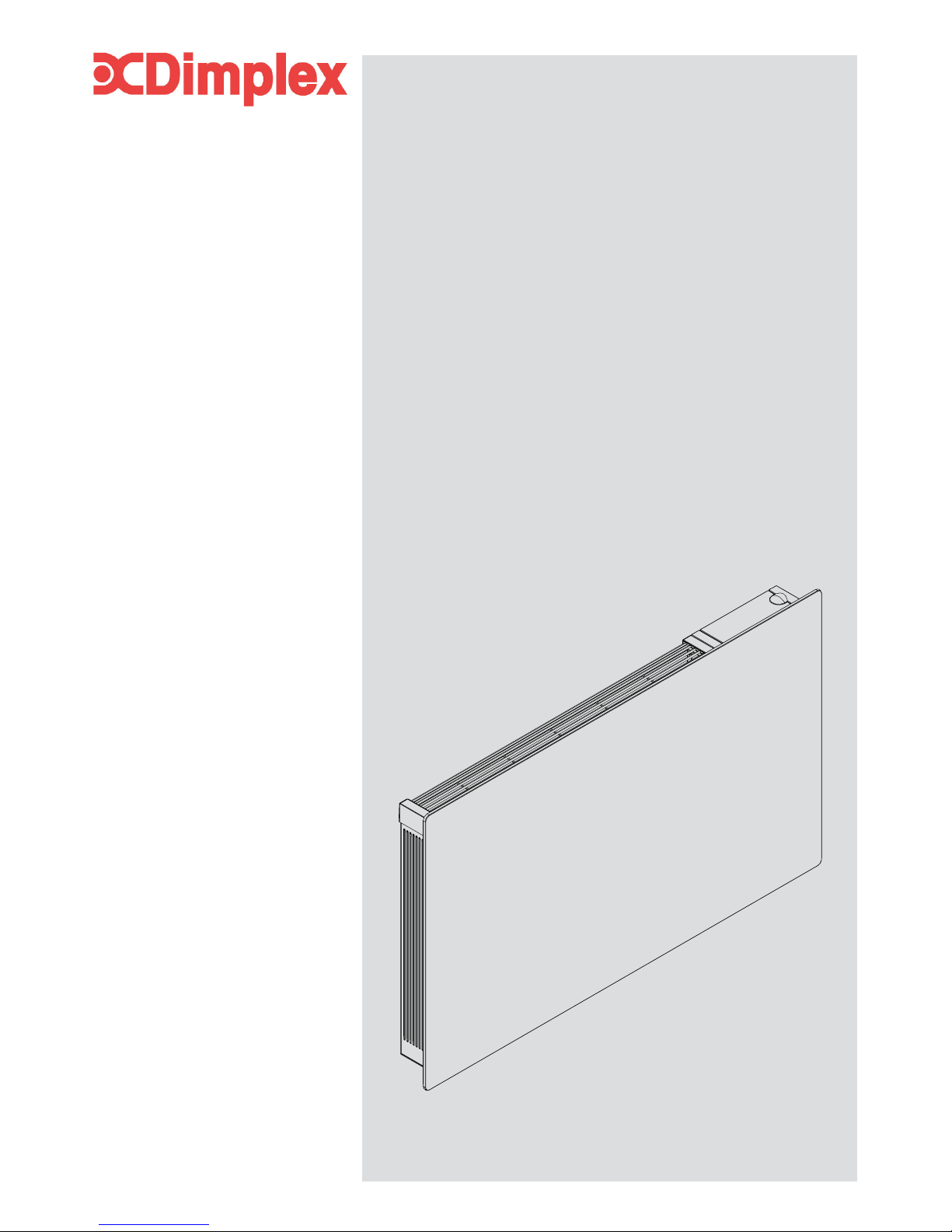

Dimplex Girona GFP 200 B User manual

A world of expertise Operating Instructions
These instructions should be read carefully and
retained for future use. Note also the information
presented on the appliance.
Girona
Glass Panel Heaters
Models: GFP050 W/B GFP075 W/B
GFP100 W/B GFP150 W/B
GFP200 W/B
INDGUKP7RG ISSUE 3

IMPORTANT
These instructions
should be read carefully
and retained for future
use.
Note also the
information presented
on the appliance.
IMPORTANT SAFETY ADVICE
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electrical shock,
and injury to persons, including the following:
IMPORTANT – The wall bracket supplied with the appliance
must be used.
WARNING - DO NOT USE THIS HEATER IN THE IMMEDIATE
SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a room containing
a bath or shower, it must be so installed that switches and
other controls cannot be touched by a person using a bath or
shower.
Do not use outdoors.
Do not locate the heater immediately below a fixed socket
outlet or connection box.
Do not cover the heater. Do not place material or garments on
the heater, or obstruct the air circulation around the heater,
for instance by curtains or furniture, as this could cause
overheating and a fire risk.
NEVER cover or obstruct in any way the heat outlet slots at the
top of the heater or the air inlet slots in the base of the heater.
The heater carries the Warning symbol indicating that it
must not be covered.
CAUTION - Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
This appliance can be used by children aged from 8 years
and above and by persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintainance shall not be made by children without
supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been placed
or installed in its intended normal operating position and they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance or perform
user maintainance.
Note that due care and consideration must be taken when
using this heater in series with a thermal control, a program
controller, a timer or any other device that switches on the
heat automatically, since a fire risk exists when the heater is
accidentally covered or displaced.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
WARNING: Servicing and product repairs should only be
undertaken by the manufacturers approved service agent or
a similarly qualified person, using only exact manufacturer
approved spare parts.

Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance with the
following code :
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
BLACK : PILOT WIRE
- see also ‘Pilot Wire Connection’.
The heater is fitted with a length of flexible cable type H05VV-F
size 4 x 1.0mm2 for connection to the fixed wiring of the premises
through a suitable connection box positioned adjacent to the
heater.
A means for disconnection must be incorporated in the fixed
wiring of the premises in accordance with the wiring rules. The
supply circuit to the heater must incorporate a double pole
isolating switch having a contact separation of at least 3mm.
Pilot Wire Connection
The BLACK control wire is designed to carry a signal from slot in
or wall mounted Dimplex programmers.If, however a programmer
is not being used, the pilot wire should be isolated in accordance
with the current IEE Wiring Regulations.
IMPORTANT - DO NOT connect the BLACK pilot wire to earth.
Care should be taken with the installation of the pilot wire(s) as
when switching to background (set back) they become energised
at 240V although only at a current of less than 100mA. In every
case a suitable means of isolation must be provided for the pilot
wire and marked to indicate that two sources of supply may be
present at the heater.
Where pilot wires are installed separately from the heater final
sub-circuit they should be protected, double insulated and carry
their own integral earth continuity conductor.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing
conductor in the supply cord is deemed to provide the
supplementary bonding connection (see Regulation 547-03-05,
17th Edition I.E.E. Wiring Regulations).
Please note that lit cigarettes, candles and oil burners,
combined with the convection effect of electric heaters
can cause soot deposits to build up on the surface directly
above and to the sides of the heater. This is not a fault of
the heater. Extensive burning of candles or smoking in the
operating environment of this product can produce heavy
discoloration within a few months of use.

General
The heater is designed for wall mounting on the
wall bracket supplied. It should only be operated
when in the upright position as shown - see Fig.1
and Fig.2.
All models are splashproof to IPX4 standard
and may be used in bathrooms, however not in
the immediate vicinity of baths, showers, water
connections, wash basins or swimming pools.
Before connecting the heater check that the supply
voltage is the same as that stated on the heater.
Dimensions
(millimetres)
Model(s) Watt A (mm) B (mm)
GFP050 W/B 0.5 kW 530 107
GFP075 W/B 0.75 kW 530 107
GFP100 W/B 1.0 kW 700 107
GFP150 W/B 1.5 kW 770 107
GFP200 W/B 2.0 kW 940 107
Wall Mounting
IMPORTANT – The wall bracket supplied with
the appliance must be used. The heater should
be positioned observing the minimum clearances
stated around the heater - see Fig. 1 and Fig. 2.
DO NOT locate the heater immediately below a
fixed socket outlet or connection box.
1. Remove the wall mounting bracket from the
back of the heater by depressing the spring latch
at the top of each bracket - see Fig. 3.
2. Fix the wall bracket securely to the wall through
the four screw holes provided.
3. Present the heater to the wall bracket, and
engage lower slots in the back with bracket.
4. Raise the heater to upright position and push
the heater onto bracket to engage top latches.
Fig. 1
Fig. 2
Fig. 3
A
565
150
Min.
150 Min.
B
300 Min.
shelf
D
255 Min.
C
C D
GFP050 390 300
GFP075 390 300
GFP100 560 300
GFP150 630 300
GFP200 800 300

Operation

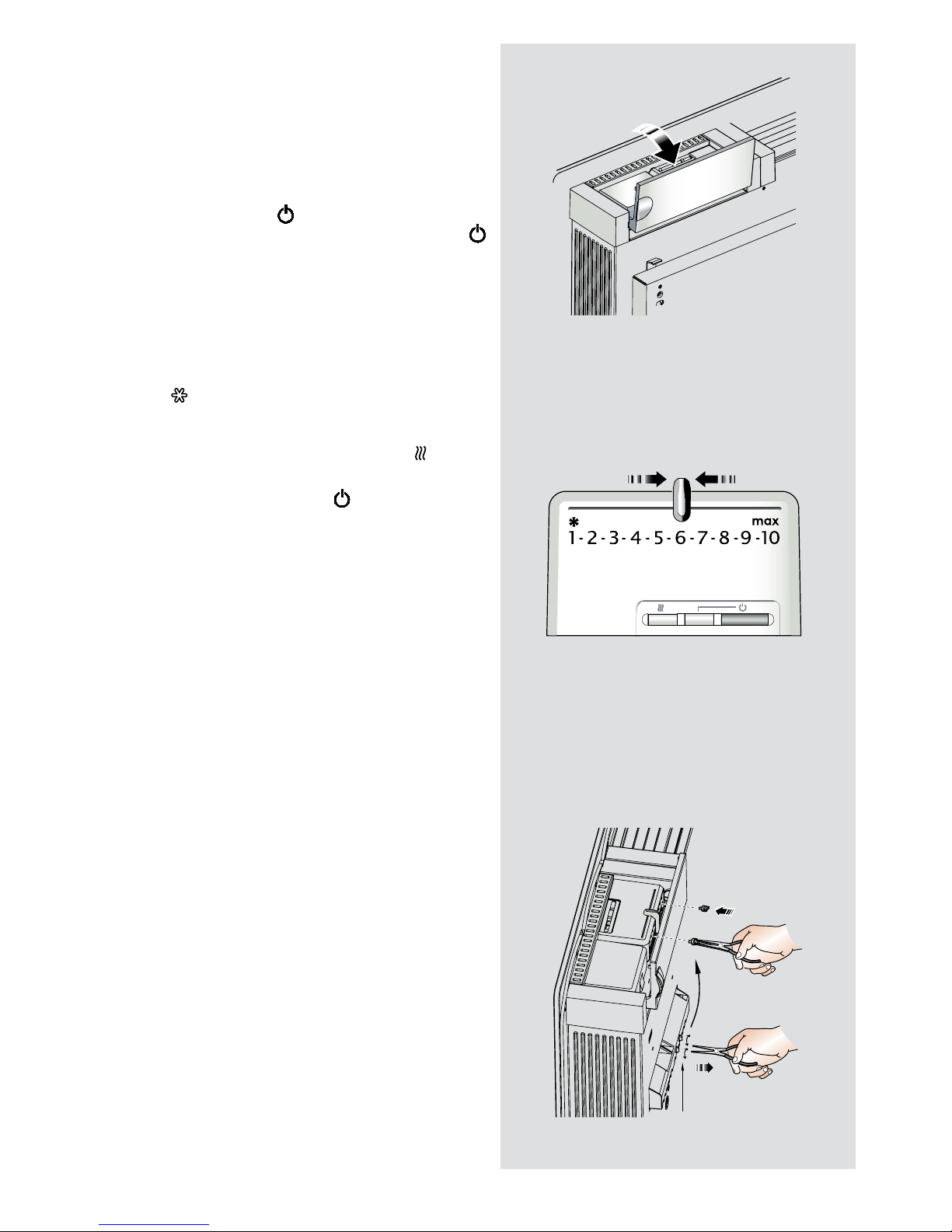

Switching On the Heater (see Fig. 4)
The controls are located on the right hand side on
top of the appliance, lift flap to access the controls
- see Fig. 4.
The button marked ‘ ’ controls the electricity
supply to the product. An indicator beside the ‘ ’
button shows when the unit is powered ‘ON’.
Setting Desired Temperature (see Fig. 5)
The heater is fitted with an adjustable thermostat
enabling the room temperature to be controlled
by adjusting the slider accordingly. The min
setting ‘ ’ represents a room temperature of
approximately 5oC and may be used for protection
against frost. The ‘MAX’ setting represents a room
temperature of approximately 30oC.The ‘ ’ symbol
glows when the product is providing heat.
Turn on the heater using the ‘ ’ button and move
the thermostat slider to the desired position.When
the room temperature has reached the desired
level, the power to the elements will be reduced,
the heater will then maintain the room temperature
at the chosen level.
NOTE - Your heater may not come on when the
thermostat slider is at a low setting. This is due to
the room temperature already being higher than
the thermostat setting.
Background Temperature
When used in conjunction with a remote
programming device supporting a background/
setback setting, the heater will automatically
operate at a room temperature setting of 5oC less
than the thermostat setting when the programme
is in background/setback mode.
Limiting the Thermostat Setting
Before wall mounting the product the installer may
wish to limit the heat selection slider movement
for the operator. This is achieved by removing the
two plastic pins (see ‘x’ in Fig. 6) from the rear
of the thermostat moulding using pliers and
inserting them in the preferred holes to limit the
slider movement.
Fig. 4
Fig. 5
Fig. 6
‘x’

Fig. 6
Notes to the Installer
Test Mode
When the heater is connected via a pilot wire
system, the test mode allows the installer to check
whether the heater is responding correctly to the
incoming pilot wire signal.
Before switching the heater on at the mains, place
the thermostat slider in the ‘MAX’ position, then
press and hold the ‘ ’ button whilst switching on
the mains.
The unit will now enter a test state for four minutes.
During this test state the ‘ ’ neon will indicate the
pilot wire status:
NEON PILOT WIRE
CONTROLLER MODE
Neon on - ON
Neon off - OFF
Neon flashing fast every 0.1sec - FROST
Neon flashing slow every 0.5 sec - SETBACK
Accessory Modules
Optional accessory modules are available for use
with this range of heaters - see separate ‘User
Instructions’ for details on the operation of each
accessory module.
Before fitting a control module switch the heater
off at the mains supply.

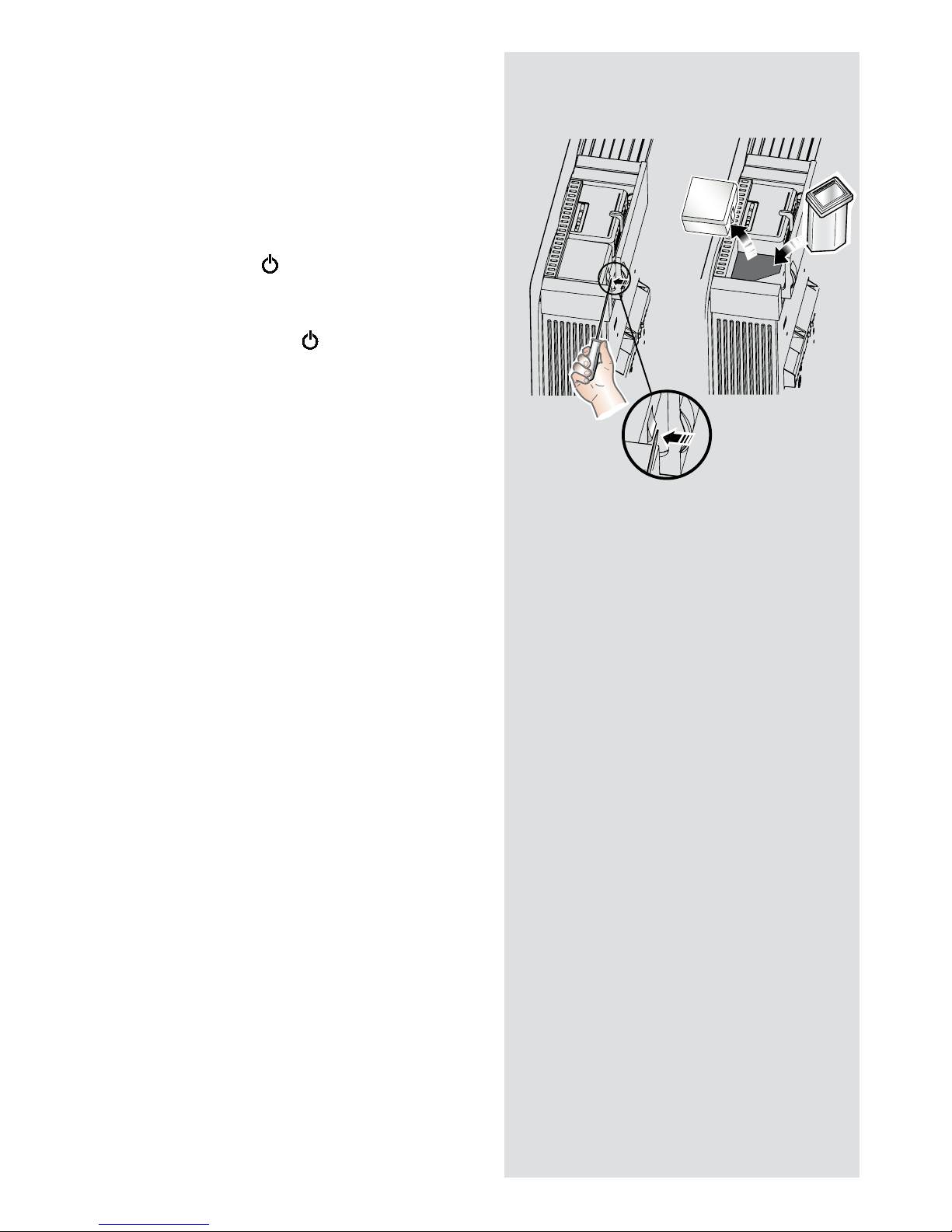

To insert a module, the plug-in protective cover on
the right hand side of the thermostat unit at the
back of the heater must first be removed.
Insert a flat-head screwdriver into the side of the
cover and prise away from the heater - see Fig. 7.
Lift the cover away from the heater to reveal the
slide in compartment.
Insert the accessory module into the slot ensuring
it is positively located in position - see Fig. 7.
Secure the module in place with the screw
provided.
Switch the heater on at the mains supply.
Safety - Overheat Protection
For your safety this appliance is fitted with a
thermal cut-out. In the event that the product
overheats for some reason, the cut-out prevents
excessive temperatures on the product by cutting
the power to the heater. Once the heater has
cooled down, it will reset automatically, it will
continue to cycle on and off automatically until the
reason for overheating is removed.
Fig. 7

Energy Saving Tips
The energy we use to heat, light and power our homes contributes over a quarter of the
UK’s carbon emissions, the principle contributor to climate change.
Around half the energy used in the home is for heating and hot water, so using your
heating system efficiently will not only help the environment, but also save you money.
Energy efficiency tips for heating and hot water
1. Don’t set the temperature to high...
By reducing the thermostat setting by just 1oC can reduce your energy use by as much
as 10%. And if you’re going away during the winter, leave the thermostat on the frost
protection setting to provide protection from freezing at a minimum cost.
2. Use it where you need it...
Set the appropriate temperature on your heaters for the room they are in; for example,
leave the thermostat on a heater in a spare bedroom on a lower setting.
3. Use it when you need it...
Use heaters fitted with timers or linked to central controllers to turn the heating on only
when you need it and automatically switch it off when you don’t.
4. Curtains
Close your curtains at dusk to stop heat escaping through the windows.
5. Windows
Nearly 25% of heat loss can occur through poorly insulated frames and single glazing.
If you can’t afford to double glaze all your windows, go for the rooms you heat most.
6. Treat your hot water tank...give it a jacket
An insulating jacket for hot water tanks costs only a few pounds and pays for itself within
months. Fit one that’s at least 75mm (3”) thick and you could save £10-15 a year.
7. Water
Use a shower if you have one to save time, money and water.
Don’t set the thermostat too high on your water heater- 60oC/ 140oF is usually adequate
for bathing and washing.
Put the plug in when running hot water in your sink - leaving hot taps running is both
wasteful and expensive.
Ensuring dripping taps are repaired quickly. In just one day, you could waste enough
water to fill a bath.
Other Energy Saving Tips for Around the Home
1. Lights
Turn off lights whenever you leave a room for more than ten minutes.
Use low-energy bulbs wherever you can as they use less than a quarter of the electricity
used by ordinary light bulbs and last ten times longer!
2. Cooking
Use the right size pan for food and cooker hob.
Keep saucepan lids on - this enables you turn down the heat.
Boil water for cooking in a kettle first.

A world of expertise
Important
During the initial operation, some odour may be noticed due to the newness of materials used in manufacture. This is
normal and will disappear after a short period or use. It is however advisable to keep the room well ventilated.
ROOMS MUST BE WELL VENTALATED AND YOUNG CHILDERN, CAGED BIRDS, OR PERSONS WITH
RESPIRATORY COMPLAINTS MUST NOT REMAIN IN CLOSE PROXIMITY TO THE HEATER DURING THE FIRST
48 HOURS OF OPERATION.
Cleaning
WARNING - ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER.
Before commencing cleaning, unplug the heater and allow it to cool. Disconnect the electricity supply to the appliance.
The outside can be cleaned by wiping it over with a soft damp cloth and then dried. Do not use abrasive cleaning
powders or furniture polish, as this can damage the surface finish.
To release the heater from the wall bracket for cleaning or redecoration, depress the latch on both brackets (See Fig.3)
and hinge forward.
Recycling
For electrical products sold within the European Community.
At the end of the electrical products useful life it should not be disposed of with household waste. Please
recycle where facilities exist. Check with a Local Authority or retailer for recycling advice in your country.
After Sales Service
If this product appears damaged when first received or does not function correctly contact us by e-mail at
[e-mail] or call 0844 879 3588. For ROI please call 01 842 4833.
Do not return the product in the first instance as this may delay us providing you with a satisfactory service.
ACCIDENTAL DAMAGE IS NOT COVERED UNDER THE WARRANTY
Your product is guaranteed for two years from the date of purchase. Within this period we undertake to repair or exchange
this product free of charge provided it has been installed and operated in accordance with these instructions.
Should you require assistance with this product please go to www.dimplex.co.uk and click on “Customer Support” or
e-mail us at [e-mail].
Alternatively call our contact center on 0844 879 3588 (UK only). This is a Lo-call number from a BT Landline - other
providers including mobile phones may charge you more. For ROI please call 07 842 4833.
To assist you, we need the following information: model number and serial number (these are found on the back of the
appliance), nature of the fault and date of purchase. Please retain your receipt as proof of purchase.Your rights under
this guarantee are additional to your statutory rights, which in turn are not affected by this guarantee.
Dimplex, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF
Customer Helpline: 0844 879 3588 Fax: [phone]
Email: [e-mail] Website: www.dimplex.co.uk
This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3.
These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
© GDC Group LTD. All rights reserved.
Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing.
A division of the GDC Group LTD, Millbrook house, Grange Drive, Hedge End, Southampton SO30 2D F.
