Dimplex Q-Rad QRAD050E User manual

08/82570/0 ISSUE: 1 Series: A
Q-Rad Electric Radiator
Models: QRAD050E / QRAD075E / QRAD100E
QRAD150E / QRAD200E
INSTRUCTION MANUAL
Installation and Operating

1
Warnings in this document are identified by a warning triangle against a
grey backgound.
Keywords at the start of a warning indicate the type and seriousness of
the ensuing risk if measures to prevent the risk are not taken.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
The following keywords are defined and can be used in this document:
○DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
○WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
○CAUTION indicates a hazardous situation which, if not avoided, could result in
minor to moderate injury.
○NOTICE is used to address practices not related to personal injury.
CAUTION
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR
DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
IMPORTANT SAFETY ADVICE
When using electrical heaters, basic precautions should always be followed to reduce
the risk of fire, electrical shock, and injury to persons, including the following:
IMPORTANT – The wall bracket supplied with the heater must be used.
IMPORTANT – All packaging should be disposed of in an appropriate manner.
OVERHEATING WARNING
WARNING - In order to avoid overheating, do not cover or obstruct the heater. Do
not place material or garments on the heater, or obstruct the air circulation around the
heater, for instance by curtains or furniture, as this could cause overheating and a fire
risk. NEVER cover or obstruct in any way the heat outlet slots at the top of the heater
or the air outlet slots in the base of the heater.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
The heater carries a warning ‘DO NOT COVER’ to alert the user to the risk of fire
that exists if the heater is accidentally covered.
CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
For your safety this heater is fitted with a thermal cut-out. In the event that the product
overheats for some reason, the cut-out prevents excessive temperatures on the
product by cutting the power to the heater. Once the heater has cooled down, it will
reset automatically, it will continue to cycle on and o automatically until the reason for
overheating is removed.
The display screen may flash red to indicate the product has overheated. To reset the
display, remove the obstruction and hold Enter for 10 seconds.

2
SUITABLE APPLICATIONS
WARNING - This heater is suitable for normal dwelling purposes and should not be
used in any other type of environment. This product should only be used in the country
where it was purchased from by a recognised commercial retailer. Do not use outdoors.
SERVICING AND REPAIRS
WARNING - Servicing and product repairs should only be undertaken by the
manufacturers approved service agent or a similarly trained or qualified person, using
only exact manufacturer approved spare parts.
PLEASE NOTE: Household dust, lit cigarettes, candles and oil burners, combined with
the convection eect of electric heaters can cause significant soot deposits to build
up on the surface directly above and to the sides of the heater. This is not a fault of the
heater. Extensive burning of candles or smoking in the operating environment of this
product can produce heavy discolouration within a few months of use.
OPERATING WARNINGS
IMPORTANT:Remember to observe all safety warnings and precautions when
operating the heater on the automatic or timer modes, either attended or unattended
since a fire risk exists when the heater is accidentally covered, obstructed or displaced.
CAUTION:Do not use if either of the heater’s mains power leads become damaged. If
the supply cord is damaged it must be replaced by the installer or an approved Dimplex
service partner.
Do not sit or stand on the heater.
Ensure minimum clearances between the heater and other objects / surfaces are
maintained.
ELECTRICAL INSTALLATION
WARNING - Minimum clearances and IP zone requirements must be adhered to in
accordance with the current wiring regulations.
Mains cables are not provided with this heater.
WARNING - The electrical installation of this heater must be carried out by a suitably
qualified or trained electrician, and be in strict accordance with current wiring regulations
BS 7671. DO NOT INSTALL IF PRODUCT IS DAMAGED.
The supply must be connected via a switched fused spur with a fuse rated suitably for
the appliances flex.
Failure to follow these instructions will mean that the manufacturer’s instructions have
not been adhered to. THERE ARE NO EXCEPTIONS.
The wires in this mains lead are coloured in accordance with the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
• This heater must be earthed
• Not suitable for connection via a plug top

3
• Do not locate the heater immediately above, below or in front of a fixed electrical point
i.e. socket outlet.
The heater is fitted with a length of flexible cable type H05VV-F size 3 x 1.0mm² for
500W to 2kW and 3 x 1.5mm² on 3.0kW models for connection to the fixed wiring of the
premises through a suitable connection box positioned adjacent to the heater. A means for
disconnection must be incorporated in the fixed wiring of the premises in accordance with
the current wiring regulations. The supply circuit to the heater must incorporate a double
pole isolating switch having a contact separation of at least 3mm. Products that are supplied
without a plug are for installation into the fixed wiring of the property, via a suitable double
pole switched fused spur with a fuse rated suitably for the appliances flex. Typical fuse ratings
for 230V equipment - Up to 700W = 3A, over 700W = 13A.
In installation the supply cord may be cut to the appropriate length for the electrical
connection point. Excess cable should not be inserted and stored behind the heater.
CHILD SAFETY
WARNING - Fixing kit screws are a potential choking hazard.
WARNING - This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of
appliance by a person responsible for their safety.
This appliance can be used by children from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/o the appliance
provided that it has been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children aged from 3 years and less than 8 years shall not regulate and clean the
appliance or perform user maintenance.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
WARNING - Packaging should be disposed of responsibly as the EPS used could
be a potential choking hazard for children.

4
iThis document is customer property and is to remain with this unit.
These instructions do not cover all the dierent variations of systems nor
does it provide for every possible contingency to be met in connection
with installation.
This appliance must be earthed in accordance with the manufacturers
recommendations and in accordance with IEE regulations for electrical
equipment.
Failure to adequately earth the appliance can result in electrical shock
causing severe personal injury or death.
WARNING: EARTHING
Disconnect all power to unit before installing or servicing.
Hazardous voltage can cause severe personal injury or death.
WARNING: HAZARDOUS VOLTAGE
If the supply cables to the appliance are damaged in anyway, they
must be immediately replaced by a competent person in order to avoid
electrocution which could cause severe personal injury or death.
WARNING: ACCESS TO LIVE PARTS

5
Product information according to Ecodesign Regulation (EU) 2015/1188
Energy Related Product Directive
Model Identifier(s): QRAD050E QRAD075E QRAD100E QRAD150E QRAD200E
Height (mm) 546 546 546 546 546
Width (mm) 513 513 675 756 918
Depth (mm) 105 105 105 105 105
Model Identifier(s): QRAD050E QRAD075E QRAD100E QRAD150E QRAD200E
Heat Output
Nominal heat output Pnom 0.50kW 0.75kW 1.00kW 1.50kW 2.00kW
Minimum heat output (indicative) Pmin N.A N.A N.A N.A N.A
Maximum heat output Pmax,c 0.50kW 0.75kW 1.00kW 1.50kW 2.00kW
Auxiliary electricity consumption
At nominal heat output elmax 0.00 0.00 0.00 0.00 0.00
At minimum heat output elmin 0.00 0.00 0.00 0.00 0.00
In standby mode elSB
<0.0005 <0.0005 <0.0005 <0.0005 <0.0005
Type of heat output / room temperature control
Electronic heat charge control with room
and / or outdoor temperature feedback Yes
Other control options
Room temperature control, with open
window detection Yes
With adaptive start control Yes
Technical Details
Contact details
Glen Dimplex Heating and Ventilation
Millbrook House, Grange Drive, Hedge End, Southampton, SO30 2DF
Tel: [phone]
This product meets the Ecodesign requirements for an electric storage local space heater. Commission
Regulation (EU) 2015/1188.

6
All Models
Controls
Digitally controlled, Electronic Thermostat accurate to (±0.2°C)
Timer modes:
7 Day Programmable User Timer, Out All Day, Home All Day,
Continuous heat modes:
Eco, Manual, Frost Protect, Runback
Additional Modes:
Away, Boost, Setback

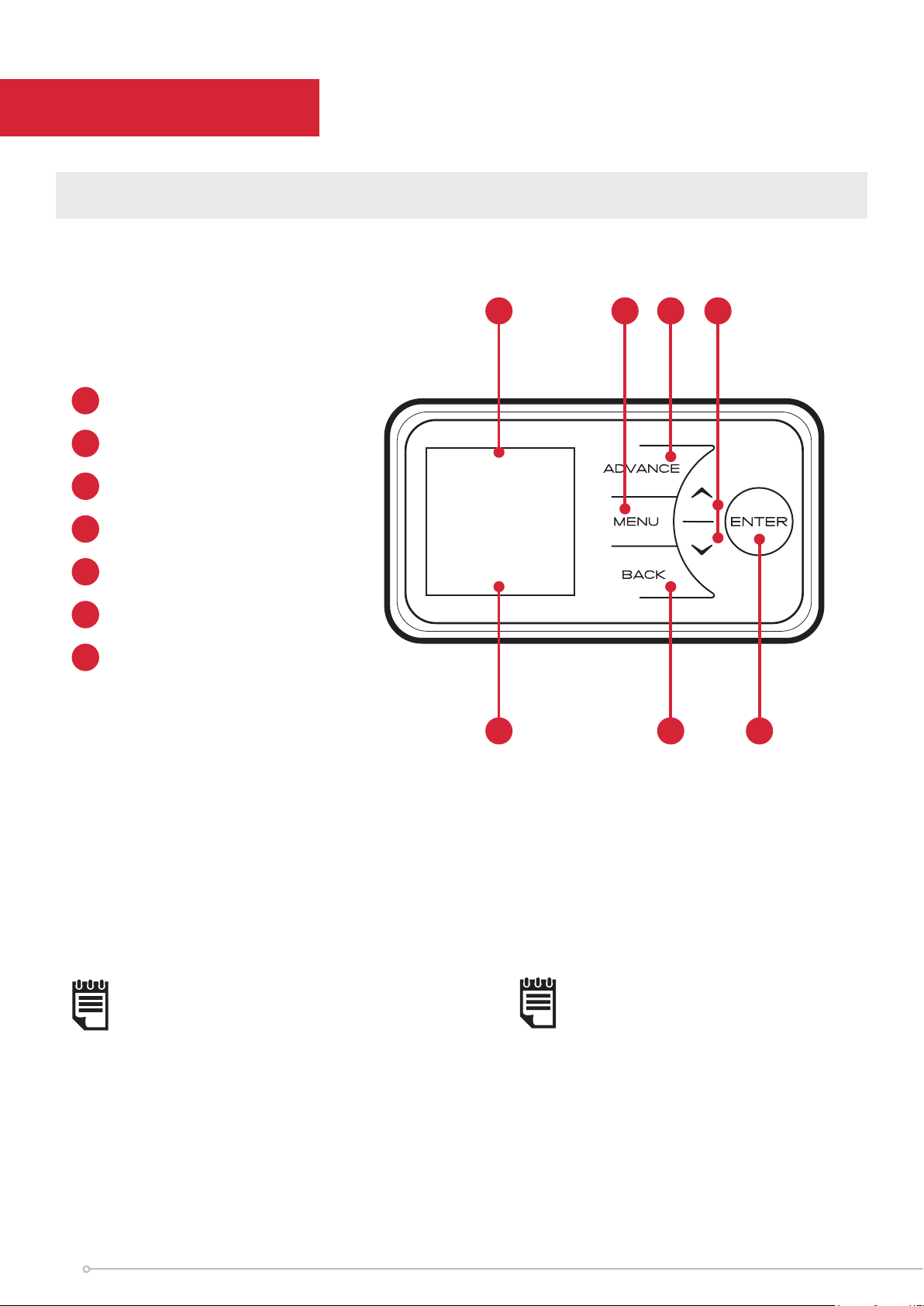

Controller UI
• Graphical display with RGB backlight
• Capacitive buttons with audio feedback
• User replaceable battery (Coin-Type)
• Open window detection, Adaptive-start, Advance time period
• Wide SP range (7-30°C)
• Bluetooth for software updates
• Child Lock & Heater Lock (PIN-based)
Construction • Durable epoxy-polyester powder coated steel casing with louvered forward facing grille
• Advanced controls with capacitive sense technology for total flexibility of heating
Element Compact, finned, mineral filled sheathed element
Installation • H-frame wall bracket
Safety • Thermal cut-out. Auto reset type
• Overheat detection
IP Rating IP24
Battery 3V coin cell battery to backup real time clock. Battery life >5 years.
Supply
1.3 metres fitted, 3 core for fused spur installation, 1/N/PE ~230-240 V, 50Hz
Class I, with earth wire
Colour / Finish Metal Chassis, Air Outlet Grille & Control Moulding - Trac White (RAL 9016)
Approvals CE, BEAB
Guarantee 2 years
Country of Origin United Kingdom
Manufacturer Glen Dimplex Heating & Ventilation
(GDC Group Ltd.)

7

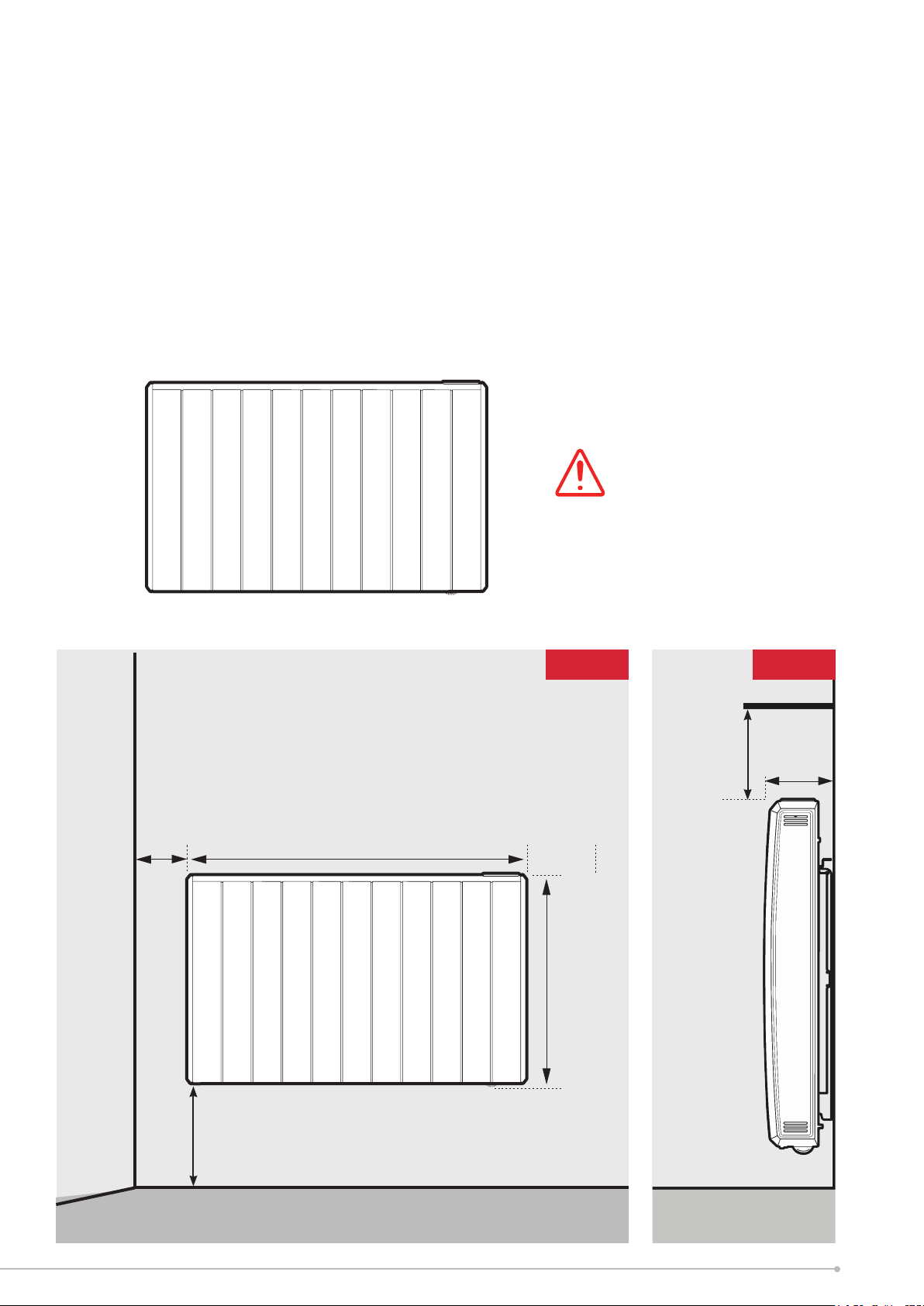

The heater is designed for wall mounting using the wall bracket supplied. It should only be
operated when in the upright position as shown - see Fig. 1 and Fig. 2. All models are splash
proof to IP24. Before connecting the heater check that the supply voltage is the same as that
stated on the heater.
General

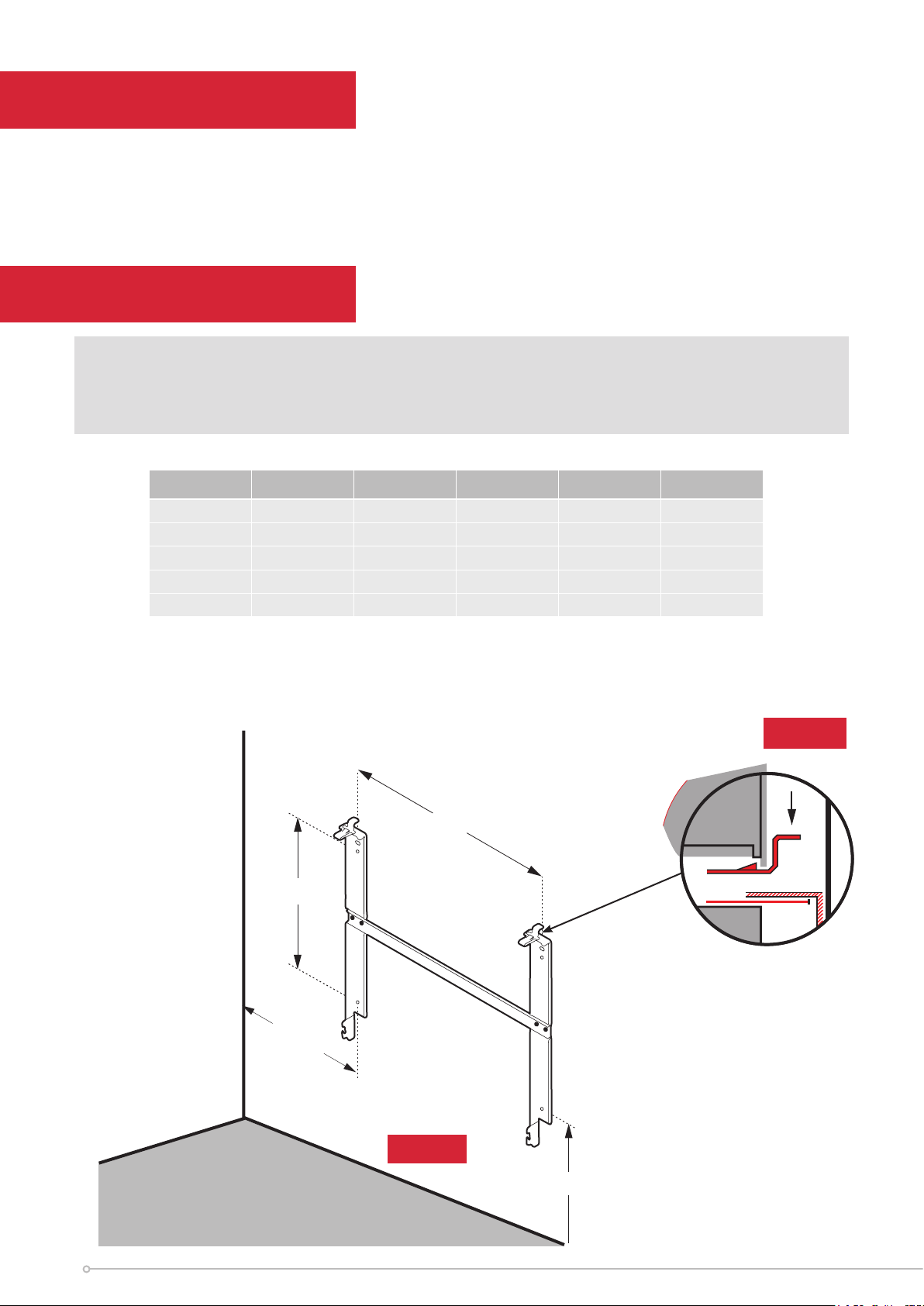

Wall Mounting
IMPORTANT - The wall bracket supplied with the heater must be used and the heater must be installed in
the correct orientation. The fixings should be used to secure the bracket to the particular wall on which the
heater will be installed. The heater should be positioned observing the minimum clearances stated around the
heater - see Fig. 2, Fig. 3 and Fig. 4.
Fig. 2
MODEL A B C D E
QRAD050E 225 294 513 546 105
QRAD075E 225 294 513 546 105
QRAD100E 387 294 675 546 105
QRAD150E 468 294 756 546 105
QRAD200E 630 294 918 546 105
260 mm (Min)
‘A’
275 mm
‘B’
Minimum
mounting
clearance
Fig. 1

8
To mount the heater to the wall:
1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the side of each
bracket - see Fig.2.
2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only screw fittings provided are
used for the particular wall type.
3. Present the heater to the wall bracket and engage bottom slots in the back with bracket hooks.
4. Press heater into locked position and ensure the clips on the top are engaged.
5. Remove protective film from the user interface
WARNING:
This product is heavy and care
should be taken in installation
150 mm (Min)
150 mm (Min)
‘D’
‘C’
150 mm (Min)
Shelf / Obstruction
‘E’
Fig. 3 Fig. 4

9
A setup wizard will display when the product is powered on for
the first time. This will set the following:
• Time, Date, Daylight Savings Time
• Sound On/O
For information on using the Heaters controls, refer to page 11.
The Heater will then take the User to the Home Screen with the
‘Out All Day’ Timer Mode active.
First Time Power-On
Important
During initial heat-up, some odour may be
emitted due to the newness of materials
used in manufacture. This is normal and will
disappear after a short period of use. It is
however advisable to keep the room well
ventilated.

10
This product is Dimplex Control capable * **.
Control and monitor your heating and hot water with Dimplex Control. Group heaters into zones to easily control and
track their energy usage. Any time. Anywhere.
Search for Dimplex Control on your device’s app store.
*Requires additional hardware. Sold seperately. Visit Dimplex.co.uk for more information.
**A Dimplex Hub is required for this product to connect to Dimplex Control. For instruction on setting up Dimplex
Hub, please refer to the manual. Manuals can be downloaded at Dimplex.co.uk.
To connect your heater to Dimplex Hub, RF communications must be enabled. See page 22 for comms settings.

11
Operation
The controls are located on top of the heater consisting of a display screen and six touch sensitive buttons.
WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE.
1Display Screen
2‘Menu’ Button
3‘Back’ Button
4‘Up and Down’ Arrows
5‘Enter’ Button
6‘Advance’ Button
7Heating Status
The heater is fitted with an adjustable thermostat enabling the room temperature to be controlled. The minimum
room temperature is 7°C. The maximum temperature is set to 26°C by default. The minimum and maximum selectable
temperatures available on the heater can be adjusted in the settings menu. A temperature of 21°C is a common
comfortable room temperature.
NOTE:
Your heater may produce some noise during
operation. This noise is caused by the expansion
and contraction of the element as it changes
temperature, and is normal for this type of
product. Whilst the noise produced is usually
very quiet, certain environmental factors can
make it more noticeable, such as hard flooring
or minimal furnishings If you believe that the
expansion noise is excessive, please contact us.
NOTE:
Should the heater fail to operate,
this may be caused by the room
temperature being higher than the
thermostat setting.
Heating ON
1
57 3
2 46
21°C
Out All Day

12
The heater controls can be easily adjusted by using the six buttons on the User
Interface.
1. The Home Screen shows the options available at each stage of adjustment.
Here the current target room temperature is displayed along with the
mode of operation. Any use of the Advance function will be displayed
here, and pressing Enter will show the functions which are enabled.
The currently active mode of operation is displayed at the top of the screen
e.g. ‘Manual’ or ‘Out All Day’ timer.
When the heater is in a timer profile and trying to achieve or maintain a room temperature, ‘Heating On’ will be
displayed, otherwise, ‘Heating O’ will be displayed. The words ‘Heating On / O’ will not be displayed in a manual
mode of operation.
When the controller buttons have not been pressed for a long period of time, the display will ‘sleep’ and the text
will disappear. The heater is still on and active in whatever Mode it was set to.
2. Menu - Displays the Main Menu;
- Boost – Activate Boost Mode
- Mode - Set the mode of operation.
- Settings – Time/Date, Temperature units etc.
3. Back returns to the previous screen.
4. The Up and Down buttons are used to navigate through the menus and adjust the required room temperature
on the main screen. The screen colour changes based on the temperature selected, showing deep blue through
to bright red.
5. Enter is used to enter sub menus and to confirm actions.
6. The Advance button is only used when a Timer Mode is active, it allows the timer schedule to be changed
temporarily by forcing a ‘Heating On’ period to begin or end early.
User Timer
21°C
Heating ON

13
Timer Modes oer the most ecient mode of operation for a predictable heat demand. Additional functions such as
Advance and Boost allow the User to make temporary adjustments to timer schedules for a more flexible operation.
Each timer is broken down into 4 definable ‘Heating On’ time periods and temperatures per day, for each day of
the week. Each day consists of a 24-Hour period, starting and finishing at midnight.
When the heater is in a timer profile and trying to achieve or maintain a room temperature, ‘Heating On’ will be
displayed, otherwise, ‘Heating O’ will be displayed.
It is possible to change the Target Temperature of a ‘Heating On’ period when that period is active. This will temporarily
adjust the Target Temperature for just that instance and will not permanently modify the settings for the timer in use.
NOTE:
If Adaptive Start is enabled, the heater will maintain the room at the required
temperature for the duration of the heating period. To achieve this, the heater
will begin heating the room before the start of the heating period to ensure
the room is at the required temperature when the period starts.
If Adaptive Start (AS) is disabled, the heater will not operate until the
beginning of the heating period. This should be taken into consideration when
setting the heating periods.
See page 23 for instruction on enabling/disabling Adaptive Start.
ADVANCE
MENU
BACK
ENTER
User Timer
21°C
Heating ON
Timer Modes

14
Available Timer Modes
To choose a timer mode, press Menu from the home screen. Use the Up / Down keys to highlight ‘Mode’, then press
Enter to select. ‘Timer Mode’ should be highlighted. Press Enter to select.
A list of Timer Modes will be shown. Their default settings are shown in the table below.
Highlight one of the available Timer Modes using the Up / Down keys. Press Enter to select.
For User Timer, Home All Day and Out All Day, three choices will be available:
Select - This option will activate the timer
Modify - This option allows the timer’s Heating On times and Target Temperatures to be modified
Preview - This option displays the timer’s configuration. This is handy to quickly check the timer without being
able to change any values
ADVANCE
MENU
BACK
ENTER
Manual
21°C
Period 1 Period 2 Period 3 Period 4
User Timer 06:30 – 09:30 21 °C 11:00 – 13:00 21 °C 15:00 – 17:00 21 °C 18:00 – 22:00 21 °C
Home All Day 07:00 – 08:30 21 °C 17:30 – 22:00 21 °C 00:00 – 00:00 00:00 – 00:00
Out All Day 08:00 - 21:00 21 °C 17:30 - 22:00 00:00 - 00:00 00:00 - 00:00
Away Mode Away Mode does not operate in the same way as the other Timers.
See section ‘Away Mode’ on page 16
ADVANCE
MENU
BACK
ENTER
Main Menu
Boost
Mode
Settings
ADVANCE
MENU
BACK
ENTER
Mode
Timer Mode
Manual Mode
Eco Mode
Frost Protect
ADVANCE
MENU
BACK
ENTER
Timer Mode
User Timer
Home All Day
Out All Day
Away
ADVANCE
MENU
BACK
ENTER
User Timer
Select
Modify
Preview

15
Modifying a Timer Mode
Each timer is broken down into 4 definable ‘Heating On’ periods
and temperatures per day.
When Modify is chosen, ‘Heating On’ period 1 of 4 for the current
day is displayed. The current day will be highlighted.
Select and change each option using the Up, Down and Enter buttons.
NOTE:
Once modified a Timer Mode
must be selected if you want to
begin using it.
ADVANCE
MENU
BACK
ENTER
User Timer
User Timer
Modify
Preview
ADVANCE
MENU
BACK
ENTER
Period 1of4
ON: 07:30
OFF: 09:30
21 °C
Tuesday
ADVANCE
MENU
BACK
ENTER
Tuesday
Period 1of4
On: 07:30
OFF: 09:30
21 °C
ADVANCE
MENU
BACK
ENTER
Tuesday
Period 1of4
ON: 07:30
OFF: 09:30
21 °C
Copy & Paste
To save time when modifying a Timer Mode, the Advance button can be used to copy and paste settings.
Individual heating periods from one day or every heating period from a day can be copied to another day.
Copy time period
to other days
Highlight Period
Highlight Day
Hold ADVANCE for
2 seconds
Hold ADVANCE for
2 seconds
Select day to add
time period
Select day to apply
Hold ENTER for 2
seconds to paste timer
Hold ENTER for 2
seconds to paste timer
Copy whole day
Tuesday
Period 1of4
ON: 07:30
OFF: 09:30
21 °C
Tuesday
Timer Copied
ON: 07:30
OFF: 09:30
21 °C
Wednesday
Period 1of4
ON: 07:30
OFF: 12:30
24 °C
Wednesday
Period 1of4
ON: 09:30
OFF: 12:30
24 °C
Day Copied
Period 1of4
ON: 07:30
OFF: 12:30
21 °C
Tuesday
Period 1of4
ON: 07:30
OFF: 12:30
21 °C
Wednesday
Period 1 Pasted
ON: 07:30
OFF: 09:30
21 °C
Day Pasted
Period 1of4
ON: 07:30
OFF: 09:30
21 °C

16
Away Mode temporarily overrides the active mode before returning the Heater back to the previously active mode.
This is handy if you are temporarily away at the shops or on holiday and want your heating to resume as normal
operation automatically when you return.
While active, Away Mode can maintain a minimum room temperature. By default, this is set to 7 °C (frost protection
temperature). This can be modified when Away Mode is activated. The heater will also remember the last Away
Mode Target Temperature defined while Away Mode is active.
The Away countdown is set in Hours, a Date and a Target Temperature.
The starting Hours and Date show ’00 hours’ and the current date. Date and Hours are set separately on the heater,
making the feature useful for popping out to the shops or going away on holiday.
• The date set is the return date; therefore, Away Mode will end at 23:59 of the day before. E.g. if a return date of
02.02.2018 is set, Away Mode will end at 23:59 on 01.02.2018.
• If hours are set, this will extend Away Mode end from 23:59 on the day before the date set.
• If only hours and no date is set, Away Mode will count from either the current time, or if a date is set.
Away Mode
The Advance button is only used when a Timer Mode is active and allows the timer schedule to be changed
temporarily. This button allows a ‘Heating On’ period to begin or end early.
This is useful if you are at home when you had not planned to be, or need to leave when you had planned to have
the heating on.
If the heater displays ‘Heating O’ and heat is required, press the Advance button. If the heater is in ‘Heating On’ and
heat is not required, press the Advance button and the heater and the heater will stop heating until the beginning
of the next ‘Heating On’ period.
Pre-action State Action Impact
Heating On
(Timer Mode) Advance activated Heating On period switched to Heating O until the next scheduled ‘Comfort On’ period.
Heating O
(Timer Mode) Advance activated Heating O switched to Heating On until the next scheduled ‘Heating O’ period.
Heating On
(Advance Active) Advance deactivated Heating On switches to Heating O. Appliance in following schedule set in the currently active Timer Profile
Heating O
(Advance Active) Advance deactivated Heating O Switches to Heating On. Appliance in following schedule set in the currently active Timer Profile
The ‘Advance’ Function

17
ADVANCE
MENU
BACK
ENTER
Timer Mode
User Timer
Home All Day
Out All Day
Away
ADVANCE
MENU
BACK
ENTER
Return
Date/Time
Saturday
31-2-18
07:00
21 °C
ADVANCE
MENU
BACK
ENTER
Return
Date/Time
Away Set
ADVANCE
MENU
BACK
ENTER
Away
21°C
Until
31-02-18
07:00
NOTE:
The Back button can be used to
end the Away Mode countdown
early.
Continuous Heat Modes
A continuous heat mode is eectively a constant ‘Heating On’ period. The Heater will remain in a continuous heat
mode indefinitely until the mode is changed by the User.
Available Continuous Heat Modes
Each continuous heat mode starts with a default Target Temperature value.
• Manual
• Default 21°C
• Can be changed from the Home Screen to any value within the Heater’s Temperature Range.
• Eco
• Default 19°C
• Can be changed from the Home Screen to any value in the Heater’s minimum temperature range (8-18°C)
• Frost Protection
• Default 7°C
• Not User Definable
ADVANCE
MENU
BACK
ENTER
Modes
Timer Mode
Manual Mode
Eco Mode
Frost Protect
ADVANCE
MENU
BACK
ENTER
Manual
21°C
ADVANCE
MENU
BACK
ENTER
User Timer
21°C
Heating ON
ADVANCE
MENU
BACK
ENTER
Main Menu
Boost
Modes
Settings
To select a continuous heat mode, first press the Menu button. Use the arrow
keys to highlight ‘Modes’ and press the Enter button. From here, use the arrow
keys to highlight the desired continuous heat mode and press Enter to select.
You will then be returned to the home screen in your chosen mode.

18
ADVANCE
MENU
BACK
ENTER
Main Menu
Boost
Modes
Settings
ADVANCE
MENU
BACK
ENTER
Main Menu
Boost Temp
25 °C
Boost Time
0 Mins
ADVANCE
MENU
BACK
ENTER
Boost
Boost Temp
25 °C
Boost Time
30 Mins
Activating Boost will present two selectable options: Boost Temp (Boost Target Temperature) and Boost Time
(Boost Duration Countdown). The default values for these can be set in the Settings Menu.
The Up, Down and Enter buttons can be used to modify these values. Pressing Back will end Boost early, restoring
the heater back to its previously active mode.
• The Boost Temp can be set to any value within the Heater’s Target Temperature Range setting.
• The Boost Time can be increased in the following increments: 30 mins, 1 hour, 2 hours, 3 hours, 4 hours.
These increments can be restricted with the Max. Boost Duration Range setting. To modify this range,
see Boost Settings on Page 22.
Once the Boost Duration Countdown has reached 0, the Heater will return to the mode that was active before
Boost was activated.
Boost Mode
Boost can be activated at any time, when the product is set to any Timer or Continuous heat mode; even if Advance
is active, this mode will provide a temporary ‘Boost’ of heat. For settings, see Boost settings on Page 22.
Boost Mode can be activated from the Home Screen by pressing Menu to access the Main Menu, then pressing
Enter to select ‘Boost’. ‘Boost’ will always be listed as the top item on the list.

19
Product Locks
Product Locks are methods of locking the heater’s controller to restrict access to functions. This can be activated
and configured via the Settings Menu. When Product Lock is activated, the heater continues to run in whichever
mode is currently active and any/all wireless communications remain active if enabled.
Child Lock
This is the simplest locking method and does not utilise a PIN code. It is toggled on/o on the heater’s controller
by pressing and holding the Back and Enter buttons for three seconds.
While Child Lock is active, the heater will continue to operate in whatever mode, with whatever settings it had
before the lock was activated.
There are no exception rules with this lock, and the user can only choose to unlock the heater if they wish to change
the temperature, modes or settings.
Heater Lock (PIN Lock)
Heater Lock is the most customisable and secure lock on the heater. This allows the heater to be configured in any
way, then locked into those settings and modes.
When PIN Lock is activated, pressing the Menu button will show one item* that can be selected - ‘Unlock’. Selecting
‘Unlock’ prompts the User to complete the applicable Unlock action:
PIN Lock Exceptions
It is possible to allow the ‘Advance’ and ‘Boost’ functions to be enabled/disabled when PIN Lock is active.
There are up to 4 exceptions. These exceptions include:
- Advance
• Ability to activate using the Advance button.
- Boost
• Ability to activate using the ‘hotkey’ listed in the Main Menu
• Ability to modify the Boost Temperature
• Ability to modify the Boost Duration
Menu
Unlock
PIN Lock
134-
Enter 4 Digit
PIN PIN Unlocked
*Unless Boost Mode has been
enabled during UI Lock
Manual
