Dimplex DFB8842 User manual

Owner’s Manual
Model
DFB8842
7207500200R09
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this replace.
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ..................3
IMPORTANT INSTRUCTIONS .................4
Fireplace Installation ........................7
Operation .................................9
Maintenance .............................14
Warranty .................................18
Replacement Parts .........................21

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.

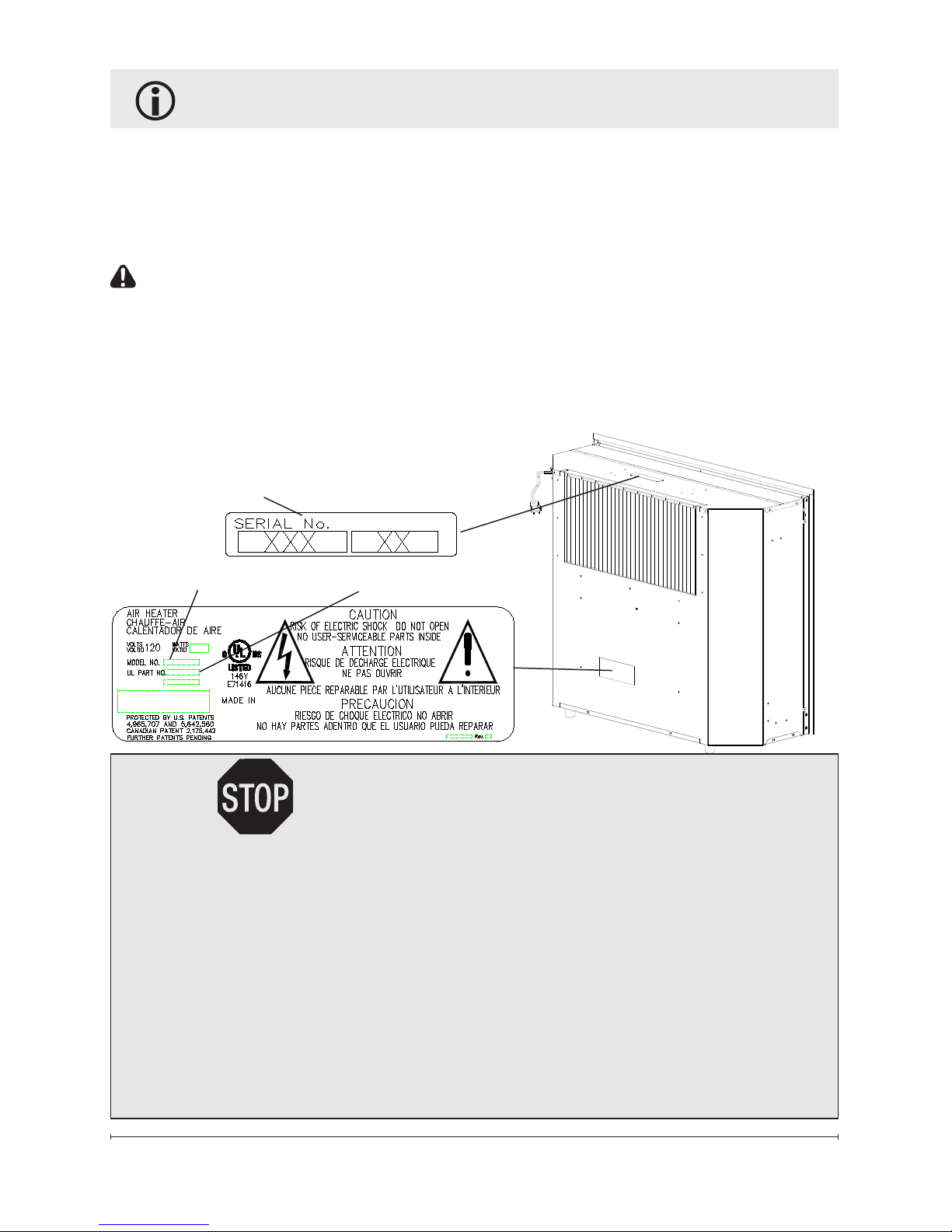

Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your replace.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Part Number
Serial Number
Model Number

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
re, electric shock, and injury to
persons, including the following:
① Read all instructions before
using this appliance.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 ft (0.9m) from the front of
the unit.
③ Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the fireplace
when not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
ing.
⑥ Do not operate any unit with
IMPORTANT INSTRUCTIONS
a damaged cord or plug, or if the
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦ Do not use outdoors.
⑧ The electric replace is not
intended for use in bathrooms,
laundry areas and similar indoor
locations. Never locate heater
where it may fall into a bathtub or
other water container.
⑨ Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩ To disconnect the unit, turn
the controls off, then remove the
plug from the outlet.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑬ All electrical heaters have

5
SAVE THESE INSTRUCTIONS
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.
⑭ Do not modify the electric
replace. Use it only as described
in this manual. Any other use not
recommended by the manufactur-
er may cause re, electric shock
or injury to persons.
⑮ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑯ Do not burn wood or other
materials in the electric replace.
⑰ Do not strike the replace
glass.
⑱ Always use a certied electri-
cian should new circuits or outlets
be required.
⑲Always use properly ground-
ed, fused and polarized outlets.
⑳ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉑When transporting or storing
the unit and cord, keep in a dry
place, free from excessive vibra-
tion and store so as to avoid dam-
age.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICABLE PARTS INSIDE

6 www.dimplex.com
!NOTE: This equipment has been
tested and found to comply with the limits
for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one of the
following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and receiver.
• Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an
experienced radio/TV technician for
help.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved by
the party responsible for compliance could
void the user's authority to operate this
equipment.
IMPORTANT INSTRUCTIONS
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this
radio transmitter may only operate using
an antenna of a type and maximum (or
lesser) gain approved for the transmitter
by Industry Canada. To reduce potential
radio interference to other users, the
antenna type and its gain should be so
chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more
than that necessary for successful
communication.
WARNING: Remote control
contains small batteries.
Keep away from children. If
swallowed, seek medical attention
immediately.
WARNING: Do not install
battery backwards, charge, put
in re or mix with used or other
battery types - may explode or
leak causing injury.
CAUTION: Changes or
modications not expressly
approved by the party
responsible for compliance
could void user's authority to
operate the equipment.

7
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
CAUTION: Clearance for air
circulation beneath the re-
place insert is provided by two
rubber feet.
Do not install the replace
insert directly on carpet or
similar surfaces which may
restrict air circulation.
CAUTION: If installing the
replace in a carpeted area, place
a one-piece, solid, at surface
under the replace. Ensure that
both of the feet rest securely on
this surface.
CAUTION: High temperature,
Fireplace Installation

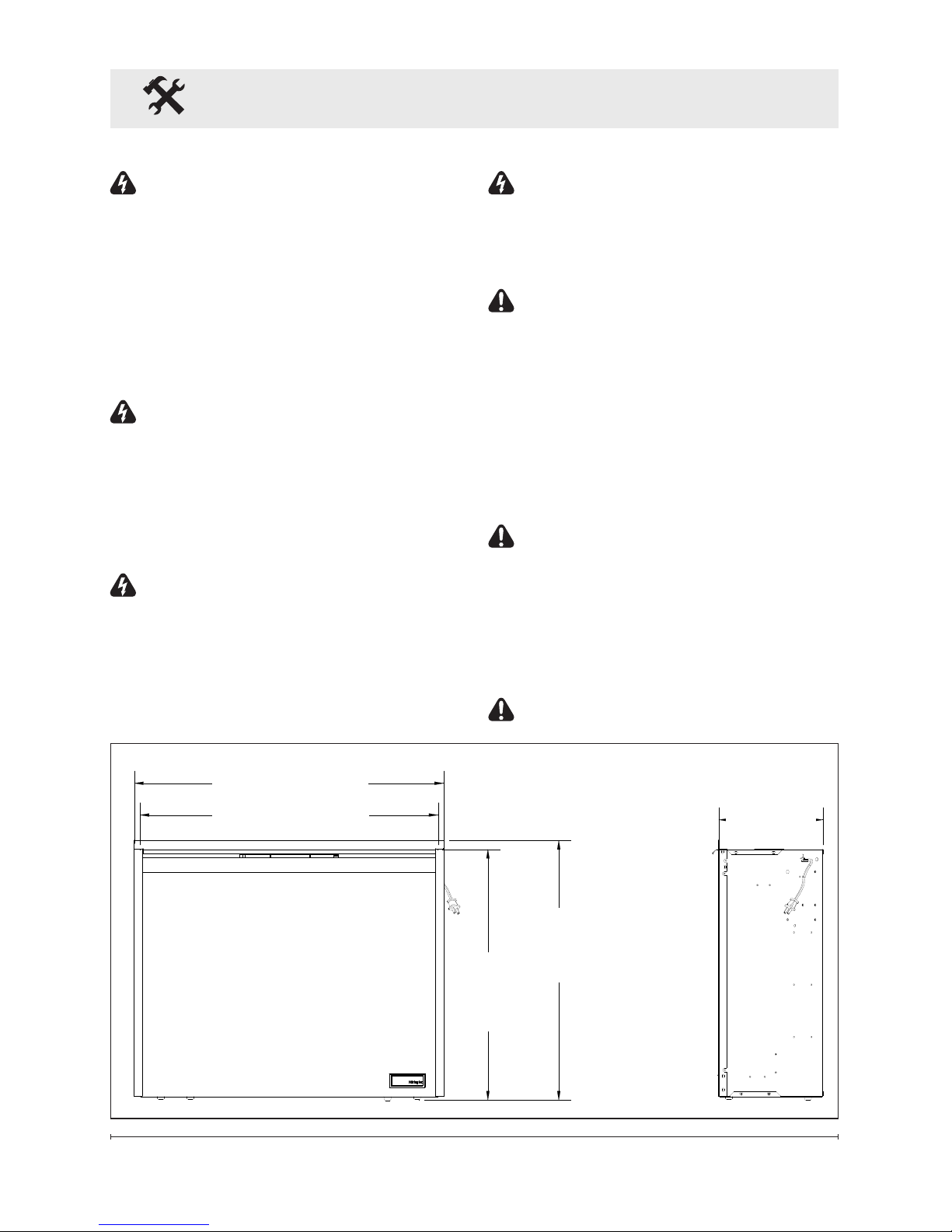

Figure 1
31 ⅜" (797 mm)
30 ¼" (768 mm)
25 ½"
(648
mm)
26 ⅜"
(670
mm)
10 ½"
(267 mm)

8 www.dimplex.com
Fireplace Installation
30 ¾"
(781 mm)
Figure 2
10 ¾"
(273 mm)
25 ¾"
(654 mm)
risk of re, keep electrical cords,
drapery, furnishings, and other
combustibles at least 3 ft (0.9 m)
from the front of the heater.
For dimensions of the rebox
insert, with and without the trim,
refer to Figure 1. The replace
does not require any additional
venting.
Mantel Installation
Install the replace assembly into
the mantel (refer to mantel as-
sembly instructions).
!IMPORTANT: If not using a
Dimplex mantel, the replace
must be installed in an enclo-
sure with the following MINI-
MUM internal/opening dimen-
sions (Figure 2).
New Wall Construction
1. Mark the desired location on
the oor and store the re-
place in a safe, dry and dust
free location.
2. Use studs to frame an opening
of 30 ¾ in. (781 mm) wide X
25 ¾ in. (654 mm) high X
10 ¾ in. (273 mm) deep.
3. Plug the unit into a 15 Amp
/120 Volt outlet.
Option #1: The power cord can
be lead from behind the trim
and along the wall to an outlet
near the replace.
Option #2: A new outlet can be
installed inside the new frame
construction.
!NOTE: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not es-
sential in all cases. A dedi-
cated circuit will be required
if, after installation, the circuit
breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating
of the circuit breaker.

9
Fireplace Installation
Wiring
Operation
WARNING: This electric
rebox must be properly installed
before it is used.
Manual Controls
The manual controls for the
replace are located in the lower
right hand corner (Figure 3).
A. Main On/Off Switch
Supplies power to the 3-Posi-
tion switch.
B. 3 Position Switch
• Remote (right position):
The unit is operated with the
remote control.
• Flame (center position):
The ame effect is turned ON.
• Flame & Heat (left posi-
tion): The ame effect and
heater are turned ON simul-
taneously. When the manual
control is in the Flame & Heat
position the heater does not
run on the remote operated
thermostat.
C. Initialization Button
Used to synchronize remote
control.
!NOTE: When the 3-Position
Figure 3
ABC

10 www.dimplex.com
Operation
Batteries
Figure 4
Child Lock
switch is in the Flame and
Flame & Heat positions, the
replace unit will not operate
with the remote control.
!NOTE: The heater on your
replace may emit a slight,
harmless odor when rst used.
This odor is a normal condition
caused by the initial heating of
internal heater parts and will
not occur again.
Resetting The Temperature
Cutoff Switch
The heater is protected with a
safety device to prevent overheat-
ing. Should the heater overheat,
an automatic cut out will turn the
heater off and it will not come
back on without being reset. It
can be reset by switching the ON/
OFF Switch to OFF and waiting
ve (5) minutes before switching
the unit back on.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call Dim-
plex North America Limited
at 1-888-346-7539. Have
the product Model and Serial
Numbers ready when calling.
Remote Control
The remote control has a range of
approximately 50 ft (15.25 m). It
does not have to be pointed at the
replace and can pass through
most obstacles (including walls).
It is supplied with 243 indepen-
dent frequencies to prevent inter-
ference with other units.

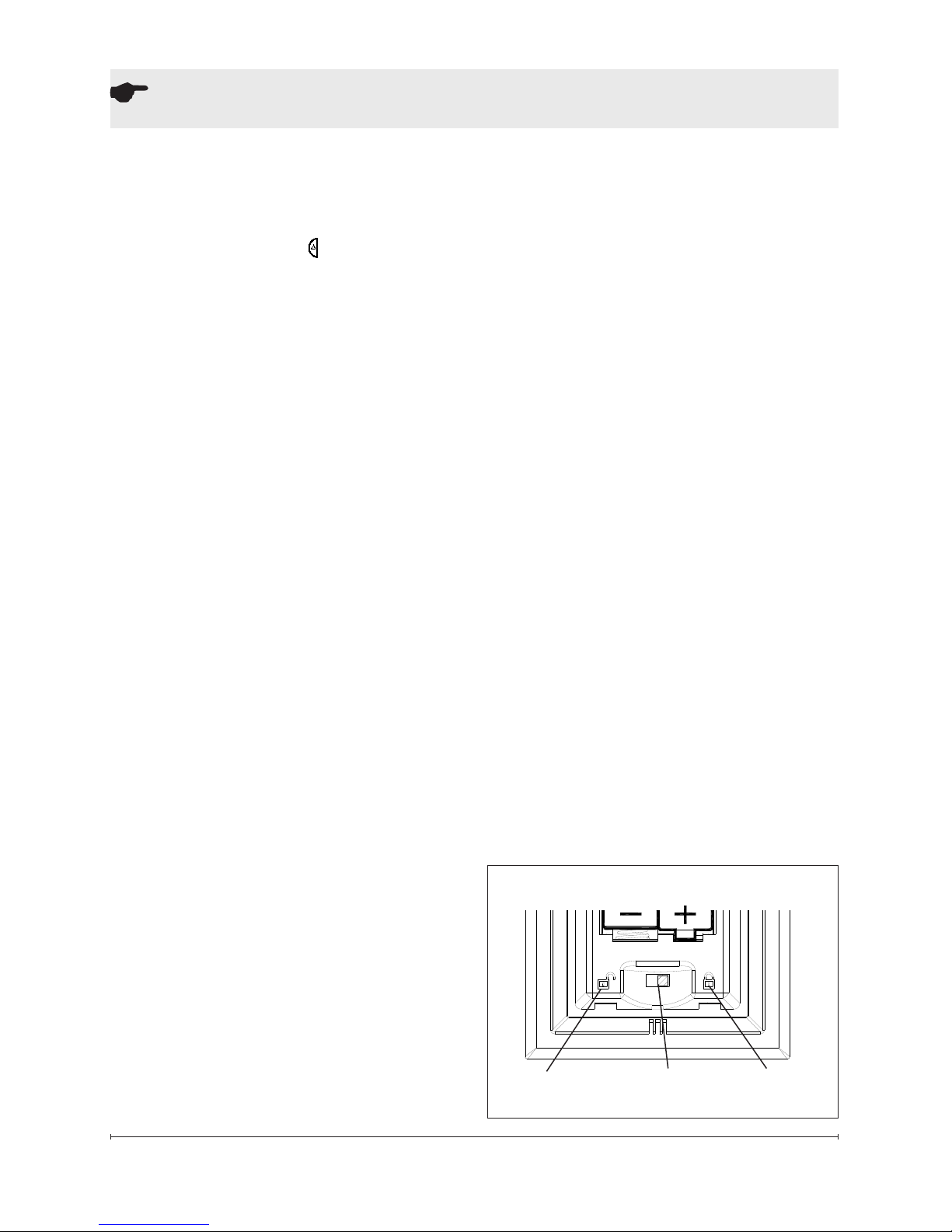

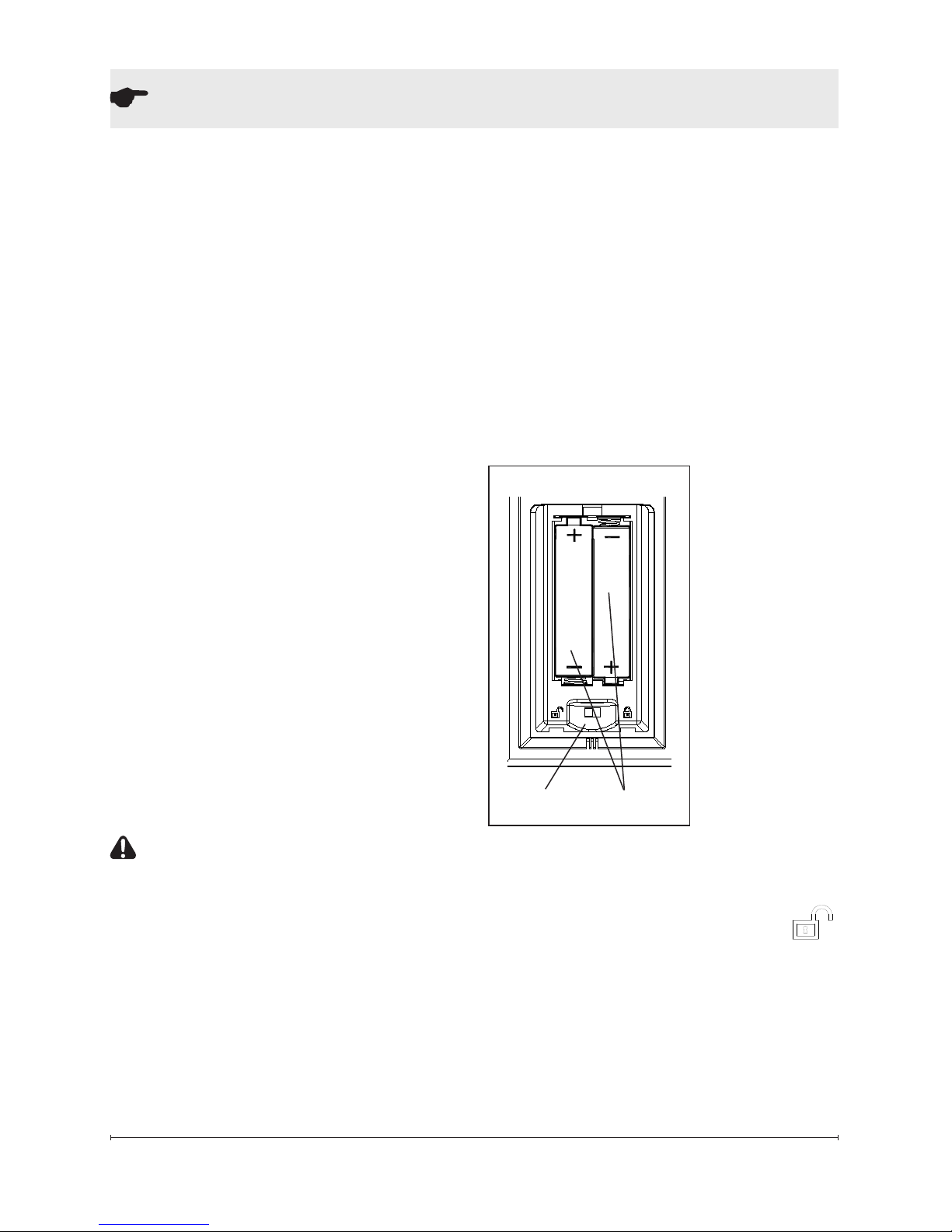

Battery Installation (Figure 4)
1. Depress
the tab on
the battery
cover on
the back of
the remote
control and
remove
battery
cover.
2. Install two
AAA bat-
teries
into the remote control (includ-
ed).
3. Ensure child lock is in the
position.
4. Replace the battery cover.
!NOTE: When the “BAT”
symbol is present on the remote
control it is recommended to
