Dimplex DFI2309 Quick start guide

PARTS AND SERVICE MANUAL
FOR THE 23” INSERT FIREPLACE
MODEL NUMBER:
DFI2309

TABLE OF CONTENTS
OPERATION PAGE1
PARTS DRAWING PAGE 3
PARTSLIST PAGE4
WIRING DIAGRAM PAGE 5
LIGHT BULB REPLACEMENT PAGE 6
MAIN ON/OFF SWITCH REPLACEMENT PAGE 8
LOW HEAT ON/OFF SWITCH REPLACEMENT PAGE 9
HIGH HEAT ON/OFF SWITCH REPLACEMENT PAGE 10
FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 11
HEATER ASSEMBLY REPLACEMENT PAGE 12
LIGHT HARNESS REPLACEMENT PAGE 13
POWER CORD REPLACEMENT PAGE 14

1
DFI2309
OPERATION

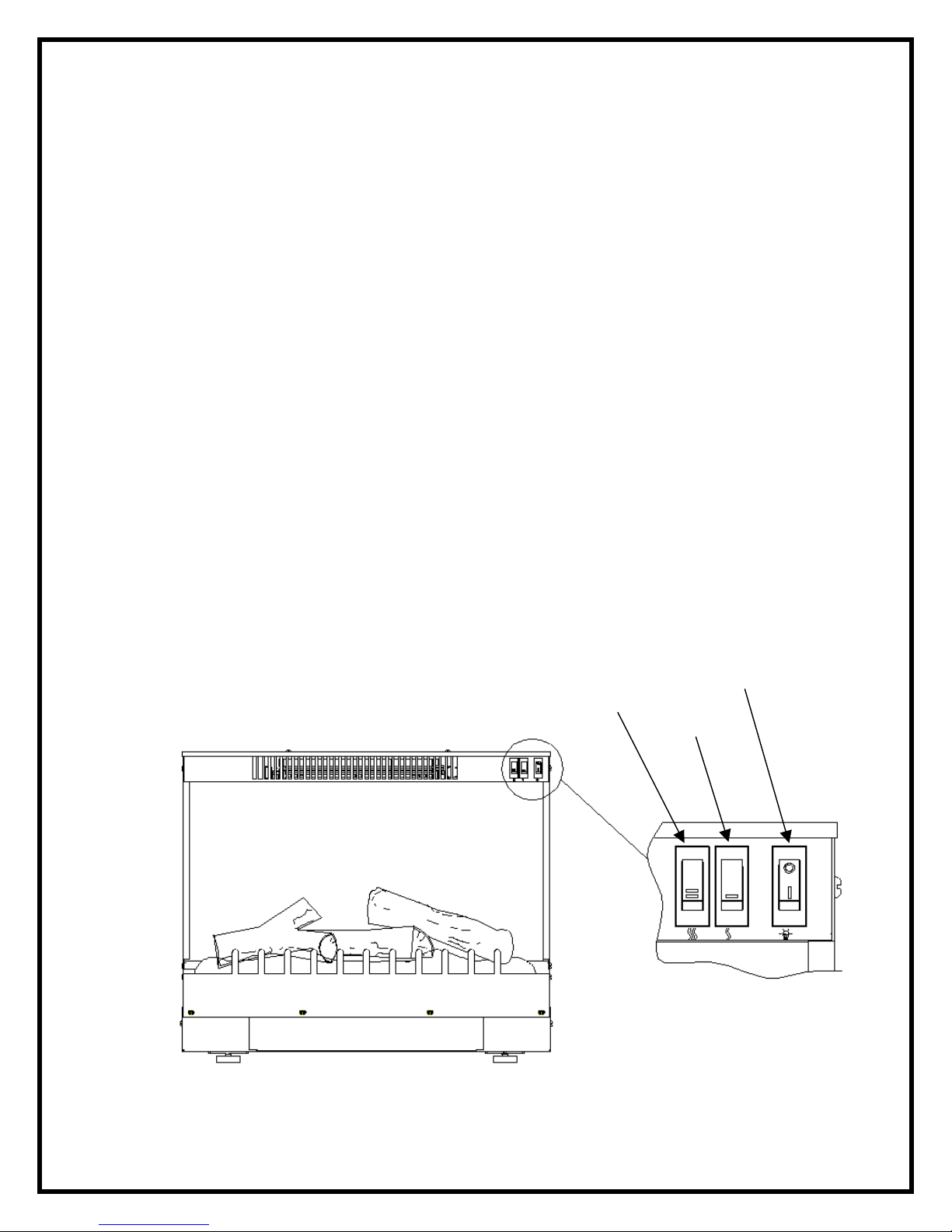

MAIN ON/OFF FLAME ON/OFF SWITCH
The ON/OFF switch supplies power to all unit functions. When this switch is in the ON
position the flame effect operates without heat.
LOW HEAT SWITCH
The LOW HEAT ON/OFF SWITCH supplies power to the heater fan and the heater
element. When the switch is in the ON position the heater operates on LOW.
HIGH HEAT SWITCH
The HIGH HEAT ON/OFF SWITCH supplies power to the heater fan and the heater
element, when the switch is in the ON position the heater operates on HIGH. The LOW
HEAT ON/OFF SWITCH must also be in the ON position for the high heat setting to
operate.
RESETTING THE TEMPERATURE CUTOFF SWITCH
The heater is protected with a safety device to prevent overheating. Should the heater
overheat, an automatic cut out will turn the heater off and it will not come back on
without being reset. It can be reset by switching the ON/OFF SWITCH to OFF and
waiting 5 minutes before switching the unit back on.
CAUTION
If you need to continuously reset the heater, unplug the unit and call your local dealer.
MAIN ON/OFF
HIGH HEAT
LOW HEAT

2
DFI2309
REMOTE CONTROL
The remote control has a range of approximately 50ft. (15.25m) it does not have to be
pointed at the fireplace and can pass through most obstacles (including walls). It is
supplied with one of 243 independent frequencies to prevent interference with other
units. The frequency designation is indicated on the back of the transmitter (FIGURE 3)
REMOTE CONTROL INSTALLATION
1. Plug fireplace cordset into the outlet located on the side of the receiver. (FIGURE 2)
2. Plug receiver into the wall outlet.
3. Install a 9 volt battery into the transmitter. (FIGURE 3)
NOTE
• Fireplace MAIN on/off switch must be in the
ON position prior to using the Remote Control.
• ON/OFF Remote Control may be used to
control most other electrical devices including
T.V.’s, stereos and lamps.
CAUTION
• For indoor use in dry areas only
• For use on electrical devices with 15 amp
resistive load or 1/3 HP inductive load
• 120 volt AC only
FIGURE 2
Receiver
Outlet
OPEN
Frequency
Code
Battery
Cover
FIGURE 3

3
DFI2309
10 9
6
4
11
1
2
3
7
8
5
12

4
DFI2309
REPLACEMENT PARTS
23” FIREPLACE INSERT
REPLACEMENT PART REPLACEMENT PART NO.
1. MAIN ON/OFF SWITCH 2800090100RP*
2. LOW HEAT ON/OFF SWITCH 2800090100RP*
3. HIGH HEAT ON/OFF SWITCH 2800090100RP*
4. CORDSET 4100090101RP
5. HEATER ASSEMBLY 2200490300RP
6. CUTOUT 2300270200RP
7. MIRROR 5900350100RP
8. LOGSET 0438200200RP
9. FLICKER MOTOR 2000220100RP
10.REFLECTOR ASSEMBLY 5900340100RP
11.LAMPHOLDER 4200120100RP
12.REMOTE CONTROL 6800050200RP

5
DFI2309
WIRING DIAGRAM

6
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame. There are
four bulbs under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the end of
their rated life. Group replacement will reduce the number of times you need to open
the unit to replace the light bulbs.

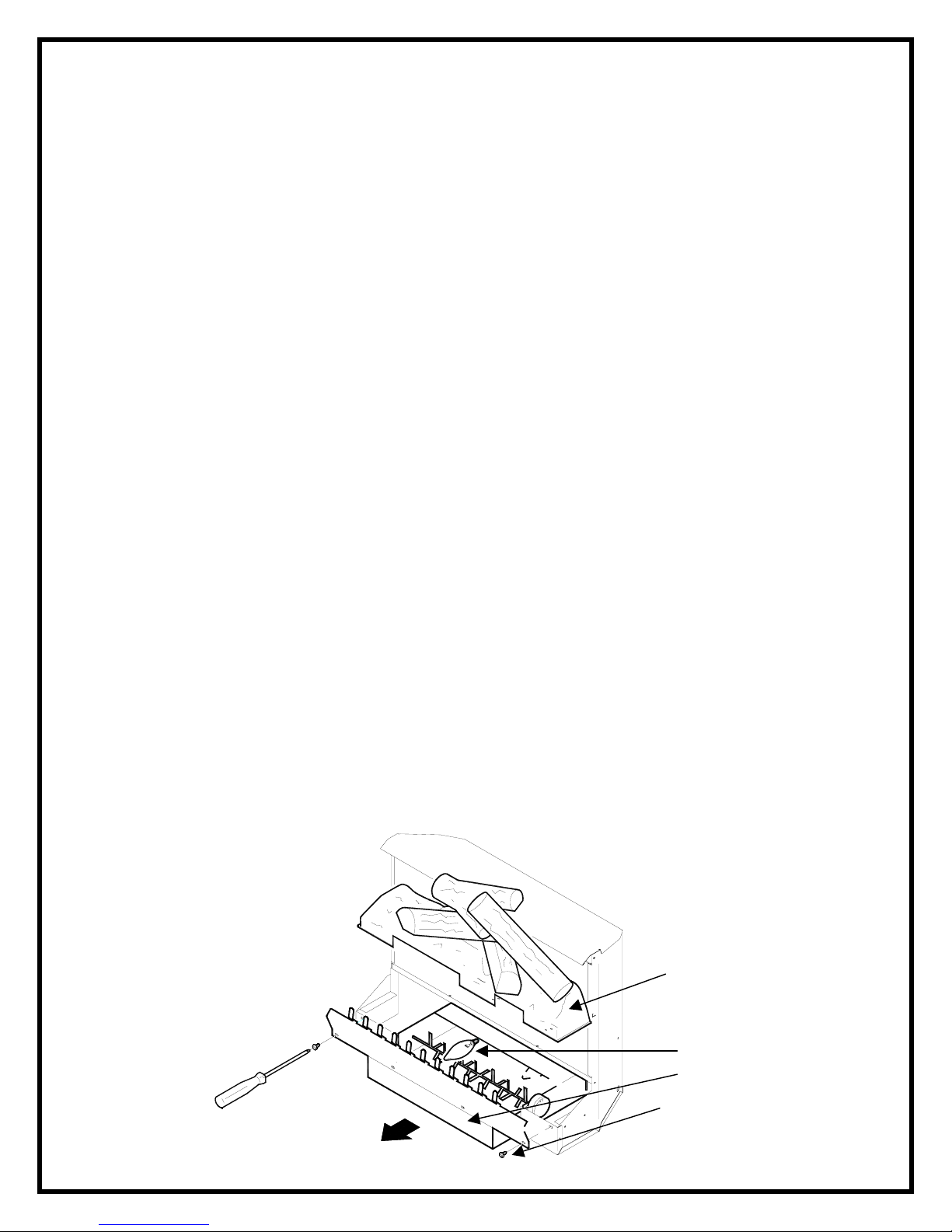

1. Remove the fireplace trim.
2. Remove the (2) outer screws from the log grate.
3. Slide the light assembly out of the insert by pulling the log grate
until the light assembly reaches the stop.
4. Remove the log set by lifting the log ember bed straight up.
5. Examine the bulb(s) to determine which bulb(s) require replacement.
6. Unscrew the bulbs counter clockwise.
7. Insert new bulbs.
8. Replace the log set into the insert.
9. Slide the light assembly back into the insert.
10.Install the two outer screws into the log grate.
11.Reinstall the fireplace trim.
Outer Screws
Light Assembly
Light Bulbs
Log Ember Bed

7
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
BULB REQUIREMENTS
Quantity 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60
watt rating.

8
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE MAIN ON/OFF SWITCH
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) screws located in the front middle of the top and the (2) screws at
the back of the top.
4. Locate the main on/off switch mounted in the exhaust panel and disconnect the
wiring clips and connections noting their original locations.
5. Depress the retainer clips on the rear of the switch and push the switch out of the
exhaust panel.
6. Properly orientate the new switch and connect all of the wiring clips and
connections.
7. Reassemble in the reverse order as above.

9
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE LOW HEAT ON/OFF SWITCH
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) screws located in the front middle of the top and the (2) screws at
the back of the top.
4. Locate the low heat on/off switch mounted in the exhaust panel and disconnect the
wiring clips and connections noting their original locations.
5. Depress the retainer clips on the rear of the switch and push the switch out of the
exhaust panel.
6. Properly orientate the new switch and connect all of the wiring clips and
connections.
7. Reassemble in the reverse order as above.

10
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HIGH HEAT ON/OFF SWITCH
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) screws located in the front middle of the top and the (2) screws at
the back of the top.
4. Locate the high heat on/off switch mounted in the exhaust panel and disconnect the
wiring clips and connections noting their original locations.
5. Depress the retainer clips on the rear of the switch and push the switch out of the
exhaust panel.
6. Properly orientate the new switch and connect all of the wiring clips and
connections.
7. Reassemble in the reverse order as above.

11
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) outer screws from the log grate.
4. Slide the light assembly out of the insert by pulling and lifting up on the log grate until
the light assembly comes out of the unit.
5. Remove the (2) flame motor cover screws and set aside.
6. Remove the (3) flame motor wires (black, white, and brown) from the terminal block.
NOTE: A small Philips head screwdriver is required.
7. Remove the (2) flame motor mounting screws.
8. Remove flame rod from flame motor by pulling the rubber channel section of the
flame rod away from flame motor.
9. Reassemble in the reverse order as above.

12
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HEATER ASSEMBLY
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) screws located in the front middle of the top and the (2) screws at
the back of the top.
4. Disconnect the wiring clips and connections from the heater assembly noting their
original locations.
5. Remove the (4) screws located in the middle of the top panel.
6. Remove the (2) Z brackets from the bottom of the heater assembly noting their
mounting orientation.
7. Install the (2) Z brackets onto the replacement heater assembly.
8. Reassemble in the reverse order as above.

13
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE LIGHT HARNESS
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) outer screws from the log grate.
4. Slide the light assembly out of the insert by pulling and lifting up on the log grate until
the light assembly comes out of the unit.
5. Cut the (2) light harness wires (blue, white) in between the flame motor cover and
the right light socket with wire cutters.
6. Strip the (2) light harness wire ends (blue, white) on the flame motor cover side.
7. Cut the (2) light harness wires (blue, white) in between the left and right light sockets
with wire cutters.
8. Remove the (2) light socket screws from the rear of the light assembly.
9. Remove light bulbs.
10.Remove light sockets by placing hand inside light assembly, grasping light socket
and pulling light socket until it snaps out of place.
11.Replace the (2) light sockets.
12.Wire connect the (4) light socket wires (blue to blue) (white to white) in between the
left and right light sockets with the supplied wire connectors.
13.Wire connect the (4) light harness wires (blue to blue) (white to white) in between the
flame motor cover and the right light socket with the supplied wire connectors.

14
DFI2309
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE POWER CORD
1. Remove the trim and firebox from mantel.
2. Remove the trim from firebox.
3. Remove the (2) screws located in the front middle of the top and the (2) screws at
the back of the top.
4. Disconnect the wiring clips and connections from the heater assembly noting their
original locations.
5. Set aside top panel.
6. Remove the (2) screws located on the top of the side panels and the (2) screws from
the middle on the back panel.
7. Remove exhaust panel and set aside.
8. Remove mirror.
9. Locate and disconnect the power cord wiring connections noting their original
locations.
10.With needle nose pliers grasp the power cord strain relief grommet from inside the
rear of the back panel and push while twisting to remove.
11.Pull the power cord out through the hole in the rear of the back panel.
12.Install the new power cord through the hole in the back panel and connect all of the
wiring connections in their original locations.
13.Install the power cord strain relief grommet on the replacement power cord and
insert into the mounting hole in the rear of the back panel.
WARNING: Ensure wires do not come in contact with moving parts by securing
wires in wiring tie wraps.
14.Reassemble in the reverse order as above.
