Dimplex Hdn20-eu User manual

8/53939/0 (EU) Issue 3

OCN 11047

Revillusion™ Suites

Haydn Revillusion Suite HDN20-EU

Strata Revillusion Suite STA20-EU

Sherwood Revillusion Suite SWD20-EU

Owner’s Manual

IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting

to install or use the Revillusion™ suite. Always comply with the warnings and

safety instructions contained in this manual to prevent personal injury or property

damage.

EN : This product is only suitable for well insulated rooms or occasional use. DE : Dieses Produkt ist

nur für gut isolierte Bereiche oder gelegentliche Verwendung geeignet. FR : Ce produit convient unique-

ment à des endroits bien isolés ou pour un usage occasionnel. IT : Questo prodotto è adatto solo per

spazi ben isolati o per uso occasionale. ES : Este producto sólo es adecuado para espacios bien aisla-

dos o un uso ocasional. NL : Dit product is uitsluitend geschikt voor goed geïsoleerde ruimten of voor

sporadisch gebruik. TR : Bu ürün sadece iyi yalıtılmış odalar veya ara sıra kullanım için uygundur. PL

: Produkt ten jest odpowiedni wyłącznie do dobrze odizolowanych miejsc lub do okazjonalnego użytku.

RO : Acest produs este adecvat exclusiv spaţiilor bine ventilate sau utilizării ocazionale.

EN DE NL FR RO IT TR ES PL

Table of Contents

SAVE THESE INSTRUCTIONS

Conventions used in this manual:

!NOTE: Procedures and techniques considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result in

damage to the equipment.

WARNING: Procedures, precautions and techniques which, if not carefully followed,

will expose the user to the risk of re, serious injury, or death.

Welcome ..............................................................3

IMPORTANT INSTRUCTIONS ............................4

Setup & Product Dims..........................................6

Operation..............................................................8

Maintenance...................................................... 11

Technical Information

With mechanic thermostat room temperature control.

Model No: HDN20-EU, STA20-EU, SWD20-EU

Heat Output 230V 240V

Nominal Heat Output P Nom 1.8 - 2.0 kW

Minimum Heat Output P min 0 - 0 kW

Maximum Continous Heat Output P max,c 1.8 - 2.0 kW

Auxiliary Electricity Consumption

In Standby mode el SB 0.47 - 0.49 W

Welcome

Thank you for purchasing a Revillusion™ Built-in Electric Firebox by Dimplex.

CAUTION: Read all instructions and warnings carefully before starting installation.

Failure to follow these instructions may result in a possible electric shock or re hazard

and will void the warranty.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

Please consult your warrenty card for our contact details.

Rating Label

IMPORTANT INSTRUCTIONS

Read all instructions before using this appliance.

When using electrical appliances, basic precautions should always

be followed to reduce the risk of re, electrical shock and injury to

persons, including the following:

1. If the appliance is damaged, check with the supplier before

installation and operation.

2. Do not use outdoors.

3. Do not use in the immediate surroundings of a bath, shower or

swimming pool.

4. Do not locate the appliance immediately below a xed socket outlet

or connection box.

5. This appliance can be used by children aged form 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Children shall

not play with the appliance. Cleaning and user maintenance shall

not be made by Children without supervision.

6. Children of less than 3 years should be kept away unless

continuously supervised. Children aged from 3 years and less than

8 years shall only switch on/off the appliance provided that it has

been placed or installed in its intended normal operating position

and they have been given supervision or instruction concerning

use of the appliance in a safe way and understanding the hazards

involved. Children aged from 3 years and less than 8 years shall

not plug in, regulate and clean the appliance or perform user

maintenance.

7. Do not use this appliance in series with a thermal control, a

program controller, a timer or any other device that switches on

the heat automatically, since a re risk exists when the appliance

is accidentally covered or displaced.

IMPORTANT INSTRUCTIONS

8. Ensure that furniture, curtains or other combustible material are

positioned no closer than 1 metre from the appliance.

9. In the event of a fault unplug the appliance.

10.Unplug the appliance when not required for long periods.

11. Although this appliance complies with safety standards, we do

not recommend its use on deep pile carpets or on long hair type

of rugs.

12.The appliance must be positioned so that the plug is accessible.

13.If the supply cord is damaged it must be replaced by the

manufacturer or service agent or a similarly qualied person in

order to avoid a hazard.

14.Keep the supply cord away from the front of the appliance.

WARNING: In order to avoid overheating, do not cover the

appliance. Do not place material or garments on the appliance,

or obstruct the air circulation around the appliance, for instance

by curtains or furniture, as this could cause overheating and

a re risk.

WARNING: In order to avoid a hazard due to inadvertent resetting

of the thermal cut-out, this appliance must not be supplied through an

external switching device, such as a timer, or connected to a circuit

that is regularly switched on and off by the utility.

CAUTION: Some parts of this product can become very hot and

cause burns. Particular attention has to be given where children and

vulnerable people are present.

Setup & Product Dims

WARNING: Electrical outlet wiring

must comply with local building codes

and other applicable regulations to

reduce the risk of re, electric shock, or

injury to persons.

NOTE: A 13Amp (EU) or 10

Amp(AU/NZ) circuit is required. A

dedicated circuit is preferred, but not

essential in all cases. A dedicated circuit

will be required if, after installation, the

circuit breaker trips or the fuse blows

on a regular basis when the heater is

operating. Additional appliances on the

same circuit may exceed the current

rating of the circuit breaker.

Unpacking the Unit

The unit comes packed with a protective

sheet covering the front of the unit. This

sheet is intended to prevent dust and

debris from entering during construction.

This sheet is designed so that it can be

partially removed to complete the wiring

and unpacking and can be reinstalled

until the final installation is complete.

The log set was installed on the grate

and the grate permanently fixed to the

firebox at the factory.

Carefully remove the packaging from

around the log set. Make sure the wires

from the log set are connected securely

to the grate box.

CAUTION: The Realogs™ contain

LEDs to create a unique pulse and glow

effect. Handle the log set carefully. They are

fragile and can crack or break if dropped.

Fitting

WARNING: FALLING OR TIPPING

APPLIANCES CAN CAUSE INJURY

OR DEATH OF YOUNG CHILDREN,

PLEASE ENSURE CHILDREN DO NOT

CLIMB, HANG OR STAND ON THIS

PRODUCT.

WARNING: THE APPLIANCE

IS PROVIDED WITH A TIPPING

RESTRAINT, THIS RESTRAINT IS NOT

A SUBSTITUTE FOR PROPER ADULT

SUPERVISION. THIS RESTRAINT MAY

PROVIDE PROTECTION AGAINST

TIPPING FURNITURE. DO NOT

ALLOW CHILDREN TO CLIMB ON

FURNITURE. FAILURE TO DETACH

THIS RESTRAINT BEFORE MOVING

FURNITURE MAY RESULT IN INJURY

AND DAMAGE.

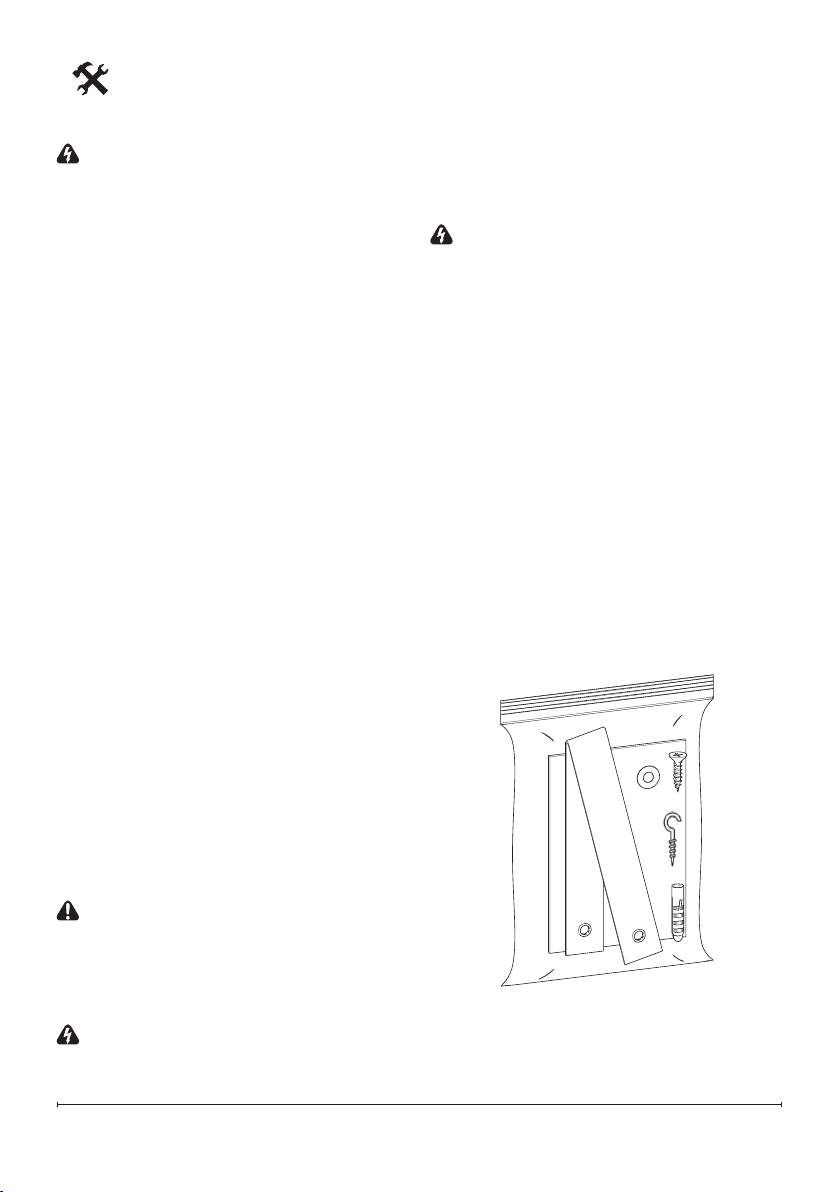

This product is provided with a ‘Tipping

Restraint Kit’ as shown below, to prevent

the product accidentally tipping over.

Fitting Instructions are supplied with

this kit please follow these instructions

carefully.

Setup & Product Dims

Haydn

Strata

Sherwood

Operation

A B C D E F G

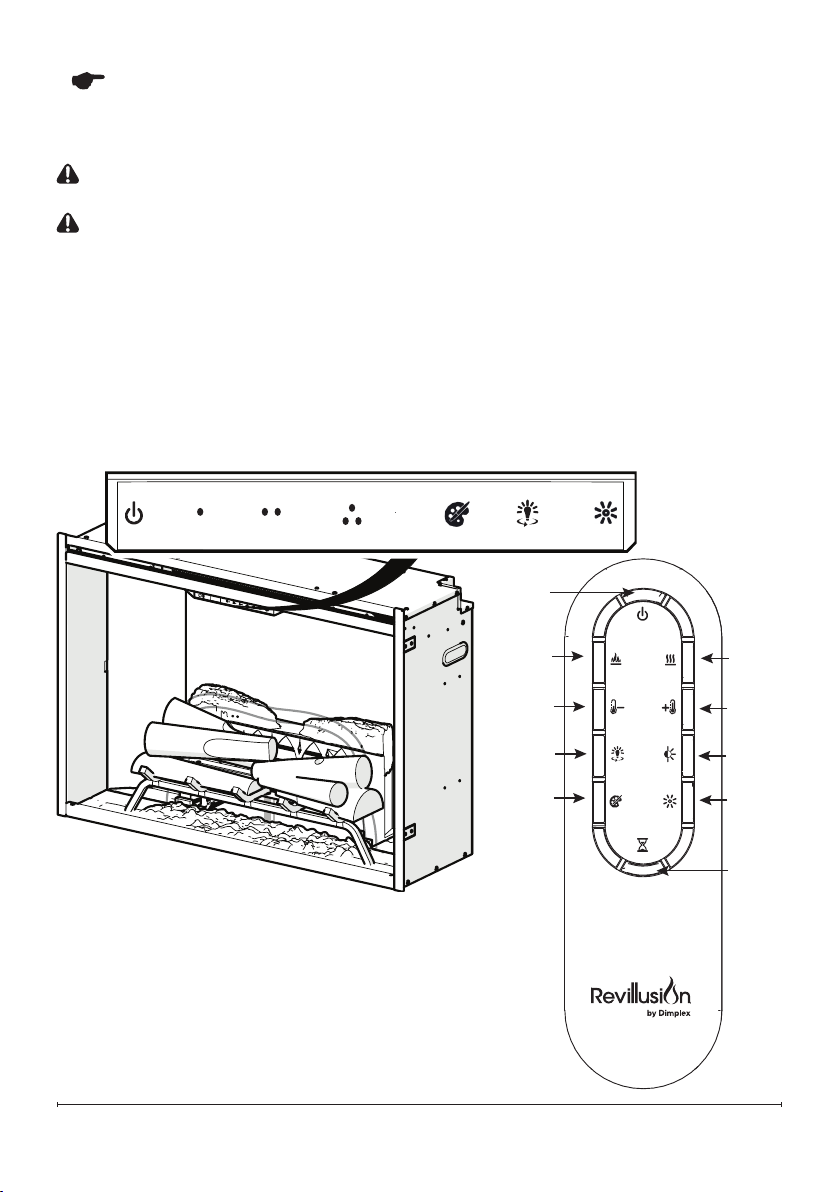

Touch Panel and Remote Controls

WARNING: The RevillusionTM Built-in Electric Firebox must be installed

properly before it is used.

CAUTION: Except for installation and cleaning described in this manual, an

authorized service representative should perform any other servicing.

The manual controls for the RevillusionTM Built-in Electric Firebox are located on

the front panel. Touch an icon to activate. The selected setting displays on the left

side of the panel.

A multi-function remote control also is provided. The remote control has a range of

approximately 30 ft (9 m). To operate correctly, the remote control must be pointed

toward the front of the built-in electric firebox.

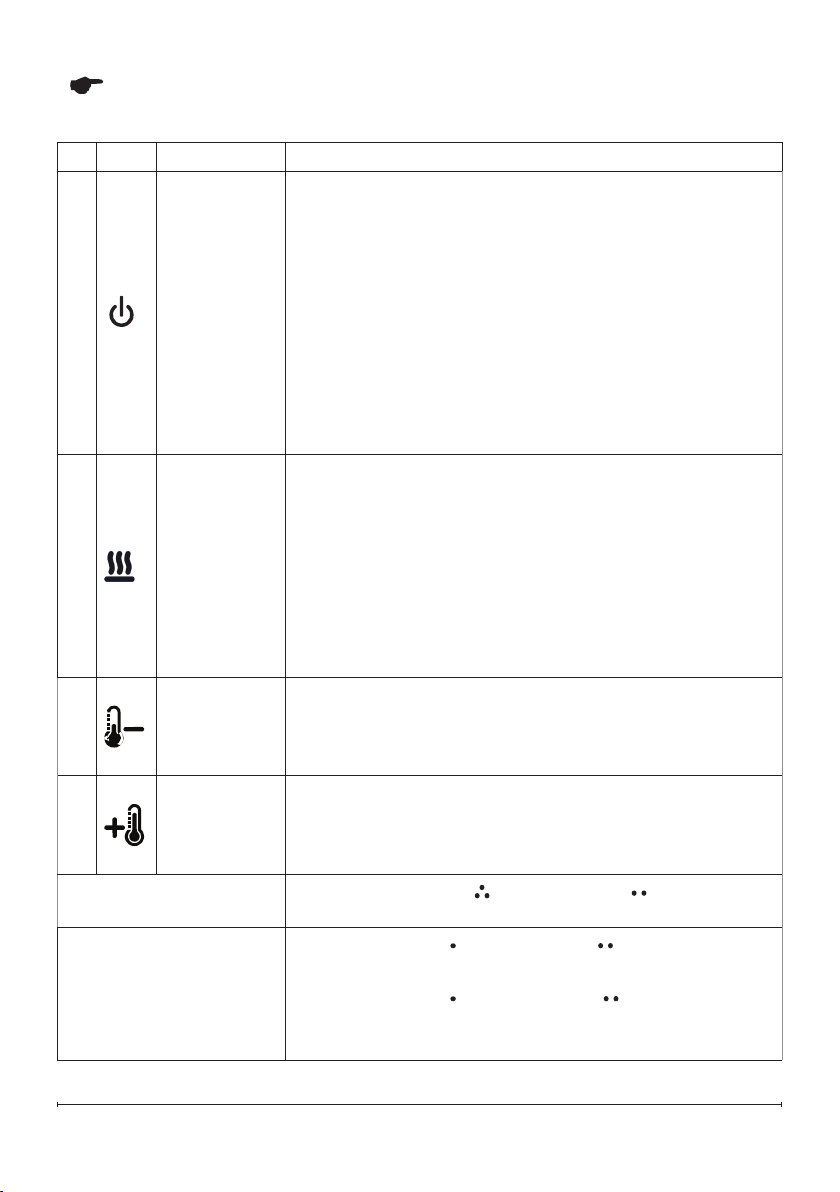

Operation

Icon Function Description

APower/

Standby

Press to activate the current standby state (On/Off).

• Standby State On

Press to turn everything Off. Press again to activate

the previous state.

• Standby State Off

Press to activate the previous state.

- If the flame effect was On, the previous heat setting

will be activated (On or Off).

- If the flame effect was Off, the previous heat setting

will be activated (High or Low).

Press again to turn everything Off.

BHeat

• Heat On

Press to turn heat On (indicated by 1 short beep and

the icon appearing on the display). Displays current

heater temperature setting. Use the Temp Up/Down

icon to change the heater temperature setting.

• Heat Off

Press to turn heat Off (indicated by 1 short beep).

!NOTE: After the heater is switched off, the fan will

continue on for 60 seconds before turning off.

CTemp Down

Press multiple times to lower the heater temperature

in 10 F (10 C) increments. Displays current

temperature; lowest temperature is 410 F (50C). This

feature is active whenever the heat is enabled.

DTemp Up

Press multiple time to raise the heater temperature in

10 F (10 C) increments. Displays current temperature;

highest temperature is 990 F (370 C). This feature is

active whenever the heat is enabled.

Change Fahrenheit

(0 F) to Celsius (0C) Press both Temp+ ( ) and Temp– ( ) on the unit.

Heat Enable

Heat Disable

Hold both Heat ( ) and Temp– ( ), on the unit, for

2 seconds. Temperature displays on the screen.

Hold both Heat ( ) and Temp– ( ), on the unit,

for 2 seconds, when temperature is adjusted "---"

displays on the screen.

Operation

Icon Function Description

EColor

Themes

Press multiple times to change the flame base colors

from Red to Blue to Off. (The first segment on the

display will change from "r" to "b" to blank) This

feature is active only when the flame effect is On.

F360oLight

Press multiple times to change the LEDs on the sides

and back of the unit from Midnight mode to white to

yellow to red. (The middle segment on the display

will change through 0 - 3 respectively. This feature is

active only when the Flame is ON.)

GBrightness

Press to change the LED lights from High to Low.

(The last segment on the display will change from

"H" to "L") The RealogTM LEDs remain On when the

heater is ON and the flame effect is Off.

!NOTE: When the Light Sensor is activated, High

and Low ickering brightness settings are also available

(Flashing "H" and "L").

HFlame Press to light the log set and start the flame effect.

Press again to turn feature Off.

ILight

Sensor

Press to activate (ALS ON) the ambient light sensor.

Press again to turn the sensor off (ALS OFF).

!NOTE: The light sensor will adjust the brightness of the

replace based on the ambient light in the room.

JTimer Press multiple times to change the sleeper timer in

0.5 hr increments from 0.5 hr to 8.0 hr before turning

off. The remaining time on the sleep timer displays.

Control Lock

Control Unlock

Hold both Temp– ( ) and Brightness ( ), on the

unit, for 2 seconds to disable the manual controls.

Hold both Temp– ( ) and Brightness ( ), on the

unit, for 2 seconds to enable the manual controls.

Resetting the Temperature Cutoff Switch

Should the heater overheat, an automatic cut out will turn the heater off and it will

not come back on without being reset. It can be reset by disconnecting power at

the main electrical panel and waiting 5 minutes before plugging the unit back in.

CAUTION: If you need to con tinuously reset the heater, unplug the unit and call

technical support.

Remote Battery Replacement

To replace the battery:

1. Push down on the battery cover

located on the back of the remote

control. Slide the battery cover

open.

2. Install 3V (CR2032) Lithium battery

in the battery holder. The positive

(+) side of the battery faces up.

3. Close the battery cover.

The old battery must be

recycled or disposed of

properly. Check with your

Local Authority or Retailer for

recycling advice in your area.

CAUTION: When transporting or storing

the heater and cord, keep in a dry place, free

from excessive vibration and store so as to

avoid damage.

Maintenance

General Maintenance

Inspect the built-in electric firebox

regularly, depending upon conditions,

and at a minimum yearly intervals.

Remove dust and clean the logs, grate,

and base as required.

WARNING: Disconnect power and

allow heater to cool before attempting any

maintenance or cleaning to reduce the risk

of re, electric shock, or injury.

CAUTION: Except for installation

and cleaning described in this manual, an

authorized service representative should

perform any other servicing.

Clean Logs and Base

The built-in electric firebox set should

not be operated with an accumulation

of dust or dirt on or in the firebox, as

this can cause a build up of heat and

eventual damage.

Dust and vacuum the firebox as needed.

Use a damp cloth and a mild detergent

to clean painted surfaces of the built-

in electric firebox. Never use abrasive

cleaners.

Clean Reflector Screen

The reflector screen is cleaned in the

factory during the assembly operation.

During shipment, installation, handling,

etc., the screen may collect dust

particles; these can be removed by

dusting lightly with a clean dry cloth.

To remove fingerprints or other marks,

clean the reflector screen damp cloth.

Never use abrasive cleaners. Dry the

screen completely with a lint free cloth

to prevent water spots.
