Dimplex MULTIFIRE DF3015 User manual

Owner’s Manual
Model
DF3015
7207500100R11
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair
this replace.
!NOTE: Procedures and
techniques that are considered
important enough to
emphasize.
CAUTION: Procedures
and techniques which, if not
carefully followed, will result in
damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations ............3
IMPORTANT INSTRUCTIONS ..........4
Fireplace Installation .................7
Operation ...........................9
Maintenance .......................14
Warranty ..........................18
Replacement Parts ...................21

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result in a
possible electric shock, re hazard and will void the warranty.

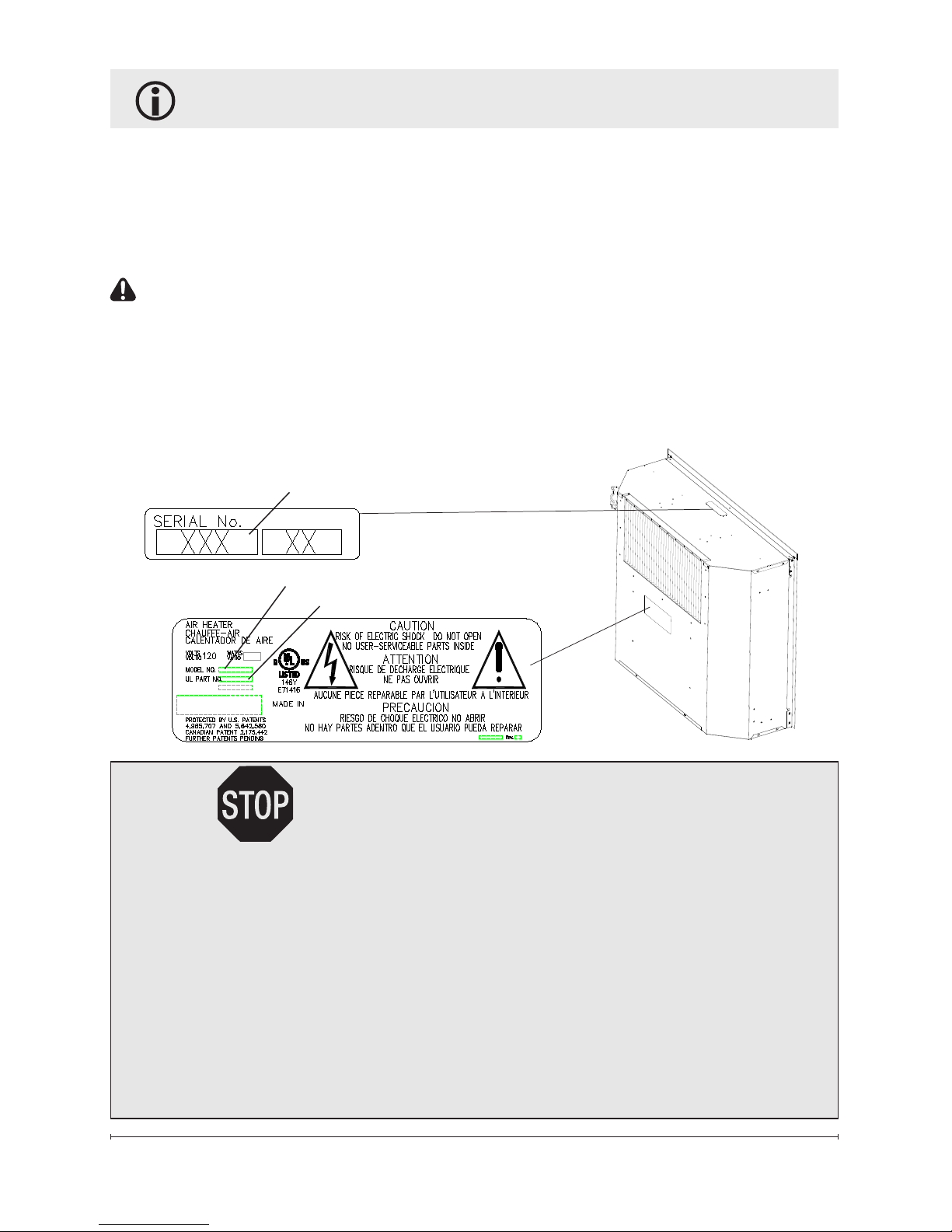

Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the Model and
Serial Number Label of your replace.
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
Serial Number
Part Number
Model Number

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
① Read all instructions before
using this appliance.
② The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least 3 ft (0.9m) from the front of
the unit.
③ Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④ Always unplug the fireplace
when not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
ing.
⑥ Do not operate any unit with
a damaged cord or plug, or if the
IMPORTANT INSTRUCTIONS
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦ Do not use outdoors.
⑧ The fireplace is not intended
for use in bathrooms, laundry ar-
eas and similar indoor locations.
Never locate heater where it may
fall into a bathtub or other water
container.
⑨ Do not run the cord under
carpeting. Do not cover cord with
throw rugs, runners or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩ To disconnect the unit, turn
the controls off, then remove the
plug from the outlet.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust in
any manner.
⑬ All electrical heaters have
hot and arcing or sparking parts

5
SAVE THESE INSTRUCTIONS
inside. Do not use in areas where
gasoline, paint, or ammable
liquids are used or stored.
⑭ Do not modify the replace.
Use it only as described in this
manual. Any other use not rec-
ommended by the manufacturer
may cause re, electric shock or
injury to persons.
⑮ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑯ Do not burn wood or other
materials in the replace.
⑰ Do not strike the replace
glass.
⑱ Always use a certied electri-
cian should new circuits or outlets
be required.
⑲ Always use properly grounded,
fused and polarized outlets.
⑳ Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉑When transporting or stor-
ing the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
IMPORTANT INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com
CAUTION: This equipment has been
tested and found to comply with the limits
for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates uses and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one of the
following measures:
• - Reorient or relocate the receiving
antenna.
• - Increase the separation between
the equipment and receiver.
• - Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
• - Consult the dealer or an
experienced radio/TV technician for
help.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including
interference that may cause undesired
operation.
FCC CAUTION: Any changes or
modications not expressly approved by
the party responsible for compliance could
void the user's authority to operate this
equipment.
IMPORTANT INSTRUCTIONS
This device complies with Industry
Canada licence-exempt RSS standard(s).
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this
radio transmitter may only operate using
an antenna of a type and maximum (or
lesser) gain approved for the transmitter
by Industry Canada. To reduce potential
radio interference to other users, the
antenna type and its gain should be so
chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more
than that necessary for successful
communication.
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.

7
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
CAUTION: Clearance for air
circulation beneath the re-
place insert is provided by two
rubber feet.
Do not install the replace
insert directly on carpet or
similar surfaces which may
restrict air circulation.
CAUTION: If installing the
replace in a carpeted area, place
a one-piece, solid, at surface
under the replace. Ensure that
both of the feet rest securely on
this surface.
CAUTION: High temperature,
risk of re, keep electrical cords,
drapery, furnishings, and other
combustibles at least 3 ft (0.9 m)
from the front of the heater.
!NOTE: The dimensions of
the replace are 30 ¼ in. (768
mm) wide x 25 ½ in. (648
mm) high x 10 ½ in. (267 mm)
1134"
298 mm
3012"
775 mm
25 34"
654 mm
3012"
775 mm
25 34"
654 mm
1134"
298 mm
Figure 1
A
B

8 www.dimplex.com
Fireplace Installation
deep. The viewing area is
30 ⅛ in. (765 mm) wide and
20 ⅛ in. (511 mm) high. The
replace does not require any
additional venting. (See Figure
1 for recommended installation
clearances.)
Mantel Installation
Install the replace assembly into
the mantel (refer to mantel as-
sembly instructions).
!IMPORTANT: If not using a
Dimplex mantel, the replace
must be installed in an enclo-
sure with the following MINI-
MUM internal/opening dimen-
sions (Figure 1A).
New Wall Construction
1. Mark the desired location on
the oor and store the re-
place in a safe, dry and dust
free location.
2. Use studs to frame an opening
LOGSET LED LIGHTS
of 30 ½ in. (775 mm) wide x 25
¾ in. (654 mm) high x 11 ¾ in.
(298) deep. (Figure 1B)
3. Plug the unit into a 15 Amp/
120 Volt outlet.
Option #1: The power cord can
be lead from behind the trim
and along the wall to an outlet
near the replace.
Option #2: A new outlet can be
installed inside the new frame
construction.
!NOTE: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not es-
sential in all cases. A dedi-
cated circuit will be required
if, after installation, the circuit
breaker trips or fuse blows
on a regular basis when the
heater is operating. Additional
appliances on the same circuit
may exceed the current rating
of the circuit breaker.
Wiring

9
Operation
WARNING: This electric
rebox must be properly installed
before it is used.

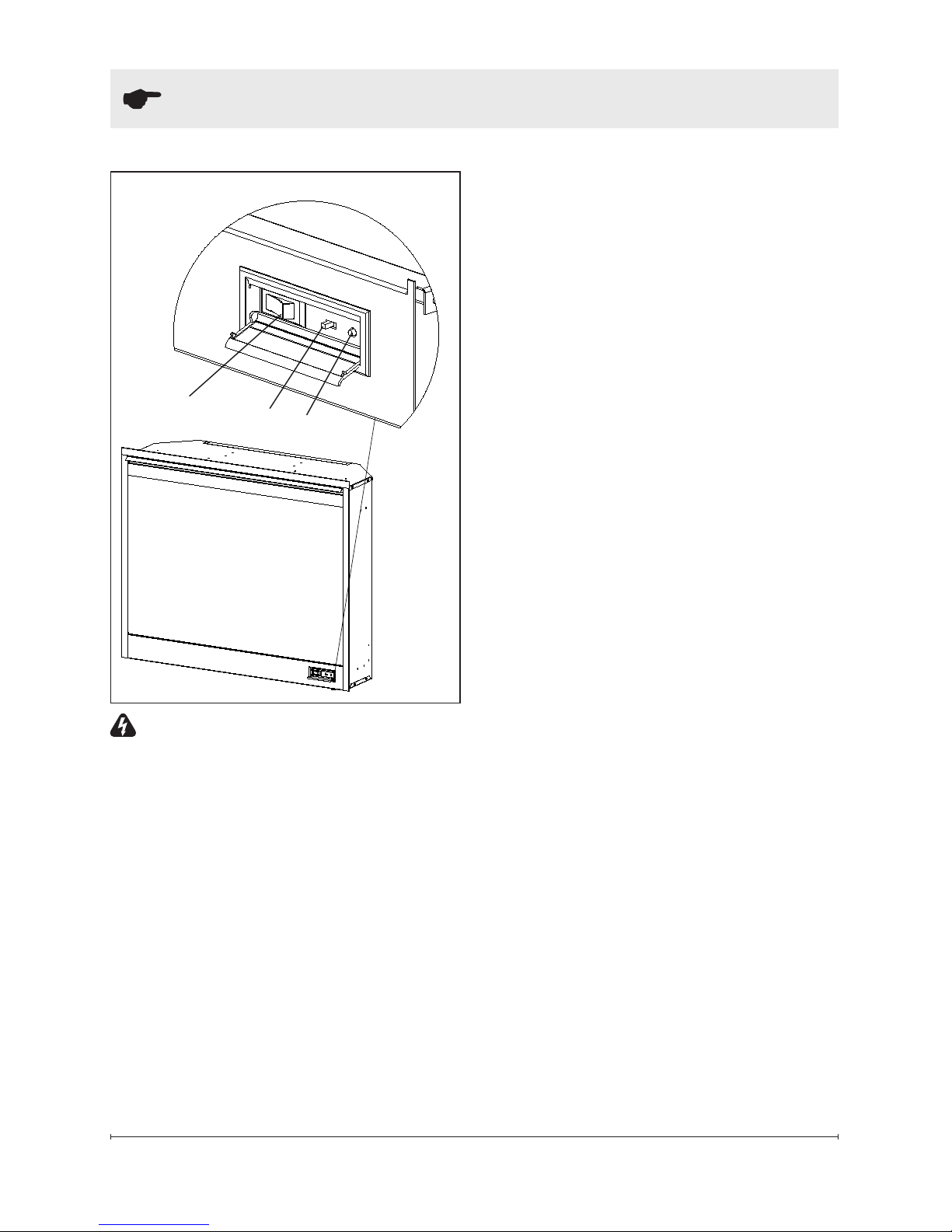

Manual Controls
The manual controls for the
replace are located in the lower
right hand corner (Figure 2).
A. Main On/Off Switch
Supplies power to the 3-Position
Switch.
B. 3-Position Switch
• Remote (right position):
The unit is operated with the
Figure 2 remote control.
• Flame (center position):
The ame effect is turned on.
• Flame & Heat (left position):
The ame effect and heater
are turned on simultaneously.
When the manual control is
in the Flame & Heat position
the heater does not run on
the remote operated thermo-
stat.
!NOTE: When the manual con-
trol switch is in the Flame and
Flame & Heat positions, the
replace unit will not operate
with the remote control.
C. Initialization Button
Used to synchronize the supplied
remote control with the replace.
!NOTE: The heater on your
replace may emit a slight,
harmless odor when rst used.
This odor is a normal condition
caused by the initial heating of
internal heater parts and will
not occur again.
Resetting The Temperature
Cutoff Switch
Should the heater overheat, an
automatic switch will turn the
heater off and it will not come
back on without being reset. The
ABC

10 www.dimplex.com
temperature cutoff switch can be
reset by unplugging the unit, wait-
ing ve (5) minutes and plugging
the unit back in.
CAUTION: If you need to
continuously reset the heater,
unplug the unit and call Dim-
plex North America Limited at
1-888-346-7539. Please have
your model and serial number
ready when calling.
Remote Control
The remote control has a range
of approximately 50 feet (15.25
m), it does not have to be pointed
at the replace and can pass
through most obstacles (including
walls). It is supplied with 243 in-
dependent frequencies to prevent
interference with other units.
Battery Installation
1. Depress tab on the battery
cover on the back of the
remote control and remove
battery cover.
2. Install two AAA batteries into
the remote control (included).
3. Ensure Child Lock is in the
“unlocked” position (Figure 3).
4. Replace the battery cover.
!NOTE: When the “BAT”sym-
bol is present on the remote
control it is recommended to
replace the batteries promptly,
to maintain full functionality of
the remote/replace. The re-
mote transmitter has a battery
backup time of only several
hours.
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
Remote Control Initialization/
Reprogramming
1. Plug cord into a 120 Volt wall
outlet.
2. Ensure the Main On/Off Switch
located in the switch box on
the replace in the lower right
hand corner is in the On
position.
3. Set the 3-Position Switch (Fig-
Operation
Figure 3
Batteries
Child Lock
