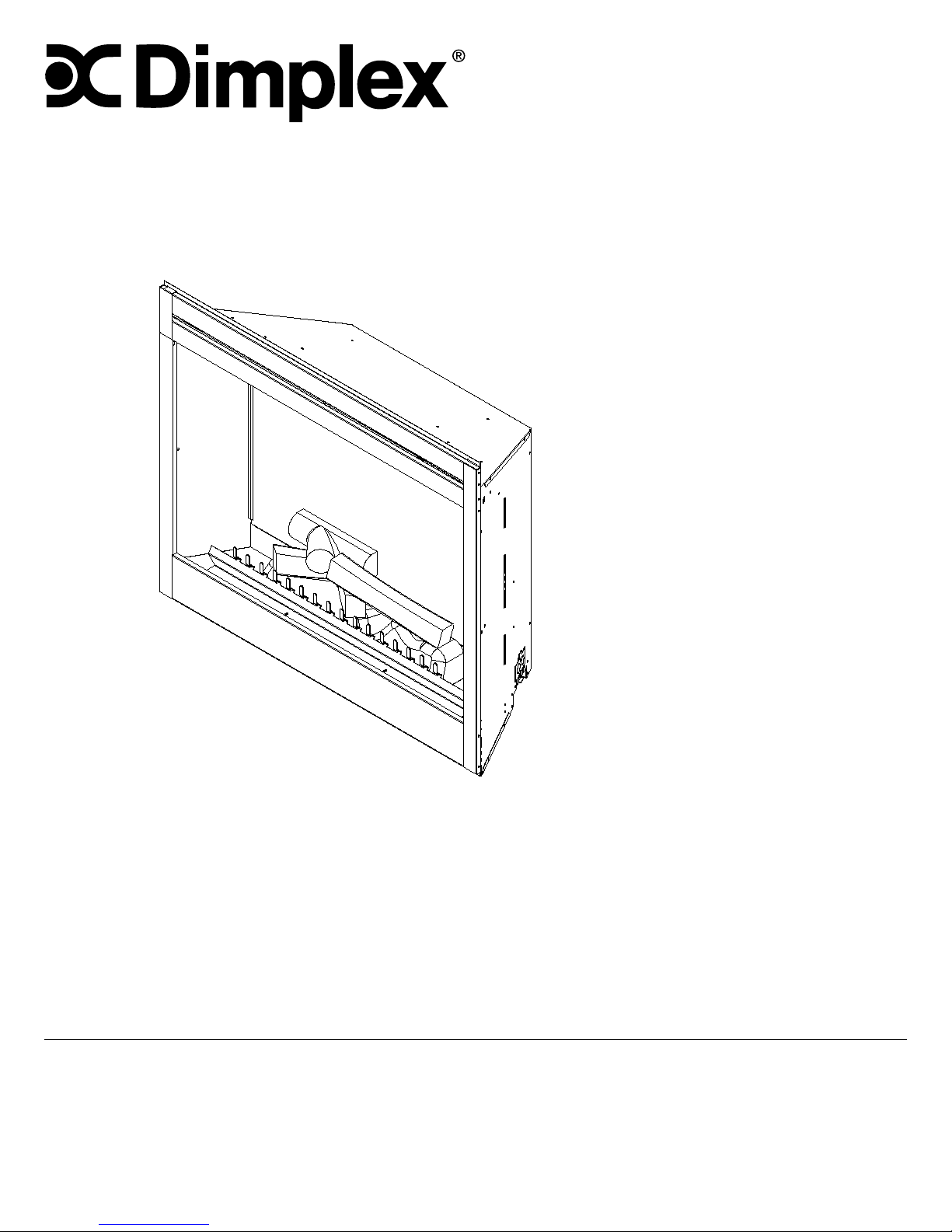

Dimplex BF33STP User manual

Installation Guide
Model
BF33STP/DXP
BF39STP/DXP
BF45DXP
IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to install or use this fireplace. For your
safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property
damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
7206350500R08

2www.dimplex.com
Listing and Code Approvals.................................................................3
Model Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step-by-Step Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Section A: Installation information ...........................................................4
Framing Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting Flanges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Section B: General Electrical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Recommended Power Supply Wire Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Voltage Selector Switch Location ............................................................5
Section C: Direct Power Wiring ..............................................................6
240V Installation .........................................................................6
120V Installation .........................................................................6
120V Installation - No Heat Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Section D: Alternate Control Options .........................................................8
240V Main Power Wall Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
120V Main Power Wall Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
120V Main Power Wall Switch - No Heat .....................................................10
120V/240V Heater Wall Switch Control ......................................................11
120V/240V Wall Mounted Thermostat .......................................................12
120V/240V Wall Mounted Flame Override Switch ..............................................13
Wall Remote - WRCPF-KIT ...............................................................14

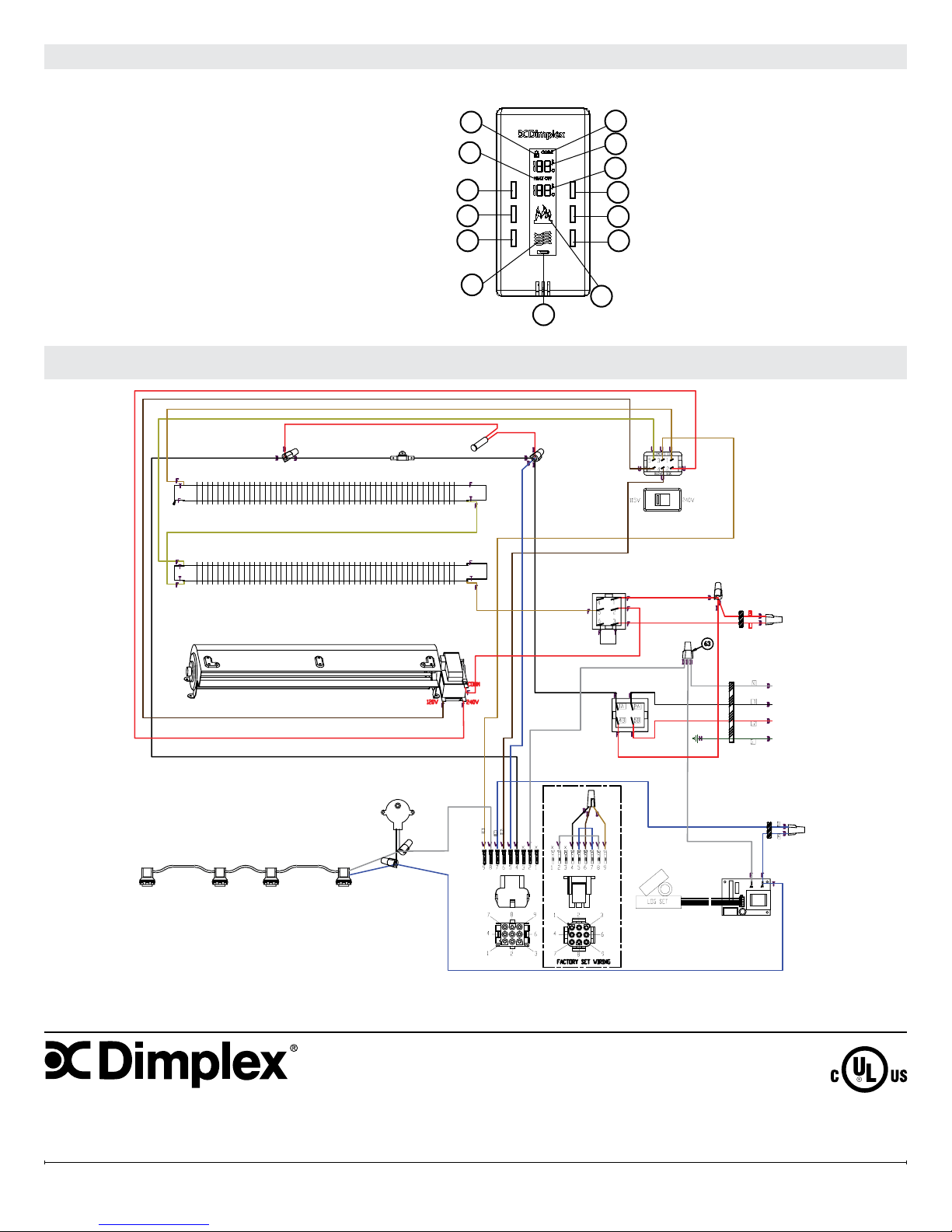

Unit Internal Wiring Diagram ...............................................................14
!NOTE: Procedures and techniques that are consid-
ered important enough to emphasize.
CAUTION: Procedures and techniques which, if not
carefully followed, will result in damage to the equipment.
WARNING: Procedures and techniques which, if not
carefully followed, will expose the user to the risk of
fire, serious injury, or death.
Table of Contents

3
The BF series fireplaces have been tested in accordance with the UL 2021 and CSA C22.2 No. 46 standards for fixed and
location-dedicated electric room heaters.
Model
Number Description Voltage
Rated
Power
(Watts)
Remote
Control
Wall
Thermostat
Refractory
Brick Look
Current Draw (Amps)
No Heat
120V 120V 208V 240V
BF45DXP 45" Deluxe
120/120/
208/240
245/1440/
2100/2700 Optional Optional
Included 2.0 12.0 10.10 11.25
BF39DXP 39" Deluxe Included 2.0 12.0 10.10 11.25
BF39STP 39" Standard N/A 2.0 12.0 10.10 11.25
BF33DXP 33" Deluxe Included 2.0 12.0 10.10 11.25
BF33STP 33" Standard N/A 2.0 12.0 10.10 11.25
!NOTE: Power ratings shown include the light bulbs and motors (275 watts)
The installation of the fireplace unit must comply with the applicable Local and/or National Electrical Codes and utility require-
ments. This installation should be entrusted to duly qualified personnel where required by law.
MODEL SPECIFICATIONS
LISTING AND CODE APPROVALS
!NOTE: Please read all instructions before installing.
1. Rough in framing opening following the recommended dimensions located in Section A: Framing Dimensions.
2. Allow 8" (20.3 cm) of service cable for connecting power supply wire to junction box on fireplace when installing before
finishing wall. Allow up to 4' (121.9 cm) of service cable for connecting power supply wire to junction box on fireplace
when installing after finishing wall. Remove the outer jacket and strip the individual conductors ½" (1.3 cm) from the end.
3. Loosen the screw securing the junction box cover and remove the cover.
4. Remove knockouts, if necessary, or use the provided cable clamp.
5. Place unit in position in the framed opening, level with shims if necessary and attach unit to frame using mounting flanges
provided (Figure 2).
6. Unit is factory wired for 208/240V power supply. If 120V operation is required, slide the switch and reconfigure the wiring
(Section C). Wires L1, L2, N & G are attached to the rear of the junction box cable clamp for easy access.
!NOTE: If wiring unit to operate with NO heat a dedicated circuit may not be required.
7. Wire a dedicated, properly fused circuit with a 15amp rating for the appropriate voltage (120V, 208/240V). See Section C
for factory setting wiring.
8. Make wall switch and or wall mounted thermostat connections as outlined in Section D.
9. Place all connectors inside the unit and secure the junction box cover to unit. Ensure that the cable clamp grips only the
jacket of service cable, thermostat and if applicable wall switch lines.
WARNING: Ensure method of installation does NOT obscure the air intake slots on bottom front of unit in any manner.
(See diagram in Section A)
STEP-BY-STEP INSTALLATION

4www.dimplex.com
J
K
L

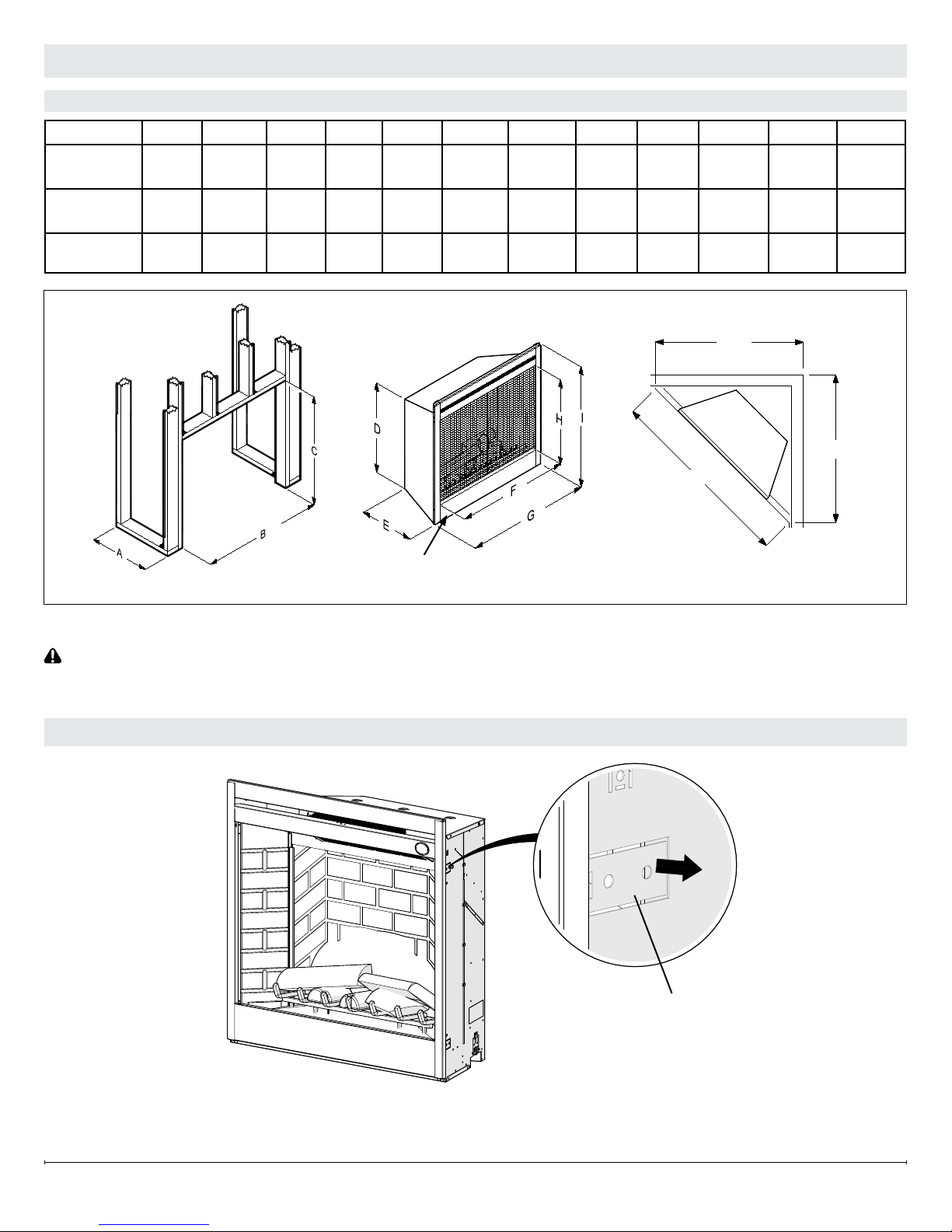

FRAMING DIMENSIONS
Rough-In Framing Dimensions Firebox Dimensions Rough-In Corner Framing
This fireplace is a zero clearance design, with the exception of the top of the unit, where any insulation and vapor barrier
should be placed a minimum of 2" (5.1 cm) from the unit. No combustibles can be placed on the top surface of the fireplace.
CAUTION: Ensure installation does not allow fireplace to be in direct contact with building vapor barrier or insulation and
meets all local building code.

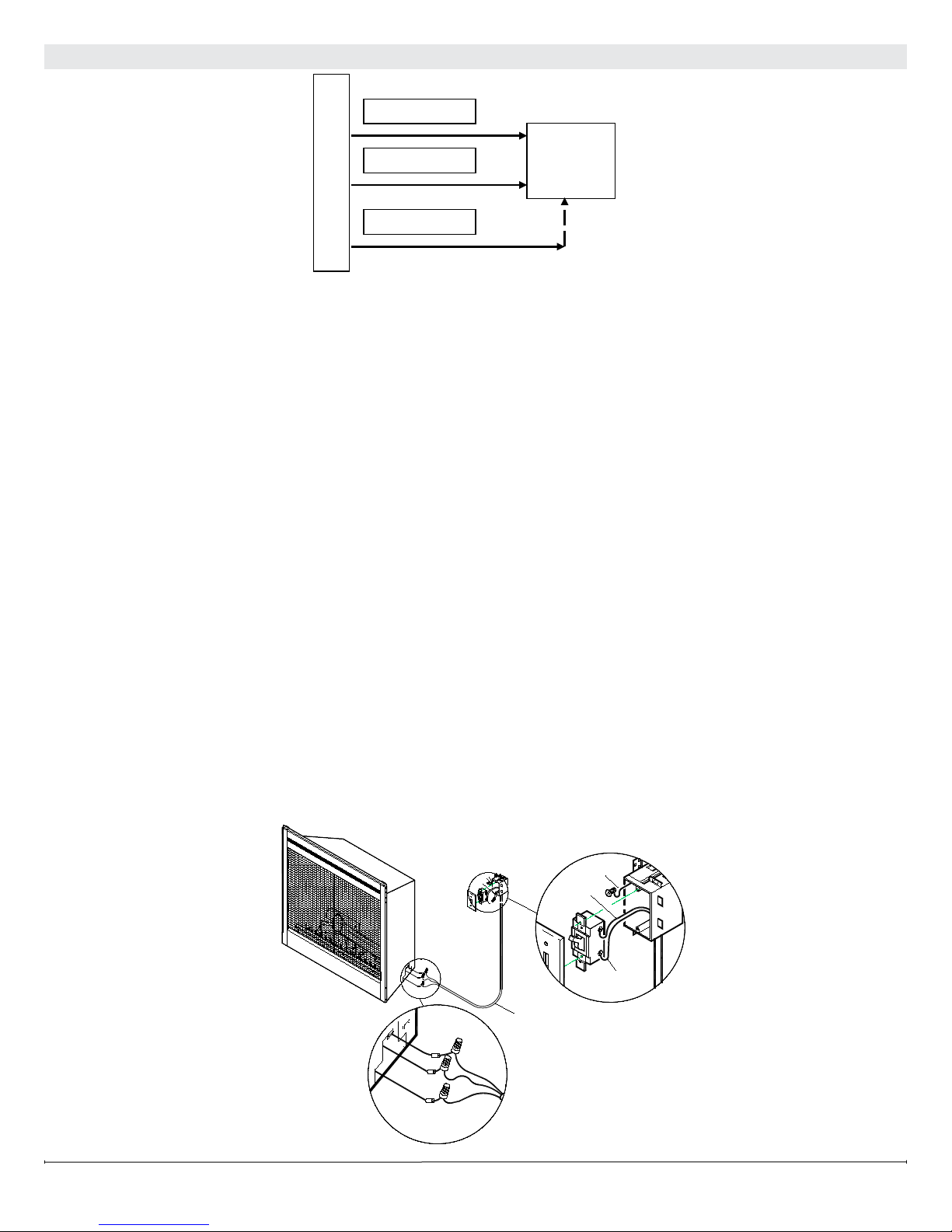

Four mounting flanges on the sides of the unit are provided to facilitate installation.
MOUNTING FLANGES
SECTION A: INSTALLATION INFORMATION
Figure 1
Figure 2
Model A B C D E F G H I J K L
BF45DXP 16.0"
(40.5cm)
45.5"
(115.6cm)
33.5"
(85.1cm)
30.1"
(76.5cm)
15.3"
(38.9cm)
42.0"
(106.7cm)
44.7"
(113.5cm)
22.8"
(57.9cm)
32.7"
(83.1cm)
60.0"
(152.4cm)
42.0"
(106.7cm)
42.0"
(106.7cm)
BF39STP/DXP 16.0"
(40.5cm)
39.5"
(100.3cm)
33.5"
(85.1cm)
30.1"
(76.5cm)
15.3"
(38.9cm)
36.0"
(91.4cm)
38.7"
(98.3cm)
22.8"
(57.9cm)
32.7"
(83.1cm)
54.0"
(137.2cm)
38.0"
(96.5cm)
38.0"
(96.5cm)
BF33STP/DXP 15.0"
(38.1cm)
33.5"
(85.1cm)
29.5"
(75.0cm)
25.7"
(65.3cm)
14.3"
(36.3cm)
29.6"
(75.2cm)
32.8"
(83.3cm)
18.8"
(47.8cm)
28.5"
(72.4cm)
48.0"
(121.9cm)
34.0"
(86.4cm)
34.0"
(86.4cm)
Air Intake Slots
There are two mounting flanges located on each side of the fireplace insert.
From the inside of the unit, bend tabs outward and mount to the inside of the framing using suitable hardware.
Mounting
Flanges

5
SECTION B: GENERAL ELECTRICAL INFORMATION
For 120V installations use two conductor, non-metallic sheath cable with ground wire (3 wires total) for the incoming power
supply on fireplace inserts. Use the appropriate wire to meet local and national electrical codes for rated power consumption.
For 208V / 240V installations use three conductor, non-metallic sheath cable with ground wire (4 wires total) for the incom-
ing power supply on fireplace inserts. Use the appropriate wire to meet local and national electrical codes for rated power
consumption.
Two conductor, non-metallic sheath cable with ground wire (3 wires total) is recommended for installation of a wall mounted
thermostat and/or wall switch for use on fireplace inserts. Use appropriate wire to meet local and national electrical codes for
rated power consumption. All wire gauges should match the recommended wire sizes shown below.
Voltage Wire Gauge Fuse Rating
120 Volts 14 Gauge 15 Amp
208 Volts 14 Gauge 15 Amp
240 Volts 14 Gauge 15 Amp
RECOMMENDED POWER SUPPLY WIRE SPECIFICATIONS
!IMPORTANT: Ensure that the incoming power supply voltage matches the setting of the voltage selector switch.
!NOTE: The voltage selector switch is located inside the exhaust panel on the top right hand corner.
CAUTION: When changing the voltage selector switch from 240V to 120V ensure that the power supply is turned off.
!NOTE: Carefully insert a flat headed screwdriver inside the exhaust panel to change the switch from 240V (230 position)
to 120V (115 position).
When wiring the unit for 208V / 240V the voltage selector switch should be in the 230V position.
When wiring the unit for 120V the voltage selector switch should be in the 115V position.

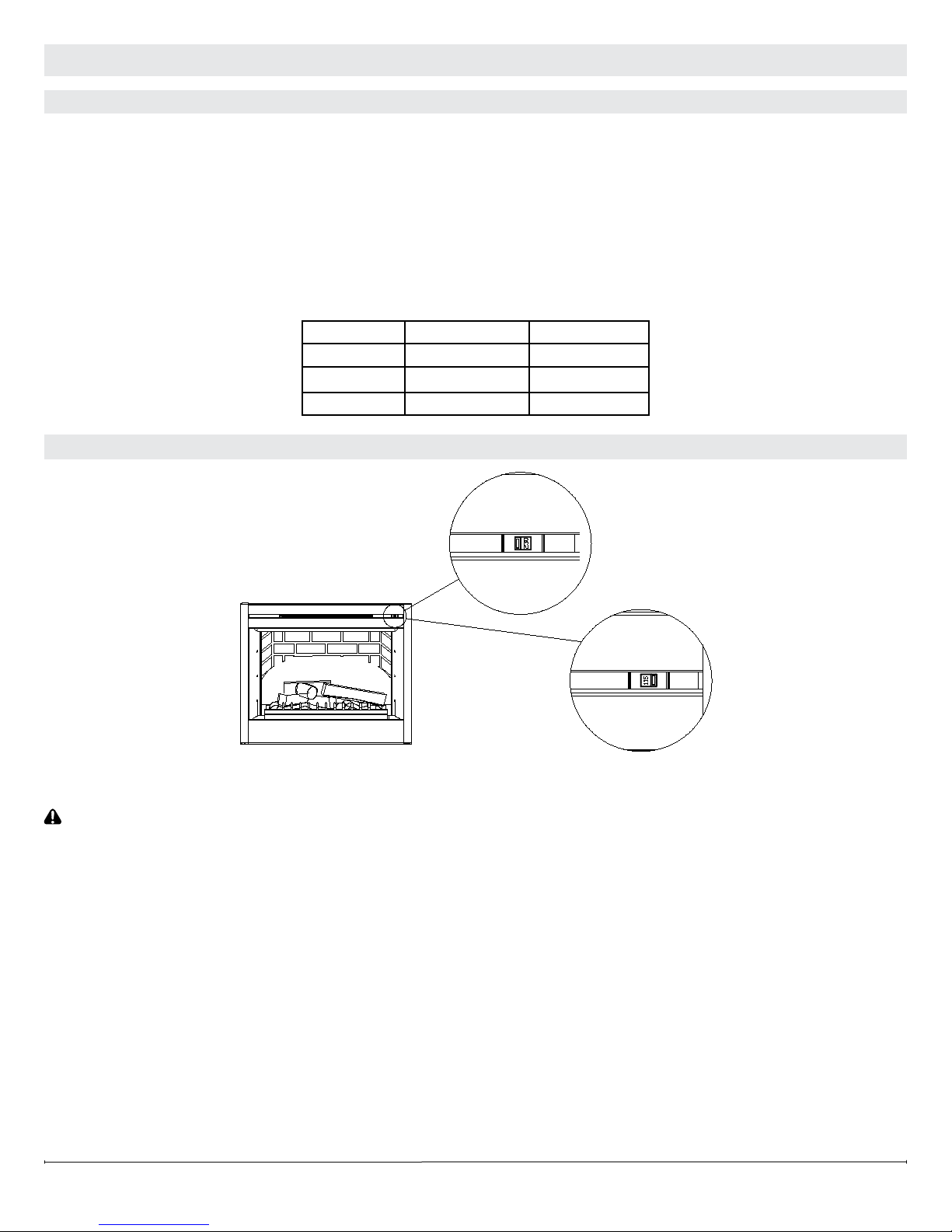

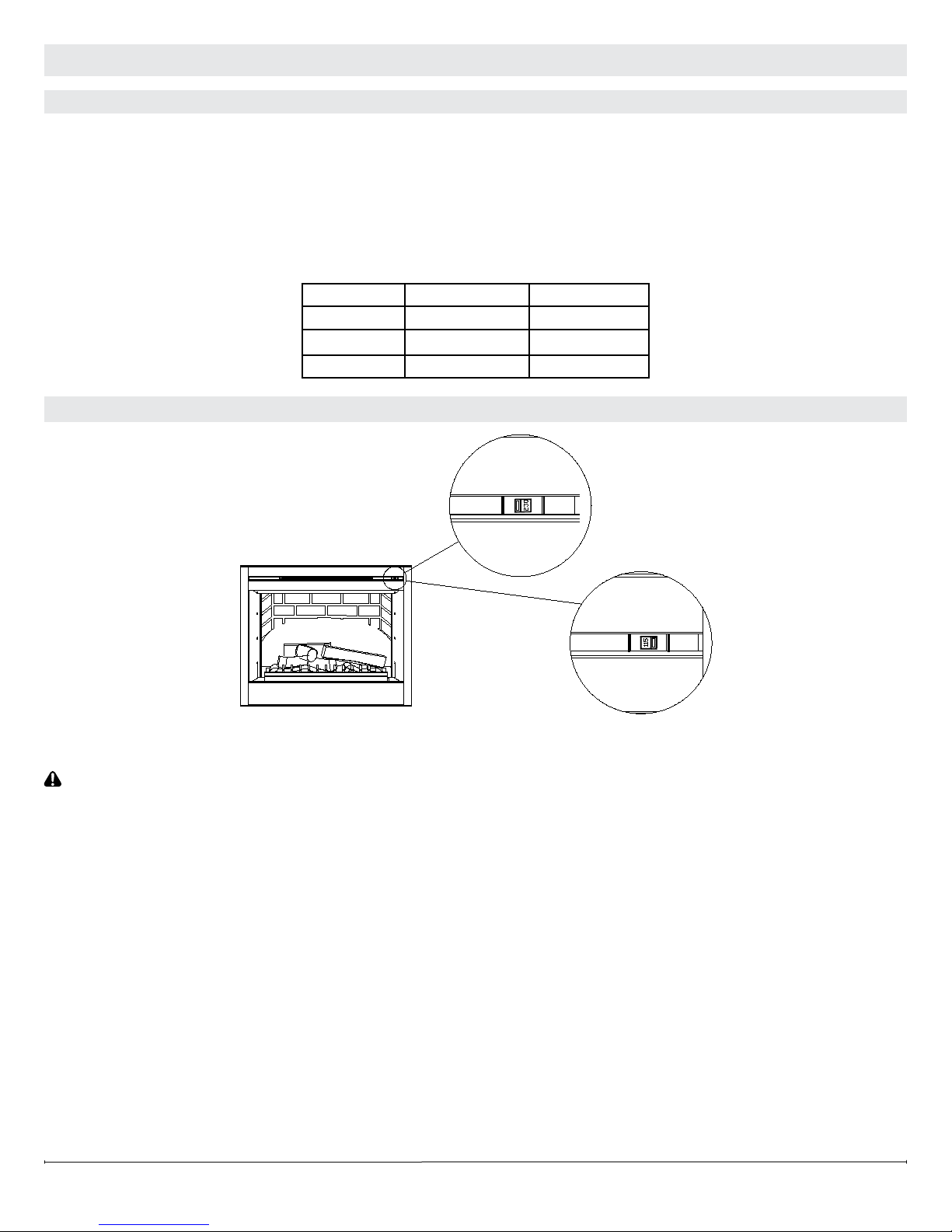

VOLTAGE SELECTOR SWITCH LOCATION

6www.dimplex.com
!IMPORTANT: The unit is factory configured for 208/240V operation.
!NOTE:
Use 3 conductor wires with ground (4 wires total) from the power supply (breaker panel) to the junction box on the unit.
!NOTE: All wiring must be completed prior to installing the unit.
!NOTE: Ensure that the voltage selector switch is in the proper position for the required supply voltage prior to connecting
the unit to the power supply.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Ensure that the
switch is in the 240V position. (230 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G.
5. Connect L1 (black) from the unit to the L1 (black) from the power supply.
6. Connect L2 (red) from the unit to the L2 (red) from the power supply.
7. Connect N (white) from the unit to the to the Neutral (white) from the power supply.
8. Connect the ground wire (green) from the unit to the ground from the power supply.
9. Ensure that all connections are tight.
10. Insert all the wiring back into the unit and secure with a cable clamp.
240 V
POWER
SUPPLY
(BREAKER
PANEL)
FIR E P LAC E J UNC TION B OX
WHITE WIRE - N
RED WIRE – L2
BLACK WIRE – L1
GREEN WIRE - G
WHITE WIRE - N
RED WIRE – L2
BLACK WIRE – L1
GROUND WIRE - G
SECTION C: DIRECT POWER WIRING
240V INSTALLATION
!IMPORTANT: The unit is factory configured for 208/240V operation.
!NOTE:
Use 2 conductor wires with ground (3 wires total) from the power supply (breaker panel) to the junction box on the unit.
!NOTE: All wiring must be completed prior to installing the unit.
!NOTE: Ensure that the voltage selector switch is in the proper position for the required supply voltage prior to connecting
the unit to the power supply.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Flip the switch from
240V to 120V configuration. (230 and 115 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
FIR E P LAC E J UNC TION B OX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE WIRE - N
RED WIRE –L2
BLACK WIRE – L1
WHITE WIRE - N
BLACK WIRE – L1
GROUND WIRE - G
GREEN WIRE - G
120V INSTALLATION

7
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G.
5. Connect L1 (black) wire from the unit to the L1 (black) from the power supply.
6. Connect L2 (red) and N (white) from the unit to the Neutral (white) from the power supply.
7. Connect the ground wire (green) from the unit to the ground from the power supply.
8. When the unit has been configured for the appropriate power supply voltage, ensure that all connections are tight.
9. Insert all the wiring back into the unit and secure with a cable clamp.
!IMPORTANT: The unit is factory configured for 208/240V operation.
!NOTE:
Use 2 conductor wires with ground (3 wires total) from the power supply (breaker panel) to the junction box on the unit.
!NOTE: All wiring must be completed prior to installing the unit.
!NOTE: Ensure that the voltage selector switch is in the proper position for the required supply voltage prior to connecting
the unit to the power supply.
!NOTE: the fan will operate without heat in this application.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Flip the switch from
240V to 120V configuration. (230 and 115 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G.
5. Connect L1 (black) wire from the unit to the L1 (black) from the power supply.
6. Connect L2 (red) and N (white) from the unit to the Neutral (white) from the power supply.
7. Connect the ground wire (green) from the unit to the ground from the power supply.
8. Locate and separate, by installing a wire nut on the 1 (red) and 2 (red).
9. When the unit has been configured for the appropriate power supply voltage, ensure that all connections are tight.
10. Insert all the wiring back into the unit and secure with a cable clamp.
FIR E P LA CE J UNC TION B OX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE WIRE - N
RED WIRE –L2
BLACK WIRE – L1
GREEN WIRE - G
WHITE WIRE - N
BLACK WIRE – L1
GROUND WIRE - G
RED - 1
RED - 2
WIRE NUTS
120V INSTALLATION - NO HEAT INSTALLATION

8www.dimplex.com
SECTION D: ALTERNATE CONTROL OPTIONS
240V MAIN POWER WALL SWITCH
!NOTE: This option should not be used with the remote control kit.
!NOTE: Before installing the unit have the following wires installed:
1. A 3 conductor wire with ground (4 wires total) from the power supply panel to the main switch wall box.
2. A 3 conductor wire with ground (4 wires total) from the main switch wall box to the junction box on the unit.
!NOTE: Use a double pole, single throw (On/Off) wall switch that is rated for a minimum of 15 amps.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Ensure that the
switch is in the 240V position. (230 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G. (black, red, white and green)
5. Connect the L1 (black) wire from the unit to the L1 (black) wire from the main power wall switch by using a wire connector
(not supplied).
6. Connect other end of L1 (black) wire from the main power wall switch to the L1 terminal of the main power wall switch.
7. Connect the L2 (red) wire from the unit to the L2 (red) wire from the main power wall switch by using a wire connector
(not supplied).
8. Connect the other end of the L2 (red) wire from the main power wall switch to the L2 terminal of the main power wall
switch.
9. Connect the N (white) wire from the unit to the N
(white) wire from the main power wall switch by
using a wire connector (not supplied).
10. Connect the G (green) wire from the unit to the G
(green) wire from the main power wall switch by
using a wire connector (not supplied).
11. Connect the L1 wire from the power supply to the
L1 terminal of the main power wall switch.
12. Connect the L2 (black) wire from the power
supply to the L2 terminal of the main power wall
switch.
13. Connect the N (white) wire from the power supply
to the remaining N (white) wire from the unit by
using a wire connector.
14. Secure the 2 remaining G (green) wires with a
ground screw in the main switch wall box.
15. Ensure that all connections are tight.
16. Insert all the wiring of the main power wall switch
into the main switch wall box.
17. Insert all the wiring back into the unit and secure
with a cable clamp.
UNITAN D SUPPLY
NEUTRAL FROM
GF ROM UNIT
POWER SUPPLY
GF ROM
L1 FROM
POWER SUPPLY
POWER SUPPLY
L2 FROM
L1 FROM UNIT
G
L1
L2 FROM UNIT
N
L2
3 CONDUCTOR WIRE
FROM POWER SUPPLY
3 CONDUCTOR WIRE
FROM MAIN SWITCH
UNIT AND SUPPLY
NEUTRAL FROM
L2 FROM UNIT
L1 FROM UNIT
L2 FROM
POWER SUPPLY
POWER SUPPLY
L1 FROM
G FROM
POWER SUPPLY
G FROM UNIT
G
L2
N
L1
FIR E P LAC E J UNC TION B OX
240 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED –L2
BLACK – L1
WHITE – N
BLACK – L1
GROUND - G
WALL
S WIT CH
RED – L2
GROUND - G

9
120V MAIN POWER WALL SWITCH
FIR E P LAC E J UNC TION B OX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED –L2
BLACK – L1
WHITE – N
BLACK – L1
GROUND - G
WALL
S WIT CH
GROUND - G
!NOTE: This option should not be used with the remote control kit.
!NOTE: Before installing the unit have the following wires installed:
1. A 2 conductor wire with ground (3 wires total) from the power supply panel to the main switch wall box.
2. A 2 conductor wire with ground (3 wires total) from the main switch wall box to the junction box on the unit.
!NOTE: Use a single pole, single throw (On/Off) wall switch that is rated for a minimum of 15 amps.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Ensure that the
switch is in the 120V position. (115 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G (black, red, white and green).
5. Connect L1 (black) from the unit to the L1 (black) from the main power wall switch using a wire connector (not supplied).
6. Connect the other end of L1 (black) to the L1 terminal of the main power wall switch.
7. Connect L2 (red) from the unit and N (white) from the unit to the Neutral wire (white) of the main power wall switch by us-
ing a wire connector (not supplied).
8. Connect the other end of the N (white) to the Neutral wire (white) from the power supply panel by using a wire connector
(not supplied).
9. Connect Ground (green) from the unit to the Ground (green) wire of the main power wall switch by using a wire connector
(not supplied).
10. Connect L1 (black) wire from the power supply to the L1 terminal of the main power wall switch.
11. Secure the 2 remaining Ground wires (green) with a ground screw in the main switch wall box.
12. Ensure that all connections are tight.
13. Insert all the wiring of the main power wall switch into the main switch wall box.
14. Insert all the wiring back into the unit and secure with a cable clamp.
FROM MAIN SWITCH
2 CONDUCTOR WIRE
FROM POWER SUPPLY
2 CONDUCTOR WIRE
L2
N
L1
G
L1FROM UNIT
GF ROM
POWER SUPPLY
GFRO M UNIT
L1F ROM
POWER SUPPLY
NEUTRALFROM
UNITAN D SUPPLY
UNIT AND SUPPLY
NEUTRAL FROM
POWER SUPPLY
L1 FROM
G FROM UNIT
POWER SUPPLY
G FROM
L1 FROM UNIT
G
L1
N
L2

10 www.dimplex.com
!NOTE: This option should not be used with the remote control kit.
!NOTE: Before installing the unit have the following wires installed:
1. A 2 conductor wire with ground (3 wires total) from the power supply panel to the main switch wall box.
2. A 2 conductor wire with ground (3 wires total) from the main switch wall box to the junction box on the unit.
!NOTE: Use a single pole, single throw (On/Off) wall switch that is rated for a minimum of 15 amps.
1. Locate the voltage selector switch inside the exhaust panel on the top right hand corner of the unit. Ensure that the
switch is in the 120V position. (115 is printed on switch)
2. Loosen the screw securing the junction box cover and remove the cover.
3. Remove the knockouts (if necessary) or use the provided cable clamp.
4. Pull out the four wires marked L1, L2, N, and G (black, red, white and green).
5. Connect L1 (black) from the unit to the L1 wire (black) from the main power wall switch using a wire connector
(not supplied).
6. Connect the other end of the L1 wire (black) to the L1 terminal of the main power wall switch.
7. Connect L2 (red) from the unit and the N (white) from the unit to the Neutral wire (white) of the main power wall switch by
using a wire connector (not supplied).
8. Connect the other end of the Neutral wire (white) to the Neutral wire (white) from the power supply panel by using a wire
connector (not supplied).
9. Connect the Ground wire (green) from the unit to the Ground wire (green) of the main power wall switch by using a wire
connector (not supplied).
10. Connect L1 (black) from the power supply to the L1 terminal of the main power wall switch.
11. Locate and separate by wire nut the 1 (red) and 2 (red).
12. Secure the 2 remaining Ground wires (green)
with a ground screw in the main switch wall box.
13. Ensure that all connections are tight.
14. Insert all the wiring of the main power wall
switch into the main switch wall box.
15. Insert all the wiring back into the unit and se-
cure with a cable clamp.
FIR E P L AC E J UNC TION B OX
120 V
POWER
SUPPLY
(BREAKER
PANE L)
WHITE - N
RED –L2
BLACK – L1
WHITE – N
BLACK – L1
GROUND - G
WALL
S WIT CH
GROUND - G
RED – 1
RED – 2
WIRE
NUTS
120V MAIN POWER WALL SWITCH - NO HEAT
FROM MAIN SWITCH
2 CONDUCTOR WIRE
FROM POWER SUPPLY
2 CONDUCTOR WIRE
L2
N
L1
G
L1 FROM UNIT
G FROM
POWERSUPPLY
G FROM UNIT
L1 FROM
POWERSUPPLY
NEUTRAL FROM
UNIT AND SUPPLY
UNIT AND SUPPLY
NEUTRAL FROM
POWER SUPPLY
L1 FROM
G FROM UNIT
POWER SUPPLY
G FROM
L1 FROM UNIT
G
L1
N
L2
1
2

11
!NOTE: Before installing the unit complete the following:
1. Install main power connection with appropriate wiring - directly to the main power or through a wall switch.
2. Install a 2 conductor wire with ground (3 wires total) from the heater switch wall box to the junction box
on the unit.
!NOTE: Use a heater wall switch (On/Off) that is rated for a minimum of 15 amps.
1. Loosen the screw securing the junction box cover and remove the cover.
2. Remove the knockouts (if necessary) or use the provided cable clamp.
3. Pull out the three wires marked 1, 2, and G (red, red, and green).
4. Remove the wire connector and separate the wires marked 1 and 2.
5. Connect the 1 wire (red) from the unit to the L1 wire (black) from the heater wall switch by using a wire connector
(not supplied).
6. Connect the other end of L1 wire (black) from the heater wall switch to the L1 terminal of the heater wall switch.
7. Connect the 2 wire (red) from the unit to the Neutral wire (white) from the heater wall switch using a wire connector
(not supplied).
8. Connect the other end of the Neutral wire (white) from the heater wall switch to the L2 terminal of the heater wall switch.
9. Connect the Ground wire (green) from the unit to the Ground wire (green) from the heater wall switch using a wire
connector (not supplied).
10. Secure the remaining Ground wire (green) with a ground screw in the heater switch wall box.
11. Ensure that all connections are tight.
12. Insert all the wiring of the heater wall switch into the heater switch wall box.
13. Insert all the wiring back into the unit and secure with a cable clamp.
120V/240V HEATER WALL SWITCH CONTROL
FIR E P LAC E J UNC TION B OX
RED – 2
WALL
S WIT CH
RED – 1
GROUND - G
G
L1FROM UNIT
G FROM
POWER SUPPLY
GF ROM UNIT
L1 FROM
POWER SUPPLY
NEUTRALFROM
UNIT AND SUPPLY
UNIT
WIRE 1 FROM
G FROM UNIT
WIRE 2 FROM
G
2
1
2 CONDUCTOR WIRE
UNIT
FROM HEATER SWITCH
2
1
!NOTE: This only illustrates
heater switch connection,
see previous sections for
main power connection
instructions.

12 www.dimplex.com

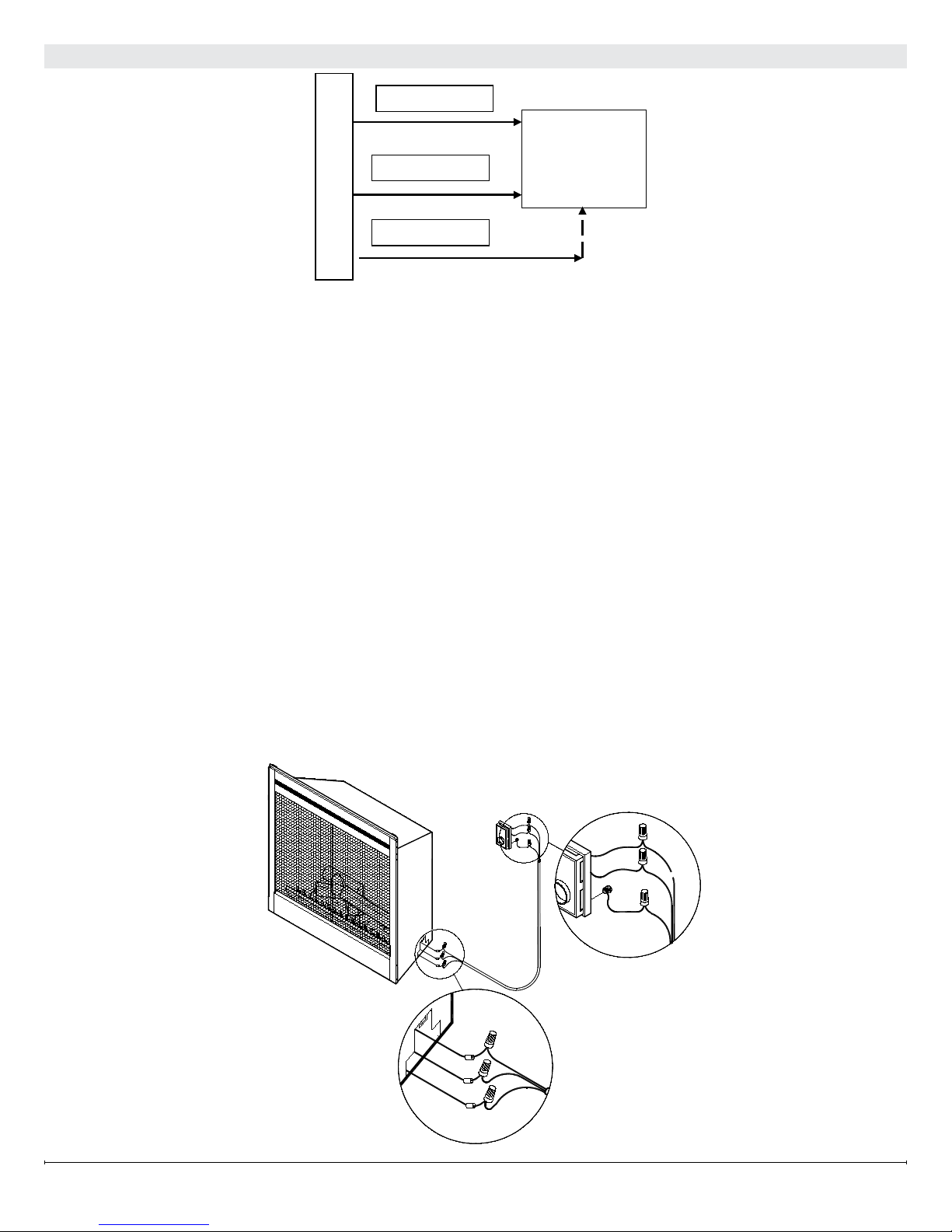

120V/240V WALL MOUNTED THERMOSTAT
!NOTE: Before installing the unit complete the following:
1. Install main power connection with appropriate wiring - directly to the main power or through a wall switch.
2. Install a 2 conductor wire with ground (3 wires total) from the thermostat wall box to the junction box on the unit.
!NOTE: Wiring of the thermostat must be completed prior to installing the unit.
!NOTE: The following installation instructions are for a single pole thermostat.
1. Loosen the screw securing the junction box and remove the cover.
2. Remove the knockouts (if necessary) or use the provided cable clamp.
3. Pull out the three wires marked 1, 2, and G (red, red, and green).
4. Remove the wire connector and separate the wires marked 1 & 2.
5. Connect the 1 wire (red) from the unit to the Neutral (white) wire from the wall thermostat box by using a wire connector
(not supplied).
6. Connect the other end of the Neutral (white) wire from the thermostat wall box to the red wire from the wall thermostat.
7. Connect the 2 wire (red) from the unit to the black wire from the thermostat wall box by using a wire connector
(not supplied).
8. Connect the other end of the black wire from the thermostat wall box to the black wire from the wall thermostat.
9. Connect the Ground wire (green) from the unit to the Ground (green) wire from the thermostat wall box by using a wire
connector (not supplied).
10. Connect the other end of the Ground wire (green) to the thermostat wall box ground screw.
11. Ensure that all connections are tight.
12. Insert all the wiring of the wall mounted thermostat into the wall box.
13. Insert all the wiring back into the unit and secure with a cable clamp.
FIR E P LAC E J UNC TION B OX
WALL
THE R MOSTAT
RED – 1
GROUND - G
RED – 2
BLACK
RED
GROUND
GROUND
2
1
GROUND
RED
BLACK
BLACK WIRE
WHITE WIRE
GROUND
SCREW
G
1
2
GROUND
G
!NOTE: This only illustrates
thermostat connection, see
previous sections for main
power connection instruc-
tions.

13
120V/240V WALL MOUNTED FLAME OVERRIDE SWITCH
DO NOT USE WITH NO HEAT INSTALLATIONS
!NOTE: The fireplace can be wired to have a wall switch operate the flame independent of the heater.
!NOTE: Before installing the unit complete the following:
1. Install main power connection with appropriate wiring - directly to the main power or through a wall switch.
2. Install a 2 conductor wire with ground (3 wires total) from the flame override switch wall box to the junction box
on the unit.
!NOTE: Use a wall switch (On/Off) that is rated for a minimum of 15 amps.
1. Loosen the screw securing the junction box cover and remove the cover.
2. Remove the knockouts (if necessary) or use the provided cable clamp.
3. Pull out the three wires marked 3, 4, and G (blue, blue, and green).
4. Remove the wire connector and separate the wires marked 3 and 4.
5. Connect 3 wire (blue) from the unit to the L1 wire (black) from the flame override wall switch by using a wire connector
(not supplied).
6. Connect the other end of the L1 wire (black) from the flame override wall switch to the L1 terminal of the flame override
wall switch.
7. Connect 4 wire (blue) from the unit to the Neutral wire (white) from the flame override wall switch using a wire connector
(not supplied).
8. Connect the other end of the Neutral wire (white) from the flame override wall switch to the L2 terminal of the flame
override wall switch.
9. Connect the Ground wire (green) from the unit to the Ground wire (green) from the flame override wall switch using a wire
connector (not supplied).
10. Secure the remaining Ground wire (green) with a ground screw in the flame override switch wall box.
11. Ensure that all connections are tight.
12. Insert all the wiring of the heater wall switch into the heater switch wall box.
13. Insert all the wiring back into the unit and secure with a cable clamp.
FIR E P LAC E J UNC TION B OX
BLUE – 4
WALL
S WIT CH
BLUE – 3
GROUND - G
UNIT
FROM FLAME OVERRIDE SWITCH
2
1
G
L1FR OM UNIT
GFROM
POWER SUPPLY
GFROM UNIT
L1FR OM
POWER SUPPLY
NEUTRALFROM
UNITAND SUPPLY
UNIT
WIRE 3 FROM
G FROM UNIT
WIRE 4 FROM
G
4
3
2 CONDUCTOR WIRE
!NOTE: This only illustrates
flame switch connection,
see previous sections for
main power connection
instructions.

14 www.dimplex.com
WALL REMOTE - WRCPF-KIT
14
1. Room Temperature
2. Set Temperature
3. Flame Effect
4. Fan
5. Heat Off Indicator
6. Function Lock Indicator
7. RF Code Function Indicator
8. Set Temperature Down
9. Set Temperature Up
10. Flame Off
11. Flame On
12. Fan Off
13. Fan On
14. Low Battery Indicator
3
9
11
13
2
1
7
6
5
8
10
12
4
• Can be used for 120V or 240V installations
• Battery or 24V powered
• 50' (15m) control range
• Built in Thermostat
• Flame On/Off Control
• Heat On/Off Control
UNIT INTERNAL WIRING DIAGRAM
Dimplex North America Limited
1367 Industrial Road, Cambridge, ON, Canada N3H 4W3
© 2017 Dimplex North America Limited
!NOTE: Standard models
do not have a log driver

GUIDE D’INSTALLATION
Modéle
BF33STP/DXP
BF39STP/DXP
BF45DXP
CONSIGNES DE SÉCURITÉ IMPORTANTES : Toujours lire le présent manuel avant d’essayer d’installer ou d’utiliser ce poêle.
Pour votre sécurité, toujours respecter tous les avertissements et suivre les consignes de sécurité compris dans le présent
manuel afin de prévenir les blessures ou les dommages matériels.
Pour découvrir la gamme complète de produits Dimplex, visiter
www.dimplex.com
7206350500R08

2www.dimplex.com
Inscription et conformité aux codes .......................................................... 3
Caractéristiques du modèle ................................................................. 3
Installation étape par étape ................................................................ 3
Section A: Informations sur l’installation ...................................................... 4
Cadrage Dimensions .....................................................................4
Brides de montage .......................................................................4
Section B: Informations générales électrique .................................................. 5
Spécifications recommandées pour les fils électriques ...........................................5
Emplacement du sélecteur de tension ........................................................5
Section C: Câblage d’alimentation direct ...................................................... 6
Installation 240V .........................................................................6
Installation 120V .........................................................................6
Installation 120V - sans installation pour la chaleur ..............................................7
Section D: Options de contrôle Autres ........................................................ 8
Installations de 240V - Câblage de l’interrupteur mural principal ....................................8
Installations de 120V - Câblage de l’interrupteur mural principal ....................................9
Principal d’alimentation 120V avec interupteur mural - sans de chaleur .............................10
Interupteur mural de contrôle pour le chaleur 120V/240V ........................................11
Câblage du thermostat mural pour 120/240 V .................................................12
Interrupteur mural 120V/240V de contrôle de la flamme .........................................13
Mur Télécommande - WRCP-KIT ...........................................................14
Circuit de câblage ........................................................................ 14
!NOTA : Marches à suivre et techniques considérées
suffisamment importantes pour qu’on les souligne.
MISE EN GARDE : Marches à suivre et techniques
dont le non-respect pourrait causer des dommages
matériels.
AVERTISSEMENT : Marches à suivre et techniques
qui, si elles ne sont pas bien respectées, exposeront
l’utilisateur à des risques d’incendie, de blessure
grave ou de décès.
TABLE DES MATIÈRES

3
Les foyers de série BF ont été testés conformément aux normes UL 2021 et CSA C22.2 n° 46 relatives aux appareils de
chauffage électriques fixes et désignés pour un endroit particulier.
Numéro
du
modèle Description Tension
Puissance
nominale
(Watts)
Télécommande
Thermostat
mural
Garniture
en brique
réfractaire
Ampérage
Sans
chaleur
120V 120V 208V 240V
BF45DXP
Deluxe
114cm
(45po)
120/120/
208/240
245/1440/
2100/2700 Option Option
Comprise 2.0 12.0 10.10 11.25
BF39DXP Standard
99cm (39 po) Comprise 2.0 12.0 10.10 11.25
BF39STP Deluxe
99cm (39po) S/O 2.0 12.0 10.10 11.25
BF33DXP Standard
84cm (33 po) Comprise 2.0 12.0 10.10 11.25
BF33STP Deluxe
84cm (33 po) S/O 2.0 12.0 10.10 11.25
!NOTA: Les puissances nominales indiquées comprennent les ampoules électriques et le moteur (275 W). L’installation
du foyer doit être conforme aux codes de l’électricité national et local applicables et aux exigences relatives à l’utilisation de
l’appareil. L’installation doit être effectuée par des employés dûment qualifiés, là où la loi l’exige.
CARACTÉRISTIQUES DU MODÈLE
INSCRIPTION ET CONFORMITÉ AUX CODES
!NOTA: Veuillez lire toutes les instructions avant l’installation
1. Égaliser l’ouverture du cadrage selon les dimensions recommandées dans Section A : Cadrage.
2. Allouer 20 cm (8 po) de câble permettant le branchement des fils électriques à la boîte de raccordement du foyer si le
mur n’est pas terminé au moment de l’installation. Prévoir jusqu’à 122 cm (4 pi) de câble permettant le branchement
des fils électriques à la boîte de raccordement du foyer si le mur est terminé au moment de l’installation. Retirer la gaine
extérieure et dénuder les fils à 12 mm (½ po) de l’extrémité.
3. Dévisser la vis qui tient en place le couvercle de la boîte de raccordement et enlever le couvercle.
4. Retirer les rondelles défonçables au besoin ou utiliser le serre-câble fourni.
5. Placer le foyer dans l’ouverture, poser des cales au besoin et fixer le foyer au cadrage en utilisant les brides de clouage
fournies (Figure 2).
6. Le foyer est réglé en fonction d’une alimentation électrique de 208/240 V. Pour un fonctionnement à 120 V, régler
l’interrupteur à la position appropriée et reconfigurer le câblage (Section C). Les fils L1, L2, N et G sont reliés au dos du
serre-câble de la boîte de raccordement pour en faciliter l’accès.
!NOTA: Il est possible qu’un circuit spécifique ne soit pas nécessaire si vous câblez l’appareil pour qu’il fonctionne SANS
chaleur.
7. Relier le fil à un circuit adéquatement muni d’un fusible de 15 ampères selon la tension appropriée (120, 208/240). Voir la
Section C pour obtenir des renseignements sur le câblage réglé en usine.
8. Faire les connexions de l’interrupteur mural ou du thermostat mural tel qu’il est décrit à la Section D.
9. Mettre en place tous les connecteurs à l’intérieur du foyer et replacer le couvercle de la boîte de raccordement. S’assurer
que le serre-câble ne retienne que la gaine du fil d’entrée, du fil du thermostat et du câble de l’interrupteur mural, le cas
échéant.
AVERTISSEMENT: Veiller à ce que les opérations d’installation n’obstruent PAS les entrées d’air au bas de l’appareil.
(Voir le diagramme dans la Section A.)
INSTALLATION ÉTAPE PAR ÉTAPE

4www.dimplex.com
J
K
L
CADRAGE DIMENSIONS
Dimensions du cadre Dimensions du foyer Dimensions du cadre en coin
Ce foyer est un modèle à dégagement nul, à l’exception de la partie supérieure de l’unité, où un pare-vapeur et un isolant
doivent être installés à au moins 2 pouces (5,1 cm) du foyer. Aucun combustible ne doit être placé sur le dessus du foyer.
MISE EN GARDE : Assurer l’installation ne permet pas de foyer pour être en contact direct avec pare-vapeur de
construction ou d’isolation et se réunit tous les codes du bâtiment local.
Quatre brides sur les côtés du foyer sont fournies pour faciliter l’installation.
BRIDES DE MONTAGE
SECTION A: INFORMATIONS SUR L’INSTALLATION
Figure 1
Figure 2
Modéle A B C D E F G H I J K L
BF45DXP 16.0 po
(40.5cm)
45.5 po
(115.6cm)
33.5 po
(85.1cm)
30.1 po
(76.5cm)
15.3 po
(38.9cm)
42.0 po
(106.7cm)
44.7 po
(113.5cm)
22.8 po
(57.9cm)
32.7 po
(83.1cm)
60.0 po
(152.4cm)
42.0 po
(106.7cm)
42.0 po
(106.7cm)
BF39STP/DXP 16.0 po
(40.5cm)
39.5 po
(100.3cm)
33.5 po
(85.1cm)
30.1 po
(76.5cm)
15.3 po
(38.9cm)
36.0 po
(91.4cm)
38.7 po
(98.3cm)
22.8 po
(57.9cm)
32.7 po
(83.1cm)
54.0 po
(137.2cm)
38.0 po
(96.5cm)
38.0 po
(96.5cm)
BF33STP/DXP 15.0 po
(38.1cm)
33.5 po
(85.1cm)
29.5 po
(75.0cm)
25.7 po
(65.3cm)
14.3 po
(36.3cm)
29.6 po
(75.2cm)
32.8 po
(83.3cm)
18.8 po
(47.8cm)
28.5 po
(72.4cm)
48.0 po
(121.9cm)
34.0 po
(86.4cm)
34.0 po
(86.4cm)
Entrées d’air
Il y a deux brides de montage de chaque côté du foyer.
Plier les languettes et les fixer au cadrage en utilisant le matériel nécessaire.
Brides de
montage

5
SECTION B: INFORMATIONS GÉNÉRALES ÉLECTRIQUE
Pour les installations de 120 V, un câble doté d’une gaine non métallique à 2 conducteurs avec fil de mise à la terre
(3 fils en tout) est nécessaire pour alimenter le foyer interne en électricité. Utiliser le câblage approprié conformément aux
codes de l’électricité national et local en ce qui a trait à la consommation d’électricité.
Pour les installations de 208/240 V, un câble doté d’une gaine non métallique à 3 conducteurs avec fil de mise à la terre
(4 fils en tout) est nécessaire pour alimenter le foyer interne en électricité. Utiliser le câblage approprié conformément aux
codes de l’électricité national et local en ce qui a trait à la consommation d’électricité.
Un câble doté d’une gaine non métallique à 2 conducteurs avec fil de mise à la terre (3 fils en tout) est recommandé pour
l’installation d’un thermostat ou d’un interrupteur mural pour l’utilisation d’un foyer interne. Utiliser le câblage approprié
conformément aux codes de l’électricité national et local en ce qui a trait à la consommation d’électricité. Le calibre de tous
les fils doit correspondre aux recommandations ci-dessous.
TENSION CALIBRE DU FIL FUSIBLE
120 Volts 14 Gauge 15 Amp
208 Volts 14 Gauge 15 Amp
240 Volts 14 Gauge 15 Amp
SPÉCIFICATIONS RECOMMANDÉES POUR LES FILS ÉLECTRIQUES
!IMPORTANT: S’assurer que la tension de l’alimentation en électricité correspond au réglage du sélecteur de tension.
!NOTA: Le sélecteur de tension est situé à l’intérieur du panneau de ventilation, dans le coin supérieur droit.
MISE EN GARDE: S’assurer que l’alimentation est fermée quand le sélecteur de tension passe de 240 V à 120 V.
!NOTA: Pour faire passer le sélecteur de 240 V (position 230) à 120 V (position 115), introduire avec précaution un
tournevis à tête plate dans le panneau de ventilation.
Le sélecteur de tension doit être en position 230 V au moment de brancher le foyer à un circuit de 208/240 V.
Le sélecteur de tension doit être en position 115 V au moment de brancher le foyer à un circuit de 120 V.
EMPLACEMENT DU SÉLECTEUR DE TENSION

6www.dimplex.com
!IMPORTANT : Par défaut, le foyer est configuré en fonction d’une tension de 208/240 V.
!NOTA: Utiliser un fil à 3 conducteurs avec fil de mise à la terre (4 fils en tout) pour brancher la source d’alimentation
(panneau de disjoncteurs) à la boîte de raccordement du foyer.
!NOTA: Le câblage doit être en place avant l’installation du foyer.
!NOTA: Veiller à ce que le sélecteur de tension soit réglé à la position appropriée à la tension requise avant de raccorder
le foyer à la source d’alimentation.
1. Repérer le sélecteur de tension dans le panneau de ventilation, dans le coin supérieur droit du foyer. S’assurer que le
sélecteur est en position 240 V (il est écrit 230 sur le sélecteur).
2. Dévisser la vis qui tient en place le couvercle de la boîte de raccordement et enlever le couvercle.
3. Retirer les rondelles défonçables (au besoin) ou utiliser le serre-câble fourni.
4. Dégager les 4 fils marqués L1, L2, N et G.
5. Raccorder le fil L1 (noir) du foyer au fil L1 (noir) de la source d’alimentation.
6. Raccorder le fil L2 (rouge) du foyer au fil L2 (rouge) de la source d’alimentation.
7. Raccorder le fil N (blanc) du foyer au fil neutre (blanc) de la source d’alimentation.
8. Raccorder le fil de mise à la terre (vert) du foyer au fil de mise à la terre de la source d’alimentation.
9. S’assurer que les connexions sont bien serrées.
10. Réinsérer le câblage dans le foyer et le fixer à l’aide d’un serre-câble.
SECTION C: CÂBLAGE D’ALIMENTATION DIRECT
INSTALLATION 240V
!IMPORTANT: Par défaut, le foyer est configuré en fonction d’une tension de 208/240 V.
!NOTA: Utiliser un fil à 2 conducteurs avec fil de mise à la terre (3 fils en tout) pour brancher la source d’alimentation
(panneau de disjoncteurs) à la boîte de raccordement du foyer.
!NOTA: Le câblage doit être en place avant d’installer le foyer.
!NOTA: Veiller à ce que l’interrupteur du sélecteur de tension soit réglé à la position appropriée à la tension requise avant
de raccorder le foyer à la source d’alimentation.
1. Repérer le sélecteur de tension dans le panneau de ventilation, dans le coin supérieur droit du foyer. Faire passer le
sélecteur de 240 V à 120 V (il est écrit 230 et 115 sur le sélecteur).
2. Dévisser la vis qui tient en place le couvercle de la boîte de raccordement et enlever le couvercle.
INSTALLATION 120V
Boîte de raccordement du foyer
SOURCE
D’AL IME NTA-
TION DE 240 V
(PANNE AU DE
DISJONCTEURS)
FIL BLANC - N
FIL ROUGE – L2
FIL NOIR – L1
FIL VERT - G
FIL BLANC - N
FIL ROUGE – L2
FIL NOIR – L1
FIL DE MISE À LA TERRE - G
Boîte de raccordement du foyer
SOURCE
D’AL IME NTA-
TION DE 120 V
(PANNE AU DE
DISJONCTEURS)
FIL BLANC - N
FIL ROUGE –L2
FIL NOIR – L1
FIL VERT - G
FIL BLANC - N
FIL NOIR – L1
FIL DE MISE À LA TERRE - G
