Dimplex SF3202 User manual

MODEL SF3202
SERVICE MANUAL
7400670000R02

1
Contents
OPERATION ............................................................................................................................. 2
REMOTE CONTROL OPERATION....................................................................................... 3
REPLACEMENT PARTS........................................................................................................... 7
WIRING DIAGRAM ................................................................................................................... 8
LOWER BULB REPLACEMENT ............................................................................................... 9
UPPER BULB REPLACEMENT.............................................................................................. 10
TO REPLACE LED/SWITCH HARNESS................................................................................. 11
TO REPLACE FLAME SPEED CONTROL ............................................................................. 12
TO REPLACE FLAME MOTOR/FLAME ROD......................................................................... 13
TO REPLACE HEATER ON/OFF SWITCH............................................................................. 14
TO REPLACE HEATER ASSEMBLY...................................................................................... 15
TO REPLACE THE CIRCUIT BOARD..................................................................................... 16
TO REPLACE THE POWER CORD........................................................................................ 17
TROUBLESHOOTING GUIDE................................................................................................ 18
GENERAL............................................................................................................................ 18
APPEARANCE .................................................................................................................... 18
HEATER .............................................................................................................................. 19
NOISE.................................................................................................................................. 20

SF3202
OPERATION
Electric Fireplace Manual Controls
A. Manual on/off switch
1. The fireplace has a manual power ON/OFF switch located on the control panel of
the fireplace.
2. To operate press the switch once, to turn the unit on. A red light will illuminate to
indicate the power is on. Press the switch again to turn the unit off.
NOTE:
When the manual power switch is used the heater will run.
The manual ON/OFF switch is to be used only when the remote transmitter is OFF.
B. Flame action control
Turn the flame action control knob to adjust the flame speed control to the desired level.
C. Heater override switch
When the Manual on/off switch is in the on position the heater will run. Turn the heater
override switch to the off position to shut off the heater.
NOTE:
Ensure that the heater override switch is in the on position for the heater to work with
the remote control.
RESETTING THE TEMPERATURE CUTOFF SWITCH
Should the heater overheat, an automatic cut out will turn the heater off and it will not
come back on without being reset. It can be reset by switching the MAIN ON/OFF
SWITCH to OFF and waiting 5 minutes before switching the unit back on.
CAUTION
2
If you need to continuously reset the heater, unplug the unit and call Dimplex North
America Limited at 1-800-668-6663.

SF3202
REMOTE CONTROL OPERATION
Initializing the Remote Control
1. Turn on the electrical power at the circuit breaker.
2. Slide open the battery cover on the back of the remote transmitter.
3. Install three AAA batteries into the remote control. Replace the battery cover.
Note:
The LCD display will flash when new batteries are inserted.
4. Move the remote transmitter close to the fireplace (less than five feet preferred).
Press any button on the remote control. The remote is transferring the code to the
receiver built into the fireplace.
5. Set the clock by depressing the button marked clock on the transmitter for five
seconds. The hour display will flash.
6. Use the up and down buttons to set the hour.
7. Press the clock button again and the minute display will flash.
8. Use the up and down buttons to set the minute.
9. Press the clock button again and the 0F or 0C display will flash.
10.Use the up and down buttons to select the remote to display temperature in 0F or 0C
11.Press the clock button again. The remote control is now ready for operation.
Warning:
It takes some time for the receiver to respond to the transmitter. Do not press the
buttons more than once within two seconds for correct operation.
Note:
The fireplace has an automatic timer function that will shut your fireplace off if the
remote control has not been operated within a six-hour period.
Auto Mode
Note:
When auto mode is activated the flame and heat will turn on. The heater will turn on
and off to keep the room temperature the same as the remote controls set temperature.
1. Press POWER button to turn unit on. (There may be a slight delay)
2. Press the UP or DOWN buttons to change the set temperature, if desired.
3. In auto mode the remote transmitter will automatically turn on the flame and heater
when the room temperature is below the target temperature and turn off the heater
ONLY when the room temperature is above the target temperature.
3
4. Press POWER button once to turn unit off.

4
SF3202
Timer Mode
1. You can set the timer to the length of time you want the unit to operate
2. (1 to 120 minutes).
3. Press the TIMER button once. The timer display will blink ---
4. Press the UP and DOWN buttons to adjust the timer display in minutes.
5. Press the TIMER button once to set the timer.
6. The timer setting can be reset by pressing the TIMER button and using the DOWN
button until the timer display reads ----, press the TIMER button once to set the
timer.
7. Press the POWER button to turn the unit on.
8. The fireplace will automatically shut off when the timer reaches 0 minutes.
Child Proof Function
1. Remove the battery cover on the back of the remote control.
2. Slide the small blue switch down to activate the child proof function.
3. Child Proof will appear on the display screen and all function on the remote will be
locked.
4. To enable normal remote control operation when the child proof function is activated,
press the up and down buttons in the following sequence,
UP-DOWN-DOWN-UP-DOWN the remote functions will now operate normally. The
remote will return to the child proof function if buttons are not pressed after two
minutes.
5. To disable the child proof function remove the battery cover on the back of the
remote and slide the small blue switch up.
Batteries
1. The remote control uses 3 AAA size batteries (included). Replace these batteries at
least every 6 months or when the low battery appears on the remote display screen.
2. When batteries are removed wait at least 1 minute before replacing with new
batteries.
Code selection
If the current remote control is interfering with the operation of other remote control
devices (TV, VCR, garage doors etc.) The code can be changed on the remote.
To change code:
1. Remove the battery cover on the back of the remote control.
2. Slide the four small switches to any configuration other than the factory set code.
3. Remove the batteries, wait for one minute.
4. Install the batteries.
5. Install the battery cover onto the remote.
6. Reinitialize the remote.

SF3202
5

SF3202
6
2
9
8
18
14
7
17 1
10
6
12
7
5
13
15

7
SF3202
REPLACEMENT PARTS
FIREPLACE 32” - SYMPHONY
CATALOGUE NO. SF3202 SF3202
PART NO. 6901340159 6901340159
MOD LEVEL: A B
MADE IN: CANADA CANADA
REPLACEMENT PART REPLACEMENT PART NO.
1. LOG SET 0438550100RP 0438550100RP
2. HEATER ASSEMBLY 2000230100RP 2000230100RP
3. LOWER LIGHT HARNESS 2500190500RP 2500190500RP
4. UPPER LAMPHOLDER ASSEMBLY 4200120900RP 2500200100RP
5. HEATER ON/OFF SWITCH 2800070200RP 2800070700RP
6. CIRCUIT BOARD 3000210100RP 3000210100RP
7. LED/SWITCH HARNESS 3000210400RP 3000210400RP
8. REMOTE CONTROL 3000211500RP 3000211500RP
9. FLAME SPEED CONTROL 3000180100RP 3000240100RP
10.FLAME MOTOR 2000150200RP 3000240200KIT
11.BUSHING, SNAP-IN 8500000400RP 8500000400RP
12.CORD SET 4100040400RP 4100040400RP
13.REFLECTOR ASSEMBLY 5900080700RP 5900080700RP
14.GLASS, SEMI-SILVERED 5900160700RP 5900160700RP
15.CONTROL KNOB 8800000200RP 8800000200RP
16.BUSHING 8500000600RP 8500000600RP
17.STEEL CURTAIN 8800240503RP 8800240503RP
18.STEEL CURTAIN ROD 8800250400RP 8800250400RP

SF3202
WIRING DIAGRAM
8

SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame. There are
four bulbs under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the end of
their rated life. Group replacement will reduce the number of times you need to open
the unit to replace the light bulbs.
LOWER BULB REPLACEMENT

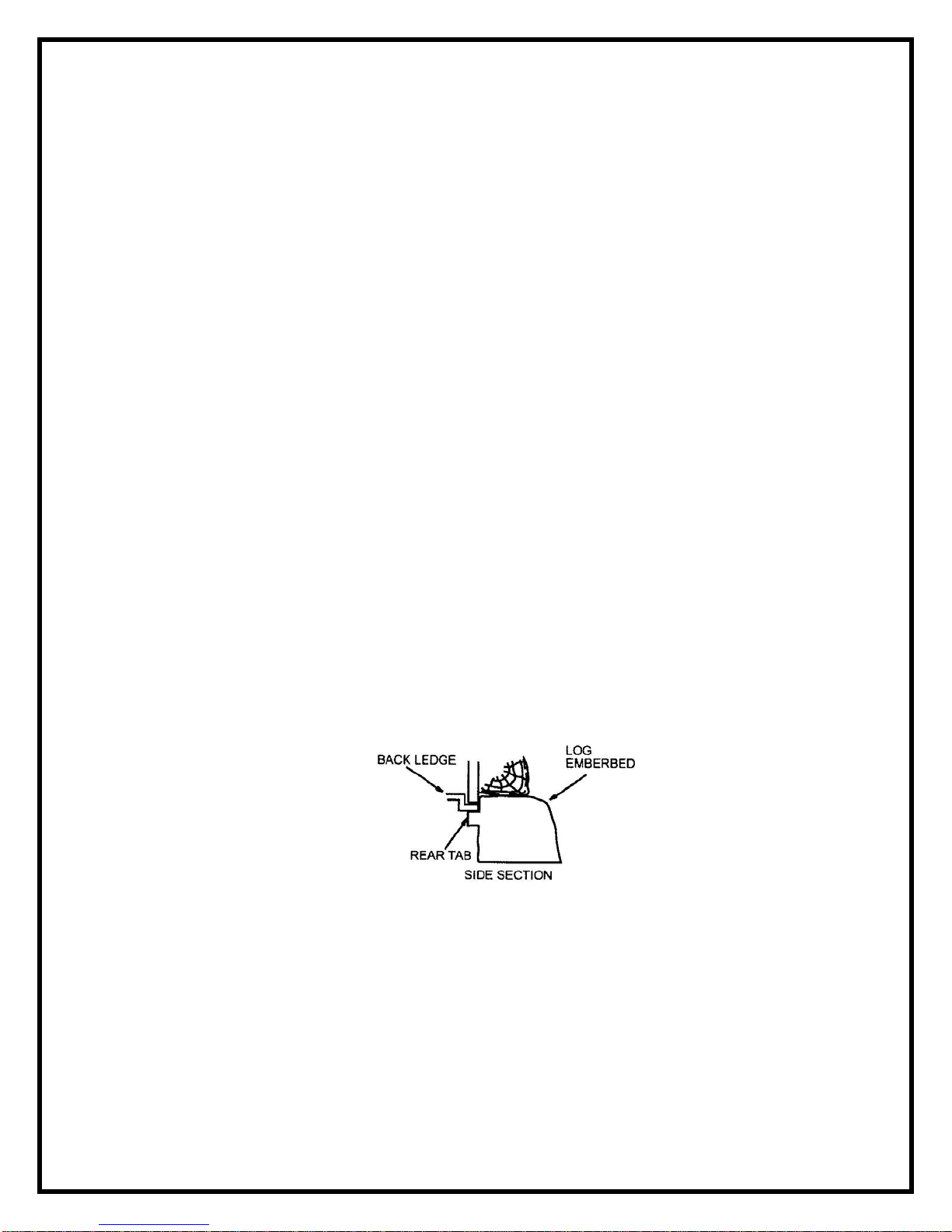

1. Lift up the front edge of the log until it clears the front tabs. Pull out until the rear tab
clears the back ledge, then lift out.
2. Examine the bulbs to determine which bulbs require replacement.
3. Hold the socket while unscrewing the bulb.
4. Hold the socket while screwing in the new bulb.
5. Replace the log emberbed by placing the back lip of the log emberbed under the
mirror then push the front of the log emberbed down into the recess.
LOWER LIGHT BULB REQUIREMENTS
Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base,
60 watt rating.
9

SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
Light bulbs need to be replaced when you notice a dark section of the flame. There are
four bulbs under the log set which generate the flames and embers.
It is a good idea to replace all of the light bulbs at one time if they are close to the end of
their rated life. Group replacement will reduce the number of times you need to open
the unit to replace the light bulbs.
UPPER BULB REPLACEMENT
1. Remove upper light bracket with a screwdriver.
2. Replace bulb.
3. Reassemble in the reverse order as above.
UPPER LIGHT BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base,
7 watt rating.
10

11
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE LED/SWITCH HARNESS
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top cover and remove the top being careful not
to damage any of the wiring.
3. Locate the LED/switch harness mounted on the inner panel and disconnect the
wiring clips and connections noting their original locations.
4. Depress the retainer clips on the rear of the switch and push the switch out of the
inner panel.
5. Properly orientate the new switch and connect all of the wiring clips and
connections.
6. Reassemble in the reverse order as above.

12
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE FLAME SPEED CONTROL
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top panel and remove the top being careful not
to damage any of the wiring.
3. Pull off the control knob from the flame speed control and remove the mounting nut.
4. Locate the flame speed control mounted to the side panel and disconnect the wiring
clips and connections noting their original locations.
5. Break off the four mounting studs on the flame speed control by grasping with pliers
and twisting on the protruding part of the stud, push the remainder of the studs out
through the side panel.
NOTE: New mounting studs are supplied with the replacement speed control.
6. Properly orientate the new flame speed control and connect all of the wiring
connections.
7. Reassemble in the reverse order as above.

13
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE FLAME MOTOR/FLAME ROD
1. Remove the log set by lifting up the front edge of the log until it clears the front tabs.
Pull out until the rear tab clears the back ledge, then lift out.
2. Cut the flicker motor wires close to the flicker motor end with wire cutters.
3. Remove the reflector rod from the flicker motor by pulling the end of the rod to the
left and cut the reflector spring with wire cutters. DO NOT TAKE THE LEFTOVER
SPRING OFF THE END OF THE REFLECTOR ROD
4. Remove the (2) screws securing the flicker motor to the flicker motor bracket.
5. Discard the old flicker motor.
6. Pick up the 1 ½” rubber sleeve and locate over remaining spring on reflector rod.
ENSURE TO LOCATE THE LARGE OPENING OF THE RUBBER SLEEVE OVER
THE REMAINING SPRING OF THE REFLECTOR ROD.
7. Pick up new flicker motor and cut wire leads to 3 ½” long with wire cutters.
8. Secure new flicker motor to the existing reflector rod. Ensure the flicker motor
bracket is in between the motor and the reflector rod.
9. Pick up slip joint pliers and adjust to proper slot.
10.Pick up wire connector and place (1) yellow wire into each terminal. (total of 2
yellow wires)
11.Secure wire connector by crimping the 3M symbol with slip joint pliers.
12.Pull on end of wires to ensure a strong connection.
13.Repeat this process for the (4) remaining wires. (red, blue, orange, grey)
14.Reassemble in the reverse order.

14
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HEATER ON/OFF SWITCH
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top panel and remove the top being careful not
to damage any of the wiring.
3. Locate the heater on/off switch mounted to the inner panel and disconnect the wiring
clips and connections noting their original locations.
4. Depress the retainer clips on the rear of the switch and push the switch out of the
inner panel.
5. Properly orientate the new switch and connect all of the wiring clips and
connections.
6. Reassemble in the reverse order as above

15
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE HEATER ASSEMBLY
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top panel and remove the top being careful not
to damage any of the wiring.
3. Locate the heater assembly and disconnect wiring clips and connections noting their
original locations.
4. Locate and remove the heater mounting screws from inside the top of the firebox
and remove the heater assembly.
5. Properly orientate the new heater assembly and connect all of the wiring
connections.
6. Reassemble in the reverse order as above.

16
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE THE CIRCUIT BOARD
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top panel and remove the top being careful not
to damage any of the wiring.
3. Locate the circuit board mounted on the side panel and disconnect the wiring clips
and connections noting their original locations.
4. Break off the six mounting studs on the flame speed control by grasping with pliers
and twisting on the protruding part of the stud, push the remainder of the studs out
through the top panel.
NOTE: New mounting studs are supplied with the replacement speed control.
5. Properly orientate the new circuit board and connect all of the wiring connections.
6. Reassemble in the reverse order as above.

17
SF3202
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE THE POWER CORD
1. Remove the firebox from the back of the mantel.
2. Remove the retaining screws on the top panel and remove the top being careful not
to damage any of the wiring.
3. Located and disconnect the power cord wiring connections noting their original
locations from the circuit board.
4. With needle nose pliers grasp the power cord strain relief grommet from inside the
rear panel and push while twisting to remove.
5. Pull the power cord out through the hole in the rear cover.
6. Install the new cord set through the hole in the side panel by placing the strain relief
over the cord, hold the strain relief with pliers and slide into mounting hole.
7. Connect all of the wiring connections in their original locations on the circuit board.
8. Reassemble in the reverse order as above.

SF3202
TROUBLESHOOTING GUIDE
GENERAL
Problem Cause Solution Service Manual
Reference
Circuit breaker trips
or fuse blows when
unit is turned on Improper circuit current rating
Additional appliances may
exceed the current rating of
the circuit breaker or fuse.
Plug unit into another outlet
or install unit on a dedicated
15 amp circuit
Unit turns on or off
by itself
Remote control has a similar
frequency to other remotes in
the area
Select alternative frequency
code Page 1
Radio frequency disturbance
from outside sources
Lights dim in room
while the unit is on Unit is drawing close to circuit current rating
Move the unit to another
outlet or install unit on a
dedicated 15 amp circuit
Power cord gets
warm Normal operation
The power cord may get
slightly warm to the touch
when the heater is on
Defective power cord Replace power cord Page 16
APPEARANCE
Problem Cause Solution Service Manual
Reference
Fireplace does not
turn on
Improper operation Refer to User’s Guide
Defective main on/off switch Replace main on/off switch Page 10
Defective remote control Install new batteries into the handheld transmitter /
reinitialize Page 1
Loose wiring Check wiring connections Page 7
Flame frozen Defective flame motor Replace flame motor Page 12
Loose wiring Check wiring connections Page 7
Flame not bright or
flame not visible
Burnt light bulbs Replace light bulbs Page 8
Loose wiring Check wiring connections Page 7
Defective light harness Replace light harness
Log set dim, ember
bed not glowing Burnt light bulbs Replace light bulbs Page 8
Flame Shutter Defective flame motor Replace flame motor Page 12
18

SF3202
TROUBLESHOOTING GUIDE
HEATER
Problem Cause Solution Service Manual
Reference
Heater is not
turning off
Defective heater on/off switch Replace heater on/off switch Page 13
Improper operation See User’s Guide
Loose wiring Trace wiring in unit Page 7
Heater is not
turning on
Defective heater on/off switch Replace heater on/off switch Page 13
Defective heater assembly Replace heater assembly Page 14
Improper operation See User’s Guide
Loose wiring Trace wiring in unit Page 7
Heater emits an
odour Normal operation
Normal operation is when
the heater emits an odour for
a brief period after the
heater is initially turned on.
The heater is burning off any
dust accumulated during
manufacturing or operation.
Defective heater assembly Replace heater assembly Page 14
Loose wiring Trace wiring in unit Page 7
Heater fan turns on
but heater lacks
heat
Improper operation See User’s Guide
Loose wiring Trace wiring in unit Page 7
Defective heater assembly Replace heater assembly Page 14
Heating element is
glowing red
Normal operation Small glowing sections of the element are considered
normal.
Defective heater assembly
If larger glowing sections are
causing the heater to trip the
thermal cut out, unplug unit,
discontinue use and replace
heater assembly
Page 14
19
