Dimplex VCX1525 User manual

Owner’s Manual
Model
VCX1525
VCX1525-WH
To view the full line of Dimplex products, please visit
www.dimplex.com
7209350100R05
IMPORTANT SAFETY INFORMATION: Always read this manual rst
before attempting to install or use this replace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.

2 www.dimplex.com
Table of Contents
Always use a qualied technician
or service agency to repair this
replace.
!NOTE: Procedures and
techniques that are considered
important enough to
emphasize.
CAUTION: Procedures
and techniques which, if not
carefully followed, will result in
damage to the equipment.
WARNING: Procedures
and techniques which, if not
carefully followed, will expose
the user to the risk of re,
serious injury, or death.
Welcome & Congratulations .................3
IMPORTANT INSTRUCTIONS ...............4
Fireplace Installation .......................7
Operation ...............................14
Maintenance.............................16
Warranty ...............................18
Replacement Parts ........................20

3
Welcome & Congratulations
Thank you and congratulations for choosing to purchase an electric
replace from Dimplex, the world leader in electric replaces.
Please carefully read and save these instructions.
CAUTION: Read all instructions and warnings carefully before
starting installation. Failure to follow these instructions may result
in a possible electric shock, re hazard and will void the warranty.

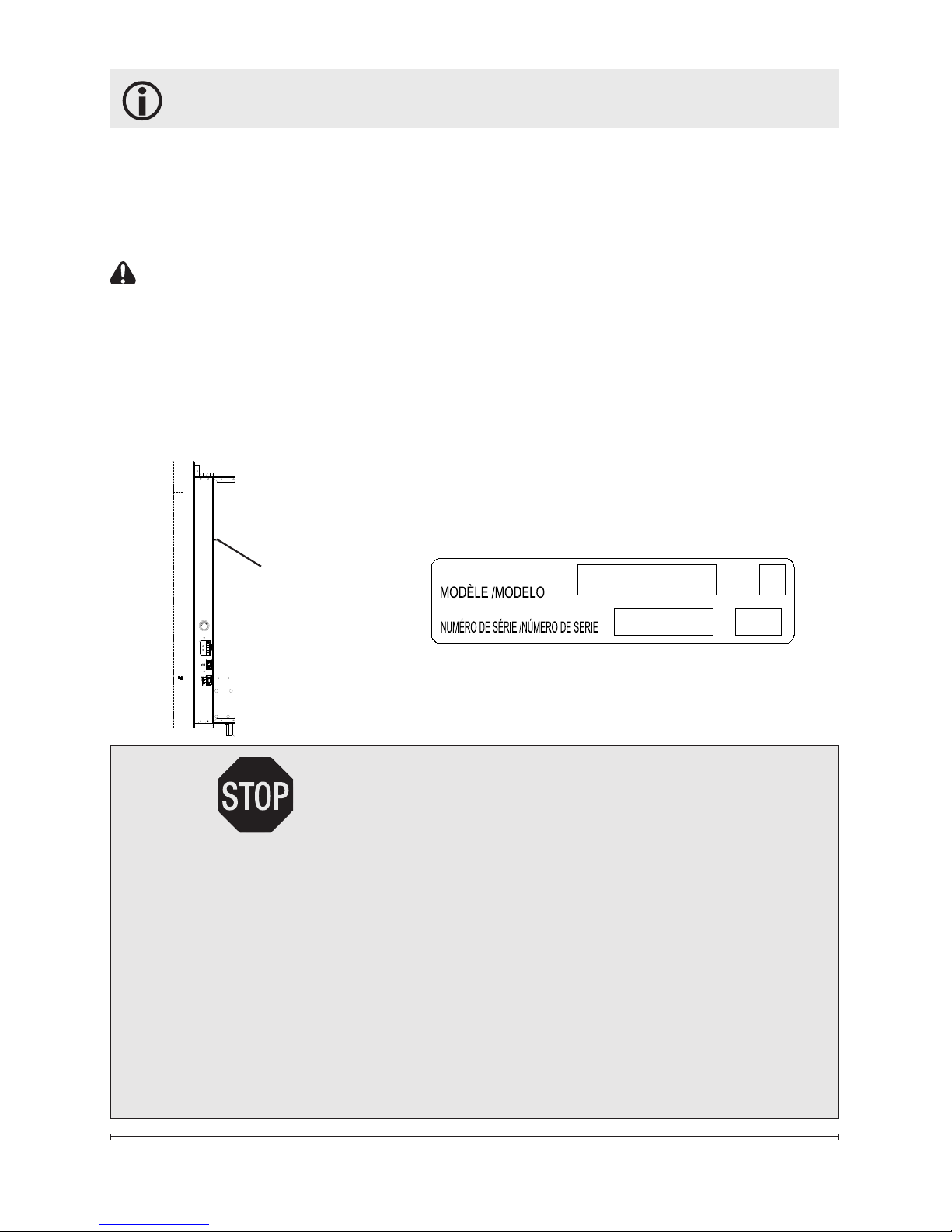

Please record your model and serial numbers below for future
reference: model and serial numbers can be found on the model and
serial number labels of your replace.
Model Number
Plate
NO NEED TO RETURN TO THE STORE
Questions with operation or assembly? Require Parts Information?
Product Under Manufacturer’s Warranty?
Contact us at: www.dimplex.com/customer_support
For Troubleshooting and Technical Support
OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)
Monday to Friday 8:00 a.m. to 4:30 p.m. EST
Please have your model number and product serial
number ready. (See above)
S E R IAL No.
MODE L
MOD.

4 www.dimplex.com
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using the Convex In-Stud re-
place.
②The heater is hot when in use.
To avoid burns, do not let bare
skin touch hot surfaces. The trim
around the heater outlet becomes
hot during heater operation.
Keep combustible materials, such
as furniture, pillows, bedding,
papers, clothes, and curtains at
least three (3) feet (0.9 m) from
the front of the unit and keep
them away from the sides and
rear.
③Extreme caution is neces-
sary when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④Always unplug the fireplace
when not in use.
⑤Do not operate any heater
after it malfunctions. Disconnect
power at the service panel and
have the heater inspected by a
reputable electrician before reus-
IMPORTANT INSTRUCTIONS
ing.
⑥ Do not operate any unit with
a damaged cord or plug, or if the
heater has malfunctioned, or if
the electric replace has been
dropped or damaged in any man-
ner, contact Dimplex Technical
Service at 1-888-346-7539.
⑦Do not use outdoors.
⑧Never locate heater where it
may fall into a bathtub or other
water container.
⑨Do not run the cord under
carpeting (for units supplied with
a cord). Do not cover cord with
throw rugs, runners, or the like.
Arrange cord away from traf-
c area and where it will not be
tripped over.
⑩To disconnect the unit, turn
the controls off, and then remove
the plug from the outlet or switch
off at main power supply panel if
the unit is hard wired.
⑪Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or re, or
damage to the heater.
⑫ To prevent a possible re, do
not block air intake or exhaust in

5
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
any manner.
⑬All electrical heaters have
hot and arcing or sparking parts
inside. Do not use in areas where
gasoline, paint, or ammable liq-
uids are used or stored.
⑭ Do not modify the replace.
Use it only as described in this
manual. Any other use not rec-
ommended by the manufacturer
may cause re, electric shock or
injury to persons.
⑮This unit may have a polar-
ized plug (one blade is wider than
the other). The plug will t in a
polarized outlet only one way. If
the plug does not t fully in the
outlet, reverse the plug. If it still
does not t, contact a qualied
electrician to install the proper
outlet.
⑯ Always plug heaters directly
into a wall outlet/receptacle.
Never use with an extension cord
or relocatable power tap (outlet/
power strip).
⑰Do not burn wood or other
materials in the replace.
⑱Do not strike the glass front.
⑲ Always use a certied electri-
cian for build-in hard-wired instal-
lation.
⑳Always use properly ground-
ed, fused and polarized outlets.
㉑Disconnect all main power
supply (unplug the unit or switch
off at main service panel) before
performing any cleaning, mainte-
nance or relocation of the unit.
㉒ Do not operate the replace
without the glass assembly and/or
frame.
㉓When transporting or storing
the unit and cord, keep in a dry
place, free from excessive vibra-
tion and store so as to avoid dam-
age.
㉔Do not put combustible mate-
rial, liquid, or small articles such
as sand inside glass assembly.

6 www.dimplex.com
IMPORTANT INSTRUCTIONS
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in re or mix
with used or other battery types - may
explode or leak causing injury.
!NOTE: Changes or modications
not expressly approved by the party
responsible for compliance could
void user's authority to operate the
equipment.
CAUTION: This equipment has
been tested and found to comply with
the limits for Class B digital device,
pursuant to part 15 of the FCC
Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment
generates, uses and can radiate
radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and
on, the user is encouraged to try to
correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between
the equipment and the receiver.
• Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
• Consult the dealer or an
experienced radio/TV technician
for help.
Operation is subject to the following
two conditions: (1) this device may
not cause interference and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.

7
Fireplace Installation
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of re, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of re, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of re,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of re, do not store or use gaso-
line or other ammable vapors or
liquids in the vicinity of the heater.
!NOTE: A 15amp, 120-volt cir-
cuit is required. A dedicated cir-
cuit is preferred but not essential
in all cases. A dedicated circuit
will be required if, after installa-
tion, the circuit breaker trips or
the fuse blows on a regular basis
when the heater is operating. Ad-
ditional appliances on the same
circuit may exceed the current
rating of the circuit breaker.
WARNING: The Convex In
Stud replace is wall mount-
able and can be built in a wall
space 16" (406 mm) over-cen-
ter between 2” (51 mm) x 4”
(102 mm) wall studs. Follow
the installation instructions for
either wall mount or built-in
mounting; failure to do so may
cause damage or injury.
CAUTION: High temperature,
risk of re, keep electrical
cords, drapery, furnishings,
and other combustibles at
least 3 feet (0.9 m) from the
front of the heater.
Wall Mounting Instructions
1. Leave the glass assembly un-
installed until step 10.
2. Select a location for the re-
place, preferably above an
electrical outlet and there
must be at least one wall stud
behind for the replace to
mount onto. The bottom of
the unit must be a minimum
of 14" (356 mm) above the
oor (mounting holes 29¾"
(0.75 m) minimum above the
oor) (Figure 2).
Access to the electrical outlet

8 www.dimplex.com
must be maintained. Ensure the
installation meets the national and
state/provincial electrical codes.
!NOTE: It is recommended
that the bottom of the unit not be
mounted higher than 48" (1.22
m) from the ground to maintain
an optimized viewing angle of the
ame.
CAUTION: The replace must
be mounted at two points, one of
which must be on a wall stud.
WARNING: High tempera-
tures may be generated under
certain abnormal conditions. Do
not partially or fully cover or ob-
struct the bottom of this heater.
Bottom of unit must be a mini-
mum of 14" (356 mm) above the
oor or any surface such as a ta-
bletop to ensure adequate space
for heat exhaust from the bottom
of the replace (Figure 3).
3. With a wall stud nder, locate
the center of the wall stud,
drive a wood screw into the
stud and leave approximately
⅛" (3 mm) exposed threads
for the replace to hang on.
4. The second mounting point
should be picked such that it
is farthest (to the left or right)
relative to the rst one among
Fireplace Installation
the seven (7) keyholes (A to
G shown in Figure 2) on the
replace for wall mounting,
these keyholes are 2" (51
mm) apart. For example, if
you plan to use hole B as
the rst mounting hole, the
second mounting hole must
be G.
Other available combinations
are A-G, C-G, A-F, A-E, A-D
and D-G.
5. Mark the second mounting

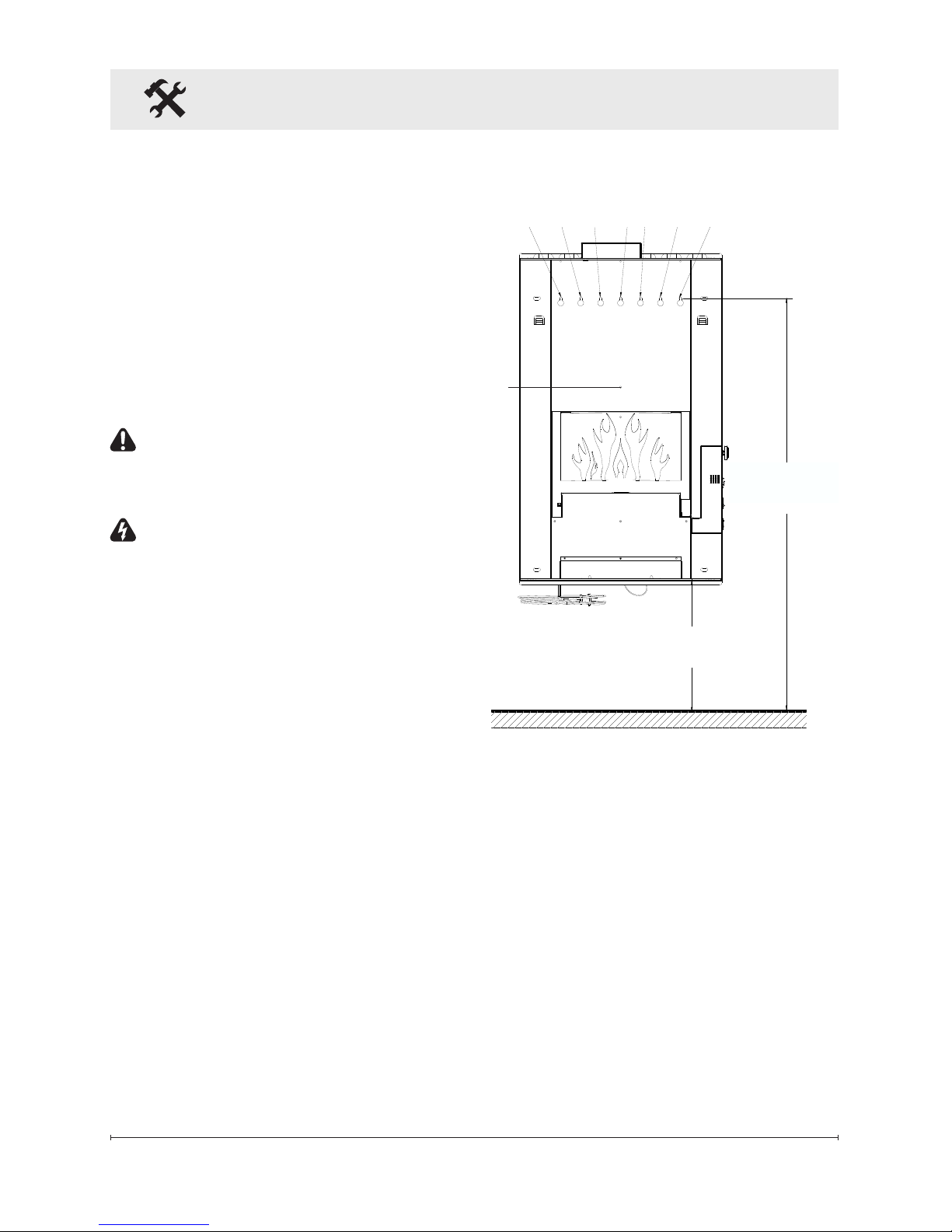

Figure 2
ABC D E F G
H
29¾” - 75¾”
(0.75 - 1.92m)
14” - 48”
(0.36 - 1.22m)

9
Fireplace Installation
screw location; ensure that it
is level with the rst with the
help of the provided bubble
level and the replace itself.
Screw the threaded drywall
anchor in the drywall with a
Philip’s head screwdriver until
the head is at against the
wall surface.
Caution should be taken
when using a power tool to
install a threaded drywall an-
chor as the drywall may dis-
tort, tear or slightly buckle as
a result of over-torque.
6. With a Philip’s head screw
driver, screw the drywall an-
chor screw into the drywall
anchor already in the wall,
leave ⅛" (3 mm) exposed

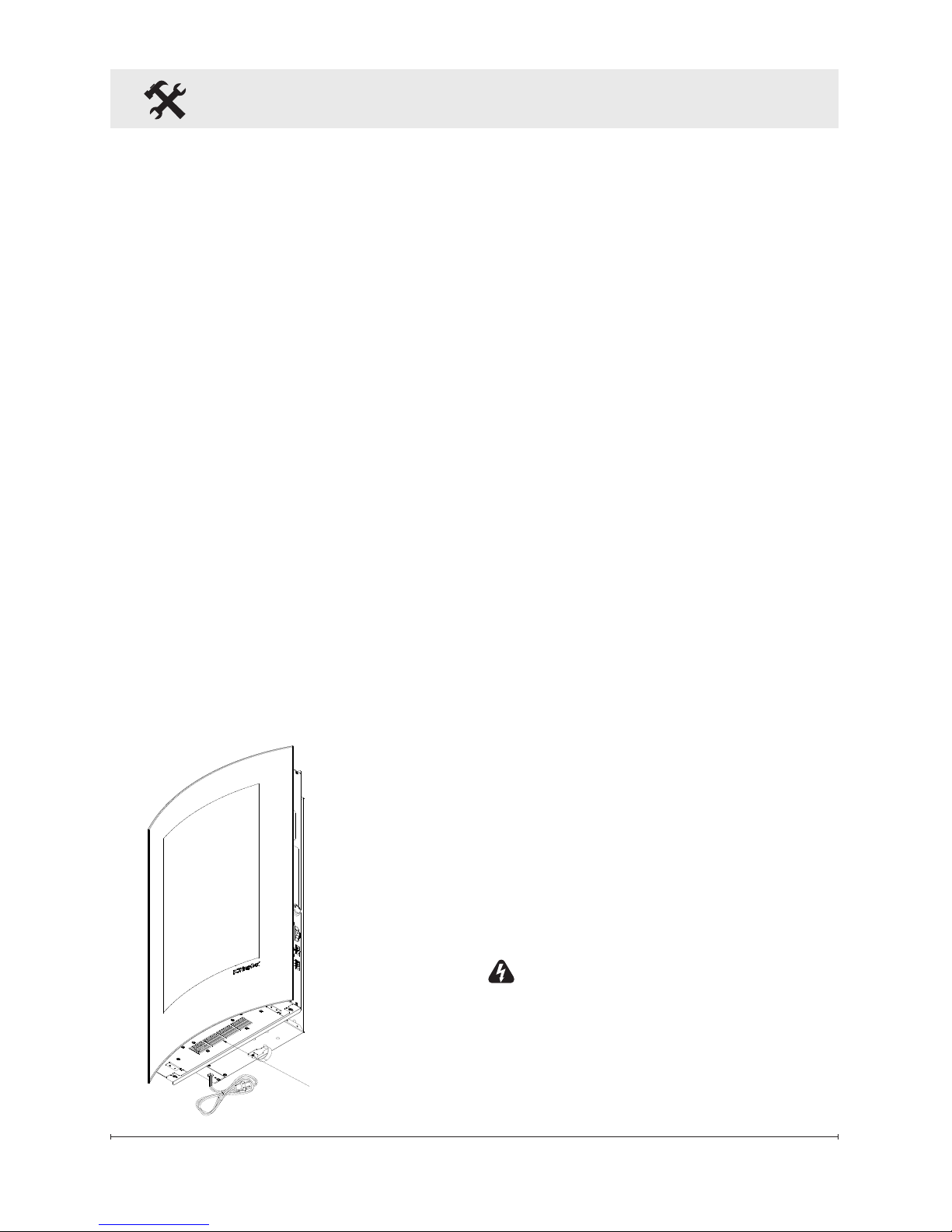

Figure 3
Heat Exhaust
threads for mounting the re-
place.
7. With the glass assembly tak-
en off, mount the rebox onto
the two mounting screws.
8. Mark position of hole “H”.
9. Remove replace from wall.
10. Install drywall anchor into dry-
wall at marked position.
11. With the glass assembly off,
mount the replace onto the
two mounted screws.
12. Tighten both mounting screws
with a screwdriver. Be careful
not to over tighten the screws
mated with the drywall an-
chor.
13. Secure Philip’s screw into
drywall anchor, already in the
wall (H).
14. Open the bag of pebbles and
gently pour through top open-
ing of front glass assembly.

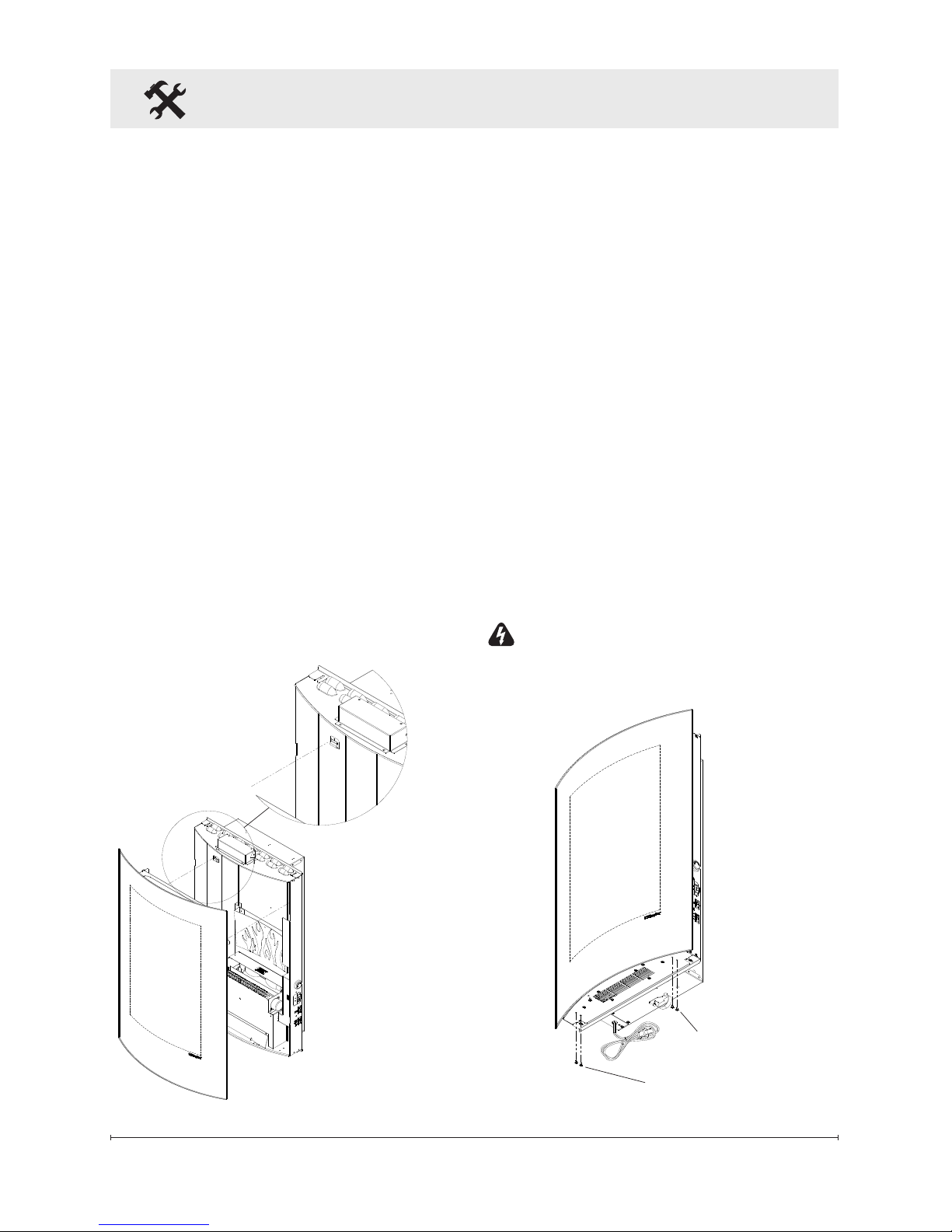

15. Install glass assembly as
shown in Figure 4.
Built-In Instructions
WARNING: The installation of
the replace unit must comply
with the applicable local and/or
national electrical codes and
utility requirements. This in-

10 www.dimplex.com
stallation should be entrusted
to duly qualied personnel
where required by law.
!NOTE: If the desired replace
location is on the interior of an
exterior wall the unit should
only be surface mounted. If a
in-wall or ush mount look is
desired build the interior wall
out into the room.
1. Leave the frame uninstalled
from the replace chassis un-
til step 13.

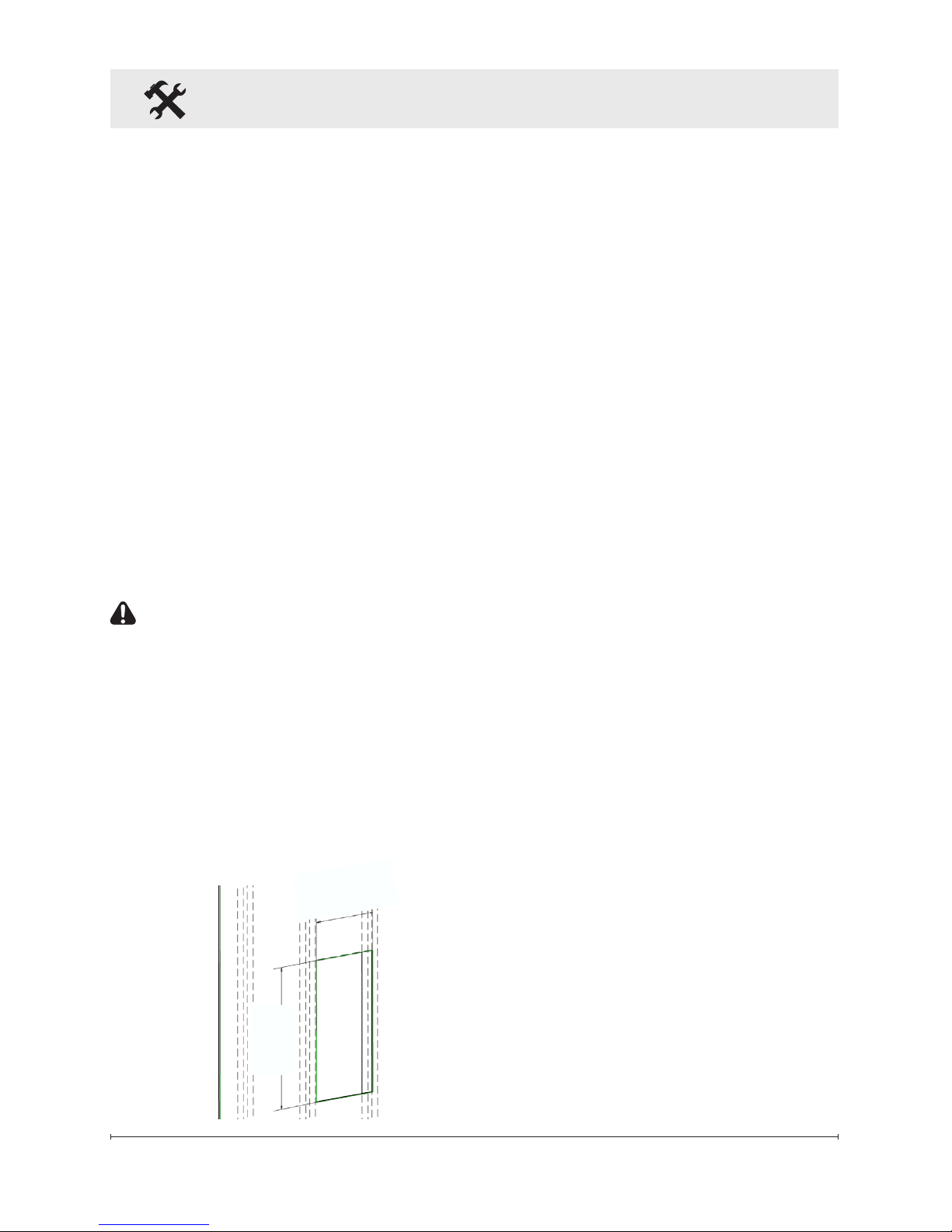

2. Prepare a wall opening fol-
lowing the dimensions shown
in Figure 5. Note that a 4"
(102 mm) minimum depth
Fireplace Installation
including the thickness of dry
wall is required. Make sure
there is enough clearance for
the cable coming out from the
bottom of the replace.
!NOTE: Where there are close
tolerances involved in wall build-
ing or applications which require
a great degree of precision, we
recommend that the product itself
be used to make the actual mea-
surements for the wall opening.
Dimplex North America will not
be responsible for inaccuracies
in the design or manufacture of
enclosures.
WARNING: Ensure method of
Ensure Glass
Assembly
brackets engage
hooks on replace
by sliding Glass
Assembly towards
replace and then
down Secure Glass
Assembly with the
four (4) supplied
self-tapping screws
Figure 4

11
Fireplace Installation
installation does not obscure the
air intake slots on top of unit in
any manner.
Keep a minimum of a 4" (102
mm) clearance from top of
unit to any surface or mate-
rial.
3. Wire a dedicated, properly
fused circuit with 120 Volt,
15 Amp rating. Allow up to
8' (2.44 m) of service cable
for connecting power supply
to junction box on replace
when installing after nishing
wall.
CAUTION: Use a two conduc-
tor, non-metallic sheath cable with
ground wire (three wires total) for
the incoming power supply on
replace inserts.
Use the appropriate wire to meet
local and national electrical codes
for rated power consumption.
4. Remove the outer jacket and
strip the individual conductor
from the end.
5. Loosen the screw securing
the junction box cover and
remove the cover.

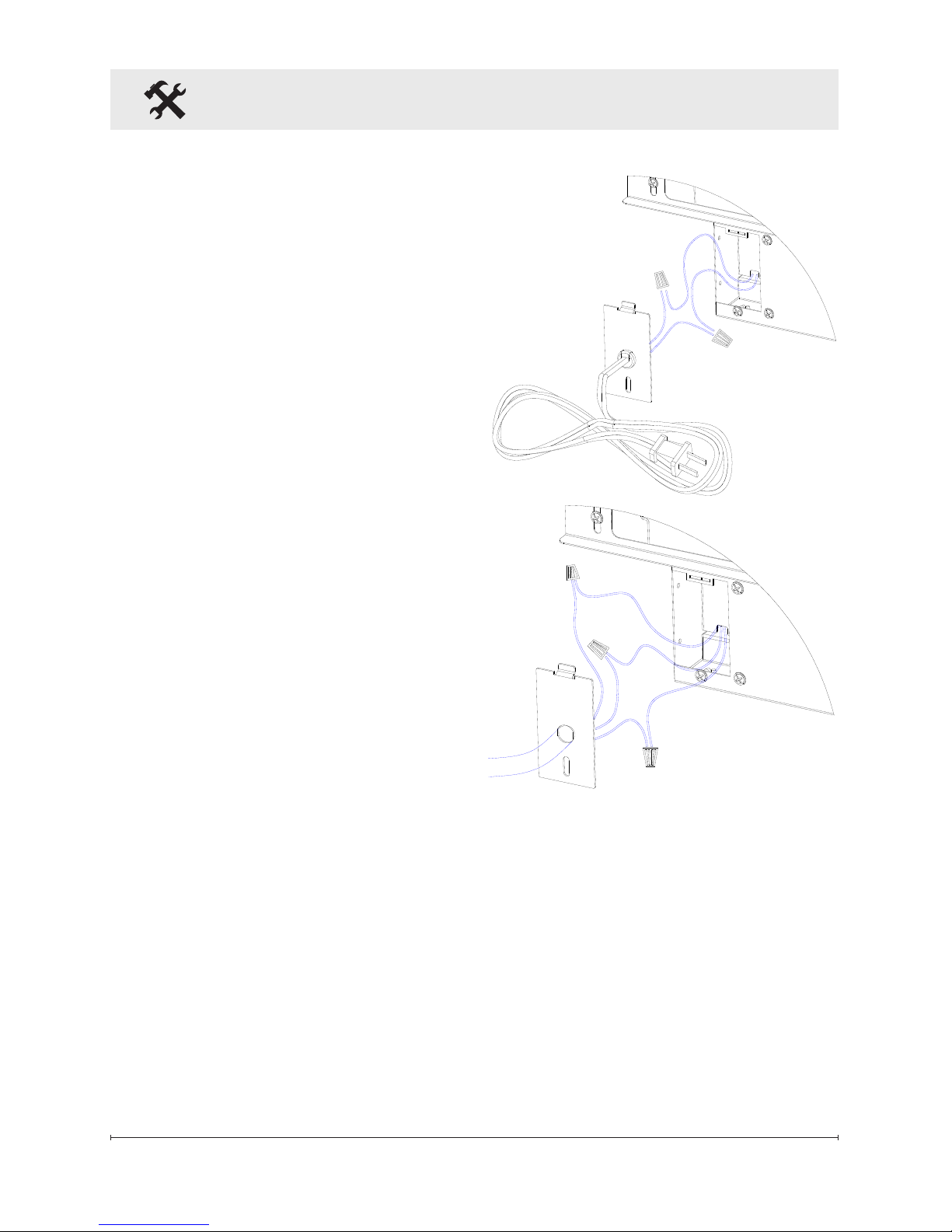

6. Take the cables out from the
junction box, loosen the two
wire nuts and remove the
cord set (Figure 6).
7. Route the power supply wire
through the knockout on sup-
plied alternative junction box
cover and secure with a wire
clamp (not supplied) (Figure
7).
8. Connect the black wire (live)
from the unit to the black wire
from power supply (Figure 7).
9. Connect the white wire (neu-
tral) from the unit to the white
wire from power supply
(Figure 7).
10. Connect the green wire
(ground) from the unit to the
green wire from power supply
(Figure 7).
11. Place all connectors inside
the unit and secure the junc-
tion box cover to unit. Ensure
that the cable clamp grips
only the jacket of service
Figure 5
32"
(813
mm)
14¼"
(362 mm)

12 www.dimplex.com
cable.
!NOTE: All wiring must be
completed prior to installing the
unit into the wall.
12. Place unit in position in the
opening, push straight in and
attach unit to studs using
No. 10 fasteners (not includ-
ed) (Figure 8).
13. Attach supplied wall cover
brackets to the top and the
bottom of replace to cover
the gap on the dry wall (Fig-
ure 9).
14. Attach replace frame as
shown in Figure 4.
Bathroom Installation
This rebox must be protected
by a GFI receptacle or circuit for
bathroom use. If receptacle is
used it must be readily acces-
sible.
This unit is an electrical appliance
that is not watertight and must
be installed as to prevent water
from entering the unit to prevent
electrical shock. This unit must
be installed away from showers,
tubs, etc.
Never locate replace where it
may fall into a bathtub or other
water containers. Keep towels
Figure 6
Figure 7
Fireplace Installation
and other combustible materials
3 ft (0.9 m) away from the bottom
of the unit.

13
Fireplace Installation
Add
wood
screws
here
Figure 8 Figure 9
Top Bracket
Bottom Bracket
WIRING
GROUND
M
M
ELEMENTS
THERMOSTAT
3-POSITION
SWITCH
N
L
CUTOUT HEAT
SWITCH
FLICKER
MOTOR
LOWER
LIGHTS
BLOWER
MOTOR
INTEGRAL
ON-OFF R/C
CAPACITOR
DIMMER
LIGHTS
TOP

14 www.dimplex.com
Operation
Figure 10
D.
C.
B.
A.
WARNING: This electric
rebox must be properly installed
before it is used.
Manual Controls
The controls are located on the
right hand side of the replace
(Figure 10).
A. 3-Position Switch
The switch has two ON positions
marked with and “ON”.
The “ON” position is for manual
operation. In this position the
built-in remote control is by-
passed.
The position is for operating
the unit with the provided remote
control.
When in position the unit is op-
erated with the ON and OFF but-
tons of the remote control.
When the switch is in the center
position the unit is off.
B. Heater On/Off Switch
The Heater On/Off Switch sup-
plies power to the heater fan and
the heater element.
When the switch is in the ON po-
sition the heater operates if the
thermostat calls for heat.
!NOTE: The heater may emit
a slight, harmless odor when rst
used. This odor is a normal condi-
tion caused by the initial heating
of internal heater parts.
C. Heater Thermostat Control
To adjust the temperature to your
individual requirements, turn the
thermostat control upward all the
way to turn on the heater. When
the room reaches the desired
temperature, turn the thermostat
knob downward until you hear
a click. Leave in this position to
maintain the room temperature at
this setting. For additional heat,
turn upward until you hear the
click again and the heater will turn
on.

15
Operation
D. Top Light Dimmer Control
The top Top Light Dimmer Control
controls the brightness of the top
accent light that is used to illumi-
nate the pebbles.
Resetting The Temperature
Cutoff Switch
Should the heater overheat, an
automatic cut out will turn the re-
place off and it will not come back
on without being reset. It can be
reset by switching the 3-Position
Switch to OFF and waiting ve
minutes before switching the unit
back on.
CAUTION: If you need to
continuously reset the heater,
disconnect power and call
Dimplex customer service at
1-888-DIMPLEX
(1-888-346-7539).
Remote Control
The replace is supplied with an
integrated on/off remote control
!NOTE: Ensure that the re-
place 3-Position Switch is set
to the remote control setting.
To operate, push the ON button
to turn replace on, push the OFF
button to turn the replace off.
!NOTE: Before attempting any
operation with the remote control,
pull the plastic insulator strip out
from between the remote casing
and battery cover.
Remote Control Initialization/
Reprogramming
15. Disconnect power to re-
place.
16. Wait a minimum of 5 seconds
and then re-acquire power to
replace.
17. Within 10 seconds of re-
acquiring power, press the On
button located on the remote
control.
This will synchronize the remote
control and receiver.
Battery Replacement (Figure 11)
To replace the battery:
1. Slide battery cover open on
the remote control.
Figure 11
Off
Button
On
Button
Battery
cover
Plastic
strip

16 www.dimplex.com
Battery must be recycled
or disposed of properly.
Check with your Local
Authority or Retailer for recycling
advice in your area.
 WARNING: Disconnect power
and heater has cooled before
attempting any maintenance or
cleaning to reduce the risk of
re, electric shock or damage
to persons.
!NOTE: The replace should
not be operated with an accumu-
lation of dust or dirt on or in the
unit, as this can cause a build up
of heat and eventual damage. For
this reason the heater must be
inspected regularly, depending
upon conditions and at least at
yearly intervals.
Light Bulb Replacement
Light bulbs need to be replaced
when you notice a dark section of
the ame. There are two bulbs,
which generate the ames.
Helpful Hints: It is a good idea
to replace all light bulbs at once if
they are close to the end of their
rated life. Group replacement will
reduce the number of times you
will need to open the unit to re-
place light bulbs.
Light Bulb Requirements:
Quantity of two 60 Watt chande-
lier or candelabra bulbs with E-12
(small) socket base, 120 Volt. Do
not exceed 60 Watt per bulb
Bulb Replacement Instructions:
CAUTION: Turn unit off, allow
at least 5 minutes for light bulbs
to cool before touching bulbs to
avoid accidental burning of skin.
1. Disconnect power supply to
the replace either by unplug-
ging the replace or switch off
at the breaker panel.
2. Remove glass assembly. Re-
move the screws securing the
glass assembly on the chas-
sis (Figure 4).
3. Hold on to the glass assembly
with both hands then lift the
whole assembly straight up to
2. Install one 12 Volt (A23) bat-
tery in the battery holder.
3. Close the battery cover.
Maintenance
Operation

17
Figure 12
Lift to
remove
Glass
assembly
Maintenance
Figure 13
Light
Block
remove (Figure 11).
4. Remove the two screws
securing the light block as
shown in Figure 13, then re-
move the light block.
5. Reach in and turn the burnt
bulb(s) counterclockwise to
remove.
6. Replace with new bulbs.
7. Reassemble light block and
glass assembly in reverse
order.
Glass Cleaning
The front glass is cleaned in the
factory during the assembly oper-
ation. During shipment, installa-
tion, handling, etc., the front glass
may collect dust particles, these
can be removed by dusting lightly
with a clean dry cloth.
To remove ngerprints or other
marks, the glass can be cleaned
with a damp cloth. The glass
should be completely dried with
a lint free cloth to prevent water
spots. To prevent scratching,
do not use abrasive cleaners or
spray liquids on the glass surface.
Fireplace Surface Cleaning
To remove ngerprints or other
marks, the exterior nish can be
cleaned with a damp cloth with
a mild detergent. The surface
should be completely dried with
a lint free cloth to prevent water
spots. To prevent scratching,
do not use abrasive cleaners or
spray liquids on any surface.
Servicing
Except for light bulb replacement
and cleaning described above, an
authorized service representative
should perform any other servicing.

18 www.dimplex.com
Warranty
Products to which this limited warranty
applies
This limited warranty applies to the fol-
lowing models of your newly purchased
Dimplex electric replace VCX1525 and
to newly purchased Dimplex replace
surrounds and trims. This limited warranty
applies only to purchases made in any
province of Canada except for Yukon Terri-
tory, Nunavut, or Northwest Territories or
in any of the 50 States of the USA (and
the District of Columbia) except for Hawaii
and Alaska. This limited warranty applies
to the original purchaser of the product
only and is not transferable.
Products excluded from this limited war-
ranty
Light bulbs are not covered by this limited
warranty and are the sole responsibility of
the owner/purchaser. Products purchased
in Yukon Territory, Nunavut, Northwest
Territories, Hawaii, or Alaska are not
covered by this limited warranty. Products
purchased in these States, provinces, or
territories are sold AS IS without war-
ranty or condition of any kind (including,
without limitation, any implied warranties
or conditions of merchantability or tness
for a particular purpose) and the entire risk
of as to the quality and performance of the
products is with the purchaser, and in the
event of a defect the purchaser assumes
the entire cost of all necessary servicing
or repair.
What this limited warranty covers and for
how long
Products, other than replace surrounds
(mantels) and trims, covered by this
limited warranty have been tested and
inspected prior to shipment and, subject
to the provisions of this warranty, Dimplex
warrants such products to be free from
defects in material and workmanship for a
period of 1 year from the date of the rst
purchase of such products.
The limited 1 year warranty period also
applies to any implied warranties that may
exist under applicable law. Some jurisdic-
tions do not allow limitations on how long
an implied warranty lasts, so the above
limitation may not apply to the purchaser.
What this limited warranty does not cover
This limited warranty does not apply to
products that have been repaired (except
by Dimplex or its authorized service
representatives) or otherwise altered. This
limited warranty does further not apply
to defects resulting from misuse, abuse,
accident, neglect, incorrect installation,
improper maintenance or handling, or
operation with an incorrect power source.
What you must do to get service under
this limited warranty
Defects must be brought to the attention of
Dimplex Technical Service by contacting
Dimplex at 1-888-DIMPLEX (1-888-346-
7539), or 1367 Industrial Road, Cam-
bridge Ontario, Canada N1R 7G8. Please
have proof of purchase, catalogue/model
and serial numbers available when calling.
Limited warranty service requires a proof
of purchase of the product.
What Dimplex will do in the event of a
defect?
In the event a product or part covered by
this limited warranty is proven to be defec-
tive in material or workmanship during the
1 year limited warranty period you have
the following rights:
• Dimplex will in its sole discretion either
repair or replace such defective prod-

19
Warranty
uct or part without charge. If Dimplex
is unable to repair or replace such
product or part, or if repair or replace-
ment is not commercially practicable or
cannot be timely made, Dimplex may,
in lieu of repair or replacement, choose
to refund the purchase price for such
product or part.
• This limited warranty does not entitle
the purchaser to on-site or in-home
services. On-site or in-home services
may be performed at the purchaser’s
specic request and expense at
Dimplex’s then-current rates for such
services.
• Limited warranty service will be
performed solely by dealers or service
agents of Dimplex authorized to pro-
vide limited warranty services.
• Dimplex will not be responsible for,
and the limited warranty services shall
not include, any expense incurred for
installation or removal of the product
or part (or any replacement product
or part) or any labour or transporta-
tion costs. Such costs shall be the
purchaser’s responsibility.
What Dimplex and its dealers and service
agents are also not responsible for:
IN NO EVENT WILL DIMPLEX, OR ITS
DIRECTORS, OFFICERS, OR AGENTS,
BE LIABLE TO THE PURCHASER OR
ANY THIRD PARTY, WHETHER IN CON-
TRACT, IN TORT, OR ON ANY OTHER
BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUEN-
TIAL, OR INCIDENTAL LOSS, COST,
OR DAMAGE ARISING OUT OF OR
IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO
USE THE PRODUCT, EVEN IF DIMPLEX
OR ITS DIRECTORS, OFFICERS, OR
AGENTS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH
LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL
DIMPLEX, OR ITS OFFICERS, DIREC-
TORS, OR AGENTS BE LIABLE FOR
ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PUR-
CHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION
OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
How State and Provincial law apply
This limited warranty gives you specic
legal rights, and you may also have other
rights which vary from jurisdiction to juris-
diction. The provisions of the United Na-
tions Convention on Contracts for the Sale
of Goods shall not apply to this limited
warranty or the sale of products covered
by this limited warranty.

20 www.dimplex.com
© 2013 Dimplex North America Limited
Dimplex North America Limited
1367 Industrial Road
Cambridge ON
Canada N1R 7G8
Replacement Parts
Front Glass - VCX1525 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5901170100RP
VCX1525-WH . . . . . . . . . . . . . . . . . . . . . . . . . . . 5901170200RP
Flicker Motor .......................................2000210300RP
Flicker Rod ........................................5901110100RP
Lampholder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4200090200RP
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5901180100RP
Thermostat .......................................2300150100RP*
Heater On/Off Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2800070700RP
Thermostat Control Knob .............................8801080100RP
3-Position Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2800071100RP
Remote Control Receiver .............................3000380200RP
Terminal Block ......................................4000070100RP
Heater Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6904280200RP
Cutout ............................................2300201200RP
Cord Set ..........................................4100090104RP
Wire Harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2500400400RP
Dimmer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000250100RP
Dimmer Control Knob ................................8800000600RP
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3000370500RP
Media Tray Retaining Bracket ..........................1020410159RP
Black Stone Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1400050100RP
River Rock Media (VCX1525WH) . . . . . . . . . . . . . . . . . . . . . . .1400080100RP
