Dinamica Generale DG8000 User manual

OPERATOR’S MANUAL
DG8000
Feeding Monitoring

General Information INDICATOR DG8000 RevB0
1
ENGLISH
INDICE
INDICE ........................................................................................................................................................................ 1
TECHNICAL DATA ........................................................................................................................................................ 3
DIMENSIONS .............................................................................................................................................................. 3
CONFIGURATION ........................................................................................................................................................ 4
CONNECTIONS SCHEME .............................................................................................................................................. 5
UNIVERSAL BOX ............................................................................................................................................................... 5
SLIM BOX........................................................................................................................................................................ 10
SPECIFICATION ON FUNCTION KEYS ..........................................................................................................................16
SYMBOLS ...................................................................................................................................................................21
SYSTEM CONFIGURATION..........................................................................................................................................23
WORKING DATA ............................................................................................................................................................. 23
SETTING OF THE BASE PARAMETERS.............................................................................................................................. 24
AUTOMATIC SKIP OF THE COMPONENTS....................................................................................................................... 30
CHECKING THE HARDWARE MODULES .......................................................................................................................... 32
STRING SETUP ................................................................................................................................................................ 33
CONFIGURATION PROTECTED BY PASSWORD ............................................................................................................... 34
LIST OF THE PASSWORDS ............................................................................................................................................... 34
PASSWORD 4–PRINTING WORK PROCESS................................................................................................................. 35
PASSWORD 45 -CALIBRATION WITH SAMPLE WEIGHT ................................................................................................ 37
PASSWORD 46 –INVERSE CALIBRATION WITH SAMPLE WEIGHT................................................................................. 39
PASSWORD 166 –SCHEDULER ACTIVATION ............................................................................................................... 41
PASSWORD 387 –CANCELLATION SCHEDULER MEMORY.......................................................................................... 41
PASSWORD 603 –HOW TO ENABLE THE XL DISPLAY................................................................................................ 42
PASSWORD 1066 –USER AND PASSWORD ACTIVATION ............................................................................................ 42
PASSWORD 1289 –EDITING OF GPRS CONNECTION MODE (YOU CAN ENTER ONLY IF PASSWORD 1290 IS ENABLE)
.......................................................................................................................................................................................... 45
PASSWORD 1290 –ACTIVATION OF GPRS COMMUNICATION..................................................................................................... 45
SETTING OF CUSTOMER CODE ....................................................................................................................................... 46
USE OF THE DATA TRANSFER (MEMORY CARD) ............................................................................................................. 48
INITIAL SETTING.........................................................................................................................................................50
DISPLAY CONTRAST ........................................................................................................................................................ 50
SETTING DATE AND TIME ............................................................................................................................................... 51
USE OF THE MICROCOMPUTER..................................................................................................................................52
MANUAL WEIGHING ...................................................................................................................................................... 52
PROGRAMMING FROM THE INDICATOR ........................................................................................................................ 54
HOW TO USE THE EDIT FUNCTION ........................................................................................................................................... 54
RECIPES ............................................................................................................................................................................ 55
UNLOADING PROGRAMS....................................................................................................................................................... 58
COMPONENTS AND UNLOADING POINTS .................................................................................................................................. 59
CUSTOMER ........................................................................................................................................................................ 60
RECIPES MANAGEMENT........................................................................................................................................................ 60
PENS MANAGEMENT............................................................................................................................................................ 61
EXECUTION OF THE RECIPE (LOADING PROGRAM) ........................................................................................................ 62
END OF THE EXECUTION........................................................................................................................................................ 67
EXECUTION OF THE UNLOADING PROGRAM ................................................................................................................. 68
SUSPENDED EXECUTION ................................................................................................................................................ 73
REFUSED MANAGEMENT ............................................................................................................................................... 73
HOW TO RESET THE REFUSED WEIGHT ..................................................................................................................................... 75
AUTO LINK BETWEEN AN UNLOADING PROGRAM AND A RECIPE ................................................................................................... 77

General Information INDICATOR DG8000 RevB0
2
DATA TRANSFER BY MODEM.......................................................................................................................................... 78
SCHEDULER MANAGEMENT.......................................................................................................................................80
TO ENABLE THE SCHEDULER ON THE INDICATOR........................................................................................................... 80
TO DISABLE THE SCHEDULER.......................................................................................................................................... 81
SCHEDULER MANAGEMENT FROM THE INDICATOR ...................................................................................................... 81
MANAGEMENT OF DATA ...........................................................................................................................................82
HARDWARE CHECKUP OF IRM SYSTEM ................................................................................................................................... 83
WIFI MANAGEMENT ..................................................................................................................................................87
TO START THE WIFI SYNCRONIZATION ........................................................................................................................... 87
OPTIONAL ACCESSORIES............................................................................................................................................88
CAN BUS CONNECTOR ....................................................................................................................................................... 88
ACTIVATION OF COMMUNICATION PROTOCOL J1939................................................................................................................. 88
SEARCHING FOR FAULTS............................................................................................................................................89
MESSAGES OF CLOCK ERROR ......................................................................................................................................... 91
CHECK THE DAMAGED COMPONENTS ........................................................................................................................... 92
EU DECLARATION OF CONFORMITY...........................................................................................................................98
WARNING ..................................................................................................................................................................99
ENVIRONMENT: DISPOSAL RULES..............................................................................................................................99
GUARANTEE ............................................................................................................................................................100

General Information INDICATOR DG8000 RevB0
3
ENGLISH
TECHNICAL DATA
Range (f.s.):
0 - 999.999
Resolution:
1 - 2 - 5 -10 - 20 - 50
Accuracy:
< +/- 0,015 % f.s.
Operating temperature:
-30° / +65 °C (-22° / +150 °F)
(-45 °C /-49°F on request)
Power supply:
9,5 – 32 Vd.c. (“LOW BATTERY” alarm < 9,5 Vdc)
Dimensions:
UNIVERSAL BOX: 233 x 230 x 112 mm (9.2 x 9.0 x 4.4
inches)
SLIM BOX: 220 x 190 x 80 mm (8.6 x 7.5 x 3.1 inches)
Weight:
UNIVERSAL BOX: 2500gr (5.5 lbs)
SLIM BOX: 1900 gr (4.2 lbs)
Case:
Polyamide (PA) 30% glass fiber, noise shielded
Protection grade:
IP 68*
Display:
Graphical Display WVGA Full Color
152.4 x 91.5 mm (7" WVGA) **
16:9 format 800x480
* Completely dust-proof and splash-proof, water-proof in full water immersion up to 1 meter with
connectors closed by cap or with cables/ accessories connected.
** Perfect visibility in any weather condition (sunny, cloudy, rainy)
DIMENSIONS

General Information INDICATOR DG8000 RevB0
4
CONFIGURATION
1. ON / OFF key.
2. RESET key.
3. Directional keys.
4. Power, sensor and accessories connectors.
5. Data Transfer connector.
6. ENTER key.
7. Function and setting keys.
8. Graphical Display WVGA Full Color.
9. Dovetail fastener.
10.Identification label.

General Information INDICATOR DG8000 RevB0
5
ENGLISH
CONNECTIONS SCHEME
UNIVERSAL BOX
Power and sensor connections (system with junction box)
If the load cells are not all connected to the indicator, it's necessary to close the
connectors not used with the special cap.

General Information INDICATOR DG8000 RevB0
6
Power and sensor connection (system without junction box)

General Information INDICATOR DG8000 RevB0
7
ENGLISH
Accessories connection (NIR Scanner and Power & Communication Box)

General Information INDICATOR DG8000 RevB0
8
Accessories connection (system with 4 sensor connectors)

General Information INDICATOR DG8000 RevB0
9
ENGLISH
Accessories connection (system with connection box 2 accessories Hi-Tech)

General Information INDICATOR DG8000 RevB0
10
SLIM BOX
Power and sensor connection (system with junction box)
If the load cells are not all connected to the indicator, it's necessary to close the
connectors not used with the special cap.

General Information INDICATOR DG8000 RevB0
11
ENGLISH
Accessories connection (NIR Scanner and Power & Communication Box)

General Information INDICATOR DG8000 RevB0
12
Accessories connection (system with connection box 2 accessories Hi-Tech)

General Information INDICATOR DG8000 RevB0
13
ENGLISH
Accessories connection (system without connection box 2 accessories Hi-Tech)

General Information INDICATOR DG8000 RevB0
14
Display connection (available for UNIVERSAL BOX and for SLIM BOX)

General Information INDICATOR DG8000 RevB0
15
ENGLISH
Connection front loader side

General Information INDICATOR DG8000 RevB0
16
Specification on function Keys
MAIN MENU
System calibration (zero setting of the system)
Block mode to freeze the weight
Partial weighing mode
Load execution mode
Unload execution mode
WiFi Synchronization
Loading programming mode / Recipes
Unloading Programming mode
Programming mode
USB data management mode
Modem connection mode
Settings
Hardware Checkup of NIR System
Associating the Recipe with the Unloading Program
Cancelling the association of the Recipe with the Unloading
Program
To the next display Back to the previous
display

General Information INDICATOR DG8000 RevB0
17
ENGLISH

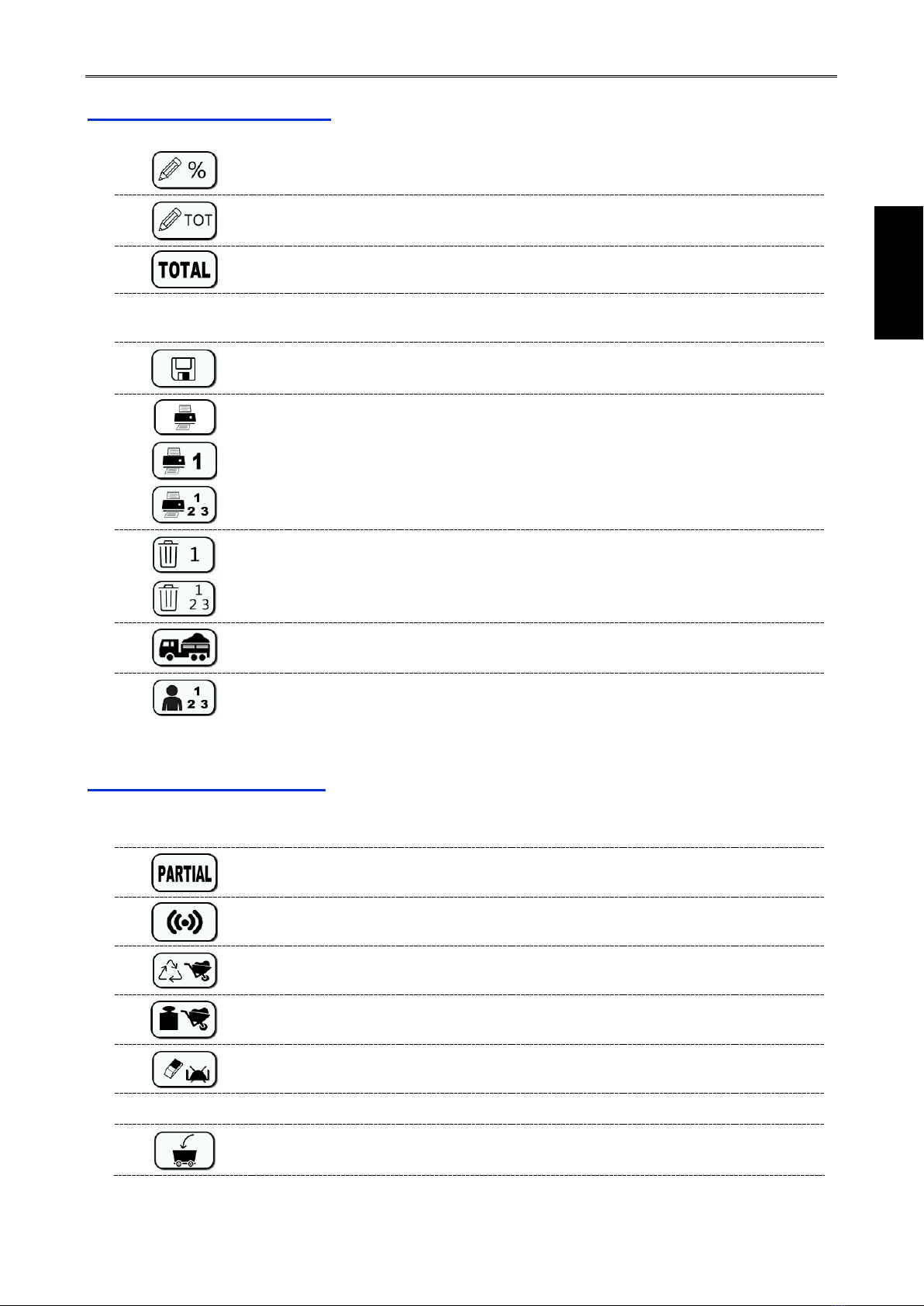

GENERAL SUB-MENUS
Variation % mode
Change of total weight to load/unload
Total weighing mode (gross weight)
Switching unit mode (kg / %)
Saving data
Print data
Delete data
Weight setting
Customer editing
SPECIFIC SUB-MENUS
Partial weighing
Partial weighing mode (net weighing mode)
Setting of the alarm threshold
Refused mode
Refused weight mode
Delete refused
Recipe execution mode
Loading mode

General Information INDICATOR DG8000 RevB0
18
Recipe programming mode
Animals number editing
Recipe start time editing
Show components
Unloafing program execution mode
Unloading mode
Show uloading points
Animals weight editing
Recipe programming mode
Recipe name editing
Select component
Component weight editing
Recipe mix time editing
Unloadng program programming mode
Unloading point name editing
Select unloading point
Animal weight editing
Animal number editing
Programming mode
Component programming mode
Component name editing (only if the parameter #89 is disabled)
