Dinstar C66G User manual

Quick Start Guide
C66G/C66GP Business IP Phone
Thanks for Choosing Dinstar’s IP phone!
Please read this guide carefully before using this product. If you need any technical support,
please contact us.
Tel: [phone]
Email: [e-mail]
Website: www.dinstar.com

Packaging Contents
1
The following items are included in your package. If you find anything missing,
please contact our supporting and customer center.
IP Phone Handset Handset Cord Ethernet Cable Stand Power Adapter
(Optional)

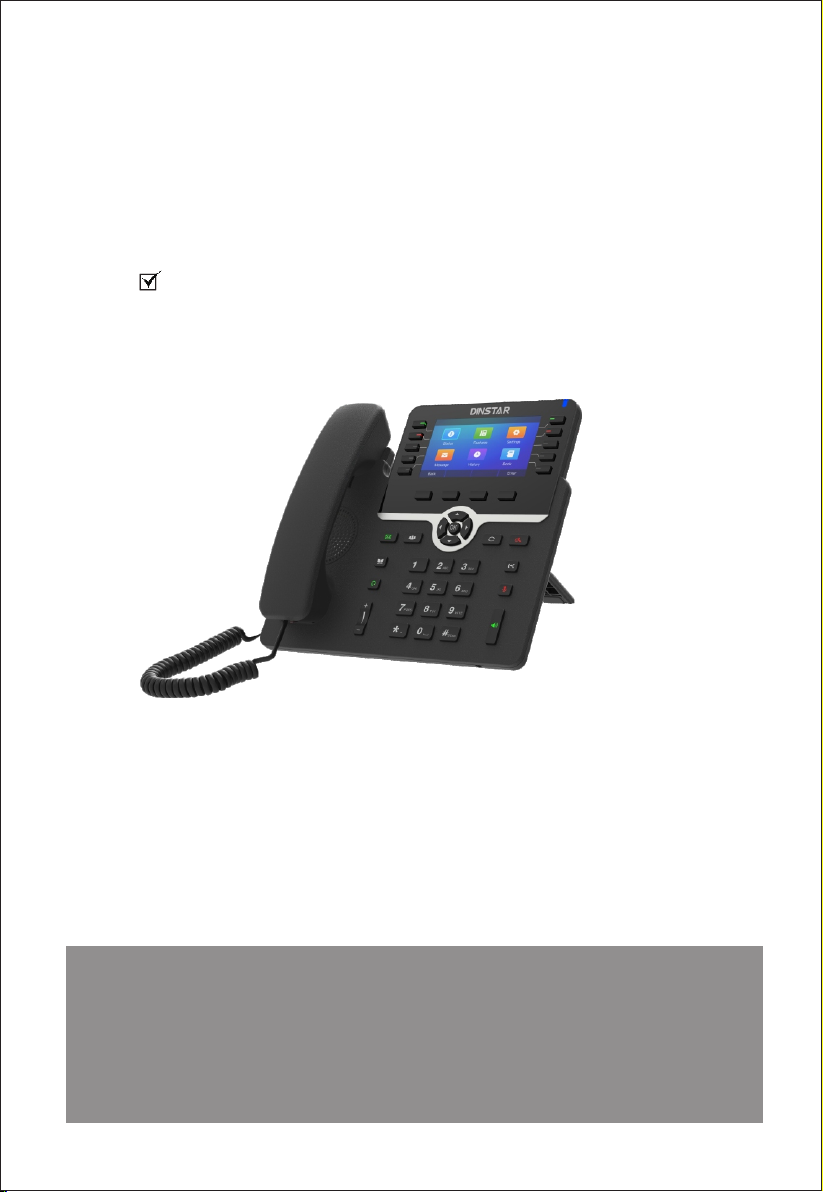

The main hardware components of the C66G/C66GP IP phone are the LCD
screen and the keypad.
Hardware Component Instructions
2
C66G/C66GP IP Phone
Note: The C66GP IP phone is powered by PoE, the power adapter will not be provided.
Phone book
Hookswitch
Hookswitch Tab
Soft Keys
Speaker
Message Key
Headset Key
Volume Key
Line Keys
Power Indicator
Forward Key
Speakerphone Key
Mute Key
Keypad
Hold Key
Color LCD Screen
3 Way Conference
Redial Key
Displays the call, default account, message, soft key, time, date and other related information.
Indicates the power connection status and other characteristic status of the telephone:
When receiving a call, the indicator light flashes quickly;
When there are missed calls or received voice messages / short messages, the indicator light
flashes slowly.
It is used to activate 6 accounts and configure various functions.
The LCD interface of the phone displays the function names corresponding to the four soft keys,
and the user can press the corresponding soft keys to complete the operation.
Pick up the handle from the handle frame, spring up the fork spring and connect the lines;
Color LCD Screen
Power Indicator
Line Keys
Soft Keys
Hookswitch
Keypad Provides input for numbers, uppercase and lowercase letters, and other special characters.
·
·
·
Put the handle back into the handle holder and disconnect.
·
·

Assembling the IP Phone
3

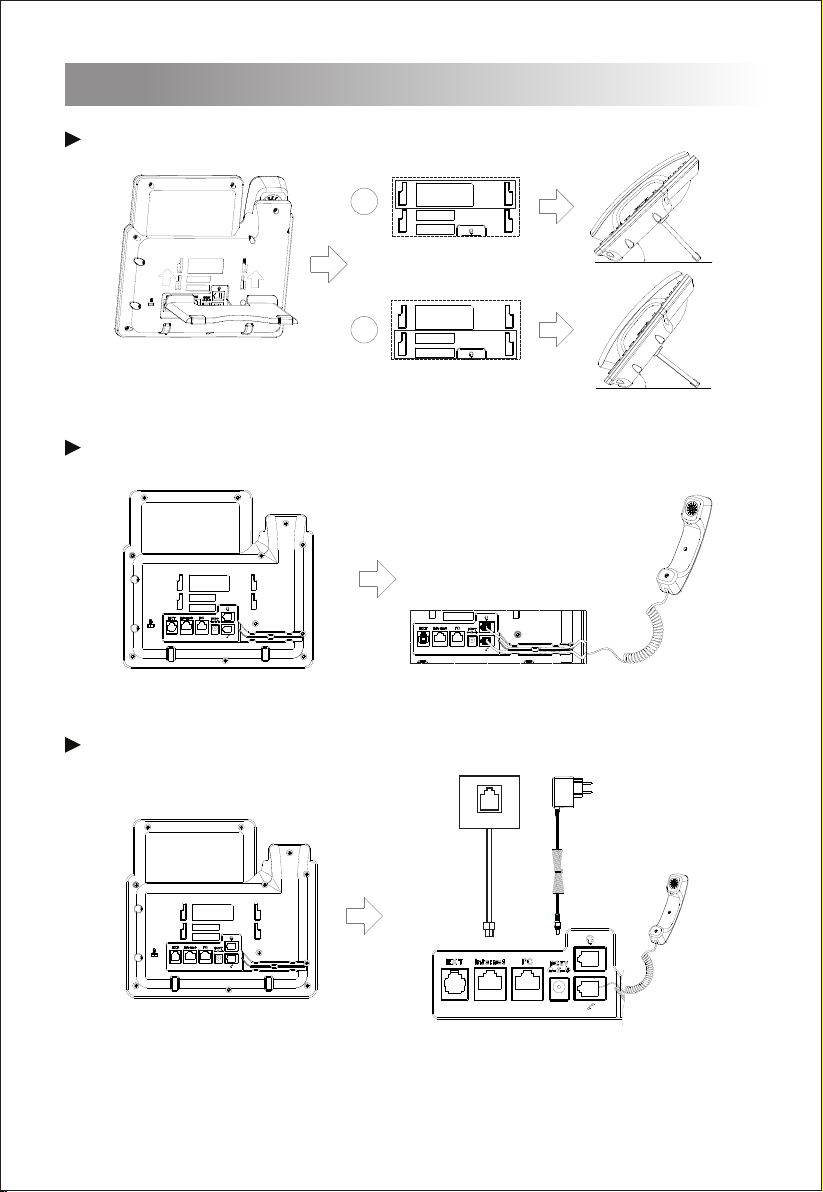

Attach the stand to the IP Phone, as shown below:
Connect the handset to the IP phone, as shown below:
A
B
Connect the network and power, as shown below:
44°
52°
Internet
Note: PC connection and extension connection are optional.

After the IP phone is powered on and connected to network, it will start up automatically.
And then the IP phone is ready for use. You can configure the phone via the phone’s user
interface or the web user interface.
· Configure via the user interface on the IP Phone
· Configure via the web interface on your PC
The LCD screen and the keypad on the IP phone allows you to execute all call operation
tasks and basic configuration changes directly on the phone.
Startup
4
There are two ways to customize the configurations of the IP Phone.
Configure the IP Phone
5
Configure via the user interface on the IP Phone
Network Setting
By default, the phone attempts to contact a DHCP server in your network to obtain its valid
network settings, e.g., IP address, subnet mask and gateway address .
Account Setting
For more information about account parameters, please refer to the user manual of the
IP phone.
If your phone cannot contact a DHCP server, you need to configure network settings
manually.
(2)Select Static IP or PPPoE. If you select static IP, you need to enter the IP address,
subnet mask and gateway address. If you select PPPoE, you need to enter the username
and password of the PPPoE account.
(3) Press the Save soft key to accept the change. Then the network settings is completed.
(1) Press the Menu soft key when the phone is idle, select Settings Advanced Setting,
input the default password ‘admin’, and then select Network LAN Port, press .
(2) Select an account to configure account information. The following is the explanation of
of relevant parameters:
(1) Press the ‘Menu’ soft key when the phone is idle, and then select Settings Advanced
Setting, input the default password ‘admin’, and then select Account, press .
Label: It is shown on the LCD screen to identify the account.
Active: Press or to select Enable/Disable to enable or disable the account
Display Name: It is shown as caller ID when you place a call.
Register Name: It is an authenticated ID for authentication provided by ITSP (required).
User Name: It is provided by ITSP for registration (required).
Password: It is provided by ITSP for registration (required).
SIP Server: It is provided by ITSP for registration (required).
SIP Port:It is provided by ITSP for registration (required).

Configure via the Web interface on your PC
Basic Call Features
6
Place a call
Using the handset
(1) Pick up the handset.
(2) Enter the number and then press the Send soft key.
Using the speakerphone
(1) With the handset on-hook, press .
(2) Enter the number and then press the Send soft key.
Using the Headset
(1) With the headset connected, press to activate the headset mode.
(2) Enter the number and then press the Send soft key.
Note: During a call, you can alternate between the headset, hands-free speakerphone
and the handset mode by pressing the corresponding key or by picking up the handset.
Answer a call
Using the handset
Pick up the handset.
Using the speakerphone
(1) Press .
Using the headset
(1) Press .
Note: You can reject an incoming call by pressing the Reject soft key.
(1) Press the key when the phone is idle to obtain the IP address of the phone.
Accessing the web interface on PC
(2) Open a web browser on your PC, enter the IP address into the address bar(e.g.,
http://192.168.11.110'), and then press Enter.
(3) Enter the username (default: admin) and password (default: admin) in to the login
page and then click Login .
Network Setting
Click Network Basic to configure the LAN port and the PC port.
If there is a need, click Network Advanced to configure the VLAN, VPN, SNMP, TR069,
LLDP, local RTP, QoS and 802.1x.
Account Setting
Click Account Basic to configure the basic information of an account. For the explanation
of the account parameters, please refer to Configure via the user interface on the Phone.
If there is a need, click Account Advanced to configure the codec, DTMF, call-related
information and etc. for the account.

End a call
Using the handset
Hand up the handset or press the Cancel soft key .
Using the speakerphone
Press or the Cancel soft key.
Using the Headset
Press the Cancel soft key.
Redial
Press to enter the dialed calls list, press or to select the desired entry, and
then press or the Send soft key.
Press twice when the phone is idle to dial out the last dialed number.
Call Mute and Un-mute
Press to mute the microphone during a call.
Press again to un-mute the call.
Call Hold and Resume
Place a call on hold
If there is only one call on hold, press or the Resume soft key .
To resume a call
If there is more than one call on hold, press or to select the desired call, and then
press or the Resume soft key .
Press or the Hold soft key during an active call.
Call Transfer
(1) Press the Trans soft key during an active call. The call is placed on hold.
(2)Enter the number you want to transfer to.
(3) Press .
Call Forward
(1) Press to enter the interface for configuring call forwarding, or press the Menu soft
key when the phone is idle and then select Features Call Forward.
(2) Select the desired forward type:
Always Forward: Incoming calls are forwarded unconditionally.
Busy Forward: Incoming calls are forwarded when the phone is busy.
No Answer Forward: Incoming calls are forwarded if not answered after a period of time.
(3) Enter the number you want the call to be forwarded to. For No Answer Forward, set
a value in the Timeout field for determining the duration of the ringing time before the
call is forwarded.
(4) Press the Save soft key to accept the change.

DND
To enable DND:
Press the DND soft key when the phone is idle, or press the Menu soft key and then select
Features ->DND Code to enable DND and complete relevant configurations.
Call Conference
(1) Press during an active call. The call is placed on hold.
(2) Enter the number of the third party , and then press the Send soft key.
(4)When the call conference ends, press the Cancel soft key to disconnect all parties.
(3) Press again when the third party answers. All parties are now joined in the call
conference.
Hotline
To configure a hotline number:
(1) Press the Menu soft key when the phone is idle, and then select Features-> Hotline.
(2) Press the Switch soft key to select Enable for the Active field, and then enter the desired
hotline number in the Number field.
(3) Enter the hotline delay time in the Timeout field. The valid values range from 0 to 5 and
default value is 4.
(4 ) Press the Save soft key to accept the change.
Pick up the handset or press , and the call to the preset hotline will be dialed out
automatically.
To use the hotline:
Voice Message
Message waiting indicator(MWI) on the idle LCD screen indicates one or more voice
messages are waiting at the message center. The power indicator slowly flashes red.
(1) Press or the last line key on the right of the phone interface, and then press the
Conn soft key.
To listen to voice message:
(2) Follow the voice prompts to listen to your voice message.
Speed Dial
To configure a speed dial key:
press the speed dial key to dial out the preset number.
To use the speed dial key:
(1) Press the Menu soft key when the phone is idle, and then select Features
Programmable Keys Line Keys.
(2) Select the desired line key, and then press the Enter soft key.
(3 ) Press the Switch soft key to select Speed Dial from the Type field, and then enter the
number for speed dial in the Value field.
(3 ) Press the Save soft key to accept the change.

Customize the IP Phone
7
(1) Press the History soft key when the phone is idle, press or to scroll through
the call list.
(2) Select an entry from the list, and you can do the following:
Press the Dial soft key to place a call to this entry;
Press the Delete soft key to delete the entry from the list.
If you press the Option soft key, you can also do the following:
Select Detail to view detailed information about the entry;
Select Add to Contacts to add the entry to the local phonebook;
Select Add to Blacklist to add the entry to the blacklist;
Select Delete All to delete all entries from the history call list.
Call History
Ring Tones
(1) Press the Menu soft key when the phone is idle, and then select Settings Basic
Setting Ring Tones.
(2) Press or to select the desired ring tone, and then press the Save soft key.
.
Volume Adjustment
Press during a call to adjust receiver volume of the handset/speakphone/headset,
Press the same key when the phone is idle or ringing to adjust the ring volume.
You can also press the Menu soft key and select Settings Basic Setting Phone
Volume to adjust the talk volume, tone volume, ring volume, Mic (handset/headset/
handfree) volume as well as key volume.
(1) Press or the Book soft key when the phone is idle, and then select Local Phonebook
All Contacts.
To add a contact to the local phonebook:
Phonebook
(2) Press the Add soft key to add a contact to the phonebook.
(3) Enter the contact’s information in corresponding fields and press the Save soft key.
(1) Press or the Book soft key when the phone is idle, and then select Local Phonebook
All Contacts.
To delete a contact:
(3) Press the OK soft key when the LCD screen displays ‘Delete selected item?’.
(2) Press or to select the desired contact, press the Option soft key and then
select Delete from the prompt list.
