Directed DS4+ User manual

FORD11
INSTALLATION GUIDE
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle’s
electrical system and components.
2017-05-08
© 2017 Directed, Vista CA
DS4+
Designed by Installers for Installers

Contents
Warning! Safety first ....................................................................................................................... 3
Introduction .................................................................................................................................... 4
Pre-installation and application warnings ..................................................................................... 4
Vehicle application guide........................................................................................................... 5
Wiring connections ......................................................................................................................... 6
Main harness (H1), 12-pin black connector .................................................................................. 6
Relay harness (H2), 10-pin white connector.................................................................................. 6
Data harness (H3), 8-pin white connector..................................................................................... 6
Analog input/output harness (H4), 22-pin white connector............................................................. 7
RF Port harness (H5), 2-pin white connector.................................................................................. 7
D2D harness (H6), 4-pin white (1) and black (2) connectors ........................................................... 7
Temperature sensor harness (H7), 2-pin black connector (optional, 8556T)....................................... 7
Installation (wiring diagrams, fuse selection & vehicle wiring reference charts)........................................ 8
Wiring Diagram - with OEM Remote Start and with T-Harness (THFON2)......................................... 8
Wiring Diagram - with OEM Remote Start and without T-Harness .................................................... 9
Wiring Diagram - without OEM Remote Start and with T-Harness (THFON2) ................................. 10
Wiring Diagram - without OEM Remote Start and without T-Harness.............................................. 11
Configuring the system................................................................................................................... 14
Important! .............................................................................................................................. 14
Vehicles equipped with a manual transmission............................................................................ 14
RF Systems ............................................................................................................................. 14
8504D Combo Sensor............................................................................................................. 14
When used in conjunction with SmartStart.................................................................................. 14
D2D port configuration ............................................................................................................ 15
Module programming.............................................................................................................. 15
LED diagnostics and troubleshooting.......................................................................................... 17
Soft reset................................................................................................................................ 19
Hard reset .............................................................................................................................. 19
Learning the Tach (not needed with Virtual Tach) ............................................................................... 20
Initializing Virtual Tach (not needed with hardwired or data tach applications) ..................................... 20
Limited lifetime consumer warranty .................................................................................................. 21
Quick Reference Guide.................................................................................................................. 22

Warning! Safety first
The following safety warnings must be observed at all times:
• Due to the complexity of this system, installation of this product must only be performed by an authorized Directed dealer.
• When properly installed, this system can start the vehicle via a command signal from the remote control. Therefore, never
operate the system in an area that does not have adequate ventilation.
The following precautions are the sole responsibility of the user; however, authorized Directed dealers should:
• Never use a test light or logic probe when installing this unit. Always use a multimeter.
• Never operate the system in an enclosed or partially enclosed area without ventilation (such as a garage).
• USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.
ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE
STORAGE AREA MUST REMAIN CLOSED AT ALL TIMES.
Use of this product in a manner contrary to its intended mode of operation may result in property damage, personal injury, or
death. Except when performing the Safety Check outlined in this installation guide, (1) Never remotely start the vehicle with
the vehicle in gear, and (2) Never remotely start the vehicle with the keys in the ignition. The user is responsible for having the
neutral safety feature of the vehicle periodically checked, wherein the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed dealer in accordance with the Safety Check outlined in this product
installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult with the user to fix the problem
immediately.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF
OPERATION. OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE
OR PERSONAL INJURY. IMMEDIATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE INSTALLED REMOTE
START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.
Remote starters for manual transmission pose significant risks if not properly installed and operated. When testing to ensure the
installation is working properly, only remote start the vehicle in neutral gear, on a flat surface and with a functional, fully engaged
parking brake. Do not allow anyone to stand in front of or behind the vehicle.
This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such
vehicles may pose certain risk.
3DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Introduction
The FORD11 firmware for DS4+ is compatible with specific Ford and Lincoln vehicles. It is a complete solution
for remote start, security (when security features are enabled), bypass, and features built in Bluetooth 4.0
allowing you to configure and control your system. This guide provides information on the installation of the
module as an analog unit, however a digital solution could be available for your vehicle. Please refer to the
DirectLink application or www.directechs.com for more information about which configuration is best for your
application.
Warning! This module is designed to be configured using the DirectLink application for mobile devices, however it can also
be configured using the web tool located at www.directechs.com. To download the DirectLink mobile application, please visit the
Google Play or Apple store.
Pre-installation and application warnings
Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible THFON2 Keys required for programming 1Keys required for operation 0
Compatible with FORD11 version 2.00 and higher.
It is It is important to note this installation enables the OEM remote starter and the remote start system will not work in the
following conditions:
The ignition is on.
The alarm system is triggered.
The hood is open.
The transmission is not in Park (P).
The vehicle battery voltage is too low.
The service engine light is on.
The following remote start features can be configured via the information display:
Climate control.
Heated seats/steering wheel.
Runtime.
Remote start enable/disable.
For best results, program the remote starter runtime to match the OEM setting.
The vehicle pit stop/idle mode feature is not available in this firmware.
The optional Plug & Play THFON2 T-Harness is sold separately.
The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
connector.
It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each
wiring diagram.
Refer to the "Vehicle wiring reference chart" following each installation type.
General notes: This section highlights important information for this specific firmware.
[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[2] The siren is ONLY required when enabling the security features during module flashing.
4DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Vehicle application guide
The table below lists the vehicles and features which are compatible with this product. Refer to the following pages for more
information on installation wiring, programming and troubleshooting for these vehicles.
Vehicles
2013
PK-Immobilizer Bypass-Data No Key Req'd
AV-Parking Lights Control DL-Door Lock Control DL-Door Unlock
FOB-Control of aftermarket alarm with OEM remote RS-3x LOCK START (Start control using OEM Remote) RS-3x LOCK STOP (Stop control using OEM Remote)
RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
Ford
Fusion •
•••••••••••••••
Fusion
(
Smart Ke
y)
••••••••••••••••
Fusion H
y
brid •
•••••••••••••••
Fusion H
y
brid
(
Smart Ke
y)
••••••••••••••••
Le
g
end:
PK: Trans
p
onder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
FOB: S
y
nc CAN Interface w/ FOB Remote
RS: Remote Start & En
g
ine Controls
SS: Inte
g
rated Securit
y
& Monitorin
g
ST: Function/Feature Status
5DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Wiring connections
The wiring connections listed below are specific to this firmware.
Main harness (H1), 12-pin black connector
Conn./Pin Color Description
H1/1 Blue/White Relay 1 N.C. – No Connection 1
H1/2 Blue/Red Relay 1 N.O. – No Connection 1
H1/3 Blue Relay 1 COM – No Connection 1
H1/4 White/Brown Relay 3 N.C. – No Connection 1
H1/5 White Relay 3 COM – No Connection 1
H1/6 Red (+) 12 Volt (Battery)
H1/7 Lt. Green/Red Relay 2 N.O. – (-) Parking Light Output 1
H1/8 Lt. Green Relay 2 COM – Parking Light Interrupt (vehicle side) 1
H1/9 Lt. Green/White Relay 2 N.C. – Parking Light Interrupt (connector side) 1
H1/10 Black (-) Ground
H1/11 White Relay 3 COM – No Connection 1
H1/12 Red (+) 12 Volt (Battery) Input
Relay harness (H2), 10-pin white connector
Conn./Pin Color Description
H2/1 N/A No Connection
H2/2 Red/Black No Connection
H2/3 Pink/Black No Connection
H2/4 Pink/White No Connection
H2/5 Red No Connection
H2/6 Green No Connection
H2/7 Violet No Connection
H2/8 Orange No Connection
H2/9 Red/White No Connection
H2/10 Pink No Connection
Data harness (H3), 8-pin white connector
Conn./Pin Color Description
H3/1 Tan MS CAN Low or HS CAN 1 Low
H3/2 Tan/Black MS CAN High or HS CAN 1 High
H3/3 Orange/Brown HS CAN 1 Low
H3/4 Orange/Green HS CAN 1 High
H3/5 Lt. Green No Connection
H3/6 Violet/Brown No Connection
H3/7 Orange/Black No Connection
H3/8 Yellow/Black No Connection
1. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed.
6DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Analog input/output harness (H4), 22-pin white connector
Conn./Pin Color Description
H4/1 Lt. Green/Black (-) FAA Output 1
H4/2 Blue/White (-) Ground When Running (Status) Output 1
H4/3 Dk. Green/Black (-) Lock Output 1
H4/4 Red/White (-) Trunk Release Output 1
H4/5 Brown/Black (-) Horn Output 1
H4/6 Brown/White N/A
H4/7 White (+) AUX 1 Output 1
H4/8 Violet/Black (+) AUX 4 Output 1
H4/9 Dk. Blue/Black (-) Unlock Output 1
H4/10 Lt. Blue/Black (-) FAD Output 1
H4/11 Brown/Red (+) Siren Output 1
H4/12 Pink (+) Ignition Sense Input
H4/13 Violet (+) Door Sense Input 2
H4/14 Brown (+) Brake Input 2
H4/15 White/Blue (-) Activation Input 2
H4/16 Red/Blue (-) Valet Switch 2
H4/17 Black/White (-) E-Brake Input 2
H4/18 Orange/Black (-) Instant Alarm Trigger Input 2
H4/19 Blue (-) Trunk Sense Input 2
H4/20 Green (-) Door Sense Input 2
H4/21 Gray (-) Hood Pin Input 2
H4/22 Violet/White (AC) Tach Input
RF Port harness (H5), 2-pin white connector
Conn./Pin Color Description
H5/1 N/A RF Loop
H5/2 N/A RF Loop
D2D harness (H6), 4-pin white (1) and black (2) connectors
Conn./Pin Color Description
H6/1 Blue (Data) TX
H6/2 Black (-) Ground
H6/3 Green (Data) RX
H6/4 Red (+) 12 Volt
Temperature sensor harness (H7), 2-pin black connector (optional, 8556T)
Conn./Pin Color Description
H7/1 Black Temperature Sensor
H7/2 Black Temperature Sensor
1. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed. Note that they are low current and a relay
may be necessary.
2. These connections are only required if the corresponding statuses are not supported by the firmware. See "Vehicle application guide" on page 5 for a
list of compatible features. If these outputs are not used by the firmware, they can be configured by the installer when the module is flashed. Note that they
are low current and a relay may be necessary.
7DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Installation (wiring diagrams, fuse selection & vehicle wiring reference charts)

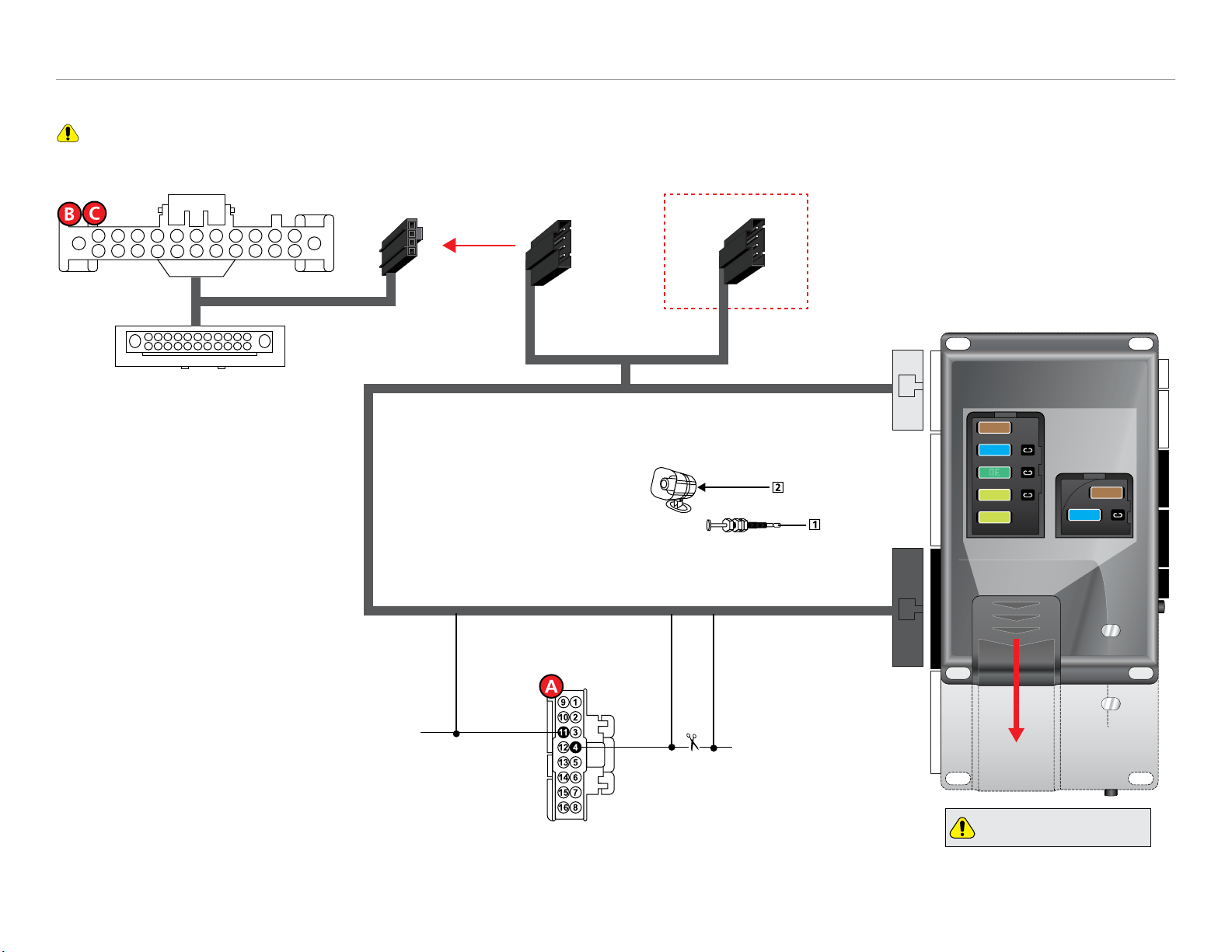

Wiring Diagram - with OEM Remote Start and with T-Harness (THFON2)
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.
Headlight Switch
Siren
Hood Pin
Parking Light Interrupt: Pin 4
Parking Lights Interrupt
(vehicle side): Lt. Green
(-) Parking Lights Output:
Lt. Green/Red
Parking Lights Interrupt
(conn. side): Lt. Green/White
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Cut
THFON2
(optional T-Harness)
Type 2
4-pin
connectors
Type 1
NOT USED
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
5
15
5
15
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
It is important to check that the
fuses are positioned correctly.
Gateway Module
(black conn. on OBDII connector)
(-) Parking Lights:
Gray or Yellow, pin 11
Wiring diagram with OEM Remote Start with T-Harness (THFON2)
8DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Wiring Diagram - with OEM Remote Start and without T-Harness
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.
Parking Lights Interrupt (vehicle side): Lt. Green: 8
(-) Parking Lights Output: Lt. Green/Red: 7
Parking Lights Interrupt (conn. side): Lt. Green/White: 9
(-) Ground: Black: 10
Headlight Switch
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
HS CAN 2 High: Orange/Green: 4
HS CAN 2 Low: Orange/Brown: 3
Siren
Hood Pin
Parking Light Interrupt: Pin 4
(+) 12V Input: Red: 6 & 12
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Cut
MS CAN Low: Violet, pin 22
MS CAN High: Orange, pin 23
HS CAN 2 Low:
White, pin 19
HS CAN 2 High:
White/Blue or Blue, pin 20
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
5
15
5
15
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
It is important to check that the
fuses are positioned correctly.
(-) Ground: Pin 14
(+)12V: Pin 24
Gateway Module
(black conn. on OBDII connector)
(-) Parking Lights:
Gray or Yellow,
pin 11
Wiring diagram with OEM Remote Start
9DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Wiring Diagram - without OEM Remote Start and with T-Harness (THFON2)
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.
Headlight Switch
Siren
Hood Pin
Parking Light Interrupt: Pin 4
Parking Lights Interrupt
(vehicle side): Lt. Green
(-) Parking Lights Output:
Lt. Green/Red
Parking Lights Interrupt
(conn. side): Lt. Green/White
(-) Parking Lights:
Gray or Yellow, pin 11
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Cut
THFON2
(optional T-Harness)
Type 2
4-pin
connectors
Type 1
NOT USED
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
5
15
5
15
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
It is important to check that the
fuses are positioned correctly.
Gateway Module
(black conn. on OBDII connector)
Wiring diagram with T-Harness (THFON2)
10 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Wiring Diagram - without OEM Remote Start and without T-Harness
Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 12 for important information on this installation.
Parking Lights Interrupt (vehicle side): Lt. Green: 8
(-) Parking Lights Output: Lt. Green/Red: 7
Parking Lights Interrupt (conn. side): Lt. Green/White: 9
(-) Ground: Black: 10
Headlight Switch
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
HS CAN 2 High: Orange/Green: 4
HS CAN 2 Low: Orange/Brown: 3
Siren
Hood Pin
Parking Light Interrupt: Pin 4
(+) 12V Input: Red: 6 & 12
(-) Hood Input: Gray: 21
(+) Siren Output: Brown/Red: 11
Cut
HS CAN 2 Low: White, pin 19
HS CAN 2 High: White/Blue or Blue, pin 20
HS CAN 1 Low: Gray, pin 17
HS CAN 1 High: Green, pin 18
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
5
15
5
15
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
5
15
30
20
20
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
It is important to check that the
fuses are positioned correctly.
(+)12V: Pin 24
(-) Ground: Pin 14
Gateway Module
(black conn. on OBDII connector)
(-) Parking Lights:
Gray or Yellow, pin 11
Wiring diagram
11 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Fusion (Key) 2013-2016
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module at OBDII. Black 24 B
Ground Black/Blue 14 (-) Gateway module at OBDII. Black 24 B
HS CAN 1 High (w/o OEM Remote Start) Green 18 Data Gateway module at OBDII. Black 24 B
HS CAN 1 Low (w/o OEM Remote Start) Gray 17 Data Gateway module at OBDII. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module at OBDII. Black 24 B
HS CAN 2 Low White 19 Data Gateway module at OBDII. Black 24 B
MS CAN High (w/ OEM Remote Start) Gray/Orange 23 Data Gateway module at OBDII. Black 24 B
MS CAN Low (w/ OEM Remote Start) Violet/Orange 22 Data Gateway module at OBDII. Black 24 B
Ford Fusion (Smart Key) 2013-2017
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module at OBDII. Black 24 B
Ground Black/Blue 14 (-) Gateway module at OBDII. Black 24 B
HS CAN 1 High (w/o OEM Remote Start) Green 18 Data Gateway module at OBDII. Black 24 B
HS CAN 1 Low (w/o OEM Remote Start) Gray 17 Data Gateway module at OBDII. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module at OBDII. Black 24 B
HS CAN 2 Low White 19 Data Gateway module at OBDII. Black 24 B
MS CAN High (w/ OEM Remote Start) Gray/Orange 23 Data Gateway module at OBDII. Black 24 B
MS CAN Low (w/ OEM Remote Start) Violet/Orange 22 Data Gateway module at OBDII. Black 24 B
12 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Fusion Hybrid (Key) 2013-2016
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module at OBDII. Black 24 B
Ground Black/Blue 14 (-) Gateway module at OBDII. Black 24 B
HS CAN 1 High (w/o OEM Remote Start) Green 18 Data Gateway module at OBDII. Black 24 B
HS CAN 1 Low (w/o OEM Remote Start) Gray 17 Data Gateway module at OBDII. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module at OBDII. Black 24 B
HS CAN 2 Low White 19 Data Gateway module at OBDII. Black 24 B
MS CAN High (w/ OEM Remote Start) Gray/Orange 23 Data Gateway module at OBDII. Black 24 B
MS CAN Low (w/ OEM Remote Start) Violet/Orange 22 Data Gateway module at OBDII. Black 24 B
Ford Fusion Hybrid (Smart Key) 2013-2017
Parking Lights Gray or Yellow 11 (-) Headlight switch. Black 16 A
Parking Lights Interrupt Black/Blue 4 Cut Headlight switch. Black 16 A
12V Gray/Red 24 (+) Gateway module at OBDII. Black 24 B
Ground Black/Blue 14 (-) Gateway module at OBDII. Black 24 B
HS CAN 1 High (w/o OEM Remote Start) Green 18 Data Gateway module at OBDII. Black 24 B
HS CAN 1 Low (w/o OEM Remote Start) Gray 17 Data Gateway module at OBDII. Black 24 B
HS CAN 2 High White/Blue or Blue 20 Data Gateway module at OBDII. Black 24 B
HS CAN 2 Low White 19 Data Gateway module at OBDII. Black 24 B
MS CAN High (w/ OEM Remote Start) Gray/Orange 23 Data Gateway module at OBDII. Black 24 B
MS CAN Low (w/ OEM Remote Start) Violet/Orange 22 Data Gateway module at OBDII. Black 24 B
13 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Configuring the system
Important!
Once the DS4+ module is installed in the vehicle following the instructions in "Installation (wiring diagrams, fuse selection & vehicle
wiring reference charts)" on page 10, launch the DirectLink application on your mobile device, and select Configure DS4/
DS4+. Follow the on-screen instructions to configure the system.
Note: Your system can also be configured using XKLoader2 on www.directechs.com.
Vehicles equipped with a manual transmission
Additional connections may be required if these functions are not supported by the firmware.
Connection Description
(-) E-Brake Status Input
(Black/White, pin 17)
Must be connected to a working emergency brake in the vehicle. Although most vehicles have simple
(-) trigger emergency brake circuits note some vehicles do not and may require unique integration
methodologies.
(-) Door Trigger Input
(Green, pin 20) OR
(+) Door Input (Violet, pin
13)
Must be connected to a working door trigger in the vehicle, which monitors all doors. The unit must monitor
the door pins to allow the Ready Mode process to be enabled.
Note: Some vehicles may require unique integration methodologies for this circuit. For more information, refer
to www.directechs.com.
(AC) Tachometer Input
(Violet/White, pin 22)
Must be connected to a working tachometer signal in the vehicle (fuel injector, ignition coil, true tach, etc.)
and learned successfully to the DS4+.
RF Systems
An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist.
An RF System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow
the instructions included with the kit for appropriate installation and programming information.
8504D Combo Sensor
The 8504D Combo Sensor must be paired to the device before it can be used. To enter pairing, turn the vehicle ignition to the
ON position, then press and hold the programming button on the Control Center (antenna) until the LED starts flashing. Once
pairing mode has been entered, your Combo Sensor is ready to use.
Your Combo Sensor is preset for the majority of applications, however it can be adjusted using the DirectLink application, as well
as a compatible LED or LCD remote. Please refer to the instructions included with your sensor for more information on how to make
adjustments.
When used in conjunction with SmartStart
To enable D2D communication between the DS4+ and the SmartStart one of the following actions must be executed:
• SmartStart with Loops – The brown loop must be cut.
• SmartStart with Pigtails – The gray wire must be connected to a ground source.
Loops Pigtails
THIS SIDE UP
DO NOT connect the SmartStart 2-pin power harness when using the DS4+. Power and ground will be provided by the D2D
connector on main module. Refer to the SmartStart documentation for further details.
14 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

D2D port configuration
The system will automatically configure the D2D ports based on your selections in the module programming. The white D2D port is
reserved for SmartStart. To ensure proper functionality with SmartStart, it is important that it is selected in the system programming
of the DirectLink application or via the online web tool.
Note: Both black D2D ports are reserved for the Control Center (antenna) and 8504D Combo Sensor.
Module programming
Refer to "LED diagnostics and troubleshooting" on page 17 for more information and for troubleshooting purposes.
Key type vehicles

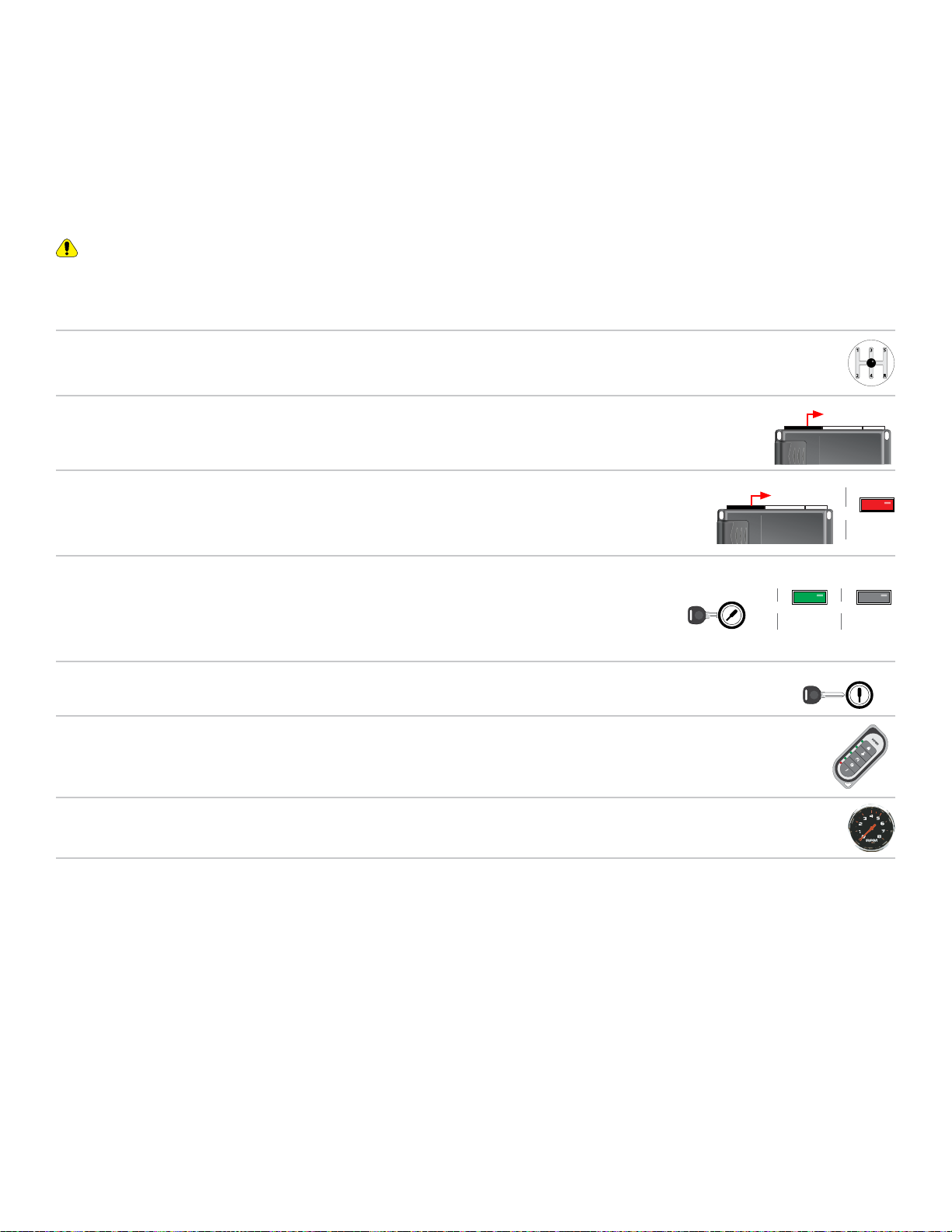

To connect the module:
1
Please ensure that the vehicle is in a safe location and cannot move forward during
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
Connect all but the
12-pin harness
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. Wait unil the LED turns ON solid orange before proceeding.
Must be
connected LAST &Solid
4
Turn the ignition ON. The LED will remain ON solid green for 3 seconds,
then will turn OFF.
Note: When skipping transponder programming, the LED flashes orange,
then turns ON solid orange for 3 seconds, before turning OFF.
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
& &
Solid green
x 3 secs Off
5Turn the vehicle ignition OFF.
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
6
Pair remotes (if applicable). For information on how to pair a specific remote, please
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
Pair
remotes*
7By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
program tach, see page 20. Initialize
tachometer
* Your aftermarket remote may differ from the model shown in the illustrations.
15 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

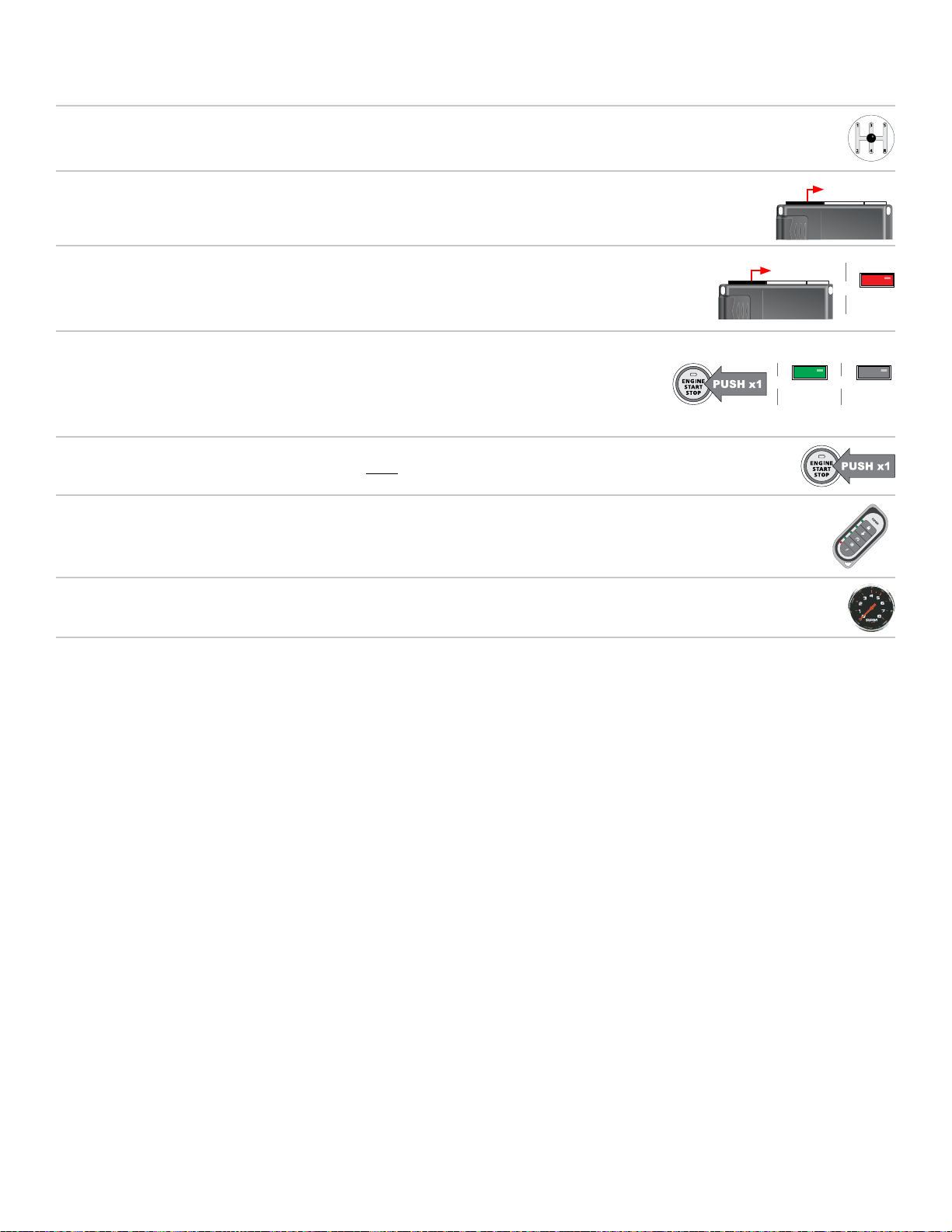

Smart key vehicles
To connect the module:
1
Please ensure that the vehicle is in a safe location and cannot move forward during
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
Connect all but the
12-pin harness
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. Wait unil the LED turns ON solid orange before proceeding.
Must be
connected LAST &Solid
4
Turn the ignition ON. The LED will remain ON solid green for 3 seconds,
then will turn OFF.
Note: When skipping transponder programming, the LED flashes orange,
then turns ON solid orange for 3 seconds, before turning OFF.
& &
Solid green
x 3 secs Off
5Turn the vehicle ignition OFF by pressing once on the PTS button.
6
Pair remotes (if applicable). For information on how to pair a specific remote, please
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
Pair
remotes*
7By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
program tach, see page 20. Initialize
tachometer
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
16 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

LED diagnostics and troubleshooting
This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation.
Module programming
LED Description Troubleshooting
Off Module has no power. Make sure the D2D harness is connected and that 12 Volt is present between the red and black
wires. If 12 Volt is present, the module may be defective.
Solid red
Waiting to begin the programming
sequence. Ensure the correct programming procedure is being followed.
Flashes red &
green
Initialization failed. Reset the module and complete the programming again. If the issue persists, please contact
Technical Support.
Solid orange Transponder functions were skipped. (If compatible) when the RXT mode is not desired or convenience features are needed, please
reset and reprogram the module.
Flashes green
All required CAN networks has been
detected. Normal operation.
Flashes orange 1 of 2 CAN networks has been detected. Normal operation.
Flashes orange
slowly
Key2GO initiated. Please follow the steps indicated in "Module programming" on page 15 to complete the
Key2GO programming.
Solid green x
3 secs
Module was successfully programmed
with all functions. Normal operation.
Solid orange x
3 secs
Module was successfully
programmed without transponder
functions.
Normal operation.
Module programming – Error codes
LED Description Troubleshooting
Flashes red x 1 CAN2 not detected.
Check the CAN2 Orange/Green and Orange/Brown wire connections. Wake up the data bus
by turning the ignition on and try again. If your installation does not require this connection, skip
this step by pressing the programming button 5 times.
Flashes red x 1 J1850 not detected. Check the J1850 wire connection. Wake up the data bus by turning the ignition on and try
again.
Flashes red x 2 CAN1 not detected.
Check the CAN1 Tan and Tan/Black wire connections. Wake up the data bus by turning the
ignition on and try again. If your installation does not require this connection, skip this step by
pressing the programming button 5 times.
Flashes red x 3 Bypass data not detected. Check the bypass line connection. If more than one wire is used, make sure they are not inverted.
Ensure the vehicle still operates correctly using the factory key.
Flashes red x 4 Bypass processing error. The bypass calculation failed. Reset the module and try again. If the condition persists, please
contact Technical Support.
Flashes red x 5 ISO 1 not detected. The Yellow/Black wire did not detect the expected signal. Refer to "Installation (wiring diagrams &
vehicle wiring reference charts)" on page 8 to check the connections.
Flashes red x 6 ISO 2 not detected. The Orange/Black wire did not detect the expected signal. Refer to "Installation (wiring diagrams
& vehicle wiring reference charts)" on page 8 to check the connections.
Flashes red x 7 MUX not detected.
The Violet/Green or Violet/Brown wire did not detect the expected voltage value. Refer to
"Installation (wiring diagrams & vehicle wiring reference charts)" on page 8 to check the
connections.
External module synchronization
LED Description Troubleshooting
(Flashes red, red,
then orange) x 10
OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited.
17 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Active Ground When Running (Status)
LED Description Troubleshooting
Flashes green
Ground When Running (Status) command
received. The module has initialized the remote start sequence.
Flashes red &
orange
Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence.
Flashes green
quickly
Start ON command received. The module has received the Start ON command and is processing the remote start sequence.
Flashes red x 10 PTS shutdown error. The PTS output from the module was not activated due to safety protection.
Flashes red x 21 CAN bus incorrectly detected. Verify the CAN1 and CAN2 connections. Refer to "Installation (wiring diagrams & vehicle wiring
reference charts)" on page 8 to check the connections.
Commands
LED Description Troubleshooting
Flashes orange x 1 LOCK command received.
If the bypass module fails to flash, it did not receive the signal.
Commands can come from RF or D2D.
Flashes orange x 2 UNLOCK command received.
Flashes orange x 3 TRUNK command received.
Flashes orange x 4 AUX1 command received.
Flashes orange x 5 AUX2 command received.
Flashes orange x 6 AUX3 command received.
Shutdown codes
LED Description Troubleshooting
Flashes green x 1 Takeover successful. Normal operation.
Flashes red x 1 Runsafe was not disabled. No UNLOCK command was received prior to opening the door, or the 45 second timer expired
in takeover mode.
Flashes red x 2 Brake was not detected. The brakes were not detected, which prevents the system from shutting down the vehicle.
Flashes red x 3 Smart key was not detected. The smart key was not detected, which prevents the system from shutting down the vehicle.
Flashes red x 4 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down.
Analog error codes
LED Description Troubleshooting
Flashes red, green
& orange
DEI feature error. A feature config file mismatch was detected. Please contact Technical Support.
18 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Soft reset
A module reset will only erase the steps performed in "Module programming" on page 15. The firmware and settings flashed to
the module will not be affected.
1
If required for your installation, connect all the harnesses to the DS4+, EXCEPT the 12-pin
main power harness. Press and hold the programming button, then connect the 12-pin
harness to the module.
Connect all but the
12-pin harness
2Wait 3 seconds until the LED turns ON solid orange then release the programming button.
The LED turns ON solid red. &&
ReleaseSolid Solid
Hard reset
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default settings. Depending on the installation, some settings may need to
be reconfigured. Connect your module to a computer and use the web configuration tool to edit its programmable features.
1
If required for your installation, connect all the harnesses to the DS4+, EXCEPT the 12-pin
main power harness. Press and hold the programming button, then connect the 12-pin
harness to the module.
Connect all but the
12-pin harness
2After 3 seconds the LED turns ON solid orange. Keep holding the programming button until
the LED flashes red, then orange slowly. HoldSolid Flashes
&&
3Release the programming button. The LED turns ON solid red. &
Release Solid
19 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.

Learning the Tach (not needed with Virtual Tach)
Tach comes preprogrammed, therefore learning is not required; however, it can be readjusted with the following operations:
1. Start the vehicle using the key.
2. Within 5 seconds, press and hold the Control Center (antenna) or the main module programming button, until the LED on the
Control Center (antenna) or the main module turns ON solid.
3. Release the button. The tachometer value is now stored in memory.
If the LED does not turn ON solid, find an alternate tach source.
Note: When the tachometer is programmed, the main module automatically enters the Tachometer engine checking mode.
Initializing Virtual Tach (not needed with hardwired or data tach applications)
To program Virtual Tach:
1. After the install is complete, remote start the engine. The programming operation may require 3 cranks of the starter before
the engine starts and runs. Do not turn off the remote start if this happens, it is a normal programming operation.
2. Once the engine begins running, let it run for at least 30 seconds.
3. Using the Remote, send the Remote start command to turn remote start off. Virtual Tach is programmed. To reset Virtual Tach, a
module reset must be done.
Note: Virtual Tach cannot be used in Manual Transmission Mode. It is also not recommended for diesel trucks.
Virtual Tach handles disengaging the starter motor during remote starting – it does not address over-rev. If the customer wants to
have the over-rev protection capability, the tach wire or data tach must be used.
Important! After successfully learning Virtual Tach, a small minority of vehicle starters may over crank or under crank during remote
start. Use the VirtualTach Fine tune feature in the configuration wizard to adjust the starter output time in 50mS increments to
compensate for such an occurrence.
20 DS4+ FORD11
© 2017-05-08 Directed. All rights reserved.
