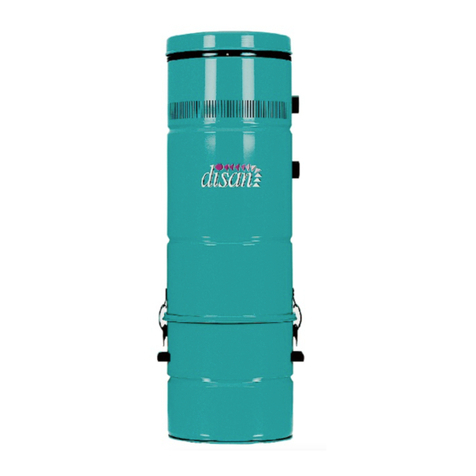

DS SUPER COMPACT 1,5
DS SUPER COMPACT 2,2
DS SUPER COMPACT 4,5 TURBO
INSTRUCTIONS FOR USE
CENTRAL VACUUM CLEANERS
MODEL: DS SUPER COMPACT
(c) Copyright by DISAN S.r.l.
Technical drawings and layout: Pallaoro Graphics
Any unauthorized reproduction, even partial, is
forbidden.
Photos, drawings and descriptions in this
handbook reflect the state of the art at the moment
when this catalogue was printed. The company
Disan reserves the right to update its production,
previous catalogues and handbooks. For further
information, please contact “DISAN”’s technical
office.
Disan acknowledges a 1 year guarantee for parts
having manufacturing defects. The guarantee is
valid only if the instructions set out in this handbook
are fully complied with.
1st edition 12991000 – Printed in Italy – TEZZELE (BZ)
3
CONTENTS
Central vacuum cleaner model DS Super Compact
1,5 – for one operator................................................ 6
Central vacuum cleaner model DS Super Compact
2,2 – for one operator................................................ 6
Central vacuum cleaner model DS Super Compact
4,5 Turbo – for two operators.................................... 6
Main parts ................................................................. 7
Periodic filter cleaning............................................... 8
Emptying of the dust container...................................9
Functional check of the automatic filter shaking
device...................................................................... 10
Functional check of the turbine............................... 10
Filter control and replacement................................. 10
Tables for brushes and spare parts......................... 11
Introduction 4
List of optionals 7
Quality controls 5
5Unloading and handling of the equipment
6
Characteristics of the central vacuum cleaner and main parts
8
Ordinary maintenance (by the person in charge of the central vacuum cleaner)
10Extraordinary maintenance
12Safety instructions
15Identification data
13Maintenance of your central vacuum cleaning system
20Certificate and guarantee terms
16Exploded view of the DS Super Compact 1,5 and 2,2 models
Installation of the central vacuum cleaner 8
Inlet socket on the central vacuum cleaner 12
18Exploded view of the DS Super Compact 4,5 Turbo model
19Spare parts for the DS Super Compact 4,5 Turbo model
15Check list for the installer
15Yearly maintenance contract
17Spare parts for the DS Super Compact 1,5 and 2,2 models
8
4
Central vacuum cleaning systems
Dear Client,
Thank you for trusting and choosing our
brand. We are confident that the use of this DS
SUPER COMPACT central vacuum cleaning system
will fully satisfy you.
This product’s details have been carefully designed
so as to make it durable and always fully efficient.
• System quality
The components of the central vacuum cleaner
have been manufactured in full compliance with EU
directives on the safety of electrical systems.
Disan’s central vacuum cleaner was engineered for
professional use, particularly focusing on the
following elements:
1.solidity;
2.suction power;
3.long life with minimum maintenance;
4.safety of the low voltage electric system;
5.technologic quality;
6.minimum dimensions.
• Purpose of these instructions
The use of the central vacuum cleaning system is
very simple and does not require specific technical
knowledge. Nevertheless, a number of instructions
have to be carefully followed in order to avoid any
inconvenience during operation.
The purpose of this handbook is to convey to
operators the fundamental criteria for the operation
of the system. A table of failures at the end of this
handbook helps troubleshoot the causes of
malfunctions, if any.
Please treat this handbook with care and keep it for
future reference.
• Appointment of the person in charge of the
system
We suggest appointing a “person in charge of the
vacuum cleaning system”, who attends to the
emptying of the dust canister and to the maintenance
of the system, who teaches cleaners how to use the
system and who serves as an interlocutor with the
technical assistance (to be provided by the installer).
• Lost handbook
If you loose or damage this handbook, ask the
installer for another copy.
• State of the art and updates of this handbook
This handbook reflects the state of the art at the
moment when it was printed.
The manufacturer reserves the right to update its
products and the corresponding handbooks.
INTRODUCTION
5
Central vacuum cleaning systems
• Controls during production
Disan’s central vacuum cleaners and their
components are repeatedly subjected to quality and
functional checks by highly qualified technicians
during their manufacturing, in order to guarantee a
long operation life and perfect operation for
professional use. In this way it is guaranteed that
Disan’s products leave the manufacturing department
in perfect conditions.
• Control on delivery (control by the client)
All the material shipped was carefully controlled
This handbook is attached to the packaging in such a
way as to be clearly visible.
• Transport liability
The goods always travel at the client’s risk to the place
of destination and installation.
• Indications on handling
Lift the pallet carefully using the lift truck fitting this
purpose.
before its delivery to the forwarder.
It is the purchaser’s responsibility to always control
the goods on delivery and check that they were not
damaged during their transport. If a damage is found,
accept the goods with reservation, specifying your
observations on the delivery note. In case of damage
of the material, immediately inform the carrier for
subsequent damage compensation.
• Control of the finished system
The installer checks the system and performs a
series of functional checks during its installation.
Since the model DS SUPER COMPACT is particularly
tall, check the stability and balanced positioning of
the load on the forks. When moving, keep the load
as low as possible for more stability and visibility,
then operate with the maximum caution.
• Dimensions of the central vacuum cleaner
The central vacuum cleaner package is mounted on
pallets designed for this purpose and shrink-wrapped.
The following calculation of sizes and weights includes
packaging. Measures are in centimetres.
UNLOADING AND HANDLING OF THE EQUIPMENT
QUALITY CONTROLS
DS SUPER
COMPACT 1,5
MODEL
DS SUPER
COMPACT 2,2
MODEL
DS SUPER
COMPACT 4,5
TURBO MODEL
Model with
automatic filter
shaking device
Height
Width
Depth
Weight in kg
Height
Width
Depth
Weight in kg
172
47
65
82
172
47
65
87
172
47
65
91
165
47
65
84
165
47
65
89
165
47
65
93
Z 800
Model with
automatic filter
shaking device
Model with
automatic filter
shaking device
6
Central vacuum cleaning systems
Central vacuum cleaner
model DS Super Compact 1,5
single phase, for one operator
Code 6405
motor power kW 1.5
HP 2
depression mbar 300
airflow m3/h 231
supply voltage V 220-240
socket voltage V 12
capacity of dust container lit 38
filter surface cm2 5,700
weight kg 76
noisiness dB 65
height of vacuum cleaner cm 161
width of vacuum cleaner cm 40
depth of vacuum cleaner cm 54
Central vacuum cleaner in sheet metal housing painted in
epoxy powder with single phase lateral turbine channel,
without transmissions and with approved magneto thermal
motor safety switch, filter chamber, removable dust container,
silencer, control panel, circuit board with 12 Volt inlets control
and vacuum gauge, manual filter shaking device, filter made
out of special cloth, with large surface and high filtering
capacity, inlet socket with contacts.
Central vacuum cleaner in sheet metal housing painted
in epoxy powder with three phase lateral turbine channel,
without transmissions and with approved magneto thermal
motor safety switch, filter chamber, removable dust
container, silencer, control panel, circuit board with 12 Volt
inlets control and vacuum gauge, manual filter shaking
device, filter made out of special cloth, with large surface
and high filtering capacity, inlet socket with contacts.
motor power kW 2.2
HP 3
depression mbar 320
airflow m3/h 306
supply voltage V 380-400
socket voltage V 12
capacity of dust container lit 38
filter surface cm2 5.700
weight kg 81
noisiness dB 68
height of vacuum cleaner cm 161
width of vacuum cleaner cm 40
depth of vacuum cleaner cm 54
Central vacuum cleaner in sheet metal housing painted
in epoxy powder with three phase lateral turbine channel,
without transmissions and with approved magneto
thermal motor safety switch, frequency converter and
transducer*, filter chamber, removable dust container,
silencer, control panel, electronic device for the variation
of the motor speed, circuit board with 12 Volt inlets
control and vacuum gauge, manual filter shaking device,
star filter made out of special cloth, with large surface
and high filtering capacity, inlet socket with contacts.
XXXXXXXXXXXX
- XXXXXXX
- XXXXXXX
motor power kW 2.2- 4.5
HP 3-6
depression mbar 320-380
airflow m3/h 231-360
supply voltage V 380-400
socket voltage V 12
capacity of dust container lit 38
filter surface cm2 7,100
weight kg 85
noisiness dB 68
height of vacuum cleaner cm 161
width of vacuum cleaner cm 40
depth of vacuum cleaner cm 54
CHARACTERISTICS OF THE
CENTRAL VACUUM CLEANER AND MAIN PARTS
Central vacuum cleaner
model DS Super Compact 2,2
three phase, for one operator
Code 6406
Central vacuum cleaner
model DS Super Compact 4,5 Turbo
three phase, for two operators
Code 6408
Please notice:
only a technician authorized by Disan may program
the software of the frequency converter.
7
Central vacuum cleaning systems
•Filter self-cleaning device
with circuit board. This
device permits the
automatic, daily cleaning
of the filter, thereby
always guaranteeing its
full vacuum efficiency.
Code IS91
•Cyclone
The upper cyclone further
protects the filter.
The lower cyclone
improves dust storage
inside the container.
Code IS98
Main parts
•Plastic bags for dust
collection, 20-piece-
package.
Code ER628
•Supporting bracket for
wall fixing, including
template.
Code IS90
9
1
2
4
3
5
6
7
8
20
19
18
17
16
14
15
13
12
11
22
12
26
24
11
21
25
23
For their installation, please see the instructions attached to each optional.
Z 278
10
27
Z 663
Z 222
Z 639
Z 801
Z 802
LIST OF OPTIONALS
6. Inlet socket with contacts
7. Dust container
8. Main switch
9. Knob for manual filter shaking
10.
Bracket blocking the knob for manual filter shaking
11.Lid locking hook
12.12 volt line connection plug
13.Light signalling filter clogging
14.“Test” switch for automatic filter shaking device
15.Vacuum gauge for filter clogging control
16.Container locking hook
17.Handle of dust container
18.Chassis of filter chamber
19.Motor ventilation slots
20.Feet
21.Lid fitting
22.Vacuum tube to inlet sockets,
diameter 70 mm
23.Tube connecting motor and lid fitting
24.Breather pipe, diameter 80 mm
25.Plug for automatic filter shaking
device (optional)
26.Identification data plate
27.Socket for automatic filter shaking
device (optional)
1. Lid
2. Filter chamber
3. Control panel
4. Motor “test” switch
5. Light signalling connection to mains
8
Central vacuum cleaning systems
INSTALLATION OF THE CENTRAL VACUUM CLEANER
Periodic
filter cleaning
The system works perfectly only if the filter in the filter
chamber is cleaned with particular care. Cleaning
operations are carried out when the system is switched
off.
If you intend to empty the dust container or the plastic
bag after cleaning, first operate the filter cleaning
devices and then wait a few minutes for the dust to
deposit on the bottom of the container.
Manual operation
Manual cleaning of the filter must be carried out at
regular time intervals, depending on the use of the
system (e.g. every 1-2 week(s) if the system is used
daily), before emptying the dust container or in any
case if you notice a reduction in suction power.
Anyhow, filter clogging is signalled on the filter
efficiency manometer (15) on the control panel of
the central vacuum cleaner as well as by the red
light (8).
If the hand of the manometer is to the right (green
area) the filter is in good conditions. If the hand
moves to the left (red area), the filter is blocked and
this causes a reduction in its filtering capacity.
Filter self-cleaning system
An automatic filter shaking device (optional) is
available for DS Super Compact central vacuum
cleaners, ensuring the automatic self cleaning of
the filter every 12 hours.
- To start the command-operated filter shaking
device , press the “Test” switch (14) on the control
panel of the central vacuum cleaner.
We suggest performing this operation before
emptying the dust container and in any case if you
notice a reduction in suction power.
- The automatic shaking device works only when
the system is switched off.
Please notice: shaking times exceeding one minute
do not improve cleaning but do contribute to an
early wear of the filter.
Sequence procedure
1.Lower the blocking bracket (10).
2.Energetically raise and lower the knob (9) with
one hand, several times (approx. 10-15 times).
3.Bring back the blocking bracket (10) to its original
position.
ORDINARY MAINTENANCE
(by the person in charge of the central vacuum cleaner)
The central vacuum cleaner must be installed and
hooked up by an authorized installer. Instructions
for a correct installation of the system are given in
the corresponding handbook “DESIGN -
INSTALLATION – INSPECTION OF DS SUPER
COMPACT AND DS MODULAR SYSTEMS”.
13
15
Z 803
10
9
Z 804
9
Central vacuum cleaning systems
2. Grab the handles (17) and extract the container
(7). Empty the container (or replace the plastic
bag, if any).
Code ER628 Plastic bag
Emptying of the
dust container
It is essential to control the dust level every month.
Dust may be collected directly in the container or
in the plastic bag fitting this purpose. If necessary,
dispose of the dust in compliance with the rules
envisaged for separate waste collection and replace
the bag. Before emptying, shake the filter (see
“Period filter cleaning” on page 8).
Wait a few minutes for the dust to deposit on the
bottom of the container.
Sequence procedure
1. Release the dust container from the central
vacuum cleaner, intervening on the corresponding
locking hooks (16)
3. Reinsert the container (7) and close the locking
hooks (16) in their original position so that it fits
tightly again in the filter chamber (2).
0 0 3 0 9 S 6 4 0 6
2 2 32 8 5 0
3 3 05 0
X
16
14
Z 805
Z 806
7
16
2
Z 808
17 7
Z 807
10
Central vacuum cleaning systems
Check whether the filter shaking device works
properly:
1.Keep pressed for a few seconds button (14) on
the control panel of the central vacuum cleaner.
2.If noisiness or the emission of vibrations is higher
than normal or in any case excessive, contact
the installer.
Functional check
of the turbine
Check whether the turbine works properly:
1.Keep pressed for a few seconds button (4) on
the control panel of the central vacuum cleaner.
2.If noisiness or the emission of vibrations is higher
than normal or in any case excessive, contact
the installer.
EXTRAORDINARY MAINTENANCE
(by the installer)
Perform the following controls every year:
Filter control
and replacement
Stages to disassemble the lid:
While the system is switched off, detach the hose
(23) from the lid fitting (21). Lower the blocking
device (10). Unblock the locking hooks (11) and lift
the lid (1) together with the filter (27).
If there is an automatic filter shaking device,
disconnect the plug (25) from the socket (26) on
the back of the central vacuum cleaner.
Functional check of the automatic
filter shaking device
14
Z 809
4
Z 810
27
11
21
23
2
10
1
Z 811
25
26
Z 812
Central vacuum cleaning systems
Steps for filter dismantling:
• Model DS SUPER COMPACT 1,5 and DS
SUPER COMPACT 2,2
1. Unscrew the clamp (29) which holds the filter
(27) onto its housing and detach the two parts.
2. Unscrew the clamp (30) from the filter ring (31),
remove it from the filter and set aside.
!Attenzione!
The filter must be carefully replaced.
It must be replaced by another filter with the same
characteristics, otherwise you risk jeopardising the
correct operation of the vacuum cleaner.
• Filter with a 360 mm diameter for the models
DS SUPER COMPACT 1,5 and DS SUPER
COMPACT 2,2 Code ER630
• Star filter with a 360 mm diameter for the model
DS SUPER COMPACT 4,5 TURBO
Code ER17079
Steps for filter and lid mounting onto the central
vacuum cleaner:
Mount the filter and the lid onto the central vacuum
cleaner following in reverse sequence the procedure
indicated for the disassembly of the filter and of the
lid.
• Model DS Super Compact 4,5 Turbo
1. Turn the filter (27) upside down to expose the
fixing clamps (32).
2. Cut the clamps (32) and detach the housing
(33) from the filter (27).
3. Unscrew the clamp (30) from the filter ring
(31), remove it from the filter and set aside.
11
- Checking the filter conditions: check whether
the internal surface of the filter is completely white.
If it isn’t, the filter is probably pierced. Check whether
there are holes. To check, follow the steps necessary
to disassemble the lid and the filter.
- Filter cleaning: if the internal surface of the filter
is white while the external one is excessively dirty,
clean it with a brush, a compressor or a traditional
vacuum cleaner. The filter can also be cleaned by
washing it in a washing machine at low temperatures.
To clean the filter, follow the steps necessary to
disassemble the lid and the filter.
- Filter replacement: if the filter is pierced and
therefore no longer usable, put it in a plastic bag,
close it and dispose of it in compliance with the rules
for separate waste collection. Replace the filter as
described below.
Please notice: using a filter which is different from
the replaced one, entails replacing the filter housing.
30
29
31
Z 813
27
33
32
30
31
Z 814
! WARNING !
12
Central vacuum cleaning systems
SAFETY INSTRUCTIONS
(read carefully)
Failed observance of the safety instructions may
compromise the operation of the system or seriously
damage it. The following “safety instructions” contain
essential indications for the system’s safety and for
the safety of the people using it.
System’s safety prearranged during its
production
The vacuum cleaner was made paying particular
attention to the safety of operators. Each component
was designed on the basis of strict safety guarantees
which Disan has adopted.
Electrical safety
FConnect the central vacuum cleaner only to a
current with the same tension indicated on the
“identification data” plate (see chapter
“IDENTIFICATION DATA”, page 14).
FEstablish the electrical connection to a supply
mains with efficient grounding and with a neutral
phase.
FThe safety of the electronic system is guaranteed
only if there is a suitable safety ground fault
circuit-breaker complying with the regulations in
force.
System’s safety
FBefore using it for the first time, make sure – via
the installer - that the entire system works
perfectly.
FDo not expose the central vacuum cleaner to
the direct action of the weather (e.g. rain, snow
etc.).
FDo not wash the central vacuum cleaner with
water jets, do not dip it in water.
Check at regular time intervals the dust container
or the plastic bag, if any (see paragraph
“Emptying of the dust container”, page 9).
At regular time intervals, shake the filter manually
(see paragraph “Periodic filter cleaning”, page 8).
Never vacuum-clean without having the filter
installed and, under any circumstance, use only
original Disan filters.
FDo not start the system during failure.
Technical assistance
FIf the green light signalling connection to the
mains (at the centre of the control panel) remains
on and if the causes of the failed operation
cannot be found among those listed in the
“TABLE OF FAILURES”, page 13, please contact
your dealer or an authorised installer.
Any intervention must be carried out only when
the system is switched off and disconnected
from the mains.
We suggest checking the system and overhauling
the central vacuum cleaner every 4-5 years.
! WARNING !
Safety devices must never be tampered with!
INLET SOCKET ON THE CENTRAL VACUUM CLEANER
Z 815
The DS Super Compact central vacuum cleaner is
equipped with an inlet socket on the filter chamber
to vacuum-clean the room where the central vacuum
cleaner itself is placed.
Open the flap door of the socket and insert the fitting
of the hose. When cleaning is over, take out the
fitting and close the socket’s flap door.
13
Central vacuum cleaning systems
MAINTENANCE OF YOUR
CENTRAL VACUUM CLEANING SYSTEM
1. FILTER CLOGGING
If suction power at the inlet socket is low, the filter
may be excessively clogged. You can see this
from the manometer placed on the control panel
of the central vacuum cleaner which, when the
motor is started, moves to the red area.
In this case:
if the machine has a manual shaking device,
clean it as indicated on page 8; if it equipped with
an automatic shaking device, see page 8.
2. HOSE CLOGGING
If the suction power at the inlet socket is good,
clogging is in the hose or in the brushes. If – on
the contrary - suction power at the inlet socket is
weak, clogging is
a. in the socket (visible to the naked eye)
b. in the tubing (see item 5)
If necessary, clean them manually (for precaution,
wear latex gloves, as those used in the kitchen).
3. WRONG CLOSING OF THE DUST CONTAINER
– CYCLONE’S GASKET (OPTIONAL)
DAMAGED OR OUT OF PLACE
After emptying, make sure that the dust container
closes tightly to avoid suction power reductions.
Furthermore, check that the gasket is positioned
correctly and that it is not damaged.
4. SIMULTANEOUS USE OF SEVERAL
INLET SOCKETS
The models DS Super Compact 1,5 and DS Super
Compact 2,2 are designed for use by a single
person. The simultaneous use of several inlet
sockets on the same network entails a
considerable suction power reduction.
The model DS Super Compact 4,5 Turbo is
suitable for use by two people simultaneously.
5. TUBES CLOGGING
If the procedures listed under 1,2,3 and 4 do not
increase the air flow rate, clogging is in the tubing.
In this case, contact your installer.
6. THERMAL SAFETY DEVICE
If:
- the vacuum motor has been subjected to a
considerable electric current overload;
- the motor is defective;
- the motor has overheated due to filter clogging,
clogging of the tubing or a narrowing in the
breather pipe
SYMPTOM
The inlet socket
whistles
No vacuum
power
Low vacuum
power
The system does
not start
The system
remains on
The system turns on
and off intermittently
The ground fault
circuit-breaker trips
CAUSE
1. Filter clogging
2. Hose clogging
3. Wrong closing of the dust container – cyclone’s gasket (optional)
damaged or out of place
4. Simultaneous use of several inlet sockets
5. Tubes clogging
6. Thermal safety device
7. Defective or dirty microswitch of the socket
8. Wear of the inlet socket’s contacts
9. 12 volt mains lead to inlet sockets is damaged
10.Defective circuit board – motor failure
11.Hose with on-off switch
12.Excessively high absorption (kW) by household
appliances
13.Insufficient or excessively high supply tension (volt)
of the mains
14.Dust container full
15.Defective gasket of the inlet socket – protruding screws
16.Insufficient diameter of supply cables
17.Insufficient amperage of the ground fault circuit-breaker
14
Central vacuum cleaning systems
12. EXCESSIVELY HIGH ABSORPTION (KW)
BY HOUSEHOLD APPLIANCES
If the system does not start, if its main switch
trips or the ground fault circuit-breaker trips
(perhaps due to the simultaneous use of several
household appliances) the mains power supply
(kW) is insufficient. Switch off a household
appliance to continue working and - if necessary
- ask the utility company to increase the power
supply (kW) to your system.
13. INSUFFICIENT OR EXCESSIVELY HIGH
SUPPLY TENSION (VOLT) OF THE MAINS
Have the tension of the mains checked, to
verify that it is not lower or does not exceed
by 5% the tension indicated on the identification
plate (see next page “Identification data plate”).
14. DUST CONTAINER FULL
Empty the container (see page 9 “Emptying of
the dust container”).
15. DEFECTIVE GASKET OF THE INLET
SOCKET – PROTRUDING SCREWS
Replace the gasket or tighten the screws
correctly.
16. INSUFFICIENT DIAMETER OF SUPPLY
CABLES
If you use the model DS Super Compact 1,5
and the system does not start, check whether
the supply mains lead square measure is at
least 2.5 mm2.
17. INSUFFICIENT AMPERAGE OF THE
GROUND FAULT CIRCUIT-BREAKER
If you use the model DS Super Compact 4,5
Turbo, a ground fault circuit-breaker with a FI
value of at least 300 mA is required.
1) Models DS Super Compact 1,5 and 2,2
The main switch (with thermal safety device)
trips. Before switching it on again, wait 8-10
minutes for the motor to cool down.
2)Model DS Super Compact 4,5 Turbo
The system turns off when the inverter
intervenes. Switch off the main switch (8) (see
page 7) on the central vacuum cleaner.
Wait one minute, then switch on the main
switch (8). Wait 8-10 minutes for the motor to
cool down.
If after completing the procedures as of items 1, 2
and 5 the thermal safety device continues to trip,
switch the system off and contact your installer.
7. DEFECTIVE OR DIRTY MICROSWITCH OF
THE SOCKET
If the central vacuum cleaner remains switched on
or does not start despite the closing or opening of the
inlet socket, check whether the microswitch on the
socket itself works properly. If you cannot find the
cause, contact your installer.
8. WEAR OF THE INLET SOCKET’S CONTACTS
If the system does not start and you use inlet
sockets with contacts, check whether the contacts
are worn.
9. 12 VOLT MAINS LEAD TO INLET SOCKETS
IS DAMAGED
It happens rarely that the mains lead connecting
the inlet sockets to the central vacuum cleaner
gets damaged. Contact your installer.
10.DEFECTIVE CIRCUIT BOARD – MOTOR
FAILURE
If the procedures listed above do not start the
vacuum motor, the cause lies in the burning out
of the transformer, of the relay or in a motor
failure. Contact your installer.
11. HOSE WITH ON-OFF SWITCH
If you use a hose with an on-off switch on its
handgrip and the system does not start, remains
switched on or switches on and off intermittently,
create a bridge between the two contacts (12
volt) in the socket. If the system starts, the cause
is in the hose. Contact your installer.
Clogging of the tubes – air infiltrations
DIAGNOSIS PROGNOSIS REMEDY
Drop in suction
power
clogged
insufficient
depression
air infiltrations
1A Open the dust container
1B Vacuum the other way round, connecting a powerful vacuum
cleaner to the inlet sockets
2 Explore the tubes with a spiral probe (used for
plumbing works)
3 Contact Disan’s technical office
1A If there is no noise, switch on the system keeping
the inlet sockets closed
1B Locate the source of whistling due to air infiltrations
2 Use the suitable inspection camera (code GE903)
3 Contact Disan’s technical office
15
Central vacuum cleaning systems
Position of the identification data plate
The position of the identification data plate indicating
the machine’s data is as shown in the picture:
Data on the plate
All technical and construction data pertaining to
your central vacuum cleaner are indicated on
the identification plate.
Data identification for assistance or
guarantee purposes
Every time you contact Disan’s “technical assistance
service” or the installer, specify the data of your
machine. A clear indication of the “machine’s model”
and of the “serial number” will help the constructor
answering you and will avoid inaccuracies or
mistakes. Please refer to the data indicated in your
guarantee certificate (see last page).
IDENTIFICATION DATA
A= vacuum cleaner’s model
B= serial number
C= article code
D= motor absorption (kW)
E= number of revolutions per minute of the motor
F= motor’s stages
G= supply tension (V)
H= operating frequency (Hz)
I = year of construction
0 0 3 0 9 S 6 4 0 6
2 2 32 8 5 0
3 3 05 0
X
Z 816
0 0 3 0 9 S 6 4 0 6
2 2 3 2 8 5 0
3 8 0 5 0
X
A
I
B
D
G
C
E
H
F
Z 817
CHECK LIST
FOR THE INSTALLER
YEARLY MAINTENANCE CONTRACT
Check of inlet socket’s tightness
Check of the starting of the system at the
inlet sockets
Check of the wear of vacuum cleaning
accessories
Check of the suction value
Check of the turbine’s operation
Filter check and cleaning
Check of the operation of the automatic
filter shaking device*
We suggest entrusting your installer with the yearly maintenance in order
to always keep the system at its maximum efficiency.
* if available
16
Central vacuum cleaning systems
EXPLODED VIEW OF THE DS
SUPER COMPACT 1,5 - 2,2 MODELS
Z 818
9
10
11
12
13
14
15
16
17
18
19
20
40
41
42
1
2
3
4
5
6
7
8
29
30
31
32
33
34
35
36
21
22
23
24
25
26
27 28
37
38
39
43
44 45
46
47
48
49
50
51
52
53
54
55
56
57
Optional automatic filter shaking
device code IS91
87
88
90
89
91
93
92
94
80
37
81
82
83
85 86
84
95
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73 74
77
78
79
75
76
Central vacuum cleaning systems
SPARE PARTS FOR THE DS
SUPER COMPACT 1,5 - 2,2 MODELS
17
1 Spring blocking hook CS20001
2
External spring for manual filter shaking device
CS20002
3 M18 nut CS20003
4 Spring holder CS20004
5 Lid CS20005
6 Threaded bush CS20006
7 Galvanised pin CS20007
8 M12 nut CS20008
9
Internal spring for manual filter shaking device
CS20009
10 Lower filter blocking ring CS20010
11 Gasket for bag blocking ring CS20011
12 Upper filter blocking ring CS20012
13 Upper filter blocking clamp CS20013
14 Tubular filter CS20014
15 Lower filter blocking clamp CS20013
16 Cylinder CS20016
17 M6 nut CS20017
18 Lid closing device CS20018
19 Screw M6 x 10 CS20019
20 Bearing of lid closing device CS20020
21 Lower collection element CS20021
22 M6 nut CS20017
23 Closing device for collection element CS20018
24 Screw M6 x 10 CS20019
25
Bearing of closing device for collection element
CS20020
26 Handle CS20026
27 Screw for handle CS20027
28 Gasket for collection element CS20028
29 Knob CS20029
30 Screw for spring blocking hook CS20030
31 Washer for spring blocking hook CS20031
32 Nut for spring blocking hook CS20032
33 Gasket for cylinder tube CS20033
34 M4 nut CS20034
35 Screw M4 x 12 CS20035
36 Lid tube CS20036
37 Control panel CS20037
38 Gasket for control panel CS20038
39 Screw M6 x 15 CS20039
40 M6 nut CS20017
41 Flange CS20041
42 Cylinder tube CS20042
43 Gasket for cylinder tube CS20043
44 Gasket for cylinder CS20044
45 M6 nut CS20017
46 Screw M6 x 15 CS20039
47 Switch CS20047
48 Screw M3,5 x 10 CS20048
49 Switch holder CS20049
50 Screw M6 x 15 CS20039
51 Silencer CS20051
52 M6 nut CS20017
53 M8 nut CS20053
54 Screw M8 x 16 CS20054
55 Plate of cover bearing element CS20055
56 Cover of supporting frame CS20056
57 Screw M6 x 15 CS20039
58 Cable CS20058
59 Rubber fitting CS20059
60 Tube clamp CS20060
61 Tube CS20061
62 Tube – motor connection fitting CS20062
63 Tube CS20063
64 Tube clamp CS20060
65 Tube – motor connection fitting CS20062
66A 1.5 KW motor CS20066A
66B 2.2 KW motor CS20066B
67 12 volt plug CS20067
68 Gasket for 12 volt plug CS20068
69 M3 nut CS20069
70 Screw M3 x 16 CS20070
71 Rubber cap CS20071
72A Shock absorber for 1.5 KW motor CS20072A
72B Shock absorber for 2.2 KW motor CS20072B
73A M8 nut CS20053A
73B M10 nut CS20073B
74 Screw M4 x 12 CS20035
75 M4 nut CS20034
76A Control box for 1.5 KW motor CS20076A
76B Control box for 2.2 KW motor CS20076B
77 Bearing frame CS20077
78 M10 nut CS20073B
79 Foot CS20079
80 Screw 3,5 x 10 CS20048
81 Identification data plate CS20081
82 Switch for motor test CS20082
83 Pressure switch CS20083
84 Complete vacuum gauge CS20084
85 Green light CS20085
86 Red light CS20086
87
Socket 12 volt mains lead for filter shaking device
CS20087
88
Plug 12 volt mains lead for filter shaking device
CS20088
89 Fixing nut for filter shaking device CS20089
90 Fixing washer for filter shaking device CS20090
91 Rubber cap CS20091
92 Gasket for shaking device cable CS20092
93 Shaking element CS20093
94
Circuit board for automatic filter shaking device
CS20094
95 Switch for filter shaking device test CS20082
18
Central vacuum cleaning systems
EXPLODED VIEW OF THE DS
SUPER COMPACT 4,5 TURBO MODEL
Z 819
Optional automatic filter shaking
device code IS91
87
88
90
89
91
93
92
94
96
1
2
3
4
5
6
7
8
28
29
30
31
32
33
34
35
20
21
22
23
24
25
26 27
57
58
59
60
62
63
64
65
66
67
68
69
70
71
72
73 74
77
78
79
36
37
38
43
44
45
46
47
48
49
50
51
52
53
54
55
56
9
10
11
12
13
14
16
17
18
19
39
40
41
42
61
76
15
75
95
85
80
37
81
82
83
86
84
19
Central vacuum cleaning systems
SPARE PARTS FOR THE DS
SUPER COMPACT 4,5 TURBO MODEL
1 Spring blocking hook CS20001
2
External spring for manual filter shaking device
CS20002
3 M18 nut CS20003
4 Spring holder CS20004
5 Lid CS20005
6 Threaded bush CS20006
7 Galvanised pin CS20007
8 M12 nut CS20008
9
Internal spring for manual filter shaking device
CS20009
10 Star bag stretching ring CS20110
11 Gasket for bag blocking ring CS20011
12 Upper filter blocking ring CS20012
13 Upper filter blocking clamp CS20013
14 Star filter CS20114
15 Cylinder CS20016
16 M6 nut CS20017
17 Lid closing device CS20018
18 Screw M6 x 10 CS20019
19 Bearing of lid closing device CS20020
20 Lower collection element CS20021
21 M6 nut CS20017
22 Closing device for collection element CS20018
23 Screw M6 x 10 CS20019
24
Bearing of closing device for collection element
CS20020
25 Handle CS20026
26 Screw for handle CS20027
27 Gasket for collection element CS20028
28 Knob CS20029
29 Screw for spring blocking hook CS20030
30 Washer for spring blocking hook CS20031
31 Nut for spring blocking hook CS20032
32 Gasket for cylinder tube CS20033
33 M4 nut CS20034
34 Screw M4 x 12 CS20035
35 Lid tube CS20036
36 Control panel CS20037
37 Gasket for control panel CS20038
38 Screw M6 x 15 CS20039
39 M6 nut CS20017
40 Flange CS20041
41 Cylinder tube CS20042
42 Gasket for cylinder CS20043
43 Gasket for cylinder tube CS20044
44 M6 nut CS20017
45 Screw M6 x 15 CS20039
46 Switch CS20047
47 Screw M3,5 x 10 CS20048
48 Switch holder CS20049
49 Screw M6 x 15 CS20039
50 Silencer CS20051
51 M6 nut CS20017
52 M8 nut CS20053
53 Screw M8 x 16 CS20054
54 Plate of cover bearing element CS20055
55 Cover of supporting frame CS20056
56 Screw M6 x 15 CS20039
57 Cable CS20058
58 Rubber fitting CS20059
59 Tube clamp CS20060
60 Tube CS20061
61 Inverter CS20161
62 Tube – motor connection fitting CS20062
63 Tube CS20063
64 Tube clamp CS20060
65 Tube – motor connection fitting CS20062
66 Motor for inverter CS20066
67 12 volt plug CS20067
68 Gasket for 12 volt plug CS20068
69 M3 nut CS20069
70 Screw M3 x 16 CS20070
71 Rubber cap CS20071
72 Shock absorber for motor CS20072B
73 M10 nut CS20073B
74 Screw M4 x 12 CS20035
75 M4 nut CS20035
76 Control box CS20076C
77 Bearing frame CS20077
78 M10 nut CS20073B
79 Foot CS20079
80 Screw 3,5 x 10 CS20048
81 Identification data plate CS20081
82 Switch for motor test CS20082
83 Pressure switch CS20083
84 Complete vacuum gauge CS20084
85 Green light CS20085
86 Red light CS20086
87
Socket 12 volt mains lead for filter shaking device
CS20087
88
Plug 12 volt mains lead for filter shaking device
CS20088
89 Fixing nut for filter shaking device CS20089
90 Fixing washer for filter shaking device CS20090
91 Rubber cap CS20091
92 Gasket for shaking device cable CS20092
93 Shaking element CS20093
94
Circuit board for automatic filter shaking device
CS20094
95 Switch for filter shaking device test CS20082
96 Fixing clamps for star filter CS20096
Guarantee certificate
12 MONTH GUARANTEE
Guarantee certificate
Model:
Date of purchase:
Purchaser’s address:
Serial number:
Seller’s stamp and signature
To be filled in by the manufacturer
GUARANTEE CERTIFICATE
!IMPORTANT!
Please send us this card, filled in,
within 30 days to allow the
recording of your guarantee right.
Model:
Serial number:
Tested by:
This manual suits for next models
2
Table of contents
Other Disan Central Vacuum System manuals
