Thank you for choosing this DishTV Freeview High Definition Digital Set Top Box.
You will be be able to receive all Freeview|HDUHFHigh Definition and Standard Definition
digital TV channels, as well as detailed Freeview program information with the
Freeview 8 Day Electronic Program Guide. For more information about Freeview
visit www.freeviewnz.tv
AFreeview Digital SetTop Box gives you access
over 10 free to air digital channels, without a
subscription or contract. For more information on
Freeview please visit www.freeviewnz.tv
With
Digital UHF
Adigital box lets you access the free digital
channels that are broadcast in New Zealand.
It uses a digital signal, received through your
normal UHF aerial and lets you watch it
through your existing television.

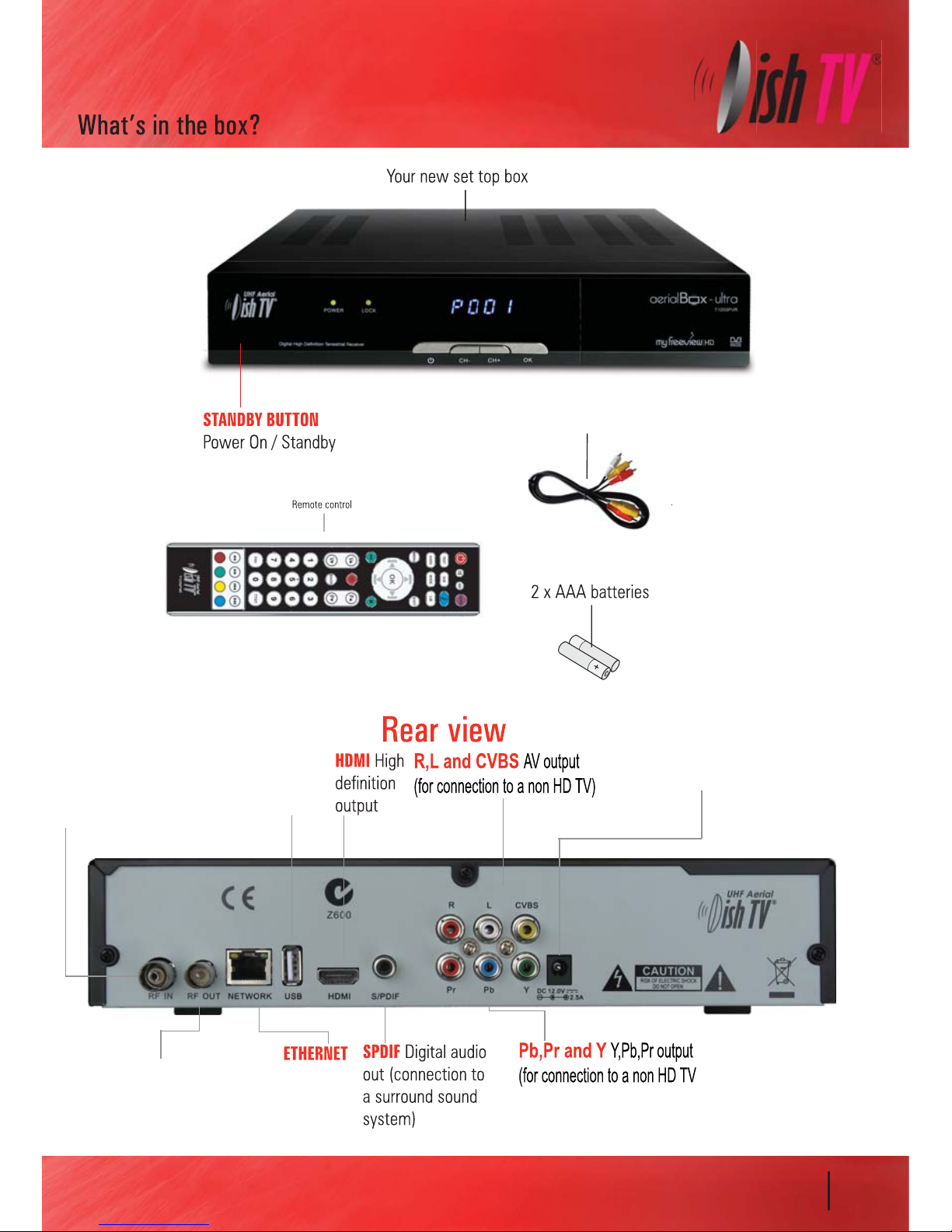

AV Cable
USB Firmware
upgrade +HDD
connection
RFIN UHF Aerial
input
RFOUT UHF Signal
output
3
DC 12V
Connect 230V - 12v adapter

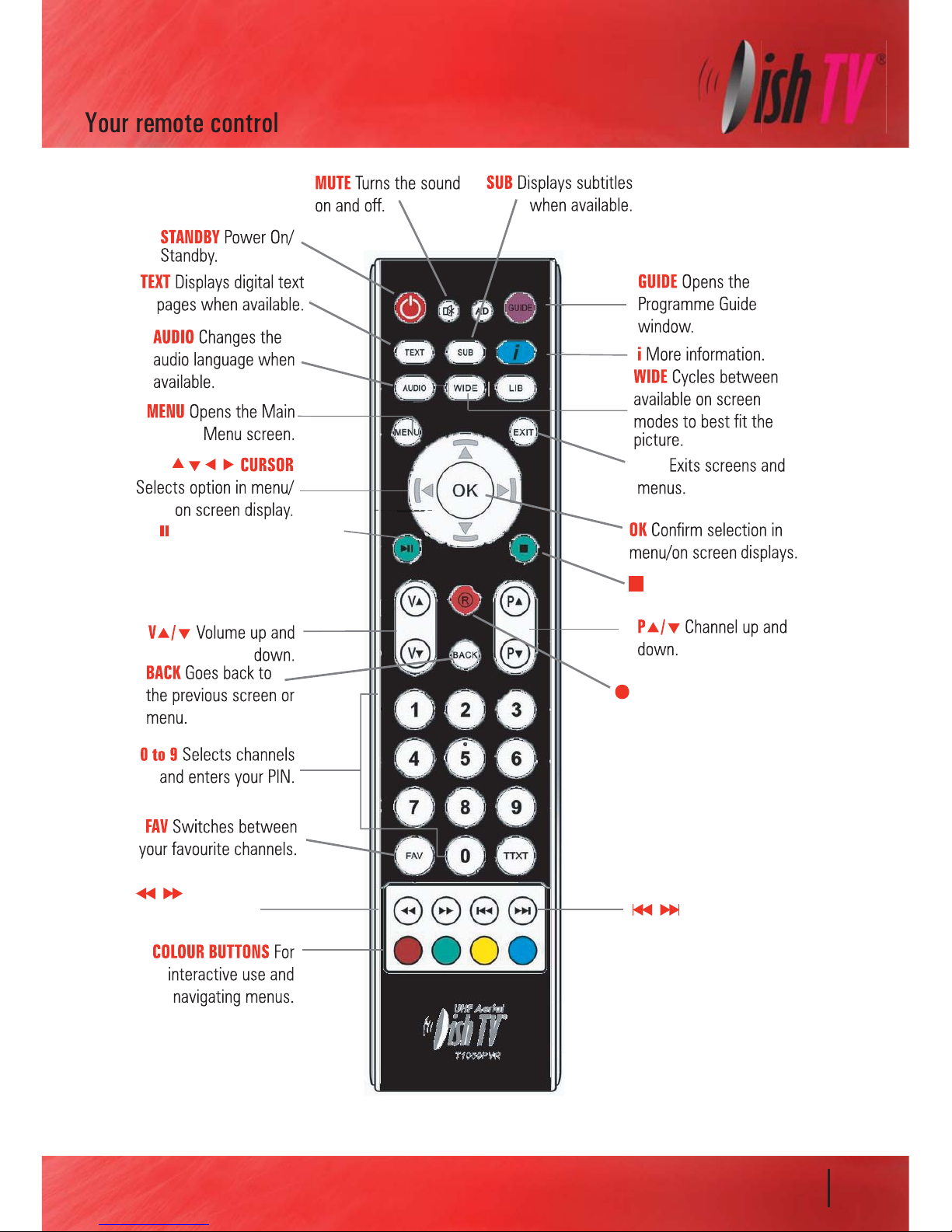

Your Remote Control
Connecting up

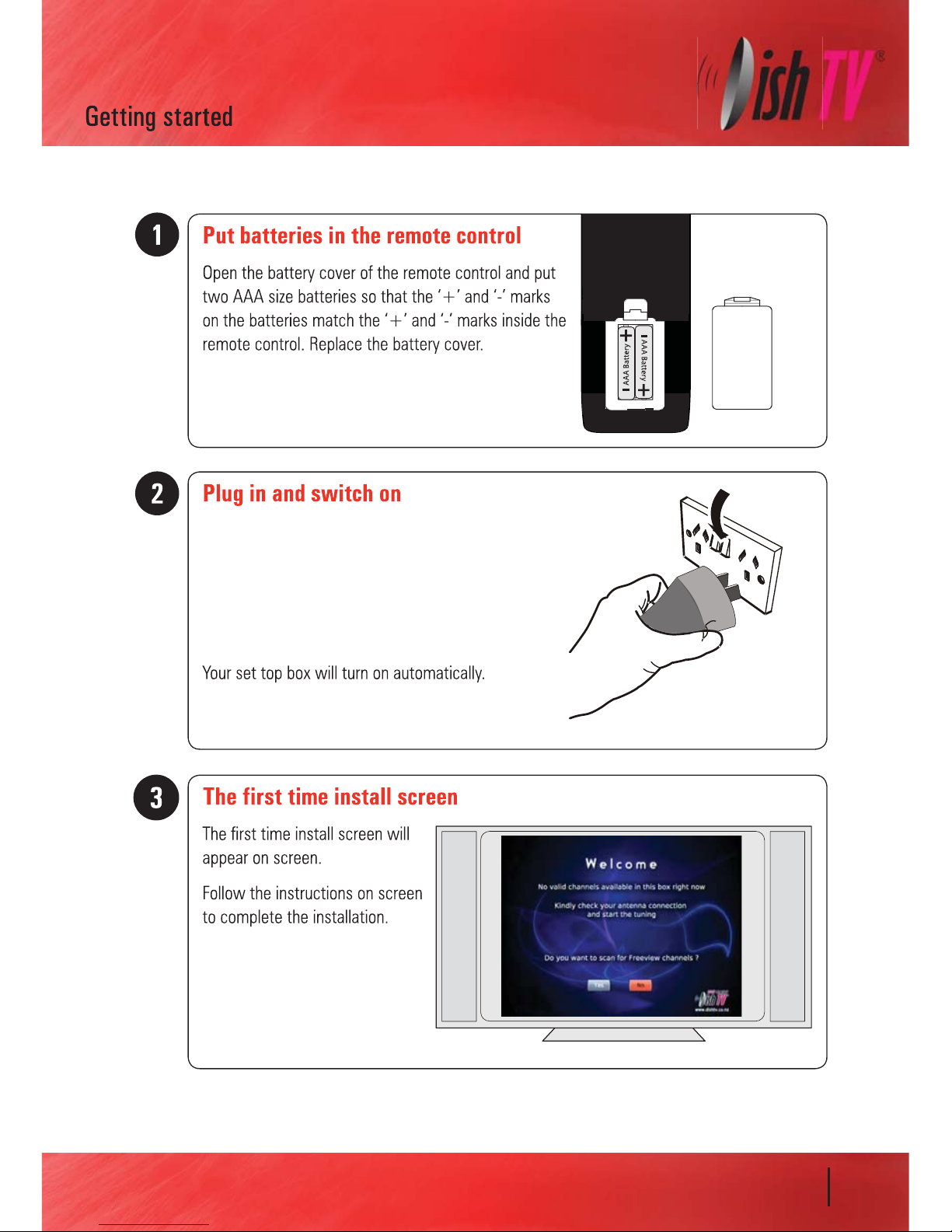

Getting Started
Main Menu
-User Settings
-Installation
-Tuning Wizard
-Auto Scan
-Manual Scan
-System Conguration
-ESG
Recording
Recording Library
-Connectivity -eNet Buttons
-eWeather

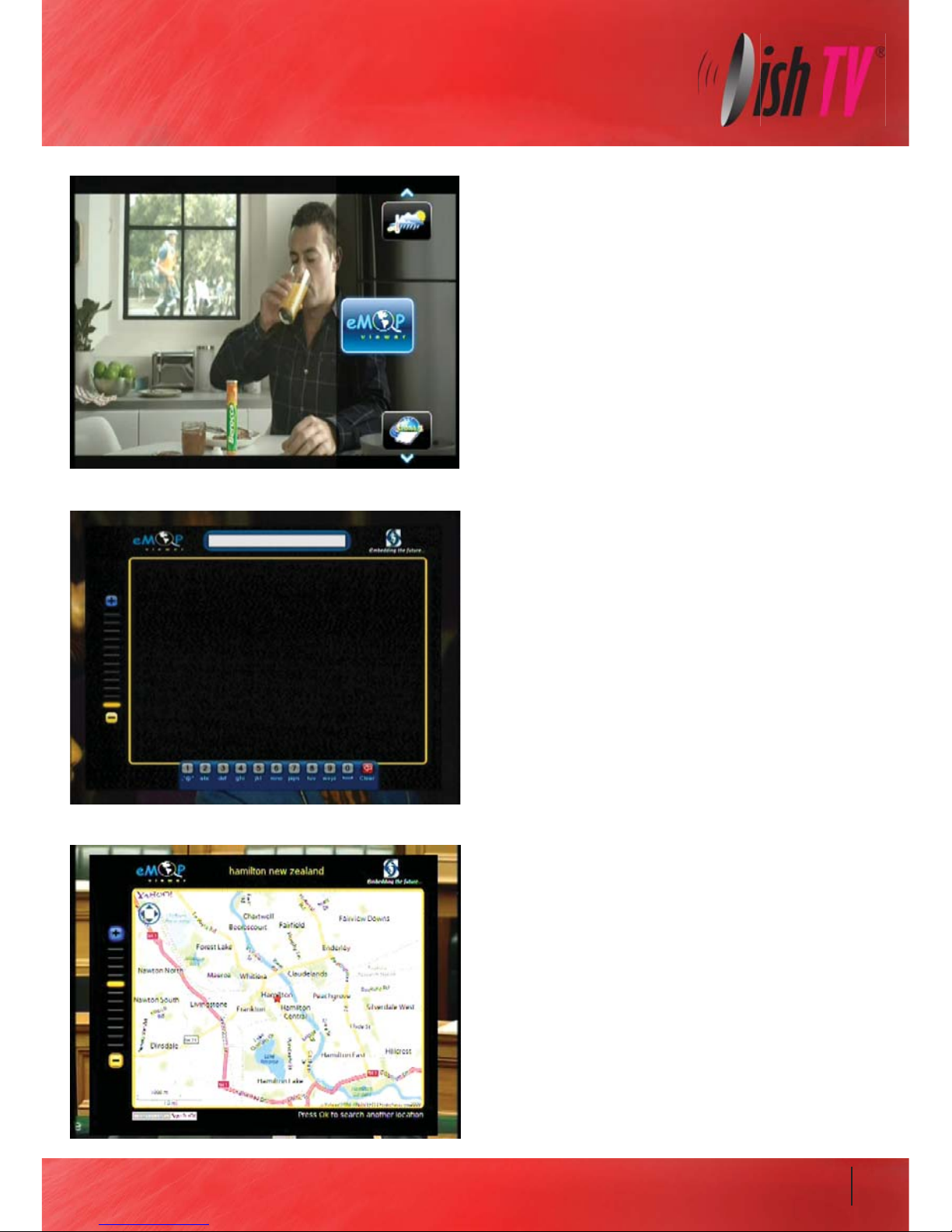

-eMap
-eMail
Firmware Upgrade
Troubleshooting
Technical Specication
Warrenty
Page
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4

Pause Pause playback.
Record Record a programme.
Stop
Beginning/End
Stops playback
Fast Forward/Rewind
playback.
5
Exit

Connect theAV cable that came with your set top box between the yellow red and white sockets on the
back panel of your set top box and theAV input on your TV.
Connect that cable that comes from your Satellite dish to the SAT IN socket in the back of your
set top box.
6

Please make sure you don’t have a USB device plugged in while going through the setup process.
Once you are setup you can then plug your device in.
Switch your TV On and select the correct video input.
7

Main Menu:
All other Settings and tuning menus are selected from this main menu.
This menu is the gateway for all other menus.
User can invoke the main menu by pressing the "MENU" key.
This main menu contains several options
# User Settings
# Installation
# System Conguration
# ESG
# MEDIA Manager
#Connectivity
User can toggle between the options by using UP/DOWN or LEFT/RIGHT Keys.
Main Menu
8

Organizer:
Channels related settings like
Lock. (Allows you to lock a selected channel, access to it then requiring a PIN)
Skip. (Means browsing with P+/- selected channel will be skipped over, but still able to access it
by pressing channel button)
Delete. (Deletes a channel o list)
can be Congured only from this menu.
Favourite View:
Channels related setting, allowing you to view your favourite channel list.
Allowing you to classify channels and group them together to be viewed through
Favourites later.

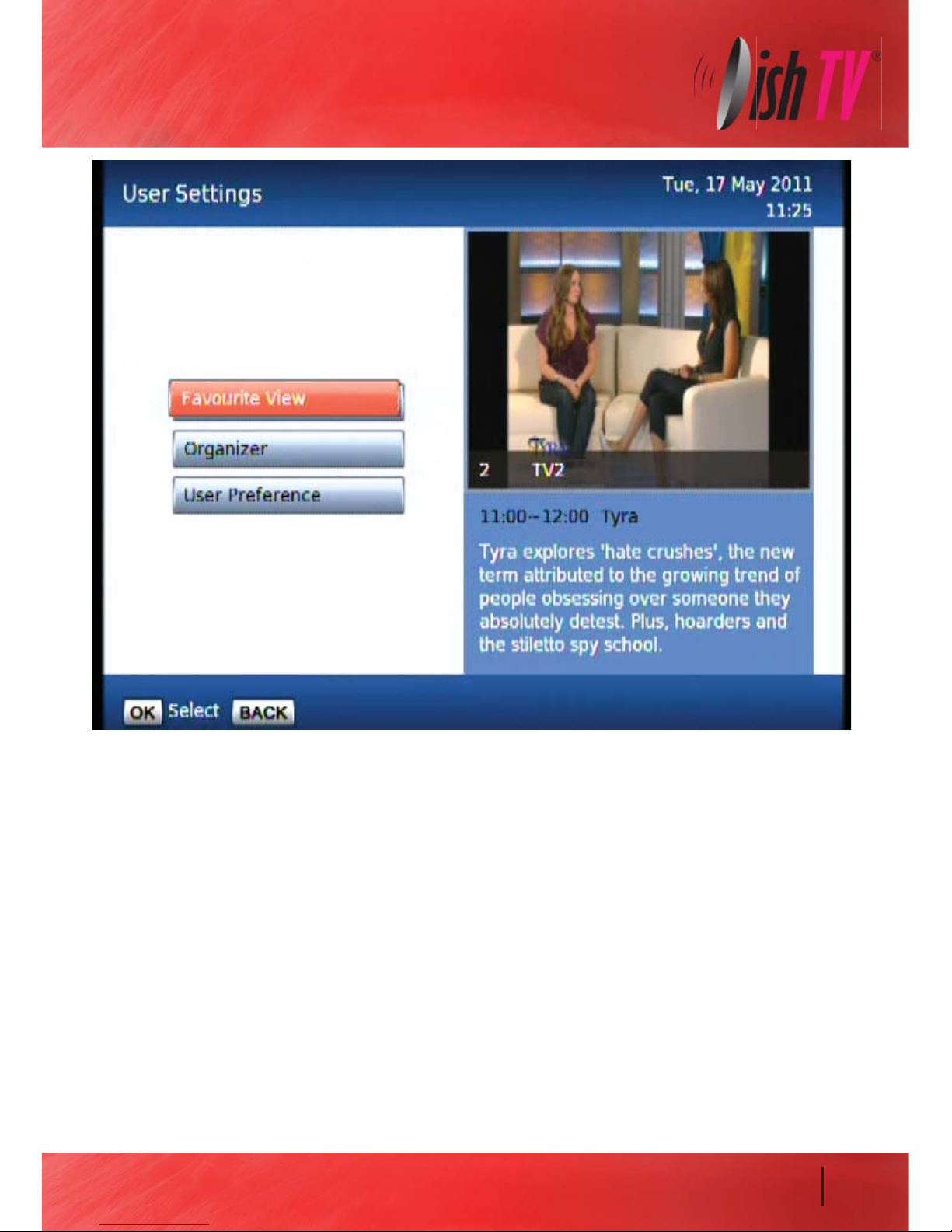

Main Menu - User Settings
User Preference:
Contains settings such as Brightness/Contrast/OSD Time Out etc that are adjusted from
this menu.
9

Main Menu - Installation
Tuning Wizard:
System Setting:
From here you can change more of the visual
settings. i.e. HD Resolution, Aspect Ratio etc
Factory Default:
Allows you to reset all information on your
reciever taking it back to factory settings.
S/W upgrade via OTA:
Software upgrade via over the air. This option will
only work when the software is being broadcast
over the air.
10

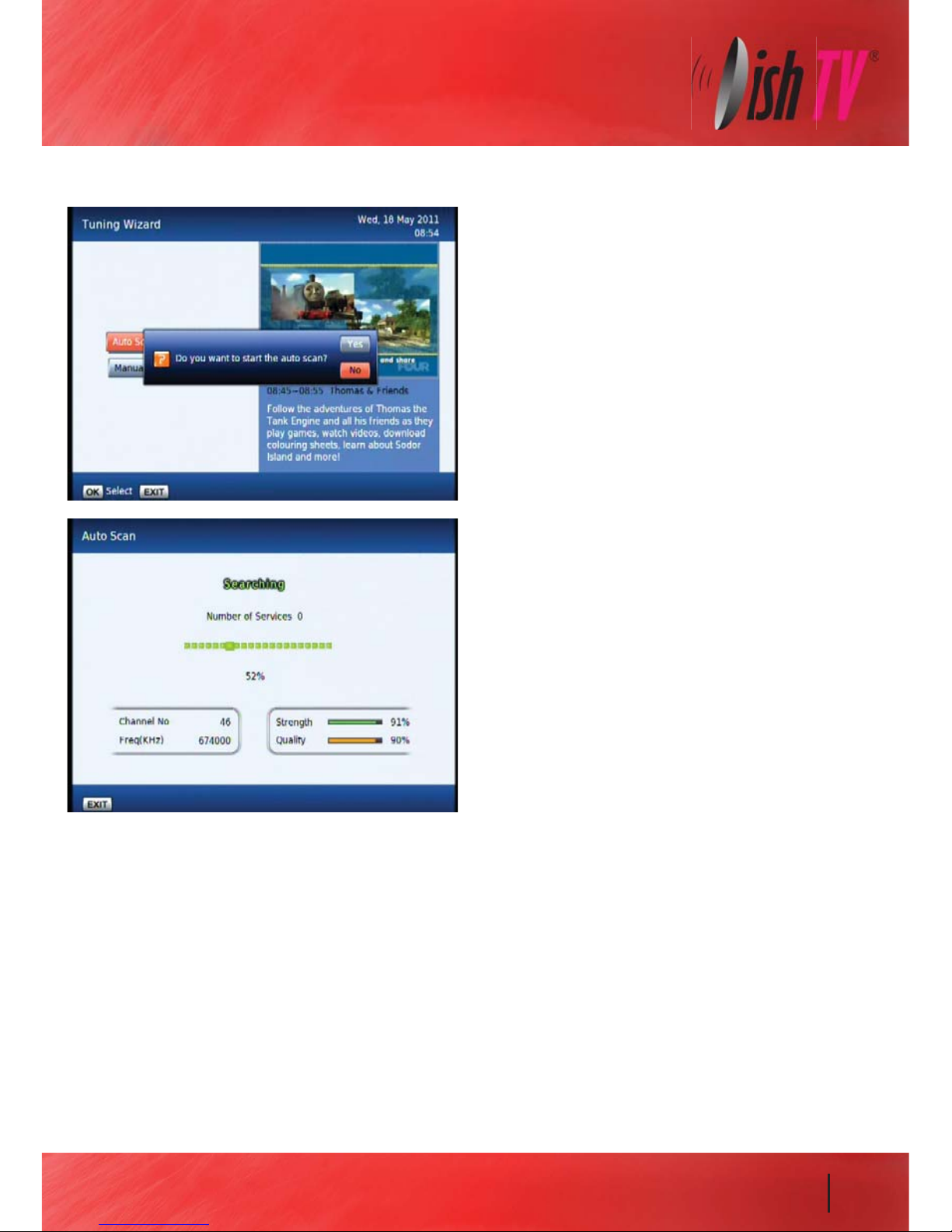

By selecting Tuning Wizard, you will be asked to input
your password - the system default is “0000”
-Auto Scan:
Allows you to automatically search for services
and carriers.
-Manual Scan:
Allows you to select a UHF channel, scan mode (All,
FTA, Scrambled) and check Signal strength and
Quality.
And then search the selected UHF frequency.
