Thank you for choosing this DishTV Freeview Satellite Digital Set Top Box. You will be
digital TV channels and radio channels, as well as
detailed Freeview program information with the Freeview 8 Day Electronic Program Guide,
can also be tuned to nonfreeview satellite channels. For more information about Freeview
visit www.freeviewnz.tv
AFreeview Digital Set Top Box gives you access
over 15 free to air digital channels, without a
subscription or contract. For more information on
Freeview please visit www.freeviewnz.tv
With
SatelliteHD
Warranty & Product Registration
Please register your product to assist with warranty and product updates.
To do this please visit www.dishtv.co.nz and click on Warranty & Registration
This digital box lets you access the free digital
channels that are broadcast in New Zealand. The
HD satellite reciever will decode both SD and HD
statellite broadcasts. Offers high quality HD
upscaling.
able to receive all FreeviewSatellite
2

AV Cable
SATIN
LOOPOUT
Satellite Dish
input 2.
Satellite
signal
output 2.
USB Factory
upgrade +HDD
connection
SATIN Satellite Dish
input 1.
LOOPOUT Satellite
signal
output 1.
User Manual
S7090PVR
Digital Satellite Recorder
Di
DishTV S7090PVR
9
UserManual
S7090PVR
DigitalSatelliteRecorder
UserManual
UserManual
Us
S7090
0PVR
S7
70
090
0P
PV
VR
R
Dig
gita
talS
Sate
ellite
eRecor
order
Quick Start Guide
User Manual
3
DC 12V
Connect 230V~12V adaptor

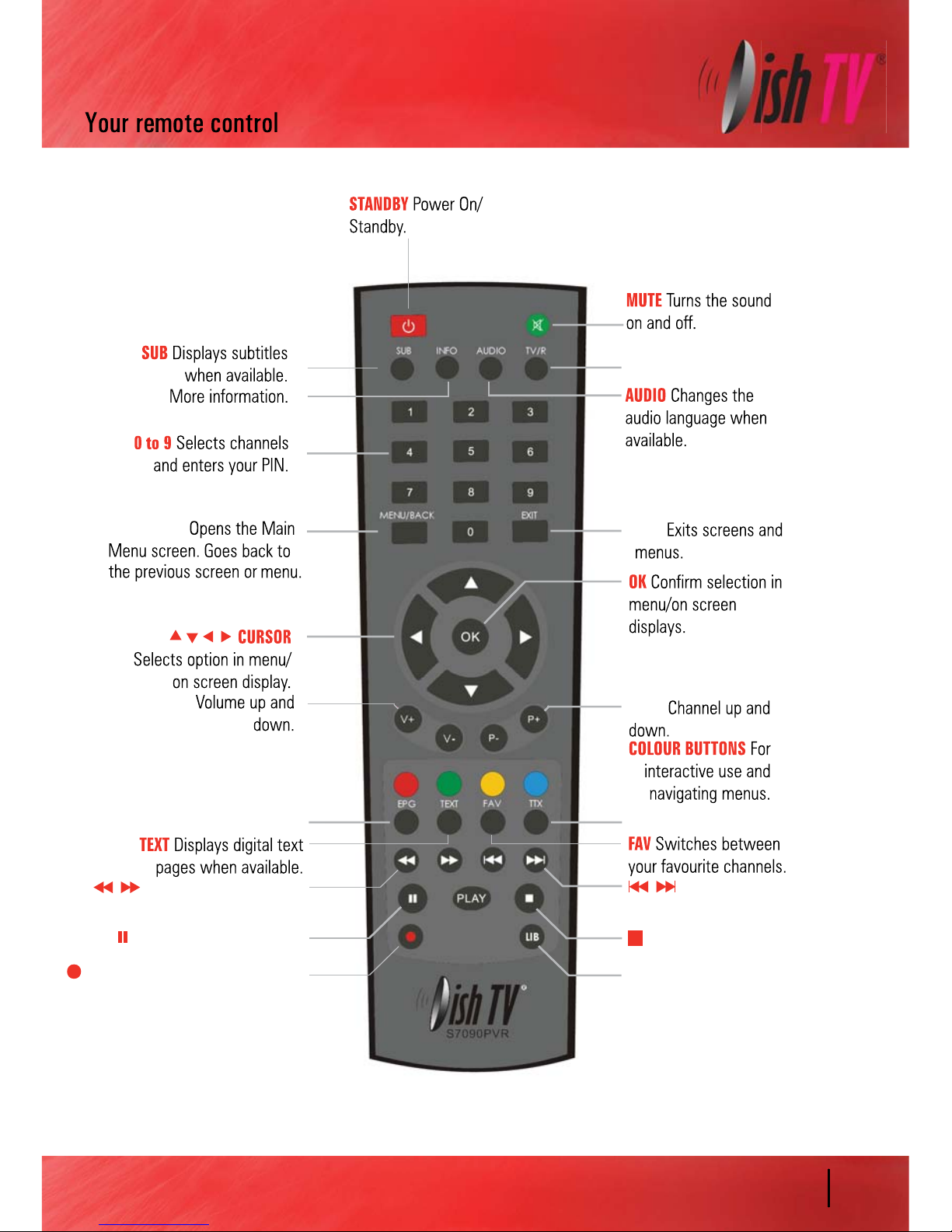

Your Remote Control
Connecting up
Getting Started
Main Menu
-User Settings
-Installation
-Blind Scan
-Satellite Scan
-System Conguration
-ESG
Recording
Recording Library
-Common Interface
-Connectivity -eNet Buttons
-eWeather
-eMap
-eMail
Ethernet
Firmware Upgrade
Troubleshooting
Technical Specication
Warrenty
Page
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
4

Exit
INFO
TV/RSwitches between
TV and Radio.
P+/-
V+/-
TTX Brings up Teletext.
EPG Electronic Programme
Guide, open programme
guide window.
Menu/Back
Pause Pause playback.
Record Record a programme.
Stop
LIB
Beginning/End
Stops playback
Library, Displays
recorded programmes
list.
Fast Forward/Rewind
playback.
5

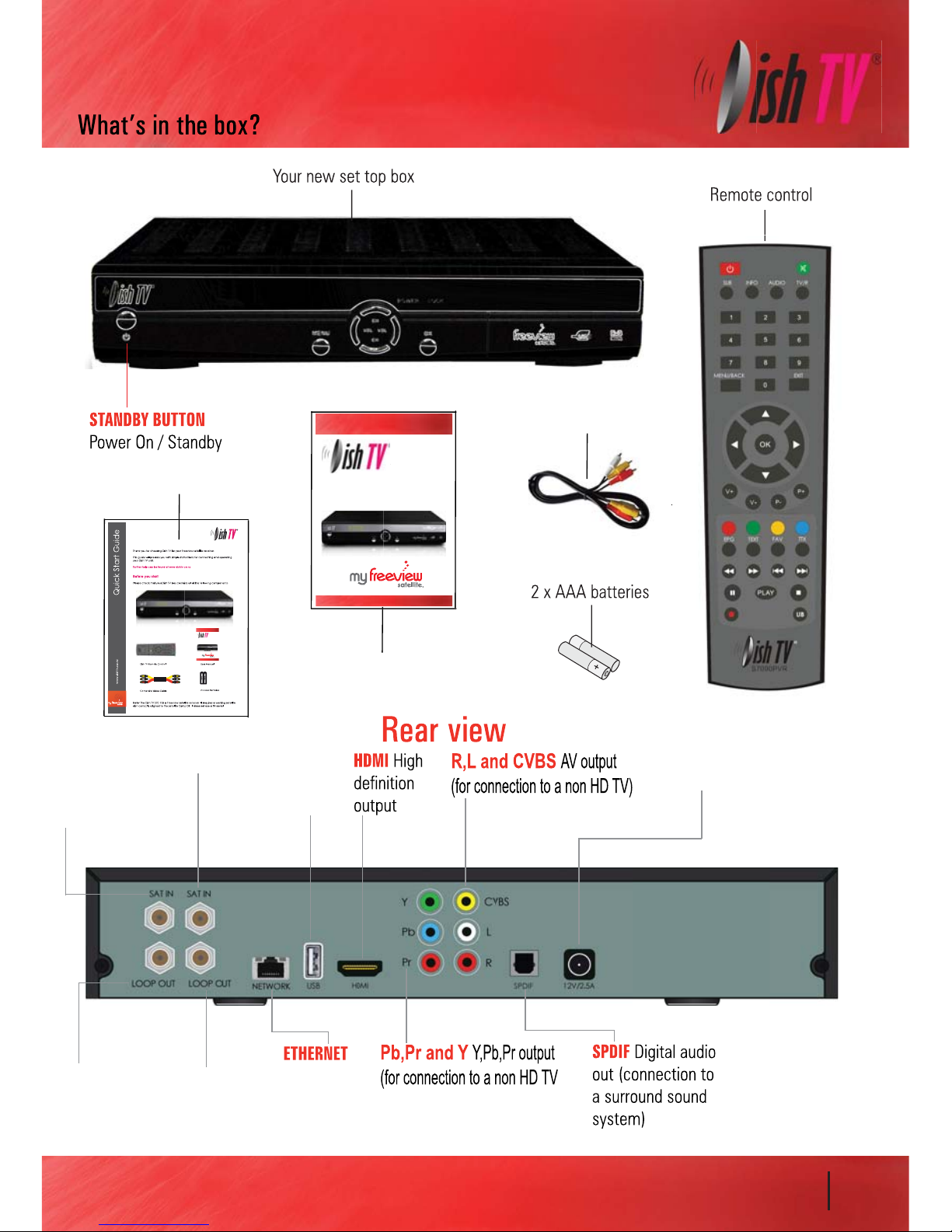

Connect theAV cable that came with your set top box between the yellow red and white sockets on the
back panel of your set top box and theAV input on your TV.
Connect that cable that comes from your Satellite dish to the SAT IN socket in the back of your
set top box.
6

Please make sure you don’t have a USB device plugged in while going through the setup process.
Once you are setup you can then plug your device in.
Switch your TV On and select the correct video input.
7

Main Menu:
All other Settings and tuning menus are selected from this main menu.
This menu is the gateway for all other menus.
User can invoke the main menu by pressing the "MENU" key.
This main menu contains several options
# User Settings
# Installation
# System Conguration

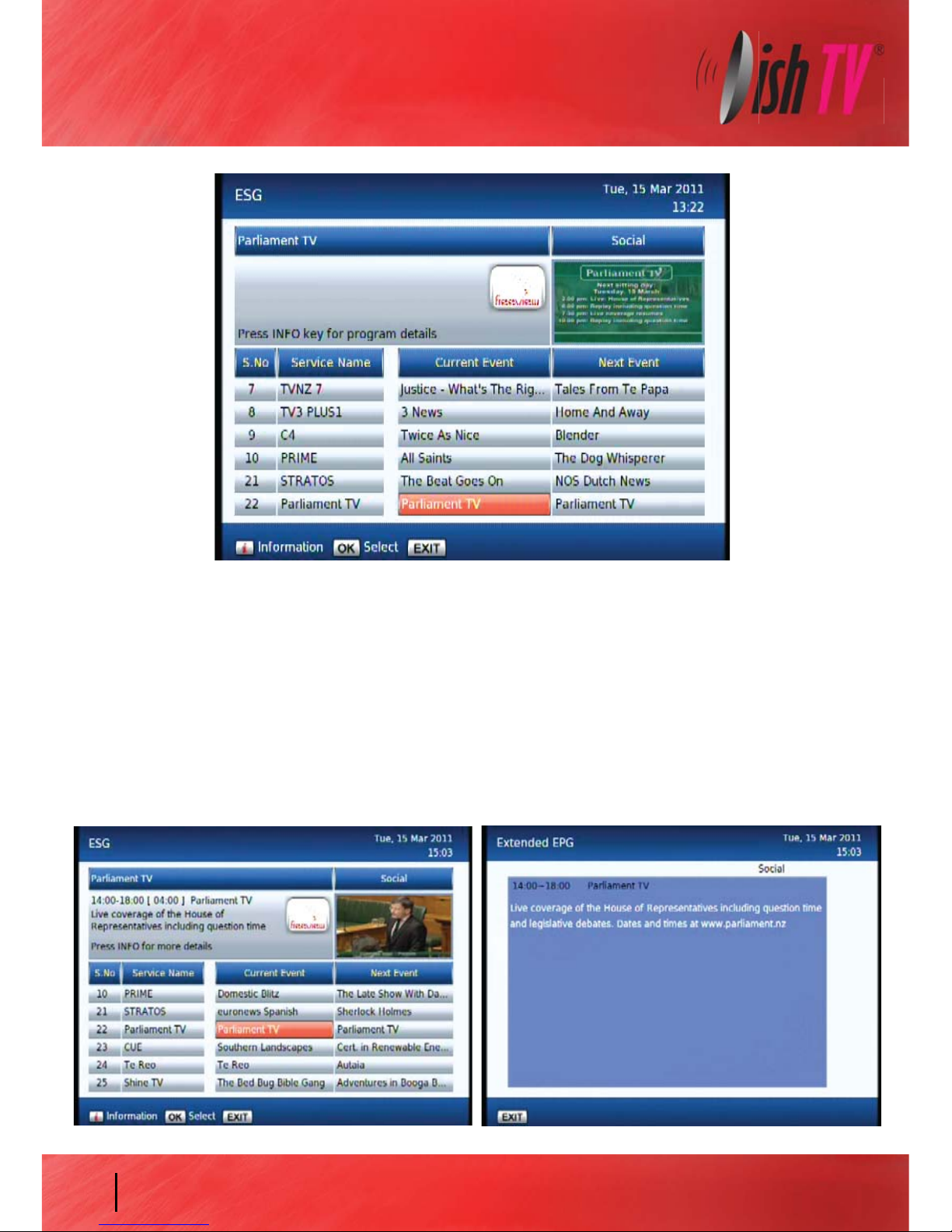

# ESG
# MEDIA Manager
#Common Interface
#Connectivity
User can toggle between the options by using UP/DOWN or LEFT/RIGHT Keys.
Main Menu
8

Organizer:
Channels related settings like
Lock. (Allows you to lock a selected channel, access to it then requiring a PIN)
Skip. (Means browsing with P+/- selected channel will be skipped over, but still able to access it
by pressing channel button)
Delete. (Deletes a channel o list)
can be Congured only from this menu.
Favourite View:
Channels related setting, allowing you to view your favourite channel list.
Allowing you to classify channels and group them together to be viewed through
Favourites later.

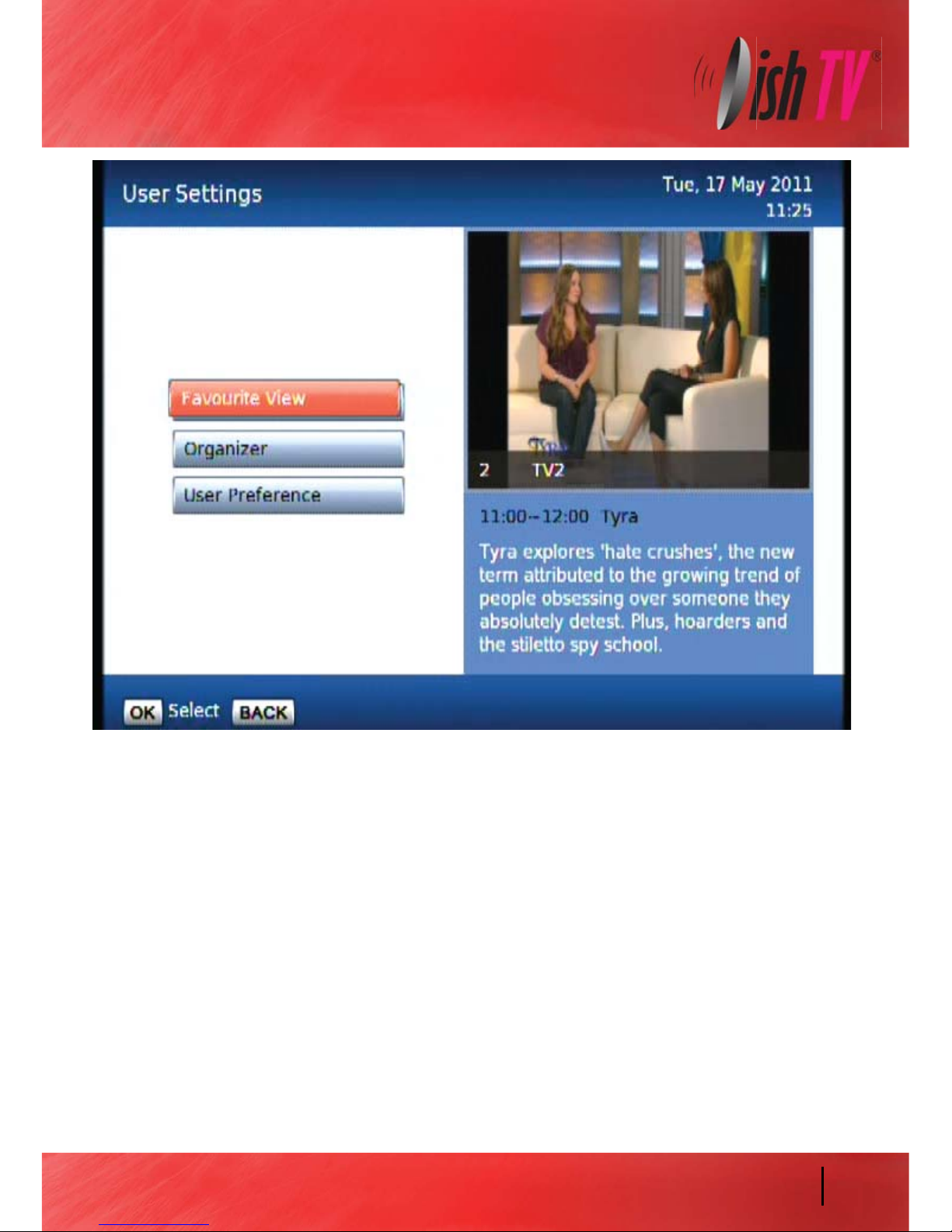

Main Menu - User Settings
User Preference:
Contains settings such as Brightness/Contrast/OSD Time Out etc that are adjusted from
this menu.
9

Main Menu - Installation

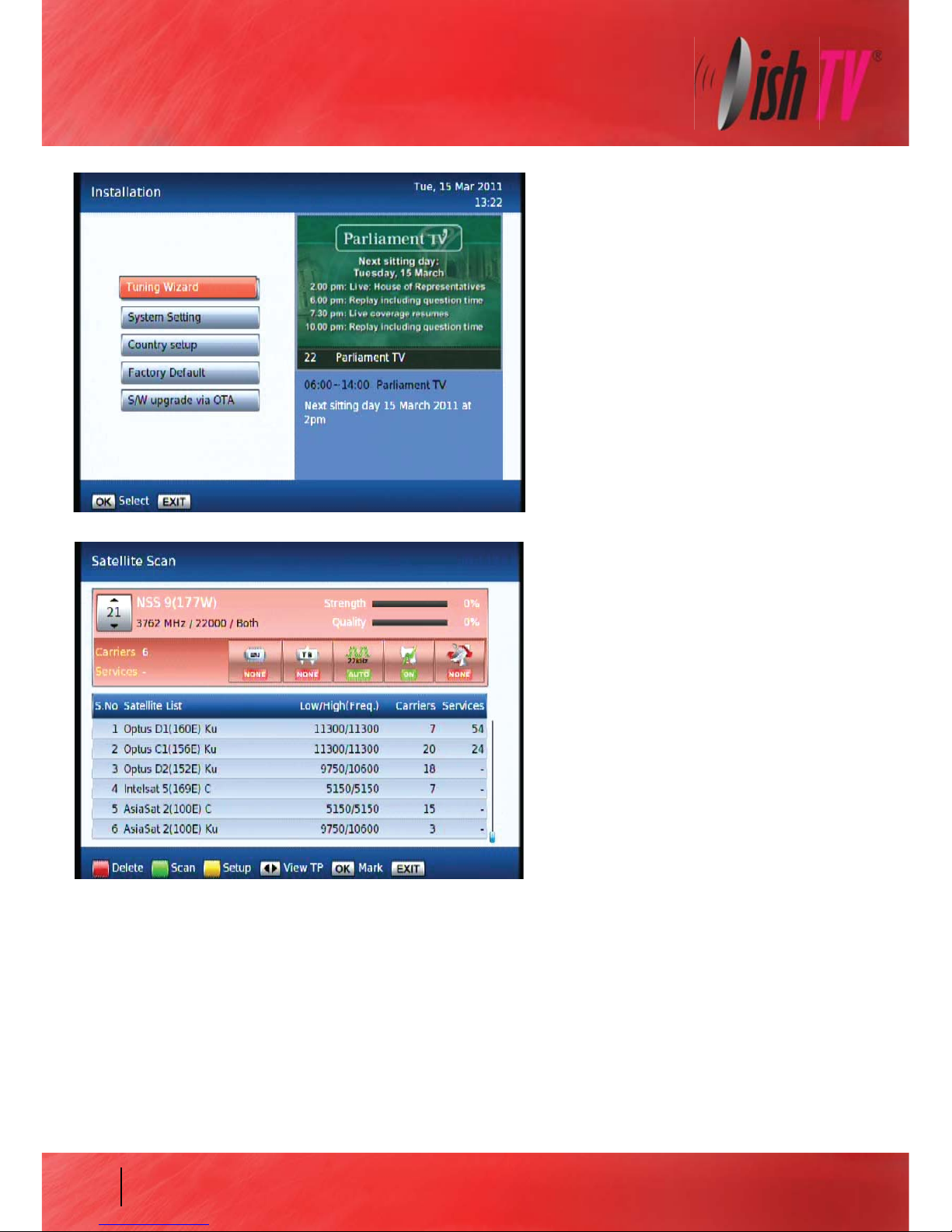

Tuning Wizard:
To access this menu you will have to enter the
PIN code. The System default code is 0000.

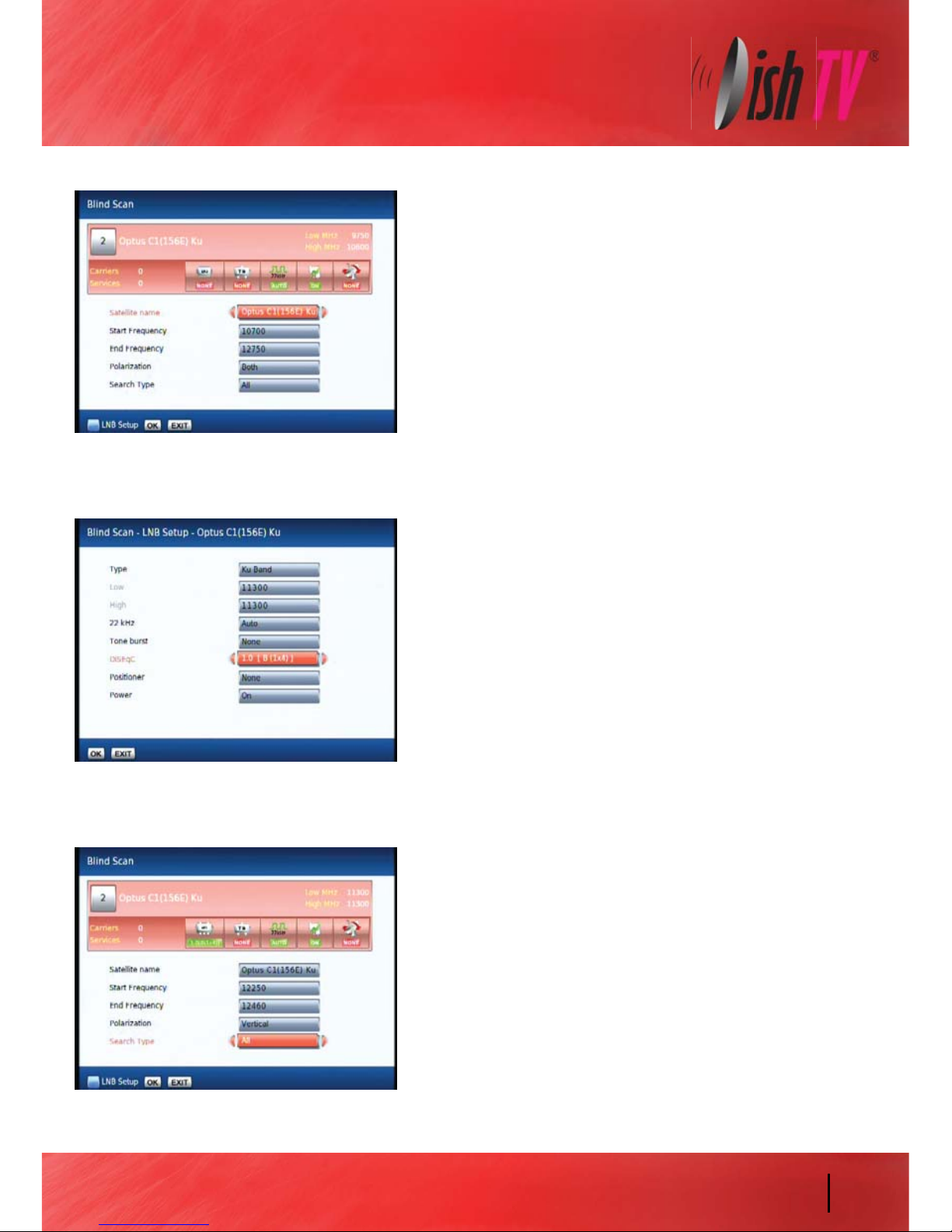

- Blind Scan
Allows you to specify what frequency range to
scan in. Also to select polarity, or to scan FTA
or scrambled channels.
- Satellite Scan
From here you can set all the neccesary
parameters i.e. LNB settings, Diseqc, Tone
switch, Positioner details for each satellite.
All options are displayed along the bottom
of the window and accessed through there.
Allows you to scan a specic frequency.
System Setting:
From here you can change more of the visual
settings. i.e. HD Resolution, Aspect Ratio etc
Country Setup:
You come here to change “Region” settings.
Factory Default:
Allows you to reset all information on your
reciever taking it back to factory settings.
S/W upgrade via OTA:
Software upgrade via over the air. This option will
only work when the software is being broadcast
over the air.
