DK-TEC BCRI User manual
2
Table of Contents:
Important safety information…........................................................................................................................3-5
Safety Labels ...........................................................................................................................................................6-7
Introduction…..............................................................................................................................................................8
Section 1: Operating Instruction…......................................................................................................................9
Section2: Adjustments ........................................................................................................................................... 10
Section3: Maintenaince.................................................................................................................................. 11-12
3
Important safety information
Safety at all times
Read and understand the instructions in this manual before operating the machine. See "Safety
Labels" and read all instructions on this.
Do not allow anyone to operate this machine who has not fully read and understood this
manual and who has not been properly trained in the safe operation of the machine.
●The operator should be familiar with all functions of the flail mower.
●Only operate the flail mower from the driver's seat.
●Make sure all guards and shields are in place and secured before operating the
flail mower.
●Do not leave the tractor and flail mower unattended when the engine is running.
●Disengaging the flail mower while the tractor is running can cause serious injury or
death.
●You must not stand between the tractor and the flail mower during coupling.
●Keep hands, feet and clothing away from motorized parts.
●Wear close-fitting clothing that cannot get caught in moving parts.
●Watch out for wires, trees, etc. when the flail mower is raised. Ensure that all persons
are clear of the work area.
●If you are driving a tractor that is too light, make sure that the tractor cannot tip,
which could cause damage.
Look out for the warning triangle
The warning triangle indicates that there is a potential danger to personal safety and extra
safety precautions must be taken. When you see this symbol, pay attention and carefully read
the message that follows it. In addition to equipment design and configuration, risk
management and accident prevention, one relies on the awareness, concern, caution and
proper training of personnel involved in the operation, transport, maintenance and storage of
the flail mower.
be observant
A signal word denotes a degree or level of a risk. The signal words are:
DANGER, Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. This signal word is limited to the most extreme
situations, typically for machine components that are not protected.
WARNING, Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury and includes hazards exposed when guards are
removed. It is also used to warn against unsafe practices.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate personal injury. It is also used to warn against
unsafe practices.
4
For your protection:
●Read and understand the "Safety labels" section. Read all the instructions given on
them.
Shutdown and storage:
●Lower the flail mower to the ground, set the tractor's parking brake, turn off the
engine and take the ignition key.
●Place the machine in an area where children do not normally stay. Secure the machine by
using various covers and supports.
Use safety lights:
●Slow tractors, self-propelled machines and towed implements can create danger when
driving on public roads. They are difficult to see, especially at night.
●Flashing lights are recommended when driving on public roads. Use lights and parts
supplied with the flail mower
Safe transport:
●Comply with state and local laws.
●Maximum transport speed for the flail mower is 20 km/h. Do not exceed this
speed. Uneven terrain requires a lower speed.
●Sudden braking can cause a towed unit to spin. Reduce speed if the towed unit is not
equipped with brakes.
●Follow the following maximum speed:
20 km/h when the load is less than or equal to the weight of the tractor. 10
km/h when the load is twice the weight of the tractor.
IMPORTANT: Do not tow a unit that is more than twice the weight of the tractor.
Do not have passengers on the flail mower:
●Passengers obstruct the operator's view. Passengers may be thrown from the flail mower.
●Never let children operate the flail mower.
Safe maintenance:
●Understand the procedure before doing the work. Use suitable tools
and equipment. See operating instructions for further information.
●Work in a clean and dry area.
●Lower the machine to the ground, set the tractor's parking brake, turn off the engine, and
remove the key before performing maintenance.
●Allow machine to cool completely before maintenance.
●Do not lubricate the machine with grease or oil while the machine is running.
●Inspect all parts. Make sure all parts are in good condition and properly installed.
●Remove excess grease, oil or dirt.
●Remove all tools and unused parts from the machine before operation.
5
Preparing for emergencies:
●Be prepared if a fire occurs.
●Have a first aid kit and fire extinguisher readily available.
●Have phone numbers for a doctor, ambulance, hospital and fire department nearby.
Wear protective equipment:
●Protective clothing must be worn.
●Wear clothes and equipment that are suitable for the job. Avoid loose clothing.
●Prolonged exposure to loud noise can cause hearing impairment or hearing loss.
Wear suitable hearing protection or earplugs.
●The flail mower must have your full attention without the controls. Avoid listening to the
radio with headphones while driving.
Avoid high-pressure fluids:
●Escaping liquid under pressure can penetrate the skin and cause serious injury.
●Avoid this by relieving pressure before disconnecting hydraulic hoses.
●Use a piece of paper or cardboard, not body parts, to check for leaks. Wear protective
gloves and safety glasses when working with hydraulic systems.
●If an accident occurs, seek medical attention immediately. Any liquid injected into the
skin must be treated within a few hours or it may cause gangrene.
6

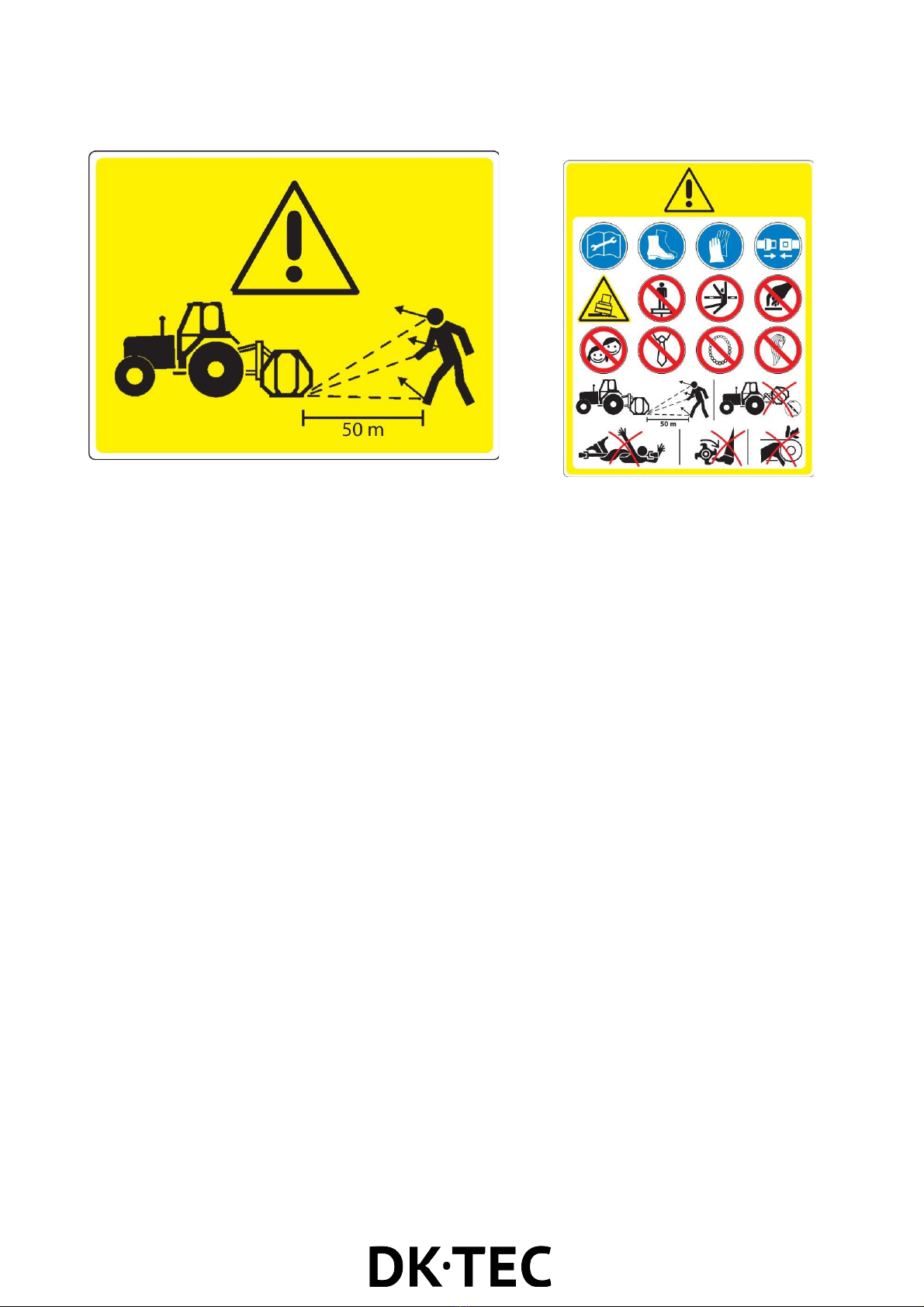

Safety Labels
Your flail mower is equipped with safety labels. They are designed to help you operate your flail
mower safely. Read and follow these instructions:
1. Keep all safety labels clean and legible.
2. Replace any damaged or missing labels. If you want to order new labels, go to your
nearest dealer.
3. New parts installed during repair require new safety labels to be affixed as on the
replaced parts.
4. Refer to this section for correct label placement.
New labels on the flail mower:
a. Clean the area where the label is to be placed.
b. Spray soapy water on the surface where the label will be placed.
c. Affix the label to the surface.
d. Press out air bubbles.
A B
7
8
D
C
E
9
Introduction
This flail mower is designed with care and built by skilled workers using quality materials.
Correct installation, maintenance and safe operating practices will give you many years of
satisfactory use of the machine.
Specification:
The flail mower is designed for category 1 - 3 point suspension or Quick-Hitch System. The
flail mower is ideal for grass cutting on, outdoor arenas, construction sites and maintenance
on farm and ranch tracks or roads.
Using this manual:
●This manual is designed to familiarize you with safety, assembly, operation, adjustments,
troubleshooting and maintenance. Read this guide and follow the recommendations to
ensure efficient operation.
●The information in this guide was current at the time of printing. Some parts may change
slightly to ensure you the best performance.
●If you want a new and updated manual, contact your dealer.
Definition :
"Right" or "left", as used in this manual, is determined by turning in the direction the machine
will work.
Definitions:
Note: says something about you having to pay attention to something before continuing the
work.
Important: Says something to the effect that you must pay particular attention before continuing
the work.
Serial number plate:
For fast service, always use the serial number and model number when ordering parts from the
dealer.
10
Section 1: Operating Instructions
NOTE: Always disengage PTO before raising flail mower in transport position.
1. When raising the flail mower to transport position, ensure that the PTO shaft does
not come into contact with the tractor or flail mower. Adjust and set the tractor's 3-
point suspension lift height so that the axle does not come into contact with the
mower in the raised position.
2. Be sure to reduce the tractor's speed when turning, leave enough space so that the
flail mower does not come into contact with obstacles such as buildings, trees or
fences.
3. Maintain a safe driving speed when transporting. When driving on roads, make
sure that faster moving vehicles can pass safely.
4. When driving over uneven or hilly terrain, shift the tractor to a lower gear.
CAUTION When driving on public roads, whether night or day, use lights and
adequate warning to other vehicles. Comply with all federal, state and local laws.
Cutting instructions:
1. Remove objects that may come into contact with the flail mower's blades.
2. Grass is best cut when it is dry. Cutting wet grass can cause clogging, resulting in
clumps of grass behind the flail mower.
3. Grass must be cut often.
4. When mowing extremely tall grass, it is best to raise the mowing height and then mow it
an extra time at a lower mowing height.
Operating instructions:
Proper maintenance and adjustments are the key to a long machine life. With careful and
systematic inspection of the flail mower, expensive maintenance, time and repairs can be
avoided.
Before you start mowing, the following inspections must be carried out:
1. Check the oil level in the gearbox.
2. Check that all connectors in the gearbox have been replaced and tightened correctly.
3. Check that all flail mower blades, bolts and nuts are tight.
4. Be sure all guards and shields are in place and secure.
5. Lubricate the PTO shaft and all other grease nipples.
6. Clear the area to be mowed of stones, branches and other foreign materials.
7. Lower the flail mower to the ground. Set tractor throttle at approx. 1/4 open. Engage
the PTO so the blades rotate.
8. Operate with 540 rpm PTO tractor.
9. When you first start mowing, do so at a slow driving speed and slowly increase
gears until the desired speed is reached - Max. 540 PTO revolutions.
10. The flail mower blades will cut better with a faster blade speed than at reduced
throttle.
11
11. After mowing the first 50 meters, stop and check that the flail mower is adjusted
correctly.
12. Do not make sharp turns while the mower is on the ground.
13. Do not engage the PTO with the mower in the raised position.
Section 2: Adjustments
Leveling the flail mower:
NOTE: Tractor and flail mower must be level.
Leveling can be adjusted on the tractor's 3-point arms and center link.
Adjusting the cutting height:
The cutting height of the flail mower depends on the position of the rear roller.
1. Remove the bolts holding the roller on both sides.
2. Raise or lower both sides of the roll in equal measurements.
3. Replace bolts and tighten.
3-point suspension Adjustments:
CAUTION, Engage the parking brake, turn off the tractor, remove the key and
engage the PTO before adjusting the height!
Belt tension. CAUTION, Belt drive system under spring tension; Use caution to avoid
personal injury!
The belt tension must be checked after the first 20 hours of use. And then after every 40
hours of use.
1. Tension on the belt can be adjusted with the belt tension bolt. Turn the bolt until the
desired tension is achieved. When the belt is at the correct tension, the gearbox should be
adjusted so that the extension of the gearbox runs straight (parallel) with the flail mower.
Loosen the bolts at the bottom of the gearbox and move the gearbox until the gearbox
extension runs straight.
2. Excessive belt tension can lead to premature failure of the belt and drive components.
CAUTION Excessive belt tension can lead to premature failure of the drive
components. Excessive belt tension can also lead to injury to the user or bystanders.
12
Section 3: Maintenance and lubrication
Proper maintenance and adjustment is the key to longevity. With careful and systematic
control, you can avoid expensive maintenance, time and repairs.
CAUTION, For safety reasons, each maintenance operation must be performed
with the tractor PTO disengaged, the flail mower lowered completely to the
ground and the tractor engine turned off with the ignition key removed.
●After using the flail mower, check all bolts to make sure they are tight and check drive
belt tension.
●Replace worn, damaged or illegible warning labels. You can get new labels from your
dealer.
Replacement of blades:
IMPORTANT: Make sure the blade is the same length as the others on the flail mower. This will
keep the rotor's rotation balanced.
1. Remove bolt and nut.
2. Remove old knife.
3. Install new blade and existing bolt.
4. Fasten with nut.
Belt Installation:
CAUTION, Belt drive system is under spring tension; Use caution to avoid
personal injury!
1. Remove the belt guard
2. Release belt tension by loosening the belt tension bolt until the belt can be removed.
3. With the tension relieved from the belt, remove the old belt from the pulleys.
4. Tighten the belt tension bolt.
5. Put the belt and belt shields back on.
Storage:
At the end of the working season or when the flail mower is not to be used for an extended
period, clean off any dirt or grease that may have accumulated on the flail mower and any of
the moving parts.
1. Clean as needed.
2. Check blades for wear and replace if necessary.
3. Inspect flail mower for loose, damaged or worn parts and adjust or replace as
necessary.
4. Store the flail mower inside if possible.
5. Renew parts where the paint is worn or scratched to prevent rust.
6. Replace any damaged or missing security labels.
13
Lubrication:
PTO shaft
Lubrication type: Multi-purpose Grease
Roller bearings (Both ends)
Lubrication type: Multi-purpose Grease
Flap cutter bearings (Both ends)
Lubrication type: Multi-purpose Grease
Gearbox
Lubrication type: SAE 90W Gear Lube
Check the oil level in the gearbox by removing the plug located on the right side. The oil
must be level with the bottom of the level hole. Add oil if necessary by removing the top
filler plug and side plug. Add oil until it flows from the level hole.
Do not overfill!
IMPORTANT: The flail mower must be in a level position when oil is added to the gearbox!
Driveline topics
Lubrication type: Multi-purpose Grease
EC - DECLARATION OF CONFORMITY DK
Fabrikant
CHANGZHOUMATENGMACHINERYCOLTDN0.10CH
UANGSHENGROAD,1'UOYANGINDUSTRIALPARK,C
HANGZHOU,CHINA
Erklærerhermedatfølgendemaskine:
Betegnelse:
Slagleklipper
Model:
DBCRI,BCRL,BCR
Beskrivelse:
Slagleklippertilmonteringpåtraktortil
slåningafrelevantearealer
ErfremstilletioverensstemmelsemedfølgendeEF-direktiv:
•Maskindirektivet2006/42/EC
Anvendtestandarder:
•ENISO12100:2010,
•ENISO4254-12:2012
GUOFANGMA/CIIANGZHOU
underskrift
Table of contents
Other DK-TEC Farm Equipment manuals
