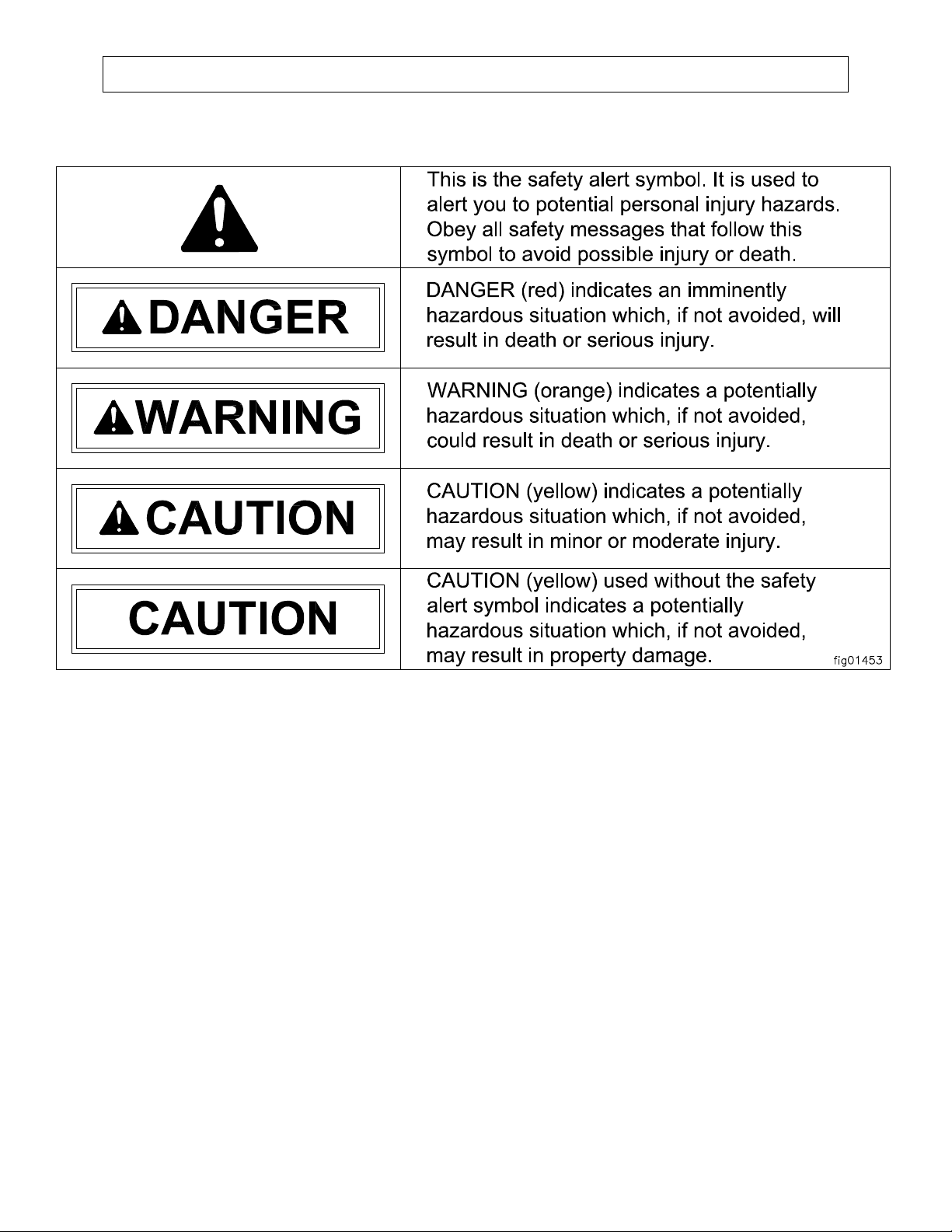

Hazard Signal Word Definitions
Owner's Manual
Instructions for Assembly, Testing, Operation, Servicing, and Storage
ATV Boom Kit, 7-Nozzle: For outdoor use with agricultural pesticides
and other liquids**
WARNING
READ and UNDERSTAND the Owner's Manual completely before using this sprayer.
Assemble, test, and use only in accordance with the Owner's Manual instructions.
READ and FOLLOW chemical label instructions. Pesticides are hazardous chemicals.
KNOW emergency procedures BEFORE handling chemicals. Sprayer leaks, bodily chemical
contact, poisoning, and spills require immediate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when filling, using, cleaning, and servicing the sprayer.
KEEP sprayer and spray materials away from children and pets. Pesticides are especially toxic
to them.
EXERCISE CAUTION in ATV vehicle handling and do not exceed 5 KPH. ATV will be less
stable and handle very differently with filled sprayer attached.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional
spray release.
ALWAYS keep a fire extinguisher rated “ABC” nearby.
Improper use of the sprayer or handling of chemicals could result in serious injury or illness
to the operator or nearby persons/animals, or could cause damage to the environment.
**This boom is recommended for use in spraying non-flammable liquids such as pesticides and water for dust control. The boom
will be damaged and warranty voided if used to apply bleach, chlorine, ice control chemicals, or any petroleum based product
(gasoline, diesel, kerosene, oil). The boom should not be used to transfer any product intended for human consumption. WE
RECOMMEND THAT THE BOOM NOT BE USED FOR OTHER PURPOSES ONCE IT HAS BEEN USED FOR SPRAYING
PESTICIDES. Any chemical will leave some residual in the boom components, even after the boom has been properly cleaned.
These residual chemicals can have unexpected effects on future uses. For example, spraying water or other liquids that are
contaminated with residual pesticide may result in unforeseen hazards to plant or animal life. This boom should not be used by
people with reduced physical, sensory or mental capabilities or lack of experience and knowledge.
Any Questions, Comments or Parts Orders
Call Kincrome Tools + Equipment 1300 657 528
ITEM NUMBER: K16127
SERIAL NUMBER: _____________

Hazard Signal Word Definitions
2

Table of Contents
3
Summary of Important Safety Information ............................................................................................. 4
During Assembly
During Operation
General Chemical Safety
Chemical Application Safety
ATV Vehicle Handling Safety
Chemical Accident Procedures
Warning Label Locations........................................................................................................................... 7
Component Inventory
Unpacking................................................................................................................................................ 8
Unpacking the Manual Bag ..................................................................................................................... 9
Assembly
Step One: Install tank mounts to bottom of tank ................................................................................... 10
Step Two: Install boom mounts to tank mounts .................................................................................... 11
Step Three: Install boom assembly to boom mounts............................................................................. 12
Step Four: For sprayer item # K16006, K16007.................................................................................... 13
Step Five: Attach boom supply hose to sprayer . .................................................................................. 14
Step Six: Check and test completed assembly....................................................................................... 15
Operation
Important Safety Information - Operation ....................................................................................... 16
General Chemical Safety
Chemical Application Safety
ATV Vehicle Handling Safety
Chemical Accident Procedures
Using the boom kit
Step One: Assess wind conditions and clear work area ................................................................... 20
Step Two: Operate the boom kit....................................................................................................... 21
Step Four: Clean sprayer and decontaminate after use..................................................................... 24
Storage ....................................................................................................................................................... 25
Preparing for storage
Removing from storage
Parts Breakdown – Exploded View......................................................................................................... 26
Appendix A: Boom Spray Calibration Tables ....................................................................................... 28
Limited Warranty..................................................................................................................................... 29

Summary of Important Safety Information
4
WARNING
Read and understand this owner's manual completely before using the sprayer.
Read each chemical label's instructions before handling the chemical.
Improper use of the sprayer boom kit or handling of chemicals could result in serious
injury or illness for the operator or nearby persons/animals, or cause damage to the
environment.
LISTED BELOW is a summary of safety information of particular importance. See
individual sections of this owner's manual for more details.
-------------------------------------- DURING ASSEMBLY -------------------------------
EXERCISE CAUTION when attaching remote switch to battery terminals. Follow the steps listed in the
Assembly section of this manual in exact sequence when connecting the sprayer's remote switch battery clamps
to the battery terminals. Caution must be exercised to avoid contact with battery acid and to prevent sparking.
CHECK and TEST completed assembly as directed in this manual. Serious injury could result from chemical
leaks if sprayer is improperly assembled.
DO NOT MODIFY sprayer design.
------------------------------------- DURING OPERATION ------------------------------
General Chemical Safety
READ and FOLLOW each chemical label's instructions and warnings.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
KNOW applicable licensing and regulatory requirements for the chemical you plan to use.
KNOW emergency procedures before handling chemicals. Carefully review "Chemical Accident
Procedures" listed below and later in this manual. Also see First Aid instructions on the chemical label.
WEAR protective clothing, eye protection, and chemical resistant gloves when filling, using and cleaning
the sprayer. Wear additional protective gear, such as facemask or apron, as recommended on the chemical label.
EXERCISE EXTRA CAUTION around children and pets. Pesticides are especially toxic to them. Keep
sprayer and spray materials away from them at all times.
DO NOT MIX OR POUR chemicals in an enclosed, unventilated area
DO NOT USE flammable or corrosive chemicals in the sprayer.
FLUSH the sprayer before switching chemicals in orderto prevent dangerous chemical interactions.
STORE pesticides in a correctly labeled container and in a secure location.
MONITOR the health of operators frequently exposed to pesticides, as recommended by the chemical label
or local/federal regulations.
Chemical Application Safety
Before Spraying
INSPECT and PREPARE sprayer before each use as directed in this manual.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional spray release.
MAKE SURE BOOM NOZZLES ARE ORIENTED to spray straight down before starting the sprayer. An
incorrectly positioned boom nozzle may spray chemicals on you or others.
DO NOT SPRAY when wind speed exceeds 4 MPH in order to minimize spray drift.
CLEAR work area of people/ pets and POST warning notices to restrict access for the period recommended
on chemical label.
KEEP sprayer and spray materials away from children/pets. Pesticides can be especially toxic to children
and animals.
DO NOT ALLOW anyone younger than 16 to operate sprayer since pesticides are especially toxic to
children.
During Spraying
DO NOT OVERAPPLY pesticide. Apply at rate recommended by chemical manufacturer. Excess pesticide
can be dangerous to humans/animals, damage desirable plants, and contaminate soil and water sources.
DO NOT EAT, DRINK, SMOKE, RUB YOUR EYES, or TOUCH YOUR BARE SKIN while handling
chemicals and spraying.

Summary of Important Safety Information (continued)
5
During Spraying
DO NOT OVERAPPLY pesticide. Apply at rate recommended by chemical manufacturer. Excess pesticide
can be dangerous to humans/animals, damage desirable plants, and contaminate soil and water sources.
DO NOT EAT, DRINK, SMOKE, RUB YOUR EYES, or TOUCH YOUR BARE SKIN while handling
chemicals and spraying.
NEVER POINT THE SPRAY GUN at people or animals.
EXERCISE EXTRA CAUTION when spraying near areas accessible to children and pets.
CLEAN up spills immediately per instructions on the chemical label.
TURN OFF vehicle and set brake or chock wheels, TURN OFF power to sprayer, and RELIEVE system
pressure before leaving sprayer unattended.
SEE Troubleshooting section in the sprayer manual before attempting any repairs. Wear personal
protective equipment and follow safety instructions.
After Spraying
CLEAN sprayer immediately after use according to the directions provided in this manual.
DECONTAMINATE yourself after you are done spraying and have cleaned the sprayer. Wash all exposed
areas of the body with soap and water, and remove and launder clothing.
DISPOSE OF or STORE remaining chemicals in secure storage with correctly marked container.
ATV Vehicle Handling Safety
DO NOT ALLOW drivers younger than 16 to operate ATV with sprayer attached.
EXERCISE SPECIAL CAUTION in ATV vehicle handling and DO NOT exceed 5 KPH.ATV will be
less stable and perform very differently with filled sprayer attached. Exercise particular caution on sloped or
rough surfaces to avoid rollover. Use a vehicle equipped with rollover protection for use on non-level terrain.
DO NOT RIDE or TRANSPORT cargo on the sprayer.

Summary of Important Safety Information (continued)
6
Chemical accident procedures
Immediate response is necessary in the event of sprayer leaks, bodily chemical contact, poisoning, or spills.
See instructions below:
Sprayer leak
If the sprayer develops a leak, immediately stop spraying. Turn off power to the
sprayer and follow directions below, as applicable.
Bodily chemical
contact
Personal contamination can occur when chemicals splash, spill, or spray
directly onto a person.
1. Immediately follow First Aid instructions on chemical label.
General procedures can include:
a) Eyes – immediately flush with water.
b) Skin – wash all contaminated skin surfaces with soap and water.
c) Clothing – remove contaminated clothing. Dispose of heavily
contaminated clothing per chemical label instructions.
2. Seek medical advice if instructed on the label or the victim experiences
symptoms of harmful effects. Bring the chemical label for reference.
Poisoning by
ingestion or
inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 000. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel
because you may become incapacitated.
2. Immediately follow first aid instructions on chemical label.
3. Call a poison control center for further advice. In Australia. Call 13 11 26.
Have the chemical label available for reference.
Chemical spills
Chemical spills must be quickly contained and properly cleaned up.
Refer to the chemical label for any specific clean-up instructions.
General procedures include:
1. Controlling the spill by stopping the source of the spill.
2. Containing the spill so that it does not spread and get into water
sources.
3. Cleaning up the spill immediately.
4. Seeking additional advice from:
- Chemical manufacturer. See chemical label for contact information.
- Contact the APVMA (Australian Pesticides & Veterinary Medicines
Authority), by emailing [e-mail] or calling [phone].

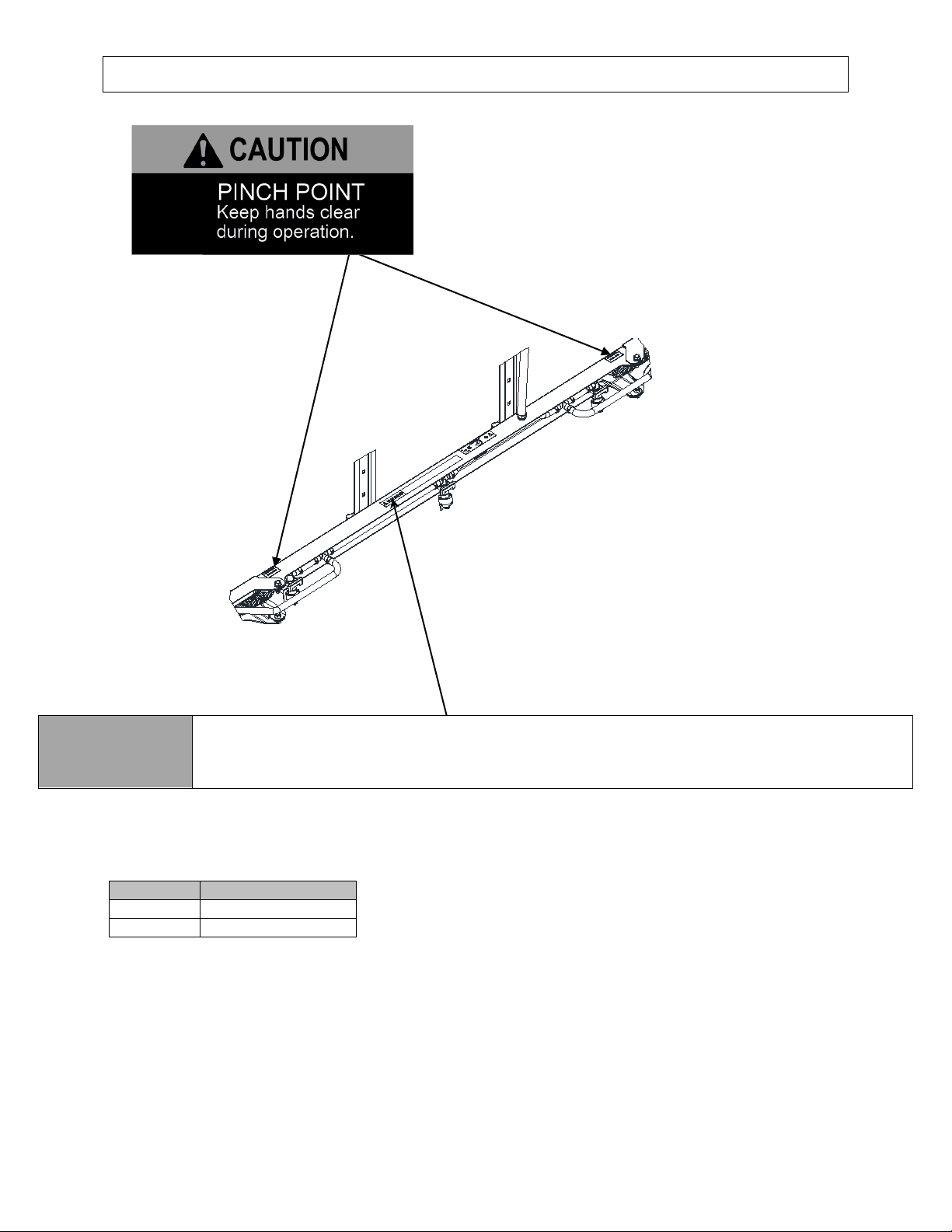

Warning Label Location
7
Always make sure safety labels are in place and in good condition. If a safety label is
missing or not legible, order new labels or unsafe operation could result.
To order replacement safety labels, call Kincrome Customer Service on 1300 657 528.
WARNING
DO NOT SPRAY flammable fluids. RELIEVE SYSTEM PRESSURE before performing any maintenance.
READ and FOLLOW chemical label instructions. Pesticides are hazardous chemicals which must be handled carefully.
EXERCISE CAUTION in vehicle handling. Vehicle will be less stable and handle very differently with filled sprayer and boom attached.
DO NOT TURN ON power to sprayer until ready to spray in order to avoid inadvertent spray release.
ALWAYS keep the work area clear of people and pets. Part No. K16-798894
Part#
Description
K16-798894
Boom Chemical Label
K16-798567
Pinch Point Label

Unpacking
8
Closely inspect all contents in the shipping carton.
Note that some parts are shipped inside the tank.
If you have missing or damaged components, please call Kincrome Customer Service on
1300 657 528
Boom Mount
K16-798537
(Qty 2)
Tank Mount
K16-798538
(Qty 2)
Boom Assembly
(Qty 1)

Unpacking
9

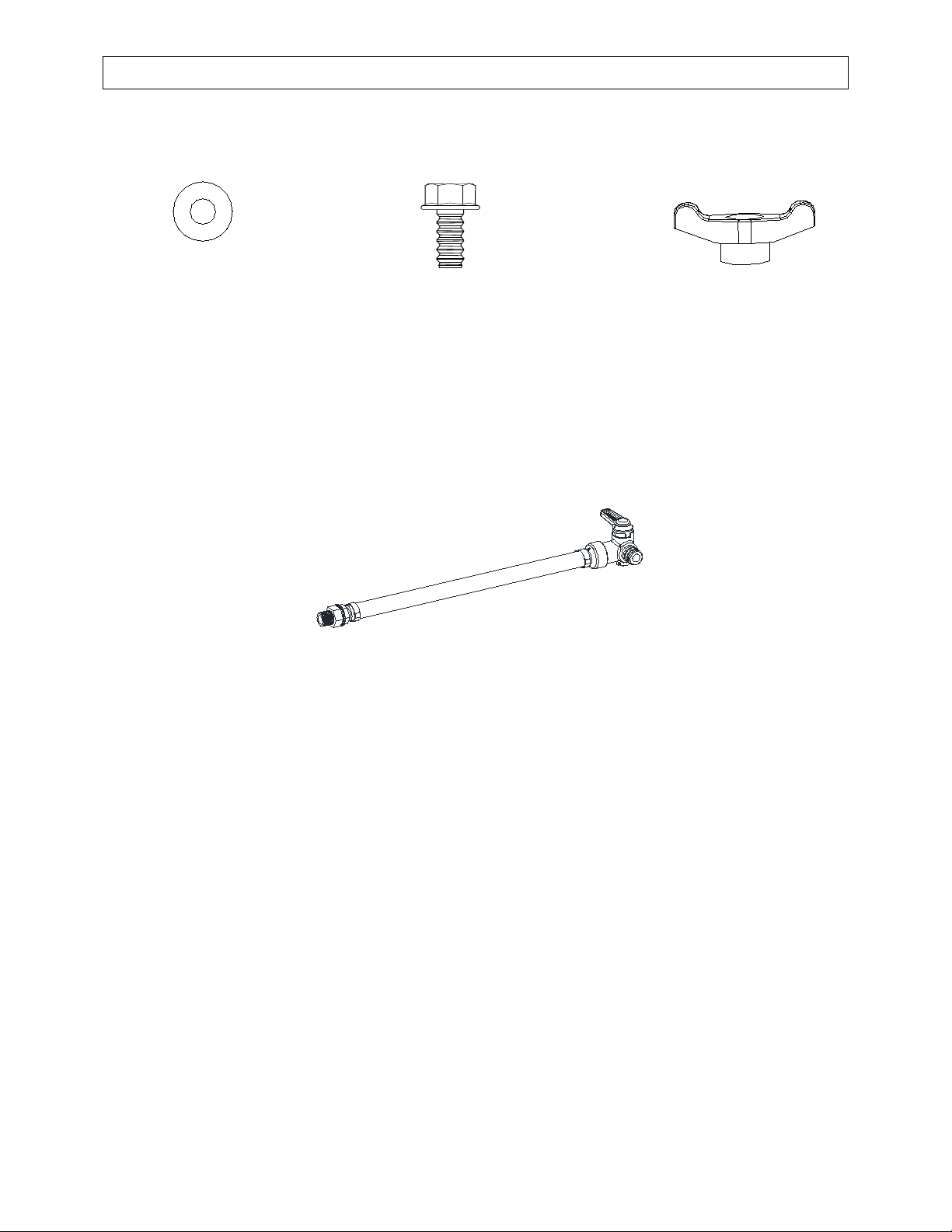

The following items are found in the manual bag.
5/16" USS Flat
Washer
K16-82021
(Qty 4)
5/16" x 3/4" Bolt
K16-82015
(Qty 4)
Locking Knob
K16-38578
(Qty 4)
Boom plumbing assembly
(Qty 1)

Assembly
10

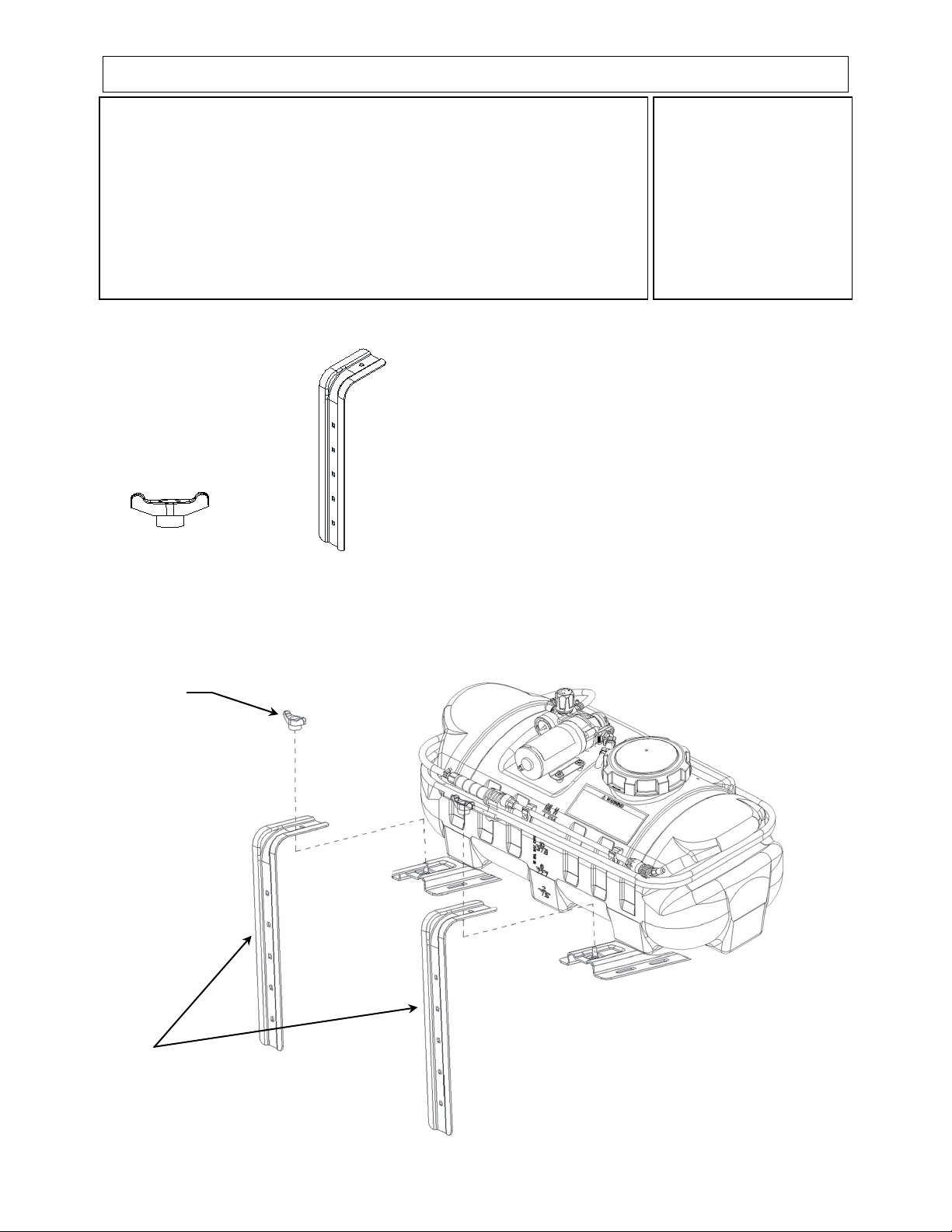

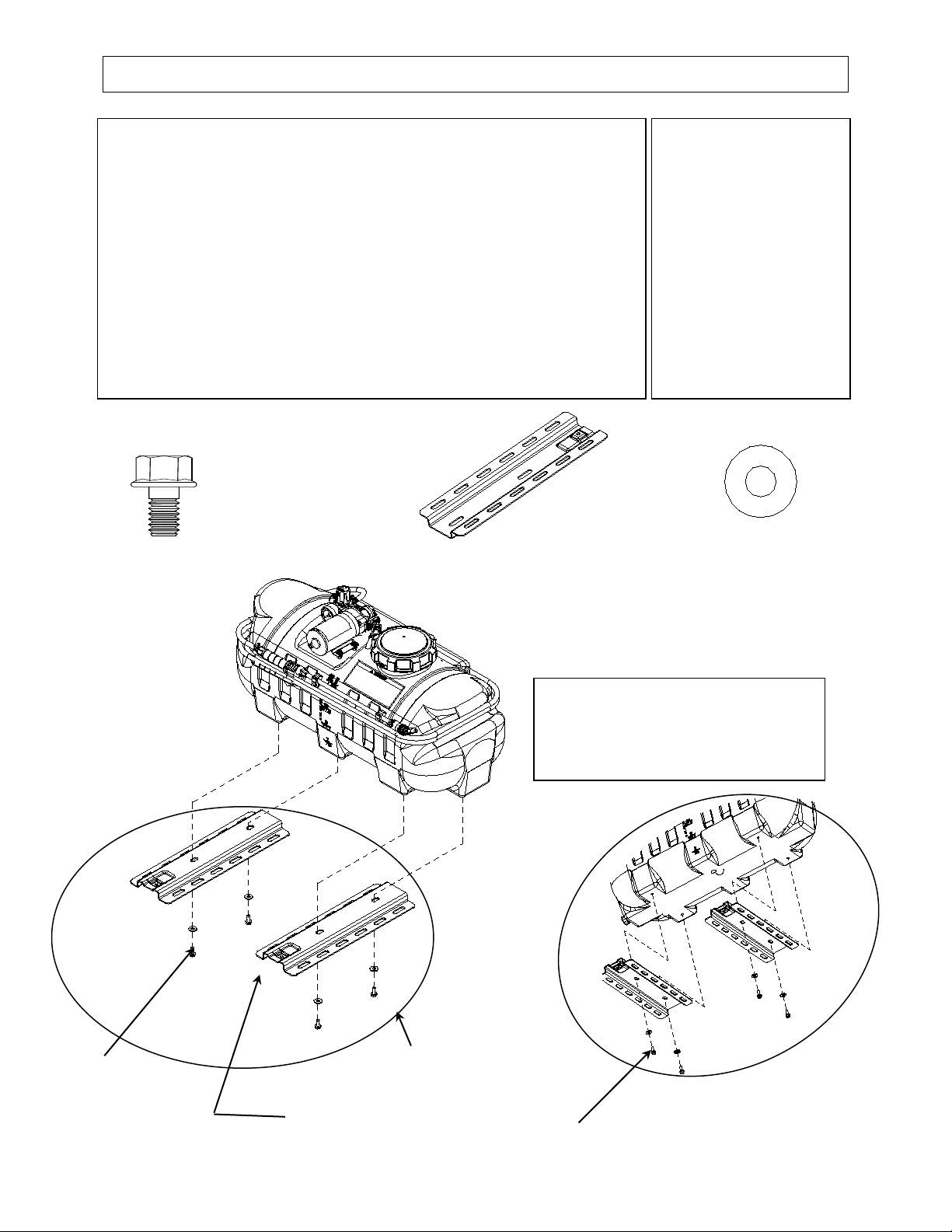

Step 1 – Install tank mounts to bottom of tank
for sprayer item # K16006, K16007
Install tank mounts to tank with four 5/16" x 3/4" bolts and
washers.
Tighten bolts to 5 Ft-lbs.
Note: - Sprayer item #K16005 does not have threaded inserts
in the bottom of the tank. Use straps (not included) to secure
tank to tank mounts.
Tools Needed
1/2" Spanner
Fasteners Needed from Owner’s Manual Bag:
Tank Mount
K16-798538
(Qty 2)
5/16" x 3/4" Bolt
K16-82015
(Qty 4)
5/16" USS Flat
Washer
K16-82021
(Qty 4)
5/16" USS Flat
Washer
Tank Mount
See Detail View
Detail View
5/16 x3/4” Bolt
Fig06575
Note orientation of brackets
with tank. Tank will be
rotated on ATV to face
opposite direction.

Assembly
11
Step 2 - Install boom mounts to tank mounts
Install boom mounts onto two 5/16" x 3/4" bolts in tank
mounts.
Install two locking knobs on the top of boom mounts as
shown in figure below
Tools Needed
None
Fasteners Needed from Owner’s Manual Bag:
Boom Mount
K16-798537
(Qty 2)
Locking Knob
K16-38578
(Qty 2)
Boom Mounts
Locking Knob

Assembly
12

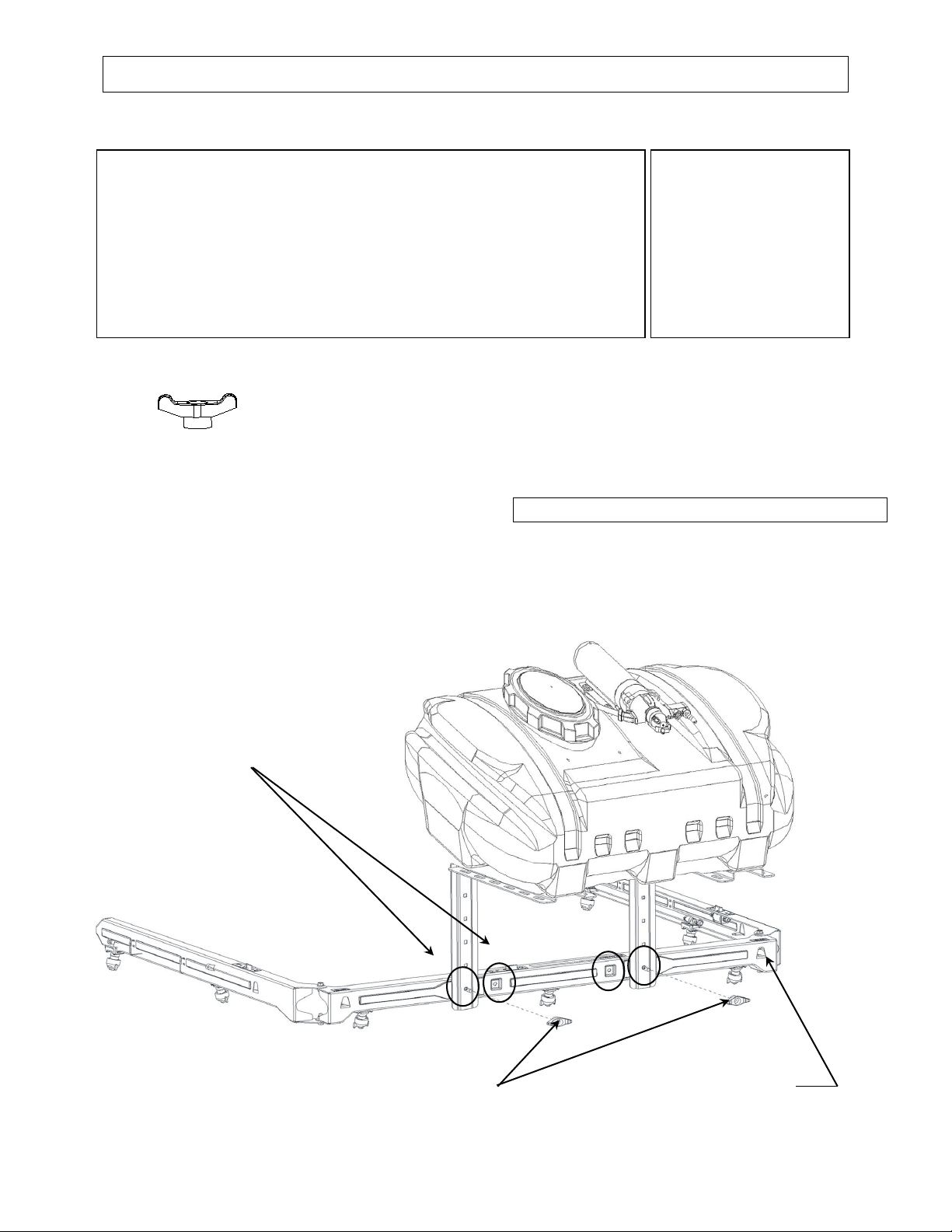

Use "A"mounting holes for K16006, K16007
Step 3 - Install boom assembly to boom mounts
Install two locking knobs to boom mounts to tighten boom
assembly to boom mounts.
Note: Choose boom mounting holes according to sprayer
item number.
Tools Needed
None
Fasteners Needed from Owner’s Manual Bag:
Locking Knob
K16-38578
(Qty 2)
Locking Knobs
Boom Assembly
Choose mounting holes
depending on sprayer
A
B
A
B

Assembly
13
Step 4 –
For sprayer item # K16006, K16007. Conversion kit
is required to make plumbing connection to the pump. See
assembly instructions from that kit (included with K16127).
Tools Needed
None

Assembly
14

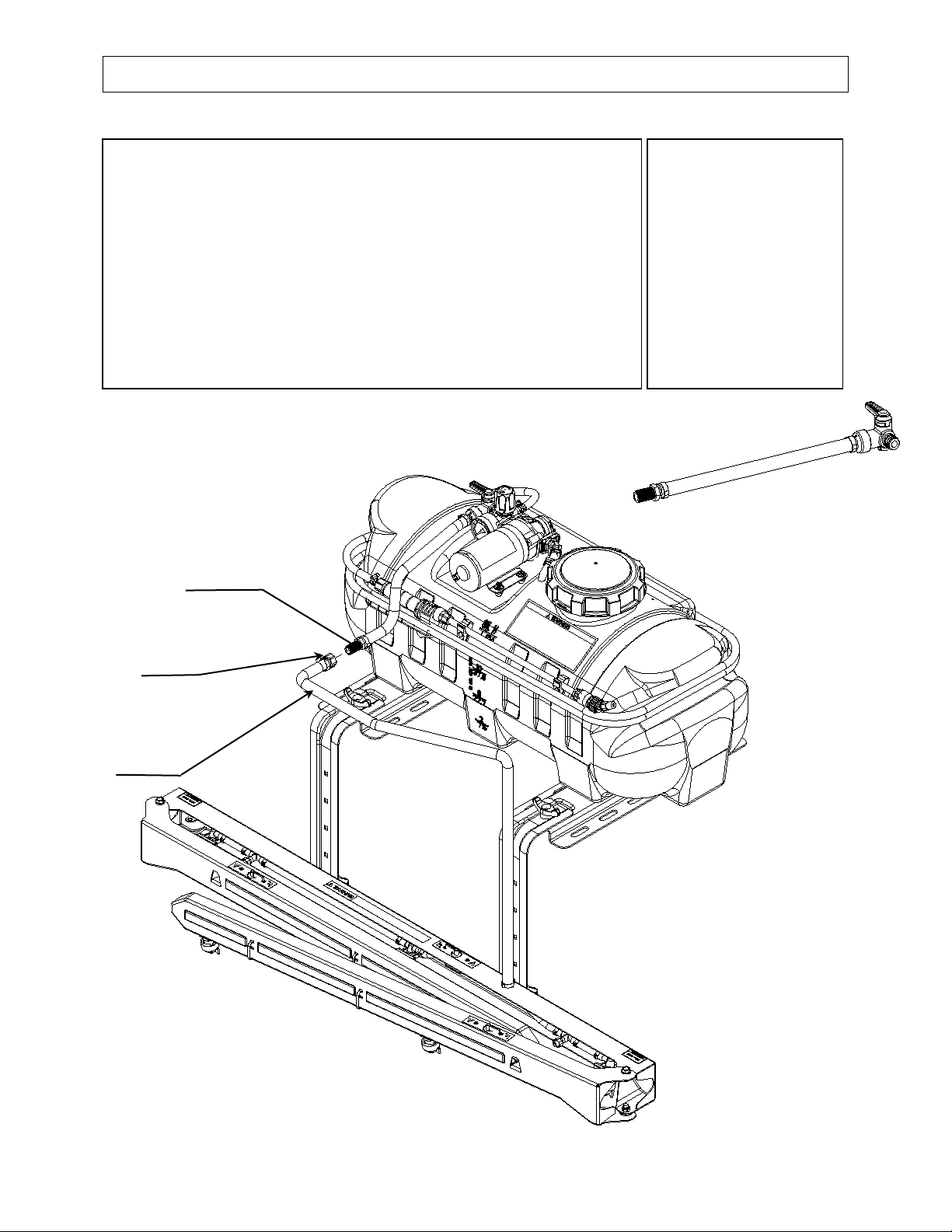

Step 5 - Attach boom supply hose to sprayer
for sprayer item # K16006, K16007
Thread swivel nut from boom supply hose onto boom
connection port.
Tools Needed
None
Components needed from Owner’s Manual Bag:
Fig06577
Boom Connection
Port
Swivel Nut
1/2" Hose
Boom plumbing assembly
(Qty 1)

Assembly
15
Step 6: Check and test completed assembly.
WARNING
Check and test completed assembly
Serious injury could result from chemical leaks if sprayer is improperly
assembled or the design of the sprayer is modified.
Follow the steps below to ensure the sprayer is properly assembled. Never
modify the sprayer design.
1. Check assembly
Check assembly to assure the sprayer is properly assembled and in safe
working condition:
a) Check that the gun clip screws are tight, hose clamps are secure, and tank
straps are properly fastened.
b) While it is unlikely that factory assembled components become loose, they
should also be checked to make sure they are tight.
2. Test with water
Test the system for leaks with water:
a) Partially fill the tank with water.
b) Connect the wire harness to the pump power cord and turn the remote
switch ON. The pump is an "on demand" pump. When turned on, the
pump will prime itself, and then turn off. When the gun trigger is
squeezed, the pump will automatically start.
c) Operate the spray gun by squeezing the gun trigger.
d) Check for leaks throughout the system. If a leak is detected, fix the leak
and re-test the system with water.

Operation – Important Safety Information
16
Now that you have completed and tested your assembly, there is some important safety and health
information you need to know with regard to handling and spraying chemicals, as well as vehicle
handling with the sprayer attached.
WARNING
Carefully read and make sure you understand the following safety information before
using the sprayer.
General Chemical Safety:
WARNING
Pesticides are hazardous chemicals.
Heed the warnings below and follow all instructions carefully.
Improper handling of chemicals can result in serious injury or
illness, or cause damage to the environment.
Chemical label. ALWAYS READ and FOLLOW all chemical label instructions.
Licensing/regulation. Refer to any applicable licensing restrictions or state/federal regulations
with regard to the application of the particular chemical you plan to use.
Emergency procedures. Before handling chemicals, carefully review the "Chemical Accident
Procedures" listed later in this section, as well as the "Statement of Practical Treatment" on the
chemical label.
Inhalation/contact. ALWAYS take precautions to avoid inhaling or coming into contact with
the chemical.
Personal protective equipment. ALWAYS wear protective clothing, eye protection, and
chemical-resistant gloves when filling, using and cleaning the sprayer. Wear additional
protective gear (such as facemask or apron) as recommended on the chemical label.
Children/pets. Pesticides can be especially toxic to children and animals. ALWAYS exercise
extra caution around children. Keep sprayer and all spray materials away from children and
animals.
Ventilation. ALWAYS ensure there is adequate ventilation when mixing, pouring, or spraying.
Flammables. NEVER use any flammable chemicals in the sprayer.
Corrosives. DO NOT use corrosive chemicals in the sprayer. They can weaken the sprayer and
its parts, resulting in leaks. Check with the chemical manufacturer to ensure chemical is
compatible with all components of the sprayer.
Chemical interaction. ALWAYS flush the sprayer before switching chemicals. Different
chemicals may interact dangerously with each other.
Chemical storage. ALWAYS store pesticides in a properly labeled container and in a secure
location per the manufacturer's recommendations.
Health monitoring. Monitor the health of operators who are frequently exposed to pesticides, as
recommended by the chemical label or local/federal regulations.

Operation – Important Safety Information (continued)
17
Chemical Application Safety:
WARNING
Caution must be used when spraying chemicals to avoid unsafe exposure
to humans and the environment.
Heed the warnings below and follow all instructions carefully.
Before Spraying
Sprayer prep. ALWAYS inspect and prepare the sprayer before use according to the
directions provided in this manual.
Keep sprayer off. Do not turn on power to the sprayer until ready to spray in order to avoid
unintentional spray release.
Boom nozzles down. Make sure boom nozzles are oriented to spray straight down before
starting the sprayer. An incorrectly positioned boom nozzle may spray chemicals on you or
others.
Wind speed. NEVER spray when wind speed exceeds 5 KPH in order to minimize spray
drift.
Clear area/post. ALWAYS keep the work area clear of people and pets. POST warning
notices to restrict access by the public for the period recommended on chemical label.
Operator age. You must be 16 years of age or older to operate this sprayer. Pesticides are
especially toxic to children.
During Spraying
Over application. DO NOT over apply pesticide. Apply at a rate recommended by chemical
manufacturer. Excess pesticide can be dangerous to humans, damage desirable plants, and
contaminate soil and water sources.
Never point gun. NEVER point the spray gun at people or animals.
Children/pets. ALWAYS exercise extra caution when spraying near areas accessible to
children and pets.
Eating/smoking. DO NOT eat, drink, smoke, rub your eyes, or touch any part of your bare
skin while handling chemicals and spraying.
Heat/flames. DO NOT spray near open flames or sources of heat.
Spills. ALWAYS clean up spills immediately per instructions on the chemical label.
Unattended. ALWAYS turn off vehicle and set brake or block wheels, turn off power to
sprayer, and relieve system pressure before leaving sprayer unattended.
Troubleshooting. ALWAYS refer to the safety instructions in the Troubleshooting Section
before attempting any repairs.
After Spraying
Clean sprayer. ALWAYS clean the sprayer immediately after use according to the directions
provided in this manual.
Decontaminate. ALWAYS decontaminate yourself immediately after you are finished
spraying and handling chemicals. Wash all exposed areas of the body with soap and water
and remove and launder clothing.
Chemical disposal/storage. ALWAYS dispose of or store remaining chemicals properly as
recommended on the chemical label.

Operation – Important Safety Information (continued)
18
ATV Vehicle Handling Safety:
WARNING
Serious injury can occur if the ATV on which the sprayer is mounted is driven unsafely.
Driver age. You must be 16 years of age or older to operate the ATV with the sprayer attached.
Less stable. Be aware that all vehicle handling will be affected with the filled sprayer attached.
See your ATV's warning label for the hazards associated with driving:
oToo fast
oOn paved surfaces
oOn inclines or rough terrain.
These hazards will be increased drastically as a result of the additional weight and location of
the filled sprayer. The center of gravity will be higher and weight distribution different, causing
the ATV to be less stable when braking, turning, and driving. Exercise extra caution in vehicle
handling. Use particular caution on sloped or rough surfaces in order to prevent rollover. A
vehicle equipped with Roll Over Protection System (ROPS) is recommended if you will be
operating on non-level terrain.
Speed limit. DO NOT exceed 5 KPH with sprayer mounted on ATV.
Ride/transport. NEVER ride or transport cargo on the sprayer.
Chemical accident procedures:
WARNING
Before you fill the sprayer, review the following information with regard
to handling accidents.
Chemical spills, sprayer leaks, personal contamination, and poisoning are
accident situations which you may encounter. All require an immediate
response – See instructions below.
Sprayer leak
In the event that the sprayer develops a leak while spraying chemicals,
you must immediately stop spraying.
Turn off power to the sprayer and follow the directions below, as
applicable.
Bodily chemical
contact
Personal contamination can occur when chemicals splash, spill, or spray
directly onto a person.
1. Follow the emergency first aid instructions on the chemical label listed in
the "First Aid" or "Statements of Practical Treatment" section.
General procedures include:
a) Eyes – immediately flush with water or follow other directions as
specified on the chemical label.
b) Skin – immediately wash all contaminated skin surfaces with soap
and water, or follow directions as specified on the chemical label.

Operation – Important Safety Information (continued)
19
c) Clothing – remove contaminated clothing immediately. Dispose of
heavily contaminated clothing per the instructions on the chemical label for
safe chemical/container disposal.
2. Seek medical advice if instructed on the label, or if the victim experiences
symptoms of harmful effects such as burning, swelling, nausea, chest
pain, difficulty breathing, dizziness or confusion. When seeking medical
advice, be sure to bring the chemical product label.
Poisoning by
ingestion or
inhalation
In case of poisoning from ingestion or inhalation:
If the victim has collapsed or is not breathing, call 000. Otherwise:
1. If you are the victim, immediately seek assistance from nearby personnel
because you may become incapacitated.
2. Immediately follow first aid instructions on chemical label.
3. Call a poison control center for further advice. In Australia, Call 13 11
26. Have the chemical label available for reference.
Chemical spills
Chemical spills must be quickly contained and properly cleaned up.
Refer to the chemical label for any specific clean-up instructions.
General procedures include:
1. Controlling the spill by stopping the source of the spill.
2. Containing the spill so that it does not spread and get into
water sources.
3. Cleaning up the spill immediately.
4. Seeking additional advice from:
- Chemical manufacturer. See chemical label for contact
information.
- Contact the APVMA (Australian Pesticides & Veterinary Medicines
Authority), by emailing [email protected].au or calling
[phone].
