DK2 BCR690E User manual

2 | BCR690E man. v.210310
ENGLISH
SECTION I: WARNINGS

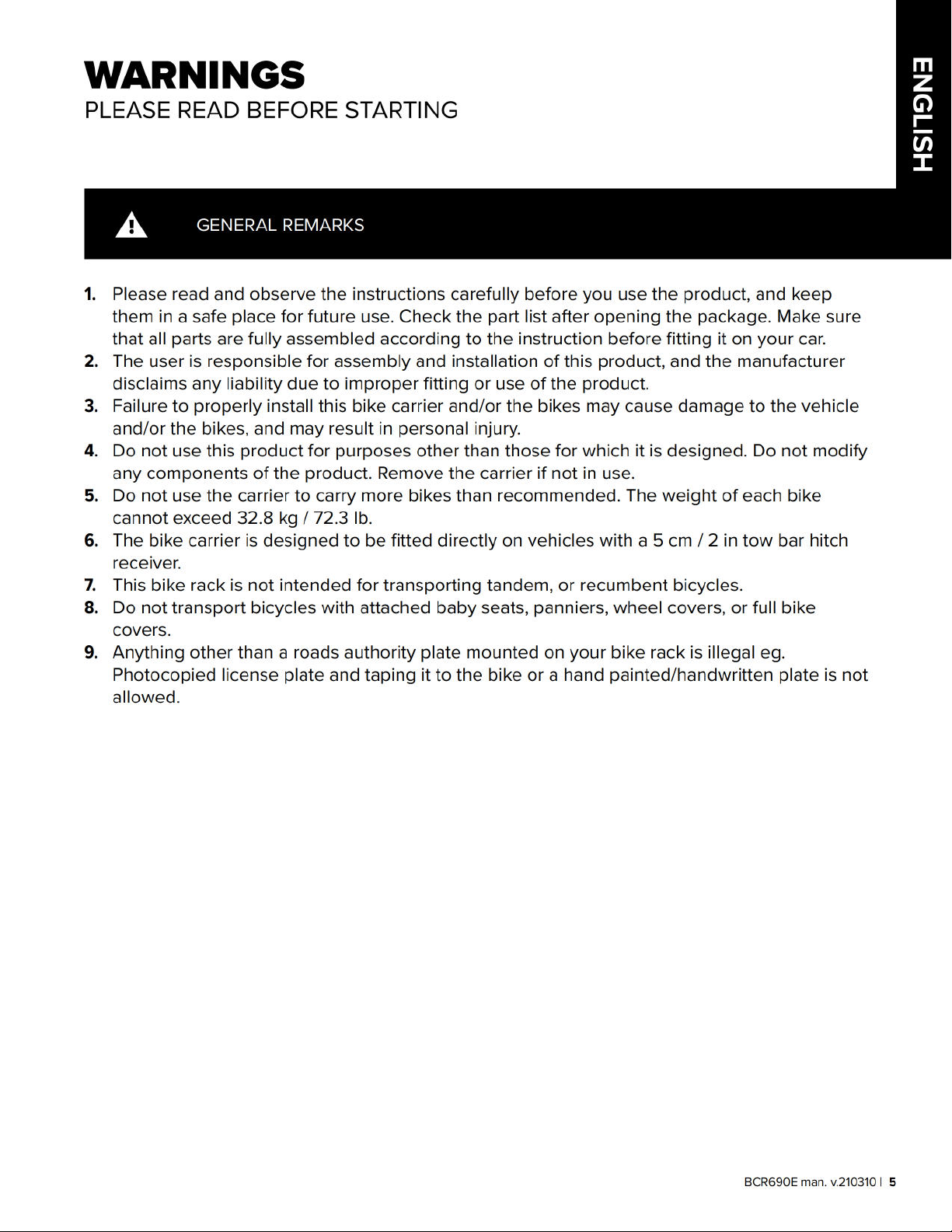

GENERAL REMARKS ..................................................................5

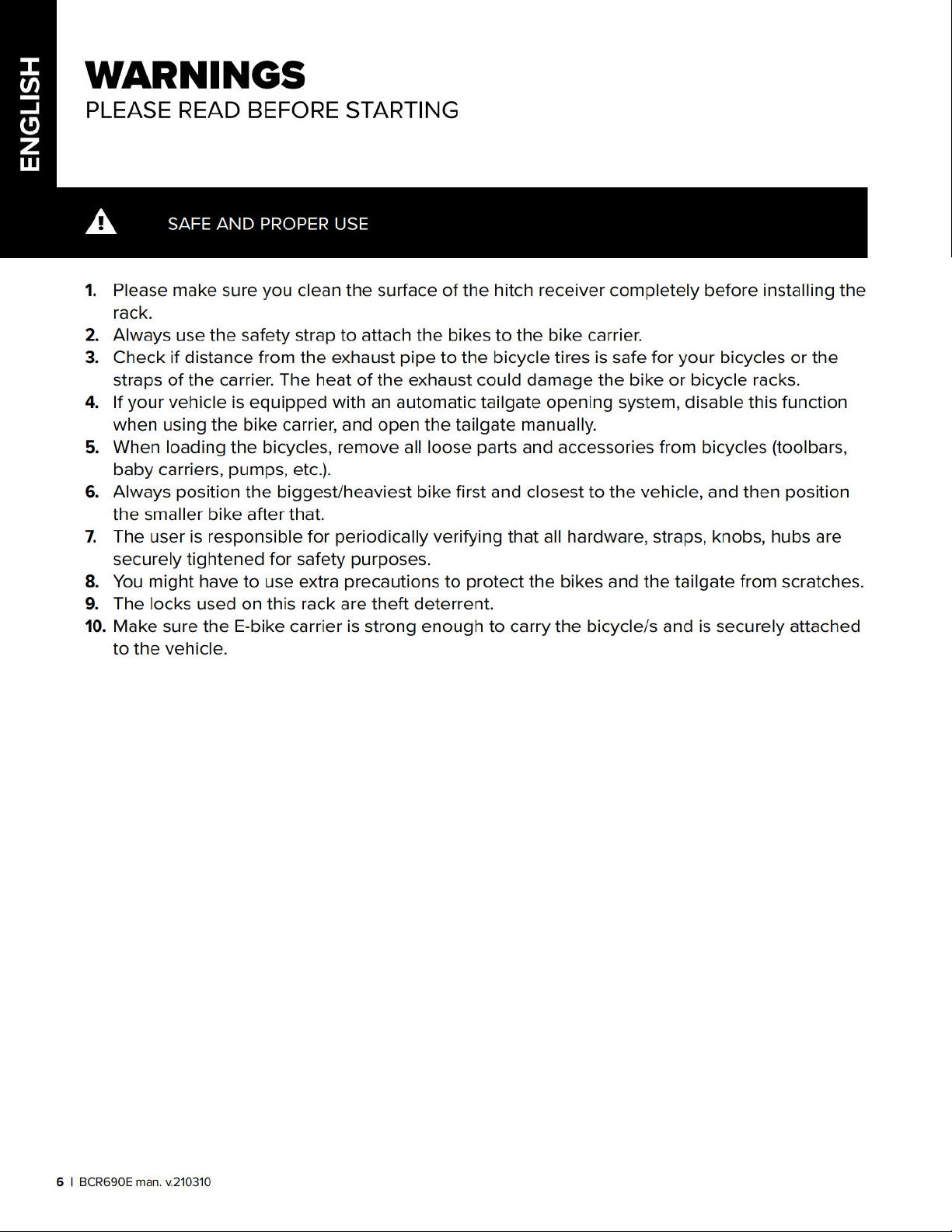

SAFE AND PROPER USE ..............................................................6
ROAD SAFETY .......................................................................7

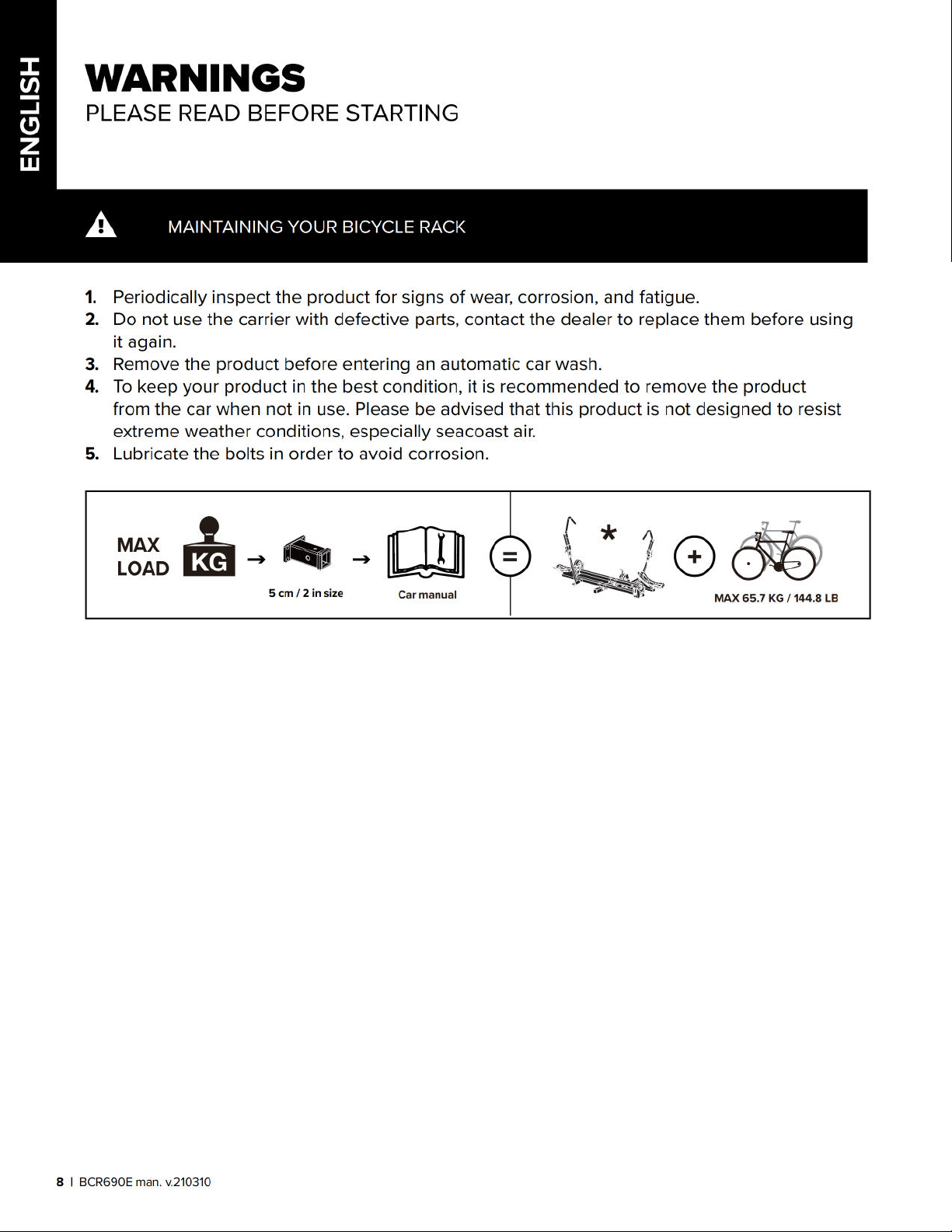

MAINTAINING YOUR BICYCLE RACK....................................................8
SECTION II: ASSEMBLY

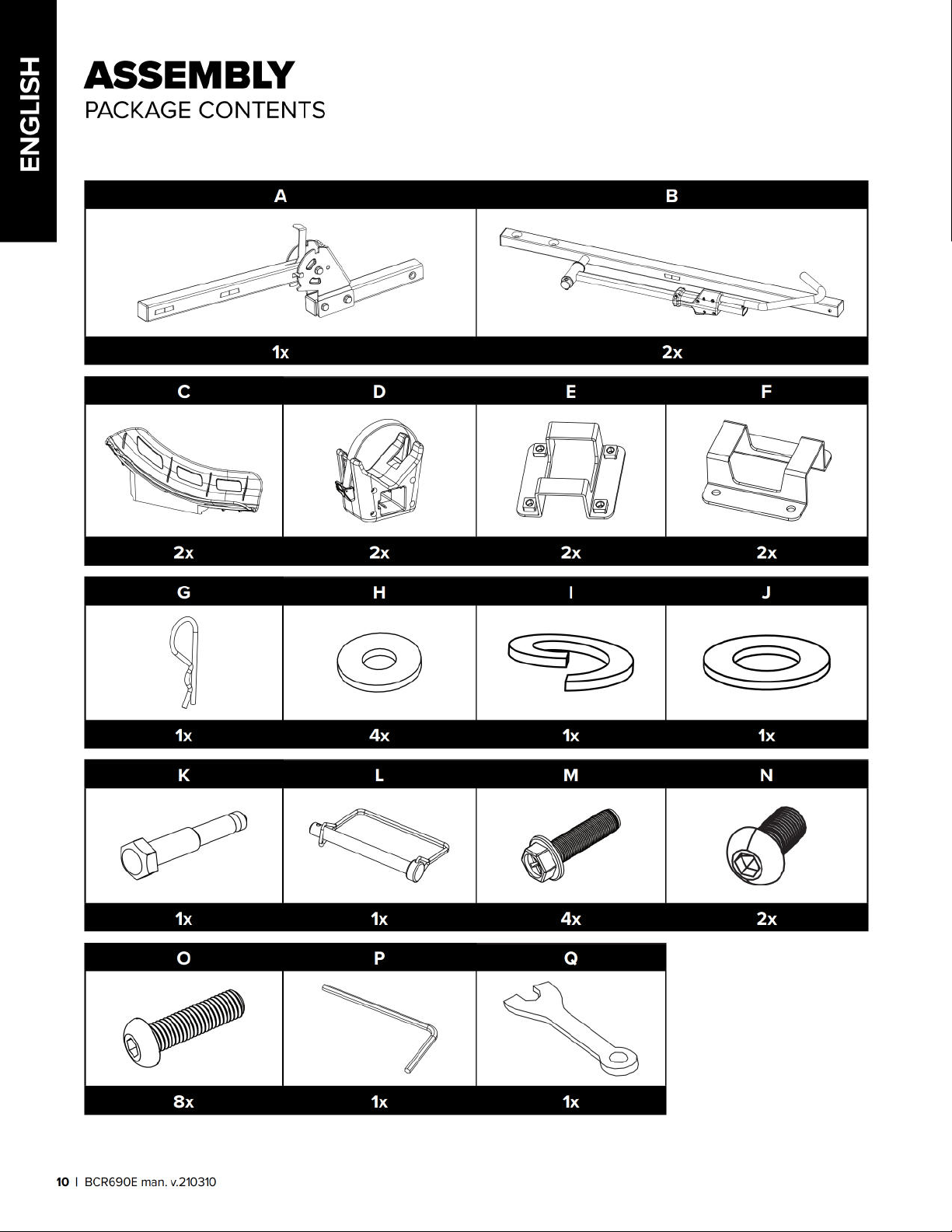

PACKAGE CONTENTS................................................................10

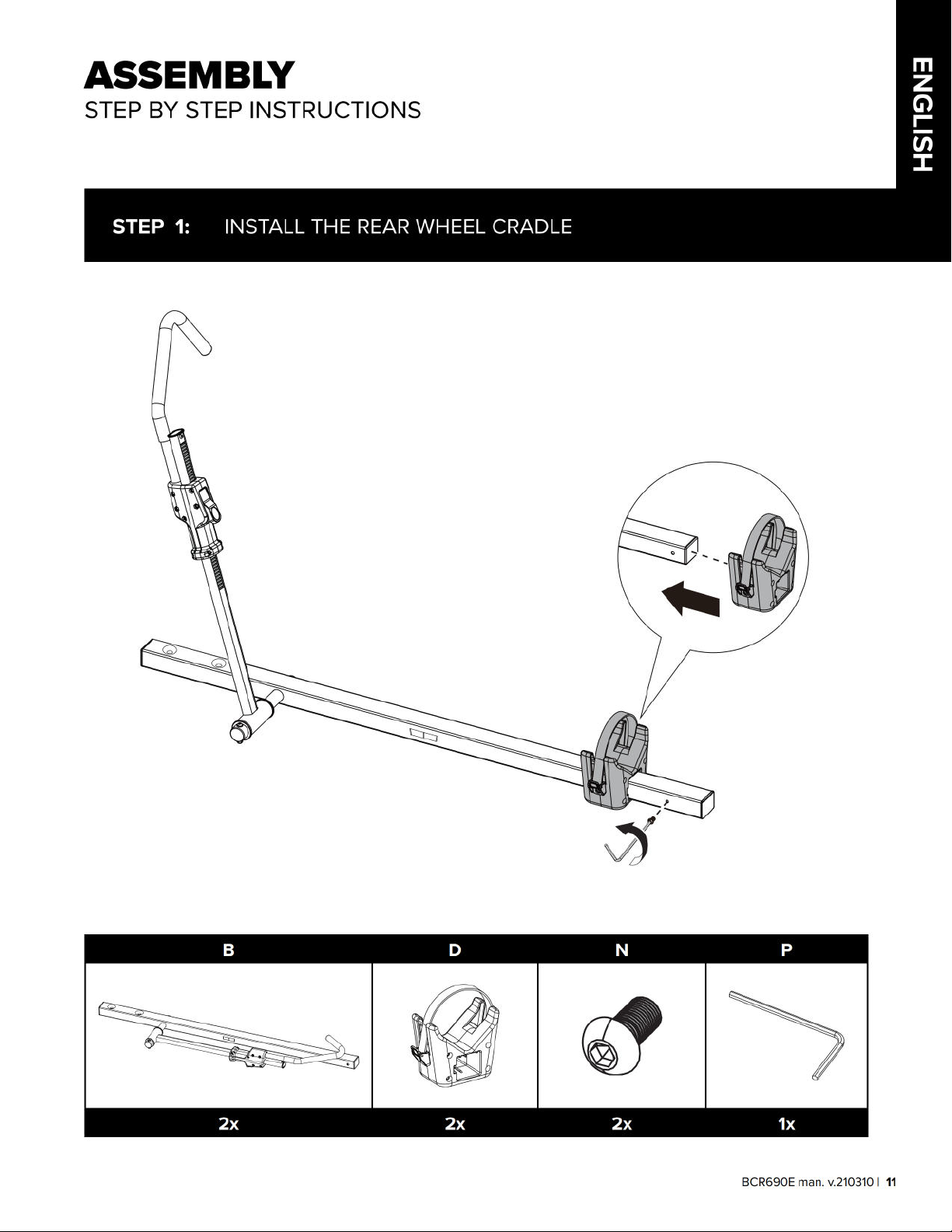

STEP 1: INSTALL THE REAR WHEEL CRADLE.............................................11

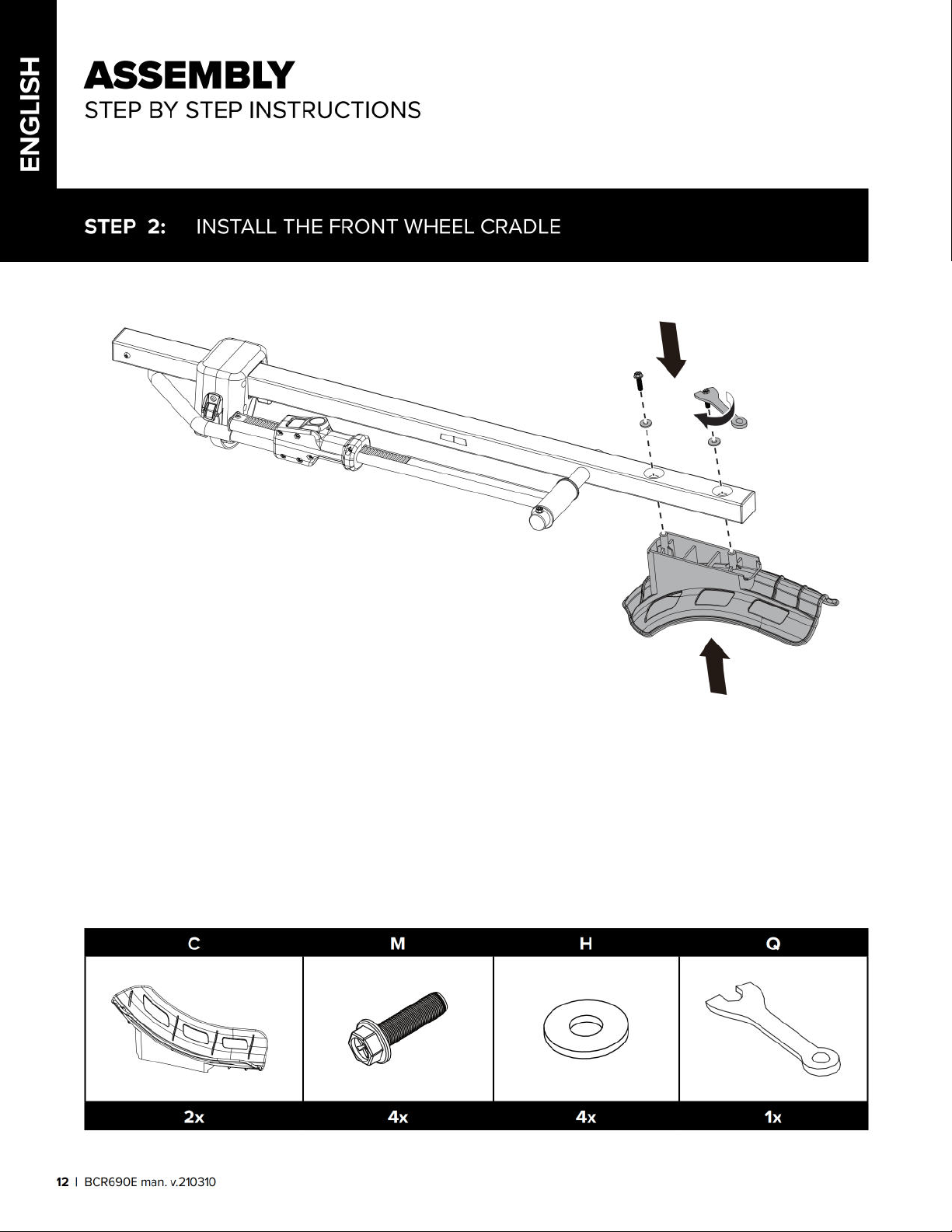

STEP 2: INSTALL THE FRONT WHEEL CRADLE..........................................12

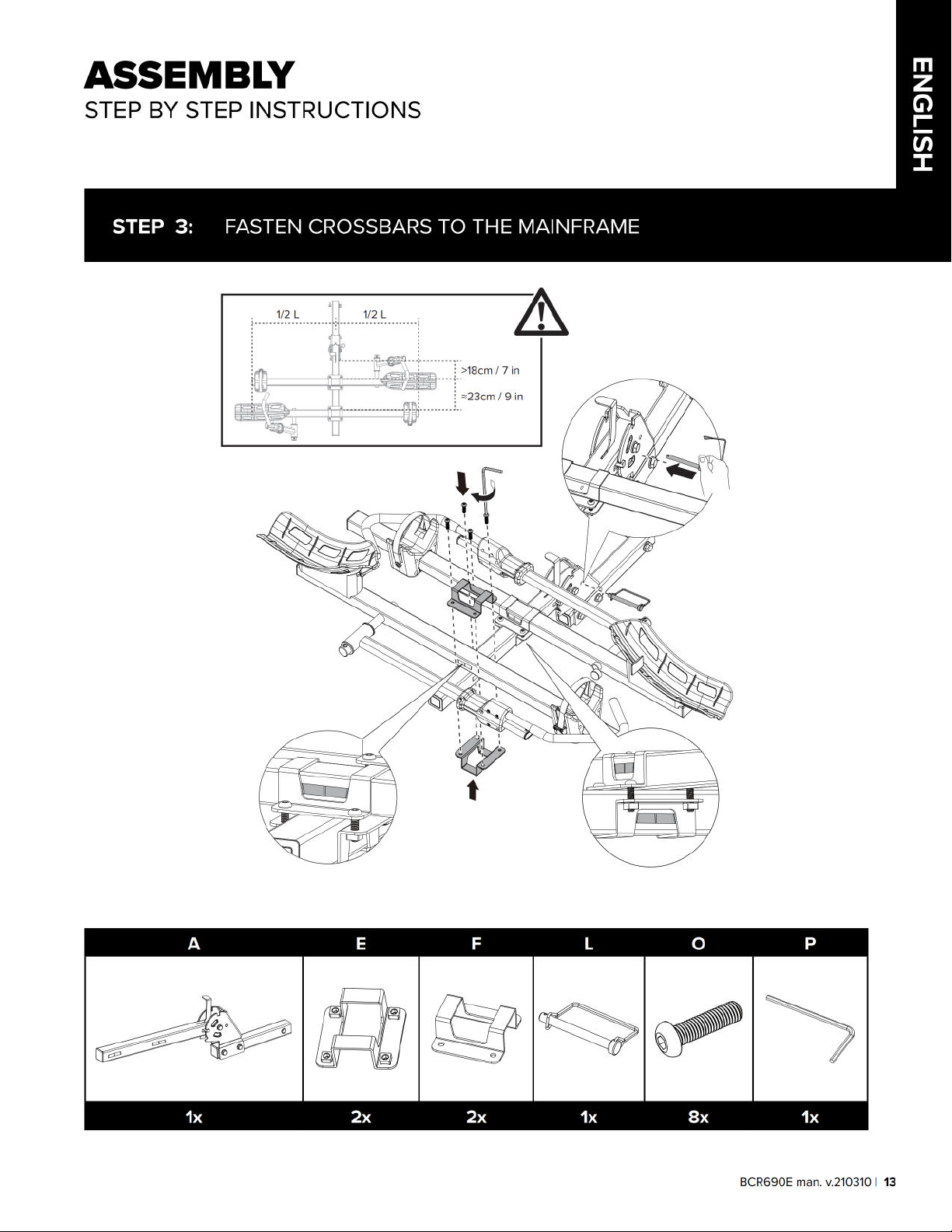

STEP 3: FASTEN CROSSBARS TO THE FRAME ..........................................13
STEP 4: ATTACH THE BIKE RACK TO THE HITCH RECEIVER ..............................14
STEP 5: ADJUSTING THE SAFETY CRADLES............................................15
STEP 6: SAFE FOLDING PROCEDURE..................................................16
PRODUCT DIAGRAM................................................................. 17
FULL PARTS LIST ....................................................................18
LIMITED 1 YEAR WARRANTY ..........................................................19
COSTCO GLOBAL ADDRESS LISTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TABLE OF CONTENTS

BCR690E man. v.210310 | 3
ENGLISH
SPECIFICATIONS
ITEM NUMBER BCR690E
CONSTRUCTION Powder-coated steel
COMPATIBILITY Most E-Bikes
TIRE SIZE COMPATIBILITY 40.6 cm - 73.6 cm / 15.9 in - 28.9 in
MAX TIRE WIDTH 12.1 cm / 4.7 in
FOLDED DIMENSIONS 157 cm (l) x 108 cm (w) x 42 cm (h) >> 85 cm (depth from vehicle hitch)
61.8 in (l) x 42.5 in (w) x 16.5 in (h) >> 33.4 in (depth from vehicle hitch)
UNFOLDED DIMENSIONS 157 cm (l) x 108 cm (w) x 110 cm (h) >> 85 cm (depth from vehicle hitch)
61.8 in (l) x 42.5 in (w) x 43.3 in (h) >> 33.4 in (depth from vehicle hitch)
NET WEIGHT 20 kg / 44 lb
BIKE WEIGHT CAPACITY 32.8 kg / 72.3 lb
TOTAL WEIGHT CAPACITY 65.7 kg / 144.8 lb
RECEIVER Fits on a 5cm / 2 in hitch receiver

BCR690E man. v.210310 | 15
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS

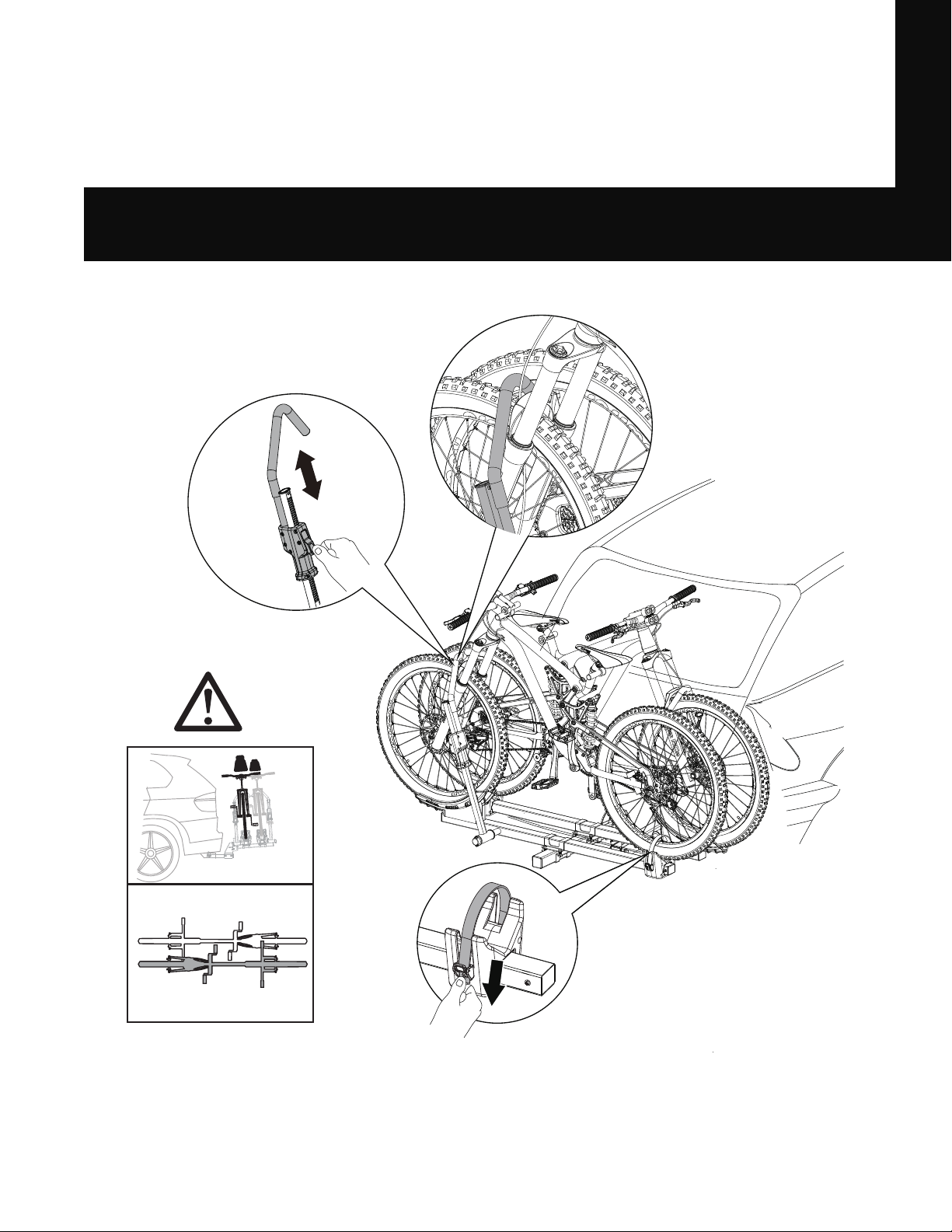

STEP5: ADJUSTING THE SAFETY CRADLES

16 | BCR690E man. v.210310
ENGLISH
ASSEMBLY
STEP BY STEP INSTRUCTIONS
STEP6: SAFE FOLDING PRODEDURE
C
A
B
1
2
Carrier can fold when
not in use.

BCR690E man. v.210310 | 17
ENGLISH

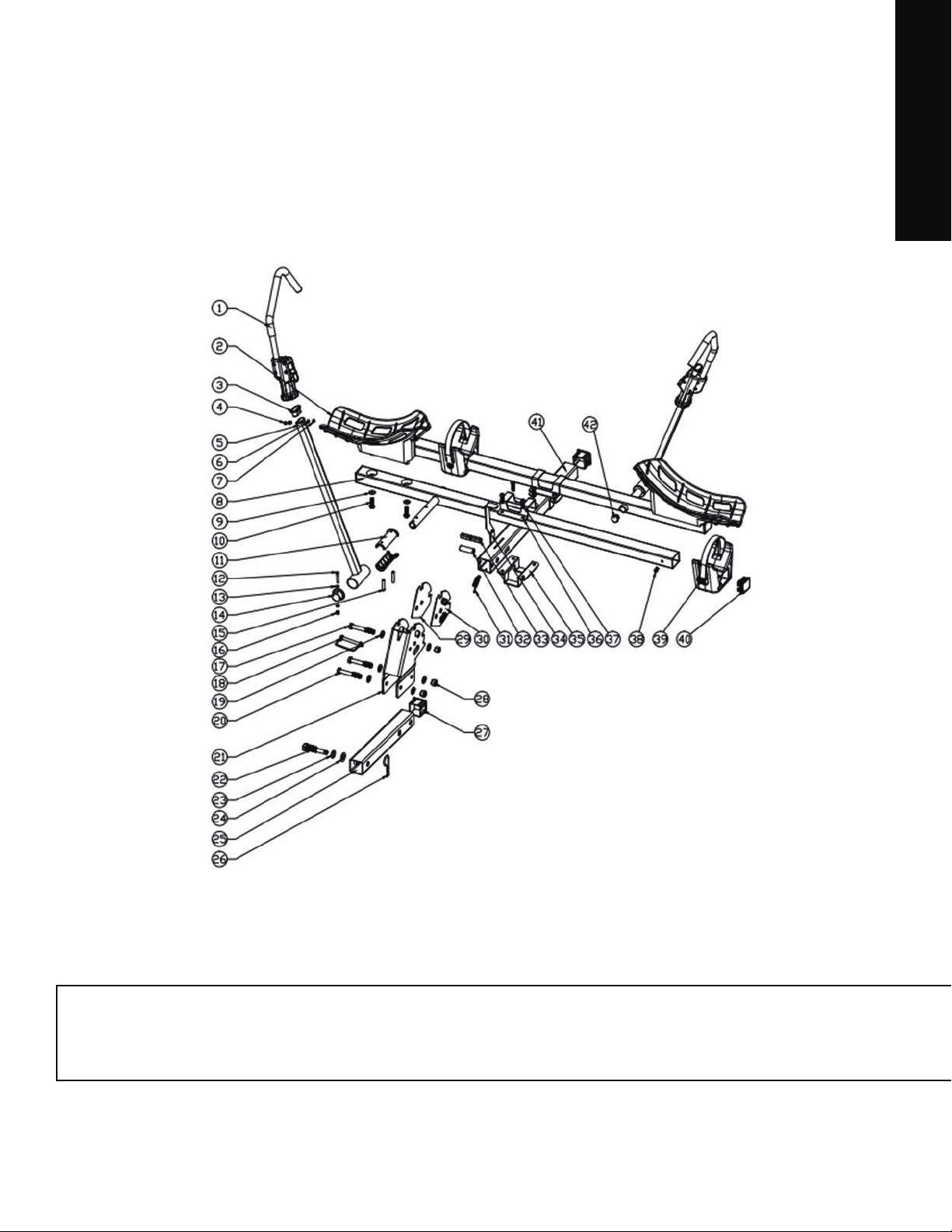

NOTE: If you need replacement parts please use this diagram and list to ensure the right part is
ordered for you.
ASSEMBLY
PRODUCT DIAGRAM

18 | BCR690E man. v.210310
ENGLISH
No Description Qty
1 bike hook 2
2 front wheel 2
3 tube cap 2
4 hexagon round head screw M5*25 half thread 2
5 hook tube profile 2
6 washer M5*10*1 2
7 M5 lock nut 2
8 bike tube profile 2
9 washer M8*20*1.5 4
10 cross hexagon head screw M8*25 4
11 plastic cover for hook tube 4
12 hexagon round head screw M6*40 2
13 washer M6*12*1 4
14 hook round tube cap 2
15 flex round pin for hook 4
16 lock nut M6 2
17 hexagon screw M12*85 half thread 1
18 quick fixing pin 1
19 washer 12*24*2.5 6
20 hexagon screw M12*80 half thread 2
21 hitch basic plate 1
22 hitch pin M16*95 1
23 flex washer M16 1
24 washer M16*30*2 1
25 2 inch hitch receiver 1
26 B pin 4*85 1
27 2 inch hitch receiver cap 2
28 lock nut M12 3
29 left plastic sheet for hitch plate 1
30 right plastic sheet for hitch plate 1
31 spring 1
32 tube inside pin 12*17*50 1
33 metal matt 1
34 tilting handle 1
35 tube connector plate with nut 2
36 tube connector plate 2
37 head hexagon screw M8*30 8
38 head hexagon screw M6*12 2
39 rear wheel holder 2
40 tube profile cap 4
41 tilting tube 1
42 hook round tube ending cap 2
ASSEMBLY
FULL PARTS LIST

BCR690E man. v.210310 | 19
ENGLISH
WARRANTY
LIMITED 1 YEAR WARRANTY
WHAT IS COVERED
Detail K2 INC. warrants to the original purchaser of a Detail K2 item that the product will be
warrantied for a period of one (1) year from the date of the original purchase.
If within one (1) year from the original date of purchase this product fails due to defect in material
or workmanship, Detail K2 will repair, replace, or supply any defective part at our option. Upon
expiry of one (1) year, Detail K2 will have no further liability related to the product.
Detail K2 does not authorize any party, including its authorized distributors or dealers, to oer
any other warranty on behalf of Detail K2 Inc.
THIS WARRANTY DOES NOT COVER OR APPLY TO:
a) Damage to the product due to misuse, mishandling and abuse
b) Improper installation, maintenance and storage
c) Expendable parts such as nuts and bolts, pins and springs
d) Normal wear and tear
e) Consequential damage and incidental damages such as damage to persons or property
This Detail K2 product is intended for personal use only. It is not intended for commercial use
and subsequent use in this capacity will void all warranty claims.
PROCEDURE FOR OBTAINING A RETURN AUTHORIZATION
Within the one (1) year warranty period, the purchaser of the product must notify an authorized
distributor or dealer of the claimed defect and provide proof of original purchase. At this
time the validity of the claim will be determined and a Return Goods Authorization Number
(RGA) will be issued if approved. No returned product will be accepted under warranty unless
accompanied by an RGA# issued by Detail K2 Inc.
RESOLUTION FOR A DEFECTIVE PRODUCT
Detail K2 Inc. will at its option repair or replace the defective product covered by this warranty.
The repaired product will be shipped to the purchaser upon completion. All transportation
charges shall be the responsibility of the purchaser. Any damage in transit will be the
responsibility of the carrier or at the risk of the purchaser.
REGISTERING YOUR PRODUCT
Please take a minute and visit our website to register your product at www.detailk2.com
AUSTRALIA
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any
other reasonably forseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
