DK2 BCR790E User manual

CUSTOMER SERVICE 1 [phone] | MONDAY - FRIDAY 8AM - 4PM EST | WWW.DK2.COM
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
DK2 USA WEST
3311 MEADE AVENUE STE
E DOCK 13, LAS VEGAS, NEVADA
89102 USA
DK2 USA EAST
3750 SOUTH AVENUE
NORTH UNIT, TOLEDO, OHIO
43615 USA
DK2 CORPORATE HEAD OFFICE
5330 MAINWAY
BURLINGTON, ONTARIO
L7L6A4 CANADA
BCR790E
HITCHMOUNTED EBIKE PLATFORM
CARRIER
USER MANUAL

2 | BCR790E man.
WARRANTY
WHAT IS COVERED
Detail K2 Inc. warrants to the original purchaser of a Detail K2 item that the product will be warrantied for a period
of one (1) year from the date of the original purchase.
If within one (1) year from the original date of purchase this product fails due to defect in material or workmanship,
Detail K2 Inc. will repair, replace, or supply any defective part at our option. Upon expiry of one (1) year, Detail K2
Inc. will have no further liability related to the product.
Detail K2 Inc. does not authorize any party, including its authorized distributors or dealers, to oer any other
warranty on behalf of Detail K2 Inc.
THIS WARRANTY DOES NOT COVER OR APPLY TO:
a) Damage to the product due to misuse, mishandling and abuse
b) Improper installation, maintenance and storage
c) Expendable parts such as nuts and bolts, pins and springs
d) Normal wear and tear
e) Consequential damage and incidental damages such as damage to persons or property
This Detail K2 Inc. product is intended for personal use only. It is not intended for commercial use and subsequent
use in this capacity will void all warranty claims.
PROCEDURE FOR OBTAINING A RETURN AUTHORIZATION
Within the one (1) year warranty period, the purchaser of the product must notify an authorized retailer or DK2 Inc.
of the claimed defect and provide proof of original purchase. At this time the validity of the claim will be determined
and a Return Goods Authorization Number (RGA) will be issued if approved. No returned product will be accepted
under warranty unless accompanied by an RGA# issued by Detail K2 Inc.
RESOLUTION FOR A DEFECTIVE PRODUCT
Detail K2 Inc. will at its option repair or replace the defective product covered by this warranty. The repaired
product will be shipped to the purchaser upon completion. All transportation charges shall be the responsibility of
the purchaser. Any damage in transit will be the responsibility of the carrier or at the risk of the purchaser.
REGISTERING YOUR PRODUCT
Please take a minute and visit our website to register your product at www.dk2.com
ENGLISH

Gen.1 - v.230227 | 3
ONLINE RESOURCES
LEARN MORE ABOUT YOUR PRODUCT
Visit your product’s web page by visiting www.detailk2.com/
bcr790e-info where you can find all sorts of information specific
to your product, from description, to photos/videos, specifications,
and support. You can also visit this page on your mobile device by
scanning the PRODUCT PAGE QR Code on the left.
PURCHASING REPLACEMENT PARTS
In need of replacement parts? You can visit https://detailk2.com/
shop-auto-accessories where you can purchase anything from
small to large items. You can also shop on your mobile device by
scanning the PARTS STORE QR Code on the left and you’ll be
directed to our online store.
VIEW THIS USER MANUAL ON YOUR PHONE
Scan the USER MANUAL QR Code on the left to view this product’s
user manual on your mobile device. You may save the manual to
your phone or keep it open in your phone’s internet browser for
future use.
PARTS STORE
USER MANUAL
PRODUCT PAGE
ENGLISH

4 | BCR790E man.
TABLE OF CONTENTS
WARRANTY..........................................................................2
ONLINE RESOURCES .................................................................3
TABLE OF CONTENTS ................................................................4
TECHNICAL SPECIFICATIONS..........................................................5
SECTION I  SAFETY ..............................................................6
SAFETY CONVENTIONS ..............................................................7
BEFORE OPERATION .................................................................7
GENERAL REMARKS ..................................................................8
SAFE AND PROPER USE ..............................................................8
ROAD SAFETY .......................................................................9
MAINTAINING YOUR CARRIER .........................................................9
SECTION II  ASSEMBLY ..........................................................10
PACKAGE CONTENTS.................................................................11

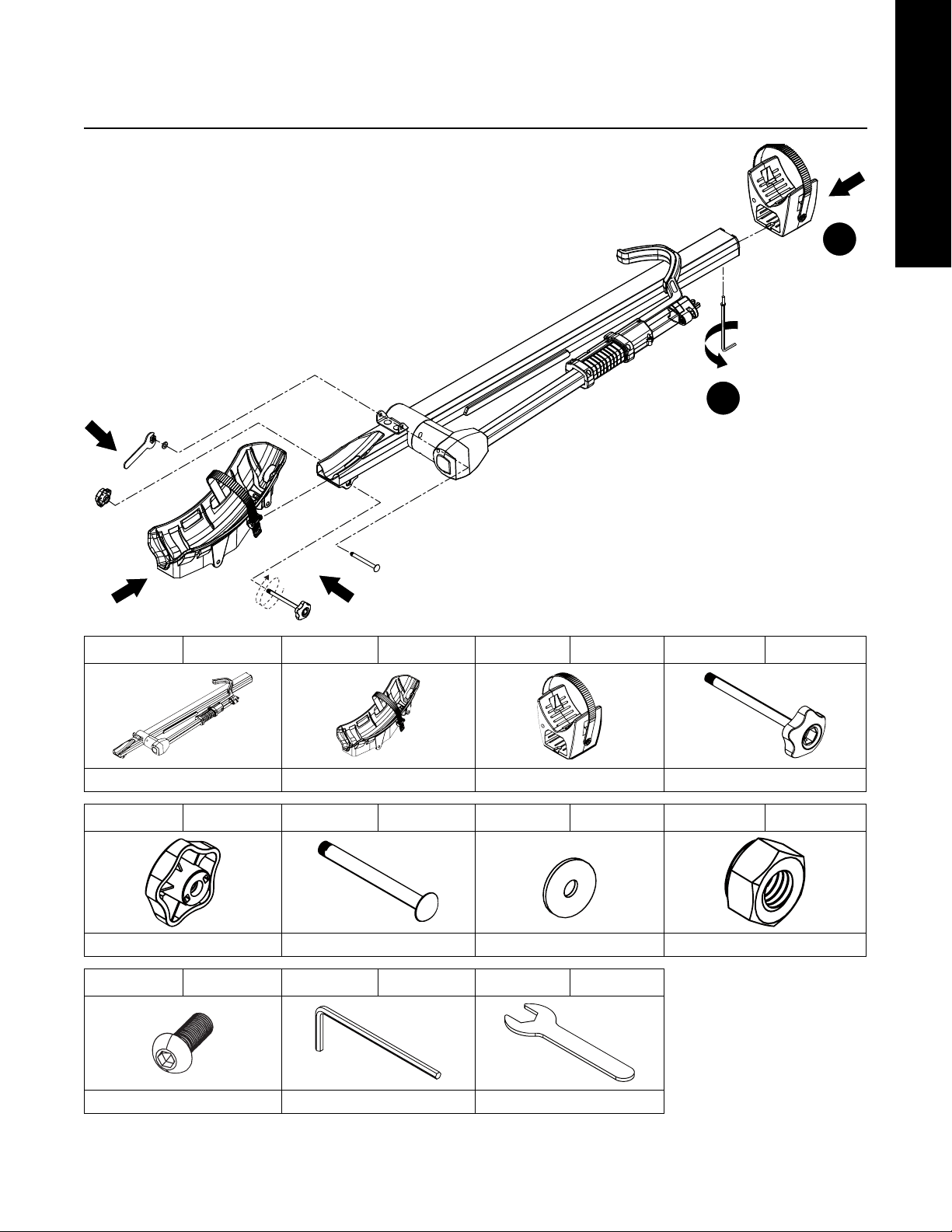

STEP 1: INNER RACK .................................................................12
STEP 2: OUTER RACK ................................................................13

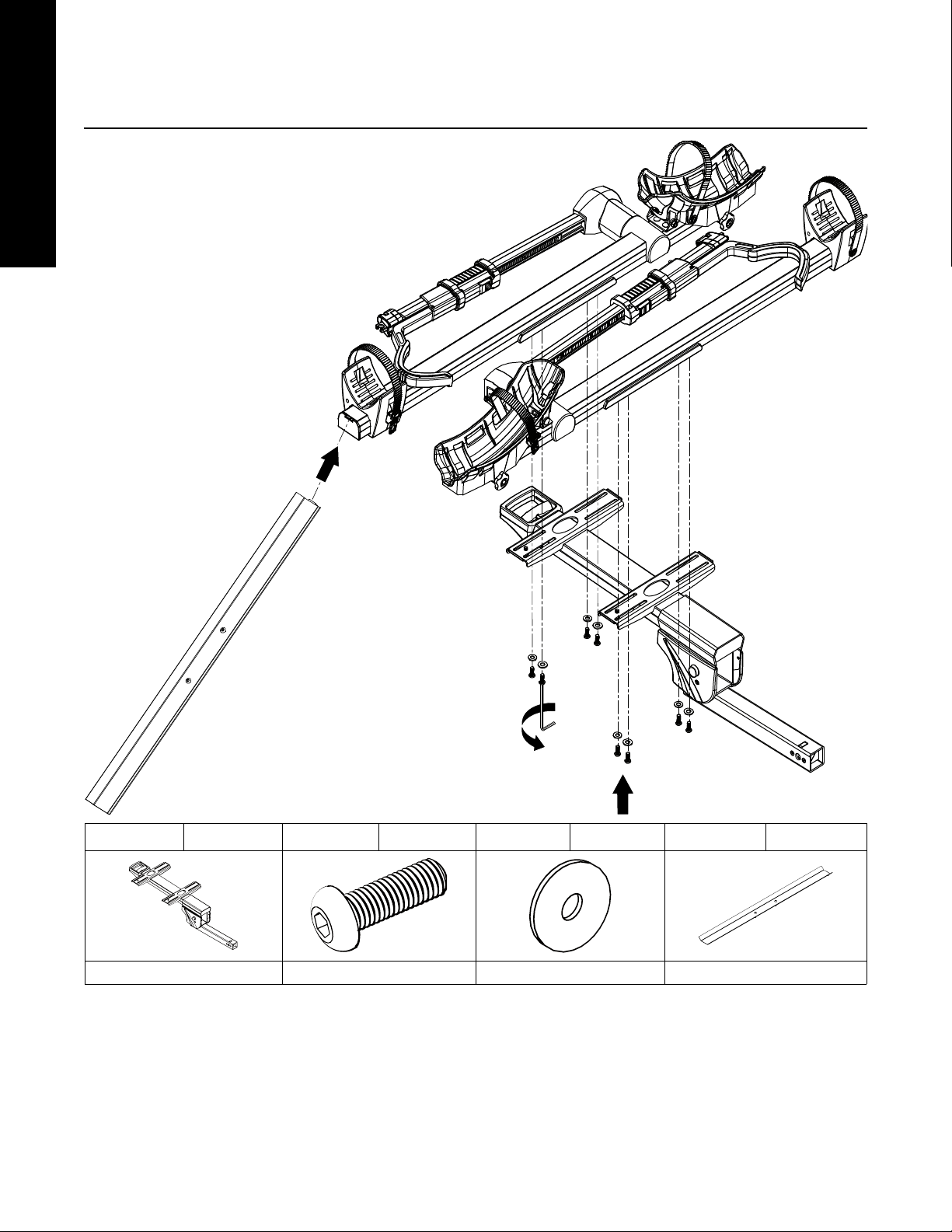

STEP 3: BASE .......................................................................14
SECTION III  INSTALLATION & USE ................................................15
STEP 1: CARRIER MOUNTING .........................................................16
STEP 2: BIKE MOUNTING............................................................. 17
STEP 3: SECURING THE BIKES .......................................................18

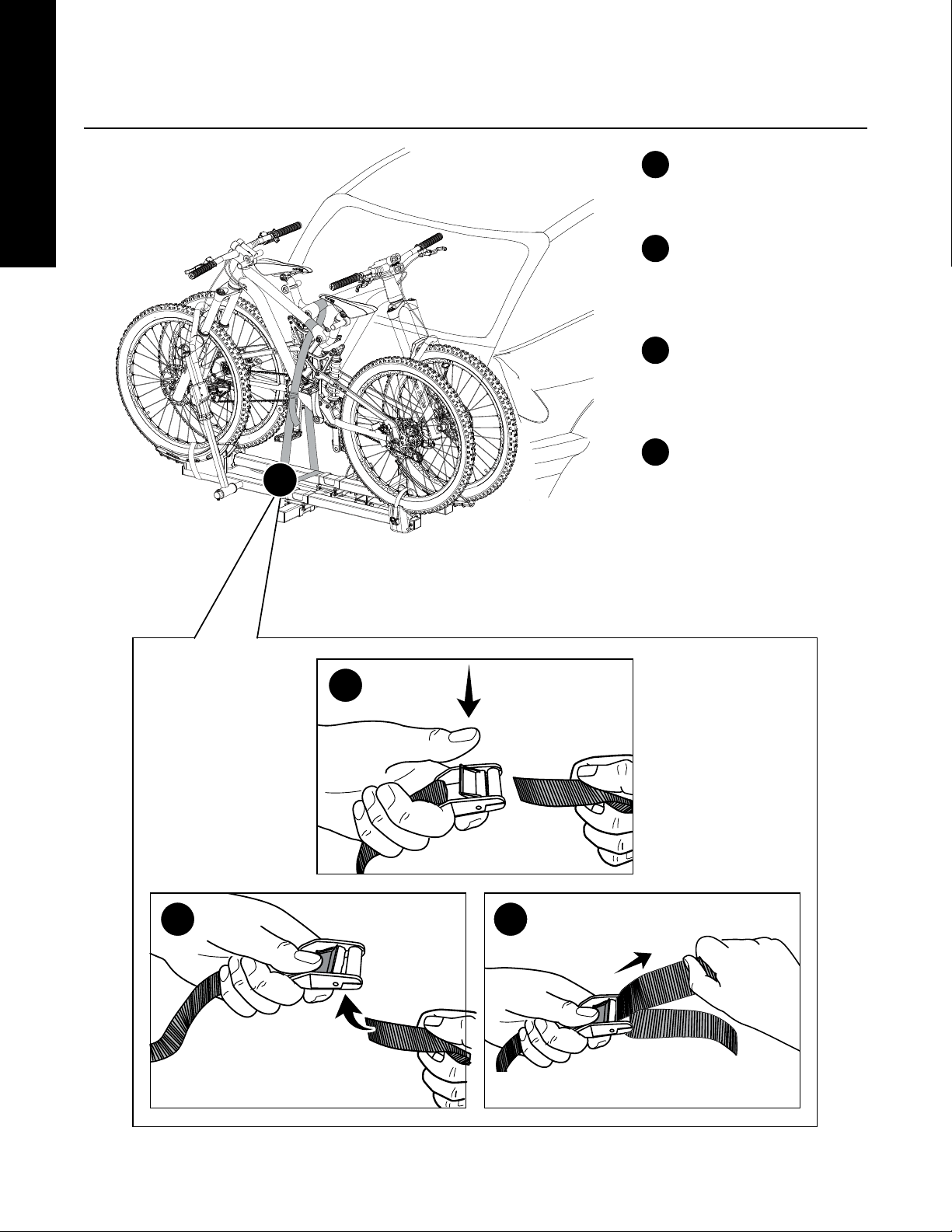

HOW TO USE THE SAFETY STRAP ....................................................20
STOWING THE RAMP ................................................................21
REAR VEHICLE ACCESS TILTING ......................................................22
REAR VEHICLE FOLDUP .............................................................23
SECTION IV  PARTS & SCHEMATICS ...............................................24
SCHEMATICS .......................................................................25
PARTS LIST .........................................................................26
ENGLISH

Gen.1 - v.230227 | 5
TECHNICAL SPECIFICATIONS
CONSTRUCTION Powder-coated steel
COMPATIBILITY Most e-bikes, fat tire bikes, road bikes and mountain bikes
TIRE SIZE COMPATIBILITY 15.9” to 28.9” (40.6 cm to 73.6 cm)
MAX TIRE WIDTH 4.7” (12.1 cm)
FOLDED DIMENSIONS
AGAINST REAR VEHICLE
58.6” (L) x 17.8” (W) x 32.3” (H)
148.8 cm (L) x 45.2 cm (W) x 82.1 cm (H)
UNFOLDED DIMENSIONS 58.6” (L) x 41.8” (W) x 38.2” (H)
148.8 cm (L) x 106.2 cm (W) x 97.1 cm (H)
WEIGHT 61.7 lb (28 kg)
BIKE WEIGHT CAPACITY 77 lb (35 kg)
TOTAL WEIGHT CAPACITY 154 lb (70 kg)
RECEIVER Fits on a 2” (5.08cm) hitch receiver
SHIPPING DIMENSIONS 51.6” (L) x 18.1” (W) x 9.6” (H)
131 cm (L) x 46 cm (W) x 24.5 cm (H)
SHIPPING WEIGHT 68.3 lb (31 kg)
WARRANTY 1-year limited
ENGLISH

SECTION I • SAFETY

Gen.1 - v.230227 | 7
SAFETY CONVENTIONS
DANGER! This indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING! This indicates a hazardous situation, which, if not avoided, could result in death
or serious injury.
CAUTION! This indicates a hazardous situation, which, if not avoided, may cause minor or
moderate injury.
ADDITIONAL INFORMATION AND POTENTIAL CHANGES
We reserve the right to discontinue, change, and improve our products at any time without notice
or obligation to the purchaser. The descriptions and specifications contained in this manual were
in eect at printing. Equipment described within this manual may be optional. Some illustrations
may not be applicable to your equipment.
BEFORE OPERATION
WARNING! Read and understand the complete User Manual before assembling
or using this product. Failure to comprehend and comply with warnings, cautions
and instructions for assembly and operation could result in serious injury or death.
WARNING! Do not permit children to use this equipment at any time. Do not permit others
that have not read and understood the complete User Manual to use this equipment. It is
the sole responsibility of the user to understand the assembly and safe use of this product.
DANGER! INTENDED USE: Do not use this equipment for any purpose other than carrying
bicycles, for which it was designed. Any other use is unauthorized and may result in serious
injury or death. Do not modify any components of the product. Remove the carrier if not in
use.
DANGER! DO NOT MOUNT THIS CARRIER TO RVS, TRAVEL TRAILERS,
OR OTHER MIDAXLE VEHICLES THAT MAY HAVE CAUSE TOO MUCH
TORQUE DURING TRANSPORT: Torque from the mid-axle tires on RVs and
travel trailers can cause too much strain on the carrier, causing damage to
your bicycle carrier and/or possibly creating loss of stability or swaying of
the carrier, leading bicycles to fall out of place entirely during transportation.
Failure to follow this warning can lead to serious injury or even death.

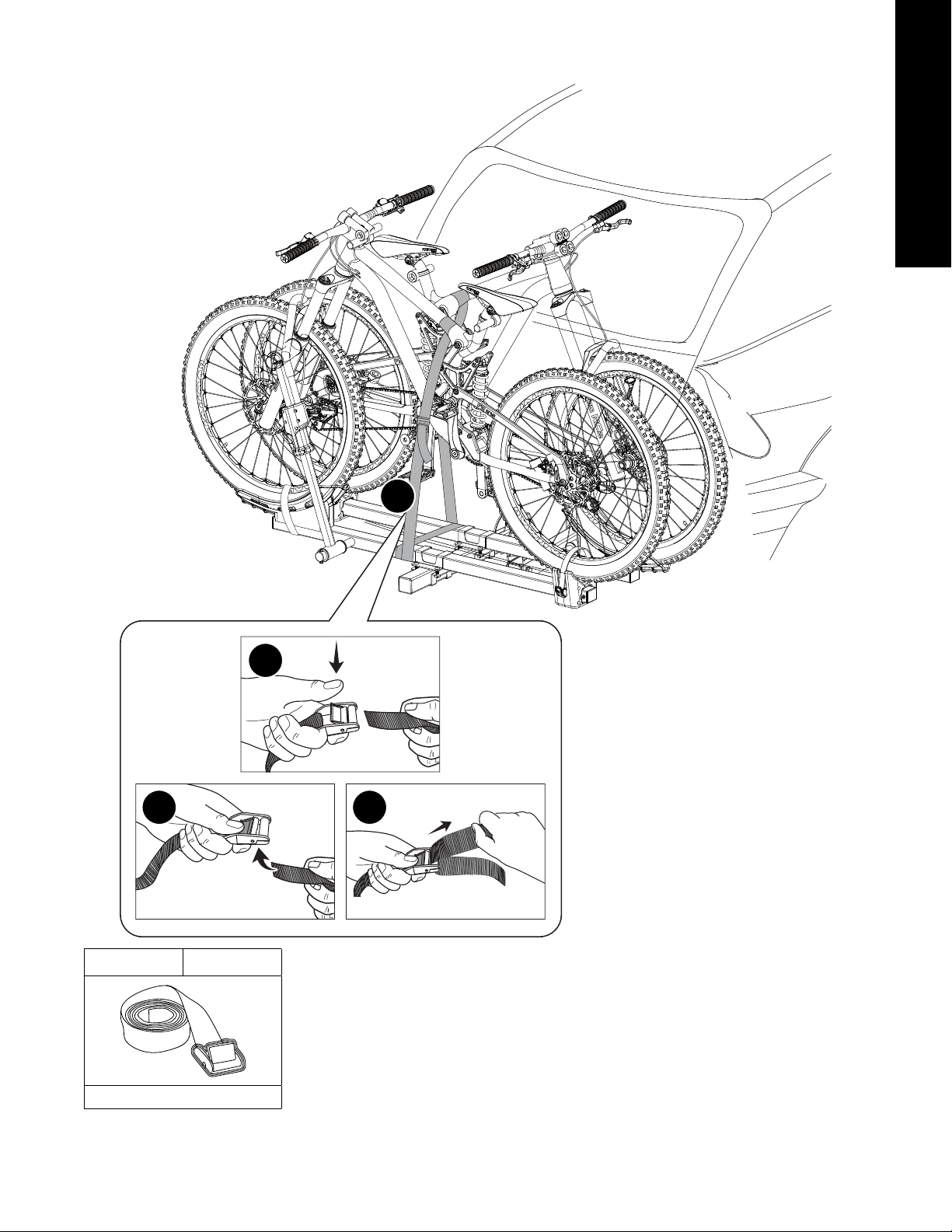

DANGER! STRAPPING YOUR HEAVY BIKES FOR SECURE TRANSPORT: DK2
recommends the use of an additional bike rack support strap with all hitch-mounted
carriers. We recommend a rack strap with a cambuckle for added support and security.
NOTE: Failure to use a support strap with a DK2 bike rack will void the warranty of the product.
ENGLISH

8 | BCR790E man.
GENERAL REMARKS
WARNING! Please read and observe the instructions carefully before you use the product,
and keep them in a safe place for future use. Check the part list after opening the package.
Make sure that all parts are fully assembled according to the instruction before fitting it on
your car.
NOTE: The user is responsible for assembly and installation of this product, and the manufacturer
disclaims any liability due to improper fitting or use of the product.
WARNING! Failure to properly install this bike carrier and/or the bikes may cause damage
to the vehicle and/or the bikes, and may result in personal injury.
DANGER! DO NOT use the carrier to carry more bikes than recommended. The weight of
each bike cannot exceed 77 lb (35 kg).
NOTE: This carrier is designed to be fitted directly on vehicles with a 2-inch (5.08 cm) hitch receiver.
CAUTION! This carrier is not intended for transporting tandem, or recumbent bicycles.
WARNING! Do not transport bicycles with attached baby seats, panniers, wheel covers, or
full bike covers.
SAFE AND PROPER USE
CAUTION! Please make sure you clean the surface of the hitch receiver completely before
installing the rack.
DANGER! Always use the safety straps to attach the bikes to the carrier. Failure to follow
this warning can result in serious injury or death.
CAUTION! Check if the distance from the exhaust pipe to the bicycle tires is safe for bicycles
or the straps of the carrier. The heat of the exhaust could damage the bike or bicycle racks.
CAUTION! If your vehicle is equipped with an automatic tailgate opening system, disable
this function when using the carrier, and open the tailgate manually. Failure to follow this
instruction can lead to damage to the bike rack and more importantly, the vehicle.
CAUTION! When loading the bicycles, remove all loose parts and accessories from bicycles
(toolbars, baby carriers, pumps, etc.). These items have a chance of falling o of the bikes
during transport.
CAUTION! Always position the biggest/heaviest bike first and closest to the vehicle, and
then position the smaller bike after.
ENGLISH

Gen.1 - v.230227 | 9
NOTE: The user is responsible for verifying that all hardware, straps, knobs, and hubs are securely
tightened for safety purposes before each use.
ROAD SAFETY
NOTE: Check before departure that the light board of the carrier is properly functioning.
NOTE: The bicycle rack increases the vehicle’s length, and the bicycles may increase its width
and height. Be aware of this when passing through narrow or low clearance spaces and when
reversing. Any loads exceeding the indicated dimensions must nevertheless respect existing
regulations and be properly strapped down.
CAUTION! The load of the rack and bicycles will aect driving. Do not exceed the speed
limit, and do not drive faster than 65 mph (100km/h).
CAUTION! Drive slowly over speed bumps. Respect the speed limit, and adapt your speed
to the condition of the road. Failure to follow this instruction can result in damage to the
hitch receiver, the carrier, or the vehicle.
CAUTION! O-road driving is not recommended and could result in damage to your
vehicle, hitch receiver, bike carrier, or your bikes.
CAUTION! If you hit a bump or hole in the road, stop your vehicle and inspect the bikes and
the carrier. If you notice anything wrong, remove the bikes and do not use the bike carrier.
CAUTION! Make sure there is a safe distance between the bikes and the ground, especially
when entering the driveway.
MAINTAINING YOUR CARRIER
• Inspect the product for signs of wear, corrosion, and fatigue before each use.
• Do not use the carrier with defective parts; contact the dealer to replace them before
using it again.
• Remove the product before entering an automatic car wash.
• To keep your product in the best condition, it is recommended to remove the product
from the vehicle when not in use. Please be advised that this product is not designed to
resist extreme weather conditions, especially seacoast air.
• Lubricate the bolts in order to avoid corrosion.
Max 154 lb (70 kg)
*
KG
MAX
LOAD
Vehicle Manual2”
ENGLISH

SECTION II • ASSEMBLY

Gen.1 - v.230227 | 11
PACKAGE CONTENTS
A1 x1 A2 x1 A3 x1 A4 x1
Base Hitch Lock M16x95 Screw Ø16 Lock Washer
A5 x1 A6 x1 B x8 C x8
Ø16 Washer Hitch Lock Keys M8x20 Screw Ø8 Washer (Large)
D1 x1 D2 x1 D3 x2 D4 x2
Inner Rack Outer Rack Front Wheel Cradle Rear Wheel Cradle
D5 x2 D6 x4 D7 x2 D8 x2
M8x105 Adjustment Handle Base M8 Adjustment Handle M8x80 Screw Ø8 Washer (Small)
D9 x2 D10 x2 D11 x1 D12 x1
M8 Hex Nut M6x20 Screw Bike Keys Ramp Bracket
D13 x1 E x1 F x1 G x1
Ramp Safety Strap S13 Wrench S5 Allen Key
ENGLISH

12 | BCR790E man.
STEP 1: INNER RACK
D1 x1 D3 x1 D4 x1 D5 x1
Inner Rack Front Wheel Cradle Rear Wheel Cradle M8x105 Adjustment Handle Base
D6 x1 D7 x1 D8 x1 D9 x1
M8 Adjustment Handle M8x80 Screw Ø8 Washer (Small) M8 Hex Nut
D10 x1 F x1 G x1
M6x20 Screw S5 Allen Key S13 Wrench
1
2
ENGLISH

Gen.1 - v.230227 | 13
STEP 2: OUTER RACK
D2 x1 D3 x1 D4 x1 D5 x1
Outer Rack Front Wheel Cradle Rear Wheel Cradle M8x105 Adjustment Handle Base
D6 x1 D7 x1 D8 x1 D9 x1
M8 Adjustment Handle M8x80 Screw Ø8 Washer (Small) M8 Hex Nut
D10 x1 F x1 G x1
M6x20 Screw S5 Allen Key S13 Wrench
1
2
ENGLISH

14 | BCR790E man.
STEP 3: BASE
A1 x1 B x8 C x8 D13 x1
Base M8x20 Screw Ø8 Washer (Large) Ramp
ENGLISH

SECTION III • INSTALLATION & USE

16 | BCR790E man.
STEP 1: CARRIER MOUNTING
DANGER! DO NOT mount any 2-inch hitch-mounted carrier to RVs, travel trailers, or any
mid-axle vehicles. The torque from the mid-axle tires on RVs, travel trailers, etc. can cause
too much strain on the carrier, causing damage to your bicycle carrier and/or possibly
creating loss of stability or swaying of the carrier, leading bicycles to fall out of place entirely
during transportation. Failure to follow this warning can lead to serious damage to the hitch
receiver, bicycle carrier, mounted bikes, or the vehicle. Failure to follow this warning can
also lead to serious injury or death.
A2 x1 A3 x1 A4 x1 A5 x1 A6 x1
Hitch Lock M16x95 Screw Ø16 Lock Washer Ø16 Washer Hitch Lock Keys
1
3
2
4
ENGLISH

Gen.1 - v.230227 | 17
STEP 2: BIKE MOUNTING
1
23
4
5
ENGLISH

18 | BCR790E man.
STEP 3: SECURING THE BIKE(S)
1
2
34
56
Bike Keys (V) required to
lock/unlock bike.
ENGLISH

Gen.1 - v.230227 | 19
E x1
Safety Strap
8
7
109
WARNING! It is recommended to always use your support strap
when transporting with bikes mounted to the carrier.
ENGLISH

20 | BCR790E man.
HOW TO USE THE SAFETY STRAP
1 Wrap support strap
around bike frame(s) and carrier
2 Take strap fastener on
one end, and loose strap on
the other end to prepare for
fastening.
3 Push down on the strap
fastener to feed the loose end
through the opening of the strap
fastener.
4 Pull loose end through
the opening while continuing to
hold down strap fastener lever
to feed smoothly.
Fasten front wheel tightly, then
let go of the strap fastener
lever to secure the strap and
complete the fastening process.
1
2
3 4
ENGLISH
