DMP Electronics DIN PC-333 Series User manual

DMP Electronics Inc.
DINPC-333xSeries
User’s Guide

DIN PC-333x Series User Manual
DMP Electronics Inc.
Copyright
The information in this manual is subject to change without notice for continuous
improvement in the product. All rights are reserved. The manufacturer assumes no
responsibility for any inaccuracies that may contain in this document, and makes no
commitment to update or to keep current information contain in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole
or in part, in any form or by any means without the prior written permission of
DMP Electronics Inc.
Copyright 2018 DMP Electronics Inc.
Special Notice to Users
DMP Electronics Inc. provides no warranty with regard to this manual, the software, or
other information contained herein and hereby expressly disclaims any implied
warranties of merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall DMP Electronics be
liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or
other information contained herein or the use thereof.
DMP Electronics reserves the right to make any modification to this manual or the
information contained herein at any time without notice. The software described herein
is governed by the terms of a separated user license agreement or label sticker.
This product contains software owned by DM&P and licensed by third parties. Use of
such software is subject to the terms and conditions of license agreements enclosed
with this product. Software specifications are subject to change without notice and may
not necessarily be identical to current retail versions.
Updates and additions to software may require an additional charge. Subscription to
online service providers may require a fee and credit card information. Financial
services may require prior arrangements with participating financial institution.

DIN PC-333x Series User Manual
DMP Electronics Inc.
Trademarks Acknowledgment
is the registered trademarks of DMP Electronics Inc.
Other brand names, product names or trade names appearing in this document are the
properties and registered trademarks of their respective owners. All names mentioned
herewith are served for identification purpose only.

DIN PC-333x Series User Manual
DMP Electronics Inc.
Safety Information
WARNING
DonotexposetheDINPCtorainormoisture,inordertopreventshockandfirehazard.
NeverinstalltheDINPCinwetlocations.
Donotopenthecabinettoavoidelectricalshock.Refertoyournearestdealerforqualified
personnelservicing.
Nevertouchun-insulatedterminalsorwireunlesspoweroftheDINPCanddisplaymonitor
aredisconnected.
LocatetheDINPCascloseaspossibletothesocketoutlineforeasyaccessandtoavoid
forcecausedbyentanglingofyourarmswithsurroundingcablesfromtheDINPC.
WhenusingtheDINPC,avoidusingorinstallingthemodemtotheserialport
during astormora lightning.
Donotusethemodemoratelephonetoreportagasleakinthevicinityoftheleak.
USBconnectorsaresuppliedwithLimitedPowerSources.
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING)OF THIS PRODUCT.PLEASE CONTACT YOUR NEAREST
DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

DIN PC-333x Series User Manual
DMP Electronics Inc.
Regulatory
FCC Class ANote
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuant
toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,
usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructionmanual,maycauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe
interferenceathisownexpense.Testingwasdonewithshieldedcables. Therefore,inordertocomply
withtheFCCregulations,youmustuseshieldedcableswithyourinstallation.
WARNING
ThisproductcomplieswithEN55022classA.Inadomesticenvironmentthisproductmaycauseradio
interferenceinwhichcasetheusermayberequiredtotakeadequatemeasures.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.
ThisdigitalapparatusdoesnotexceedtheClassAlimitsforradionoiseemissionsfromdigital
apparatusassetoutintheinterference-causing equipment standard entitled “Digital Apparatus”,
ICES-003oftheDepartmentofCommunications.
Manufacturer’s Declaration of Conformity
Thisequipmenthas beentestedandfoundtocomplywiththe requirementsofEuropeanCommunity
CouncilDirectives89/336/EECand73/23/EECrelatingtoelectromagneticcompatibilityand
productsafetyrespectively.
Attention
Thisproducthasbeendesignedandcertifiedtocomplywithcertainregulatoryrequirementspertaining
toInformationTechnologyEquipment. Thisproducthasnotbeendesignedforuseasamedical
device. Withoutlimitationoftheforegoing,it isnotintendedandhasnotbeencertifiedforuseina
hospitalorclinicalenvironmenttodiagnose,treat,ormonitorpatientsundermedicalsupervision,andis
notintendedandhasnotbeencertifiedtomakephysicalorelectricalcontactwithpatients,norto
transferenergytoorfrompatientsand/ortodetectsuchenergytransfertoorfrompatients.

DIN PC-333x Series User Manual
DMP Electronics Inc.
Purchase Agreement
Purpose:
In accordancetothegeneralcommercialconductofTrust andFairTrade,herewithbelowis the
agreementfortheprotectionforbothparties,DMPandUsersinpursuantoftrading.
ProductDescription:
Withthisproduct,herewithalsoknownasDINPC-333x Series,whichisasimplified&aneconomical
designofanembeddeddeviceforSpecialPurposePersonalComputing.Thebasicspecificationof
thisproductiscomprisedofthex86technologydesign,andwithonboard1GB/2GBDDR2 System
memory, VGAdisplay,USB, and LANInterfaces.
Distribution Convention:
1. ThisProductincludesagiftbox,aninnercase,aPC,andapluggableTerminalBlock.Upon
receiving this product, kindly please refer to the User’ Manual to check for the contents and
appearance of this product; contact immediately your nearest dealeror DMP branchofficeif
anydefectiveormissingpartsfound.Thesupplierwillnotberesponsibleforanyreported
discrepancythereaftertheexpirationperiodof3-daysfromthereceiveddate.
2. Inconsiderationoftransportationandthecostofstorage,thesupplierprovidestothe
distributorsa warrantyof12-months.Thiswarrantycoversthefailurecausedbyhardware
breakdown(excludingharddrives),butdoesnotcovertheactofmisuseandmishandling.
3. Thesupplierwillnotaccept unknownpost,thereforeifyouwishtorepairortoreturnyour
goods–kindlypleasecontactyournearestdealertomakeyourdeclaration,andatthesame
time,applyforan RMAnumber(RMAstandsforReturnMerchandiseAuthorization–please
askforRMAformandfill-upforauthorization).
4. Thefreightfor returngoodsforrepairwillfollowtheInternationalcustomarypracticeand
convention:Bothpartiesare topayforfreightof oneshipmenteach.Theshipper is requiredto
prepay thefreightfromtheplaceoforigin(Thismeansthatthereturnee(user)coversthe
freightforreturngoods,whiletheSuppliercoversthefreightforgoodsaftertherepair).
5. Obsoletewarrantyisreferredtoas:(1)Expirationofwarrantyor(2)Damageduetomisuse
withinwarranty.TheSupplierwillbetakenintoconsiderationofthecircumstances,toprovide
repairservicewithcharges expenseforobsoletewarranty.Thisexpenseincludesthecostof
materialandthecostoflabor.
Note:Ifthereare otherparticularissuesnotlistedintheaboveconditions,bothpartiesagreetofollowthe
GeneralLawofCommercewithfairandreasonablediscussioninhandlingandresolvingtheargument.

DIN PC-333x Series User Manual
DMP Electronics Inc.
Contents
Chapter 1
02 UnpackingYourDINPC
Chapter2
05 DINPC-333xSeriesOverview
07 SystemSpecifications
08 PeripheralsConnecting
Chapter3

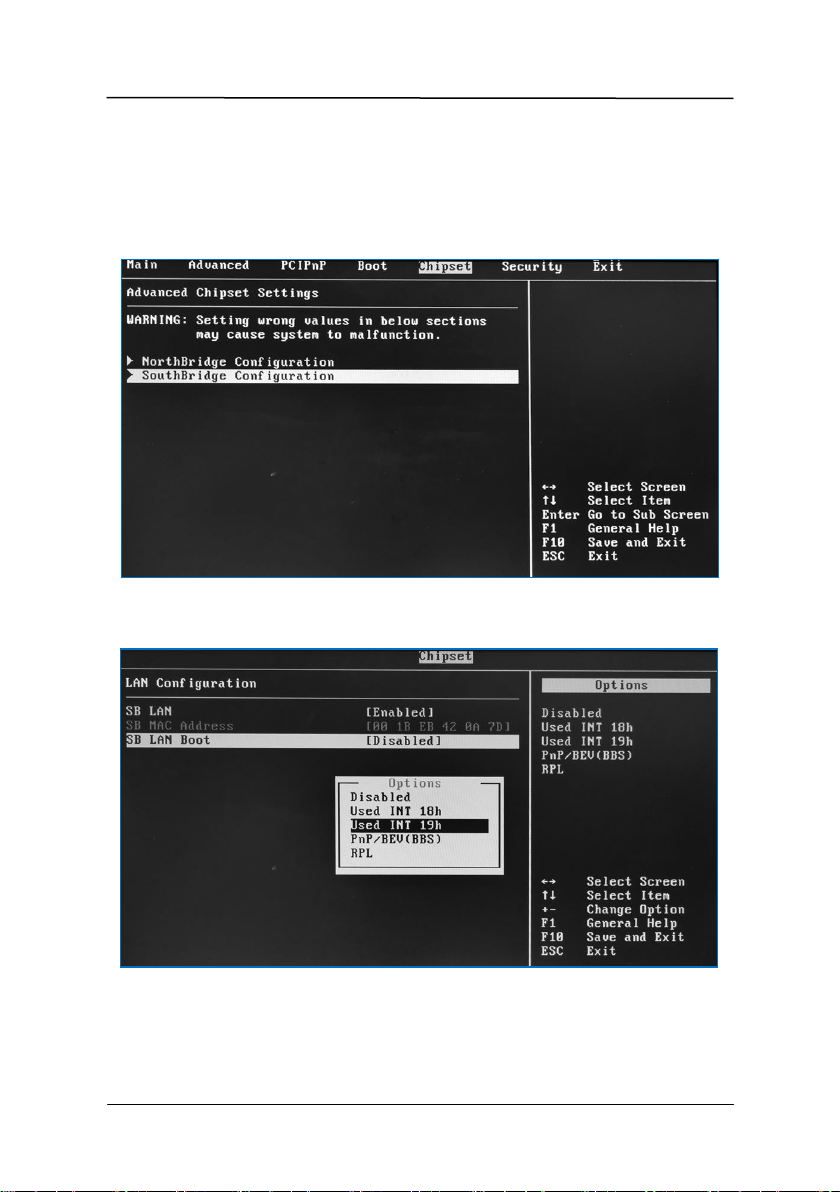

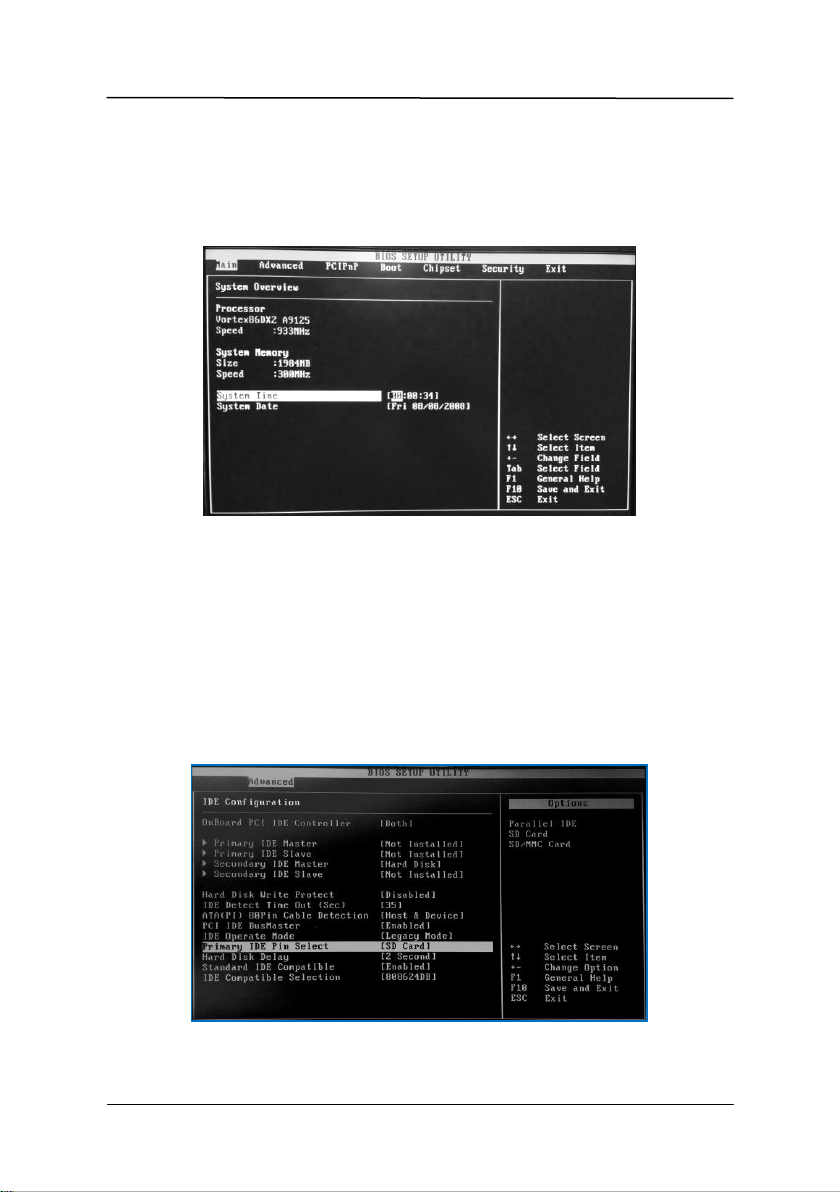

10 BIOSReconfiguring

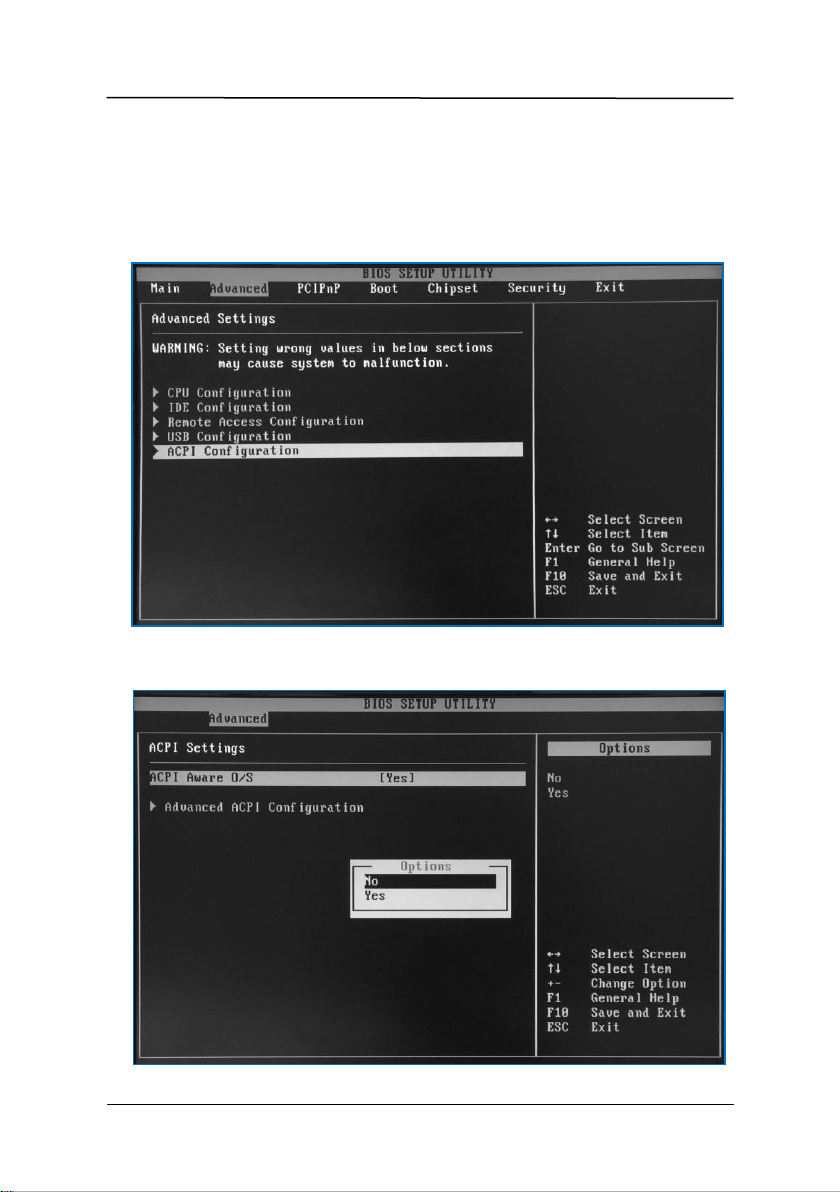

12 ACPIsetting
13 PXEDisklessbootsetting
14 InstalltheDriver
16 AdditionalInformation
17 Turnoff thedisplayfunctionsetting
18 LinuxInstallationGuide
Chapter4
28 OnboardConnectorsSummary
29 PinAssignments
Chapter5
32 TakingCareofYourDINPC
34 Troubleshooting
Chapter6
37 TermsandCondition
37 Warranty
37 ServiceandSupport
37 ReturnMerchandiseAuthorization(RMA)Policy
37 ShippingPolicy

DIN PC-333x Series User Manual
DMP Electronics Inc. 1
Chapter1

DIN PC-333x Series User Manual
DMP Electronics Inc. 2
Unpacking Your DIN PC
Congratulation!YouhavejustacquiredDINPC-333xSeriesdevice, pleasecheckthefollowingitems:
Packing List
ItemNo.
Description
Q’ty
1
DINPC-333xSeriesDINRailMountablePC
1x
2
3-PinPlug-InTypeVerticalTerminalBlock
1x
Note: The accessories are subject to change without immediate notice.
Check Before Use
1. DINPC-333xSeriesUnit 2. 3-Pin TerminalBlock

DIN PC-333x Series User Manual
DMP Electronics Inc. 3
Preface
DIN PC-333xSeries DIN Rail Mounted Mini PC
The DIN PC-333x Series is an innovative device that provides a perfect balance
between performance and energy efficiency. The DIN PC-333x is Fanless designed
with wide operating temperature range of up to 50°C, making it suitable in warehouse
and factory environments.
The DIN PC-333x Series features DMP ultra low power 933MHz Vortex86DX2 CPU,
Onboard 1GB/ 2GB DDR2 RAM, two independent Ethernet, and various I/O ports.
Supported operating systems such as Microsoft Windows Embedded and Linux OS,
users can integrate applications easily with a platform that provides versatile functions
to fulfill diverse requirements.
With compact dimensions of 152 x 104 x 54 mm (W x H x D), the DIN PC-333x Series
fits in small control boxes, as well as directly in a machine or the machine stand.
With DIN rail form factor, it supports DIN rail in top hat rail section EN 50022 version.
All DIN PC-333x Series’interfaces are on the front side, so it can be cabled up easily.
The DIN PC-333x Series is an ideal choice as the front end embedded controllers for
industrial automation applications.

DIN PC-333x Series User Manual
DMP Electronics Inc. 4
Chapter2

DIN PC-333x Series User Manual
DMP Electronics Inc. 5
DIN PC-333x Series Overview
Front Panel
A: COM1 port
RS-232/ RS-422/ RS485 port
B: COM2 port
RS-232/ RS-422/ RS485 port
C & D: COM5 & COM6 port
RS-232 port x 2
E & F: GPIO P8 & P9
8-bit GPIO port x 2
Available in DIN PC-333x Series GPIO Version
G: RJ-45 LAN
10/100 Mbps
H: RJ-45 G LAN
1 Gbps
I: USB 2.0 port
Connection for external USB devices.
J: Terminal Block Header
3-Pin pluggable type 5.00 mm Pitch
K: VGA port
Integrated Graphics Chip/ D-Sub 15-Pin
Rear Panel
L: DIN Rail Mounting Clip
A
B
C
D
E
F
G
I
H
J
K
L

DIN PC-333x Series User Manual
DMP Electronics Inc. 6
Inside DIN PC-333x Series
M: SD Card Slot
For the storage SD card, the system is
bootable from SD Card
N: 7-Pin SATA DOM Socket
Reserved for SATA DOM
O: USB 2.0 port
Reserve for WLAN Dongle
DIN Rail Information
DIN PC-333x Series supports DIN rail in
top hat rail section EN 50022 version.
Please see dimension (mm) in picture
shown below:
M
N
O

DIN PC-333x Series User Manual
DMP Electronics Inc. 7
System Specification
CPU
Vortex86DX2(933MHz)
MainMemory
1GBDDR2
(32-bitDRAMbus,DINPC-3330Series)
2GBDDR2
(32-bitDRAMbus,DINPC-3332Series)
※For Windows 7 users, DIN PC-333x
Series supports 32-bit version only, 64-bit
version does not support
BIOS
AMIBIOS
VGA
Resolutionupto1920x1440pixels
On-BoardSATA
SATA2.0connectorx1(Internal)
Peripheral
1. USB2.0x3(Externalx2/Internalx1)
2. SDCardslotx1(Internal)
3. Serialportx4 (availableforlistedmodels)
Dimension&Weight
152x 104 x 54mm/760g
SupportedOperatingSystem
Windows7Home/Pro.
Windows7Embedded
WindowsXPHome/Pro.
WindowsXPEmbedded
WindowsEmbeddedCE
LinuxOS(clickLinuxSupportListfordetails)
Peripherals

DIN PC-333x Series User Manual
DMP Electronics Inc. 8
Connecting the Power Adaptor
Connecting the Monitor
A: 3-Pin 5.00 mm Pitch Terminal Block
To use DIN PC-333x Series immediately, please
attach the Plug-In type Terminal Block with
power DC +8V ~ +24V
Note: DIN PC-333x Series supports Auto Power
On function, when power & switch on, the
system will be turned on automatically
B: VGA out Connection
Connect your LCD display Monitor with a VGA
cable (It is not included in DIN PC-333x Series
console bundles) to the 15-pin D-Sub VGA port
A
B

DIN PC-333x Series User Manual
DMP Electronics Inc. 9
Chapter3

DIN PC-333x Series User Manual
DMP Electronics Inc. 10
BIOS Reconfiguring
AMIBIOSisusedintheDINPC-333xSeries.ToreconfiguretheBIOS,press<Del>keyrepeatedlyto
enterBIOSsetupmainmenuasbelow:
Useandkeystoselectscreen;and keystoscrolltheselecteditem.Press<ESC>returnto
previousscreenandpress<F9>ifyouwanttoloadfactorydefaultsetting.Followingguide
concentratedonlythosesettingsthatmayneedtochange.
PrimaryIDE Pin Selectsetting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. Moveto Advanced“PrimaryIDEPinSelect”:
ParallelIDE=use 2.5”SATAHDDorSATADOMasmainstorage.
SDCard=useSDcardasmainstorage.
3. Press<F10>tosavethesettingandexit.

DIN PC-333x Series User Manual
DMP Electronics Inc. 11
Boot setting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. MovetoBoot“BootSettingsConfiguration”and pressEnter.
3. setyourmainstorageas1st boot.
4. Press<F10>tosavethesettingandexit.

DIN PC-333x Series User Manual
DMP Electronics Inc. 12
ACPI setting:
For WindowsXPorXPeOSusers,pleaseset ACPIAwareO/Sto[No],stepsasbelow:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. MovetoAdvancedandselect“ACPIconfiguration”thenpressENTER.
3. PressENTER.on“ACPIAwareO/S”andchoose[No]inthepopoutoptiuons,thenpress“F10”
tosavethesettingandexit.

DIN PC-333x Series User Manual
DMP Electronics Inc. 13
PXEDisklessboot setting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. Moveto Chipsetthenselect“SouthBridgeConfiguration”andpressENTER.
3. Move to “LAN Configuration” and enter“SBLANBoot”tochoose “UsedINT19h”.
4. Press“F10”tosavethesettingandexit.
