DMP Electronics DIN PC-336 Series User manual

DMP Electronics Inc.
DINPC-336xSeries
User’s Guide

DIN PC-336x Series User Manual
DMP Electronics Inc.
Copyright
The information in this manual is subject to change without notice for continuous
improvement in the product. All rights are reserved. The manufacturer assumes no
responsibility for any inaccuracies that may contain in this document, and makes no
commitment to update or to keep current information contain in this manual.
No part of this manual may be reproduced, copied, translated or transmitted, in whole
or in part, in any form or by any means without the prior written permission of
DMP Electronics Inc.
Copyright 2019 DMP Electronics Inc.
Special Notice to Users
DMP Electronics Inc. provides no warranty with regard to this manual, the software, or
other information contained herein and hereby expressly disclaims any implied
warranties of merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall DMP Electronics be
liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or
other information contained herein or the use thereof.
DMP Electronics reserves the right to make any modification to this manual or the
information contained herein at any time without notice. The software described herein
is governed by the terms of a separated user license agreement or label sticker.
This product contains software owned by DM&P and licensed by third parties. Use of
such software is subject to the terms and conditions of license agreements enclosed
with this product. Software specifications are subject to change without notice and may
not necessarily be identical to current retail versions.
Updates and additions to software may require an additional charge. Subscription to
online service providers may require a fee and credit card information. Financial
services may require prior arrangements with participating financial institution.

DIN PC-336x Series User Manual
DMP Electronics Inc.
Trademarks Acknowledgment
is the registered trademarks of DMP Electronics Inc.
Other brand names, product names or trade names appearing in this document are the
properties and registered trademarks of their respective owners. All names mentioned
herewith are served for identification purpose only.

DIN PC-336x Series User Manual
DMP Electronics Inc.
Safety Information
WARNING
DonotexposetheDINPCtorainormoisture,inordertopreventshockandfirehazard.
NeverinstalltheDINPCinwetlocations.
Do notopenthecabinettoavoidelectricalshock.Refertoyournearestdealerforqualified
personnelservicing.
Nevertouchun-insulatedterminalsorwireunlesspoweroftheDINPCanddisplaymonitor
aredisconnected.
LocatetheDINPCascloseaspossibletothesocketoutlineforeasyaccessandtoavoid
forcecausedbyentanglingofyourarmswithsurroundingcablesfromtheDINPC.
WhenusingtheDINPC,avoidusingorinstallingthemodemtotheserialport
during astormora lightning.
Donotusethemodemoratelephonetoreportagasleakinthevicinityoftheleak.
USBconnectorsaresuppliedwithLimitedPowerSources.
DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS
(ENCASING)OF THIS PRODUCT.PLEASE CONTACT YOUR NEAREST
DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN.

DIN PC-336x Series User Manual
DMP Electronics Inc.
Regulatory
FCC Class ANote
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuant
toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,
usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe
instructionmanual,maycauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe
interferenceathisownexpense.Testingwasdonewithshieldedcables. Therefore,inordertocomply
withtheFCCregulations,youmustuseshieldedcableswithyourinstallation.
WARNING
ThisproductcomplieswithEN55022classA.Inadomesticenvironmentthisproductmaycauseradio
interferenceinwhichcasetheusermayberequiredtotakeadequatemeasures.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:
(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.
ThisdigitalapparatusdoesnotexceedtheClassAlimitsforradionoiseemissionsfromdigital
apparatusassetoutintheinterference-causing equipment standard entitled “Digital Apparatus”,
ICES-003oftheDepartmentofCommunications.
Manufacturer’s Declaration of Conformity
Thisequipmenthas beentestedandfoundtocomplywiththe requirementsofEuropeanCommunity
CouncilDirectives89/336/EECand73/23/EECrelatingtoelectromagneticcompatibilityand
productsafetyrespectively.
Attention
Thisproducthasbeendesignedandcertifiedtocomplywithcertainregulatoryrequirementspertaining
toInformationTechnologyEquipment. Thisproducthasnotbeendesignedforuseasamedical
device. Withoutlimitationoftheforegoing,it isnotintendedandhasnotbeencertifiedforuseina
hospitalorclinicalenvironmenttodiagnose,treat,ormonitorpatientsundermedicalsupervision,andis
notintendedandhasnotbeencertifiedtomakephysicalorelectricalcontactwithpatients,norto
transferenergytoorfrompatientsand/ortodetectsuchenergytransfertoorfrompatients.

DIN PC-336x Series User Manual
DMP Electronics Inc.
Purchase Agreement
Purpose:
In accordancetothegeneralcommercialconductofTrust andFairTrade,herewithbelowis the
agreementfortheprotectionforbothparties,DMPandUsersinpursuantoftrading.
ProductDescription:
Withthisproduct,herewithalsoknownasDINPC-336x Series,whichisasimplified&aneconomical
designofanembeddeddeviceforSpecialPurposePersonalComputing.Thebasicspecificationof
thisproductiscomprisedofthex86technologydesign,andwithonboard1GB/2GBDDR3System
memory,VGAdisplay,USB, and LANInterfaces.
Distribution Convention:
1. ThisProductincludesagiftbox,aninnercase,aPC,andapluggableTerminalBlock.Upon
receiving this product, kindly please refer to the User’ Manual to checkforthecontentsand
appearance of this product; contact immediately your nearest dealeror DMP branchofficeif
anydefectiveormissingpartsfound.Thesupplierwillnotberesponsibleforanyreported
discrepancythereaftertheexpirationperiodof3-daysfromthereceiveddate.
2. Inconsiderationoftransportationandthecostofstorage,thesupplierprovidestothe
distributorsa warrantyof12-months.Thiswarrantycoversthefailurecausedbyhardware
breakdown(excludingharddrives),butdoesnotcovertheactofmisuseandmishandling.
3. Thesupplierwillnotaccept unknownpost,thereforeifyouwishtorepairortoreturnyour
goods–kindlypleasecontactyournearestdealertomakeyourdeclaration,andatthesame
time,applyforan RMAnumber(RMAstandsforReturnMerchandiseAuthorization–please
askforRMAformandfill-upforauthorization).
4. Thefreightfor returngoodsforrepairwillfollowtheInternationalcustomarypracticeand
convention:Bothpartiesare topayforfreightofoneshipmenteach.Theshipperis requiredto
prepay thefreightfromtheplaceoforigin(Thismeansthatthereturnee(user)coversthe
freightforreturngoods,whiletheSuppliercoversthefreightforgoodsaftertherepair).
5. Obsoletewarrantyisreferredtoas:(1)Expirationofwarrantyor(2)Damageduetomisuse
withinwarranty.TheSupplierwillbetakenintoconsiderationofthecircumstances,toprovide
repairservicewithcharges expenseforobsoletewarranty.Thisexpenseincludesthecostof
materialandthecostoflabor.
Note:Ifthereare otherparticularissuesnotlistedintheaboveconditions,bothpartiesagreetofollowthe
GeneralLawofCommercewithfairandreasonablediscussioninhandlingandresolvingtheargument.

DIN PC-336x Series User Manual
DMP Electronics Inc.
Contents
Chapter1
02 UnpackingYourDINPC
Chapter2
05 DINPC-336xSeriesOverview
07 SystemSpecifications
08 Peripherals
09 SDcardrecommendation
Chapter3
11 BIOSReconfiguring
13 PXEDisklessbootsetting
16 DriversInstallationguide
19 AdditionalInformation
19 Screenrotation
21 Turnoffthedisplayfunctionsetting
21 LinuxInstallationGuide
Chapter4
28 OnboardConnectorsSummary
29 PinAssignments
Chapter5
32 TakingCareofYourDINPC
33 CleaningYourDINPC
34 Troubleshooting
Chapter6
37 TermsandConditions
37 Warranty
37 ServiceandSupport
37 ReturnMerchandiseAuthorization(RMA)Policy
37 ShippingPolicy

DIN PC-336x Series User Manual
DMP Electronics Inc. 1
Chapter1

DIN PC-336x Series User Manual
DMP Electronics Inc. 2
Unpacking Your DIN PC
Congratulation!YouhavejustacquiredDINPC-336xSeriesdevice, pleasecheckthefollowingitems:
Packing List
ItemNo.
Description
Q’ty
1
DINPC-336x SeriesDINRailMountablePC
1x
2
3pin Plug-InTypeVerticalTerminalBlock
1x
Note: The accessories are subject to change without immediate notice.

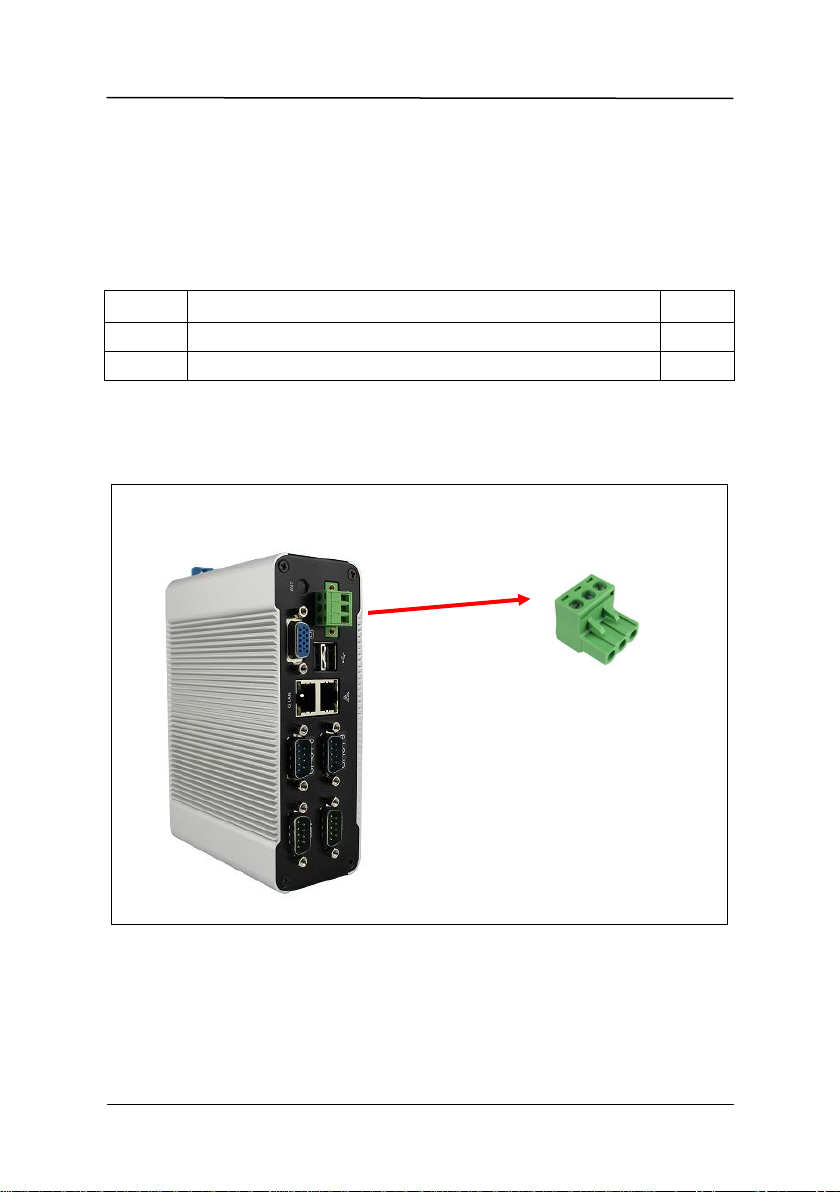

Check Before Use
1. DINPC-336xSeriesUnit 2.3pinTerminalBlock

DIN PC-336x Series User Manual
DMP Electronics Inc. 3
Preface

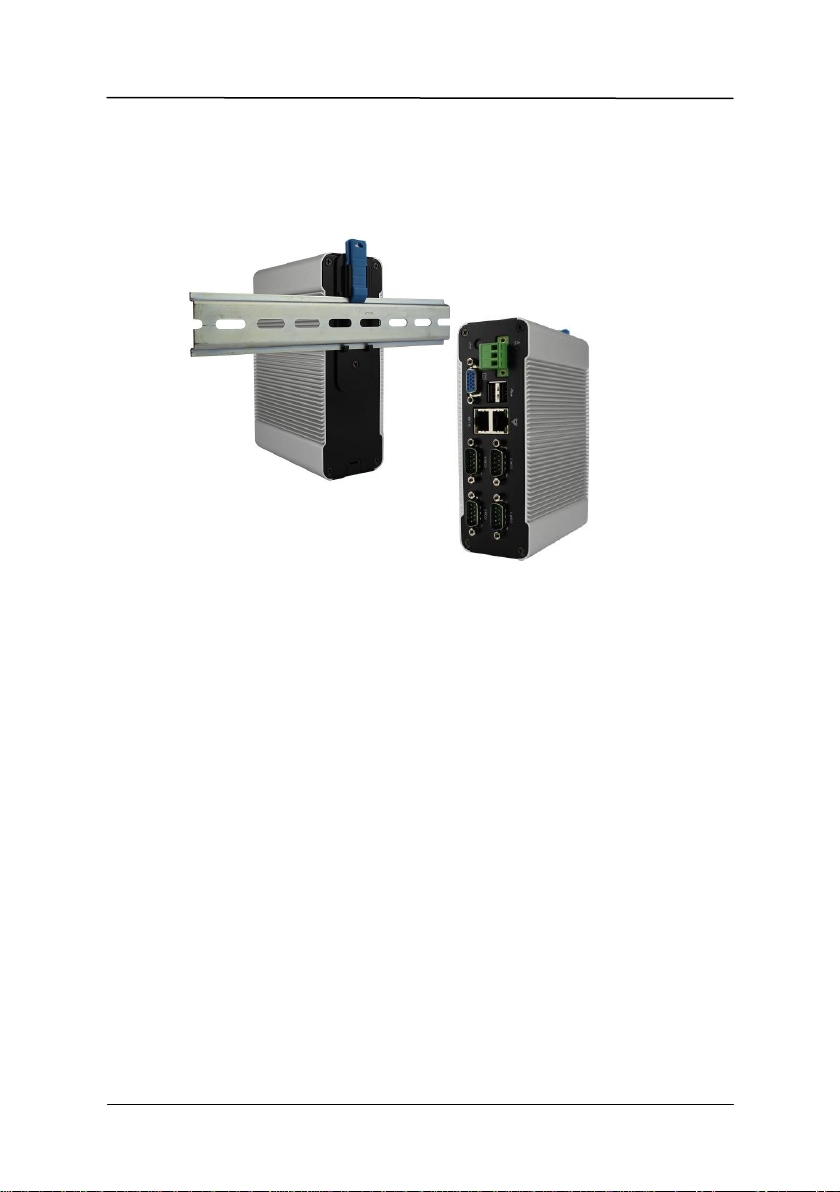

DIN PC-336xSeries DIN Rail Mounted Mini PC
The DIN PC-336x Series is an innovative device that provides a perfect balance
between performance and energy efficiency. The DIN PC-336x is Fanless designed
with wide operating temperature range of up to 50°C, making it suitable in warehouse
and factory environments.
The DIN PC-336x Series features DMP ultra low power 1GHz Vortex86DX3 CPU,
Onboard 1GB/ 2GB DDR3 RAM, two independent Ethernet, and various I/O ports.
Supported operating systems such as Microsoft Windows Embedded and Linux OS,
users can integrate applications easily with a platform that provides versatile functions
to fulfill diverse requirements.
With compact dimensions of 152 x 104 x 54 mm (W x H x D), the DIN PC-336x Series
fits in small control boxes, as well as directly in a machine or the machine stand.
With DIN rail form factor, it supports DIN rail in top hat rail section EN 50022 version.
All DIN PC-336x Series’interfaces are on the front side, so it can be cabled up easily.
The DIN PC-336x Series is an ideal choice as the front end embedded controllers for
industrial automation applications.

DIN PC-336x Series User Manual
DMP Electronics Inc. 4
Chapter2

DIN PC-336x Series User Manual
DMP Electronics Inc. 5
DIN PC-336x Series Overview
Front view
A: COM1 port
RS-232/ RS-422/ RS485 port
B: COM2 port
RS-232/ RS-422/ RS485 port
C & D: COM5 & COM6 port
RS-232 port x 2
E & F: GPIO P8 & P9
8-bit GPIO port x 2
Available in DIN PC-336x Series GPIO Version
G: RJ-45 LAN
10/100 Mbps
H: RJ-45 G LAN
1 Gbps
I: USB 2.0 port
Connection for external USB devices.
J: Terminal Block Header
3pin pluggable type 5.00mm Pitch
K: VGA port
Integrated Graphics Chip/ D-Sub 15-pin
Rear and side view
L: DIN Rail Mounting Clip
M: Line out
N: Mic in
A
B
C
D
E
F
G
I
H
J
K
L
N
M
※DIN PC support Mic in/ Line out as option, please contact your local sales representative.

DIN PC-336x Series User Manual
DMP Electronics Inc. 6

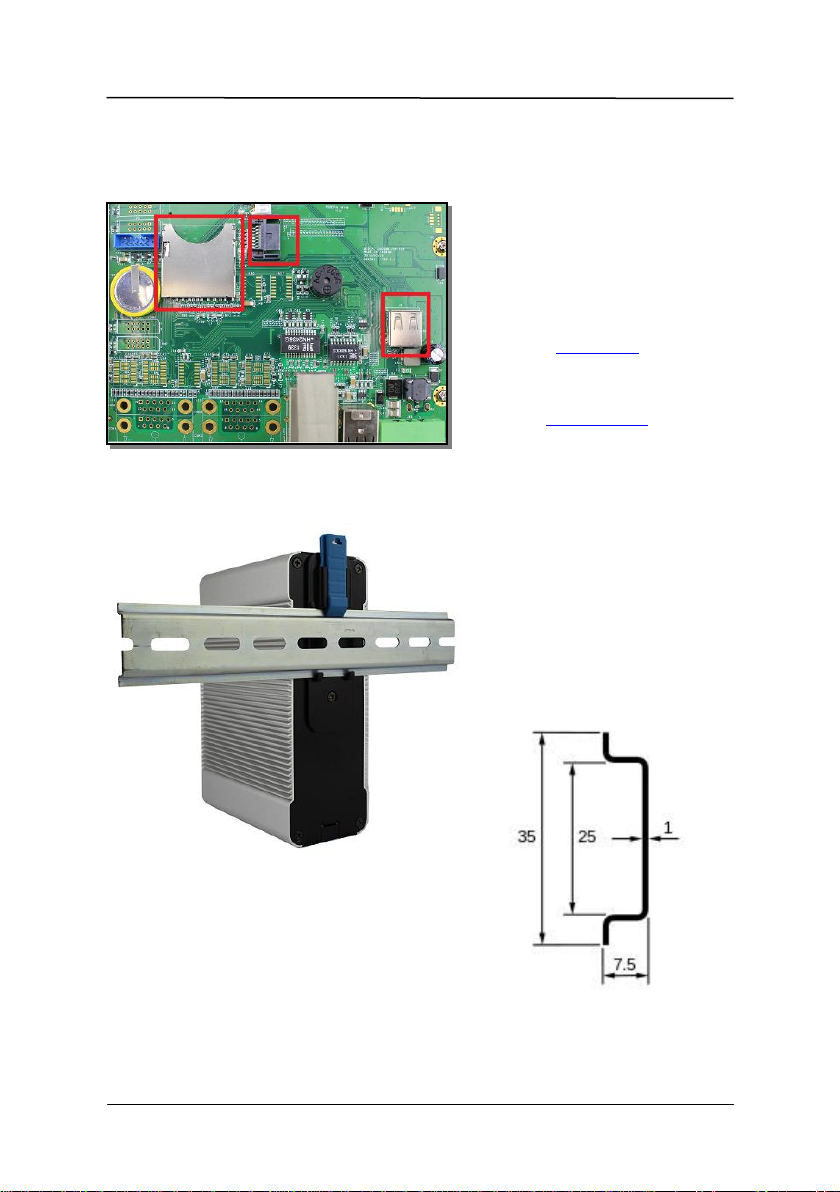

Inside DIN PC-336x Series
M: SD Card Slot
For the storage SD card, the system is bootable
from SD Card
N: 7pin SATA DOM Socket
Reserved for SATA DOM
O: USB 2.0 port
Reserve for WLAN Dongle
DIN Rail Information
DIN PC-336x Series supports DIN rail in top
hat rail section EN 50022 version. Please see
dimension (mm) in picture shown below:
M
N
O

DIN PC-336x Series User Manual
DMP Electronics Inc. 7
System Specifications
CPU
Vortex86DX3(1GHz)
MainMemory
1GBDDR3
(32-bitDRAMbus,DINPC-3360Series)
2GBDDR3
(32-bitDRAMbus,DINPC-3362 Series)
※For Windows 7 users, DIN PC-336x Series
supports 32-bit version only, 64-bit version
does not support
BIOS
AMIBIOS
VGA
Resolutionupto1920x1080 pixels
On-BoardSATA
SATA2.0connectorx1
※mSATAsupport(mSATAtoSATAadapterequired)
Peripheral
1. USB2.0x3
(External: 2ports;Internal: 1port)
2. SDCardslotx1(Internal)
3. Serialportsx4 (availableforlistedmodels)
4. Micin&Lineout(Optional)
Dimension&Weight
152x 104 x 54mm/760g
SupportedOperatingSystem
Windows7Home/Pro.
Windows7Embedded
WindowsXPHome/Pro.
WindowsXPEmbedded
WindowsEmbeddedCE
LinuxOS(clickLinuxSupportListfordetails)

DIN PC-336x Series User Manual
DMP Electronics Inc. 8
Peripherals
Connecting the Power
Connecting the Monitor
A: 3pin 5.00 mm Pitch Terminal Block
To use DIN PC-336x Series immediately, please
attach the Plug-In type Terminal Block with
power DC +8V~+24V.
Note: DIN PC-336x Series supports Auto Power
On function, when power and switch on, the
system will be turned on automatically
B: VGA out Connection
Connect your LCD display Monitor with a VGA
cable (Not included in DIN PC-336x Series
console bundles) to the 15pin D-Sub VGA port
A
B

DIN PC-336x Series User Manual
DMP Electronics Inc. 9
SD card recommendation
Class 10 SD card for D-336x Series is highly recommended.
D-336x Series support SD and SDHC only, it does not compatible with SDXC.
Users may be able to use SDXC on D-336x Series, however, SDXC will be recongnized as
SDHC and capacity support up to 32GB only.
Test environment:
Products: D-336x Series
SD card: Kingston Canvas Select SDXC UHS-I 64GB Class 10
BIOS: AMI BIOS
OS:WES7 (Windows embedded standard 7)
Disk benchmark software: CrystalDiskMark 6.0.2
Test result:
Seq Q32T1
Read
Seq Q32T1
Write
SD card Speed
21.34 MB/ s
15.39 MB/ s

DIN PC-336x Series User Manual
DMP Electronics Inc. 10
Chapter3

DIN PC-336x Series User Manual
DMP Electronics Inc. 11
BIOS Reconfiguring
AMIBIOSisusedintheDINPC-336xSeries.ToreconfiguretheBIOS,press<Del>keyrepeatedlyto
enterBIOSsetupmainmenuasbelow:
Useandkeystoselectscreen;andkeystoscrolltheselecteditem.Press<ESC>returnto
previousscreenandpress<F9>ifyouwanttoloadfactorydefaultsetting.Followingguideconcentrated
onlythosesettingsthatmayneedtochange.
PrimaryIDE Pin Selectsetting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. Moveto Advance“PrimaryIDEPinSelect”:
ParallelIDE=use 2.5”SATAHDDorSATADOMasmainstorage.
SDCard=useSDcardasmainstorage.
3. Press<F10>tosavethesettingandexit.

DIN PC-336x Series User Manual
DMP Electronics Inc. 12

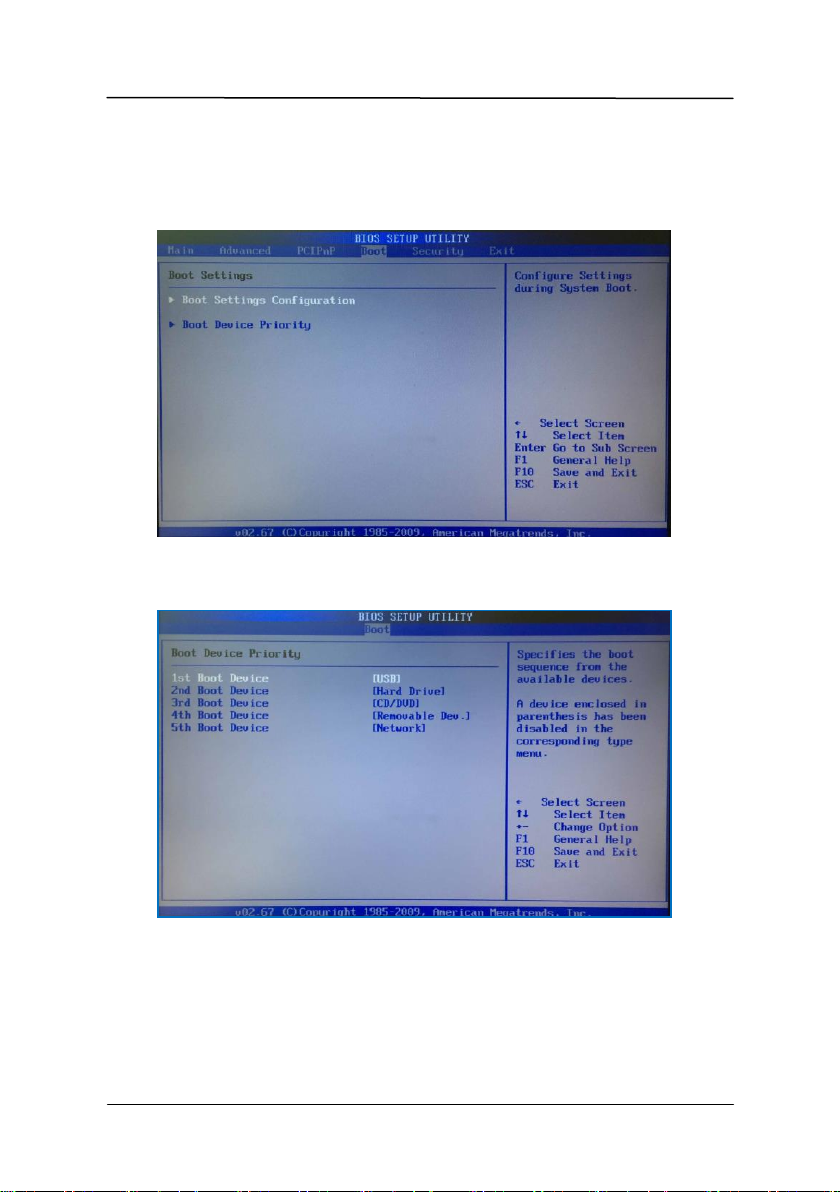

Boot setting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. MovetoBoot“BootSettingsConfiguration”and pressEnter.
3. Setyourmainstorageas1st boot.
4. Press<F10>tosavethesettingandexit.

DIN PC-336x Series User Manual
DMP Electronics Inc. 13
PXEDisklessboot setting:
1. BootupDINPCunitandpress<Del>toget intoBIOSmenu.
2. MovetoBootthenselect“BootSettingsConfiguration”andpressENTER.
3. Moveto“BootFromLAN”andchoose“UsedINT19h”thenpress“F10”tosavesettingandexit.
