Doka Framax stripping corner I Series User manual

© by Doka GmbH, A-3300 Amstetten
999239002 07/2018
en-GB
-
The Formwork Experts.
Framax stripping corner I
hydraulic
2017 models onward
Original Operating Instructions
Please retain for future reference
© by Doka GmbH, A-3300 Amstetten
9239-200-01

2999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Basic drawings of product
Data on rating plate
Framax stripping cylinder I
a ... Adjusting range between 342 mm and 438 mm
b ... ø130 mm
c ... SW 41
d ... 20 mm
e ... 70 mm
f ... Adjusting range between 217.5 mm and 242.5 mm
As-delivered condition:
The Adapter for Framax stripping corner I is pinned to
the Framax stripping corner I with a Connecting pin
10cm and secured with a Spring cotter 5mm.
AFramax stripping cylinder I
BFramax stripping corner I
CHydraulic unit Framax V4 or
Hydraulic unit V45 50/60Hz or
Hydraulic unit SCP V1200 50/60Hz
Follow the directions in the User Information
booklet of the formwork system that is being
used!
Designation: Framax stripping corner I hydraulic
Max. cylinder
force: 10000 kg 22000 lbs
Year of manufacture: see rating plate
9239-214-01
A
C
B
AAdapter for Framax stripping corner I
BConnecting pin 10cm
CSpring cotter 5mm
DPair of hydraulic hoses 4.0m
(pre-mounted on Framax stripping cylinder I)
EFlatface BG2 connector (coloured blue)
FFlatface BG2 connector (coloured yellow)
GRating plate
HHandle, swivelling
Max. cylinder force: 10000 kg (22000 lbs)
WARNING
Do not use the handle as a slinging point for
crane-handling
Danger of formwork dropping from crane!
➤Use only suitable lifting accessories and
slinging points.
9239-201-02
A
E F
D
BC
b
c
a
df
e
G H

Original Operating Instructions Framax stripping corner I hydraulic
3999239002 - 07/2018
Intended use
The Framax stripping cylinder I is for hydraulic actua-
tion of the Framax stripping corner I.
With the 'Framax stripping corner I hydraulic', formwork
up to 5.40 metres high can be erected and stripped out
without the application of manual force.
Depending on requirements, the Framax stripping cyl-
inder can be combined with various hydraulic units and
accessories
Compatible hydraulic units
▪ Hydraulic unit Framax V4 with
- Cordless screwdriver 18 V (1800 rotation/min)
▪ Hydraulic unit V45 50/60Hz with
- System pressure controller Xclimb 60 V45
▪ Hydraulic unit SCP V1200 50/60Hz with
- Coupling adapter Framax stripping cylinder I
(intended use)
Boundary conditions for use
Maintenance & inspection
Storage
NOTICE
▪ Other use or use not in conformity with that
stated above is non-intended use and
requires the prior written approval of the
Doka company!
NOTICE
The Framax stripping cylinder I is suitable for
deployment at outside temperatures
of between -5° C and +55° C.
Putting into service at temperatures below
-5 °C is not permissible, as the hydraulic oil
would be too viscous.
NOTICE
▪ Doka accepts no liability for products that
have been altered!
▪ Repairs may be carried out only by Doka or
specialist companies authorised by Doka!
▪ The Framax stripping cylinder I must be
inspected by an expert once a year.
NOTICE
To avoid damage, the drive components must
be stored in such a way that they are protected
against direct climatic influences and aggres-
sive substances.

4999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Assembly
➤Carefully lay the stripping cylinder on its side.
➤Remove Spring cotter 5mm and Connecting pin
10cm.
➤Remove the adapter from the cylinder.
➤Remove both pins D17.5.
➤Push the adapter into the pushrod of the stripping
corner and pin it into position with two pins D17.5.
➤Place the stripping cylinder on the centring stud of
the stripping corner.
The centring studs must be seated in the recesses of
the assembly plate.
➤Twist the stripping cylinder clockwise until fully
engaged.
➤Push the locking pin into the hole in the stripping cor-
ner.
Note:
The locking pin acts as anti-twist lock for the stripping
cylinder.
NOTICE
▪ Stripping cylinders must always be fully
retracted for installation.
▪ It is not permissible to install the stripping
cylinder on a stripping corner that does not
have a hole for the locking pin!
This hole is a standard feature of all strip-
ping corners manufactured from 2005
onward.
▪ To prevent abrasion or trapping damage,
the hydraulic hoses must be secured to the
neighbouring formwork panel and properly
laid and arranged. Tight bending radii
should be avoided.
ASpring cotter 5mm
BConnecting pin 10cm
CAdapter for Framax stripping corner I
DPin D17.5
CAdapter for Framax stripping corner I
DPin D17.5
EPush-rod
FFramax stripping corner I
➟
9239-200-11
D
9239-208-01
A
B
C
➟
➟
➟
➟
9239-200-05
C
D
E
F
NOTICE
It is not permissible to install the adapter in the
pushrod with only one pin D17.5
GFramax stripping cylinder I
HCentring studs of stripping corner
IAssembly plate
GFramax stripping cylinder I
HCentring studs of stripping corner
JLocking pin
9239-200-04
H
➟
G
I
9239-200-03
G
H
9239-200-09
J

Original Operating Instructions Framax stripping corner I hydraulic
5999239002 - 07/2018
➤Installation of the hydraulics.
➤Putting into operation.
➤Move the stripping cylinder into position at the hole
of the adapter.
➤Insert Connecting pin 10cm into the stripping cylin-
der and the adapter and secure with Spring cotter
5mm.
Adjustment of the Framax stripping
cylinder I
Note:
In the initial position, the stripping cylinder must be fully
retracted and holding plates A and B of the stripping
cylinder must be horizontal.
If holding plates A and B point up, the following steps
are necessary:
1) Remove the Connecting pin 10cm.
2) Back off the hexagon nut (width-across 41 mm) by
the desired difference.
3) Extend the stripping cylinder until the Connecting
pin 10cm can be reinstalled.
4) Secure each Connecting pin 10 cm with a Spring
cotter 5mm.
5) Fully retract the stripping cylinder.
CAUTION
Danger of crushing!
➤No body parts or objects between hydraulic
cylinder and assembly plate.
ASpring cotter 5mm
BConnecting pin 10cm
KFixing
Tighten or back off the hexagon nut (width-
across 41 mm) of the adapter to facilitate
insertion of the Connecting pin 10cm into the
stripping cylinder.
Spanner size (width-across): 41mm
9239-200-02
BA
K
AHolding plate A
BHolding plate B
AHolding plate A
BHolding plate B
Check that the holding plates are horizontal.
If necessary, repeat steps 1 to 5.
9239-200-06
A B
9239-200-07
A B

6999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Operation of the Framax stripping
corner I hydraulic
➤Start up the hydraulic unit.
Dismantling
➤Remove the Connecting pin 10cm.
➤Retract the stripping cylinder.
➤Switch off the hydraulic unit and disconnect the
hydraulic hoses.
➤Lift the stripping cylinder clear.
➤Remove the adapter.
➤Position pins D17.5 in the adapter holes.
➤Pin the adapter into the stripping cylinder with Con-
necting pin 10cm and secure with Spring cotter
5mm.
Erecting Stripping
Retract
Framax stripping cylinder I
Extend
Framax stripping cylinder I
9239-200-02
➟
9239-200-08
➟

Original Operating Instructions Framax stripping corner I hydraulic
7999239002 - 07/2018

8999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Repositioning operation, Framax
stripping cylinder I
Repositioning operation for stripping
➤Remove the Connecting pin 10cm.
➤Retract the stripping cylinder and lift it clear.
➤Mount the stripping cylinder on the next stripping cor-
ner.
➤Insert Connecting pin 10cm into the stripping cylin-
der and the adapter and secure with Spring cotter
5mm.
Note:
If work is to be interrupted for a lengthy period of time,
the stripping corner has to be additionally secured
against sinking of the formwork with the Fixing unit for
Framax-stripping corner I.
Fixing unit for Framax stripping corner I
Mounting the Fixing unit for Framax
stripping corner I
➤Remove the pegging tube from the fixing unit.
➤Place the spindle tube on the centring stud of the
stripping corner.
➤Twist the spindle tube clockwise until fully engaged.
➤Push the pegging tube over the thread of the spindle
tube.
➤Insert Connecting pin 10cm through the pegging
tube and the Adapter for Framax stripping corner I
and secure with Spring cotter 5mm.
➤Tighten the spindle nut against the pegging tube.
Equip each stripping corner with a separate
adapter.
This simplifies the repositioning operation of
the stripping cylinder and enables the stripping
corner to be fixed in the stripped condition.
ASpindle tube
BSpindle nut
CPegging tube
9239-209-01
9239-213-01
A
C
B
ASpindle tube
BSpindle nut
CPegging tube
DAdapter for Framax stripping corner I
ECentring stud of stripping corner
DSpindle nut
EPegging tube
FConnecting pin 10cm
GSpring cotter 5mm
B
E
D
9239-211-01
A
➟
A
9239-212-01
C
9239-212-02
➟
B
9239-212-03
C
GF

Original Operating Instructions Framax stripping corner I hydraulic
9999239002 - 07/2018
Practical example
Shaft with one Framax stripping cylinder I.
Shown here with no guardrail system along the front
Note:
Alternatively, the shaft can be fitted with four Framax
stripping cylinders I (full complement).
AFramax stripping cylinder I
BFramax stripping corner I
CHydraulic unit Framax V4
DAdapter for Framax stripping corner I
C
A
DB
B
9239-216-01

10 999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Compatible hydraulic units

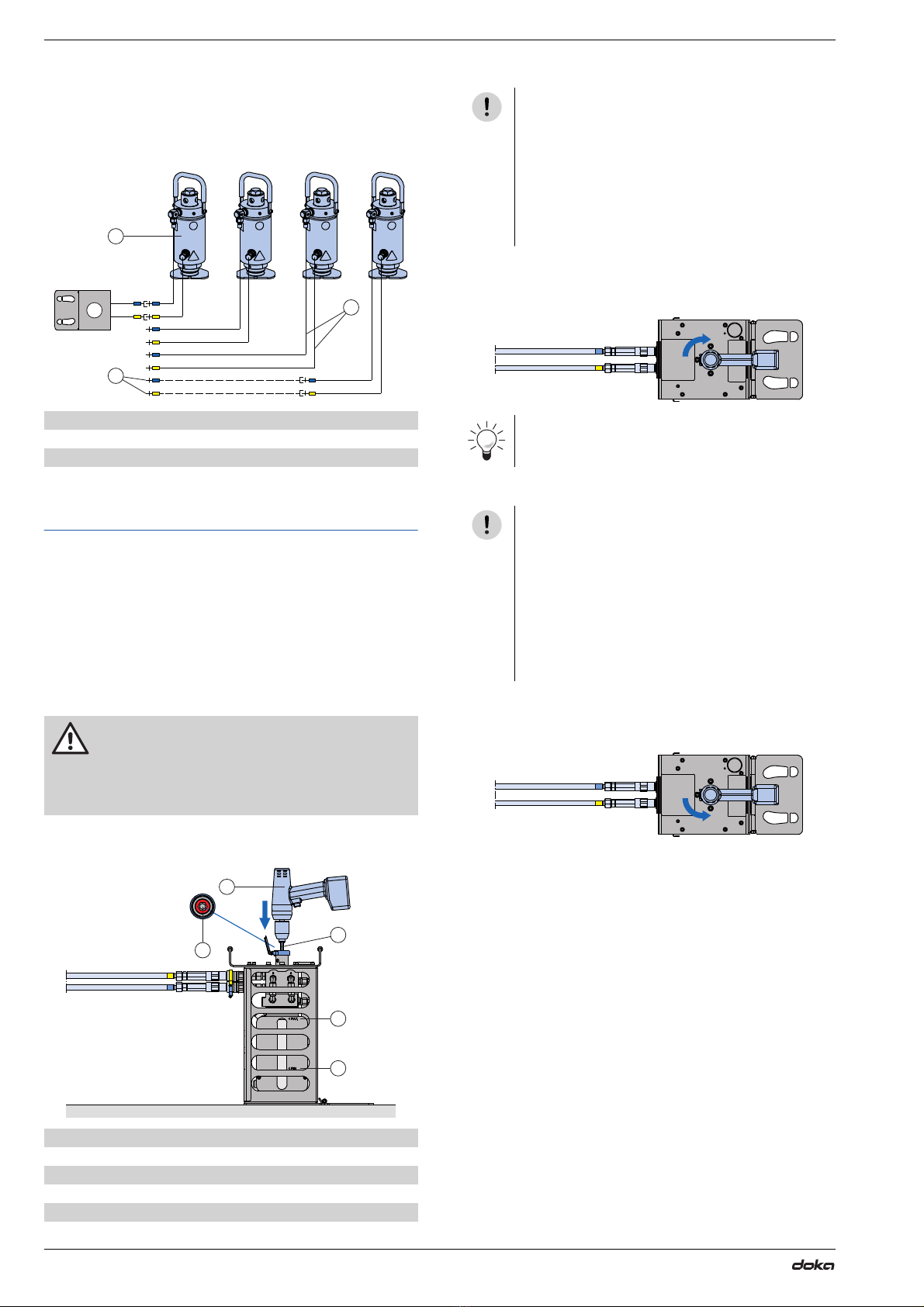

Hydraulic unit Framax V4
Intended use
For hydraulic drive of the Framax stripping cylinder I in
combination with Framax stripping corners I.
(Intended use).
Technical data
ADrive hexagon socket (width-across 8mm)
BDocuments container
CFlatface BG2 sleeve (yellow)
DFlatface BG2 sleeve (blue)
EParking position, Pair of hydraulic hoses for Framax stripping
corner I
FOil filling opening
GOil drain plug
HOil tank (with oil level indicator)
IPressure limitation valves
JMaximum oil level
KMinimum oil level
LFootplate
MCarrying strap, adjustable
B
F
L
M
9239-202-01
B
B
C
H
I
D
E
A
G
J
K
NOTICE
▪ Other use or use not in conformity with that
stated above is non-intended use and
requires the prior written approval of the
Doka company!
▪ Doka accepts no liability for products that
have been altered!
▪ Repairs may be carried out only by Doka or
specialist companies authorised by Doka!
▪ To avoid damage, the drive components
must be stored in such a way that they are
protected against direct climatic influences
and aggressive substances.
▪ The hydraulic unit Framax V4 must be
inspected by an expert once a year.
Designation Hydraulic unit Framax V4
Article number 588981000
Serial number see rating plate
Permitted oil
viscosity range 12 mm²/sec-100 mm²/sec
Recommended oil
viscosity range 15 mm²/sec at 40° C
Recommended
oil-temperature range -5° C to +55° C
Filter mesh of the
return-flow filter 100 μm absolute
Hydraulic oil type Shell Tellus S2 V 15
Oil capacity of reservoir approx. 3 litres
Operating pressure 200 bar
Min. delivery rate 2,4 l/min at 1500 rpm
Dead weight incl. 3 litres
of oil in reservoir 22 kg
Length 303 mm
Length with footplate 443 mm
Width 254 mm
Height 480 mm

Original Operating Instructions Framax stripping corner I hydraulic
11999239002 - 07/2018
Boundary conditions for use
Deployment in low ambient temperatures:
➤Store the unit in a warm environment.
Deployment in high ambient temperatures:
➤Store the unit where it is protected from the direct
rays of the sun.
Equipment components
As-delivered condition:
▪ Doka supplies the unit in ready-for-use condition.
- cleaned reservoir
- clean hydraulic oil
- valid inspection sticker
Note:
The following are kept in the documents container:
▪ Hexagon-socket screw key (width-across 12 mm)
▪ 3 cylinder screws M10x20 10.9 ISO 4762
As spares for the drive hexagon socket (width-
across 8 mm).
▪ 2 bits, hexagon socket (width-across 8 mm), min. 30
mm long
▪ Operating Instructions
▪ Hydraulic circuit diagram
Leakage test
Hydraulic units are subjected to considerable stresses
and strains - e.g. vibrations, temperature fluctuations
and high pressures.
➤Ensure scrupulous cleanliness during operation, so
that you can detect leaks at an early stage and rule
out possible sources of errors.
Installation of the hydraulics
➤Swivel the footplate flat to the ground.
➤Route the Pair of hydraulic hoses from the stripping
cylinder to the Hydraulic unit Framax V4 and connect
the hoses.
➤Temporarily stow pairs of hydraulic hoses that are
not in use in the parking positions inside the Hydrau-
lic unit Framax V4.
NOTICE
▪ The Hydraulic unit Framax V4 has sufficient
oil capacity for extending 6 stripping cylin-
ders.
▪ The hydraulic unit Framax V4 is suitable for
deployment at outside temperatures of
between -5° C and +55° C.
It is not permissible to put the unit into ser-
vice at temperatures of below -5° C, as the
hydraulic oil would be too viscous.
This inspection should focus on the:
▪ Flatface plug-in connectors
▪ threaded joints
▪ joining surfaces between the individual
valve components
▪ oil reservoir
APair of hydraulic hoses
BFootplate
APair of hydraulic hoses
CParking position, Pair of hydraulic hoses for Framax stripping
corner I
A
B
9239-204-01
9239-207-01
C
C
A

12 999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Note:
The couplings on the Hydraulic unit Framax V4 and the
couplings on the pair of hydraulic hoses are colour-
coded.
Putting the unit into service
Note:
▪ A cordless screwdriver with a battery voltage of at
least 18 V and a rated speed of 1800 rpm is needed
for putting the Hydraulic unit V4 into operation.
▪ Invariably, only one stripping cylinder can be oper-
ated with the Hydraulic unit V4.
➤Stand with both feet on the footplate.
➤Insert the cordless screwdriver with the bit (width-
across 8 mm) into the drive.
Stripping the formwork:
➤Set the cordless screwdriver to clockwise rotation
and operate it.
Stripping cylinder extends.
Closing the formwork:
➤Set the cordless screwdriver to counter-clockwise
rotation and operate it.
Stripping cylinder retracts.
AHydraulic unit Framax V4
BFramax stripping cylinder I
CPair of hydraulic hoses for Framax stripping cylinder I
DPair of hydraulic hoses f. stripp. cyl. 5.00m (optional)
CAUTION
Wrist injury
➤After extending or retracting the stripping
cylinder, switch off the cordless screwdriver
and disengage it from the drive!
ACordless screwdriver 18 V (1800 rotation/min)
BBit (width-across 8 mm)
CDrive hexagon socket (width-across 8mm)
DMaximum oil level
EMinimum oil level
C
D
B
9239-206-01
A
C
9239-204-02
A
B
D
E
NOTICE
If there is not enough oil in the unit, attempting
to extend another stripping cylinder will result
in damage to the unit.
➤Check the oil level in the oil reservoir!
Before a stripping cylinder is extended, the oil
level must be at least 25 mm above the ‘MIN’
mark.
When a stripping cylinder retracts, hydraulic oil
flows back into the oil reservoir.
NOTICE
If there is too much oil in the oil reservoir,
hydraulic oil will overflow from the reservoir
when an attempt is made to retract another
stripping cylinder.
➤Check the oil level in the oil reservoir!
Before a stripping cylinder is retracted, the oil
level must be at least 25 mm below the ‘MAX’
mark.
9239-204-03
9239-204-04

Original Operating Instructions Framax stripping corner I hydraulic
13999239002 - 07/2018
Maintenance
Changing the drive
Note:
The drive hexagon socket (width-across 8 mm) has to
be replaced if it is damaged.
There are 3 spare cylinder screws M10x20 - 10.9 in the
documents container.
➤Open the blue drive flap.
➤Insert the bit (width-across 8 mm) into the locking
bore.
➤Loosen locknut (width-across 12 mm) with hexagon-
socket screw key (width-across 12 mm).
➤Remove cylinder screw M10x20 - 10.9 and replace it
with a new cylinder screw M10x20 - 10.9.
Width-across, hexagon socket 8 mm
➤Retighten the locknut (width-across 12 mm).
Changing the oil
➤Unscrew the plug with a hexagon-socket screw key
(width-across 5 mm).
➤Lift the unit on to a used-oil drum and drain the oil
into the drum.
➤Re-seal the plug with Teflon tape, and screw it back
in.
➤Open the screw at the oil filling opening.
Width-across 17mm
➤Refill the reservoir with approx. 3 litres of hydraulic
oil (up to the maximum mark). Use 'Shell Tellus S2
V15' hydraulic oil.
➤Re-seal the oil filling opening.
➤Dispose of the waste oil and soiled cleaning utensils
correctly. Observe all relevant national laws.
Transport
ADrive flap
BLocking bore
CBit (width-across 8 mm)
DLocknut (width-across 12 mm) (painted red
EHexagon-socket screw key (width-across 12 mm)
FCylinder screw M10x20 - 10.9 (drive hexagon socket (width-
across 8 mm)
F
A
9239-203-01
D
B
E
C
A
C
9239-203-02
F
D
CAUTION
Risk of burns or scalds if an oil change is
attempted while the hydraulic oil is still hot!
➤If the hydraulic unit has been in operation for
a lengthy period, allow the hydraulic oil to
cool down before changing the oil.
Maximum oil temperature for oil changes:
40°C.
NOTICE
Interval for oil change:
▪ once a year
NOTICE
Do not put the hydraulic unit on its side!
Putting the hydraulic unit on its side causes
damage to the unit and leakage of hydraulic
oil.
The handles or the strap can be used for trans-
porting the Hydraulic unit Framax V4.

14 999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
Hydraulic unit Xclimb 60 V45 50/60Hz
➤Route the Pair of hydraulic hoses from the stripping
cylinder to the Hydraulic unit Xclimb 60 V45 50/60Hz
and connect the hoses.
Note:
The couplings on the Hydraulic unit Xclimb 60 V45
50/60Hz and the couplings on the pair of hydraulic
hoses for stripping cylinder are colour-coded.
A'Lift' and 'Lower' hand lever
B4 pressure-side connections (Lift) Flatface BG2 sleeve (blue)
C4 pressure-side connections (Lower) Flatface BG2 sleeve (yel-
low)
DAccessories cover
NOTICE
System pressure controller Xclimb 60 V45
must be installed for the stripping cylinder to
be operated with the Hydraulic unit Xclimb 60
V45 50/60Hz.
Required system pressure: 200 bar
Follow the directions in the 'Hydraulic unit
Xclimb 60 V45 50/60Hz' Operating Instruc-
tions!
9 -20 -2873 0 02
C
C
B
D
NOTICE
Invariably, only one stripping cylinder can be
connected to and operated with the Hydraulic
unit Xclimb 60 V45 50/60Hz!
Exception:
▪ No-one in the danger zone!
▪ Formwork erecting and stripping operations
are under observation at all times!
AHydraulic unit Xclimb 60 V45 50/60Hz
BFramax stripping cylinder I
CPair of hydraulic hoses
(pre-mounted on Framax stripping cylinder I)
DPair of hydraulic hoses f. stripp. cyl. 5.00m (optional)
NOTICE
After each formwork erecting or stripping oper-
ation, the pair of hydraulic hoses of the strip-
ping cylinder have to be disconnected from the
hydraulic unit.
D
A
C
B
9239-206-02

Original Operating Instructions Framax stripping corner I hydraulic
15999239002 - 07/2018
Hydraulic unit SCP V1200 50/60Hz
➤Route the Pair of hydraulic hoses from the stripping
cylinder to the Hydraulic unit Xclimb SCP V1200
50/60Hz and connect the hoses.
Note:
The couplings on the coupling adapter and the cou-
plings on the pair of hydraulic hoses for stripping cylin-
der are colour-coded.
AValve block with motor for pump unit 1
BValve block with motor for pump unit 2
CManometer for system pressure – Cylinder 1, 2, ... (14)
DPre-selector switches for hydraulic circuits 1 - 14
NOTICE
Coupling adapter B Framax stripping cyl. I has
to be used for operating the stripping cylinder
with the Hydraulic unit SCP V1200 50/60Hz.
AFlatface BG2 sleeve
BThreaded coupling SKS BG3 (connector)
CThreaded coupling SKS BG3 (sleeve)
Follow the directions in the 'Hydraulic unit SCP
V1200 50/60Hz' Operating Instructions!
92869-200-01
C
D
A
B
A
C
B
NOTICE
Invariably, only one stripping cylinder can be
operated with the Hydraulic unit SCP V1200
50/60Hz!
Exception:
▪ No-one in the danger zone!
▪ Formwork erecting and stripping operations
are under observation at all times!
AHydraulic unit SCP V1200 50/60Hz
BFramax stripping cylinder I
CPair of hydraulic hoses
(pre-mounted on Framax stripping cylinder I)
DCoupling adapter B Framax stripping cyl. I
EPair of hydraulic hoses f. stripp. cyl. 5.00M (optional)
NOTICE
After each formwork erecting or stripping oper-
ation, the pair of hydraulic hoses of the strip-
ping cylinder have to be disconnected from the
hydraulic unit.
A
E
C
B
D
9239-206-03

16 999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic
EC Declaration of Conformity
pursuant to EC Directive 2006/42/EC.
The manufacturer declares that by reason of its conception and
design, the following product
Framax stripping corner I hydraulic
conforms – in the version marketed by ourselves – to the pertinent
fundamental health and safety stipulations of the relevant EC Direc-
tives.
The following harmonised standards were applied:
▪ EN ISO 12100:2010
▪ EN 349:1993+A1:2008
▪ EN 982 1996+A1:2008
Person authorised to compile technical documentation
(pursuant to European Directive on Machinery Annex II):
Dipl.-Ing. Ludwig Pekarek
Josef Umdasch Platz 1
A-3300 Amstetten
Amstetten, 14/06/2018
Doka GmbH
Josef Umdasch Platz 1
A-3300 Amstetten
Dipl.-Ing. Ludwig Pekarek
Executive Manager
Dipl.-Ing. Peter Reisinger
Authorised Officer, Head of Engi-
neering

Article n°[kg] Article n°[kg]
17999239002 - 07/2018
Original Operating Instructions Framax stripping corner I hydraulic Component overview
Component overview[kg]Article n°
Framax stripping corner I 2.70m 171.0 588675000
Framax stripping corner I 1.35m 90.0 588614000
Framax stripping corner I 3.30m 209.9 588676000
Framax-Ausschalecke I
Framax stripping cylinder I 29.0 588980000
Framax-Ausschalzylinder I
Adapter for Framax stripping corner I 3.5 588989000
Adapter Framax-Ausschalecke I
Fixing unit for Framax stripping corner I 3.0 588990000
Fixiereinheit Framax-Ausschalecke I
Pair of hydraulic hoses f. stripp. cyl. 5.00m 5.2 588983000
Hydraulikschlauchpaar Ausschalzylinder 5,00m
Hydraulic unit Framax V4 20.5 588981000
Hydraulikaggregat Framax V4
Hydraulic unit Xclimb 60 V45 50/60Hz 321.0 581322000
Hydraulikaggregat Xclimb 60 V45 50/60Hz
System-pressure controller Xclimb 60 V45 1.4 581329000
Systemdruckbegrenzer Xclimb 60 V45
Hydraulic unit SCP V1200 50/60Hz 2200.0 583102500
Hydraulikaggregat SCP V1200 50/60Hz
Coupling adapter B Framax stripping cyl. I 2.0 588982500
Kupplungsadapter B Framax-Ausschalzylinder I
Galvanised, powder-coated
Painted yellow
Width: 16 cm
Height: 45.2 cm
Follow the directions in the "Opera-
ting Instructions"!
Galvanised
Galvanised
Painted yellow
Length: 30 cm
Width: 26 cm
Height: 48 cm
Follow the directions in the "Opera-
ting Instructions"!
Painted blue
Length: 115 cm
Width: 73 cm
Height: 115 cm
Follow the directions in the "Opera-
ting Instructions"!
Painted blue
Length: 158 cm
Width: 108 cm
Height: 221 cm
Follow the directions in the "Opera-
ting Instructions"!
Length: 27 cm

999239002 - 07/2018Doka GmbH | Josef Umdasch Platz 1 | 3300 Amstetten | Austria | T [phone] | F [phone] | [email protected] | www.doka.com
Near to you, worldwide
Doka is one of the world leaders in developing, manu-
facturing and distributing formwork technology for use in
all fields of the construction sector.
With more than 160 sales and logistics facilities in over
70 countries, the Doka Group has a highly efficient dis-
tribution network which ensures that equipment and
technical support are provided swiftly and profession-
ally.
An enterprise forming part of the Umdasch Group, the
Doka Group employs a worldwide workforce of more
than 6000.
