Dometic 103EAA User manual

103EAA,103EAB,103EAC,103EAD
Thermoelectric cooler
Operating manual . . . . . . . . . . . . . . . . . . . . .8
Thermoelektrische Kühlbox
Bedienungsanleitung . . . . . . . . . . . . . . . . . 21
Glacière thermoélectrique
Notice d’utilisation . . . . . . . . . . . . . . . . . . .35
Nevera termoeléctrica
Instrucciones de uso . . . . . . . . . . . . . . . . . .49
Geleira termoeléctrica
Manual de instruções . . . . . . . . . . . . . . . . .63
Frigorifero termoelettrico
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . . .77
Thermo-elektrische koelbox
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . . 91
Termoelektrisk køleboks
Betjeningsvejledning . . . . . . . . . . . . . . . .105
Termoelektrisk kylbox
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 118
Termoelektrisk kjøleboks
Bruksanvisning . . . . . . . . . . . . . . . . . . . . . 131
Sähkökäyttöinen kylmälaukku
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . . 144
Термоэлектрический
холодильник
Инструкция по эксплуатации . . . . . . . . . 157
Przenośna lodówka
termoelektryczna
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 172
Termoelektrický chladiaci box
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 187
Termoelektrický chladicí box
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 201
Term oelekt rom os h űtőké szülék
Használati utasítás. . . . . . . . . . . . . . . . . . . 214
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
Glacière
thermoélectrique
portable
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 1 Dienstag, 15. Dezember 2020 8:15 20

3
12/24V DC
3
1
2
1
2
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 3 Dienstag, 15. Dezember 2020 8:15 20

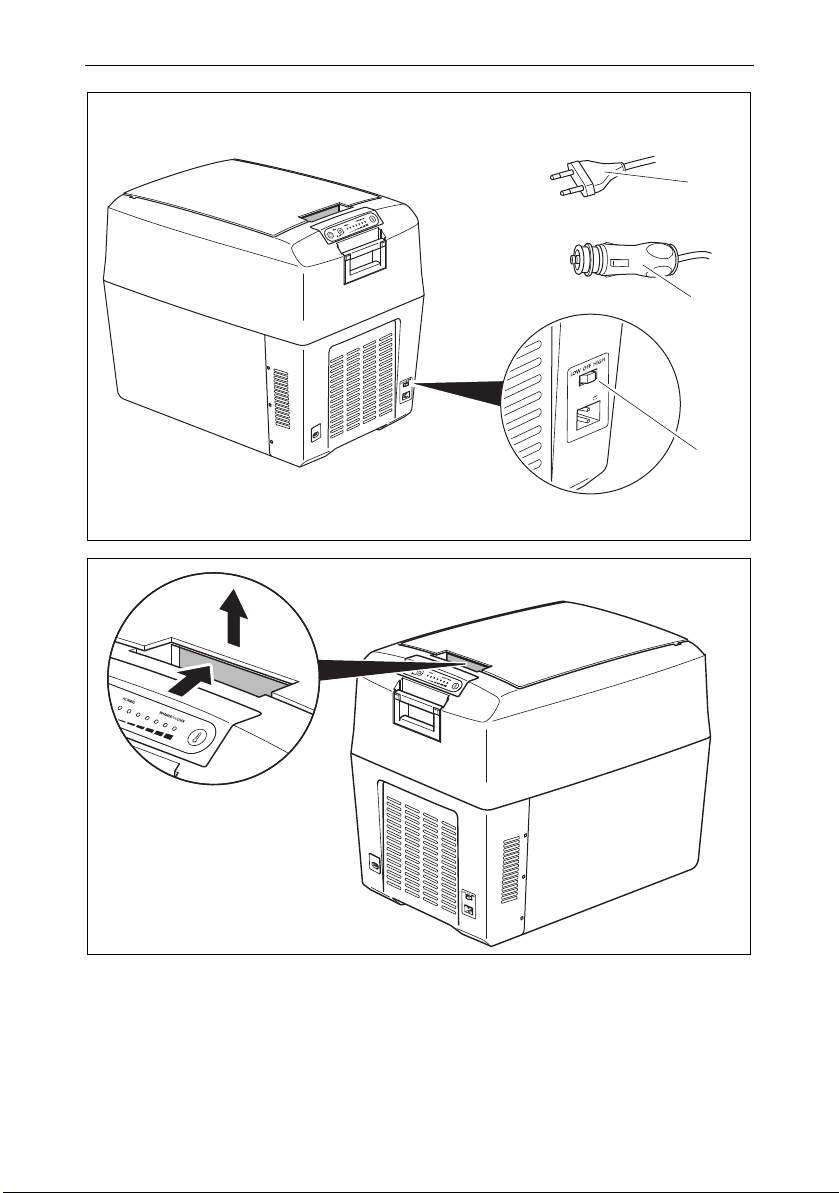

4
COLD
KALT
OFF
AUS
HOT
DC 12V
HEISS
4
3
2
1
3
1 2 3 4 5 6
4
5
12/24 Vg
(TCX 07: 12 V g)
g
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 4 Dienstag, 15. Dezember 2020 8:15 20

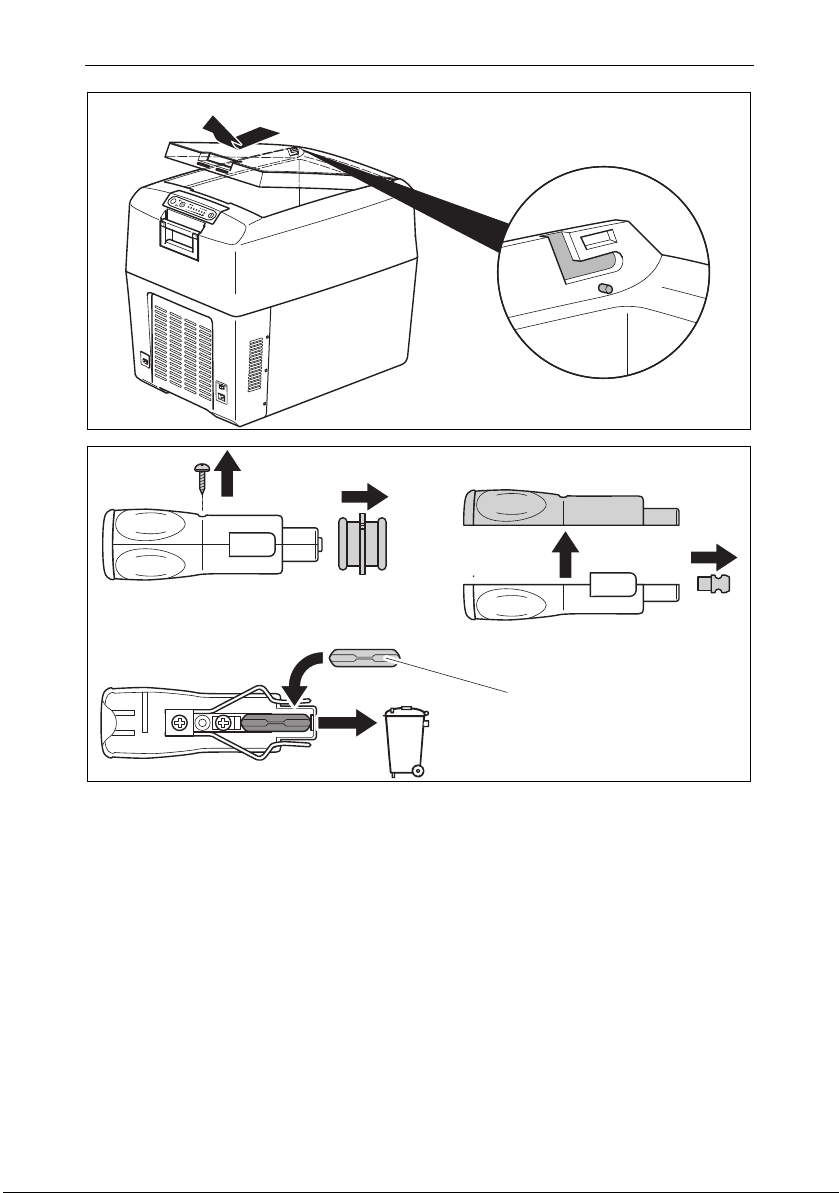

5
6
2. 1.
A B
C
1.
1.
2.
2.
1
7
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 5 Dienstag, 15. Dezember 2020 8:15 20

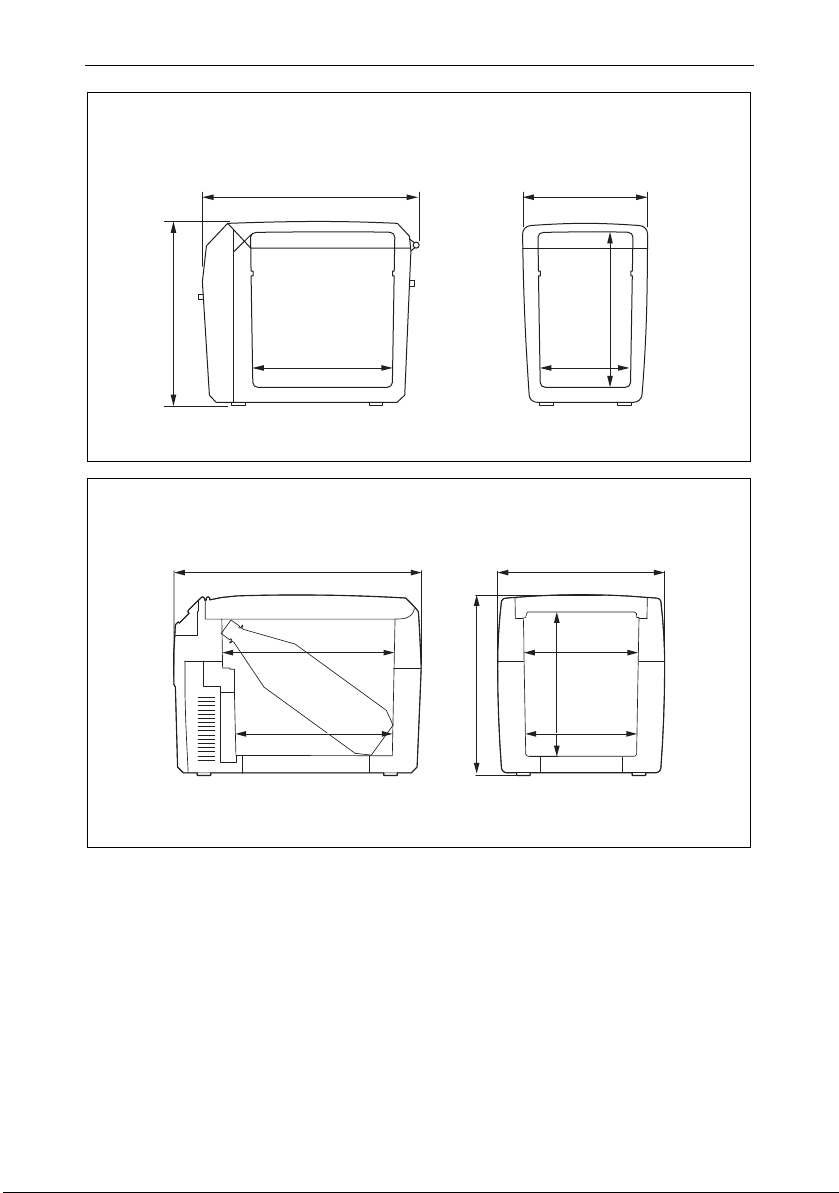

6
333 190
140210
278
240
8
103EAA
1,5/2 L
450
323
250
303
208
201
260
328
9
103EAB
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 6 Dienstag, 15. Dezember 2020 8:15 20

7
1,5/2 L
450
319
250
420
303
198
208
352
0
103EAC
1, 5/2 L
550
340
460
376
265
350
a
103EAD
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 7 Dienstag, 15. Dezember 2020 8:15 20

EN
Explanation of symbols
8
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
www.dometic.com.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7 Cleaning and servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
8 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 8 Dienstag, 15. Dezember 2020 8:15 20

EN
Safety notes
9
I
2Safetynotes
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTE
Supplementary information for operating the product.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 9 Dienstag, 15. Dezember 2020 8:15 20

EN
Safety notes
10
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
•Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mould developing within the device.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the vehicle
– Or with the AC connection cable to an AC power supply
• Never pull the plug out of the socket by the cable.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device and other power consuming devices from the battery
before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 10 Dienstag, 15. Dezember 2020 8:15 20

EN
Scope of delivery
11
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
• The device shall not to be exposed to rain.
3Scopeofdelivery
Check before starting up the device that all parts are available belonging to the
scope of delivery.
4 Intended use
The cooling box is suitable for cooling food. The cooling box is also suitable for use
on vehicles. The cooling box is designed to be operated from a DC power supply
socket of a vehicle or from an AC power supply.
The cooling box is suitable for camping use.
Quantity Description
1 Mobile thermoelectric cooler
1 Connection cable for AC connection
1 Connection cable for DC connection
1 Power adapter for AC connection (TCX07 only)
1 Instruction manual
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 11 Dienstag, 15. Dezember 2020 8:15 20

EN
Technical description
12
The cooling box is not suitable for:
• storage of corrosive, caustic or solvent-containing substances
• freezing of food
This cooling box is not intended to be used as a built-in appliance.
This cooling box is only suitable for the intended purpose and application in accord-
ance with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the cooling box. Poor installation and/or improper operating or
maintenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
5 Technical description
The cooling device is suitable for mobile use. It can cool goods up to max. 27 °C
(TCX07: 25 °C) under ambient temperature (thermostatic switch-off at approx. 2 °C)
or keep them warm up to max. 65 °C.
The cooling device is a low-wear thermo-electric cooler with fan-assisted heat
removal.
103EAA, 103EAB, 103EAC, 103EAD
If the device has reached the set temperature range, it will automatically switch over
to the energy save mode. In this mode only the energy which is required to reach the
temperature inside the box is consumed.
The cooling device is equipped with an automatic priority circuit. Thus it is ensured
that with simultaneous connection to the AC mains supply and to a 12/24 V battery,
the AC mains supply will be used.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 12 Dienstag, 15. Dezember 2020 8:15 20

EN
Operation
13
6Operation
A
I
To avoid food waste, note the following:
• Keep temperature fluctuation as low as possible. Only open the cooling box as
often and for as long as necessary. Store the foodstuff in such a way that the air
can still circulate well.
• Adjust the temperature to the quantity and type of the foodstuff.
• Foodstuff can easily absorb or release odor or taste. Always store foodstuff
covered or in closed containers/bottles.
6.1 Tips to save energy
• Choose a well ventilated location which is protected from directsunlight.
•If you want to set an increased energy efficiency and a limited cooling capacity for
the cooler device, use the device’s ECO mode.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
6.2 Connecting to vehicle power
I
For safety reasons the cooler is equipped with an electronic system to prevent
polarityreversal.Thisprotectsthecooler against short-circuiting when connecting to
a battery.
NOTICE!
Take care that there are only objects or goods in the cooling device
which may be cooled or heated to the selected temperature.
NOTE
Before you put the new cooling device into operation, you should clean
it inside and outside with a damp cloth for hygienic reasons (see also
chapter “Cleaning and servicing” on page 17).
NOTE
If you connect the cooling device to the vehicle power, remember that
you may have to turn on the ignition to supply it with power.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 13 Dienstag, 15. Dezember 2020 8:15 20

EN
Operation
14
6.3 Opening the cooler
➤103EAD only: Unlock the cooling device (fig. 2, page 3).
➤Open the cooling device.
6.4 Connecting the cooling box to 230 Vw
103EAA
➤Connect the AC cable to the power adapter.
➤Plug the other end of the AC cable into the socket (AC main side).
➤Connect one end of the DC cable to the power adapter.
➤Connect the other end of the DC cable to the socket at the cooling box.
103EAB,103EAC,103EAD
➤Connect the cooling device using the AC connection cable supplied (fig. 11,
page 4) to an AC mains power socket.
6.5 Connecting the cooling box to 12 Vg
I
103EAA
➤Plug one end of the 12 V connection cable into the socket of the cool box.
➤Connect the other end of the 12 V connection cable to the DC socket in your
vehicle (fig. 5, page 4).
103EAB, 103EAC, 103EAD
➤Connect the cooling device using the DC connection cable supplied (fig. 12,
page 3) to the DC socket in the vehicle (fig. 5, page 4).
NOTE
The plug’s polarity cannot be reversed: it can only be inserted into the
socket in one direction.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 14 Dienstag, 15. Dezember 2020 8:15 20

EN
Operation
15
6.6 Switching on the cooling box
103EAA
➤Place the cooling box on a firm base.
➤Push the switch on the operating panel (fig. 33, page 4) into
the “HEISS/HOT” position or the “KALT/COLD” position to switch the coolbox
on.
✔The cooling box starts cooling/heating the interior:
103EAB, 103EAC, 103EAD
➤Place the cooling device on a firm base.
➤Press the button “P” on the control panel to switch on the cooling device.
✔The cooling device starts to cool or heat the interior space.
6.7 Switching between cooling and heating
103EAA
➤If you wish to switch between cooling and heating, push the switch on the
operating panel (fig. 33, page 4) into the “HEISS/HOT” or “KALT/COLD”
position.
✔The red or green operating display lights up and the device begins
cooling/heating.
➤If you wish to end the cooling/heating process, push the switch on the operating
panel (fig. 33, page 4) into the “AUS/OFF” position.
➤If you wish to switch off the device, pull out the connecting cable.
Operating display Operating mode
Red (fig. 32, page 4) Heating
Green (fig. 34, page 4) Cooling
Operating display Operating mode
red (fig. 42, page 4) heating
blue (fig. 43, page 4) cooling
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 15 Dienstag, 15. Dezember 2020 8:15 20

EN
Operation
16
103EAB, 103EAC, 103EAD
➤If you wish to switch between cooling and heating, press the
button “HOT/COLD”.
I
✔The red or blue operating display lights up and the device starts to cool/heat.
➤When you want to finish the cooling or heating process, press the button “P”.
➤When you stop using the cooling device, disconnect it from the mains.
6.8 Selecting the temperature (103EAB, 103EAC,103EAD)
The set temperature status display (fig. 45, page 4) indicates the selected
temperature. With an increasing number of illuminated LEDs, the cooling or heating
intensity also increases.
I
Temperature at interior space center at approx. 25 °C ambient temperature:
➤To select the cool or heat temperature, press the “ ” button repeatedly untilthe
desired number of LEDs are illuminated.
NOTE
The control unit of the cooling device has a memory function.
It memorises the selected temperature range for each mode (cooling
and heating). Thus the temperature range which was previously
selected in the respective mode is set again with each switching on or
switching over.
NOTE
The following temperature indications are subject to tolerances and are
dependent on the measuring position.
Status display
(fig. 45, page 4) Interior temperature
Cooling
7 illuminated LEDs approx 1 °C (TCX14)
approx 3 °C (TCX21, TCX35)
1 illuminated LED approx 17 °C (ECO mode)
Heating 7 illuminated LEDs approx 65 °C
1 illuminated LED approx 48 °C
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 16 Dienstag, 15. Dezember 2020 8:15 20

EN
Cleaning and servicing
17
6.9 Removing the lid (103EAB, 103EAC, 103EAD)
You can remove the lid of the cooling device (fig. 6, page 5):
➤Open the lid until it is at an approx. 30° angle to the cooler.
➤Pull the lid forwards and lift it off diagonally.
7 Cleaning and servicing
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any dust and
dirt, so that heat can be released and the device is not damaged.
8Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
NOTICE! Damage hazard
• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 17 Dienstag, 15. Dezember 2020 8:15 20

EN
Troubleshooting
18
9 Troubleshooting
Fault Possible cause Suggestion
The cooling device
does not function and
the fan impeller which
is visible from outside
does not rotate.
There is no voltage
present in the DC
power socket in your
vehicle.
The ignition must be switched on in most
vehicles to apply current to the DC power
socket.
The ignition is switched
on and the cooling
device does not work.
The DC power socket
is dirty. This results in a
poor electrical
contact.
Clean the socket of the DC power socket
with a non-metallic brush and a solvent,
so that the middle contact pin is clean.
If the plug of your cooling device
becomes very warm in the DC power
socket, either the DC power socket must
be cleaned or the plug has not been
assembled correctly.
The fuse of the
connecting cable is
burnt through.
Replace the fuse (fig. 71, page 5) of the
DC plug with one of the same rating.
The vehicle fuse is
burnt through.
Replace the vehicle fuse of the DC power
socket (usually 15 A). (Observe the
operating instructions in your motorcar
for this).
Your cooling device
does not cool satisfac-
torily and the fan impel-
ler at the outside does
not rotate.
The ventilator motor is
defective.
The repair can be executed only by an
authorized customer service.
Your cooling device
does not cool
satisfactorily and the fan
impeller at the outside
rotates.
The ventilator motor
for the inner ventilator
is defective.
The thermo-electric
element is defective.
The integrated power
unit is defective.
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 18 Dienstag, 15. Dezember 2020 8:15 20

EN
Technical data
19
10 Technical data
103EAA
Input voltage: 12 Vg
230 Vw (with power adapter)
Power input: 38 W (12 Vg)
43 W (230 Vw)
Interior temperature
range
– Cooling: max. 25 °C below ambient temperature
– Heating: max. 65 °C
Climate class: N
Ambient temperature: +16 °C to +32 °C
Dimensions: fig. 8, page 6
Weight: 2.8 kg (without power adapter)
Inspection/Certificate:
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 19 Dienstag, 15. Dezember 2020 8:15 20

EN
Technicaldata
20
103EAB 103EAC 103EAD
Input voltage: 12/24 Vg
220 – 240 Vw
Power input: 46 W (12 Vg)
50 W (24 Vg)
64 W (230 Vw)
Interior temperature
range (7 to 1 LEDs)
– Cooling: 1 °C to 17 °C 3 °C to 17 °C
(max. 27 °C below ambient temperature)
Interior temperature
range (7 to 1 LEDs)
– Heating: 48 °C to 65 °C
Climate class: N
Ambient temperature: +16 °C to +32 °C
Dimensions: fig. 9, page 6 fig. 0, page 7 fig. a, page 7
Weight: 5.8 kg 7.3 kg 10.6 kg
Inspection/Certificate:
DometicTCX07-TCX35_OPM_4445103171_EMEA16_2020-xx-xx.book Seite 20 Dienstag, 15. Dezember 2020 8:15 20
