INTRODUCTION
The Power Awning Pro system (hereinafter referred to as “unit” or “Product”) is designed and intended for installation in a
Recreational Vehicle (hereinafter referred to as “RV”) during or after the RV manufacture.
The Product kit is available for order with various components so while some graphics may show di󰀨erent components,
they still illustrate the correct procedure. All components that were not originally ordered can be purchased as an add-on or
upgrade.
Dometic Corporation reserves the right to modify appearances and specications without notice.
IMPORTANTSAFETYINSTRUCTIONSANDDOCUMENTSYMBOLS
This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries.
A. Recognize Safety Information
This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
B. Understand Signal Words
A signal word will identify safety messages and property damage messages, and will indicate the degree or level of hazard
seriousness.
indicates a hazardous situation that, if NOT avoided, could result in death or serious injury.
indicates a hazardous situation that, if NOT avoided, could result in minor or moderate injury.
is used to address practices NOT related to physical injury.
C. Supplemental Directives
Read and follow all safety information and instructions to avoid possible injury or death.
Read and understand these instructions before installation, use, service, or maintenance of this product.
Incorrect installation, operation, service, or maintenance of this product can lead to serious injury.
The installation MUST comply with all applicable local or national codes, including the latest edition of the following
standards:
U.S.A.
• ANSI/NFPA70, National Electrical Code (NEC)
• ANSI/NFPA 1192, Recreational Vehicles Code
CANADA
• CSA C22.1, Parts l & ll, Canadian Electrical Code
• CSA Z240 RV Series, Recreational Vehicles
Indicates additional information that is not related to physical injury.
D. General Safety Messages
Failure to obey the following warnings could result in death or serious injury:
• This product MUST be installed/serviced by a qualied service technician.
• Do NOT modify this product in any way. Modication can be extremely hazardous.
• IMPACT OR CRUSH HAZARD. This product should be installed in a controlled environment (inside). Do NOT install product
during windy conditions, or when wind is expected. Otherwise, product could move unpredictably, become unstable, and
could detach, bend, or collapse.
Compatible ONLY with 9100, 9200 and 9500 power awnings and associated hardware.

3
GENERAL INFORMATION
REQUIRED HARDWARE
(2) 3/16" x 1/2" Pop Rivet (Optional – Installer-Supplied)
BASIC COMPONENTS
3317114.201 Wireless Receiver
• Receiver Wire Harness • Dry Contact Switch Wire Harness
• 3316518.201 Remote Control • Miscellaneous Wire Connectors
• Dry Contact Switch (Power)
OPTIONAL COMPONENTS AND KITS
3316519.205 Vibration Sensor (Black) 3316519.202 Vibration Sensor (White)
REQUIRED TOOLS
Drill Phillips Screwdriver/Bit
#11 (0.191") Drill Bit 7/16" Hex Nut Driver/Bit
Riveting Tool Needle Nose Pliers
Flat-Bladed Screwdriver/Bit (Small) Wire Cutter
A. Receiver Control Range
L1 IN THE AIR L2 WITH CONCRETE WALLS EMISSION FREQUENCY
12 V 200 m (656.17 ft) 35 m (114.83 ft) 433.92 MHz
INSTALLATION
ELECTRICAL SHOCK HAZARD. Disconnect 120 VAC power from RV. Failure to do so could result in death or
serious injury.
Failure to obey the following directions could result in damage to the unit or property:
• Install a 15 A fuse (installer supplied) at fuse panel for positive (+) 12 VDC power supply (RED wire) to product.
• Disconnect the positive (+) 12 VDC terminal from supply battery.
• Disconnect power for ALL procedures under this section. Use a grommet (installer supplied) or equivalent protection when
routing wire through the RV’s roof, oor, or walls.
A. Installing The Receiver
1. Determine the receiver location, and then secure the receiver to the wall or cabinet using screws (installer supplied).
2. Route the wiring.
If using dry contact switches, route the installer-supplied wiring inside the RV from the receiver location to the dry contact
switch installation site.
3. Make the electrical connections according to the wiring diagram provided (FIG. 1).
If this unit is being added to an existing awning with LEDs, the existing LED switch must be disconnected and
reconnected according to the wiring diagram provided (FIG. 1). If the existing LED switch is not disconnected, the LED will
not function.

4
INSTALLATION

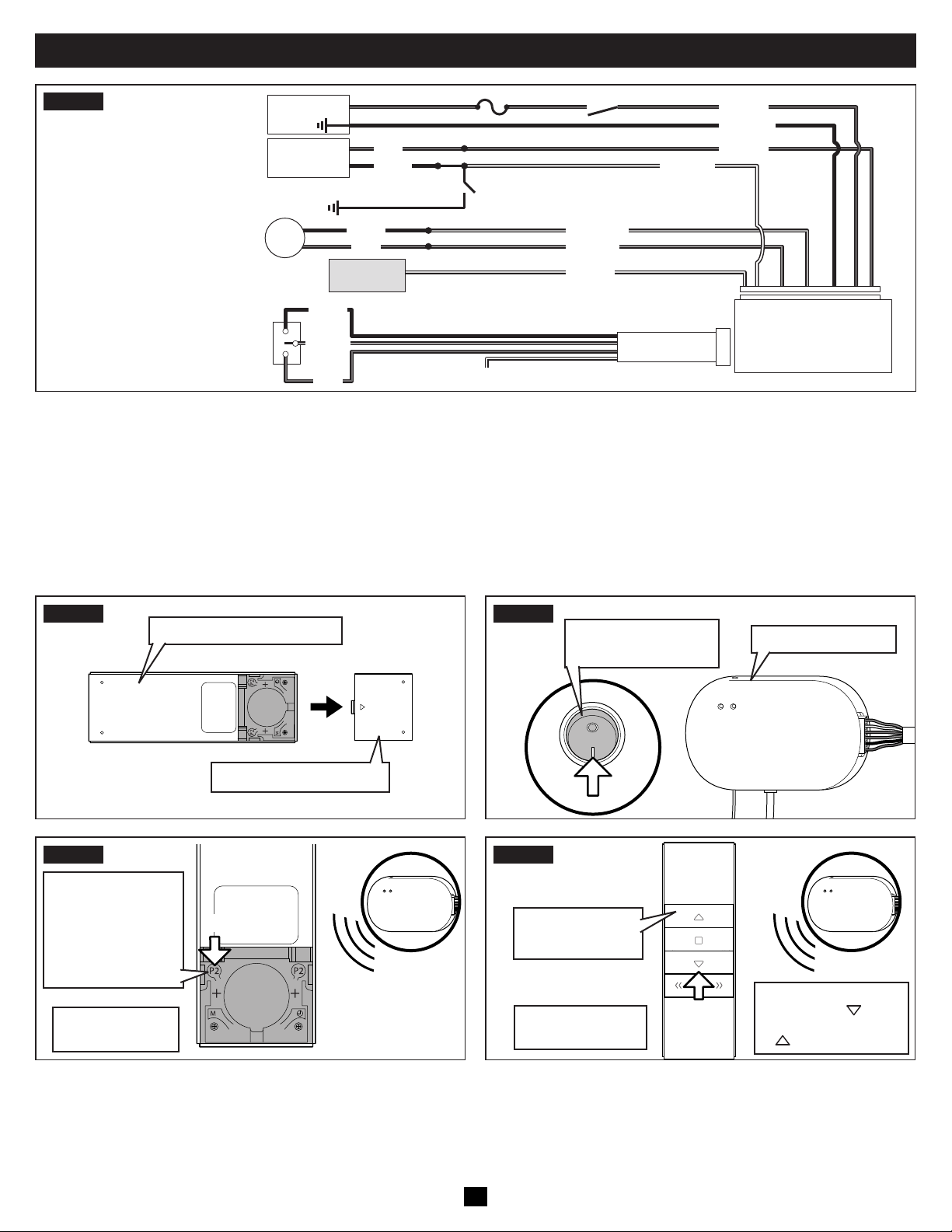

FIG. 1
Optional LED Switch
(Installer Supplied)
Ignition
(Interlock)
Awning
Motor
Awning Switch
(Optional Installer Supplied)
(MOM-OFF-MOM)
LED Strip
(Optional)
Retract
Extend
15 A Fused
Power Supply Black (-)
Brown (-)
White (-)
15 A Inline Fuse On/O󰀨 Switch
Yellow
(Not Used)
Orange
Black
Black
Green
Red
Red Red (+)
Red (+)
Blue (+)
Receiver
RJ 11 Cable
FIRE OR ELECTRICAL SHOCK HAZARD. For all wire connections, use only NEC-approved connectors and
terminals that are appropriately sized for the wire gauge. Failure to do so could result in death or serious injury.
Failure to use NEC-approved connectors and terminals of the appropriate size could result in property damage.
B. Programming The Remote Control
Complete each programming step within four seconds of the previous step to keep the receiver in pairing mode. If the
receiver resets, restart the programming process.
• Disconnect all power to the receiver and wait at least ten seconds before beginning the programming process.
STEP 1
Remove Battery Cover
Back of Remote Control
STEP 2
12 VDC Power
Supply to Receiver Wireless Receiver
ON
STEP 3
Press the P2
button two times.
The Receiver
beeps once after
each press of the
button.
Back of
Remote Control
x2
x2
STEP 4
Awning Retract
(Up) Button
Front of
Remote Control
x4
x1
IMPACT OR CRUSH HAZARD. Make sure the awning retract button and the awning extend button operate the
awning in the intended direction. Failure to obey this waring could result in death or serious injury.
• Refer to "A. The Function Of The Remote Control" on page 7 to test the remote control.
When STEP 4 is completed, proceed immediately to "C. Programming The Vibration Sensor (If Applicable)" on page 5.
Black
Red
When used on 9500
awning, press Down
button at Step 4 instead
of Up button.

5
INSTALLATION

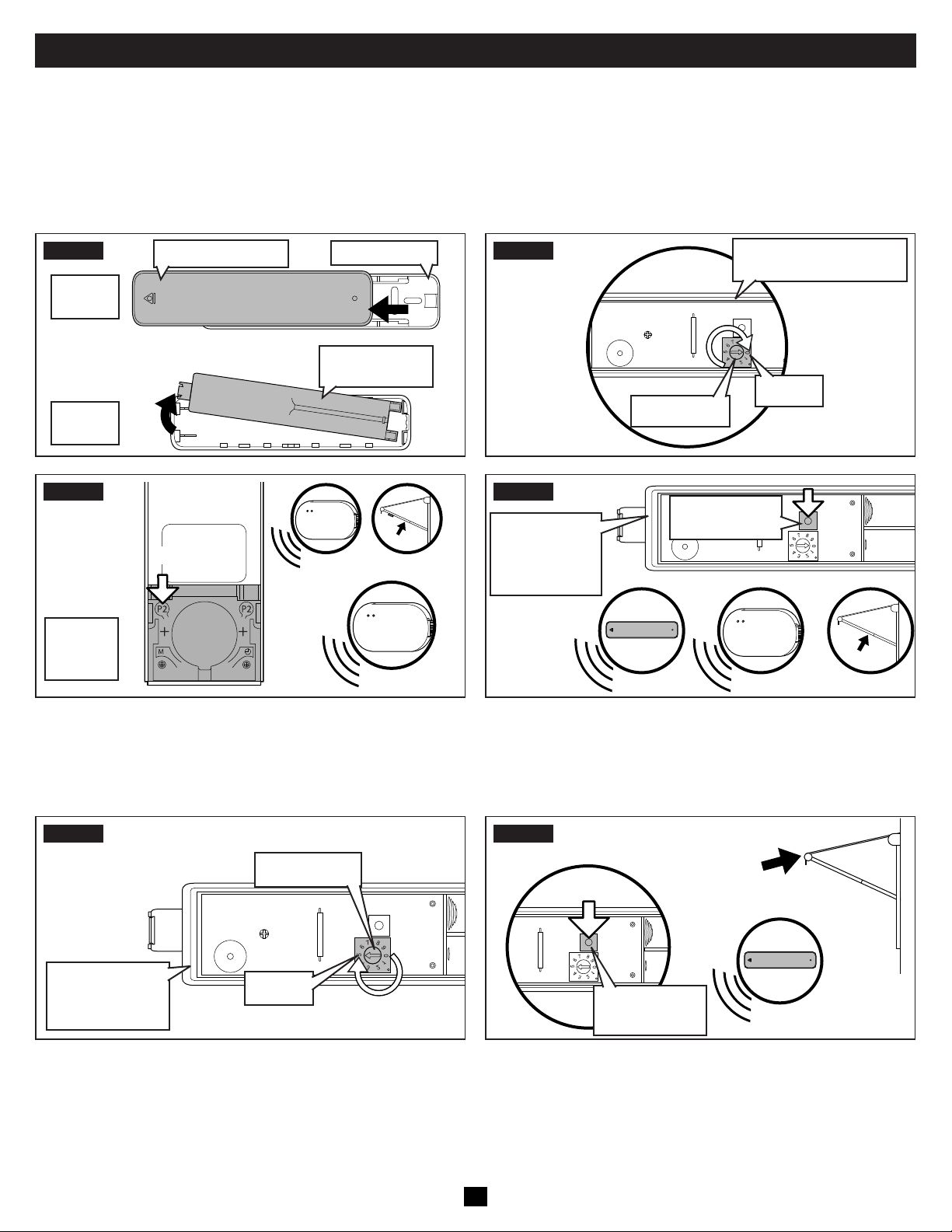

C. Programming The Vibration Sensor (If Applicable)
Complete each programming step within four seconds of the previous step to keep the receiver in pairing mode. If the
receiver resets, restart the programming process.
• When installing a vibration sensor, complete the steps in "B. Programming The Remote Control" on page 4 then start
with STEP 1 of this procedure without delay.
STEP 1 Sensor Base
Vibration Sensor
Battery
Compartment
Front of
Sensor
Back of
Sensor
STEP 2
Sensor Dial
Set to 0
Vibration Sensor
Battery Compartment
STEP 3
Back of
Remote
Control
x1
a.
b.
x1
x1
x2
a. Press the P2 button once. The wireless receiver
beeps once and the awning jogs.
b. Press the P2 button a second time. The receiver
beeps once.
STEP 4
Vibration
Sensor
Battery
Compartment
Programming
Button
x1 x5 x1
x1
a. Press the vibration sensor programming button. The
sensor beeps once, the wireless receiver beeps ve
times, and the awning jogs.
STEP 5
Sensor Dial
Set to 5
Vibration
Sensor Battery
Compartment
STEP 6
Programming
Button
The Awning
retracts.
x1
x1
a. Set the vibration sensor dial to the desired level of
detection (see Operation, "B. Adjusting The Vibration
Sensor (If Applicable)" on page 7).
b. Press the vibration sensor programming button once.
The sensor beeps once, and the awning retracts.

6
INSTALLATION

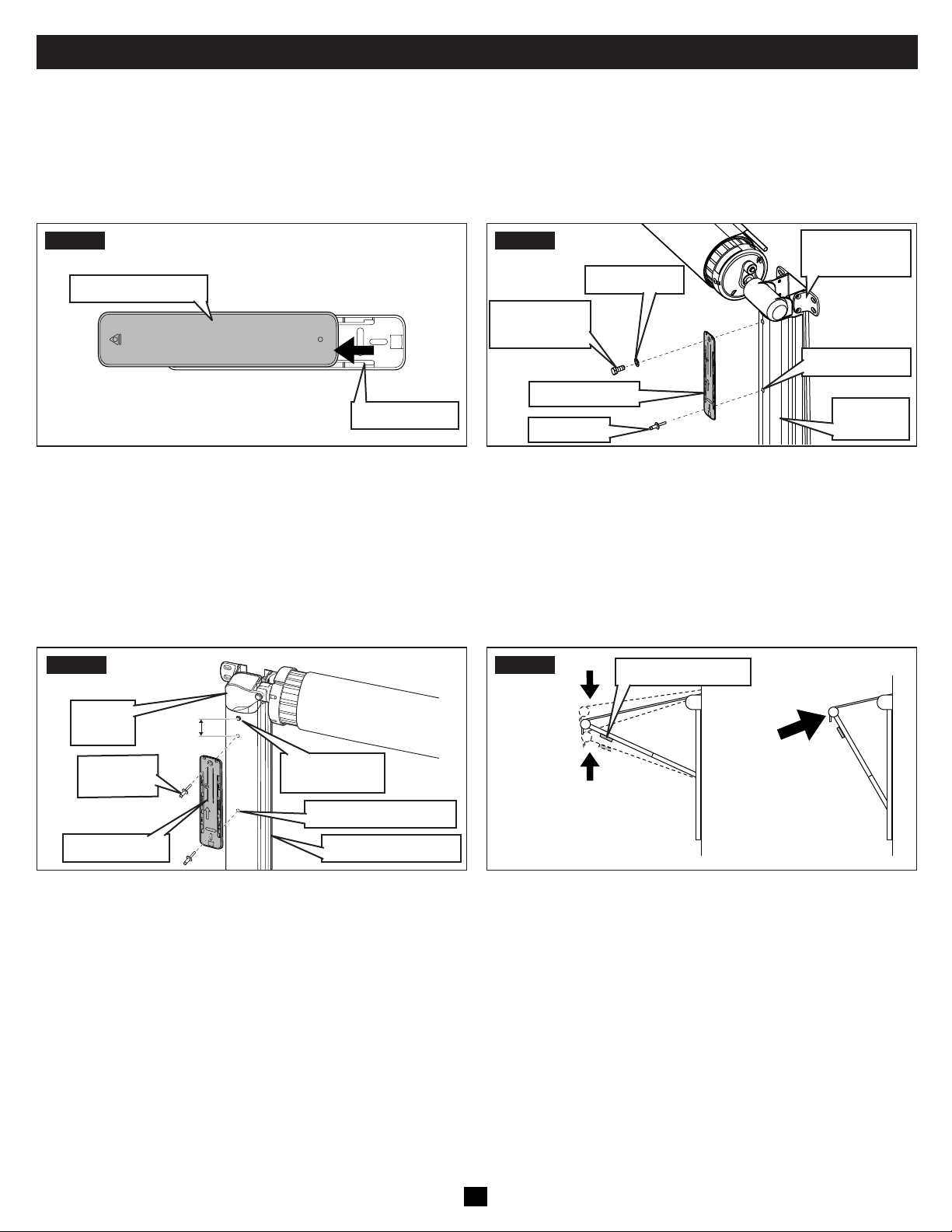

D. The Vibration Sensor (If Applicable)
IMPACT OR CRUSH HAZARD. This product should be installed in a controlled environment (inside). Do NOT
install product during windy conditions, or when wind is expected. Otherwise, product could move unpredictably, become
unstable, and could detach, bend, or collapse.
• Fully close the awning.
STEP 1
Sensor Base
Vibration Sensor
STEP 2
Lockwasher
1/4-20 x 3/4"
Screw
Sensor Base
Pop Rivet
RH Front
Channel
Drill #11 Hole
Top Mounting
Bracket
a. Remove and reuse the screw and lock washer on the
front channel to install the vibration sensor base.
b. If using a secondary securement (installer supplied
pop rivet), open the awning far enough to remove
the top wire cover from the front channel. Remove
the wire cover to the motor wire and pull it out of the
way to avoid damaging the wire. Reconnect after
mounting the vibration sensor base.
c. Re-install the vibration sensor onto the sensor base.
STEP 3
Pop
Rivets x2
a. Using the top hole in the left hardware front channel
as a reference, measure down 2 inches, then mark
the mounting hole locations using the sensor base as
a template.
b. Drill two #11 holes at the marked hole locations in the
LH front channel.
c. Use installer-supplied pop rivets to attach the sensor
base to the LH front channel.
d. Re-install the vibration sensor onto the sensor base.
STEP 4
Rapidly raise and
lower the roller
tube to activate the
Vibration Sensor.
Awning will
completely close.
Vibration Sensor
No direct correlation exists between the sensitivity settings on this sensor and true wind speed. The vibration sensor will
close the awning any time the motion in the attached hardware arm reaches the pre-set level regardless of the cause of
this motion. Wind speed, angle of attack, and the size of the awning are only a few factors that can a󰀨ect how an awning
reacts to environmental conditions.
Refer to "B. Adjusting The Vibration Sensor (If Applicable)" on page 7 if the sensor fails to activate or the sensor is too
sensitive.
Sensor Base
Top
Casting
Existing
1/4-20 Screw
Drill #11 (2) Holes
LH Front Channel
2"
9100 Awnings (for 9200 awnings, use step 3)
9200 Awnings

7
OPERATION

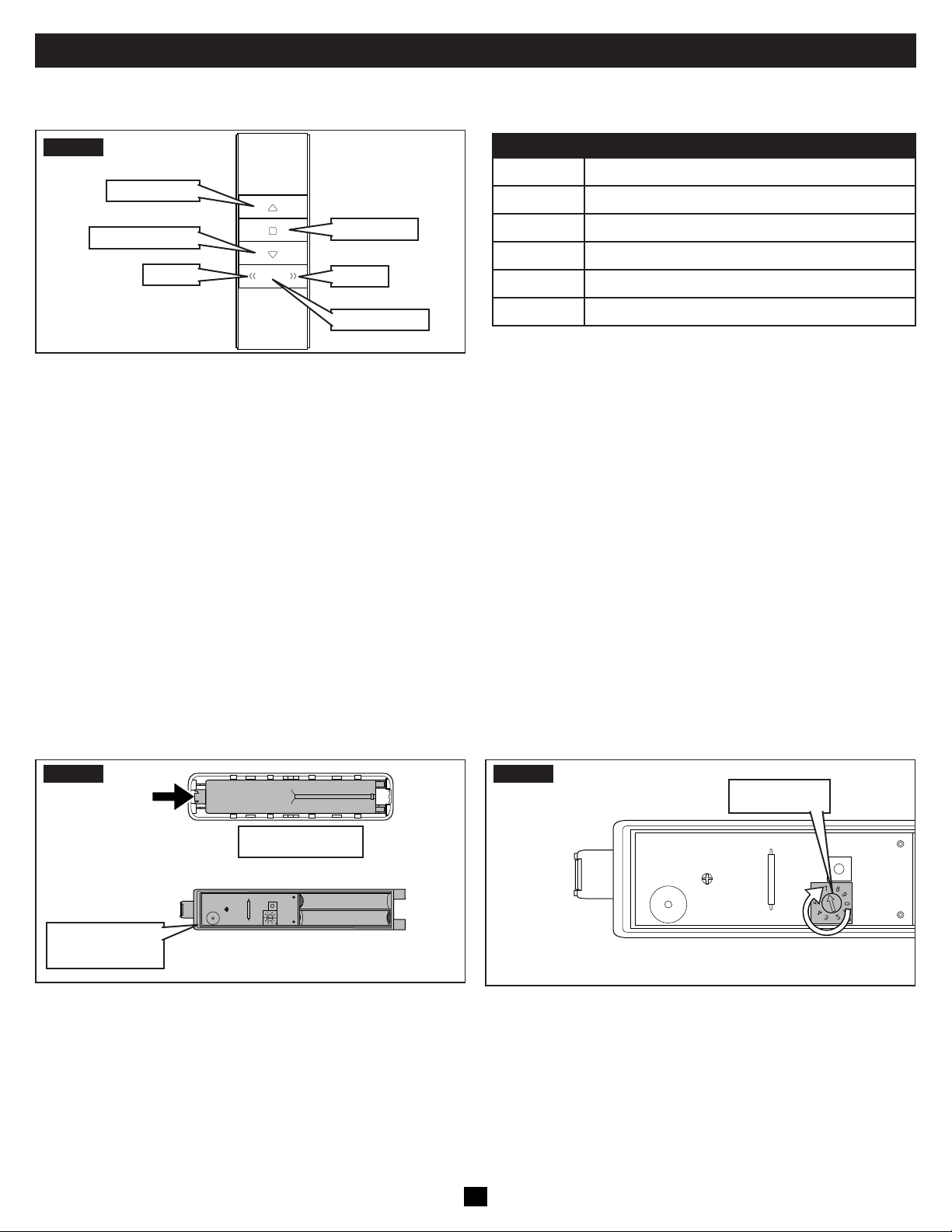

A. The Function Of The Remote Control
STEP 1
Up Button
(not used)
LED +
Down Button
LED −
LED Button
BUTTON FUNCTION
Up Retracts the awning when the button is held
Stop Not used in this application
Down Extends the awning when the button is held
LED Turns LED light(s) on and o󰀨
LED − Dims LED light(s)
LED + Brightens LED light(s)
For Motorized RVs Only: Make sure the awning
automatically closes when starting the RV.
B. Adjusting The Vibration Sensor (If Applicable)
IMPACT OR CRUSH HAZARD. Keep your hands, arms, head or torso clear of the awning hardware during
periods of rain, wind, etc. These conditions may cause the vibration sensor to unexpectedly activate and retract the awning.
Failure to do so could result in death or serious injury.
Failure to obey the following directions could result in damage to the unit or property:
• Do NOT rely on the vibration sensor to prevent damage to the awning. The awning should ALWAYS be closed when
unattended or when severe weather, such as strong rain, wind, etc., is expected.
• Do NOT hang any items from, or block the travel of, the hardware arms or awning when the vibration sensor is installed.
The sensitivity of the vibration sensor can be set from 1 (most sensitive) to 9 (least sensitive). When the sensor is separat-
ed from the base, settings 0 and 5 are used for programming. When the sensor and the base are assembled together and
the sensor senses the magnet, settings 0 through 9 can be used for active vibration settings. A setting of 0 will disable the
sensor.
• Refer to "D. Mounting The Vibration Sensor (If Applicable)" on page 6 to remove the vibration sensor from the front
channel.
STEP 1
Back of Sensor
Battery
Compartment
STEP 2
Sensor Dial
ALWAYS conrm functionality of the vibration
sensor after any changes or adjustments are made. Refer to
Installation STEP 6 to test the vibration sensor operation.

8
OPERATION
C. Other Useful Information
• For safety purposes, the vibration sensor sends a signal to the receiver every 60 minutes to conrm functionality. If for any
reason (removal, low battery, etc), that signal is not received after 60 minutes, the awning will retract automatically.
• The vibration sensor will not function if not attached to the sensor base.
• To extend the awning, depress the down button until the awning is fully deployed. Then, releasing the down button will
cause the awning to stop, and jog back to the nal use position.
• The LED output is protected by a 3 A auto-reset fuse. It will protect the LED strip in the event of a short or over-current
condition. If one of these conditions occur:
a. Disconnect the power using the on/o󰀨 switch.
b. Determine and x the cause of the blown fuse.
c. Turn the unit on using the on/o󰀨 switch.
DISPOSAL
Place the packaging material in the appropriate recycling waste bins, whenever possible. Consult a local recycling center or
specialist dealer for details about how to dispose of the product in accordance with all applicable national and local regulations.
WARRANTY INFORMATION
Refer to the sections below for information about warranty and warranty support in the US, Canada, and all other regions.
A. United States and Canada
Limited warranty available at www.dometic.com/warranty.
If you have questions, or to obtain a copy of the limited warranty free of charge, contact:
DOMETIC CORPORATION
CUSTOMER SUPPORT CENTER
1120 NORTH MAIN STREET
ELKHART, INDIANA, USA 46514
1-800-544-4881 OPT 3
B. All Other Regions
The statutory warranty period applies. If the product is defective, please contact the manufacturer’s branch in your region (see
the back of the instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following documents when you send in the device:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
