895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions
SAFETY INSTRUCTIONS
This manual has safety information and instruc-
tions to help users eliminate or reduce the risk
of accidents and injuries.
RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see
this symbol in this manual, be alert to the poten-
tial for personal injury.
Follow recommended precautions and safe op-
erating instructions.
UNDERSTAND SIGNAL WORDS
A signal word , WARNING OR CAUTION is used
with the safety-alert symbol. They give the level
of risk for potential injury.
indicates a potentially hazard-
ous situation which, if not avoided, could result
in death or serious injury.
indicates a potentially hazard-
ous situation which, if not avoided, may result in
minor or moderate injury.
used without the safety alert
symbol indicates, a potentially hazardous situa-
tion which, if not avoided, may result in property
damage.
Read and follow all safety information and in-
structions.
2
REQUIRED PARTS: (Packed with each Hardware Assembly)
895(X)0(X)1.400(X) & 895(X)0(X)2.400(X) Hardware
(4) Mounting Bracket (3310250.000(X))
(8) #14-10 x 1-1/2” Hex Head Screw (3104499.003)
(2) .25” Split Lock Washer (3101746.000)
(8) 3/16” x 1” Oscar Rivets (113008)
(2) #6-20 x .44” Hex Washer Head Self Drilling Screw
(310359.012)
(2) 1/4”- 20 x 3/4” Hex Head Bolts (3104176.205)
Important: Read and understand ALL of the follow-
ing steps before beginning installation.
Application
The A&E Awning is designed and intended for use on Mo-
torhomes, Travel Trailers and Fifth Wheels with straight
sides.
Important: Structural backing is required where
mounting screws /oscar rivets will be installed through
sidewall for securing top mounting brackets and back
channels.
Important: Follow the Minimum distance dimensions
requirements from awning rail to door. Mounting height
depends on awning type and length. Insure suffcient
room is available before starting installation. This
awning is not intended to be mounted over a slideout
room.
Hardware Model
Minimum Distance
895(X)0(X)1.400(X)
12”
895(X)0(X)2.400(X)
7”
When the door falls in the center of the awning, add 2”to
these distances.
Installation Height: This is the center to center distance
of mounting holes in the top mounting bracket and the
back channel. See Specifcation chart and illustrations on
page 3.
Dometic, LLC reserves the right to modify appearances
and specifcations without notice.

Installation of A&E Awnings will briefy require
three people. Use the following procedure to as-
sure a properly installed, and properly function-
ing awning.
Installation Instructions
A. Secure FRTA to Hardware
1. Carefully lay the fabric roller tube assembly on
a clean, well padded “V” trough to prevent fabric
and/or roller cover damage. Remove the hard-
ware from the packaging and place the arm prew
wired for the motor on the right side. The left arm
is not pre-wired for the motor.
Personal Injury Hazard. Rapid casting spin
off will occur if not controlled. Do not re-
move cotter pin in end cap until top casting
is secured to hardware. Failure to heed this
warning could cause severe personal injury.
Personal Injury Hazard. Hardware arms are
spring loaded. Rapid arm extension will oc-
cur if tie is removed before top casting is se-
cured to hardware. Failure to heed this warn-
ing could cause severe personal injury.
2. Secure each front channel to top casting of the
FRTA. See FIG. 2. Slide top nylon ties down arm
approximately 24 inches to allow hardware to
open far enough to insert top casting into front
channel. Do not remove nylon ties at this time.
The gas shocks on arm assemblies are pressur-
ized and will spring open if not controlled.
3. Using one (1) 1/4”-20 x 3/4” hex head bolt and
one (1) 0.25 split lock washer secure both top
castings to the right and left front channels. See
FIG. 2.
4. Remove cotter pin from LH end cap.
895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions
Specifcation Chart
895(X)10(X)1.400(X)
895(X)0(X)2.400(X)
A
62 3/4”
66-7/8”
B
60-3/4”
64-1/4”
C
61-1/2”
65”
D
3/4”
3/4”
E
60-1/8”
63-5/8”
F
62-1/8”
65-5/8”
G
31”
32-7/8”
H
5/8”
5/8”
J
3/8”
3/8”
K
1/4”
1/4”
L
35-1/4”
N/A
A= Overall length of hardware
B= Minimum mounting distance center to center on
mounting holes.
C= Maximum mounting distance center to center on
mounting holes.
D= Distance between mounting holes in bracket.
E= Distance from top edge of mounting bracket to cen-
ter of hole for wire harness.
F= Back channel length.
G= Distance from top edge of mounting bracket to cen-
ter of middle mounting hole on back channel.
H= Distance front channel guard extends past back
channel.
J= Distance from top edge of top bracket and center of
frst mounting hole.
K= Distance between edge of back channel and bottom
mounting holes.
L= Distance from top edge of mounting bracket to
center of optional middle mounting holes on back
channel.
FIG. 1
895(X)00X.400(X) Power Patio awning Hardware
3
Top Casting
FIG. 2
L Bracket
Back Channel
Nylon Tie
Front
Channel
Bolt & Lock
Washer

C.Top Mounting Bracket Installation
1. (895(X)0(X)1 Basement & 895(X)0(X)2 Standard
Hardware) Secure Top mounting Brackets
a. After the complete awning assembly has
been threaded into the awning rail, check that
its position allows for solid mounting of the
top mounting brackets and the back chan-
nels. Also insure that the back channels are
in the desired location (not restricting use of
doors, access doors, windows, etc.)
Important: Structural backing is required where
mounting screws will be installed through sidewall for
securing top mounting brackets.
895(X)0(X)2 Standard & 895(X)0(X)1 Basement Hardware
FIG. 4A
FIG. 4B
Top Brkt
Bolt, lock
Washer, &
Spacer
Front
Channel
Top Brkt
b. Place both top brackets in position directly
under the awning rail as shown in FIG. 4B.
The motorized arm assembly is always in-
stalled on the right end of the awning.
Top bracket must be installed parallel with the
awning rail. Using the outside bracket hole as
a guide, pre- drill a 3/16” hole for mounting
screw. Drill a 7/32” hole if drilling into steel.
Install outside top mounting bracket using
one (1) #14-10 x 1-1/2” hex head screw. Seal
where the screw enters the side wall with
clear silicon sealer. Repeat this procedure for
opposite side.
Nylon
Tie
Fabric Roller
Tube Assembly
FIG. 3B
895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions
Personal Injury Hazard. Rapid casting spin
off and rapid arm extension will occur if they
are not controlled. Before separating torsion
from hardware, the torsion must be pinned
through end cap and hardware arms must
be bound. Failure to heed this warning may
cause severe personal injury or property
damage.

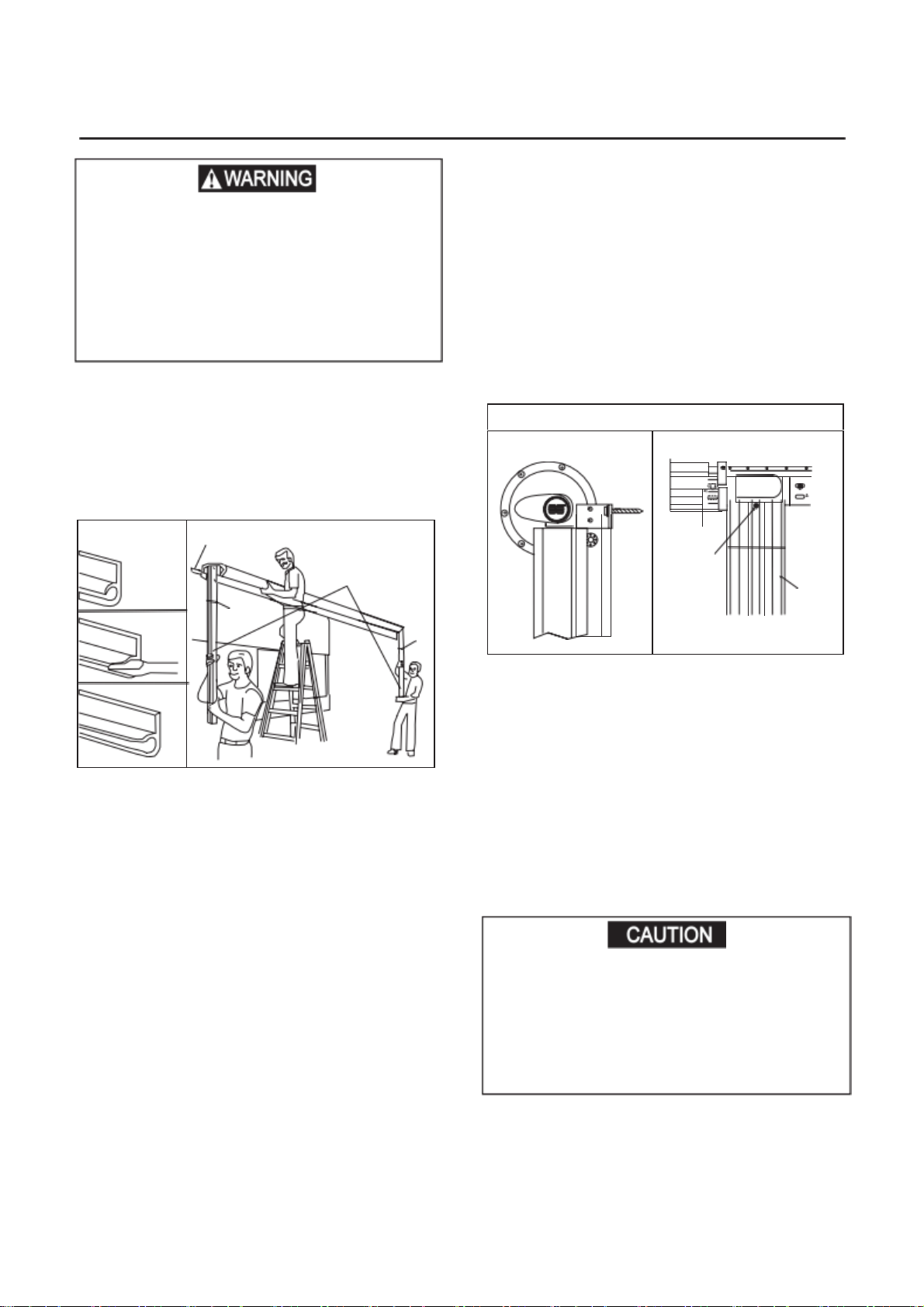

B. Install Fabric in Awning Rail
1. Prepare the awning rail to accept the awning fab-
ric.
a. Select the end from which the awning shall
be fed, then widen that end with a fat screw-
driver and fle off any sharp edges. See FIG.
3A.
FIG. 3A
Before
After
Awning
Rail
Arm
Asm.
Nylon
Tie
2. Unwind fabric one revolution before feeding aw-
ning fabric into awning rail. This will allow enough
space between side wall and awning hardware to
connect wires in Step D.
Important: Do not remove more than one revolution
of fabric.
3. With one person grasping each arm assembly,
carefully lift the entire assembly to an upright po-
sition.
Important: Keep the two arm assemblies parallel to
each other to avoid excessive twisting and possible
damage to the assembly.
4. Walk the awning to the end where the awning rail
was prepared. A third person is now required to
feed the fabric into the awning rail. The other two
will walk the entire awning assembly forward and
into the desired position. See FIG. 3B.
4
The arm assemblies must be controlled
while the top mounting brackets are being
installed. When the weight of the FRTA is no
longer supported, the downward force could
cause the arm assembly to swing side ways
and may damage the sidewall if not con-
trolled.

f. When routing harness, take precaution
against wires rubbing on sharp edges and
use a grommet when going through walls.
Harness should be routed so that when back
channel is attached to the wall, it will align
with channel hole or notch where wire goes
through wall. Seal any holes with clear silicon
sealer. See FIG. 1.
Important: The awning is now operational. Do not
move vehicle until Steps E & F are completed.

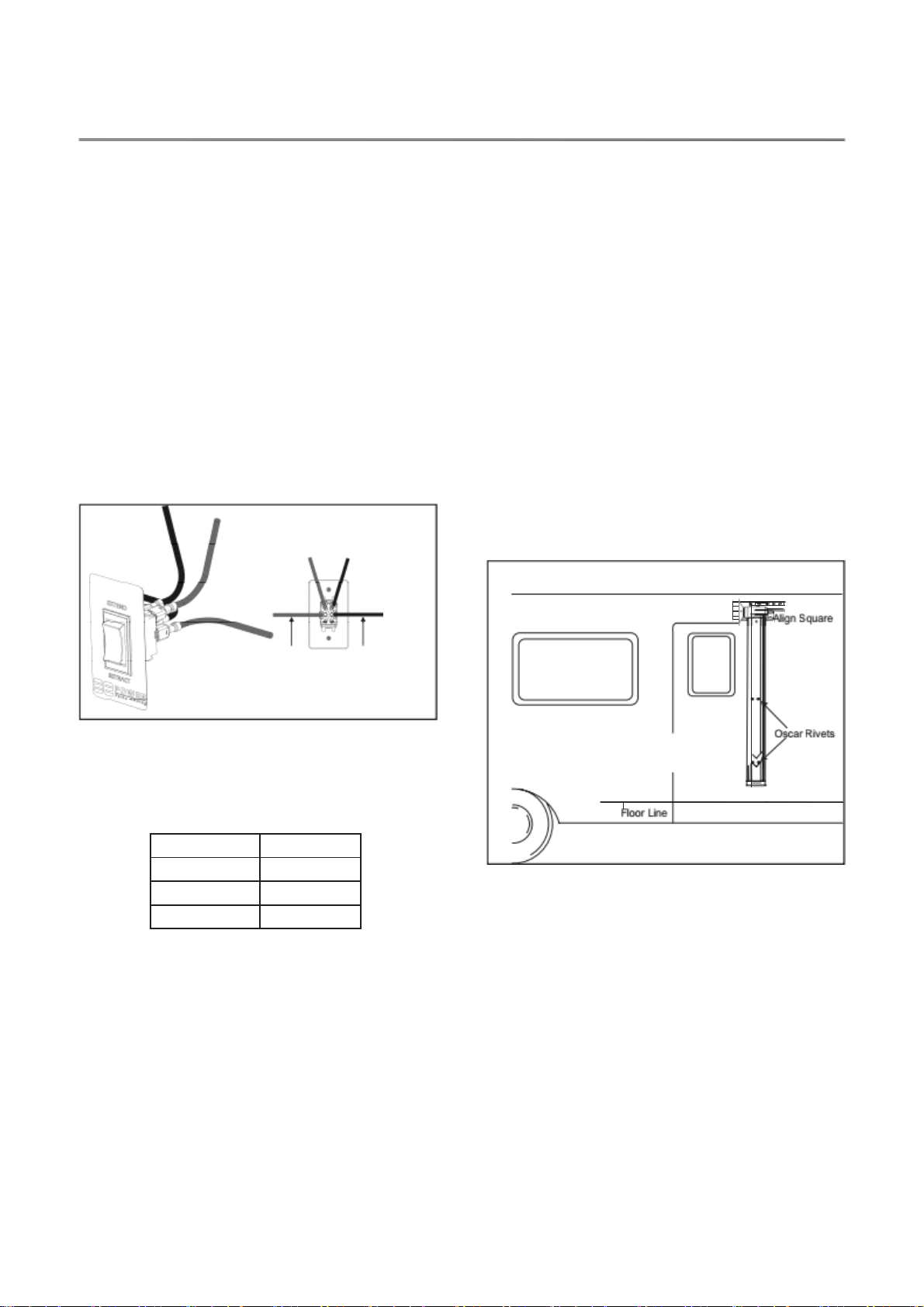

E. Back Channel Installation
Important: Flat solid structure backing (3/8” to 1/2”
thick) is required where oscar rivets (supplied) will be
installed through sidewall for securing back channels.
Solid wood block is required if using wood screws
(not supplied).
1. Open awning as required to secure back chan-
nel.
2. Align the back channel so it is square with the
vehicle and the FRTA. A door or window frame
can be used to measure from. See FIG. 6.
3. Drill four (4) 3/16” holes through the outside wall
using the holes on the back channel as a guide.
See FIG. 1.
4. Secure each back channel to wall with four (4)
3/16” x 1” oscar rivets provided, 2 rivets at middle
and 2 rivets at bottom. Be careful not to pinch
or damage motor wire when securing channel to
wall. See FIG. 6. Depending on your model, wire
covers may need to be removed to access back
channel holes.
Important: Flat solid structure backing (3/8” to 1/2”
thick) is required where oscar rivets (supplied) will be
installed through sidewall for securing back channels.
Solid wood block is required if using wood screws
(not supplied).
5
895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions
D. Remote Rocker Switch Kit (3310455.062)
Installation
1. Remote Rocker Switch
a. First, decide on location of the remote rocker
switch.
b. Install the remote rocker switch at a conve-
nient location such as the door area.
c. The remote rocker switch should not be in
direct exposure to weather or extreme tem-
peratures.
d. Cut hole in structure where remote rocker
switch is to be installed. Pop remote rocker
switch into bezel opening.
2. Low Voltage connection
Note: An inline 15 amp fuse (installer supplied) should
be installed between the rocker switch and the 12 VDC
power source on the positive (red) wire.
a. Route two (2) wires (red & black installer sup-
plied) from the 12 VDC source to the switch.
See FIG. 5.
FIG. 5
FIG. 6
(Red) + - (Black)
To 12VDC Power
"RETRACT"
b. Route two more wires (red or white & black
installer supplied) from the switch to the right
side (motorized) arm assembly. To avoid volt-
age drop, follow wire length guide listed be-
low:
Wire Length
Wire Size
10’ & Under
14 Gauge
1 1’ to 30’
12 Gauge
Over 30’
10 Gauge
c. Wires connecting to remote rocker switch
should be terminated with insulated .25” fe-
male tab quick connectors. See FIG. 5 for
wire locations.
d. Secure bezel with supplied fasteners.
Important: Make sure channel is in proper position
before drilling the 5/8” hole in side wall for wires. See
FIG. 1. e.
Connect the wires coming from the rocker
switch to the pre-wired arm using (installer
supplied) crimp type wire nuts. (red with red
and black with black.)
"EXTEND"
To Awning Harness
(Red) + - (Black)

895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions
5. Seal where the oscar rivets enter the vehicle with
clear silicon sealer.
6. To install screws on the inside top mounting brack-
ets it will be necessary to pull the FRTA away from
the side wall approximately 12”. Remove nylon
ties wrapped around the front and back channels.
See FIG. 4B. Grasp the front channel and slowly
pull it away from the sidewall. Predrill hole as in
previous step and install one (1) #14-10 x 1-1/2”
hex head screw. Repeat this procedure for oppo-
site side. Seal where screw enters the side wall
with clear silicon sealer.

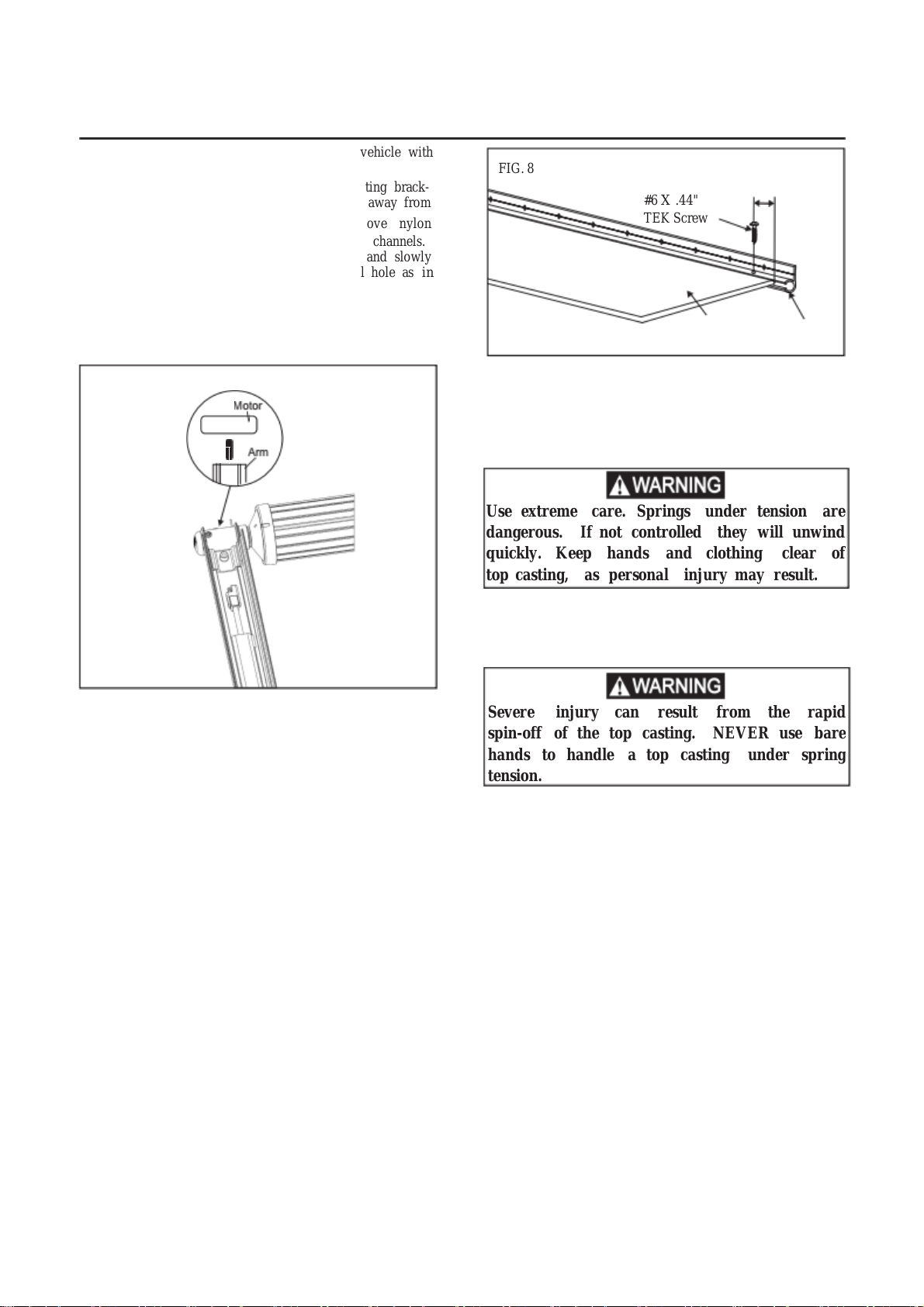

FIG. 7
Use extreme care. Springs under tension are
dangerous. If not controlled they will unwind
quickly. Keep hands and clothing clear of
top casting, as personal injury may result.
Note: If the awning is installed on a coach, complete the
following steps on a step ladder with the FRTA extended
two turns from the awning rail.
• Connect the motor wire to the factory preC
wired hardware wiring. See FIG. 7.
F. Initial Awning Adjustment
Important: Rapid cycling of the awning (opening &
closing) can cause the motor to over heat. Allow 2-3
minutes between cycles.
1. Cycle the awning four or fve times to check fabric
alignment and to make sure the hardware is nest-
ing properly. If there is a misalignment, adjust the
arm by loosening the upper mounting bolts and
move the bracket accordingly. Cycle the awning
again to check the alignment. See User’s Guide
for opening and closing instructions.
Note: Press rocker switch until awning is fully extended
or retracted. If switch is released awning should stop ex-
tending or retracting. If not, more than one wrap of fabric
was unwound during installation. See Section H for cor-
rections.
2. When satisfed with the alignment, secure fabric
roller cover by driving a #6-20 x .44” TEK screw
through the rail and into the fabric rope. See FIG.
8 for screw location. Repeat at opposite end.
Snap the back channel wire cover in place. The
installation is now complete and ready for use.
6
G. Close and Secure Awning
1. If awning will not be used after installation, close
and secure. See User’s Guide for closing and se-
curing instructions.
H. Increasing Turns on Left Hand Torsion
Severe injury can result from the rapid
spin-off of the top casting. NEVER use bare
hands to handle a top casting under spring
tension.
1. Before the left arm assembly is removed the tor-
sion must be pinned to prevent uncontrolled un-
winding of the spring.
a. Turn top casting or FRTA until the pin is paral-
lel with the two slots in the end cap. See FIG.
9.
b. To pin the left hand torsion insert a 7/64” x
2-3/4” cotter pin through the end cap and tor-
sion rod. Put a piece of tape over the head of
the cotter pin to prevent it from dropping out.
See FIG. 9.
Note: Do step “c” if FRTA is installed on coach. If not in-
stalled on coach proceed to step “d”.
c. Insert a wood block, between front and back
channel to space the FRTA 2 - 3 inches from
the coach. Push arm assembly closed. Wrap
a nylon wire tie around arm to keep it from
extending.
d. Remove Hex Head 1/4-20 x 3/4” screw that
attaches arm assembly to top casting.
Lift casting out of arm assembly.
FIG. 8
#6 X .44"
TEK Screw
2"
Awning
Rail
Fabric

Pin
Left Hand Torsion Shown
Turn FRTA or Top Casting To
Align Slots In End Cap With Pin
895(X)0(X)(X).400(X) Power Patio Awning Installation Instructions

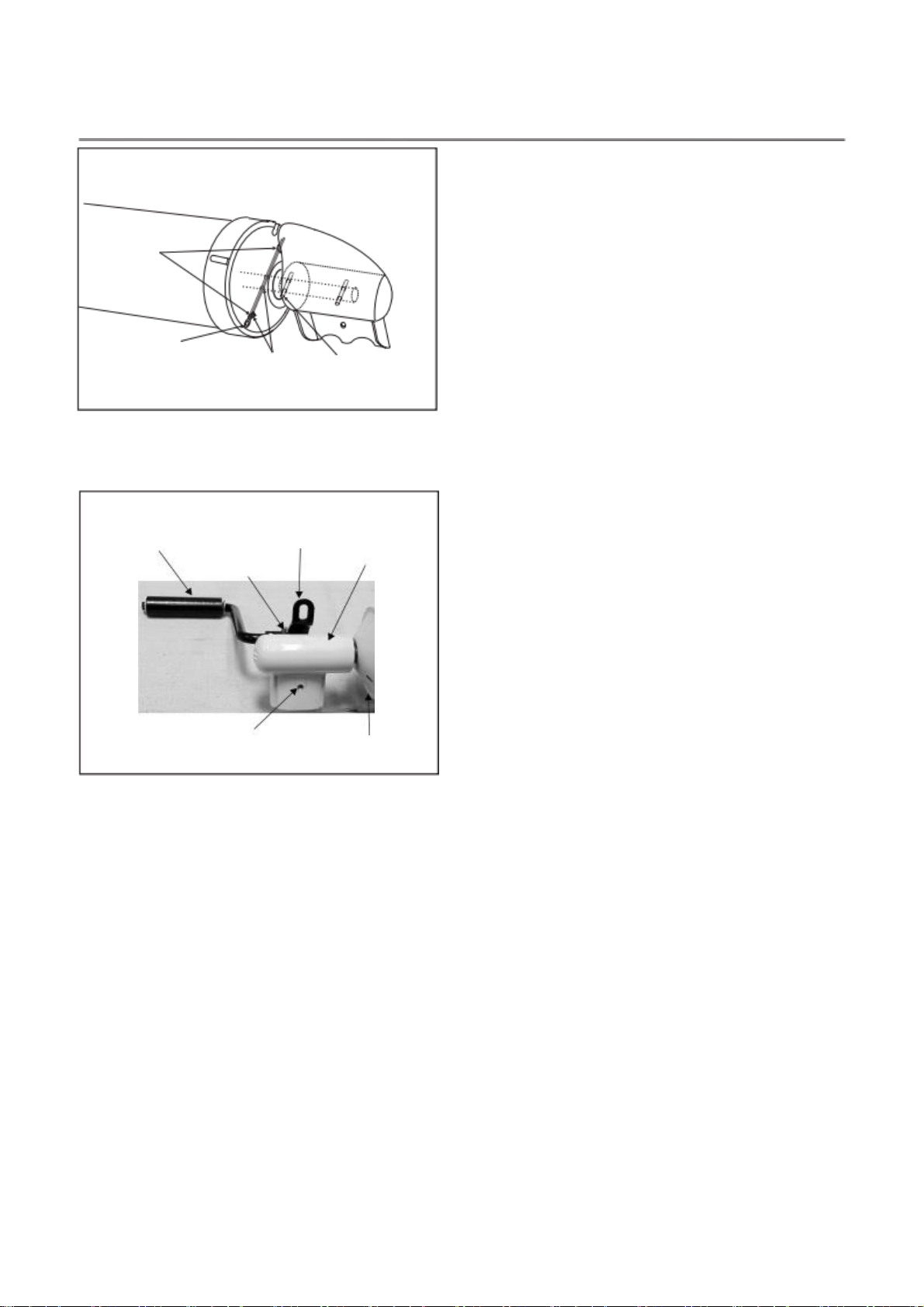

FIG. 9
Slots In
End Cap
Cotter Pin
Insert Cotter Pin All The
Way Through End Cap
And Hole In Torsion Rod
e. Attach crank adapter (3308335.011) with 1/4-
20 screw and pin crank (3308335.003) as
shown on FIG. 10. (Crank & adapter supplied
in 3308334.006U Torsion Winder Kit.)
FIG. 10
Crank
#3308335.003
Pin
1/4-20 X 1/2" Hex
HD Mach. Set
Screw (Thru Rear)
f. Keep a tight hold onto the crank while the cot-
ter pin is pulled out of the end cap.
g. Slowly unwind spring tension by allowing the
spring to unwind counter clockwise. Torsion
will want to unwind by itself. Caution should
be taken to prevent rapid unwind.
h. Once spring is free, position of top casting
should be noted for starting position.
i. Slowly wind the spring tension clockwise
eight (8) complete turns.
j. Reinsert cotter pin through end cap and tor-
sion rod. See FIG. 9.
k. Remove crank from top casting in arm as-
sembly.
l. Reinsert top casting into arm assembly.
m. Replace hex head 1/4-20 x 3/4” screw that
attaches arm assembly to top casting.
n. Remove nylon tie and wood block.
o. Remove cotter key before attempting to oper-
ate awning.
p. Cycle the awning again and verify awning
stops extending when switch is released. 7
Adapter
#3308335.011
Top
Casting
End Cap
