Dometic MCA1215 User manual

MCA1215, MCA1225, MCA1235,
MCA1250, MCA1280, MCA2415,
MCA2425, MCA2440
Battery charger
Installation and Operating Manual. . . . . . . . 8
Batterielader
Montage- und Bedienungsanleitung. . . . .35
Chargeur de batteries
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .64
Cargador de batería
Instrucciones de montaje y de uso . . . . . . .95
Carregador de baterias
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . .125
Caricatore per batterie
Istruzioni di montaggio e d’uso . . . . . . . .153
Acculader
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . 182
Batterilader
Monterings- og betjeningsvejledning . . .210
Batteriladdare
Monterings- och bruksanvisning . . . . . . . 236
Batterilader
Monterings- og bruksanvisning. . . . . . . . 262
Akkulaturi
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 288
Устройство для заряда
аккумуляторных батарей
Инструкция по монтажу и эксплуатации 314
Ładowarka akumulatorowa
Instrukcja montażu i obsługi. . . . . . . . . . . 343
Nabíjačka batérií
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 373
Nabíječka baterií
Návod k montáži a obsluze . . . . . . . . . . . 401
Akkumulátortöltő
Szerelési és használati útmutató . . . . . . . 427
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
ENERGY & LIGHTING
PERFECTCHARGE
MCA1215-2440--IO-16s.book Seite 1 Mittwoch, 25. Juli 2018 2:39 14

MCA1215-2440--IO-16s.book Seite 2 Mittwoch, 25. Juli 2018 2:39 14

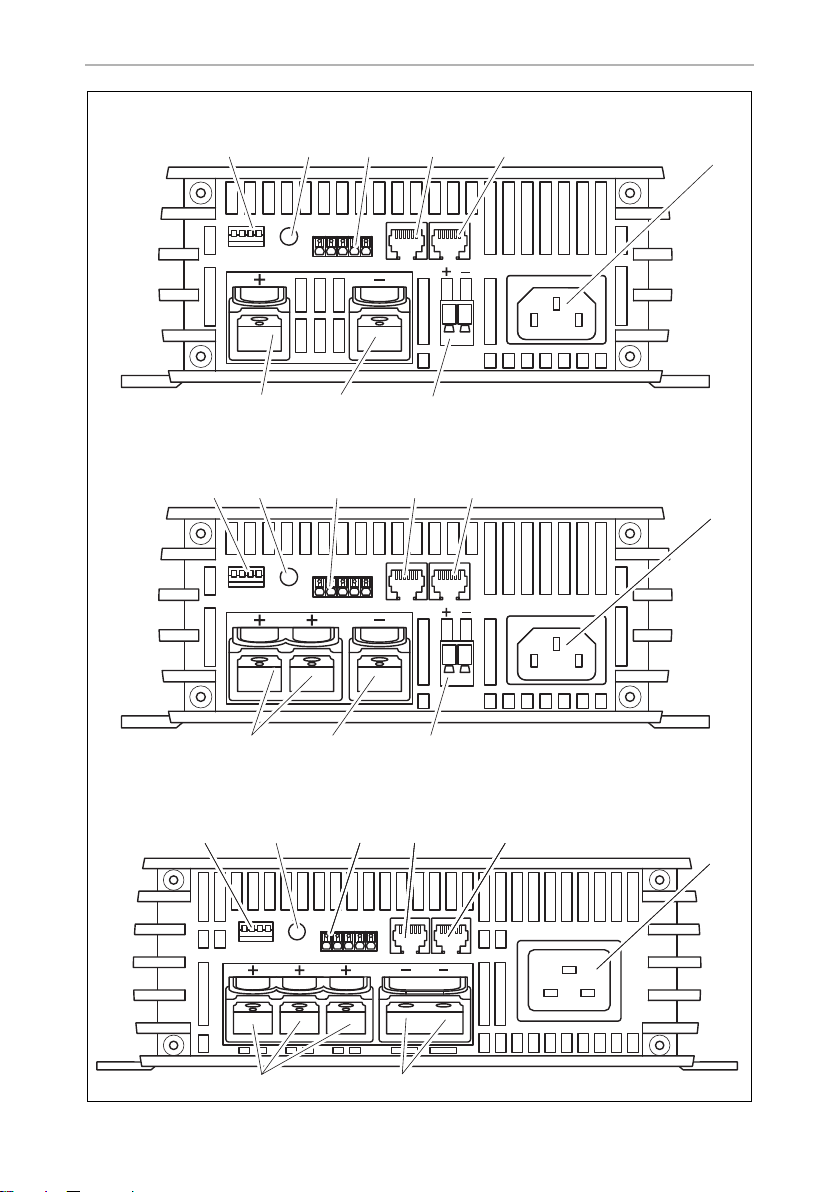

MCA1215 – MCA2440
3
12345
AC INPUT
DC OUTPUT
1234 STATUS TEMP/LIN1 LIN2
ESB
12345
AC INPUT
DC OUTPUT
123 STATUS TEMP/LIN1 LIN2
ESB
AC INPUT
12345
STATUS TEMP/LIN1 LIN2
1234
DC OUTPUT
1
234
987
56
1
23456
987
1
2346 5
87
MCA1215
MCA1225/1235/2415
MCA1250/1280/2425/2440
1
MCA1215-2440--IO-16s.book Seite 3 Mittwoch, 25. Juli 2018 2:39 14

MCA1215 – MCA2440
4
21
21
MCA1250/1280/2425/2440
MCA1215/1225/1235/2415
2
MCA1215-2440--IO-16s.book Seite 4 Mittwoch, 25. Juli 2018 2:39 14

MCA1215 – MCA2440
5

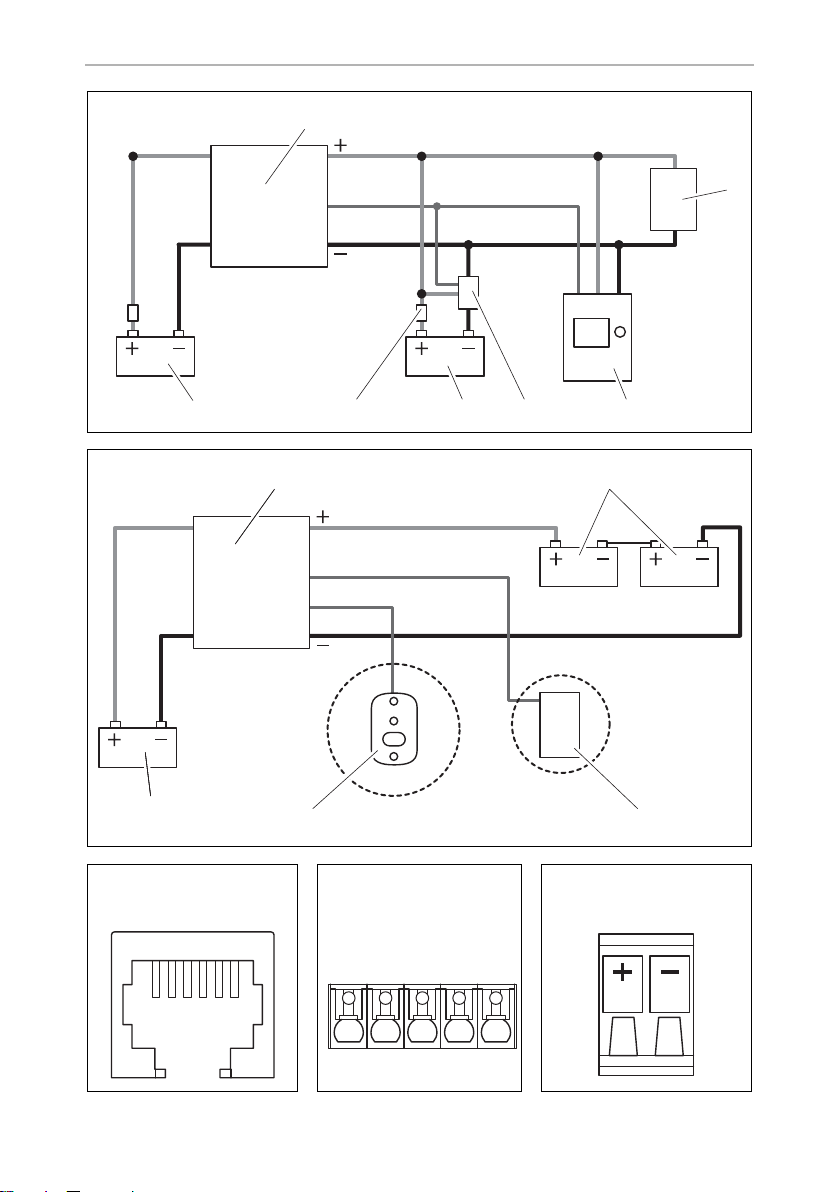

LIN
MPC01 MCA-HS1 (IBS)
MCA12xx
3
MCA-RC1 MCA-TS1MCA-HS1 (IBS)
LIN
MCA12xx
4
MCA1215-2440--IO-16s.book Seite 5 Mittwoch, 25. Juli 2018 2:39 14

MCA1215 – MCA2440
6
LIN 2
376 4
1
5
MCA12xx
5
MCA-RC1 MCA-TS1
LIN2
TEMP/LIN1
MCA24xx
3
12
6
TEMP/LIN 1/LIN 2
1
RJ-11 6P6C
6
7
ESB
9
CN 2
12345
8
MCA1215-2440--IO-16s.book Seite 6 Mittwoch, 25. Juli 2018 2:39 14

MCA1215 – MCA2440
7
Sleep
Mode
On / Off
MCA-RC1
1
23
MCA-RC1
1616
1
2
3
4
5
6
RJ11
0
DC OUTPUT
STATUS
1
OFF
ON
234
a
MCA1215-2440--IO-16s.book Seite 7 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440
8
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Installing the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
8 Connecting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Using the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Maintaining and cleaning the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
MCA1215-2440--IO-16s.book Seite 8 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 Explanation of symbols
9
1 Explanation of symbols
D
!
!
A
I
2 General safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and excess voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
!
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
WARNING!
Note the following basic safety information when using electrical
devices to protect against:
•Electricshock
•Firehazards
•Injury
MCA1215-2440--IO-16s.book Seite 9 Mittwoch, 25. Juli 2018 2:39 14

EN
General safety instructions MCA1215 – MCA2440
10
2.1 General safety
DDANGER!
• In the event of fire, use a fire extinguisher which is suitable for electrical
devices.
!WARNING!
• Only use the device as intended.
• Disconnect the device from the mains:
– Before cleaning and maintenance
–Afteruse
– Before changing a fuse
• If you disassemble the device:
– Detach all connections
– Make sure that no voltage is present at any of the inputs and out-
puts
• The device may not be used if the device itself or the connection cable
are visibly damaged.
• If this power cable for this device is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
• This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Electrical devices are not toys.
Always keep and use the appliance out of the reach of children.
• Children must be supervised to ensure that they do not play with the
device.
ANOTICE!
• Before start-up, check that the voltage specification on the type plate
is the same as that of the power supply.
• Ensure that other objects cannot cause a short circuit at the contacts
of the device.
• Never pull the plug out of the socket by the connection cable.
• Store the device in a dry and cool place.
MCA1215-2440--IO-16s.book Seite 10 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 General safety instructions
11
2.2 Safety when installing the device
DDANGER!
• Never mount the device anywhere where there is a risk of gas or dust
explosion.
!CAUTION!
• Ensure that the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
ANOTICE!
• Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
• Set up the device in a dry location where it is protected against splash-
ing water.
2.3 Safety when connecting the device electronically
DDANGER! Danger of electrocution
•For installation on boats:
If electrical devices are incorrectly installed on boats, corrosion dam-
age might occur. Have the device installed by a specialist (marine)
electrician.
• If you are working on electrical systems, ensure that there is somebody
close at hand who can help you in emergencies.
!WARNING!
• Always use sockets which are grounded and secured by residual cur-
rent circuit breakers.
• Make sure that the lead has a sufficient cross-section.
• Lay the cables so that they cannot be damaged by the doors or the
bonnet.
Crushed cables can lead to serious injury.
!CAUTION!
• Lay the cables so that they cannot be tripped over or damaged.
MCA1215-2440--IO-16s.book Seite 11 Mittwoch, 25. Juli 2018 2:39 14

EN
General safety instructions MCA1215 – MCA2440
12
ANOTICE!
• Use ductwork or cable ducts if it is necessary to lay cables through
metal panels or other panels with sharp edges.
•Donot lay the 230 V mains cable and the 12 V DC cable in the same
duct.
•Donot lay the cable so that it is loose or heavily kinked.
• Fasten the cables securely.
• Do not pull on the cables.
2.4 Operating the device safely
DDANGER! Danger of electrocution
• Do not touch exposed cables with your bare hands. This applies espe-
cially when operating the device from the AC mains.
• To be able to disconnect the device quicklyfrom the mains, the socket
must be close to the device and be easily accessible.
!WARNING!
• Only use the device in closed, well-ventilated rooms.
•Donot operate the device in systems with lead acid batteries. These
batteries give off explosive hydrogen gas that can be ignited by sparks
on electrical connections.
!CAUTION!
•Donot operate the device
– In salty, wet or damp environments
– In the vicinity of corrosive fumes
– In the vicinity of combustible materials
– In areas where there is a danger of explosions.
• Before starting the device, ensure that the power supply line and the
plug are dry.
• Always disconnect the power supply when working on the device.
• Please observe that parts of the device may still conduct voltage even
if the fuse has blown.
• Do not disconnect any cables when the device is still in use.
ANOTICE!
• Make sure the air inlets and outlets of the device are not covered.
• Ensure good ventilation.
MCA1215-2440--IO-16s.book Seite 12 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 General safety instructions
13
2.5 Safety precautions when handling batteries
!WARNING!
• Batteries contain aggressive and caustic acids. Avoid battery fluid
coming into contact with your body. If your skin does come into
contact with battery fluid, wash the part of your body in question
thoroughly with water.
If you sustain any injuries from acids, contact a doctor immediately.
!CAUTION!
• When working on the batteries, do not wear any metal objects such as
watches or rings.
Lead acid batteries can cause short circuits which can cause serious
injuries.
•Danger of explosions!
Never attempt to charge a frozen or defective battery.
Place the battery in a frost-free area and wait until the battery has accli-
matised to the ambient temperature. Then start the charging process.
• Wear goggles and protective clothing when you work on batteries.
Do not touch your eyes when you are working on the battery.
• Do not smoke and ensure that no sparks can arise in the vicinity of the
engine or battery.
ANOTICE!
• Only use rechargeable batteries.
• Prevent any metal parts from falling on the battery. This can cause
sparks or short-circuit the battery and other electrical parts.
• Make sure the polarity is correct when connecting the battery.
• Follow the instructions of the battery manufacturer and those of the
manufacturer of the system or vehicle in which the battery is used.
• If you need to remove the battery, first disconnect the earth
connection. Disconnect all connections and all consumers from the
battery before removing it.
MCA1215-2440--IO-16s.book Seite 13 Mittwoch, 25. Juli 2018 2:39 14

EN
Intended use MCA1215 – MCA2440
14
3 Intended use
The PerfectCharge MCA360 battery charger can charge or supply a retention
voltage to batteries which are used to generate power in vehicles or on boats.
The MCA charger can be used to continuously charge supply or starter batteries.
This allows the batteries to be charged and to maintain a high charge level:
• 12 V batteries: MCA1215, MCA1225, MCA1235, MCA1250, MCA1280
• 24 V batteries: MCA2415, MCA2425, MCA2440
The MCA battery charger are designed to charge the following battery types:
• Lead starter batteries
• Lead gel batteries
• Absorbed glass mat (AGM) batteries
Never use the devices to charge other battery types (such as NiCd or NiMH).
!
4Scopeofdelivery
Check before starting up the device that all parts are available belonging to the
scope of delivery.
WARNING! Danger of explosions
• Do not charge batteries with a cell short circuit. The oxyhydrogen
they produce can cause explosions.
• Do not charge lead batteries in unventilated rooms. The oxy-
hydrogen they produce can cause explosions.
• Do not charge nickel cadmium and non-rechargeable batteries with
the charger. The cases of these batteries can burst explosively.
Quantity Description
1 Battery charger
2 230 V power cable
3 Installation and operating manual
MCA1215-2440--IO-16s.book Seite 14 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 Accessories
15
5Accessories
Available as accessory (not included in scope of delivery):
6 Technical description
The low weight and compact construction of the battery charger allow for easy
installation in mobile homes, commercial vehicles or motor and sailing yachts. It
charges batteries that are used on board vehicles or boats to generate power or
supplies them with a retention voltage so that they do not discharge.
A control lamp on the device enables constant monitoring in the battery charger.
The device has the following protective systems:
• Short circuit
• Overheating protection
• with sensor (accessory): Battery overheating
The device can also be integrated into a LIN bus using two connections.
The cooling system uses fans whose speed depends on the charging power and can
be switched off using an external switch.
Description Reference no.
Remote Control MCA-RC1 9600000100
Temperature sensor MCA-TS1 9600000099
Battery sensor MCA-HS1 (IBS) 9600000101
Battery Management System PerfectControl MPC01 9600000122
MCA1215-2440--IO-16s.book Seite 15 Mittwoch, 25. Juli 2018 2:39 14

EN
Technical description MCA1215 – MCA2440
16
6.1 Device versions
The PerfectCharge MCA battery chargers are available in different versions.
Your MAC battery charger can be used to charge batteries up to a specified battery
capacity (see chapter “Technical data” on page 31):
• MCA1215: suitable for charging one supply battery and one starter battery
• MCA1225, MCA1235: suitable for charging up to two supply batteries and one
starter battery
• MCA1250, MCA1280: suitable for charging up to three supply batteries
• MCA2415: suitable for charging up to two supply batteries
• MCA2425, MCA2440: suitable for charging up to three supply batteries
For the identification of your device, see the reference number on the type plate.
6.2 Connections and controls
INOTE
The version for continental Europe is depicted.
No. in
fig. 1, page 3 Explanation/function
1 Mains connection
2 LIN2 bus connection
3 TENMP/LIN1 bus connection
4 CN2 socket for Alarm and Fan
5 Status LED
6DIPswitch
7 Battery terminals (+)
8 Battery terminals (–)
9 Starter battery connection
(MCA1215, MCA1225, MCA1235 only)
MCA1215-2440--IO-16s.book Seite 16 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 Technical description
17
6.3 Battery charging function
The charging characteristics are referred to as modified IU0U characteristics.
1: I phase (bulk)
At the beginning of the charging process, the flat battery is charged with a constant
current (100 % charge current) until the battery voltage reaches the charging volt-
age. The charging current decreases when the battery has reached this charging
level.
No. in
fig. 2, page 4 Explanation/function
1 On/Off switch
2Fan
U0 U
U
I
I
1
100 %
6 %
234 65
t
U/V
I/A
MCA1215-2440--IO-16s.book Seite 17 Mittwoch, 25. Juli 2018 2:39 14

EN
Installing the device MCA1215 – MCA2440
18
2, 3, 4: U0 phase (absorption)
Now the three-stage absorption charging process (U0 phase) begins, where the
duration depends on the battery. The voltage remains constant (U0). In the first
2 minutes, the charging of the battery is determined. Then the main charging phase
begins when the battery is fully charged.
Once the battery is completely charged, or the charging current is below 6 % of the
rated charging current for 15 minutes, the U0 phase has finished.
5: U phase (float)
After the U0 phase, the battery charger switches to conservation charging function
(U phase).
If DC loads are connected, they are powered by the device. Only if the power
required exceeds the capacity of the device is this surplus power provided by the
battery. The battery is then discharged until the device re-enters the I phase and
charges the battery.
6: 12-day conditioning
Every 12 days, the battery charger switches back to phase 1 for 85 min in order to
revive the battery. This prevents any fatigue symptoms such as sulphation.
7 Installing the device
When selecting the installation location, observe the following instructions:
• The device can be installed horizontally or vertically.
•Donot install the device
– In wet or damp environments
– In dusty environments
– In the vicinity of combustible materials
– In areas where there is a danger of explosions.
• The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. The clearance around the
device must be at least 25 cm.
• The air inlet on the underside and the air outlet on the back of the device must
remain clear.
• For ambient temperatures higher than 40 °C (such as in engine or heating
compartments, or direct sunlight), the heat from the device under load can lead
to reduced output.
MCA1215-2440--IO-16s.book Seite 18 Mittwoch, 25. Juli 2018 2:39 14

EN
MCA1215 – MCA2440 Installing the device
19
• The device must be installed on a level and sufficiently sturdy surface.
• Do not install the device in the same area as the batteries.
• Do not install the device above batteries, because they can emit corrosive
sulphur fumes that will damage the device.
A
For installation and mounting you will need the following tools:
• Pen for marking
•Drillbitset
•Drill
• Screwdriver
To secure the device in place you will need:
• Machine bolts (M4) with washers and self-locking nuts or
• self-tapping screws or wood screws.
Fasten the device as follows:
➤Hold the device against the installation location.
➤Mark the fastening points.
➤Fasten the device with one screw through each hole in the holders.
NOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
MCA1215-2440--IO-16s.book Seite 19 Mittwoch, 25. Juli 2018 2:39 14

EN
Connecting the device MCA1215 – MCA2440
20
8 Connecting the device
8.1 Connecting to battery and power supply
Connecting the battery
Observe the following instructions when connecting the battery:
!
• Make sure the battery terminals are clean when connecting them.
• Make sure the plug connector is fitted securely.
• Select a connection cable with a sufficient cross-section (see chapter “Technical
data” on page 31).
• Lay the cables in accordance with VDE°100 (Germany).
• Connect the negative cable directly to the negative terminal of the battery, and
not to the chassis of a vehicle or boat.
• Use the following cable colours:
– Red: positive connection
– Black: negative connection
• Do not reverse the polarity. Reversing the polarity can cause damage to the
device.
➤Lay the positive cable from the battery charger to the positive terminal of the
battery and connect it.
➤Lay the negative cable from the battery charger to the negative terminal of the
battery and connect it.
Connecting the 230 V power supply
➤Plug the 230 V connection cable included in the delivery into the MCA battery
charger‘s “AC INPUT” socket.
➤Connect the device with the he 230 V connection cable to a 230 V socket which
is protected by a residual current circuit breaker.
CAUTION!
• Avoid coming into contact with the battery fluid.
• Batteries with a cell short circuit may not be charged, as explosive
gases may form due to overheating of the battery.
MCA1215-2440--IO-16s.book Seite 20 Mittwoch, 25. Juli 2018 2:39 14
