Dometic CD Series User manual

CoolMatic CD0050, CRD1050
Refrigerator
Installation and Operating Manual. . . . . . . . 7
Réfrigérateur
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .26
EN
FR
REFRIGERATION
CD SERIES, CR SERIES
CD0050-CRD1050-O-EN-FR.book Seite 1 Dienstag, 10. Oktober 2017 11:13 11

CD0050, CRD1050
2
1
3
2
1
1
2
3
4
2
CD0050-CRD1050-O-EN-FR.book Seite 2 Dienstag, 10. Oktober 2017 11:13 11

CD0050, CRD1050
3
3
1
4
3
2
ca. 50 mm
A
B
4
CD0050-CRD1050-O-EN-FR.book Seite 3 Dienstag, 10. Oktober 2017 11:13 11

CD0050, CRD1050
4
8x
1
2
5
6
1
Vent Lock
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
7
CD0050-CRD1050-O-EN-FR.book Seite 4 Dienstag, 10. Oktober 2017 11:13 11

CD0050, CRD1050
5
1
rt
sw
8
1
3
2
9
CD0050-CRD1050-O-EN-FR.book Seite 5 Dienstag, 10. Oktober 2017 11:13 11

CD0050, CRD1050
6
1
0
a
1
2
380
534
500
b
CD0050-CRD1050-O-EN-FR.book Seite 6 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Explanation of symbols
7
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1 Explanation of symbols
D
!
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CD0050-CRD1050-O-EN-FR.book Seite 7 Dienstag, 10. Oktober 2017 11:13 11

EN
Safety instructions CD0050, CRD1050
8
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
•On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
•Have a qualified technician perform the installation in wet rooms.
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CD0050-CRD1050-O-EN-FR.book Seite 8 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Safety instructions
9
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery before
connecting the quick charging device.
•If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
•Set up the device in a dry location where it is protected against splash-
ing water.
CD0050-CRD1050-O-EN-FR.book Seite 9 Dienstag, 10. Oktober 2017 11:13 11

EN
Scope of delivery CD0050, CRD1050
10
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
•If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation vents are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the appliance in water.
•Protect the appliance and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
3Scopeofdelivery
Quantity Description
1 Refrigerator
1 Operating manual
CD0050-CRD1050-O-EN-FR.book Seite 10 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Accessories
11
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The refrigerator is suitable for cooling and freezing foodstuffs.
!
6 Technical description
The device can refrigerate goods and keep them cool. Products can be deep-frozen
in the freezer compartment.
The refrigerator drawer can be pulled out by the handle and completely removed
from the unit for cleaning purposes. Bottles or beverage packaging are separated
with spacers to ensure they do not fall when pulled out.
The freezer compartment is detachable. This allows the refrigerator space to be
extended if required.
All materials used in the refrigerator are compatible for use with foodstuffs. The refrig-
erant circuit is maintenance-free.
Dometic CD0050 is suitable for use with a DC voltage of 12 V or 24 V (e.g. in
camper vans, caravans or on boats).
With a rectifier (accessory), Dometic CD0050 can be operated on an AC network.
Dometic CRD1050 is suitable for use with a DC voltage of 12 V or 24 V (e.g. in
camper vans, caravans or on boats) or with a AC voltage of 100 – 240 V.
When used on boats the refrigerator can be subjected to a short-term heeling of up
to 30°.
You can use the continuously variable thermostat to set the desired temperature.
Description Ref. no.
MPS35 mains adapter 9103555825
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
CD0050-CRD1050-O-EN-FR.book Seite 11 Dienstag, 10. Oktober 2017 11:13 11

EN
Installing and connecting the refrigerator CD0050, CRD1050
12
6.1 Overview
6.2 Control elements
7 Installing and connecting the
refrigerator
Please note the following instructions for installation on boats:
D
A
No. in
fig. 1, page 2 Explanation
1 Freezer compartment (detachable)
2 Refrigerator drawer (detachable)
3 Fastening lever for the refrigerator drawer
No. in
fig. 2, page 2 Explanation
1 Temperature controller
2 Green LED: operation
3 Red LED: fault
4 Interior lighting
DANGER!
If the appliance is powered by the mains, ensure that the power supply
has a residual current circuit breaker.
NOTICE! Safety instructions for installation on boats
•The refrigerator is designed for short-term heeling of up to 30°.
When setting up the refrigerator, note that it must be fastened to take
account of this. If you have any questions regarding installation, con-
sult your specialist dealer.
•Install the refrigerator so that the warm air produced can easily flow

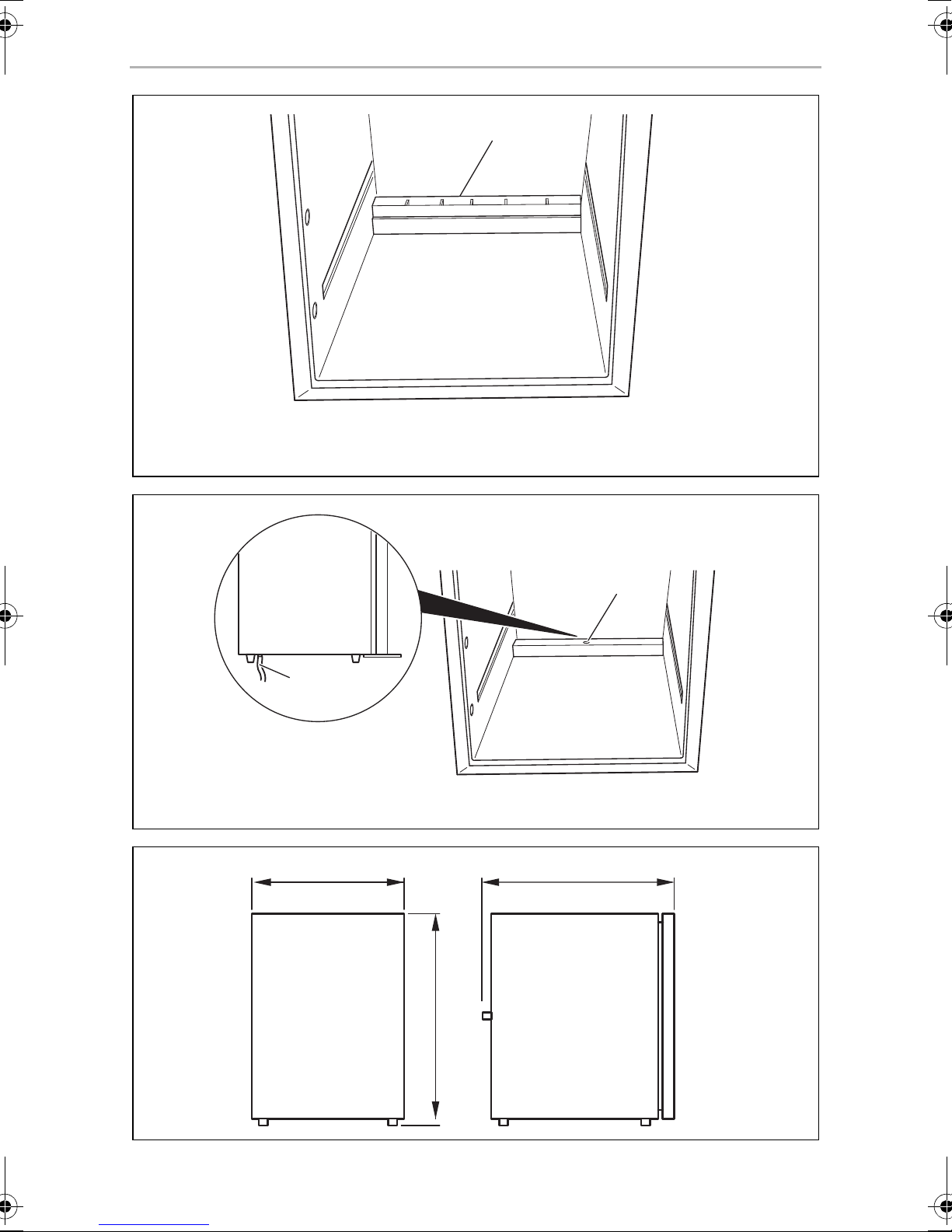

away (either upwards or to the sides, fig. 3, page 3).
•Observe all the other installation instructions in this section.
CD0050-CRD1050-O-EN-FR.book Seite 12 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Installing and connecting the refrigerator
13
7.1 Installing the refrigerator
A
The appliance is designed for ambient temperatures between +18 °C and +43 °C.
In continuous operation, the air humidity may not exceed 90 %.
Set up the fridge in a dry, sheltered place. Avoid placing it near heat sources such as
radiators, gas ovens, hot water pipes etc. Do not let it stand in direct, strong sunlight.
Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the sides). Therefore make sure there is adequate ventilation (fig. 3,
page 3).
The condensation which forms during normal operation of the refrigerator can be
drained off via two outlets on the appliance. For delivery purposes, these outlets are
sealed. The two outlets are located on the rear and on the underside of the appliance
(fig. 4, page 3).
➤Choose the condensation outlet most suitable for the place of installation and
remove its cap.
➤Insert a sharp object (e.g. a screwdriver) approx. 25 to 30 mm into the outlet to
pierce open the inside of the appliance.
NOTICE!
•Fasten the device as described in the operating manual to prevent
hazards.
•Keep objects clear of openings in the housing or mounting structure
(such as ventilation slots).
•The refrigerator is only suitable for installation in a fitted niche. Once
it is installed, only the front of the appliance may be accessible.
No. in
fig. 3, page 3 Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the fridge if insufficient air can circulate above or at
the side.
CD0050-CRD1050-O-EN-FR.book Seite 13 Dienstag, 10. Oktober 2017 11:13 11

EN
Installing and connecting the refrigerator CD0050, CRD1050
14
If you put the refrigerator in a recess, you can fix it inside with suitable screws:
➤Remove the blanking plugs (fig. 52, page 4).
➤Push the refrigerator into the recess.
➤Use suitable screws (fig. 51, page 4) to fix the refrigerator in place.
➤Press the blanking plugs (fig. 52, page 4) into the openings.
7.2 Undo the lock
A
The refrigerator has a locking mechanism (fig. 61, page 4) which is also used to
protect it during transport. The following settings are possible:
•Lock (turn wheel clockwise all the way): The drawer is locked and secured.
To open the drawer, lift the handle up and lift the drawer out.
•Vent (turn wheel anti-clockwise all the way): The drawer is slightly open, but
fixed in position.
Use this position if you are not going to use the unit for a long time.
7.3 Connecting the refrigerator
Connect the refrigerator to DC power
The refrigerator can be operated with 12 Vgor with 24 Vg.
A
➤Determine the required cross section of the cable in relation to the cable length
according to fig. 7, page 4.
Key for fig. 7, page 4
NOTICE!
Only adjust the locking mechanism when the drawer is open. The unit
will be damaged if this is adjusted when the drawer is closed.
NOTICE!
To avoid voltage drops and loss of performance, keep the cable as short
as possible and avoid joins.
For this reason avoid additional switches, plugs or multi-way adapters.
Co-ordinate axis Explanation Unit
l Cable length m
∅Cable cross section mm²
CD0050-CRD1050-O-EN-FR.book Seite 14 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Installing and connecting the refrigerator
15
A
➤Before starting up the appliance for the first time, check whether the operating
voltage and the battery voltage match (see type plate).
➤Connect the refrigerator
– as directly as possible to the poles of the battery or
–toa12Vgsocket or 24 Vgsocket.
Fit a fuse in the positive wire of 15 A (for 12 V) or 7.5 A (for 24 V) (fig. 81,
page 5).
➤Connect the red cable (fig. 8rt, page 5) to the positive terminal of the battery.
➤Connect the black cable (fig. 8sw, page 5) to the negative terminal of the
battery.
A
For safety reasons the refrigerator is equipped with an electronic system to prevent
the polarity being reversed. This protects the refrigerator against reversed polarity
when connecting to a battery and against short circuiting. To protect the battery, the
refrigerator switches off automatically if the voltage is insufficient (see table below).
Connecting the refrigerator to AC power (accessory)
You can connect the refrigerator to AC power if you use a rectifier.
D
NOTICE!
Make sure that the polarity is correct.
NOTICE!
Disconnect the refrigerator and other electric loads from the battery
before connecting the battery to a quick charging device.
Overvoltage can damage the appliance electronics.
12 V 24 V
Cut-off voltage 10.4 V 22.8 V
Cut-in voltage 11.7 V 24.2 V
DANGER!
•Never handle plugs and switches with wet hands or if you are
standing on a wet surface.
•If you are operating your refrigerator on board a boat with a mains
connection of 230 V from the land, you must install a residual current
circuit breaker between the 230 V mains supply and the refrigerator.
Seek advice from a trained technician.
CD0050-CRD1050-O-EN-FR.book Seite 15 Dienstag, 10. Oktober 2017 11:13 11

EN
Using the refrigerator CD0050, CRD1050
16
I
Proceed as follows when you connect the refrigerator to the AC supply:
➤Fix the rectifier as shown in the location foreseen, behind the refrigerator (fig. 9,
page 5).
➤Protect the AC circuit using a slow-blow fuse (250 V/4 A).
➤Connect the power cable to the AC power supply.
➤Plug in the connecting cable to the AC socket (fig. 91,page 5).
Proceed as follows when you connect the refrigerator to a DC supply when a rectifier
is fitted:
➤Connect the loose DC cable (fig. 92, page 5) to the battery:
– Red cable: positive battery terminal
– Black cable: negative battery terminal
8 Using the refrigerator
I
8.1 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
NOTE
Always connect the refrigerator to the rectifier. Otherwise the priority
circuit for the refrigerator will be disabled.
The priority circuit reduces the load on a connected battery by the
rectifier always switching to mains operation if AC power is connected.
NOTE
Before starting your new refrigerator for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and care” on page 20).
CD0050-CRD1050-O-EN-FR.book Seite 16 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Using the refrigerator
17
•Defrost your refrigerator as soon as a layer of ice forms.
•Avoid unnecessarily low temperature settings.
•Clean dust and dirt from the condenser at regular intervals.
8.2 Using the refrigerator
The fridge conserves fresh foodstuffs. The freezer compartment conserves frozen
foodstuffs and freezes fresh foodstuffs.
A
➤Switch the refrigerator on by turning the temperature control (fig. 21, page 2)
clockwise.
I
Setting the temperature
You can set the temperature to any level using the control knob. The built-in
thermostat regulates the temperature as follows:
•1=leastcooling
•7=mostcooling
I
NOTICE!
•Do not place any electrical devices inside the refrigerator. The only
exceptions are devices approved for the purpose by the
manufacturer.
•Ensure that food or liquids in glass containers are not excessively
cooled.
Liquids expand when they freeze and can thus destroy the glass
containers.
•Food may only be stored in its original packaging or in suitable
containers.
•Ensure that the objects placed in the refrigerator are suitable for
cooling to the selected temperature.
NOTE
After switching on, the refrigerator requires approx. 60 s until the
compressor starts up.
NOTE
The cooling capacity can be influenced by:
•the ambient temperature
•the amount of food to be conserved
•the frequency with which the door is opened.
CD0050-CRD1050-O-EN-FR.book Seite 17 Dienstag, 10. Oktober 2017 11:13 11

EN
Using the refrigerator CD0050, CRD1050
18
Conserving foodstuffs
You can conserve foodstuffs in the refrigerator. The time for which the food can be
conserved in this way is usually stated on the package.
A
I
➤Observe the temperature information and best before date on the food
packaging.
➤Observe the following when using the refrigerator:
– Never re-freeze products which have started defrosting or have been
defrosted, but consume them as soon as possible.
– Wrap food in aluminium foil or cling film and shut in in a suitable box with a lid.
This ensures that aromas, the shape and the freshness will be better
conserved.
Detaching the refrigerator drawer
➤Pull out the refrigerator drawer all the way.
➤Push the fastening lever (fig. 13, page 2) up to release the lock.
➤Pull out the refrigerator drawer.
Detaching the freezer compartment
➤Open the flap of the freezer compartment and position horizontally.
➤Remove the chain from the attachment.
➤Take out the flap. The base of the compartment also comes out.
NOTICE!
Do not conserve warm food in the refrigerator.
Do not place glass containers containing liquid in the freezer
compartment.
NOTE
Food which can easily absorb tastes and odours and liquids and
products with a high alcohol content should be conserved in air-tight
containers.
CD0050-CRD1050-O-EN-FR.book Seite 18 Dienstag, 10. Oktober 2017 11:13 11

EN
CD0050, CRD1050 Using the refrigerator
19
Defrosting the refrigerator
The appliance has two options to remove the condensation resulting from
operation:
•Pass it directly outside:
Remove the drip-tray (fig. 01, page 6).
Connect a hose (fig. a2, page 6) to the outlet connections (fig. a1, page 6).
•Collect in the drip-tray:
Empty the drip-tray (fig. 01, page 6) as required.
Defrosting the freezer compartment
A
To defrost the refrigerator, proceed as follows:
➤Take the contents out.
➤If necessary, place the contents in another cooling appliance, to keep them cool.
➤Set the temperature control knob to “0”.
➤Leave the door open.
Switching off and storing the refrigerator
If you do not intend to use the refrigerator for a long time, proceed as follows:
➤Set the temperature control knob (fig. 21, page 2) to level “0”.
The cooling unit is only switched off when you hear a click.
➤Disconnect the power cable from the battery or pull the AC cable plug out of the
rectifier.
➤Clean the refrigerator (see chapter “Cleaning and care” on page 20).
➤Turn the locking wheel (fig. 61, page 4) anti-clockwise to the end stop
(“Vent”).
➤Close the door until it latches in.
✓The door stays open thus preventing smells from arising.
NOTICE!
Never use mechanical tools to remove ice or to loosen objects stuck to
the device.
CD0050-CRD1050-O-EN-FR.book Seite 19 Dienstag, 10. Oktober 2017 11:13 11

EN
Cleaning and care CD0050, CRD1050
20
9 Cleaning and care
!
A
➤As soon as the refrigerator becomes dirty, clean it with a damp cloth.
➤Make sure that no water drips into the seals. This can damage the electronics.
➤Wipe the refrigerator dry with a cloth after cleaning.
10 Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
WARNING!
Always disconnect the device from the mains before you clean and
service it.
NOTICE! Risk of damage
•Never clean the cooler under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
•Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
CD0050-CRD1050-O-EN-FR.book Seite 20 Dienstag, 10. Oktober 2017 11:13 11
