DoorHan PE200B User manual

© DoorHan, 08.2021
Installation and Operation Manual
Control Unit for
High-Speed Door of
SPEEDROLL/
SPEEDFOLD series
with DOORHAN
SERVO Drive
General Information 2
Design 2
Installation 3
Electrical Connections 0,75 kW 3
Electrical Connections 1,5 and 2,2 kW 15
Control Unit Setting 28
Door Operation Parameters 42
Error codes 42

2
GENERAL INFORMATION
Control units of PE200B, PE500B, PE700B series are designed to operate high-speed PVC doors of SPEEDROLL/SPEED-
FOLD series. Carefully read through the present instructions prior to connecting and setting the control unit.
1. GENERAL INFORMATION
Use the control unit only for its intended purpose, any
other use is prohibited.
The manufacturer assumes no liability for damage or
injury to persons or property which occur as a result of
failure to observe safety rules specified herein or incor-
rect use of the control panel .
Only trained personnel should install, operate or service
this equipment
.
Correct operation of the control unit can only be guar-
anteed if the supply voltage complies with the specified
in the instructions.
Prior to control unit installation verify that high-speed
door and its safety devices are in working order.
Prior to first actuation of the control unit, make sure
that all electrical connections are securely fastened and
insulated, safety devices are installed and ready for use
.
2. DESIGN
WARNING!
Carefully follow all the instructions specified herein. Failure to do so could cause equipment damage and/or personal
injury!
Fig. 1. Closed view Fig. 2. Open view
1
2
3
4
5
6
7
8
9
10
1. Menu screen (LCD display)
2. INFO display button
3. ERROR display button
4. SETTINGS display button
5. MODE display button
6. Door OPEN button
7. STOP button
8. Door CLOSE button
9. Lock
10. Emergency stop button
1.1. SAFETY RULES
Table 1. Specifications
Parameters PE200B PE500B PE700B
Supply voltage 220 / 240 V
Power supply current frequency 50 / 60 Hz
Power consumption 0,75 kW 1,5 kW 2,2 kW
Control voltage 24 V
Opearting temperature -10…+50 °С
Overall dimensions (W × H × D) 250 × 450 × 140 mm 250 × 490 × 140 mm
Protection class IP 54

3
INSTALLATION
Mount the control unit so the distance between control unit bottom and dock floor is approximately 1,2–1,5 m. Choose
the fasteners corresponding to the wall type.
Port Function Description
1 PE
AC 220 V, input2 N
3 L
4 Braking resistor, output +
5 Braking resistor, input -
6 Motor brake + Connection of motor brake
7 Motor brake -
8 Com/Gnd
9 Manual opening, input NO
10 Manual closing, input NO
11 Manual stop, input NO
12 Emergency stop, input NC
13 DC 24 В+ Power supply to auxiliary devices
14 Com/Gnd
15 Safety device, input 1 NO (anti-jamming sensor, safety edge, PHOTOCELL-N)
16 Safety device, input 2 NO photocells (when closing, reverse movement to open limit)
17* Automatic opening, input NO (contact radar and sensor, magnetic loop, DHRE-1)
18 Partial opening, input NO (button)
19 Com/Gnd
20** Start, input NO (DHRE-1, button)
21 Opening limit NO (by default) / NC (limit sensor)
22 Closing limit NO (by default) / NC (limit sensor)
23 Interlocking, input NO
24 DC 24 В+ Power supply to auxiliary devices
25 Com/Gnd
26 Output 1A 1A-1B is Disable by default, change the value of Output 1 Config and 1A-1B will
change to the desired value
27 Output 1B
28 Output 2A 2A-2B is Disable by default, change the value of Output 2 Config and 2A-2B will
change to the desired value
29 Output 2B
30 RS485+
31 RS485-
3. INSTALLATION
4. ELECTRICAL CONNECTIONS 0,75 KW
Table 2. Description of ports' functions of 0,75 kW control unit, part no. PE200B(C)
* This port is active only in automatic mode.
**This port opens the door when it's closed and closes if it's open.
WARNING!
Before performing any electrical connections, ensure power supply is DISCONNECTED to avoid serious injury or
death!
When connecting several safety devices to input 1, the control contacts must be connected in parallel and be NO.
Set the input 2 in NC. To do this, follow these steps: set — 6668 > advanced settings > contact type > safety2 >
NC/NO. For more information, see section 6.5 of this manual.

4
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 3. Connection of photocells, part no. HSDC 18201 (0,75 kW)
Fig. 4. Connection of motor power supply (0,75 kW)
Port Function Wire colour
13 DC 24 В + Brown and pink
14 Com/Gnd Blue
16 Safety device 2 Black (change contact type to NC: set – 6668 > advanced settings > contact
type > safety2 > NC/NO)
Table 3. Connection of photocells (0,75 kW)
4.1. ELECTRICAL CONNECTIONS DIAGRAMS

5
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 5. Internal motor encoder (0,75 kW)
Fig. 6. External absolute encoder (0,75 kW)

6
* DoorHan does not provide a power wire. Wirecolour may differ from those listed in the manual. It is recommended to use a wire with a cross
section of 1,5 mm2.
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 7. 220 / 240 V main power connection (0,75 kW)
Fig. 8. Connection of motor brake (0,75 kW)
Port Function Wire colour
1 PE Yellow-green
2 L Brown*
3 N Blue*
Port Function Wire colour
6 + Red
7 - Blue
Table 4. 220 / 240 V main power connection (0,75 kW)
Table 5. Connection of motor brake (0,75 kW)

7
No. Description
1 Install a jumper on terminals 25 and 26
2 Connect lamp to terminals 24 and 27*
Table 7. Connection of signal lamp or siren 24 V (0,75 kW)
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 mm2.
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 9. Connection of signal lamp, part no. LAMP-PRO, or siren 220 V (0,75 kW)
Fig. 10. Connection of signal lamp or siren 24 V (0,75 kW)
No. Description
1 Install a jumper on terminals 3 and 26
2 Connect lamp (siren) to terminals 2 and 27*
Table 6. Connection of signal lamp or siren 220 V (0,75 kW)
WARNING!
Configure the connection of the lamp or siren in accordance with section 6.12 of this Manual.
4.2. ELECTRICAL CONNECTION DIAGRAMS OF OPTIONAL DEVICES

8
Loop 1
Fig. 11. Magnetic loop connection, part no. LOOP-2 (0,75 kW)*
Set the AUTO mode and select the required auto-closing time to ensure correct operation of the unit.
The inductive loop should be made of insulated copper wire with minimum cross section of 1,5 mm2.
The feeder shall be made of the same but twisted material (minimum 10 turns per 300 mm).
ELECTRICAL CONNECTIONS 0,75 KW

9
Note. The buttons whose connection diagrams are shown in Fig. 12 and 13, allow you to open and close the door without
using the main controls. They can be installed, for example, on the opposite side of the door from the control unit.
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 12. Button connection, part no. DKH009 (0,75 kW)
Fig. 13. Key switch connection, part no. KEYSWITCH (0,75 kW)

10
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 15. Radar connection, part no. HSD5007 (0,75 kW)
Port Function Wire colour
13 DC 24 В + Red*
14 Com/Gnd Black and yellow*
17 Automatic opening, input Green*
Table 8. Radar connection (0,75 kW)
Set the AUTO mode and select the required auto-closing time to ensure correct operation of the unit.
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 мм2. Wirecolour may differ.
Fig. 14. Button connection, part no. DKH009. Partial opening function (0,75 kW)

11
ELECTRICAL CONNECTIONS 0,75 KW
Port Function Wire colour
13 DC 24 В + Red
14 Com/Gnd White and black
15 Safety input 1 Yellow
Table 9. Safety edge connection (0,75 kW)
WARNING!
Prior to safety edge connecting take off the cover from the module. Make sure the yellow wire is connected to the
NO contact.
If the device does not work, remove the TS6 transmitter (part no. 180-589) from the door leaf and compare the
last six figures on the transmitter's label with the six figures on the RB61 receiver's label (part no. 180-588). The
figures must be the same.
If for some reason the figures do not match or the edge does not work, it is necessary to pair the receiver with the
transmitter.
Fig. 16. RB61 safety edge connection, part no. 180-589 (0,75 kW)
To pair the transmitter and receiver: turn off the power of the control unit; unscrew the four screws on the
receiver cover; remove the receiver cover; turn on the power of the control unit, the LED on the receiver
board will turn red; press the safety profile 4 times with an interval of 1 second. The LED on the receiver
board will start blinking slowly. Turn off the power to the control unit for 5 seconds, then turn it on again.
Press the safety edge again, the receiver and transmitter are paired. Assemble everything in the reverse order and check the
operation of the safety edge.

12
ELECTRICAL CONNECTIONS 0,75 KW
Note. Connect the control signal to contact 17 or 20, depending on the desired logic of operation. The programming of the
receiver is carried out in accordance with the installation and operation instructions of the DHRE-1(2) external radio receiver.
Fig. 17. Connection of DHRE-1 external radio receiver (0,75 kW)
Fig. 18. Connecting the cord switch (0,75 kW)

13
Drill technological holes for the electrical cable (0,75 mm for each core) in the photocell racks (0,5). Place the photocells at
the top of each rack and secure them tightly.
ELECTRICAL CONNECTIONS 0,75 KW
Fig. 19. Connection of Photocell-N photocell (0,75 kW)*
Port Function
15 Safety device 1
14 Com
13 DC 24 B+
Table 10. Connection of Photocell-N photocell (0,75 kW)
* The connection of the second pair of photocells is performed in the same way. The layout of the racks and the configuration of the photocells is
provided on page 26.
WARNING!
Keep the photocells clear. Regularly clean them from dirt and precipitation. In winter, remove snow from the
working area of the photocells.
It is PROHIBITED to operate the door without Photocell-N safety system.

14

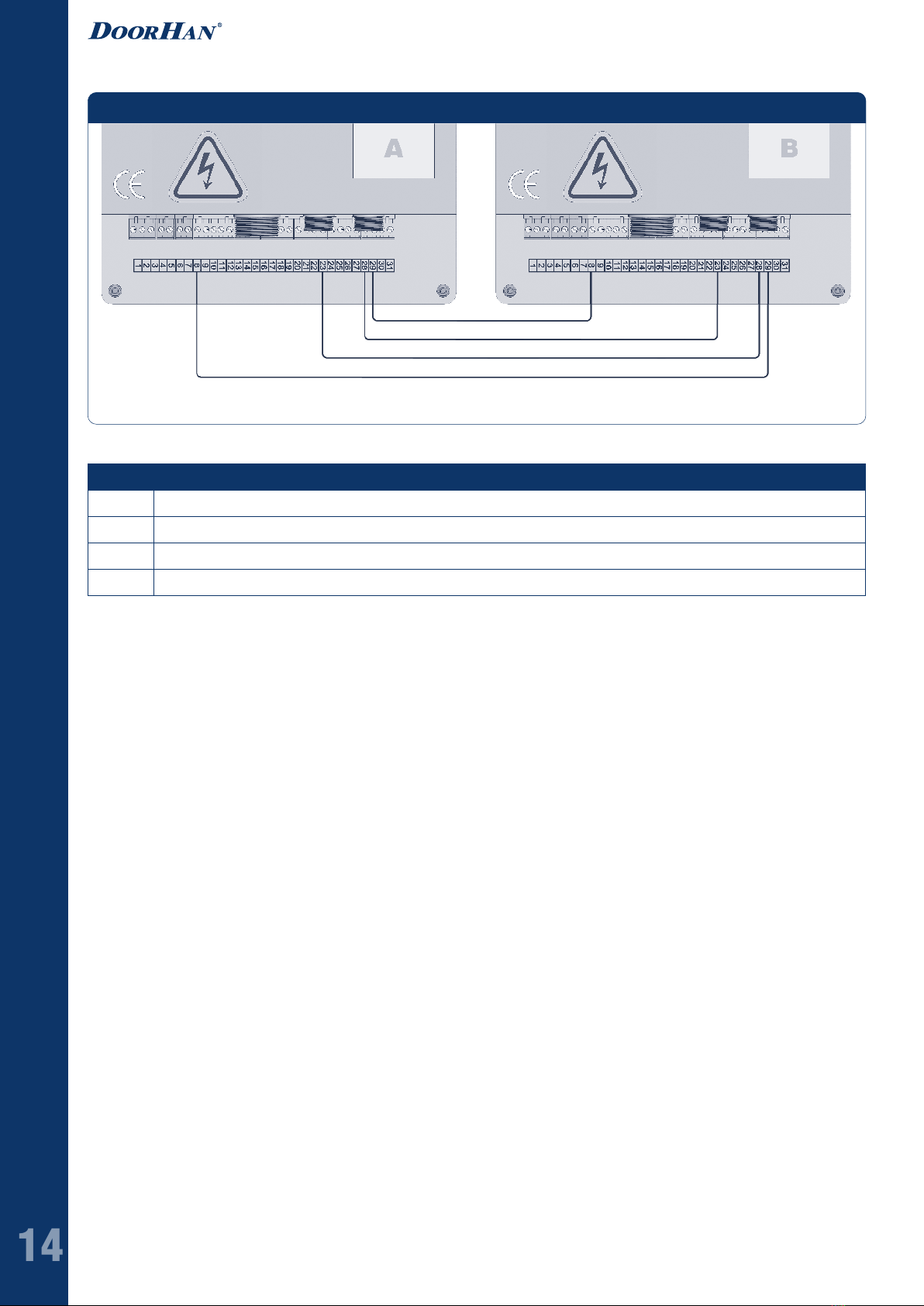

Fig. 20. INTERLOCK PE200B connection
4.3. CONNECTING THE DOOR IN INTERLOCK MODE
ELECTRICAL CONNECTIONS 0,75 KW
No. Description
1 Connect port 8 of control unit A to port 29 of control unit B
2 Connect port 23 of control unit A to port 28 of control unit B
3 Connect port 28 of control unit A to port 23 of control unit B
4 Connect port 29 of control unit A to port 8 of control unit B
Table 11. Connection in INTERLOCK mode (0,75 kW)*
Note. Configure control units A and B in accordance with section 6.19 of this manual. INTERLOCK mode allows you to organ-
ize mutual blocking of two doors. Door (B) will not open while door (A) is open and vice versa.
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 mm2.

15
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
Port Function Description
1 PE
AC 220/240 V, input2 L
3 N
4 Braking resistor, output+
5 Braking resistor, input -
6 Motor brake + DC 24 V
7 Motor brake -
8 Reserved
9 Safety device, input 1 NO (anti-jamming sensor, safety edge, PHOTOCELL-N)
10 Safety device, input 2 NO photocells (when closing, reverse movement to open limit)
11 Com/Gnd
12 DC 24 В +
13* Automatic opening, input NO (radar, sensor, magnetic loop, DHRE-1, etc.)
14 Partial opening, input NO (radar, sensor, button)
15** Start, input NO (radar, sensor, button, DHRE-1)
16 Com/Gnd
17 Opening limit NO (limit sensor)
18 Closing limit NO (limit sensor)
19 Lock NO (blocking of door opening)
20 Com/Gnd
21 DC 24 В +
22 Output 1A Disable by default, change the value of Output 1 Config and 1A-1B will change to
the desired value
23 Output 1B
24 Output 2A Disable by default, change the value of Output 2 Config and 2A-2B will change to
the desired value
25 Output 2B
26 Output 3A Disable by default, change the value of Output 3 Config and 3A-3B will change to
the desired value
27 Output 3B
28 Output 4A Disable by default, change the value of Output 4 Config and 4A-4B will change to
the desired value
29 Output 4B
30 RS485 +
31 RS485 -
32 Com/Gnd
33 Manual opening, input NO
34 Manual opening, input NO
35 Manual stop, input NO
36 Emergency stop, input NC
5. ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
Table 12. Description of ports' functions of 1,5 and 2,2 kW control units (part no. PE500(C) and PE700B(C) respectively)
* This port is active only in automatic mode.
**This port opens the door when it's closed and closes if it's open.
WARNING!
Before performing any electrical connections, ensure power supply is DISCONNECTED to avoid serious injury or
death!
When connecting several safety devices to input 1, the control contacts must be connected in parallel and be NO.
Set the input 2 in NC. To do this, follow these steps: set — 6668 > advanced settings > contact type > safety2 >
NC/NO. For more information, see section 6.5 of this manual.

16
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
5.1. ELECTRICAL CONNECTIONS DIAGRAMS
Fig. 21. Connection of photocells, part no. HSDC 18201 (1,5 and 2,2 kW)
Port Function Wire colour
10 Safety device 2 Black (change contact type to NC:set – 6668 > advanced settings > contact
type > safety2 > NC/NO)
11 Com/Gnd Blue
12 DC 24 В + Brown and pink
Table 13. Connection of photocells (1,5 and 2,2 kW)
Fig. 22. Connection of motor power supply (1,5 and 2,2 kW)

17
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
Fig. 24. External absolute encoder (1,5 and 2,2 kW)
Fig. 23. Internal motor encoder (1,5 and 2,2 kW)

18
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
Fig. 25. 220 / 240 V main power connection (1,5 and 2,2 kW)
Fig. 26. Connection of motor brake (1,5 and 2,2 kW)
Port Function Wire colour
1 PE Yellow-green
2 L Brown*
3 N Blue*
Port Function Wire colour
6 + Red
7 - Blue
Table 14. 220 / 240 V main power connection (1,5 and 2,2 kW)
Table 15. Connection of motor brake (1,5 and 2,2 kW)
* DoorHan does not provide a power wire. Wirecolour may differ from those listed in the manual. It is recommended to use a wire with a cross
section of 2,5 мм2.

19
Fig. 28. Connection of signal lamp or siren 24 V (1,5 and 2,2 kW)
Fig. 27. Connection of signal lamp or siren 220 V (1,5 and 2,2 kW)
# Description
1 Install a jumper on terminals 3 and 22
2 Connect lamp (siren) to terminals 2 and 23*
# Description
1 Install a jumper on terminals 21 and 22
2 Connect lamp to terminals 20 and 23*
Table 16. Connection of signal lamp or siren 220 V (1,5 and 2,2 kW)
Table 17. Connection of signal lamp or siren 24 V (1,5 and 2,2 kW)
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
WARNING!
Configure the connection of the lamp or siren in accordance with section 6.12 of this Manual.
5.2. ELECTRICAL CONNECTION DIAGRAMS OF OPTIONAL DEVICES
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 мм2.

20
Fig. 29. Magnetic loop connection, part no. LOOP-2 (1,5 and 2,2 kW)*
Set the AUTO mode and select the required auto-closing time to ensure correct operation of the unit.
The inductive loop should be made of insulated copper wire with minimum cross section of 1,5 мм2.
The feeder shall be made of the same but twisted material (minimum 10 turns per 300 mm).
ELECTRICAL CONNECTIONS 1,5 AND 2,2 KW
