Dorma EMDE-1000 Series User manual

DO MA EMDE
Delayed Egress
System

EMDE-1000 Series Delayed
Egress Systems
Designed to meet NFPA Life Safety Code 101, Special
Locking Arrangements, these U.L. listed, self-contained
systems provide an alarm output contact for remote signaling.
This feature makes these systems ideal for deterring
shoplifting, employee theft, and wandering patients.
The EMDE-1000 provides field-selectable verbal exiting
instructions or an audible tone. The verbal instructions are
field-selectable as a male voice with security message or a
female voice with safety message. nstructions can be
programmed by DORMA to be pronounced in two varying
languages. The EMDE also contains a visual display counting
down the time remaining until the door opens. The
programmable language feature makes this unit ideal for use
in international airports and applications worldwide.
EMDE-1011MS (single model) - For use with single doors
equipped with:
•Mortise or rim mount exit devices
•Surface or concealed vertical rod exit devices
•Mortise or cylindrical locksets
EMDE-1011MT (tandem model) - For use on pairs of doors
when activation of either door unlocks both doors equipped
with:
• Mortise or rim exit devices with mullion
• Surface or concealed vertical rod exit devices; armatures
and magnets are split to accommodate various latch
spacing
• Mortise or cylindrical locksets
Annunciation
The EMDE-1000 Series incorporates an alternating 75 dB
tone and verbal message with a digital countdown display
and sign that provides clear and comprehensive instructions
for persons without prior knowledge of door operation. This
is especially significant for those who are blind or hearing
impaired.
Technical Details
• Dual voltage 12 VDC or 24 VDC
• Field-selectable voice notification or tone
•Voice notification includes alternating voice and 75 dB
alarm
• Field-selectable male security message:
Tone…“Exit in twelve seconds, Security has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
• Field-selectable female safety message:
Tone… “Exit in twelve seconds, Facility Staff has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
• 1650 lb holding force
• Digital countdown display
• Field-selectable nuisance delay 1 or 2 seconds
• Selectable 15 or 30 second exit delay, may be
permanently field fixed
• Field-selectable door movement trigger only, external
device trigger only, or activation by either door movement
or external device trigger
• Field-selectable door prop alarm
• Field-selectable automatic or manual power up after
emergency release or power loss
• Can be programmed by DORMA for BOCA (Building
Officials and Code Administrators) requirements 1 second
nuisance, 15 second release and 30 second relock; BOCA
cannot be field-modified
• ntegrated key switch for alarm reset, power up, sustained
bypass, and timed bypass. Adjustable for 1, 15, 20, or
30 seconds
• Single or multi-door zone control and reset capability
• Can be used with a panic devise using a request to exit
switch (DORMA MS Switch) and thru-wired hinge
• Comes with the required door sign, “Push until alarm
sounds. Door can be opened in 15 (30) seconds.”
Delayed Egress SystemDO MA EMDE-1000
2

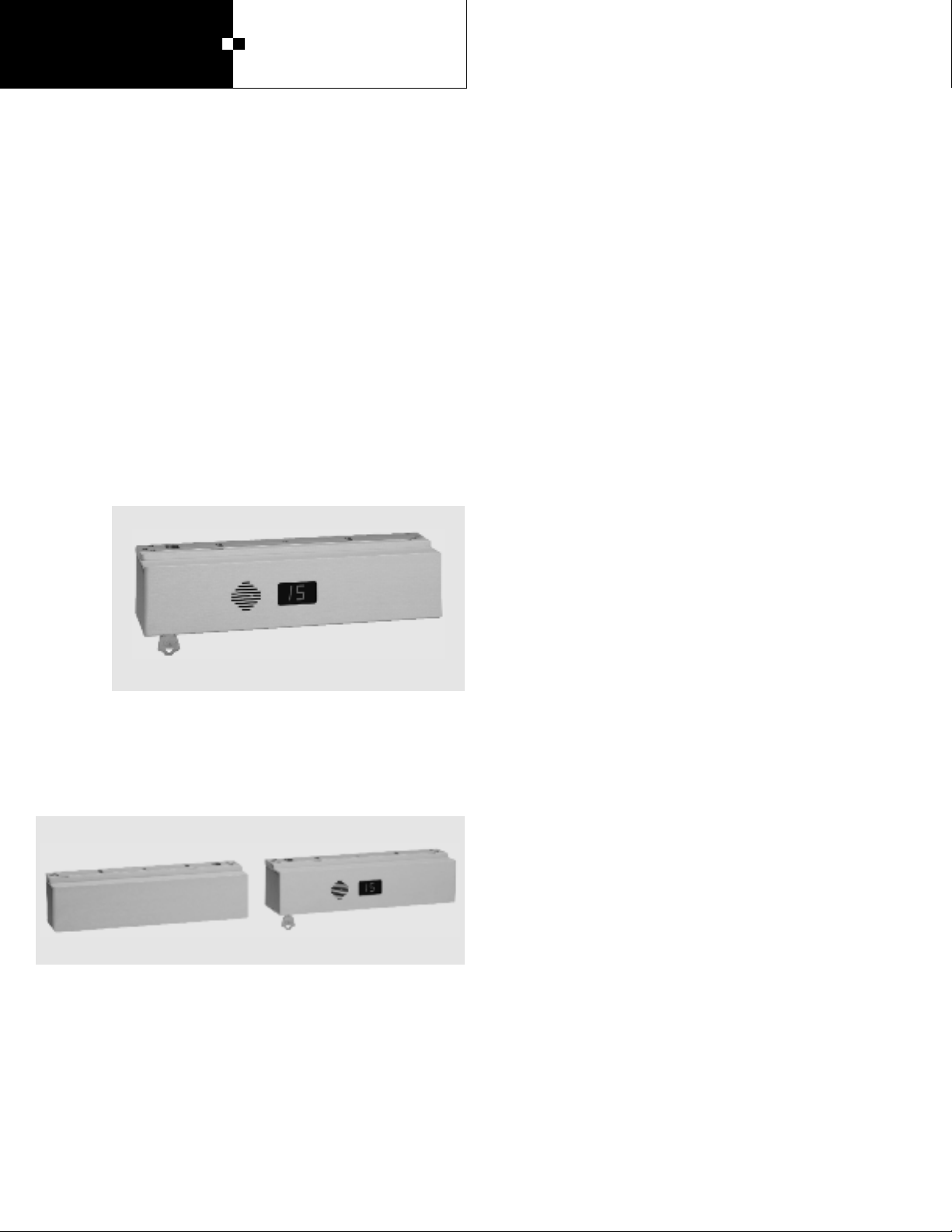

EMDE-1011MS
EMDE-1011MT

3
Operation
The exit door is normally closed, latched, and secured by the
EMDE magnetic lock with the digital display showing 15 or 30
to indicate the door is secure.
Applying less than 15 lb of pressure and/or releasing the door
latch (accompanied with a request to exit switch) activates the
nuisance timer and nuisance alarm tone. f the pressure and
activation is terminated prior to the preset nuisance timer
(1 or 2 seconds), the alarm stops and the digital readout
returns to 15 or 30 to indicate the door is secure.
When the activation exceeds the nuisance time (1 or 2 seconds),
an irreversible process begins that will unlock the door in a total
of 15 or 30 seconds (2 + 13 or 2 + 28). The digital readout will
count down and the alarm tone and verbal instructions alternate.
Male Security Message
Tone…“Exit in twelve seconds, Security has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
Female Safety Message
Tone…“Exit in twelve seconds, Facility Staff has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
Tone Only (in lieu of message)
Activation: Short beeps
Lock Release: Long beeps
The door unlocks after the 15 or 30 second time has elapsed
and the digital display indicates 00. The alarm tone and verbal
instruction continue to alternate.
The lock must be manually reset unless the LK Option is
selected when ordering the product. This option allows remote
reset and on/off controls.
BOCA (Building Officials and Code
Administrators) Operation
The exit door is normally closed, latched, and secured by the
EMDE magnetic lock with the digital display showing 15 to
indicate the door is secure.
Applying less than 15 lb of pressure and/or releasing the door
latch (accompanied with a request to exit switch) activates
the nuisance timer and nuisance alarm tone. f the pressure
and activation is terminated prior to the preset nuisance timer
(1 second), the alarm stops and the digital readout returns to
15 to indicate the door is secure.
When the activation exceeds the nuisance time (1 second), an
irreversible process begins that will unlock the door in a total
of 15 seconds (1 +14). The digital readout will count down
and the alarm tone and verbal instructions alternate.
Male Security Message
Tone…“Exit in twelve seconds, Security has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
Female Safety Message
Tone…“Exit in twelve seconds, Facility Staff has been alerted”
Tone…“Exit in 5 seconds”
Tone…“Exit now”
Tone…“Exit now”
Tone Only (in lieu of message)
Activation: Short beeps
Lock Release: Long beeps
The door unlocks after the 15 (14 +1) second time has elapsed
and the digital display indicates 00. The alarm tone and verbal
instruction continue to alternate.
The door must be opened and closed. After 30 seconds the
BOCA EMDE automatically relocks and the annunciation stops.
Opening the door prior to end of the relocking cycle will restart
the cycle.
Certification
The DORMA EMDE-1011MS and EMDE-1011MT Series are
listed by U.L. and C.U.L. under their continuing reinspection
programs.
FWAX – Special locking arrangements.
Mechanical Specifications
EMDE-1011MS: 11" L × 2-3/4" H × 2-5/8" D
EMDE-1011MT:
Master - 11" L × 2-3/4" H × 2-5/8" D
Slave - 11" L × 2-3/4" H × 2-5/8" D
EMDE Armature: 7-3/8" L × 2-3/8" H × 9/16" D
Electrical Specifications
Voltage: Dual 12/24 VDC ± 10%
Current Draw:
1011MS - 830 mA @12 VDC, 450 mA @ 24 VDC
1011MT - 1500 mA @12 VDC, 850 mA @24 VDC
Wiring: Screw terminal blocks
Standard nputs (Dry Contacts):
Reset nput - Normally open N/O
Request to Exit - Normally open N/O
Trigger - Normally open N/O (used only with exit device
activation)
Fire Alarm - Normally closed N/C (contact from fire panel)
Standard Monitoring Outputs:
Alarm Output - SPDT 1 Amp
Lock Secure Output - SPDT 1 Amp
Optional Monitoring Outputs:
BA - Bond alert SPDT 250 mA
DPS - Door position switch SPDT 250 mA
ATS - Anti-tamper switch SPDT 1 Amp

Annunciators
The remote control and annunciator panels are specially
designed for use with the delayed egress units. Each panel
has an audible alarm and a minimum of one tri-color LED door
status indicator with nomenclature marking for:
Green - Secure
Yellow - Alarm
Red - Unlocked
LED Off - Bypass
Single door and four door models are available. All panels are
supplied on stainless steel single or double gang faceplates.
Mechanical Specifications:
Faceplate: 22 gauge stainless steel
Electrical Specifications:
LED: Tricolor, 12 to 24 VDC, 20 mA max. per LED
Key Switch: 6 Amp @ 125 VAC maximum
Push Switch: 5 Amp @ 125 VAC maximum
5
AnnunciatorsDO MA EMDE-1000
P101-PAM - Remote or single door
annunciator with (3) push-button
switches for momentary access,
bypass (on/off) and muting of the
audible alarm. One LED door
status indicator and built-in audible
alarm. Mounted on a stainless
steel double gang faceplate.
K702 -6 - Remote reset key
switch. Momentary SPDT dry
contact, 6 Amp @ 125 VAC
maximum. Accepts standard
1-1/8" or 1-1/4" mortise key
cylinder (not included).
K707 -6 - Remote reset key
switch with dual function for
bypass (authorized egress) and
reset. Two (2) momentary SPDT
dry contacts, 6 Amp @ 125 VAC
maximum. Accepts standard
1-1/8" or 1-1/4" mortise key
cylinder (not included).
K708 -6 - Remote reset key
switch for bypass (on/off) and
reset. One (1) maintained and one
(1) momentary SPDT dry contact,
6 Amp @ 125 VAC maximum.
Accepts standard 1-1/8" or 1-1/4"
mortise key cylinder (not included).
P402 - Remote reset push-
button switch. Momentary SPDT
dry contact, 5 Amp @ 125 VAC
maximum.
SN-101SA-B4 - Surface mount
external speaker with 93 dB
alarm. For 101 Series. 5" wide
× 7-1/4" high × 2-3/4" deep.
MB-101AL - Surface mount
alarm with 100 dB alarm (not
shown).
L101-1A - Remote or local single
door annunciator with built-in
audible alarm and (1) tricolor LED
door status indicator. Mounted on
a stainless steel single gang
faceplate.
P101-4AM - Remote or local (4)
door annunciator with built-in
audible alarm, alarm mute push-
button and (4) tricolor LED door
status indicators. Mounted on a
stainless steel double gang
faceplate.
K101-1AK - Remote or local single
door annunciator with dual
function key switch for bypass
(on/off) and reset, built-in audible
alarm, and (1) LED door status
indicator. Mounted on a stainless
steel double gang faceplate.
Accepts standard 1-1/8" or 1-1/4"
mortise key cylinder (not included).

Finishes
Options
How to Order
DO MA EMDE-1000
4
Finishes
Standard Finish:
Aluminum: 628 (Satin).
Optional Finishes:
Bronze: 710 (Dark).
Black: 711.
Optional Plated Finishes:
Brass: 605 (Bright) or 606 (Satin).
Bronze: 611 (Bright) or 612 (Satin).
Chrome: 625 (Bright) or 626 (Satin).
1011MS - Single Door Model.
1011MT - Tandem Door Model. ncludes one standard 1011MS
and one additional standard lock with a trigger mechanism, for pairs
of doors. Pushing either door unlocks both doors in 15 or 30
seconds.
Options
BA - Bond Alert Sensor: Provides monitoring of proper or improper
armature contact. t detects reduced holding power, tampering, dirt
or foreign material between the lock and the armature, or low
operating voltage. The bond alert sensor may also be internally wired
to activate the egress alarm to indicate tampering, such as an
attempt to apply an obstruction. Alarm reset cannot be
accomplished until any obstruction is removed and full locking
power is restored (two required for tandem units).
DPS-101S - Door Position Sensor: Provides remote monitoring of the
door open or closed status and indicates the door has actually been
opened for egress after alarm activation (two required for tandem
units).
ATS - Anti-Tamper Switch: Detects any attempt to remove the access
cover (two required for tandem units).
LK - Less Key Switch: The system is provided without the standard
key switch. Reset and On/Off controls may be accomplished by a
remote switching such as access control, key switch, push switch, or
another lock with a built-in key switch.
PS - Push Switch: The standard key switch is replaced by a push-
button switch for reset.
DT - Special Delay Time: 8, 10, or 12 seconds may be specified.
15 and 30 second exit delay times are standard.
P G-BOCA - One second nuisance delay, 15 seconds exit delay,
30 seconds relock (as stated in BOCA Operations).
P G-MEA - Zero seconds nuisance delay, zero seconds exit delay.
VOICE-SP - Voice instruction in Spanish.
DV - Bilingual instructions for English/Spanish.
628
EMDE -1 011MS
Series
Model
-1
EMDE
—
Options 3
(multiple options can be ordered)
BA
DPS
ATS
V-SP
DV-ESP —Voice Alternates Eng/Spanish
Voice in Spanish
—
—
—Less Built-In
Key Switch
—Magnetic Bond Sensor
—Door Position Switch
—Access Cover Tamper Switch
Finish
NOTE: All combinations of features and options are not availablefor all models.
Push Button Reset
Switch in Lieu of
Key Switch
DV-EFR —Voice Alternates Eng/French
605
—
Bright Brass
606
—
Satin Brass
611
—
Bright Bronze
612
—
Satin Bronze
625
—
Bright Chrome
Satin Chrome
626
—
Satin Anodized Aluminum
(standard finish)
628
—
Satin Anodized Dark
Oxidized Bronze
710
—
Anodized Flat Black
711
—
LKBD
NA
PS
LK
K
011MT
011MS
1,650 lb
Tandem Locks
for Double Doors
1,650 lb Single —
—
Model
1,650 lb, Grade 1
Voice/Audible —Built-In Key Switch
Option 2
Option 1
UBC, California Building
Code Compliant
BD
BOCA, National Building Code,
and Chicago Building Compliant
How to Order EMDE Series

SchematicsDO MA EMDE-1000
Subject to change without notice 9.08CT 5M USA 07000295
DO MA Group
North America
www.dorma-usa.com
DO MA Architectural Hardware
DORMA Drive, Drawer AC
Reamstown, PA 17567-0411
Telephone: [phone]
Facsimile: [phone]
E-mail: [e-mail]
DO MA Canada
1680 Courtney Park Drive, Unit 13
Mississauga, Ontario L5T 1R4
Telephone: [phone]
Facsimile: [phone]
E-mail: [e-mail]
DO MA Mexico, S. de .L. de C.V.
Astrónomos 28, Col. Escandón
México, D.F. 11800
Del. Miguel Hidalgo
Telephone: (52+55) 5272-6937
Facsimile: (52+55) 5272-6948
E-mail: [e-mail]
O
N/C
BL K
L 101-1A
RED GR N
OFF
2015
30
1
LOCKED UNLOCKED
VOICE & TONE
21 76 543 8
ON
REMOTE INTERNAL
ON
1 SEC. 2SEC.Z
15 SEC. 30 SEC.
Terminal Board Connections Monitoring Options
POWER
IN
FP AUX LOCK
OUTPUT
GRN RLY RED RLY TRIGGER RESET REX NOT
USED
DPS BAS ATS
+ C NC +NO C NC NO C NC NO C NO C NO C NO C NC NO C NC NO C NC
AUTO
SENSING
12/24 VDC
INPUT
TO CLOSED
FIRE
CONTACT
(REMOVE J6
WHEN USED)
SLAVE /
TANDEM
LOCK
CONTROL
OUTPUT
LOCK
SECURE
OUTPUT
ALARM
OUTPUT
EXTERNAL
TRIGGER
SWITCH
INPUT
EXTERNAL
RESET
SWITCH
INPUT
REQUEST TO
EXIT INPUT
DOOR
POSITION
OUTPUT
MAGNETIC
BOND ALERT
OUTPUT
ANTI TAMPER
OUTPUT
TYPICAL REMOTE
STATUSPANEL
(OPTIONAL)
FIRE ALARM INPUT
REMOVE JUMPER
J6 WHEN USED
POWER
SUPPLY
12 0R 24VDC
K702-6
REMOTE RESET
(OPTIONAL)
K702-6
REQUEST TO EXIT
KEY SWITCH
(OPTIONAL)
REMOVE
WHEN FP
INPUT IS
USED
TONE
ONLY
MSG #1
FEMALE
VOICE
SAFETY
MESSAGE
MSG #2
MALE
VOICE
SECURITY
MESSAGE
RELEASE
TIME*
NUISANCE
DELAY*
REQUEST TO EXIT
RELOCK DELAY
(SEC)
TRIGGER TYPE
VOICE/TONE
PWR-UP OPTION
MESSAGE TYPE
C NC
- + - +
NCNO
NOC C NC NO C
NO C NO C NOC NOC
NC NO NOCNC
CNC
[AT S ]
[DPS ] [ BAS ]
[RESET]
TRIG ] [REX ]
[RED RL Y]
[GRN RL Y][LOCK]
[FP]
[PWR]
[RM
J6
