Dormakaba ED50 User manual

ED50
Low energy automatic swing door operator
Installation instructions
DL4614-020 – 11-2017
| EN |

2
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Table of Contents
Table of contents 
 General information 
 Product description 
 Safety information 
 Recommended tools and torque chart 
. Recommended tools 
. Standard tightening torque 
. Drill bits 
 ED Product overview 
. ED operator 
. ED program switch panel 
. ED single swing door header 
. ED double swing door header 
. ED door mounted header example 
. ED operator component views 
. Arm configurations 
 Accessory kit 
. ED low energy accessory kit 
. Axle extension kits 
. ED double door operator connection
cables 
 Technical data 
. ED Technical data 
. Operating specifications 
 Operational mode overview 
. ED door closer modes 
. Low energy product 
 User interface 
. Overview 
.  button keypad and display 
. Program switch panel 
 System accessories 
 ED door signage 
. ED Low energy operator 
. Door signage, low energy single swing
door 
. Door signage, low energy double swing
doors 
. Safety label, low energy swing doors 
 ED arm configurations 
. Single swing door arm configurations 
. Double swing door arm configurations 
Table of contents
 Header installation 
. Installation preparation 
. Unpack header assembly 
. Remove operator from mounting plate 
. Single header installation 
. Install program switch panel in header 
. Double header installation 
. Pull arm installation template, butt hinge 
. Deep pull arm installation template, butt
hinge 
. Push arm installation template, butt hinge 
. Deep push arm installation template,
butt hinge 
. Center pivot door, surface applied header,
push arm template 
. Offset pivot door, surface applied header,
push arm template 
. Center hung door, surface applied header,
CPD pull arm template 
 ED operator installation 
. Single header mounting plate installation 
. Double header mounting plate installation 
. Customer  Vac connection to mounting
plate terminal block 
. Double door header  Vac mounting
plate connection 
. Remove protective film strips from
operator 
. Install ED operator on mounting plate in
header 
. Double header ED operator installation 
. Connect cables to ED operator 
. Double header operator legend plate 
 Pull arm installation 
. Hardware 
. Track assembly 
. Install track and pull arm assembly 
 Push arm installation 
. Hardware 
. Assemble adjustment screw to connecting
rod. 
. Assemble drive arm to operator 
. Insert adjustment screw ball head into
arm socket 
. Fasten connecting rod shoe to door 

3
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Table of Contents
 Measure door width, reveal depth 
. Door width parameter Tb 
. Record door width measurement, Tb value 
. Tb parameter values 
. Reveal depth parameter rd 
. Measure and record reveal depth, rd value 
. rd parameter values 
 Braking circuit plug 
. Braking circuit plug position 
 Operator spring tension 
. Set operator spring tension 
 Power fail closing speed 
. Set power fail closing speed 
 Parameters 
. Parameters 
 Single door first commissioning 
. First commissioning 
. Set configuration parameters 
. Perform learning cycle 
 Double door first commissioning 
. Separately commission active and inactive
doors 
. Set operator parameters for double door
operation 
. Connect communication cable between
operators 
 Set pull arm end stop 
. Set pull arm end stop position 
 Install pull arm track cover 
. Install track cover, spacer blocks and
end caps 
 Install push arm door stop 
. Install push arm bumper stop (optional
assembly) 
 Install header cover 
. Install header cover. 
 Install door signage 
. Install door signage 
 ANSI/BHMA standards 
. A. Low energy power operated doors 

4
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 1
. Installation instructions
This manual provides installation instructions for
ED automatic swing door operators used in single
door and pair door installations.
. Manual storage
This document must be kept in a secure place, and
accessible for reference as required.
If the door system should be transferred to another
facility, insure that this document is transferred as well.
. Dorma.com website
Manuals are available for review, download, and printing
on the Dorma.com website.
. Symbols used in these instructions
WARNING
This symbol warns of hazards which could result
in personal injury or threat to health.
NOTICE
Draws attention to important information
presented in this document.
 General information
TIPS AND RECOMMENDATIONS
Clarifies instructions or other information
presented in this document.
. Dimensions
Unless otherwise specified, all dimensions are given in
inches (“).
. Building codes and standards
ED installation: observe applicable national and local
building codes.
CAUTION
This symbol warns of a potentially unsafe
procedure or situation.

5
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 2
 Product description
. Intended use
The ED is a low energy electromechanical operator
used exclusively for opening and closing interior or
exterior swing doors.
The ED operator is installed in a surface mount
header at customer site. The header must be installed
on an interior building surface.
For double swing doors, both operators are installed in a
single header.
. Low energy operator
ED is supplied only as a low energy operator. The
operator is supplied with a reduced power motor and a
brake. The brake is used during door hold open time.
WARNING
To reduce risk of injury to persons, use this ED50
operator only with an automatic swing door for
which the ED50 is designed for. Reference
Chapter 7, Technical data.
. Arm configurations
ED is suitable for installation using:
• ED push arm
• ED pull arm with track
TIPS AND RECOMMENDATIONS
Insure operator door configuration is qualified
for use on the respective smoke or fire rated
door.
. Maximum door weight
ED:  pounds [ kilograms]
. Hardware as shipped
.. Single swing door
. Box containing surface mount header assembly for
one ED operator. Included inside header are the
following:
• Low energy accessory installation kit (Chapter ).
• Program switch panel (Chapter ).
• Box containing push arm or pull arm kit.
. Box containing ED operator with attached
mounting base.
.. Double swing doors
. Box containing surface mount header assembly for
two ED operators. Included inside header:
• Two low energy accessory installation kits
(Chapter ).
• Program switch panel (Chapter ).
• Two boxes, each containing a push arm or pull arm
kit.
• ED operator connection cables (Para. .).
. Two boxes, each containing an ED operator with
attached mounting base.

6ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 3
. Safety instructions
This document contains important instructions for
installation of the ED swing door operators.
Review these instructions thoroughly prior to
installation, and follow them carefully during installation,
commissioning, troubleshooting and maintenance.
. Door signage requirements, reference Chapter 
Proper signs and labels per ANSI/BHMA A.
Standard for power assist and low energy power
operated doors shall be applied and maintained on the
door controlled by the ED automatic swing door
operator.
. Safety warnings
WARNING
Damage to equipment or incorrect equipment
operation may result from an incorrect installation.
WARNING
Hazard to mechanical processes by use of
control settings, elements, or procedures not
documented in this manual!
WARNING
Electric shock hazard!
By use of control elements, settings, or
procedures not documented in this manual!
WARNING
Work on electrical equipment and  VAC
wiring installation must be performed only by
qualified personnel!
WARNING
Metallic doors must be grounded per national
and local codes!
 Safety information
WARNING
Hand pinch point and crushing hazards at door
closing edges!
WARNING
Crushing hazards at door closing edges!
. Residual hazards
WARNING
After installation, hazards such as minor
crushing, impact with limited force, and risk to
unsupervised children may exist depending on
structural design of door area, type of door,
and any safeguards that have been
implemented.
WARNING
Hand pinch point and crushing hazards at arm
and track!
Fig. 3.2 Hazards at arm and track
Fig. 3.1 Door closing edges
Opposing
closing edge
Main
closing edge
Secondary
closing edge
Pull arm and track Push arm

7
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 4
 Recommended tools and torque chart
1
5
Fig. 4.1.1 Recommended tools
. Recommended tools
1T-handle hex key, 5
mm
2Hex keys, 2.5 mm,
3 mm, 6 mm
3Screwdriver, flat
blade
4Door pressure
gauge, 0 to 35 ft - lbf
5Screwdriver, Phillips,
#2, #3
6Torque wrench,
3 to 50 ft lb min.
6.1 Metric hex key
sockets
7Open end wrench,
13 mm
8Screwdriver, flat
blade, M2 (1/16 to
3/32")
2
4
7
Fastener size ft lb
M .
M 
M 
M 
M 
. Standard tightening torque
.. Standard tightening torque
3
Fastener Drill bit size
# wood screw Hardwood
/"
Softwood
/"
# wood screw Hardwood
/"
Softwood
/"
# wood screw Hardwood
/"
Softwood
/"
/ - metal self
tapping screw /"
- barrel nut /"
. Drill bits
.. Drill bit sizes for fasteners Fig. 4.3.1 Drill bit
8
6
6.1

8ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 5
 ED Product overview

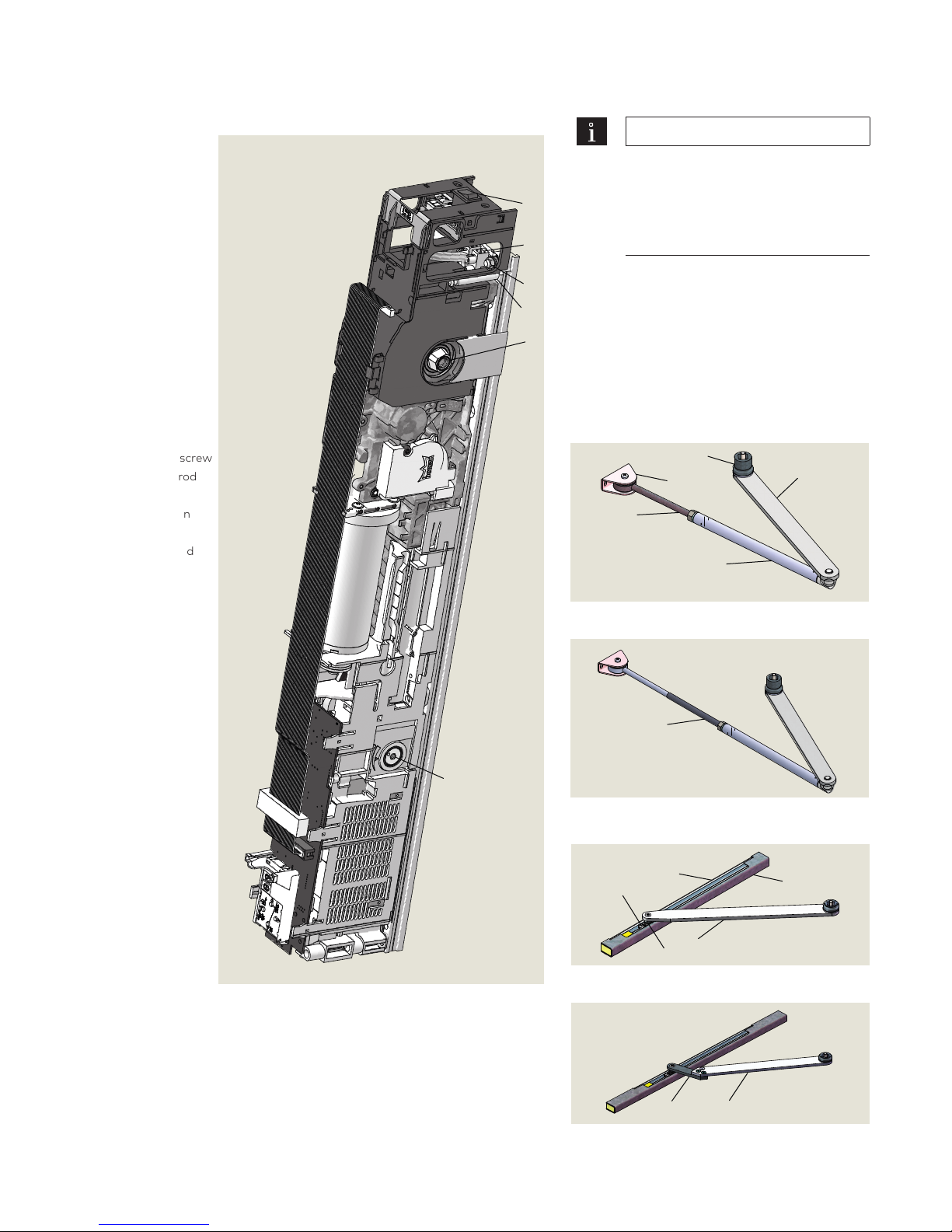

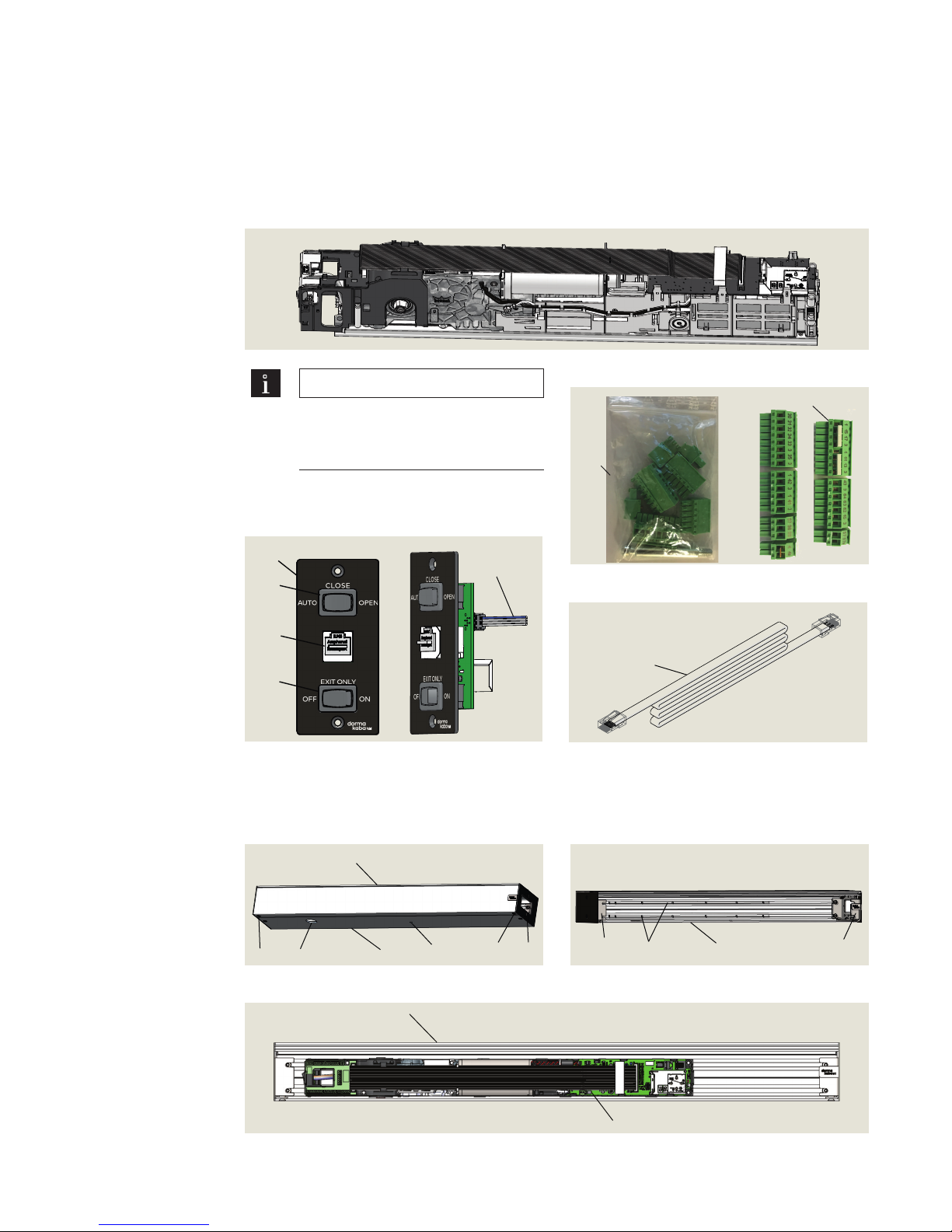

Fig. 5.1.1 ED50 operator
1Program switch
panel DX4604
-01C, 3 ft. cable
-02C, 10 ft. cable
2Program switch,
3 position
3Exit only switch,
2 position
4Comm port for
Dorma Handheld
5RJ45 comm. cable
DX4607
Fig. 5.2.1 Program switch panel
1 ED50 header
8ED50 operator
9Mounting plate
10 Push arm
11 Terminals for
accessory wiring
12 Bag containing
terminals and third
guide pin*
* Included with operator
1
1.1
1.2
1.2
12
Fig. 5.1.2 Accessory terminals, guide pin
11
5
5
Fig. 5.2.2 RJ45 communication cable

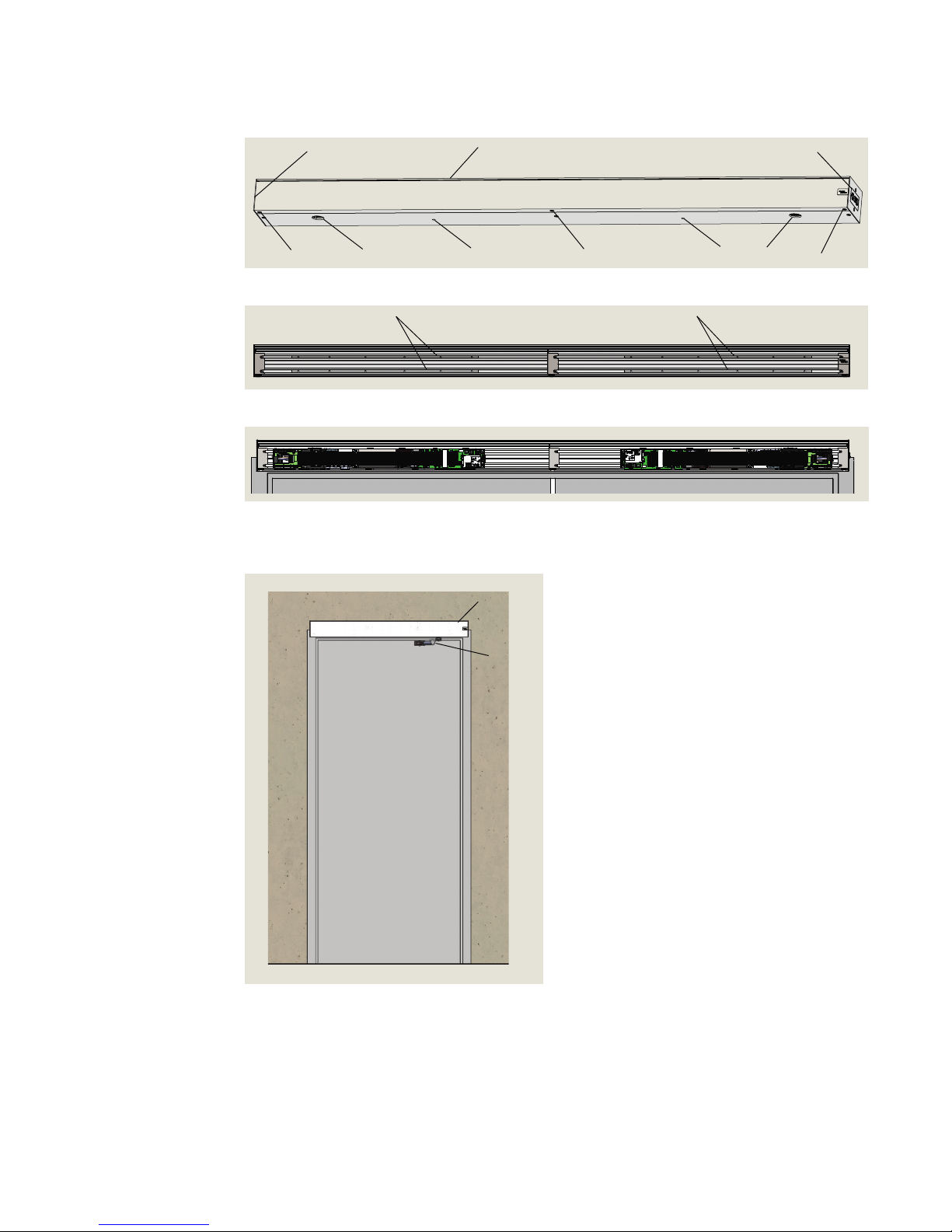

. ED single swing door header
Fig. 5.3.1 Header assembly with cover
1ED50
4" x 6" header
2Header cover
3Cover screws
4Program switch
panel mounting
surface
5Jamb brackets
64" x 6" header
track
7Hole for drive axle
8ED50 operator
9Hole for spring
tension
adjustment
Fig. 5.3.3 Header with operator
Fig. 5.3.2 Header without operator
1
6
55
1
2
334
79
1
8
. ED operator
. ED program switch panel
TIPS AND RECOMMENDATIONS
Reference Para. 5.6 for operator
detail.

9
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 5
. ED double swing door header
Fig. 5.4.3 Double header with operators
Fig. 5.4.2 Double header without operators
2
33
3
4
55
1
77
Fig. 5.4.1 Double header with cover
1Double header
2Header cover
3Cover screws
4Program switch
panel
5Hole for drive axle
6Header track
7Hole for spring
tension
adjustment 66
1
10
Fig. 5.5.1 Single header with push arm
. ED door mounted header example

10 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 5
1Power switch
2120 Vac cable
3Housing unit
4Drive axle
connection
5Operator (motor,
gear, spring)
6Spring tension
adjustment,
closing force
84 button user
interface
9Information
display
11 Potentiometer,
closing speed
adjustment
12 Terminal jumper
socket, push or pull
mounting
15 RJ45 socket, double
door operator
synchronization
16 Com 1 service
connector
17 Accessories terminal
board
18 Mounting plate
19 Customer ground
terminal
20 Guide pin
21 Ribbon cable
22 Ribbon cable socket
23 Upgrade card socket
24 Motor
25 Encoder socket and
cable
26 Motor socket and
cable
27 Control board
28 Motor brake
Fig. 5.6.1 ED50 component view one Fig. 5.6.2 ED50 terminal board detail
. ED operator component views
22
6
12
11
9
8
16
15
23
25
26
27
24
28
1
5
2
3
18
20
4
21
17
Fig. 5.6.3 ED50 control board detail

11
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 5
Fig. 5.7.1 Push arm kit
1.1 Arm
1.2 Adjustment screw
1.3 Connecting rod
1.4 Shoe
1.5 Axle extension
1.6 Extended
connecting rod
Fig. 5.7.3 Pull arm kit
Fig. 5.7.2 Deep push arm kit
Fig. 5.7.4 CPD pull arm kit
. Arm configurations
1.1
1.2
1.3
1.4
1.5
1.6
2.1 Arm
2.2 Track
2.3 Pivot pin
2.4 Slide shoe
2.5 Cover
2.6 CPD arm
2.7 CPD lever
2.1
2.2
2.3
2.4
2.5
2.6
2.7
TIPS AND RECOMMENDATIONS
Reference Chapter 15 for pull arm
installation.
Reference Chapter 16 for push arm
installation.
19
2
1
4
6
20
Fig. 5.6.4 ED50 component view two
1Power switch
2120 Vac terminals
4Drive axle
connection
6Spring tension
adjustment, closing
force
19 Customer ground
terminal
20 Guide pin

12 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 6
 Accessory kit
8.1
8.2
. ED low energy accessory kit
Fig. 6.1.1 Decal kit, low energy
Fig. 6.1.4 Header mounting screw pack
Fig. 6.1.2 Push arm screw kit
Fig. 6.1.3 Pull arm screw kit
1Decal, Automatic
Caution door (both
sides)
2Decal, Activate
Switch to Operate
3Decal, Push to
Operate
4Decal, Pull to
Operate
5Decal, AAADM
safety Information
label, low energy
8Header mounting
screw pack
DK4608-010
8.1 #12 x 2.5 RHWSP
(round head wood
screw, Philips)
8.2 1/4-20 x 1.5 PHSLFP
(pan head self
tapping, Philips)
9Push arm screw kit
DK2719-010
9.1 10-24 x 1 1/2" barrel
nut
9.2 10-24 x 1" PPHMS
10 Pull arm screw kit
DK2719-020
10.1 10-24 x 1 1/2" barrel
nut
10.2 10-24 x 1 1/4" FHSCS
(flat head socket
screw)
11 1/4-20 x 1" FHMSP
12 1 1/2" hole plug
13 3/8" [10 mm] hole
plug
14 Communication
cable DX4607 for
program switch
panel
15 Program switch
panel DX4604
Manuals not shown.
16 Installation manual
17 Service manual
18 Owner's manual
Fig. 6.1.5 Mounting base screw kit
1
2
3
4
SAFETY INFORMATION
Low Energy Swinging
Doors
1
. Activate the door. Door
shouldopen at a slow
smooth pace (4 or more
seconds), andstop withou
t
impact.
2
. Door must remain fully open
for a minimum of 5 seconds
before beginning toclose.
3
. Door should close ata slow,
smooth pace (4or more
seconds), and stop without
impact.
4
. Inspect the floor area.It
shouldbe clean with no
loose parts thatmight cause
user to trip or fall. Keep
traffic path clear.
5
. Inspect door‘s overall
condition.The appropriate
signageshouldbepresent
and the hardwareshould
be in good condition.
6
. Have door inspected byan
AAADM certified inspector
at least annually.
AAADM
American Association of Automatic
Door Manufacturers
ANNUAL COMPLIANCE
INSPECTION
INSPECT FOR AND
COMPLIES WITH ANSI
A156.19 ON:
DATE:______________
by AAADM Certified
Inspector
Number:___________
AAADM-3044
DO NOT USE DOOR if it fails
any of these safety checks of if
it malfunctions in any way. Call
a qualified automatic door
service company to have door
repaired or serviced.
See Owner’s manual or
instructions for details on
each of these and other
safety items. If you need
a copy of the manual,
contact the manufacturer.
These minimum safety checks,
in addition to those in the
Owner’s Manual, should be
made each day and after any
loss of electrical power.
5
12
13
Fig. 6.1.7 Hole plug kit
14
Fig. 6.1.6 Communication cable
15
Fig. 6.1.8 Program switch panel
10.1 10.2
11
9.1
9.2

13
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 6
. Axle extension kits
5.2
5.3
Fig. 6.2.1 20 mm Fig. 6.2.2 30 mm Fig. 6.2.3 60 mm
5.4
1Flat washer
2Conical spring
3O-ring
4M8 SHCS
5.2 20 mm (13/16")
extension
5.3 30 mm (1 3/16")
extension
5.4 60 mm (2 3/8")
extension
. ED double door operator connection cables
1Communication
cable
DX3485-010,
250 mm, 9 7/8"
DX3484-020,
1030 mm, 40 1/2"
2RJ45 plug
3 115 Vac power cable
DX3484-010,
1750 mm, 69"
DX3484-020,
2400 mm, 94 1/2"
Fig. 6.3.1 Communication cable
1
2
2
3
Fig. 6.3.2 115 Vac power cable

14 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 7
 Technical data
Maximum wire size
Connector plug
screw size
 AWG
/”
Door
status
X
,,
Sr parameter
Door closed
Door open
Door closed, locked
Com, N.O., N.C.
contacts
.. Integrated functions
Hold open time:
Automatic opening dd parameter  to  s
NIght / bank dn parameter  to  s
Manual opening do parameter  to  s
Door blocking
behavior hd parameter Automatic, manual
door modes
Electric strike
delayed opening for
locking mechanism
Ud parameter  to  s
Locking
device
feedback
X
,  Motor lock
Wind load control,
maximum Fo, Fc parameters . lb f
 N
Voltage independent
braking circuit Chapter  Adjustable with
potentiometer
LED status indicators
Service manual
Green
Red
Yellow
 Vdc power
Error codes
Service interval
Program and Exit
Only switches Chapter  Auto, Close, Open
Exit only; Off, On
User interface Chapter   button keypad,
 digit display
Interface update
Service manual Firmware update
TMP, temperature
management program
Service manual
Overload protection
IDC, initial drive control Driving phase optimization
Cycle counter CC parameter  to ,,
Power assist function hA, hF, hS
parameters
Drive support for
manual opening of
door
Push & go function PG parameter Auto opening of
door at ° open
. ED Technical data
.. Required operating conditions
Ambient temperature  to  °F
Suitable for dry
rooms only
Relative air humidity:
% maximum, non-condensing
Power supply  Vac ±%, / Hz
. A maximum
Branch circuit
protection (provided
by others)
 A maximum,
dedicated branch circuit
Protection class NEMA 
Power wiring:
black, white, bare
copper (ground)
 AWG
maximum
Operating noise Maximum  db(A)
.. General specifications
Operator dimensions
(W x H x D)  /" x  / x  /"
Operator weight . lb
Internal power
supply available for
accessories
 Vdc ± %, . A
Maximum door
opening angle  to ° depending on installation type
.. Inputs
Maximum wire size
Connector plug
screw size
 AWG
/”
Activation
inputs X* Interior, exterior N. O. contact
Safety
sensors X Swing, approach
sides
Night-bank
(intercom
system)
X
,
a
- Vdc/Vac +%
Night-bank
(key switch)
X
,  d parameter Configure for N.O.
or N.C. contact
Deactivation
of drive
function
X
, a d parameter Configure for N.O.
or N.C. contact
.. Outputs
TIPS AND RECOMMENDATIONS
• *X:terminal board numbers, reference
Chapter , System accessories.
• Parameters, reference Chapter ..

15
ED50 11-2017DL46143-020
dormakaba ED50 Installation instructions Chapters 7 and 8
Maximum power
consumption  watt
Opening force
N (lbf)
Fo parameter
Minimum
 (.)
Maximum
 (..)
Manual closing force
N (lbf)
Fc parameter
Minimum
 (.)
Maximum
 (.)
Maximum door
weight, pounds 
Door width Minimum
"
Maximum
"
Maximum opening
speed, °/s  May be limited by
door weight after
learning cycle.
Maximum closing
speed, °/s 
. Operating specifications
.. ED
 Operational mode overview
. ED door closer modes
.. Automatic mode
Door closer mode parameter hd=.
Door opens automatically following pulse generation by
a knowing act device or by push/pull.
.. Manual mode
Door closer mode parameter hd=.
Designed for doors primarily accessed manually.
. Low energy product
.. ANSI/BHMA .
ED operator is configured to meet requirements of a
low energy application per ANSI/BHMA A., U.S.
Standard for Power Assist and Low Energy Power
Operated Doors.
.. Low energy power operated door
A door with a power mechanism that opens the door
upon receipt of a knowing act activating signal, does
not generate more kinetic energy than specified in
ANSI 156.19, and is closed by a power mechanism or by
other means.
TIPS AND RECOMMENDATIONS
Parameter descriptions can be found in Chapter
21; Parameters and in ED50 Service Manual,
Chapter 14.
Axle extensions,
[mm] inches
[] /"
[]  /"
[]  /"
Reveal depth for pull
arm 1 3/16"
Reveal depth for CPD
pull arm and CPD lever  ."
Reveal depth for
standard push arm  to  /"
Reveal depth for deep
push arm " minimum to  /"
.. Power assist
• Available only in door closer mode (hd=), manual
opening drive support is automatically adjusted to
operator size.
• Parameter hA sets door activation angle for power
assist function. Once angle reached, drive support
provides easier manual opening of the door.
• Parameter hF, power assist function. Parameter
values greater than  provides additional opening
force.
• Parameter hS, power assist function support for
door in closed position.
Required system safety, as a low energy application, is
achieved utilizing the following design factors:
• Reduced dynamic door panel contact forces
• Reduced static door panel contact forces
• Low driving speeds
• Force limitation

16 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 9
 User interface
. Overview
Fig. 9.1.1 Operator keypad and display
12 digit display
24 button keypad
.. Operator user interfaces
.  button keypad and  digit display.
•  button keypad; to select, input and
adjust door parameter values.
•  digit display; parameter values, error
and information codes.
> 3s Reset
< 3s Quit
> 3s
PRG
< 3s LEARN
Fact-Setup
> 3s
> 8s
2
5
Fig. 9.2.1 Door hinge side on right
22 digit display
5Button legend
> 3s Reset
< 3s Quit
LEARN
< 3s
> 3s
Fact-Setup
PRG
> 3s
> 8s
6
2
Fig. 9.2.2 Door hinge side on left
.  button keypad and display
Right button
. Access parameter menu,
press button >  seconds.
. Edit selected parameter.
. Save changed value.
Left button
. Cancel parameter edit
process.
. Exit parameter menu,
press button <  s.
Both buttons
together
. Acknowledge errors,
press both buttons <  s.
. Reset, press both
buttons >  s.
Up button
. Scroll through parameters
and error messages.
. Increase parameter value.
Down button
. Scroll through parameters
and error messages.
. Reduce parameter value.
. Opening pulse, press
button <  s.
. Learning cycle, press
button >  s.
. Reset with factory setting,
press button >  s (program
switches off).
. Identify operator
orientation for display
22 digit display
6Button legend
rotated 180°
12
..  button keypad
 button legend is orientated so buttons
have same function and position regardless
of operator orientation. Button legend can
be removed and rotated.
..  button keypad functions

17
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 9
. Program switch panel
Fig. 9.3.1 Program switch panel
1Program switch
panel
2Program switch,
3 position
3Exit Only switch,
2 position
4Comm port for
Dorma. Handheld
9.4 Operator status LEDs
Fig. 9.4.1 Operator status LEDs
.. Operator status LEDs
Header cover must be opened to view LEDs.
. Red LED
Blinking codes are used to indicate "ln__"
information (system status or operating
conditions) or certain error codes "E__".
. Yellow LED
Maintenance interval indicator. When
illuminated, an indication the operator
system has to be serviced.
. Green LED
• On, internal  Vdc power is On.
• Off, internal  Vdc power is Off.
TIPS AND RECOMMENDATIONS
Details on LED status codes and
maintenance intervals can be
found in ED50 service manual,
Chapter 15, troubleshooting chart.
1Red LED
2Yellow LED
3Green LED
4Power switch
.. Program switch control modes
• Auto, door opens following pulse generation by a
knowing act device or by push/pull.
• Close, door closes automatically, or remains closed.
• Open, door opens automatically and remains open.
.. Exit only switch
• Used when activation sensors are installed.
3 B A 1 57 57a 1 42 3 1 41 3 1 15 17 3 1 11 13 3
4a 4 1 6 3 1 3 35 3 33 34 32 31 30 99 98 97
43 3 64 63 62 1G 3
X1
X6 X9 X7
X3
X8 X10 X4 X1
3
2
4
1
1
2
3
4

18 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 10
1
8 x 18 AWG 8 x 0.8 mm2 2 x 18 AWG 2 x 0.8 mm2 2 x 18 AWG 2 x 0.8 mm2
2 x 18 AWG 2 x 0.8 mm2
4 x 18 AWG 4 x 0.8 mm2 2 x 18 AWG 2 x 0.8 mm2
2 x 18 AWG 2 x 0.8 mm2
2 x 18 AWG
2 x 0.8 mm2
3 x 12 AWG
3 x 4.0 mm2115 VAC power
2
4563
7
8
9
 System accessories
. System accessory electrical connections
Fig. 10.1.1 Electrical connections, single door
.. Overview
ED  operators are normally used with
system accessories available from Dorma
USA, Inc. or other manufacturers.
.. Accessory electrical installation
Electrical interfaces from system
accessories used with operator must be
planned for. This includes routing of wiring
from accessories to operator.
.. System accessories, other
manufacturers
Dorma USA, Inc. cannot guarantee
compatibility for other manufacturer's
accessories. If any of these accessories are
used despite this caution, the operator's full
range of functions may be unavailable, or
the accessories may not work properly.
WARNING
Damage to operator or to
connected device is also possible!
.. Power for accessories
 Vdc, . A ( watts) is available from
the operator for external consumers. This
supply has overcurrent protection. If
additional power is required, an external
power supply must be used.
.. Miscellaneous accessories
. Door status display, red, green
10.2 System accessories
1External program
switch, mechanical
2External program
switch, electronic
3Key switch
4Pushbutton, night /
bank
5Pushbutton, interior
6Pushbutton, exterior
7Door locking device
8Manual release
switch
9ED50 header
.. Activators
Typical activators:
. Pushbuttons, key switches
. Access control systems
. Telephone systems
. Intercoms
TIPS AND RECOMMENDATIONS
Refer to Chapter 6, Technical data
for electrical interface
requirements.
.. Locking devices
Typical locking devices:
. Electric strike plates
. Electromagnetic locks
. Electric locks
To insure that operator and locking device
work safely when connected together,
locking device mus comply with following:
. Operating voltage, power supply from
operator,  Vdc, ± %.
. Operating voltage, external power
supply,  Vdc/Vac maximum.
. Locking device relay contact, maximum
load,  A.
. Electric strike plate duty factor, %
minimum.
. Motor lock duty factor, %.

19
ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 10
97 98 99 30 31 32 34 33 3335 136144a
3BA157 57a 14231413115 17 311113 3
43 36463621G 3
+ 24 V
Signal input 0 V
Partial Open
Permanent Open
Exit Only
Automatic
Off
N.C.
COM
Test output
X5X4
X3
X6 X9 X1 X7
+ 24 V
X8
0 V
X10
8 - 24 AC/DC + 5% Wet
DCW bus Swing side Approach side
Safety sensors
Activation inputs
Interior Exterior
Night-
bank
input
+ 24 V
Signal input 0 V + 24 V
+ 24 V Signal input
Signal input 0 V
0 V
Test output
0 V
24 V
Maximum current
load: 1.5 A
Output
COM
N.O.
N.C.
0 V
Locking relay
Maximum current:
1A, 48 V DC/AC
Locking feedback contact
0 V
0 V
+ 24 V
0 V
0 V
Signal input
N.O.
Smoke
detectors
Emergency
close
Night
trigger
Program, exit only
switches
Door status
24 VDC
Class II
1
2
3
4
5
6
7
55
Reference Note 1
. ED terminal board interfaces
WARNING
ED50 115 Vac branch circuit
disconnect must be Off while
making accessory connections!
TIPS AND RECOMMENDATIONS
• Use documentation provided
with each device for electrical
installation.
• Do not connect system
accessories to board until
operator has been
commissioned and learning
cycle performed (Chapter ).
Fig. 10.3.1 Terminal board electrical connections
1Green LED (Para. 9.4)
2Yellow LED (Para. 9.4)
3Red LED (Para. 9.4)
4Key (red insert)
location in socket.
Assigned plug has
tab in same location
broken off.
5Jumpers, factory
installed at following
terminals:
•  and a
•  and *
•  and *
* Remove jumpers if
safety sensors
installed.
6DCW® upgrade card
plug (n/a)
7Fire protection
upgrade card plug
(n/a)
Note : Terminals  and  also used for
swing side overhead presence sensor input
when parameter ST is set to  or .

20 ED50 11-2017DL4614-020
dormakaba ED50 Installation instructions Chapter 11
 ED door signage
. AUTOMATIC CAUTION DOOR decal.
• All low energy doors shall be marked with signage
visible from both side of door with the words
"AUTOMATIC CAUTION DOOR".
• Signs shall be mounted " ±" from floor to
centerline of sign.
Fig. 11.1.1 AUTOMATIC CAUTION DOOR decal
Fig. 11.1.2 ACTIVATE SWITCH TO OPERATE decal,
knowing act device
.. Push/Pull used to initiate door operation
Fig. 11.1.3 PUSH TO OPERATE, PULL TO OPERATE decals
. PUSH TO OPERATE, PULL TO OPERATE decals.
• When push/pull is used to initiate operation of door
operator, doors shall be provided with the message
"PUSH TO OPERATE" on push side of door and
"PULL TO OPERATE" on pull side of door.
. ED Low energy operator
.. Overview
Signage and warnings are specified in ANSI /BHMA
A., American National Standard for power assist
and low energy power operated doors.
.. All low energy doors
.. Knowing act switch used to initiate door operation
. ACTIVATE SWITCH TO OPERATE decal.
• When a knowing act device is used to initiate operation
of door operator, door shall be provided with sign on
each side of door where switch is operated with
message "ACTIVATE SWITCH TO OPERATE".
Fig. 11.2.1 Low energy decals, knowing act device
initiation of door operation
50” ± 12”
. Door signage, low energy
single swing door
"Activate Switch to Operate" sign located on side(s) of
door where switch is located.
Fig. 11.2.2 Low energy decals, push/pull initiation of
door operation
50” ± 12”
