Dormakaba KTV Installation and operation manual

Important warranty, user information
and service record for your automatic door
Revolving door operating
& maintenance manual
For power-operated doors to EN 16005

2021-10
REVOLVING DOOR LOG BOOK
2
Contents
Service and maintenance
Service and maintenance
Warranty statement
Door system data
Report for initial inspection
Daily Checks
Regular inspection and maintenance
Inspection reports




-

-
Why the necessity?
All doors, whether manual or automatic, are complex
components subject to punishing wear and tear.
Therefore to ensure that they continue to function
properly, regular service and maintenance is imperative.
Regular door maintenance helps prevent accidents,
reduces breakdowns and the accompanying
inconvenience, and prolongs the life of the door
operator.
There are also legal implications regarding the servicing
of all door types which must be adhered to, to ensure
the safety of users at all times. All safety requirements
for power operated doors are stipulated in EN
: Power operated pedestrian doorsets -
Safety in use. All dormakaba service engineers are
trained to comply with this standard through the
Automatic Door Suppliers Association (ADSA)
examination of competency.
dormakaba provides a tailored, local resource for the
servicing and maintenance of all
brands of:
•automatic swing
•sliding and revolving doors
•manual doors
•ire doors
•access control systems
•industrial doors
•roller shutters
•gates & barriers
For more information visit www.dormakaba.com

2021-10
REVOLVING DOOR LOG BOOK
3
Warranty statement
Service and maintenance
Please note the legal implications regarding the
installation and servicing of automatic doors which
must be adhered to, so as to ensure the safety of users
at all times as stipulated in EN : Power
operated pedestrian doorsets – Safety in use.
Product registration
Any decision to register your product does not affect
your statutory rights under the UK Sale of Goods Act
.
If you would like to register your product with
dormakaba please visit www.dormakaba.com
Alternatively, you can contact the dormakaba UK
Service Hotline on:
  
[e-mail]
www.dormakaba.com
Limitations
This warranty does not apply to defects resulting from
Customer actions, such as mishandling, improper
installation, operation outside of design limits,
misapplication, attempted repair, or unauthorized
modiication.
Any additional warranty provided by the selling agent
does not imply or transfer any additional obligation to
dormakaba regarding this product.
dormakaba standard terms and conditions will apply at
all times and are available on request.
dormakaba are not liable for the consequences of any
third party claim on its products, which are sold in the
knowledge that installation is carried out by competent
staff and maintained in accordance with current safety
standards.
Thank you for purchasing a dormakaba product which
has been designed and manufactured to provide many
year’s problem-free operation.
All products sold by Dorma UK Ltd are warranted
against defect in materials and workmanship for a
period of  months from the date of purchase on a
return to factory basis.
If you believe this product has a defect or has failed
during normal use within the warranty period, please
contact the authorised agent from whom you bought
the product and who will make arrangements for its
return.
Alternatively, if your product was installed by
dormakaba please contact us directly as detailed below
to discuss the return of the unit, with the product serial
number. dormakaba standard terms and conditions will
apply at all times and are available on request.

4 2021-10
REVOLVING DOOR LOG BOOK
Door system data
To be completed by a qualiied technician at installation
Manufacturer: DORMA UK Ltd, Wilbury Way, Hitchin, SG4 0AB
Type of operator/door: Revolving Door
To be completed by a qualiied technician at installation
Product name: KTV/ KTV ATRIUM / KTC / GERYON / Other (please state below):
(delete as applicable)..........................................................................................................................................................................
Sales Order No.: ..................................................................................................................................................................................
Asset No.: .............................................................................................................................................................................................
Year of construction...........................................................................................................................................................................
Commission date: ..............................................................................................................................................................................
Installed by: DORMA UK Ltd / Other (please state company)
Doorset location / reference: ............................................................................................................................................................
Additional information:
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
................................................................................................................................................................................................................
In order that an automatic door operator may comply with the requirements of EN: a risk assessment
should be carried out prior to installation which assesses the risk to users. It is the responsibility of the installer to
ensure that a door system is compliant.

REVOLVING DOOR LOG BOOK
52021-10
Report for initial inspection
To be completed by a qualiied technician at installation
The following list of components and functions to be inspected is only a reference and shall help the inspector
during inspection. From case to case, the inspection can be more or less comprehensive. In principle, the inspector
has to perform a visual inspection and functional tests to check the system for completeness. In addition, the
system status and the eficiency of the components and the respective safety equipment require inspection.
Please consider the separate inspection instructions supplied with the individual door types.
. General
• Functionality of door system
• Proper mounting
• Connections/Power supply
• Guide rails and base sections
• Force transmission/Incremental encoder
• Bearings
• Glazing, Cover
• Coating, Corrosion protection
• All documentation complete
. Check safety equipment according
to risk assessment to EN 
• Finger protection (crushing, shearing
and drawing in)
• Safety sensors/Sensor monitoring
• Reversing/Stop equipment
• Safety screen
• Safety contact strips (SCS)
• Force limitation
• Emergency pushbuttons
• Safety sensors
• Fire alarm connection
• Batteries
. Control elements
• Pushbuttons/switches
• Contact mats
• Radio controls/Remote controls
• Card readers
• Motion detectors
. Function
• Friction clutch
• NC contact (limit switch)
• NO contact (limit switch)
• Locking device, Deactivation
• Deactivation of safety equipment
• Emergency manual operation
• Emergency Opening/Rubber cord/
Auxiliary drive
. Check door system for proper
functioning in all operation modes
• OFF
• AUTOMATIC
• PERMANENT OPEN
• PARTIAL OPEN
• EXIT ONLY
•AUTOMATIC 
• AUTOMATIC 
• LOCKING DEVICES
Date of inspection:. .........................................................................................................................
Name of inspector (in block letters): .........................................................................................................................
(Qualiied technician)
Note: The safety compliance of an automatic door system is dependent on the appropriate choice and
combination of other safety equipment with the operator and must be assessed as the whole system.

A safety check should be performed daily by the facility
operator on each automatic door.
For doors less than or equal to  metres internal diameter
Automatic revolving door
Safety Devices
There are two types used:
1. Pressure switches activated by physical contact
2. Sensors activated by a presence in the detection zone
Note: In order to test the safety sensors we recommend
using the approved test objects CA 200 x 300 x 700 mm
& CB 300 x 65 x 100 mm Wedge as detailed in EN16005.
If additional safety devices are itted such as a Leading
face sensor, and/or a Central core sensor, please refer to
test instructions in Fig2a below.

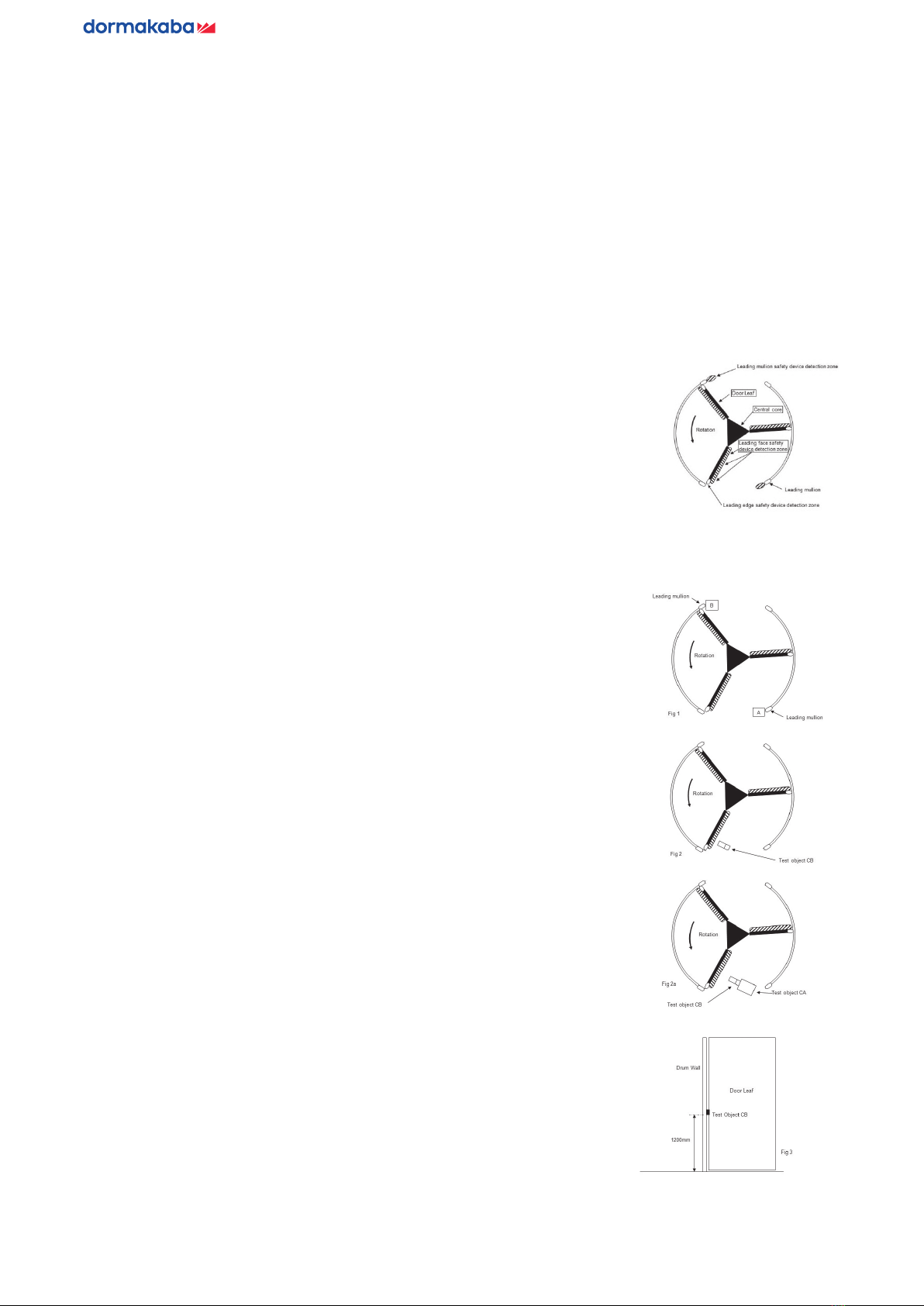

Leading mullion sensor (if itted)
• With the door operating, place the test object CA in
position A as shown in Fig 1 and verify that the door
stops without hitting the test object.
• Repeat with the test object in position B.
Bottom Rail pressure switch for each leaf (if itted)
• With the door operating, place the test object
CB in position shown in Fig 2
Safety edge should touch test object and stop
door without contact by door leaf
Leading face sensor for each leaf (if itted)
• With the door operating, place test objects CA & CB
in position shown in Fig 2a
Safety sensor should detect test object CA and slow
down or stop door without contact by door leaf to test
object CB
Leading edge to drum wall for each leaf
• With the door operating, hold the test object CB in
position shown in Fig 3 Safety edge should touch test
object and stop door without contact by door leaf
Test the door safety
Daily checks -
facility operator
REVOLVING DOOR LOG BOOK
6 2021-10

Leading mullion pressure switch (if itted)
• With the door operating, press the leading mullion
buffer at position A as shown in Fig 4 and verify
that the door stops
• Repeat the test in position B
Automatic operation
• Test the door operation by walking toward the door,
which should begin to rotate of accelerate to normal
operating speed when you reach not less than 1000mm
from the threshold (Fig 5)
• The door should continue to rotate for suficient time
to allow the user to pass completely through the door
• Repeat for other entrance
Manual operation
• With the door stationary, test by pushing the door in
its direction of rotation (ig 6)
Power Assisted operation
• Test by pushing the door in its direction of rotation (ig 7)
• On removal of hand pressure the door should stop
• Test by pushing the door in its direction of rotation (ig 7)
General tests
• Check there are no hazards due to crushing, shearing,
impact and drawing-in
• Check that the door speed is not likely to increase the
risk of impact
• Check the door area does not present tripping or
slipping hazards
• Check all door panels for broken/cracked glass
• Check all doors have correct warning and
information signs displayed
• Check operation of manual or remote activation
• Check operation of all emergency stop buttons if itted
• Check for distractions and obstructions in the vicinity of
the doors
Daily checks -
facility operator
Manual revolving door
If you have questions about any of the above items,
please contact dormakaba UK Service. Safety devices
for all doors should be checked by an ADSA qualiied
technician at least once a year.
If you have a problem you cannot correct, turn off the
door and call your local dormakaba on   .
REVOLVING DOOR LOG BOOK
72021-10

Regular inspection
and maintenance
To be undertaken by a qualiied technician.
The following list describes what has to be done during
the maintenance of dormakaba door systems. Always
consider the mounting and operation instructions
during maintenance.
Please observe the requirements for ire doors,
emergency exits and escape routes during inspection, if
applicable. The current state of technology has to be
taken into consideration when assessing the door
system with regard to safety-related questions.
Note down any safety-relevant error/deicit in the log
book and on the performance sheet. The inspector
must note down the scope, results and date of the
inspections and the facility operator has to keep these
documents for at least one year.
Revolving door systems
. Check the operator for leaks and unusual noise
. Check the toothed belt for defects and tension;
retighten or replace it if necessary
. Check all the control and operating elements;
adjust, repair or replace them if necessary
. Check all the safety devices; adjust, repair or
replace them if necessary
. Check the additional options: night closing,
emergency power supply, door-panel lock,
locking, etc.
. Check the electrical voltages
. Measure the operating forces check the deviation
from the measurement during the initial
commissioning
. Check the wiring, screw connections and safety
distances
. Check the condition of the sash, panel illing and
curved side wall
. Check all the door functions; for doors in escape
and rescue routes: check the escape route
functions, as well
. Check the wear parts, such as the slip ring, rollers,
batteries, etc; replace them if necessary (observe
the complete wear part list)
. Check the necessary markings on the door,
warning labels, information labels, stickers
Please note we recommend that revolving doors are
inspected at least once a year and revolving doors
which are emergency exits or escape routes are
inspected twice a year
. Review and update the inspection and maintenance
work in the inspection logbook
REVOLVING DOOR LOG BOOK
8 2021-10

Inspection reports
The facilities operator should ensure that this log book is available for the qualiied technician on his arrival at site.
If it is not available then it is the responsibility of the facilities operator to record the visit.
REVOLVING DOOR LOG BOOK
92021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
10 2021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
112021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
12 2021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
132021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
14 2021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

REVOLVING DOOR LOG BOOK
152021-10
Visit date Work Order /
Asset number
Service information /
Work carried out
Test report, defects
if any and
required action
Name
Company name
(of qualiied
technician)
Signature

dormakaba
Dorma UK Ltd
Wilbury Way
Hitchin
Herts
SG4 0AB
T: 0800 212380
E: [e-mail]
www.dormakaba.com
CENTRAL LOCATIONS
dormakaba
DORMA UK Ltd
Wilbury Way
Hitchin, Herts
SG4 0AB
SERVICE BRANCHES
SCOTLAND
Unit 1, Almond Road,
Middlefield Industrial Estate,
Falkirk
FK2 9HQ
IRELAND
PO Box 1050
Maynooth
Co. Kildare
NORTH WEST
Unit 10, Meadow
Business Park Meadow
Lane, Bolton
BL2 6PT
dormakaba
Kaba Ltd
Lower Moor Way
Tiverton, Devon
EX16 6SS
LONDON NORTH & SOUTH
Wilbury Way
Hitchin
Hertfordshire
SG4 0AB
MIDL ANDS
NORTH EAST
SOUTH WEST
Lower Moor Way
Tiverton
Devon
EX16 6SS
Unit 32 Crowther Road
Crowther Industrial Estate
Washington
Tyne & Wear
NE38 0AD
The Courtyard
John Harper Street
Willenhall
West Midlands
WV13 1RE
