ED50LE/ED100LE
Low energy swing door operators
Fine cover
Owner's Manual
DL4616-003 – 09-2021
| EN |

2ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 1
Table of contents 
 General information 
 To our customers 
 What you should know 
. Distributor information 
. EDLE/EDLE low energy operator 
. Low energy power operated swinging doors
ANSI/BHMA A. 
. Mode switch and Exit Only switch panels 
 AAADM Safety information label 
. Safety information label, low energy
power operated doors 
 Daily safety check procedures 
. Low energy power operated swing doors 

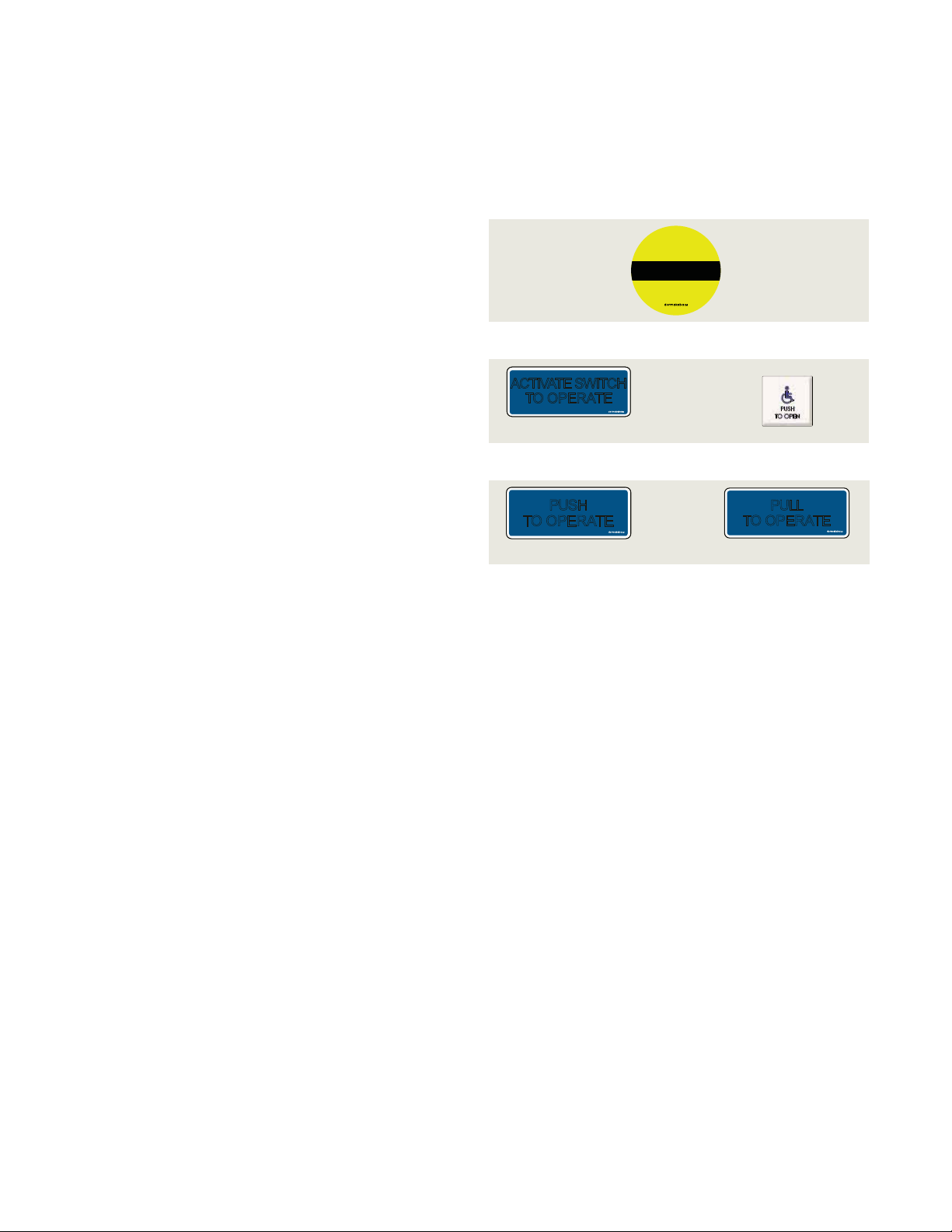

 EDLE/EDLE door signage 
. Low energy operator,
ANSI/BHMA A. 
. Door signage, low energy single swing
door, ANSI/BHMA A. 
. Door signage, low energy double swing
doors, ANSI/BHMA A. 
 EDLE/EDLE maintenance 
. Environment 
. Cleaning 
. ED operator status LEDs 
Table of contents

3
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 1
. Owner's Manual.
This Owner's Manual applies to dormakaba
EDLE and EDLE (fine cover) low energy swing
door operators.
. EDLE and EDLE installation.
NOTICE
Interior building surface installation.
The EDLE and EDLE with fine cover
must be installed on an interior building
surface.
EDLE interior door installation.
The EDLE is intended for installation on
interior doors only.
. EDLE exterior door use.
NOTICE
Exterior door use.
To insure proper suitability for exterior door
use, the following topics must be addressed in
the context of the door application setting.
• Site-specific use factors such as high wind
conditions and/or building pressure.
• Door width, height, weight, and usage
patterns.
• Observable prevailing conditions at the
opening under which the operator is
expected to perform. In some instances, this
may require increased force settings to
counteract these conditions.
• Door mounted presence sensors (EDLE)
When attempting to overcome these forces,
it is strongly suggested that door mounted
presence sensors be employed to enhance
pedestrian safety through the opening.
 General information
. Manual storage.
This document must be kept in a secure place, and
accessible for reference as required.
If the door system should be transferred to another
facility, insure that this document is transferred as well.
. dormakaba.us website.
Manuals are available for review, download, and printing
on dormakaba.us website.
. Dimensions
Unless otherwise specified, all dimensions are given in
inches (“).
. Symbols used in this manual.
WARNING
This symbol warns of hazards which could result
in personal injury or threat to health.
NOTICE
Draws attention to important information
presented in this document.

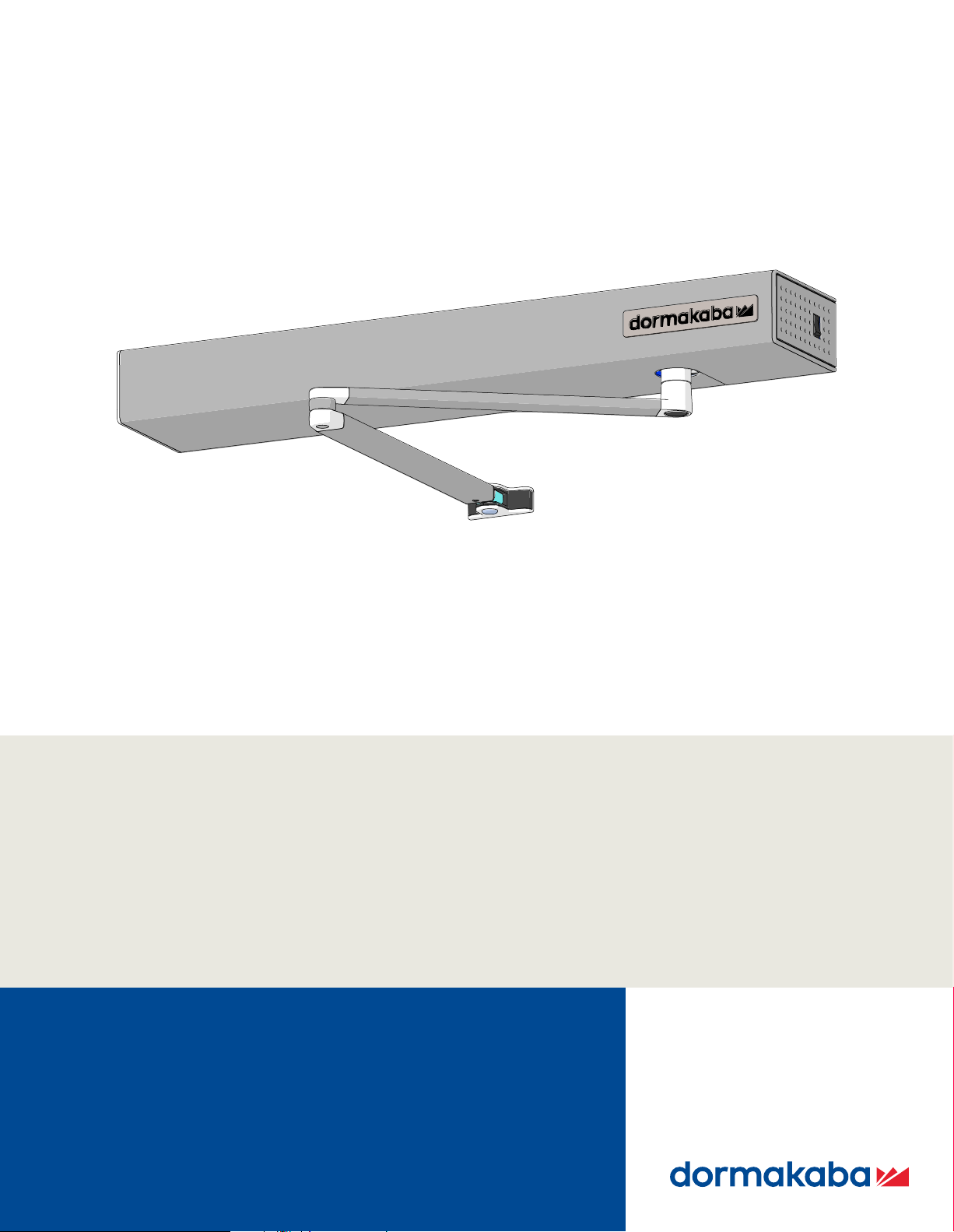

Fig. 1.1 ED50LE/ED100LE operator with fine cover

4ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 2
We are pleased that a dormakaba EDLE or EDLE
(fine cover) low energy swing door system has been
selected for this installation.
dormakaba designed, tested and built the system to
provide many years of service.
The purpose of this manual is to familiarize you with
your EDLE/EDLE (fine cover) swing door system.
It is essential that you "know your system" and that you
recognize the importance of maintaining your door
system in compliance with industry standards for safety.
It is your responsibility as owner and caretaker of the
equipment, to inspect the operation of your door system
on a daily basis as outlined in Chapter , Daily Safety
Check Procedures to insure that it is safe for use by your
customers and employees.
WARNING
Should the door fail to operate as prescribed
in the Safety information checklist or at any
other time for any reason, do not attempt to
repair or adjust the EDLE or EDLE
swing door system!
Call your local authorized dormakaba USA, Inc.
distributor for repair. The distributor's AAADM certified
technicians are trained to service the EDLE/EDLE
swing door system using dormakaba USA, Inc.
Installation and Setup Manuals, and in accordance with
applicable industry standards.
 To our customers
. Service availability.
dormakaba USA, Inc. has a nationwide network of
authorized distributors for sales, installation and service
of its products.
. Compliance with industry standards for safety.
Your EDLE/EDLE swing door system was
designed to the latest operating and safety standards.
In order to insure the continued safe operation of the
door, it is important that:
• Proper decals and labels be applied and maintained
on your doors (Chapter ).
• If decals and labels have been removed, or cannot be
read, contact your local authorized dormakaba USA,
Inc. distributor for replacement decals or labels.

5
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 3
 What you should know
.. dormakaba USA Inc. distributor information.
Be sure that the dormakaba USA Inc. distributor has
provided the following information for each door
installation:
. dormakaba USA Inc. EDLE/EDLE Fine Cover
Owner's Manual DL-.
. Review of:
• Daily Safety Check Procedure (Chapter ).
• General Safety Related Items (Chapter ).
. Instructions on how to conduct the daily safety check
procedure by walk through example.
. Annual compliance inspection label completion
(Chapter ).
. Circuit breaker or disconnect location for  Vac
power to the EDLE/EDLE fine cover assembly.
. EDLE/EDLE Mode switch panel location and
instructions in its use (Para. .).
. Discussion of problems that could result from
ED operator being allowed to operate after a
malfunction observed.
. Number to call for service or questions about your
system if you are uncertain of any condition or situation.
WARNING
If there are any problems, discontinue door
operation immediately and secure the door in
a safe manner.
Call your local dormakaba USA Inc. distributor
for repair.
. Distributor information
.. Knowing act definition (ANSI/BHMA A.).
Any conscious action with the expected result of opening
a door. This includes but is not limited to:
• Wall or jamb mounted contact or non contact
switches such as pushplates.
• The action of of manually opening (pushing or
pulling) a door.
• Controlled access devices such as keypads, card
readers, wireless transmitters and key switches.
. Low energy power operated
swinging doors
ANSI/BHMA A.
.. Low energy power operator door definition
(ANSI/BHMAA.).
A door with a power mechanism that opens the door
upon receipt of a knowing act signal, does not generate
more kinetic energy than specified in the ANSI/BHMA
A. standard, and is closed by a power mechanism
or other means.
. EDLE/EDLE low energy
operator
EDLE/EDLE operators are available only as a low
energy operator (Para. .).

6ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 3
. Mode switch and Exit Only switch panels
.. Mode switch position descriptions.
Auto
. Door opens automatically when one of the activators
is actuated or triggered.
Door closes on expiration of adjustable hold open
time with no activators or actuators triggered.
. With knowing act device actuation (Para. ..).
Door will remain at full open position for not less
than  seconds.
. With push/pull actuation of door (Para. .).
Door will remain at full open position for not less than
 seconds.
Close
. Door will remain closed, or if door is open door will
close.
Open
1. Door opens automatically and remains open.
.. Exit Only switch position descriptions.
On
. Exterior activation sensor or knowing act device
disabled when door fully closed.
• Only interior activation sensor or knowing act device
will enable door opening.
Off
. Both interior and exterior activation sensors or
knowing act devices will enable door opening.
.. Exit Only switch
positions.
Auto
Fig. 3.4.2 Auto
.. Mode switch
positions.
Close
Fig. 3.4.3 Close
Fig. 3.4.4 Open
Fig. 3.4.5 On
On
Off
Fig. 3.4.6 Off
Fig. 3.4.1 Fine cover
2Exit Only switch,
2 position
1Mode switch,
3 position
1 2
Open
Fig. 3.4.7 Optional key switch panels

7
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 4
SAFETY INFORMATION
Low Energy Swinging
Doors
1
. Activate the door. Door
should open at a slow
smooth pace (4 or more
seconds), and stop withou
t
impact.
2
. Door must remain fully open
for a minimum of 5 seconds
before beginning to close.
3
. Door should close at a slow,
smooth pace (4 or more
seconds), and stop without
impact.
4
. Inspect the floor area. It
should be clean with no
loose parts that might cause
user to trip or fall. Keep
traffic path clear.
5
. Inspect door‘s overall
condition. The appropriate
signage should be present
and the hardware should
be in good condition.
6
. Have door inspected by an
AAADM certified inspector
at least annually.
AAADM
American Association of Automatic
Door Manufacturers
ANNUAL COMPLIANCE
INSPECTION
INSPECT FOR AND
COMPLIES WITH ANSI
A156.19 ON:
DATE:______________
by AAADM Certified
Inspector
Number:___________
AAADM-3044
DO NOT USE DOOR if it fails
any of these safety checks of if
it malfunctions in any way. Call
a qualified automatic door
service company to have door
repaired or serviced.
See Owner’s manual or
instructions for details on
each of these and other
safety items. If you need
a copy of the manual,
contact the manufacturer.
These minimum safety checks,
in addition to those in the
Owner’s Manual, should be
made each day and after any
loss of electrical power.
Fig. 4.1.1 Safety Information and Annual Compliance
Inspection labels
. Safety information label, low energy power operated doors
.. Low energy swing door safety information label.
This AAADM label outlines safety checks that should be
performed daily on swing door controlled by an
EDLE or EDLE operator.
.. Safety information label location.
Place label in a protected, visible location on door frame,
near program switch panel if possible.
.. Annual compliance section of label.
This section of label is only completed on low energy
swing doors that comply with ANSI/BHMA A.
Standard for Low Energy Power Operated Swinging
Doors and pass inspection by a AAADM certified
dormakaba USA, Inc. technician.
.. Additional annual compliance inspection labels.
Place additional labels over annual compliance
inspection section of safety information label.
ANNUAL COMPLIANCE
INSPECTION
INSPECT FOR AND
COMPLIES WITH ANSI
A156.19 ON:
DATE: ______________
by AAADM Certified
Inspector
Number: ___________
 AAADM Safety information label

8ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 5
. Low energy power operated swing doors
.. Performing daily safety checks.
Perform safety checks daily on your low energy swing
door to insure your customer and employee safety.
These daily safety checks are also listed in Chapter ,
Safety Information labels, low energy swinging doors.
. Activate the door by a knowing act device (Para..).
• Door should open at a slow smooth pace
( seconds or more) and stop without impact.
. Door must remain fully open for a minimum of
 seconds before beginning to close.
• Door should close at a slow smooth pace
( seconds or more) and stop without impact.
. Inspect the floor area, it should be kept clean with no
loose parts that might cause user to trip or fall. Keep
traffic path clear.
. Inspect door's overall condition. The appropriate
signage should be present and all hardware should
be in good condition.
. Have door inspected by a dormakaba USA Inc.
AAADM certified technician annually, at a minimum.
WARNING
If there are any problems, discontinue door
operation immediately and secure the door in
a safe manner.
Call your local dormakaba USA, Inc. distributor
for repair.
 Daily safety check procedures
.. Review safety related items and perform checks
periodically as noted.
TIPS AND RECOMMENDATIONS
Perform these checks while traffic is restricted.
. Housekeeping
• Check door area for tripping or slipping hazards.
• Make sure all hardware and overhead covers are
properly secured.
• There should be no bulletin boards, literature racks,
merchandise displays, or other attractions in the
door area that would interfere with the use of the
door or encourage people to stop and stand in the
door area.
. Check all doors for damage.
. Force
• Force to prevent the door from closing should not
exceed  pounds measured with a force gauge.
. Door safety signage
• Refer to Chapter  for door safety signage
requirements.
. Lock stile
• With door open, grasp lock stile of door and attempt
to move horizontally and vertically.
• There should be no looseness in the door pivots or in
connections between door and operator.
WARNING
If there are any problems, discontinue door
operation immediately and secure the door in
a safe manner.
Call your local dormakaba USA, Inc. distributor
for repair.

9
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 6
 EDLE/EDLE door signage
AUTOMATIC CAUTION DOOR decal.
• All low energy doors shall be marked with signage
visible from both side of door with the words
"AUTOMATIC CAUTION DOOR".
• Signs shall be mounted " ±" from floor to
centerline of sign.
.. Knowing act used to initiate door operation.
ACTIVATE SWITCH TO OPERATE decal.
• When a knowing act device is used to initiate operation
of door operator, door shall be provided with sign on
each side of door where switch is operated with
message "ACTIVATE SWITCH TO OPERATE".
.. Push/Pull used to initiate door operation.
PUSH TO OPERATE, PULL TO OPERATE decals.
• When push/pull is used to initiate operation of door
operator, doors shall be provided with the message
"PUSH TO OPERATE" on push side of door and
"PULL TO OPERATE" on pull side of door.
Fig. 6.1.1 AUTOMATIC CAUTION DOOR decal
Fig. 6.1.2 ACTIVATE SWITCH TO OPERATE decal
. Low energy operator, ANSI/BHMA A.
.. Overview
Signage and warnings are specified in
ANSI /BHMA A., American National Standard for
Low Energy Power Operated Swinging Doors.
.. All low energy doors.
DD- DD-
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD-
Fig. 6.1.3 PUSHPULL TO OPERATE decals
DD-
DD0758-010
ACTIVATE SWITCH
TO OPERATE
DD0758-010
DD0762-010
PUSH
TO OPERATE
DD0762-020
PULL
TO OPERATE

10 ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 6
. Door signage, low energy double swing doors, ANSI/BHMA A.
Fig. 6.3.1 Knowing act, non-hinge side
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
Fig. 6.3.2 Knowing act, hinge side
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
1Activate Switch to
Operate DD0758-010
1Activate Switch to
Operate DD0758-010
. Door signage, low energy single swing door, ANSI/BHMA A.
Fig. 6.2.1 Knowing act device initiation of door operation
Push to Operate Pull to Operate
2Push to Operate
DD0762-010
3Pull to Operate
DD0762-020
1Activate Switch to
Operate DD0758-010
Fig. 6.2.2 Push / Pull initiation of door operation
CAUTION
DOOR
AUTOMATIC
DD0586-010
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
1
DD0758-010
ACTIVATE SWITCH
TO OPERATE
dormakaba
DD0758-010
DD0758-010
ACTIVATE SWITCH
TO OPERATE
dormakaba
DD0758-010
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD0762-020
PULL
TO OPERATE
3
CAUTION
DOOR
AUTOMATIC
DD0586-010
2
DD0762-010
PUSH
TO OPERATE

11
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 6
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
3
CAUTION
DOOR
AUTOMATIC
DD0586-010
3
DD0762-020
PULL
TO OPERATE
DD0762-020
PULL
TO OPERATE
Fig. 6.3.4 Push / Pull, pull to operateFig. 6.3.3 Push / Pull, push to operate
Fig. 6.3.5 Double egress,, knowing act Fig. 6.3.6 Double egress, knowing act
CAUTION
DOOR
AUTOMATIC
DD0586-010
2
CAUTION
DOOR
AUTOMATIC
DD0586-010
2
DD0762-010
PUSH
TO OPERATE
DD0762-010
PUSH
TO OPERATE
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
CAUTION
DOOR
AUTOMATIC
DD0586-010
ACTIVATE SWITCH
TO OPERATE
1
2Push to Operate
DD0762-010
3Pull to Operate
DD0762-020
1Activate Switch to
Operate DD0758-010
1Activate Switch to
Operate DD0758-010

12 ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Chapter 7
 EDLE/EDLE maintenance
. Environment
.. EDLE/EDLE environmental requirements.
The EDLE and EDLE with fine cover is designed to
operate on an interior building surface under the
specifications shown in Table ...
Table 7.1.1 Operator environmental requirements.
Fig. 7.2.1 ED50LE/ED100LE with fine cover
Ambient temperature  to  °F [- to C]
.. Areas around door(s) and door swing radius.
Areas around doors and door swing radius must be kept
clear of all obstacles.
.. Cleaning
WARNING
Cleaning of fine cover surfaces must be done
with Mode switch (Para. 3.4) in Close position!
Fine cover surface can be cleaned with a damp cloth
and commercial cleaning agents.
TIPS AND RECOMMENDATIONS
Abrasive (scouring) agents should not be used
as they may damage external surfaces.
.. Water and other liquids.
CAUTION
No water or other liquids must be sprayed or
spilled on ED50LE/ED100LE fine cover!
. Cleaning
. ED operator status LEDs
Fig. 7.3.1 Operator status LEDs .. Operator status LEDs.
. Red LED
Blinking codes are used to indicate system status,
operating conditions or certain error codes.
. Yellow LED
Maintenance interval indicator. When illuminated, an
indication the operator system should be serviced.
. Green LED
• On, internal  Vdc power is On.
• Off, internal  Vdc power is Off.
WARNING
If there are any problems, discontinue door
operation immediately and secure the door in
a safe manner.
Call your local dormakaba USA Inc. distributor
for repair.
1Red LED
2Yellow LED
3Green LED
4Power switch
1
2
3
4

13
ED50LE/ED100LE 09-2021DL4616-003
dormakaba ED50LE/ED100LE Owner's Manual
Fine cover
Blank page
This page left intentionally blank.

www.dormakaba.us
dormakaba USA, Inc.
1 Dorma Drive, Drawer AC
Reamstown, PA 17567
USA
T: 717-336-3881
F: 717-336-2106
