Doyon DBBQ12 User manual

DBBQ12 and RPBBQ
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
TABLE OF CONTENTS
SECTION «A» DESCRIPTION PAGE
Installation and maintenance manual for the oven DBBQ12 . . . . . . . . . . . . . . . . . . A1
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Distances to respect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A6
Instructions for oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A7
Oven maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A8
Instructions for the food warmer RPBBQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A9
For more information, please contact our office : . . . . . . . . . . . . . . . . . . . . . . . . . . . . A10
SECTION «B» DIMENSIONS
DBBQ12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B1
RPBBQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B5
SECTION «E» COMPONENTS PARTS
DBBQ12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E1
RPBBQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5
SECTION «G» ELECTRIC SCHEMATICS
DBBQ12 208V, 220V et 240 V/1PH, 60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G1
DBBQ12 230V/1PH/50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G2
RPBBQ 120V/1PH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G3
Warranty
DBBQ12.DOC
REV. 01-11-2004

A1
INSTALLATION AND MAINTENANCE MANUAL
The manufacturer suggests to read this manual carefully.
This Jet Air oven is manufactured with first quality material by experienced technicians. Proper
installation and maintenance will guarantee a reliable service for years to come.
A nameplate fixed to the side of the oven specifies the serial number, model number, number of
phase, amperage, voltage and frequency.
Drawings, electrical diagram and replacement part numbers are included in this manual. The
electrical diagram is affixed in the control panel at the back of the oven.
ATTENTION
DOYON is not responsible for damages to the property or the
equipment caused by personnel who is not certified by known
organizations. The customer is responsible for finding qualified
technicians.

A2
C O N S T R U C T I O N
You just bought the most advanced electric oven in the world, the "DOYON" technology at its best.
This oven is manufactured using the highest quality components and material.
This oven gives a perfect uniform baking with its unique Jet Air convection system. The DOYON
ovens are designed with parts that are easy to find.
S H I P P I N G
For your safety, this equipment is verified by qualified technicians and carefully crated before
shipment. The freight company assumes full responsibility concerning the delivery in good condition
of the equipment in accepting to transport it.
IMPORTANT
RECEPTION OF THE MERCHANDISE
Take care to verify that the received equipment is not damaged before signing the delivery receipt. If
a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after carrier left,
contact immediately the freight company in order that they do their inspection.
We do not assume the responsibility for damages or losses that may occur during transportation.

A3
W A R N I N G S
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY APPLIANCE.
POWER FAILURE WARNING
WHEN YOU HAVE A POWER FAILURE, SHUT OFF THE OVEN POWER SWITCH
TO PROTECT THE ELECTRONIC COMPONENTS WHEN THE POWER COMES
BACK.
IMPORTANT
INSTALLATION AND SERVICE
Installation and service must be done by specialized technicians. Contact a certified electrician and
plumber for set up.
The oven must be connected to the utility and electrically grounded in conformity to the effective
local regulations. If these are not established, the oven must be connected according to the Canadian
Electrical Code (CSA-C22.1-XX) or National Electrical Code (NFPA 70-XX). Refer to last
edition year for XX.

A4
DISTANCES TO RESPECT
A) Back of the oven: 4 inches
B) Top of the oven: a clearance of 36 inches to the ceiling must exist to permit adequate venting
of hot parts.
C) Floor: 4 inches minimum
D) Sides of the oven: Do not install other than easily removable equipment for service and
maintenance (not closer than 4 inches).
E) It is recommended to have a certain length of electric cable between oven and wall to help
gain access for service.

A5
I N S T A L L A T I O N
IN GENERAL
Take off the packaging material with care. Take off all the material used for packing and accessories.
Each unit is set up to be used with the electrical supply specified on the nameplate fixed on the front
of the oven.
1. To the electrician
Electrical supply installation must be in accordance with the electrical rating on the nameplate.
WARNING
The electrician must make sure that the supply cable does not
come in contact with the oven top which becomes hot.

A6
O P E R A T I O N
1. Turn the switch to the " ON " position.
2. Adjust the thermostat at the desired setting (see THERMOSTAT INSTRUCTIONS below).
N.B. The red light must be "ON" (If not, press the breaker on the front).
3. Heat the unit until you reach the baking temperature.
When the desired temperature is reached, the red light goes out and turns green.
If the light is still "ON" and the oven does not produce heat, call for service.
THERMOSTAT INSTRUCTIONS
To obtain a very good thermal stability, we use a digital temperature controller with thermocouple.
The Omron E5CS thermostat controls the heat of every element at the SP (set point).
The temperature of the oven is always shown on the display of the thermostat and an arrow indicates
if the temperature is over the SP or below. When the green light is lit, it indicates that the temperature
is at the SP ± 1 %.
To adjust the SP value, you just have to press the key on the left and use the up and down keys to set
the temperature. Press the left key to return to run mode.
COOKING TIMER H5CX
The timer scale graduation is 1 min to 99hr 59min.
Set the baking time required with the small push button on the timer. The green display is the setting
time and the red display is the countdown time (Ex #1: 25 minutes = set 0025 on green display. Ex
#2 : 2hr 20min = 0220 on green display).
After setting: Push the START/STOP button. When the time will expire, the buzzer will ring, then,
push the START/STOP button again to stop the buzzer.
If you want to restart the time in the middle of the countdown, press on the yellow RST button on the
timer.
P.S. The timer is simply a reminder for the approximate duration of the baking time.
POWER FAILURE
When the power comes back, the oven will start automatically. It is recommended to turn off the
power to avoid the oven to start without supervision.

A7
INSTRUCTIONS FOR OVEN
Preheat the oven at: 375oF (190oC) - at least 20 minutes
Baking temperature: 375oF (190oC)
Baking time: 90 minutes for a 2-3 lbs chicken
PROCEDURE TO FOLLOW FOR BAKING
1. Add two litres of water directly inside the oven, at the bottom. Make sure there is always
some water left. Turn the oven on.
2. Make 2 incisions of 1" (2,5 mm) on the breast of the chicken, near the legs.
3. Season your product.
4. When the oven temperature is stabilized, put chicken on the spits. Insert the back end of the
chicken first on the tree, the breast facing downward so that the fat can drip out of the 2
incisions. The legs must be tied in back of the chicken (above the chicken). Start the baking
timer (see instruction below).
5. After each baking, clean the oven with a soft detergent. Scrub with a plastic pad.
CAUTION: Never use products such as "Steel wool".
6. After baking, adjust the thermostat at 150oF (65oC). The oven can be used as a warmer for
one hour maximum.
7. Baking: Place the grills inside the oven.
Bread-pastry: 350oF (177oC)
Pie: 375oF (190oC)
CAUTION
To take out the extra grease inside the oven, open slowly the faucet located in front of the oven and
let flow in a pan. Operate with care as it is a mixture of hot grease and water. Please wear protective
oven mitts.

A8
OVEN MAINTENANCE AND CLEANING
Step by step Recommendations
Clean the inside of the oven with water and
soap.
We recommend and sell:
Dirt Buster III : Action foam cleaner
CHEMCO
Part number : NEB201
After cleaning the inside of the oven, apply a
silicone base oven protector. It avoids food
from sticking to the metal.
We recommend and sell:
316 Silicone base protector and lubricant for
oven
Dow Corning
Part number : EXS400
Clean the oven windows with products like
Brasso or equivalents. They are copper
cleaners but good for this use.
We recommend and sell:
Wright’s : Cream copper cleaner
J.A. Wright & Co.
Part number : EXC300
Clean the oven exterior with a stainless steel
polish.
We recommend and sell:
Stainless steel cleaner
SANY or CURTIS (comestible)
Part number : NES201

A9
INSTRUCTIONS FOR FOOD WARMER RPBBQ
1. Turn main switch to « ON ».
2. Set heat thermostat at 150º F or less.

A10
FOR MORE INFORMATION,
PLEASE CONTACT OUR OFFICE :
DOYON EQUIPMENT INC.
1255, rue Principale,
Linière, Qc, Canada G0M 1J0
Tel. : [phone]
Canada : 1 [phone]
U.S. : 1 [phone]
FAX : [phone]
Internet: www.doyon.qc.ca
E-Mail : [email protected]

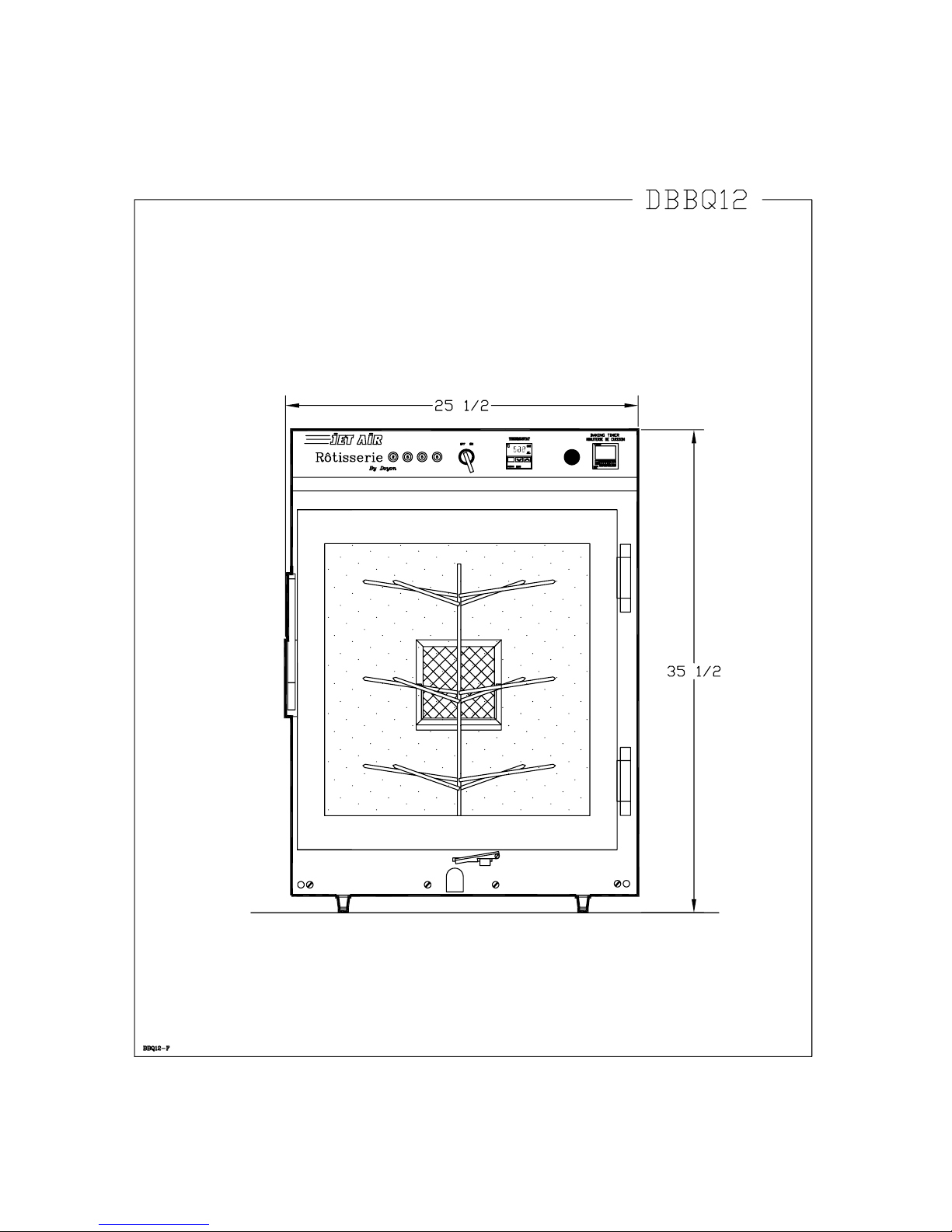

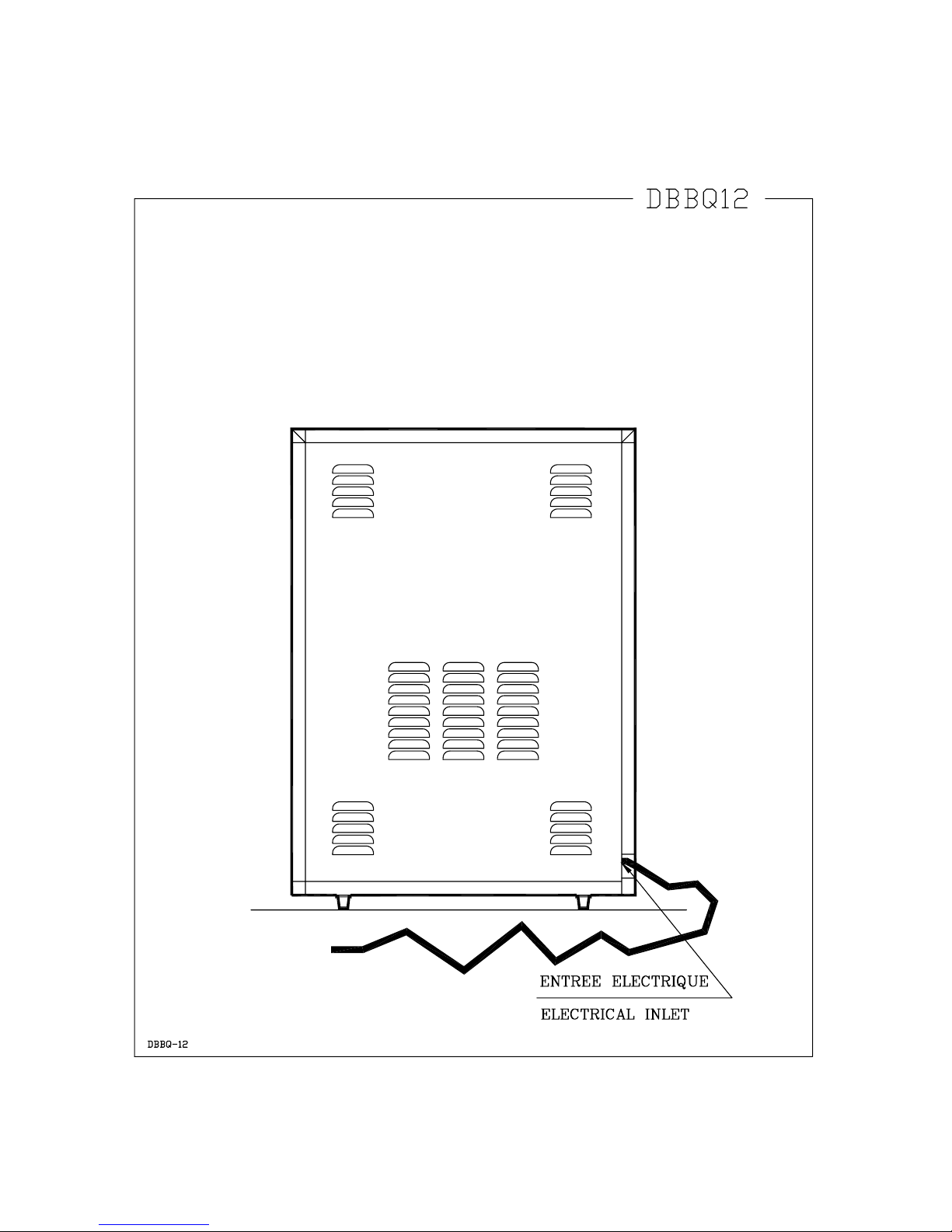

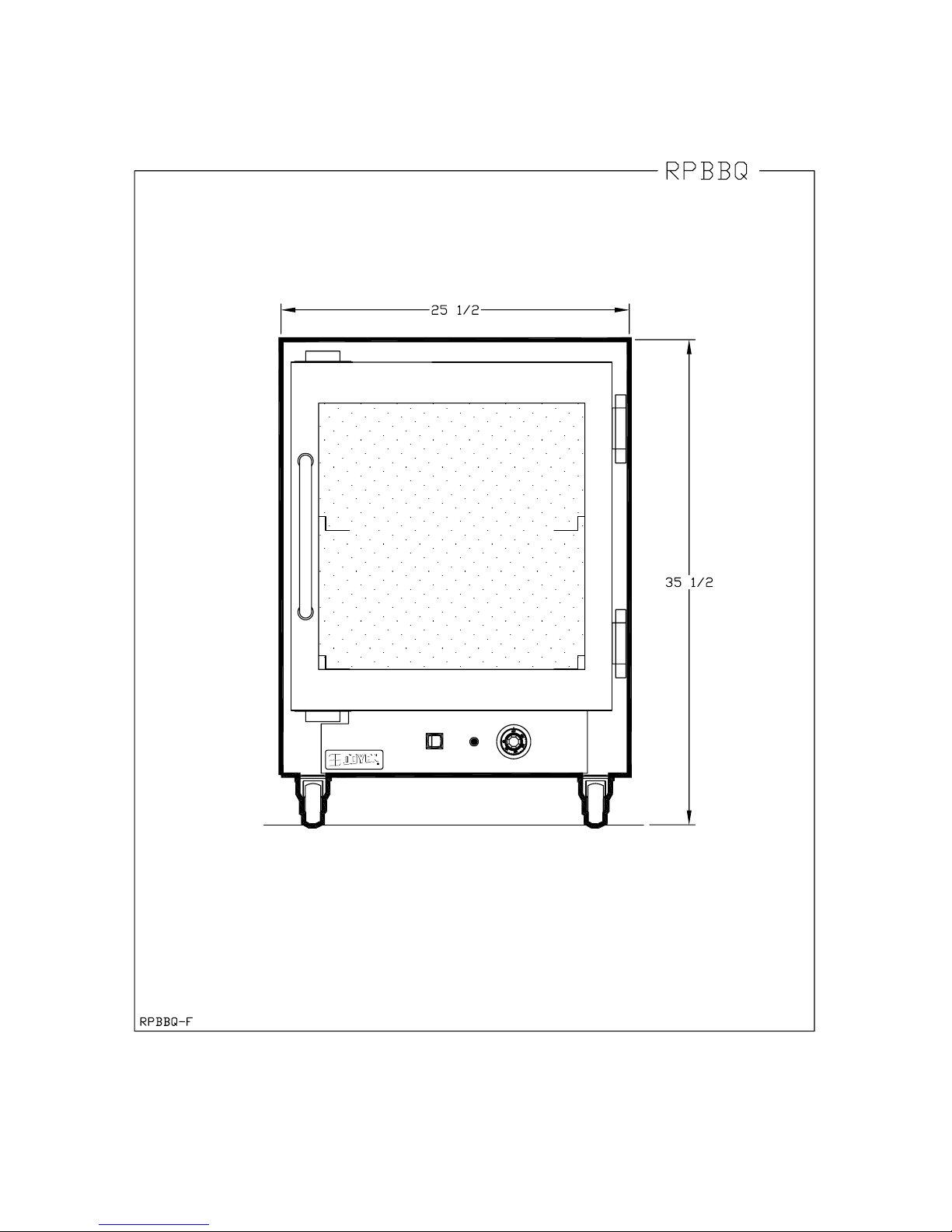

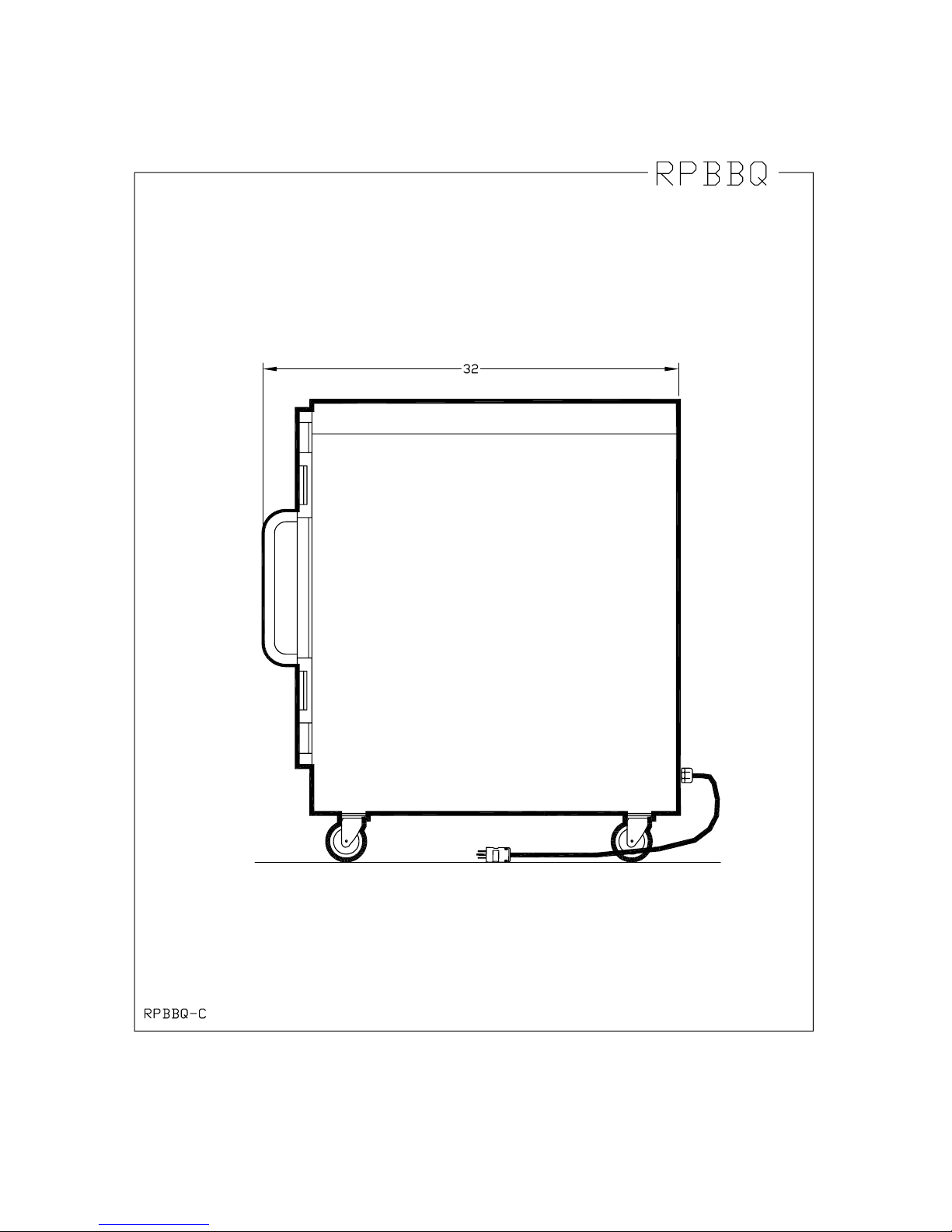

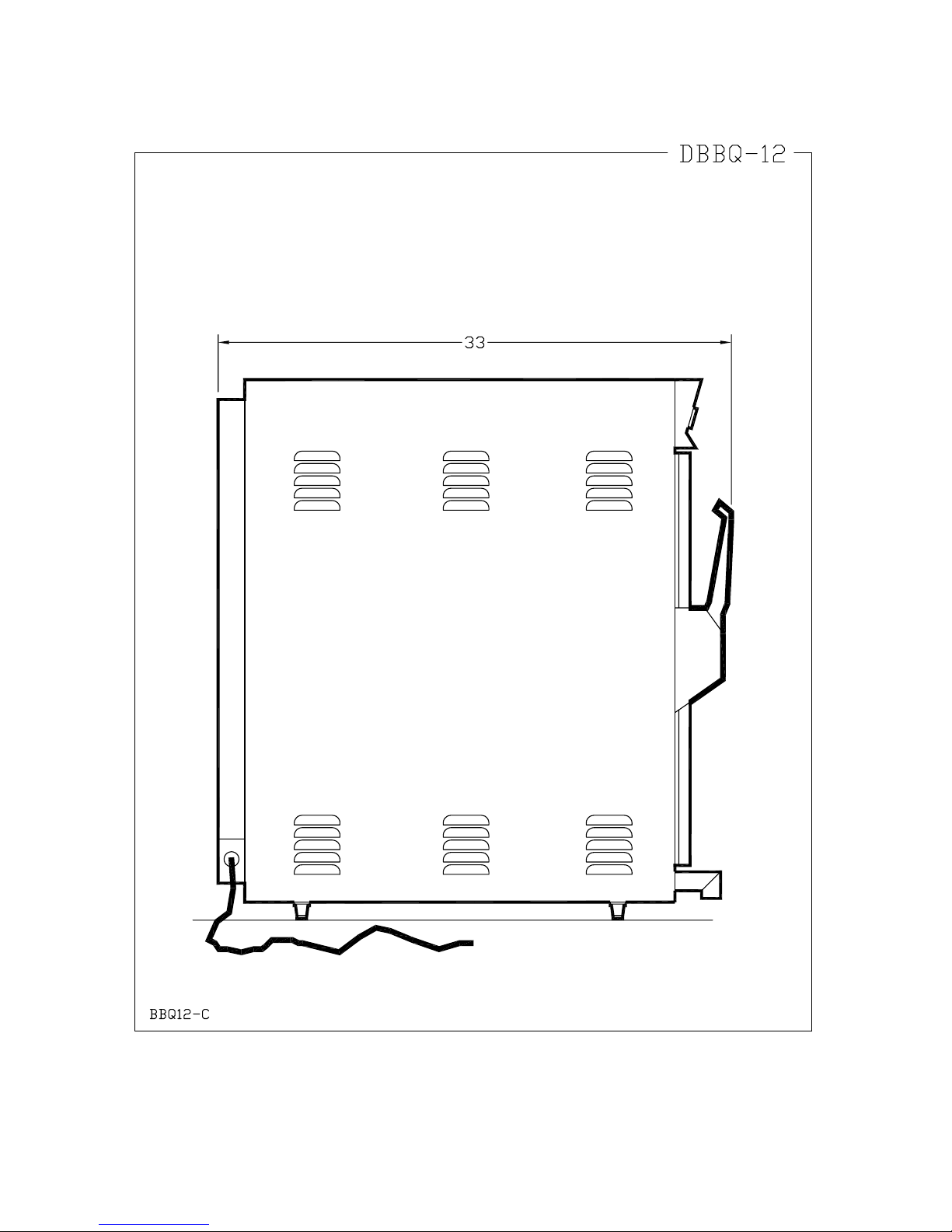

SECTION B
DIMENSIONS

B1

B2

B3

B4

B5

SECTION E
COMPONENT PARTS

E1

E2

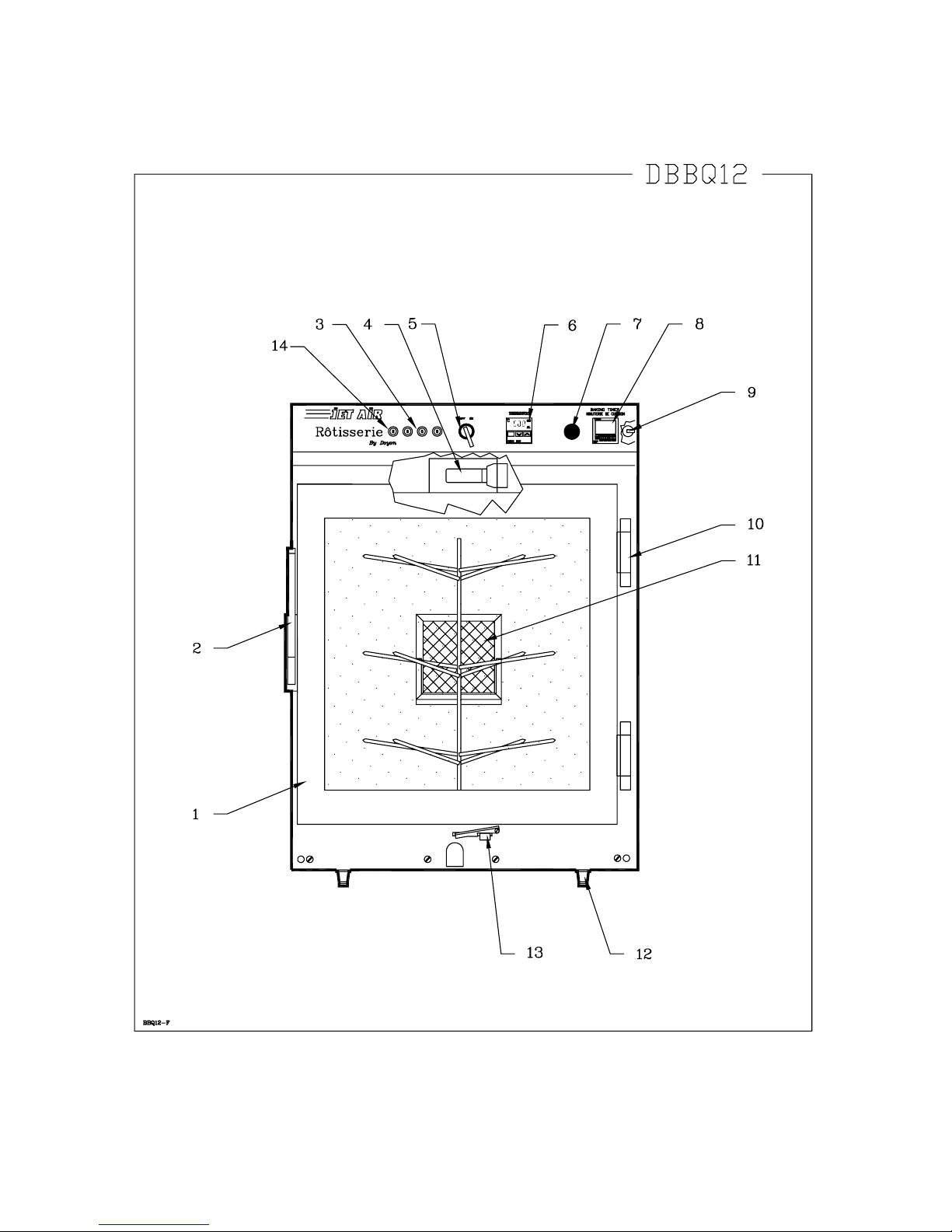

Item Part Number Description Quantity
1 P2325 DOOR 23 1/2" X 25 1/2", 1/4" GLASS 1
2 QUP520 MAGNETIC HANDLE 1
3 ELB096 5A BREAKERMODEL 208,220,240V 60HZ) 3
OR ELB096 5A BREAKER(MODEL 230V 50HZ) 2
4 ELA350 HALOGEN BULB 100 WATTS 120VMODEL 208,220,240V 60HZ) 1
OR ELA285 BULB 50W 240V(MODEL 230V 50HZ) 1
5 ELI550 MAIN SWITCH (SELECTOR) 1
AND ELI555 CONTACT BLOCK 1NO 1
6 ELT515 ELECTRONIC THERMOSTAT 1
AND ELT522 THERMOCOUPLE J TYPE 1
7 ELP994 PUSH-BUTTON (BLACK) 1
AND ELI555 CONTACT BLOCK 1NO 1
8 ELM616 ELECTRONIC TIMER OMRON H5CX-L8 1
AND ELM629 ELECTRONIC TIMER 8 PIN SOCKET 1
AND ELM726 PANEL MOUNTING 1
9 ELS950 BUZZER 120V 1
10 QUP320 DOOR HINGE 2
11 QUF100 FILTER 1
12 PAP600 ADJUSTABLE CHROMED LEG 4
13 PLV100 VALVE 1
14 ELB098 2A BREAKER 1
Model : DBBQ12 View : FRONT
