DPS Telecom NetGuardian 480 G3 User manual

USER MANUAL
NetGuardian 480/432 G3 & G4
April 22, 2019
Visit our website at www.dpstelecom.com for the latest PDFmanual and FAQs.
Firmware Version 2.0N
D-PK-NG480
D-PK-NG432
D-UM-NG480/NG432

© 2019 DPS Telecom
This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this
document may be photocopied without prior written consent of DPS Telecom.
All software and manuals are copyrighted by DPS Telecom. Said software and manuals may not be reproduced, copied,
transmitted or used to make a derivative work, by either mechanical, electronic or any other means in whole or in part, without
prior written consent fromDPS Telecom, except as required by United States copyright laws.
The materialin this manual is for information purposes and is subject to change without notice. DPS Telecomshall not be
liable for errors contained herein or consequential damages in connection with the furnishing, performance, or use of this
manual.
Notice
Revision History
April 22, 2019
July 18, 2018
October 28, 2016
October 16, 2014
March 4, 2014
Support for Modbus added
Merged with G3 manual, updated firmware
Added Derived Controls and Derived Expansion Controls
sections.
Added Expansion Alarms and Controls section
Initial Release

Contents
Visit our website at www.dpstelecom.com for the latest PDF manual and FAQs
NetGuardian 480/432 Overview1 1
Specifications2 2
Shipping List3 3
Optional Shipping Items - Available by Request3.1 4
Installation4 5
Tools Needed4.1 5
Mounting4.2 5
NetGuardian Front Panel5 6
NetGuardian Back Panel6 7
Power Connection6.1 8
LAN Connection6.2 9
Serial Connection6.3 9
Alarm and Control Relay Connectors6.4 10
NetGuardian 432 G3 Pinouts6.4.1 10
NetGuardian 432 G4 Pinouts6.4.2 11
NetGuardian 480 G3 Pinouts6.4.3 12
NetGuardian 480 G4 Pinouts6.4.4 13
Discrete Alarms6.5 13
Optional 66 Block Connector6.6 14
D-Wire Sensor Input (analogs)6.7 15
Analog Step Sizes6.7.1 15
Quick Start: How to Connect to the NetGuardian7 16
...via Craft Port (using TTY Interface)7.1 16
...via LAN7.2 22
TTY Interface8 23
Configure Serial Port via TTY8.1 24
Quick Turn Up9 25
How to Send Email Notifications9.1 25
How to Send SNMP Traps9.2 27
Provisioning Menu Field Descriptions10 29
System10.1 30
User Profiles10.2 31
Ethernet10.3 32
RADIUS10.4 33
Serial Port10.5 34
SNMP10.6 35

Notifications10.7 36
Notification Settings10.7.1 36
Schedule10.7.2 37
Alarms10.8 38
Controls10.9 39
Derived Controls10.9.1 40
Derived Expansion Controls10.9.2 41
Sensors10.10 42
Ping Targets10.11 45
Modbus Devices10.12 46
Modbus Registers10.13 48
System Alarms10.14 50
Timers10.15 50
Date and Time10.16 51
Monitoring via the Web Browser11 52
Alarms11.1 52
Controls11.2 53
Sensors11.3 54
Ping Targets11.4 55
System Alarms11.5 56
Graph11.6 57
Device Access Descriptions12 59
Firmware Upgrade13 60
Reference Section14 61
Front and Back Panel LEDs14.1 61
Display Mapping14.2 62
System Alarms14.3 64
SNMP Manager Functions14.4 66
SNMP Granular Trap Packets14.5 68
Frequently Asked Questions15 69
General FAQs15.1 69
Technical Support16 70
End User License Agreement17 72

1
NetGuardian 480/432 Overview
1
As an easy-to-install, high-density RTU, the NetGuardian effectively monitors sites with a lot of discrete alarm
points.
Effective, easy-to-install, light-capacity alarm monitoring
The NetGuardian (NG) is a compact, LAN-based, high-density remote telemetry unit. The NetGuardian is designed
for easy installation at remote sites with up to 80 discrete alarm points, making it cost-effective to deploy alarm
monitoring at your larger facilities.
Powerful monitoring for high-density sites
The NetGuardian is based on the time-tested NetGuardian 832A design. This telco-grade remote is housed in a
durable aluminum case. This SNMP remote is scaled to the needs of high-density sites that require a lot of discrete
inputs.
·32 (NetGuardian 432) or 80 (NetGuardian 480) Discrete Alarm Inputs
·4 Control Relay Outputs
·1 Reach-through serial port (terminal server)
Reach-through serial port gives LAN access to on-site equipment
The NetGuardian also features a reach-through serial port. This port provides remote users with LAN-based Telnet
access to a variety of on-site telecom equipment, including switches, radios, PBXs and many other devices.
SNMP or T/Mon
The NetGuardian can report alarms to any SNMP manager or to the DPS Telecom T/Mon Remote Alarm Monitoring
System. The NetGuardian can also report via SNMP and DCPx concurrently to the T/Mon.
Easy Alerts via Email or SNMP
Email notification reports alarm events to the e-mail addresses of specified personnel and creates a supplemental
record of alarm events in addition to your master via SNMP traps.
Upgraded Web 2.0 Interface
The overhauled web interface that boasts several time-saving new tools, including new analog gauges. You'll also
notice the impressive speed boost. Menus load very quickly, and the alarm status updates automatically without
requiring a page refresh.
Note: The NetGuardian 432 is a subset of the NetGuardian 480, so the content in this manual will be
applicable to both units. Any differences between the unitswill be clearly identified.

2
Specifications
2
Discrete Alarm Inputs: 80 (NetGuardian 480) or 32 (NetGuardian 432)
Temperature Sensors: Support for up to 32 D-Wire Sensors (see below)
Sensor Thresholds: 4 per sensor
Digital Sensor Inputs: 1(up to 16 total daisy-chained sensors)
Control Relays: 4 Form C
Maximum Voltage: 60 VDC / 120 VAC
Maximum Current: 1 Amp, AC / DC
Protocols: SNMPv1, SNMPv2c, SNMPv3, DCPx, TELNET, HTTP, HTTPS, SMTP,
ICMP, RADIUS
Dimensions: 1.72" H x 17" W x 5.14" D
(4.4 cm x 43.18 cm x 13.1 cm)
Weight: 4 lbs. 3oz. (1.9 kg)
Mounting: 19" or 23" rack mount
Shipping Box Size: 22" x 6" x 16" and 8 lbs.
Power Input: -48VDC (-36 to -72 VDC)
(Optional) +24 VDC via 110VAC wall transformer (12 to 30 VDC)
(Optional) -24VDC (-18 to -36 VDC)
Current Draw: 250 mA @ -24VDC
125 mA @ -48VDC
Fuse: Resettable Fuse (Internal), if +24V Power Input
3/4 Amp GMT Fuse, if -48V or -24V Power Input
Interfaces: 1 RJ45 10/100BaseT full-duplex Ethernet port
1 Push button switch
Serial port options: RS232, RS485, 202, 33.6 K internal dialup modem
Switch for 202 tuning
USB connection for front panel craft port
Visual Interface: 6Front Panel LEDs
6Back Panel LED
Audible Notification: Alarm speaker with volume control (Optional)
Operating Temperature: 32°–140° F (0°–60° C)
Operating Humidity: 0%–95% non-condensing
MTBF: 60 years
Windows Compatibility: Windows 2000, XP, Vista, 7 32/64 bit
RoHS: 5/6

3
Shipping List
3

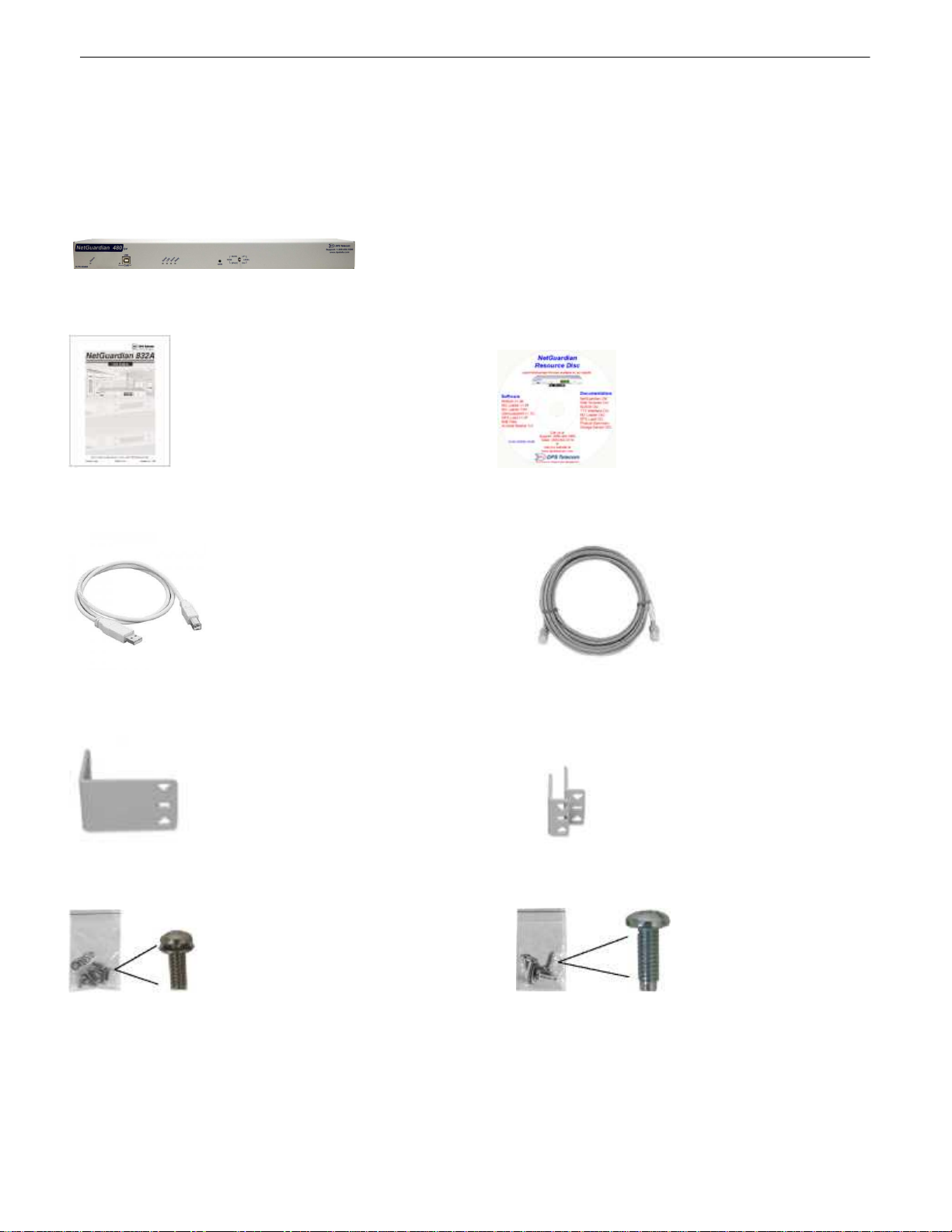

Please make sure all of the following items are included with your NetGuardian. If parts are missing, or if you ever
need to order new parts, please refer to the part numbers listed and call DPS Telecom at 1-800-622-3314.
NetGuardian
D-PK-NG480, or D-PK-NG432
NetGuardian User Manual NetGuardian Resource CD
D-UM-NG480/NG432
USB Cable 14 ft. Ethernet Cable
D-PR-046-10A-06 D-PR-923-10B-14
23" Rack Ears 19" Rack Ears
D-CS-325-10A-01 D-CS-325-10A-00
x8 x4
3/8" Ear Screws Rack Screws
and Lock Washers 1-000-12500-06
2-000-60375-05

4
x4
Alternate Rack Screws Pads
2-000-80750-03 2-015-00030-00
x 3 x 2
3/4-Amp GMT Fuses RIAPower Connectors
2-741-00750-00 (Included on non-WAGO, RIABuilds)
2-820-00862-02
4-Pin Locking WAGO Connector 4-Pin Serial Connector (202 Option Only)
(Included on WAGO Builds) 2-820-00814-02
2-802-04037-00
x 2
Hex Nut (Ships mounted on grounding lug)
2-002-01024-00

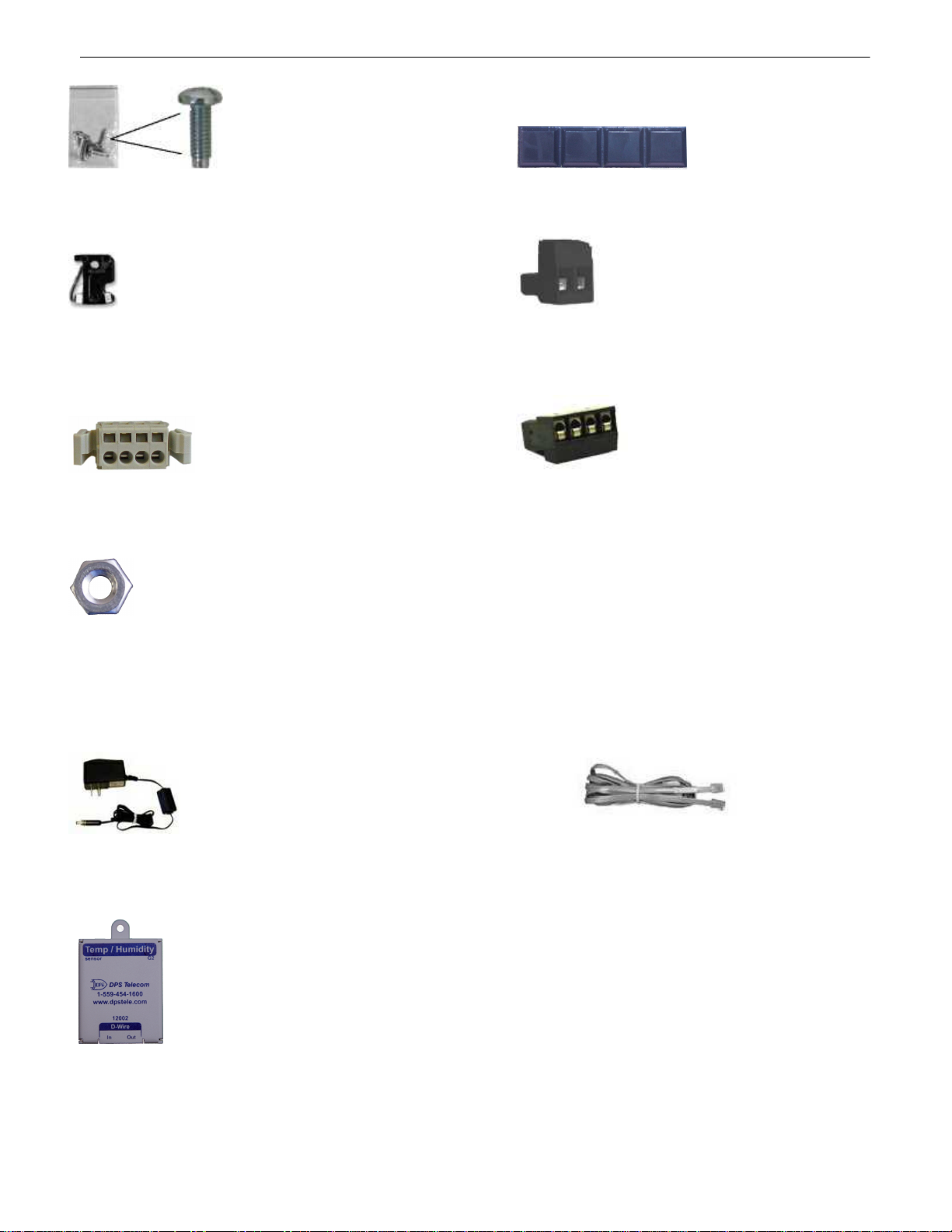

Optional Shipping Items - Available by Request3.1
+24V Wall Transformer Telephone Cable 6ft
D-PR-105-10A-02 D-PR-045-10A-01
(110VAC to +24VDC converter) (For Optional ModemBuild Only)
DPS D-Wire Sensors
D-PK-DSNSR-12XXX
(Multiple sensor options available)

5
Installation
4
Tools Needed4.1
To install the NetGuardian 480, you'll need the following tools:
Phillips No. 2 Screwdriver Small Standard No. 2 Screwdriver
PC with terminal emulator,
such as HyperTerminal
Mounting4.2
The NetGuardian 480 can be flush or rear-mounted
The NetGuardian 480 mounts in a 19" rack or a 23" rack using the provided rack ears for each size. Two rack ear
locations are provided. Attach the appropriate rack ears in the flush-mount or rear-mount locations shown in
Figure 6.2.1.
Note: Rack ears can be rotated 90° for wall mounting or 180º for other mounting options (not shown).

6
NetGuardian Front Panel
5

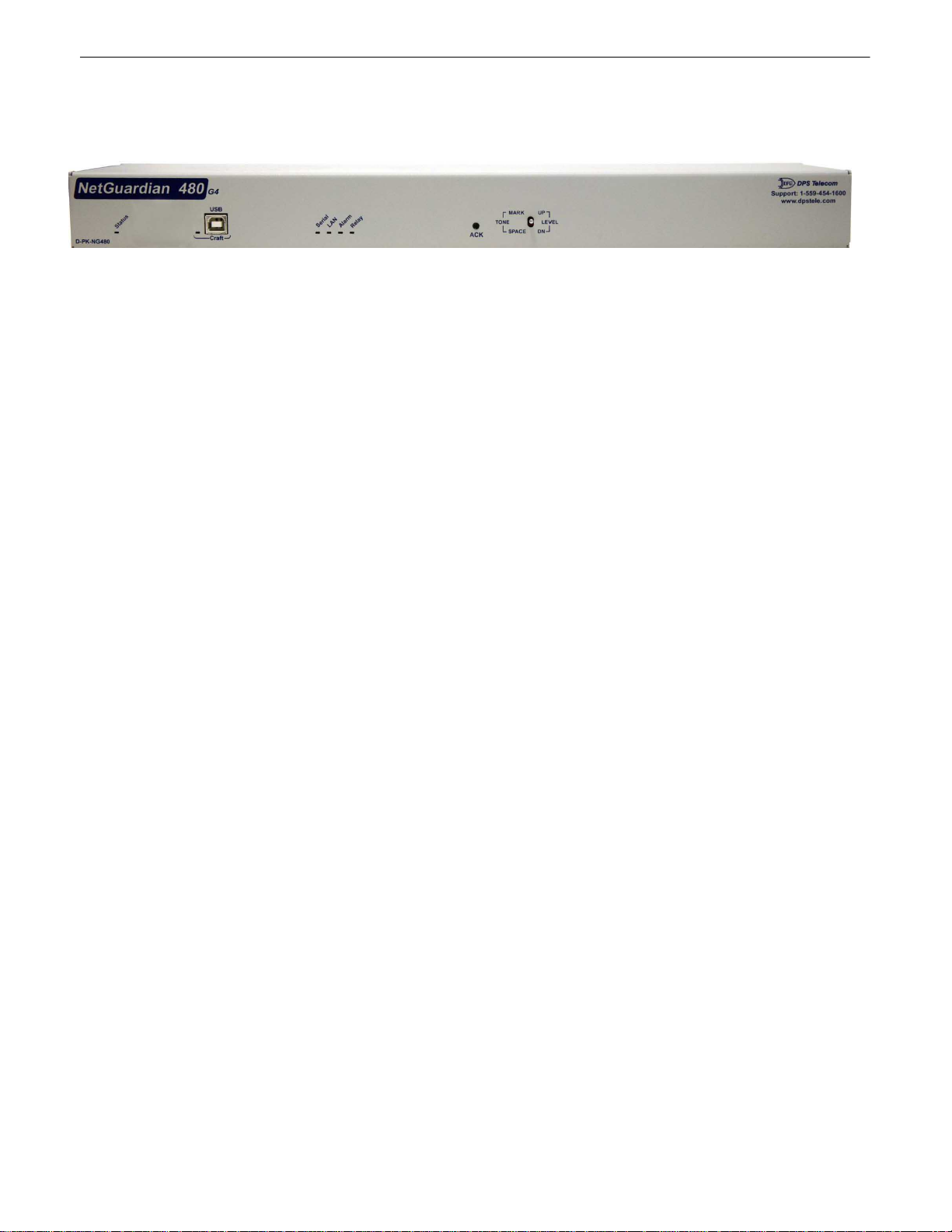

NetGuardian 432 G3
NetGuardian 432 G4
NetGuardian 480 G3
NetGuardian 480 G4

7
NetGuardian Back Panel
6
NetGuardian 432 G3 back panel connections
NetGuardian 432 G4 back panel connections
NetGuardian 480 G3 back panel connections
NetGuardian 480 G4 back panel connections

8
Power Connection6.1
The NetGuardian uses single or dual (Optional) power inputs, powered through two barrier plug power connectors.
NetGuardian Power Terminals and Fuses
To connect the NetGuardian to a power supply, follow these steps:
1. Always use safe power practices when making power connections. Be sure to remove fuses from
the fuse distribution panel, as well as the back of the NetGuardian, before making your power
connections.
2. Use the grounding lug to connect the unit to earth ground. The grounding lug is next to the symbol
. Insert the eyelet of the earth ground cable between the two bolts on the grounding lug (Ground cable
not included).
3. Insert a battery ground into the power connector plug's right terminal and tighten the screw; then
insert a battery line to the plug's left terminal and tighten its screw.
4. Insert a fuse into the fuse distribution panel and measure voltage. The voltmeter should read between
–40 and –70VDC (for -48VDC build option), +18 and +36VDC (+24VDC build option) or -18 and -
36VDC (-24VDC build option).
5. The power plug can be inserted into the power connector only one way to ensure the correct polarity.
Note that the negative voltage terminal is on the left and the GND terminal is on the right.
6. Insert fuse into the Power Afuse slot. The power LED should be lit green. If the LED is red, the power
connection is reversed. To confirm that power is correctly connected, the front panel LEDs will flash
RED and GREEN, indicating that the firmware is booting up.
7. Repeat steps 1 -6 for Power B connector.

9
LAN Connection6.2
To connect the NetGuardian to the LAN, insert a standard RJ45 Ethernet cable into the 10/100BaseT
Ethernet port on the back of the unit. If the LANconnection is OK, the LNK LED will light SOLID
GREEN.Serial Connection6.3

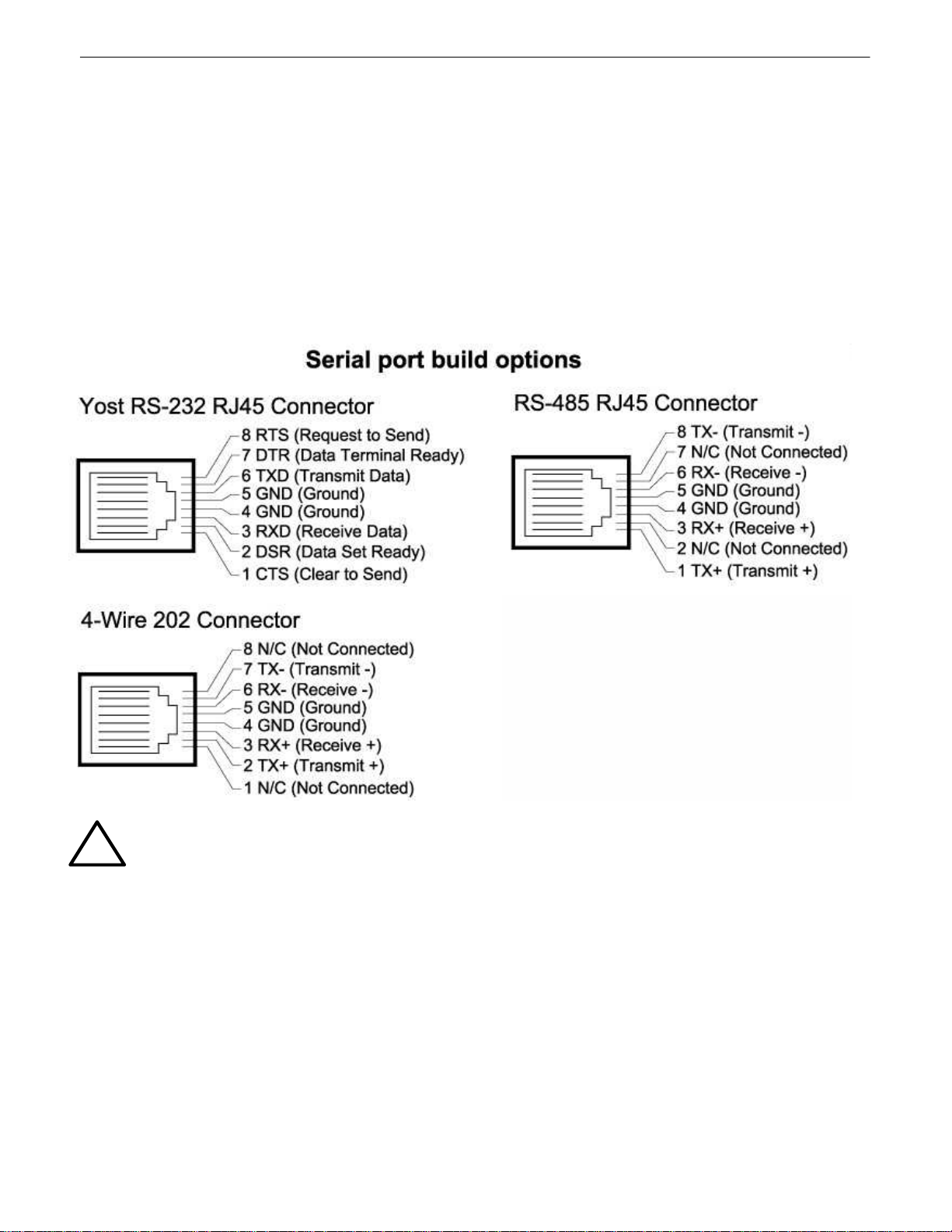

The NetGuardian has 4 build options for it's serial / dialup port. You can order your port as a Yost RS-
232, RS-485, 4-wire 202 RJ45/4-pin connection, or with a dial-up modem. The serial port is located
on the back panel.
!
Hot Tip!
If you are unsure of the serial port type on your NetGuardian, login to MyDPS and
click on the Product Information Search link. Type in the full part number of your unit
and click the Submit button to access the specifications.
The serial port can be used for different functions:
·Reach-through proxy connection for LAN-based Telnet access to switches, radios, PBXs and
other equipment.
·Alarm reporting to the T/Mon Remote Alarm Monitoring System over an RS-232, 485, 202, or
dial-up modem.
Note: If the serial port is configured for alarm reporting to T/Mon, the port is not available for use as a
reach-through proxy port.

10
Alarm and Control Relay Connectors6.4
6.4.1 NetGuardian 432 G3 Pinouts

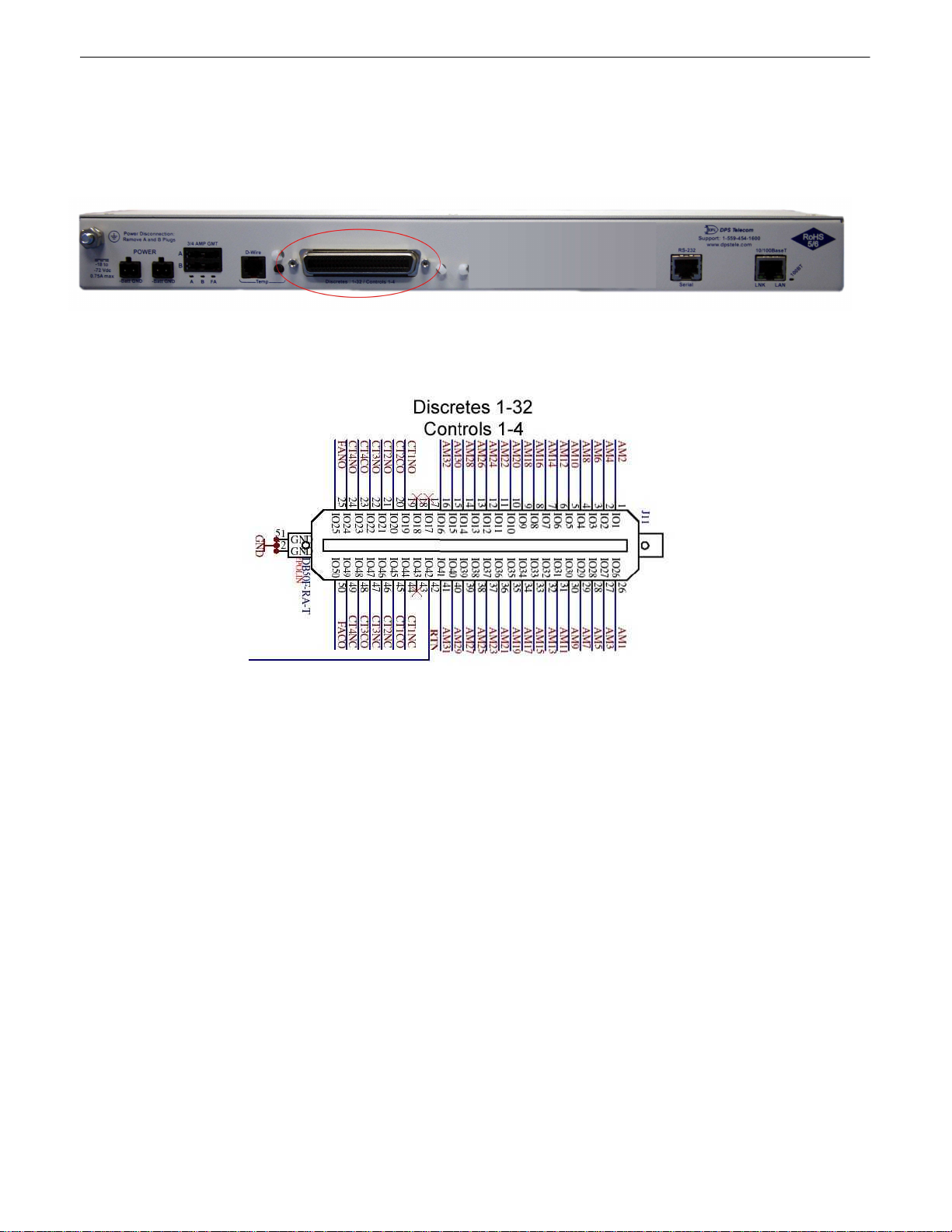

NetGuardian 432 G3 Alarm and Relay Connectors
The connectors for discrete alarms and control relays is the 50-pin connector on the NetGuardian 's
back panel.
NetGuardian 432 G3 Amphenol pinout.

11
6.4.2 NetGuardian 432 G4 Pinouts
NetGuardian 432 G4 Alarm and Relay Connectors
NetGuardian 432 G4 Amphenol pinouts.

12
6.4.3 NetGuardian 480 G3 Pinouts
NetGuardian 480 G3 Alarm and Relay Connectors
The connectors for discrete alarms and control relays are the two 50-pin connectors on the
NetGuardian 's back panel.
NetGuardian 480 G3 Amphenol pinout.

13
6.4.4 NetGuardian 480 G4 Pinouts
NetGuardian 480 G4 Alarm and Relay Connectors
NetGuardian 480 G4 Amphenol pinouts.
Discrete Alarms6.5
To generate an alarm, tie the ALMpin to the RTNpin.

14
Optional 66 Block Connector6.6
Both of the 50-pin connectors on the back panel of the NetGuardian can be connected to DPS
Telecom's optional 66 block connector. For pinout and color-code information, see the diagrams below.
Note: The 66 Block supports termination of 22 - 26 AWG (0.81 - 0.41mm) solid insulated cable or 18-19
AWG (1.02 - 0.91mm) solid stripped cable. DPS recommends using 24 AWG wire (solid).
NetGuardian 480 G3
66 block connections for discretes 49-80 and control relays
1-4 (left amphenol)
66 block connections for discretes 1-48 (right amphenol)

15
D-Wire Sensor Input (analogs)6.7
The port on your NetGuardian labeled "D-Wire" supports up the connection of up to 16 chained D-Wire
analog sensors. The NetGuardian powers and communicates with your D-Wire sensors via straight-
through RJ-11 cables.
Connecting D-Wire Sensors
Using a 6P4C, straight-through RJ-11 cable, connect the D-Wire sensor port on the NetGuardian to
the In jack on a D-Wire sensor. Chain additional sensors to the NetGuardian (using the same straight-
through cables) from the Out jack on the previous sensor to the In jack on the next (i.e. Out on sensor 4
to In on sensor 5).
Pinout for D-Wire RJ-11 jacks
Note: Some sensors may consume 2 of your NetGuardian's 16 analog channels (the combined temp/
humidity sensor, D-PK-DSNSR-12002, for example). Your NetGuardian can provide power to a sensor
chain up to 800 feet long.
The Integrated temperature build option uses one of the maximum 16 sensors that are supported.
The D-Wire line of sensors includes temp/humidity, additional analogs, discretes, and more. Contact
DPS at 1-800-693-0351 for information about available D-Wire sensors.
For details about configuring your sensors though the web interface, see the Sensors section of this
manual.
6.7.1 Analog Step Sizes
Analog Step Sizes:
Your Analogs are accurate to within +/- 1% of the analog range.
Analog Step Sizes and Accuracy
Input Voltage Range
Resolution (Step Size)
Accuracy
0-5 V
.0015 V
+/- .05V
5-14 V
.0038 V
+/- .14V
14-30 V
.0081 V
+/- .30V
30-70 V
.0182 V
+/-.70V
70-90 V
.0231 V
+/-.90V
Analog step sizes and accuracy

16
Quick Start: How to Connect to the NetGuardian
7
Most NetGuardian users find it easiest to give the unit an IP address, subnet and gateway through the
front USB craft port (TTYinterface) to start. Once these settings are saved and you reboot the unit, you
can access it over LAN to do the rest of your databasing via the Web Browser interface.
Alternative option: You can skip the TTY interface by using a LAN crossover cable directly from your
PC to the NetGuardian and access its Web Browser. See the "...via LAN" section of this chapter.
...via Craft Port (using TTY Interface)7.1
1. The simplest way to connect to the NetGuardian is over a physical cable connection between your
PC's USB port and the unit's USB craft port. Note: You must be connected via craft port or Telnet
to use the TTYinterface. Make sure you are using a standard A-B USB cable (this same cable is
commonly used for USB printers) to make a USB craft port connection. We'll be using
HyperTerminal to connect to the unit in the following example - however, most terminal-emulating
programs are also compatible.
