DREAM MULTIMEDIA Dreambox DM7020S User manual

User's Manual DM7020S
Digital satellite receiver for free and encrypted DVB-TV Program,
optional digital hard disk recording.
Communication-Port
PCMCIA-Slot for CI-Modules
Internal hard disk support
Compact Flash Slot
LC-Display
2 Smartcard Readers
Linux OS

-2-
1. Contents
1. Contents ................................................................................................
................................
-2 -
2. Views ................................................................................................
................................
-4 -
3. Description Front View ................................................................................................
..........................
-5 -
3.1. CI-Slot ................................................................................................
................................
-5 -
3.2. Compact Flash Slot ................................................................................................
..............................
-5 -
3.3. Smartcard Reader ................................................................................................
................................
-5 -
3.4. Remote Receiver ................................................................................................
................................
-5 -
3.5. Channel Up/Down ................................................................................................
................................
-5 -
3.6. LC-Display ................................................................................................
................................
-5 -
3.7. Power-Button ................................................................................................
................................
-5 -
4. Description Rear View ................................................................................................
..........................
-6 -
4.1. Mainpower 230V / 50Hz ................................................................................................
........................
-6 -
4.2. TV Scart ................................................................................................
................................
-6 -
4.3. VCR Scart ................................................................................................
................................
-6 -
4.4. Hifi-Amplifier ................................................................................................
................................
-6 -
4.5. Analogue Audio (Cinch) ................................................................................................
........................
-6 -
4.6. Digital Audio ................................................................................................
................................
-6 -
4.7. Communication Port (Ethernet 10/100MBit, RJ45) ................................
................................
-6 -
4.8. Mini DIN Socket ................................................................................................
................................
-6 -
4.9. USB Socket ................................................................................................
................................
-6 -
4.10. Serial Socket (RS232C, Sub-D, 9-pin) ................................................................
................................
-6 -
4.11. LNB In . ................................................................................................
................................
-6 -
4.12. LNB Out ................................................................................................
................................
-6 -
4.13. Main Switch ................................................................................................
................................
-7 -
4.14. Video Out (FBAS) ................................................................................................
................................
-7 -
4.15. Modem ................................................................................................
................................
-7 -
4.16. 0 / 12V Out ................................................................................................
................................
-7 -
4.17. UHF Modulator ................................................................................................
................................
-7 -
5. Safety Instructions ................................................................................................
................................
-8 -
6. Delivering ................................................................................................
................................
-9 -
7. Installation ................................................................................................
................................
-9 -
8. Remote Control Overview ................................................................
................................
-10 -
9. Important Notes about Condition ................................................................
................................
-11 -
10. Remote Control Description ................................................................
................................
-12 -
11. Dreambox switching on/off ................................................................
................................
-14 -
12. Sleeptimer ................................................................................................
................................
-14 -

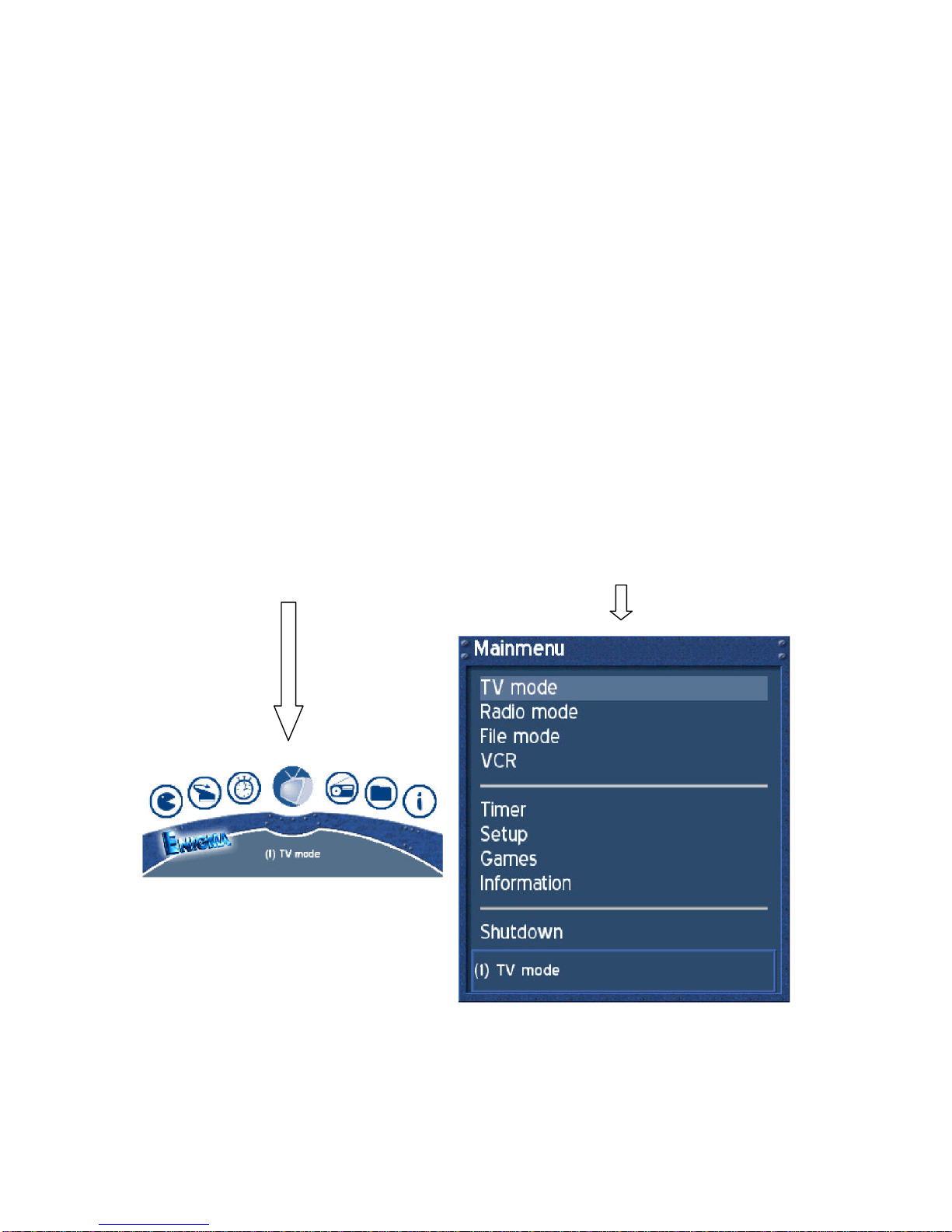

13. OSD-Main menu ................................................................................................
................................
-15 -

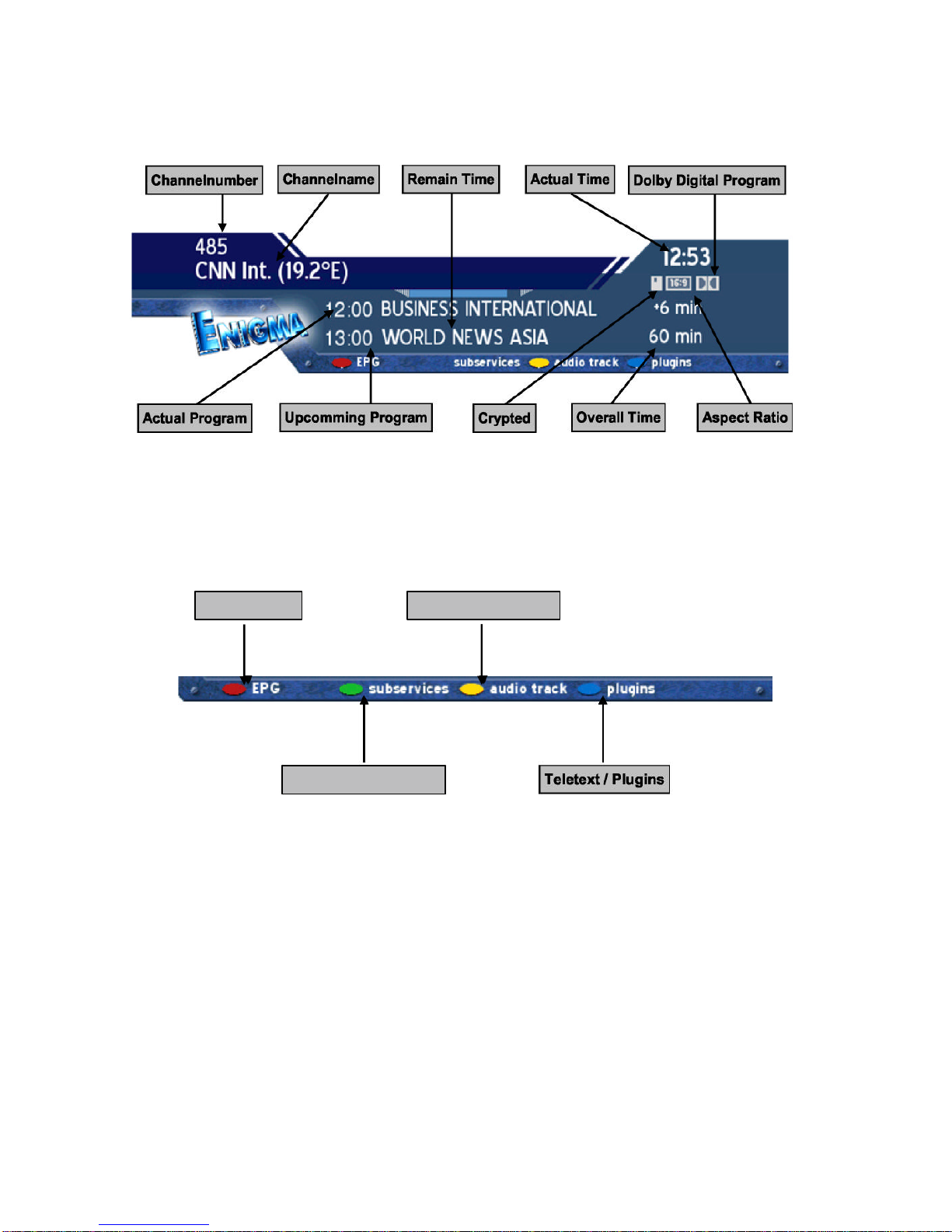

14. Infobar ................................................................................................
................................
-16 -

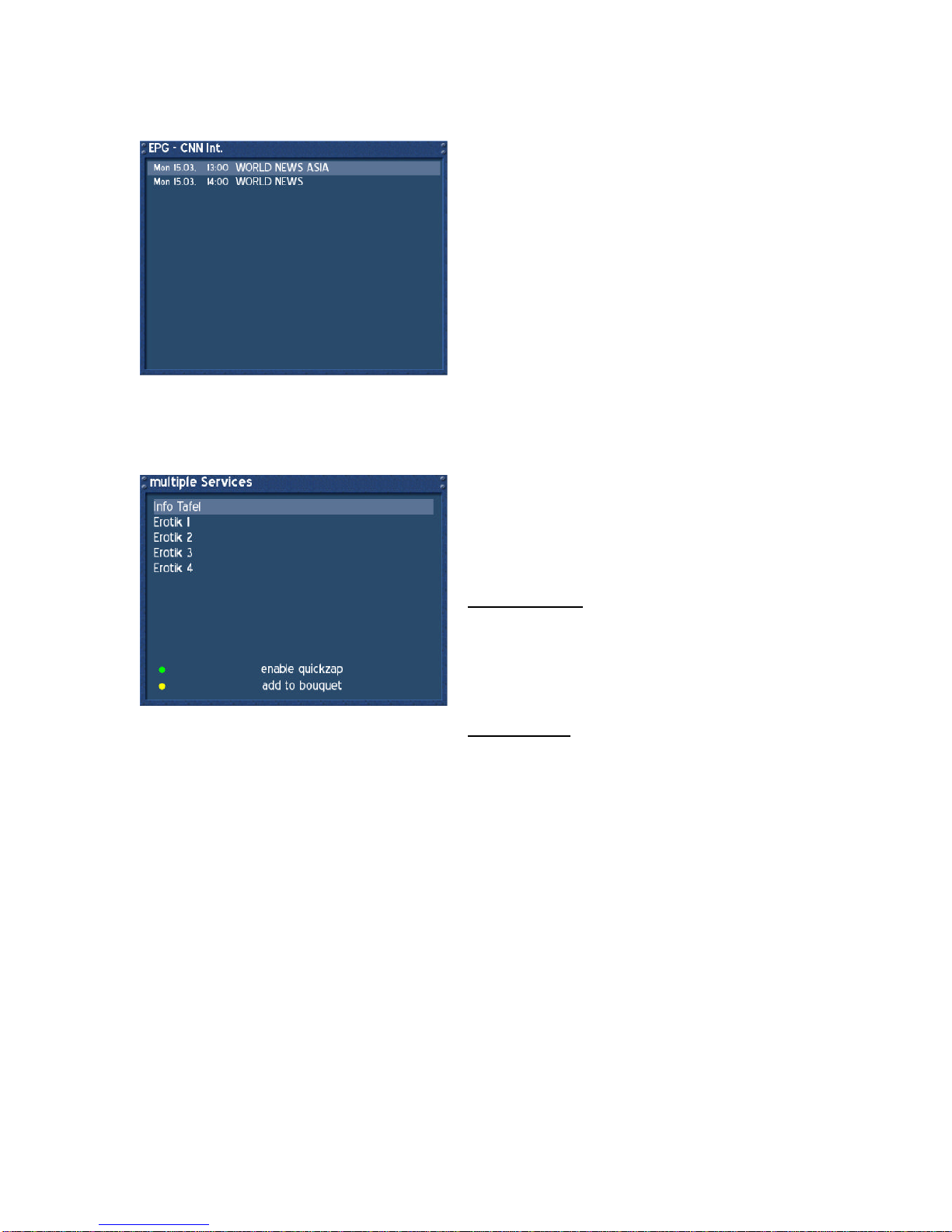

14.1. Infobar -EPG (Electronic Program Guide) ................................................................
............................
-17 -
14.2. Infobar -Subservices ................................................................................................
............................
-17 -
14.3.Infobar -Audio Track ................................................................................................
............................
-18 -
14.4. Infobar -Plugins ................................................................................................
................................
-18 -

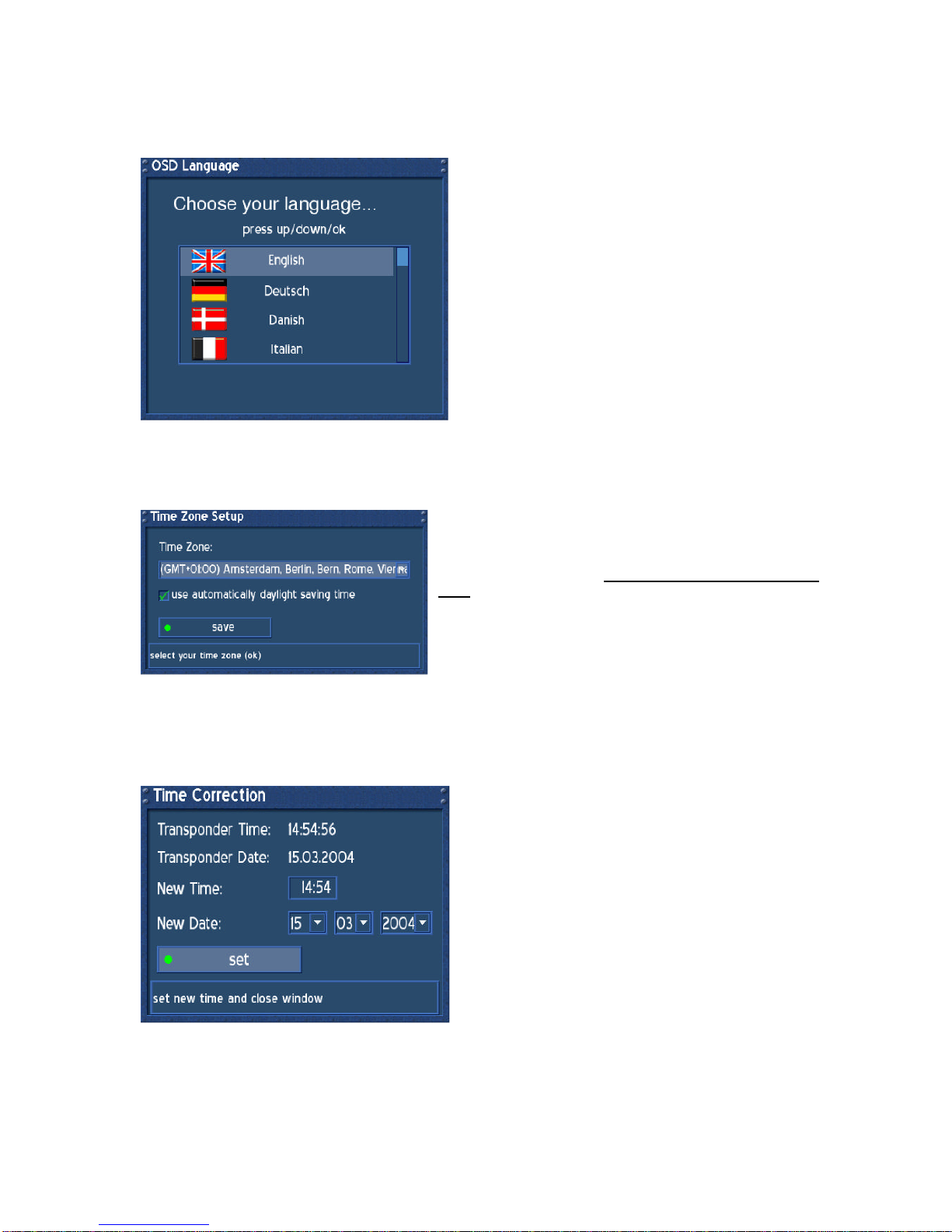

15. Setup -OSD Language ................................................................................................
.........................
-19 -
16. Setup -Time Zone ................................................................................................
................................
-19 -
17. Setup -Time Correction ................................................................................................
........................
-19 -
18. Satellite Configuration ................................................................................................
...........................
-20 -
19. Satfind ................................................................................................
................................
-20 -
20. Motor Setup ................................................................................................
................................
-21 -
21. Automatic Transponder Scan ................................................................
................................
-22 -
22. Automatic Multisat Scan ................................................................................................
........................
-23 -
23. Manual Transponder Scan ................................................................
................................
-23 -
24. Transponder Edit ................................................................................................
................................
-24 -
25. Service Organizing -Create new Bouquet ................................................................
.............................
-25 -
26. Service Organizing -Add services to Bouquet ................................................................
.......................
-26 -
27. Service Organizing -Edit Bouquets ................................................................
................................
-27 -
28. Common Interface ................................................................................................
................................
-27 -
29. Parental Lock ................................................................................................
................................
-28 -
29.1. Parental Lock enable / disable ................................................................
................................
-28 -
29.2. Setup Lock enable / disable ................................................................
................................
-28 -

-3-
30. Services locking / unlocking ................................................................
................................
-29 -
31. A/V Settings ................................................................................................
................................
-30 -
32. UHF-Modulator................................................................................................
................................
-31 -
32. OSD Settings ................................................................................................
................................
-32 -
32.1. Skin Setup ................................................................................................
................................
-32 -
32.2. Available Skins ................................................................................................
................................
-33 -
32.3. TuxText position ................................................................................................
................................
-34 -
33. Teletext -Software Decoder (TuxText) activating ................................
................................
-34 -
34. LCD Settings ................................................................................................
................................
-36 -
35. Expert Setup ................................................................................................
................................
-36 -
35.1. Communication (Network, LAN Setup) ................................................................
................................
-37 -
35.2. Communication (Network, WAN (DSL) Setup) ................................
................................
-38 -
35.3. NGrab Streaming Setup ................................................................................................
..........................
-38 -
35.4. Software Update via Internet ................................................................
................................
-39 -
35.5. Software Update manual ................................................................
................................
-39 -
35.6. Remote Control ................................................................................................
................................
-39 -
36. Hard Disk -Assembly Instructions ................................................................
................................
-40 -
37. Hard Disk Setup ................................................................................................
................................
-47 -
38. Recording a movie (spontaneous recording) ................................................................
...........................
-47 -
38.1. Viewing/deleting/renaming recorded movies ................................................................
...........................
-48 -
39. Recording a movie (Timer recording) ................................................................
................................
-49 -
40. Timeshift................................................................................................
................................
-50 -
41. Timer ................................................................................................
................................
-50 -
42. Information -Streaminfo / About ................................................................
................................
-51 -
43. DreamUp -Software upgrade ................................................................
................................
-52 -
43.1. DreamUp -Preparing DreamUp ................................................................
................................
-53 -
43.2. DreamUp -Establish a Connection ................................................................
................................
-54 -
43.3. DreamUp -Backup Software ................................................................
................................
-56 -
43.4. DreamUp -Erasing Software ................................................................
................................
-58 -
43.5. DreamUp -Flashing Software ................................................................
................................
-60 -
43.6. Dreambox resetting to factory defaults (flash erase) ................................
................................
-63 -
44. Dreambox Hardware reset ................................................................
................................
-63 -
45. Technical Data ................................................................................................
................................
-64 -
46. Contact & Support Information ................................................................
................................
-66 -
47. Setup-TV-Mode ................................................................................................
................................
-67 -
47.1. Program sequence ................................................................................................
................................
-67 -
Notice: The Dreambox DM7020S is CE certified and fulfills all requirements of the
EU-Standards. Issued: December 2004 / Rev 1.0
Software: 1.0X
Alterations are subject to change without notice. E. & O. E.

-4-

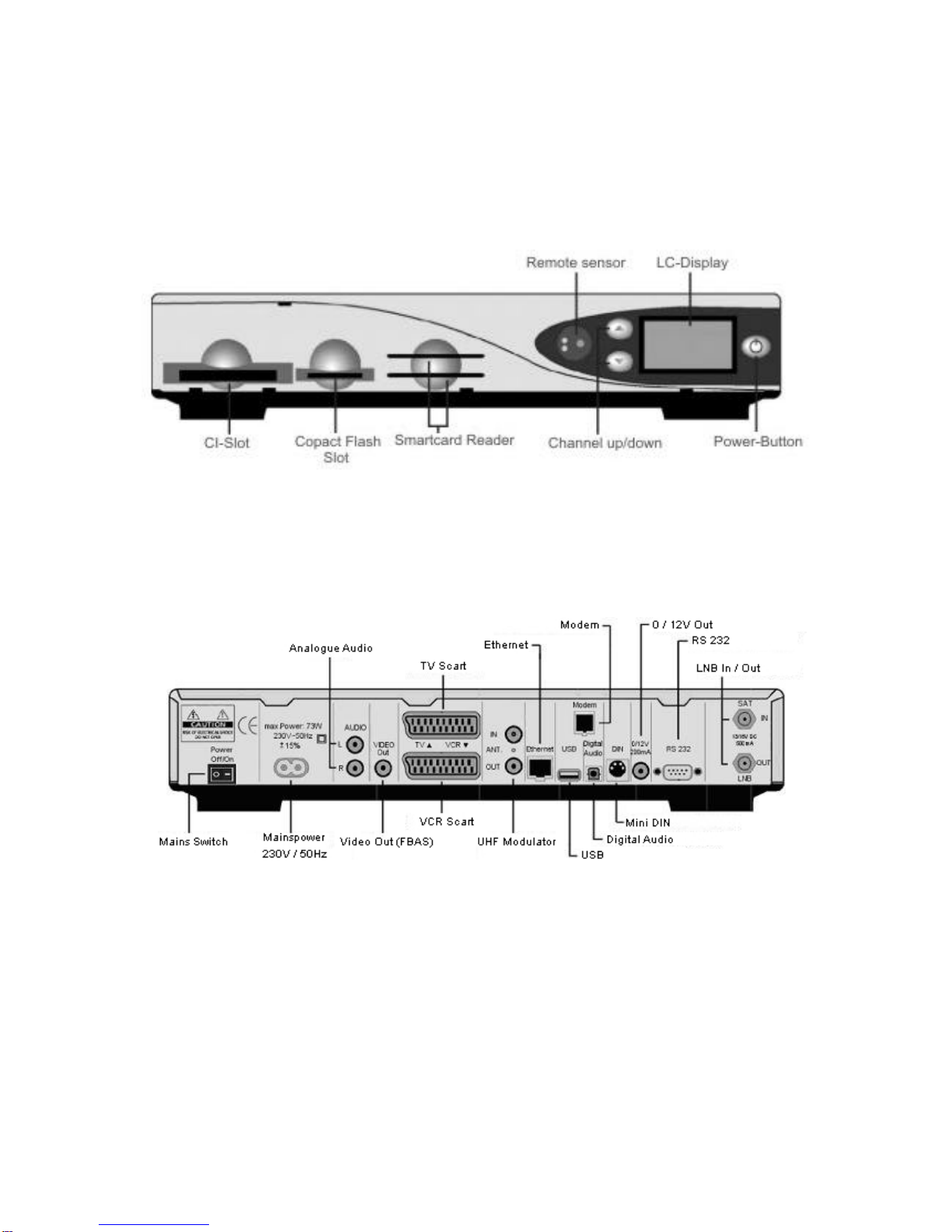

2. Views
Front view:
Rear view:

-5-
3. Description Frontview
3.1. CI-Slot
Plug in here any CI-Module of your choice.
3.2. Compact Flash Slot
The Compact Flash Slot is meant to hold a Compact Flash Module. If you want to use a CF-Module,
shut down your Dreambox by using the Deep-Standby-Mode. Plug in carefully your CF-Module into the
Compact Flash Slot. The CF-Module is recognized by the System as a hard disk. To access the
Compact Flash Module, choose the File-Mode in the OSD-Main menu. Sometimes it is necessary to
format your CF-Module via the OSD-Menu.
See passage Hard Disk Setup.
3.3. Smartcard Reader
Insert your Dreamcrypt Smartcard with the golden chip down and forward into one of the Smartcard
Reader.
Dreamcrypt is a trademark of Dream-Multimedia-TV GmbH.
3.4. Remote sensor
The Remote sensor receives the infrared signals from the Dream Remote Control.
3.5. Channel up/down
The channel buttons at the Front of your Dreambox switch the TV or Radio channels up and down. To
initialize the "Flash Erase"hold down the channel up button. Please refer to Dreambox factory settings
(flash erase).
3.6. LC-Display
The LC-Display shows all major Information for the selected service.
3.7. Power-Button
The Power-Button switches your Dreambox off and on.

-6-
4. Description Rear view
4.1. Main power 230V / 50Hz
Plug in the power cable into the main power socket. The power plug remains only in its designated
socket 230V / 50Hz.
4.2. TV Scart
Connect your TV with an appropriate Scartcable to your Dreambox.
4.3. VCR Scart
Connect your VCR with an appropriate Scartcable to your Dreambox. Remember, the VCR Scart is not
designed to record a Video signal from the VCR.
4.4. HiFi-Amplifier
Connect your HiFi-Amplifier either to the analogue audio R/L (RCA/Cinch) or digital audio (Toslink)
socket.
4.5. Analogue Audio (Cinch)
Connect your Dreambox with an appropriate RCA/Cinch cable to your HiFi-Amplifier (e.g. AUX or Tape
socket).
4.6. Digital Audio (Toslink)
Connect your Dreambox with an appropriate optical (Toslink) cable to your HiFi-Amplifier or DSP. The
Dreambox provides sample rates from 16, 22.05, 24, 32, 44.1, 48 kHz. The AC3 signal is also available
at this socket, if the selected channel transmits Dolby Digital signals.
4.7. Communication Port (Ethernet 10/100MBit, RJ45)
The Communication Port is an Ethernet socket. Used to communicate with the Dreambox via HTTP,
FTP, NFS, Telnet und Samba to access your recorded movies or to upload channel lists. This socket is
also mentioned to update the Operation system. Please connect an appropriate patch cable. See
passage DreamUp -Software upgrade.
4.8. Mini DIN
The Mini DIN Port is meant for external I2C rotor signals and provides signals for external IR Devices.
4.9. USB Port
The USB Port is designed for USB 1.2 compatible devices. The amount of provided USB devices
depends on the installed image (Software) and is still under development.
4.10. Serial Port (RS232C, Sub-D, 9-pin)
The Serial Port is meant to update the operation system. Please connect a serial nullmodem cable
here. See passage DreamUp -Software upgrade.
4.11. LNB In
Connect the coaxial cable from your LNB here. Please disconnect the Dreambox first.
4.12. LNB Out
Connect an analogue receiver here. Remember to shutdown your Dreambox into Deep-Standby-
Mode, if you wish to view analogue TV.

-7-
4.13. Mains Switch
With the main switch you off your Dreambox completely.
4.14. Video Out (FBAS)
You can optionally connect a TV to this connector. (Composite)
4.15. Modem
Via the Modem Socket you can optionally connect to your ISP via a phone line.
4.16. 0 / 12V Out
A 0 / 12V Relais to switch between Satellites can be connected here.
4.17. UHF Modulator
Optionally connect your Dreambox to your TV via a coaxial cable.

-8-
5. Safety instructions
Please read the safety instructions completely and carefully, before using the Dreambox. The
Manufacturer takes no responsibility for incorrect handling of the Dreambox.
-Allow enough space around the Dreambox for sufficient ventilation.
-Do not cover the Dreambox’s ventilation openings with items such as newspapers, tablecloths,
curtains etc.
-Do not expose the Dreambox to dripping or splashing liquids.
-Do not place open flame sources, such as lighted candles, on the Dreambox.
-Do not place any containers with liquid, such as vases, on the Dreambox.
-Do not connect or modify cables while the Dreambox is connected to the power.
-Do not remove the cover. Risk of electric shock!
-Do not put any metal things into the slots or ventilation openings.
-The installation of a hard disk is only allowed by skilled personal or your local dealer.
-Please note that the only way to isolate the Dreambox completely from the main power supply is to
unplug the mains power cable!
-If you do not use your Dreambox for a longer time, please disconnect it from the main power.
-Please disconnect your Dreambox from the main power during thunder or heavy storms.
-Connecting to the dish (LNB):
Disconnect the main power cable before connecting or disconnecting the coaxial cable.
-Connecting to the TV or VCR:
Disconnect the main power cord before connecting or disconnecting the scart cable.
-Disconnect the mains power cable if the power cord is damaged.
-Disconnect the mains power cord if the Dreambox gets in contact with moisture or moisture has
penetrated inside.
-Disconnect the main power cord if you spot any damage to the housing.
-Earthing:
The dish must be earthened.
The earthing system must match SABS 061.
-Cleaning:
Disconnect the mains power cord before cleaning the cover. Use a slightly damp cloth without
cleaning agents.
-Connect the Dreambox only to suitable sockets 230V/50Hz. Do not allow overloads to occur.
WARNING!
Modifications and changes to the Dreambox leads to loss of warranty.
We recommend the installation of a hard disk by your local dealer.
Unskilled installation of a hard disk leads to loss of warranty.

-9-
6. Scope Of Supply
The box of your DM7020S shall contain the following items:
1 receiver Dreambox 7020S
1 power cord
1 remote control
1 userís manual (latest release @ http://www.dream-multimedia-tv.de )
2 batteries (1,5V Mignon / AA / LR6)
2 hard disk mounting racks (are premounted)
1 IDE cable
1 molex power cord for the hard disk
optional parts:
1 wireless keyboard
7. Installation
-Insert 2 AA (1,5V) batteries, taking care to observe the + and -markings indicated inside, into the
Remote Control.
-Before using the Dreambox, please read the safety instructions.
-Connect the LNB with an appropriate coaxial cable to LNB In at your Dreambox.
-Connect the Dreambox with an appropriate scart cable to your television screen.
-Plug in the mains power cord into the mains power socket 230V/50Hz.
-If you are using a switchable power socket please shutdown your Dreambox into deep standby before
switching off the power socket.
-If you switch on your Dreambox for the first time, you will see the setup wizard.
The setup wizard will guide you through the first time installation. You will be asked for your TV norm,
the regional settings and your language. Please choose and follow the instructions on the screen.
-Please note that the video format meets the factory setting CVBS (FBAS).
See passage A/V Settings.

-10 -
8. Remote Control Overview
