SafetyInstructions
Warning
To prevent accidents including electric shock or 󽗉re caused by improper use, please
read this manual carefully before use and retain it for future reference.
• This product can be used by children aged from 8 years and above and persons
with physical, sensory, intellectual deficiencies, or limited experience or knowledge
under the supervision of a parent or guardian to ensure safe operation and to
avoid any risk of hazards. Cleaning and maintenance shall not be made by children
without supervision.
• The vacuum is not a toy. Children shall not play with or operate this product. Please
exercise caution when using the vacuum near children. Do not allow children to
clean or maintain the vacuum unless supervised by a parent or guardian.
• Do not use the vacuum outdoors or on wet surfaces. Only use the vacuum on dry
indoor surfaces. Do not touch the plug or any part of the vacuum with wet hands.
• To reduce the risk of fire, explosion, or injury, check to make sure the lithium
battery and charging adapter are undamaged before use. Do not use the vacuum if
either the lithium battery or charger is damaged.
• The multi-brush bar, battery, metal connector pin, and vacuum are electrically
conductive and should not be immersed in water or other liquid. Make sure to dry
all filters after cleaning.
• Prevent injury caused by moving parts. Turn off the vacuum before cleaning the
multi-brush bar. The multi-brush bar, dust compartment and filter must all be
properly installed before using the vacuum.
• Only use the original charging adapter. Never use an unoriginal adapter, as this may
cause the lithium battery to catch fire.
• Do not use the vacuum to pick up flammable or combustible liquids, such as
gasoline, or bleach, ammonia, drain cleaners or other liquids.
• Do not use the vacuum to pick up sharp or hard objects, such as glass, nails, screws,
or coins, which may damage the machine.Do not use the vacuum to pick up drywall
particles, ashes like fireplace ash, or smoking or burning materials such as coal,
cigarette butts or matches.
• Check the area to be cleaned before use. To prevent the openings from being
blocked, clear the larger paper, spitball, plastic cloth or sharp objects (such as
glass, nails, screws, coins, etc.) and any object which is larger than openings.
• Keep hair, loose clothing, fingers and other parts of the body away from the
vacuum's openings and moving parts. Do not point the hose, wand or tools at your
eyes or ears or put them in your mouth.
• Do not put any object into the vacuum's openings. Do not use the vacuum
with any opening blocked. Keep free of dust, lint, hair, or other items which may
reduce airflow.
• Do not rest the vacuum against a chair, table, or other unstable surface, as this may
cause damage to the machine or personal injury. If the vacuum becomes damaged

2
EN from being knocked over or is otherwise malfunctioning, please contact our
authorized service department. Never attempt to disassemble the device on your
own.
• All instructions in the manual for recharging the battery must be strictly followed.
Failure to properly charge the battery within the specified temperature range could
damage the battery.
• Please be extra careful when using the vacuum to clean stairs.
• Make sure the vacuum is unplugged when not used for extended periods as well as
prior to performing any maintenance or repairs.
• Do not install, charge, or use this product outdoors, in bathrooms, or around a pool.
• Fire Hazard Warning: Do not apply any type of fragrance to the vacuum's filter.
These types of products are known to contain flammable chemicals which may
cause the vacuum to catch fire.
• Only use the original charger (Model YLS0251B-E300080 (EU) / YLS0241A-A300080
(AU)). Failing to do so may cause the lithium-ion battery to catch fire.
• Only use the approved battery type (Model P2010-7S1P-BW/P2010-7S1P-BWA/
P2010-7S1P-BWB). Failing to do so may cause the lithium-ion battery to catch fire.
• Do not use and store in extremely hot or cold environments (below 0℃ /32°F or
above 40℃ /104°F). Please charge the cordless vacuum in temperature above 0℃
/32°F and below 40℃ /104°F.
• This product is designed for home use only.
We, Dreame Trading (Tianjin) Co., Ltd., hereby, declares that this equipment is in
compliance with the applicable Directives and European Norms, and amendments.
The full text of the EU declaration of conformity is available at the following internet
address: www.dreame-technology.com
For detailed e-manual, please go to https://www.dreame-technology.com/pages/
user-manuals-and-faqs

3
EN
ProductOverview
ComponentNames
Charging Port
Suction Level Switch
Antistatic Contact
Lock Indicator
Electronic Lock
When the vacuum is running,
press brie󽗊y to switch to
discontinuous/continuous
cleaning mode
Dust Cup
Dust Cup Bottom Cover
Release Button
Battery Release Button
LED Battery Status Indicator
Extension Rod
Release Button
Brush Bar Head Release
Button
Extension Rod
Multi-Brush Bar
On/O󽗈 Switch
• Press to turn on
• Release to turn o󽗈
Turbo
Med
Eco

4
EN ProductOverview

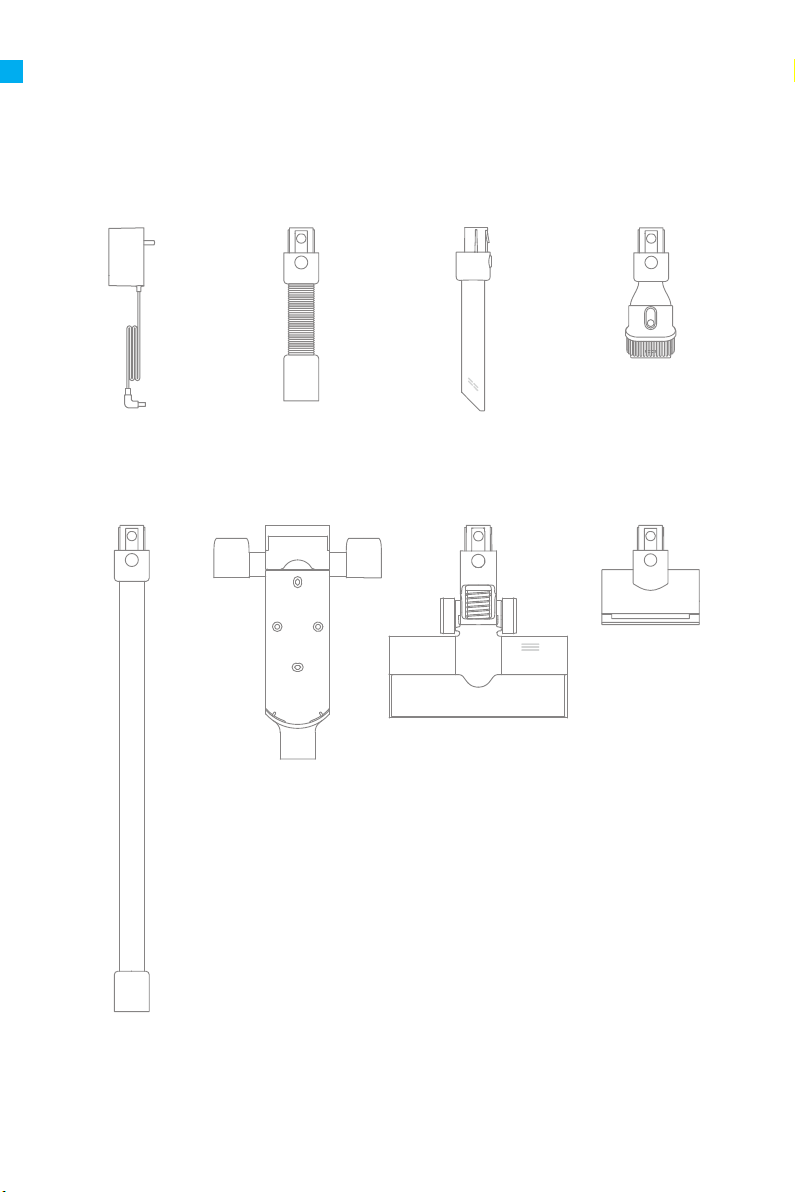

Accessories
Extension Rod
Charger Crevice NozzleExtension Hose 2-in-1 Brush Nozzle
Multi-Brush Bar Mini Electric Brush2-in-1 Charging &
Storage Mount
(Including screws ×2,
wall plugs ×2, and mounting
template sticker )
Note: The images in this manual are for illustrative purposes only. The actual product
may di󽗈er.

5
EN
Installation
VacuumInstallation
Diagram
Click
Click

6
EN
Click Click
Click
AccessoriesInstallation
Diagram
Installation

7
EN
2-in-1Charging&StorageMountInstallationDiagram
1. The 2-in-1 charging & storage mount should be installed in a cool, dry place with an
electrical outlet nearby. Prior to installing, ensure that there are no electrical wires or
pipes in the space directly behind where the mount will be installed.
2. The bottom of the mounting template sticker should be level and at least 103cm from the
ground. The top should have at least 30cm* of clearance above it. (*30cm: Leave enough
space just in case you may need to purchase the replaceable battery in the future.)
3. Use a power drill with an 8 mm drill bit to drill a hole into each marker on the mounting
template sticker, then insert a wall plug into each hole.
4. Align the holes on the mount with the holes on the wall. Fasten it to the wall with the
included screws.
The 2-in-1 charging & storage mount is an optional accessory. You can install it based on
your needs.
103 cm
30 cm
Installation

8
EN Charging
Note: A full charge will take approx. 3.5 hours. Using Turbo mode for a prolonged period
will cause the battery to heat up, which increases charging time. Allow the vacuum to cool
down for 30 minutes before charging it.
LEDBatteryStatusIndicator
Note: Once the vacuum is fully charged, the indicator will turn o󽗈 after 5 minutes, and the
vacuum will enter the energy-saving mode.
1
2
Off Blinking On
Low battery
Half battery
Nearly full
Fully charged

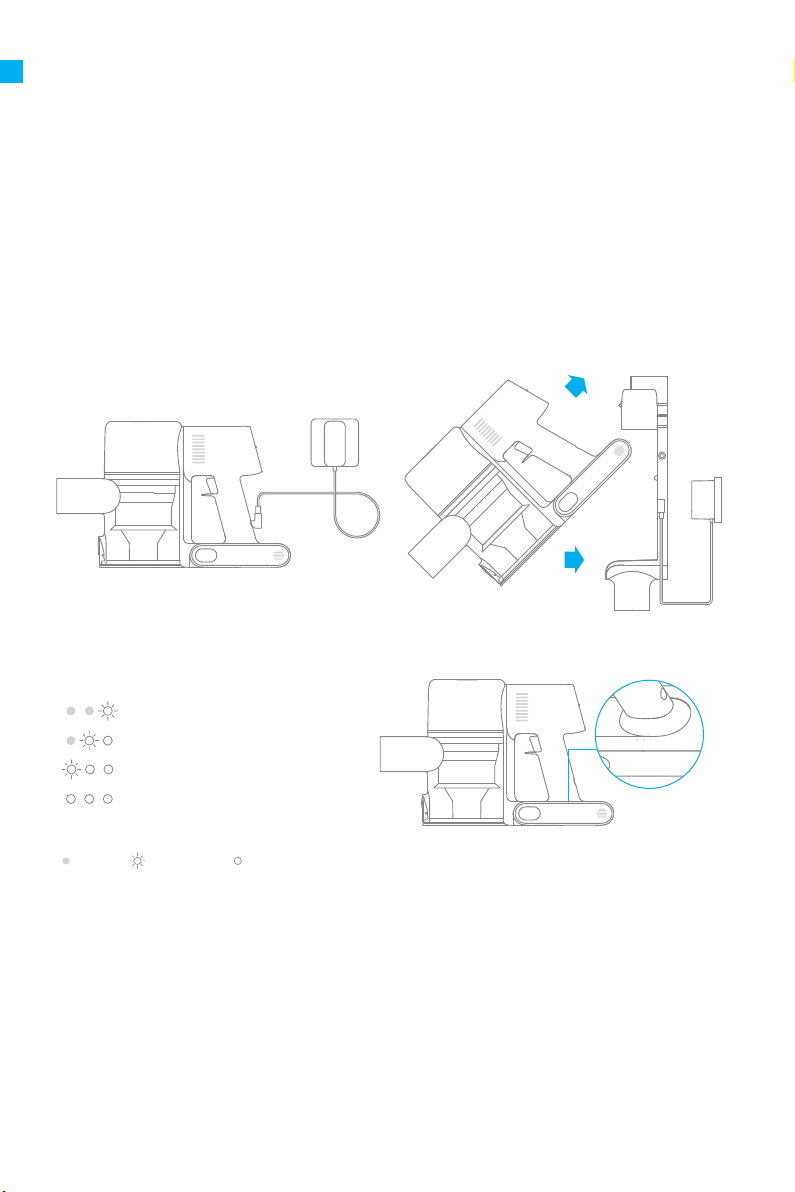

Chargingthevacuumwiththecharger Chargingthevacuumonthecharging
mount
ChargingMethods
Fully charge the vacuum before using it for the 󽗉rst time.

9
EN
HowtoUse
Method2:ContinuousCleaningMode(ElectronicLock)
Click the electronic lock to switch to Continuous Cleaning Mode when the vacuum is
running. Then release the on/o󽗈 switch to make the vacuum in Continuous Cleaning
Mode.
Use the electronic lock to free your 󽗉ngers and avoid 󽗉nger fatigue caused by holding the
switch.
Note: In this mode, the lock indicator will illuminate steadily. Click the electronic lock again
to quit the Continuous Cleaning Mode.
WorkingMethods
Method1:DiscontinuousCleaningMode
Press and hold the on/o󽗈 switch to power it on, and release it to stop immediately.
Select from two working methods for the vacuum, based on your needs.

10
EN
UsingDi󽗈erentAccessories
Multi-BrushBar
Suitable for vacuuming on the med/short
pile carpets, tiles and 󽗊oors.
MiniElectricBrush
For vacuuming dirt, pet hair, and other
stubborn debris from sofas, bedding, and
other fabric surfaces.
2-in-1BrushNozzle
For vacuuming curtains, keyboards,
ceilings, sofas, vehicle interiors, co󽗈ee
tables, etc.
CreviceNozzle
Suitable for vacuuming cracks, corners of
doors and windows, stairs, and other hard-
to-reach places.
Note:The multi-brush bar can be attached
directly to the vacuum.
Note: It is not recommended to vacuum on
fragile surfaces, such as silk.
缩放8%，旋转-5
HowtoUse

11
EN

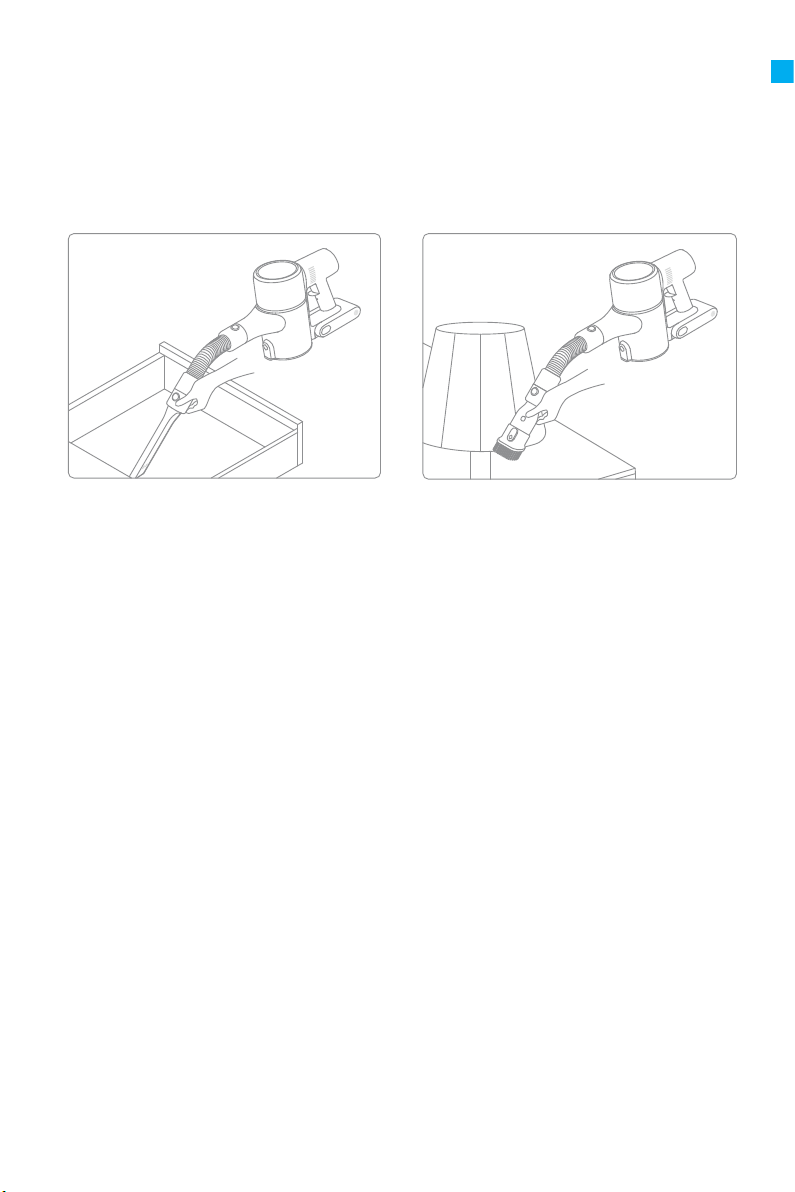

ExtensionHose
Suitable for cleaning hard-to-reach corners such as drawers, vehicle interiors, sofa bottoms,
etc.
HowtoUse
Note:
• If any rotating part becomes stuck, the vacuum may shut o󽗈 automatically. Remove any
trapped foreign objects, then resume use.
• When the battery becomes overheated, the vacuum will automatically shut o󽗈. Wait
until the battery temperature returns to normal, then resume use.

12
EN Care&Maintenance
Tips:
CleaningtheVacuum
CleaningtheDustCup,Pre-Filter,andCycloneAssembly
• Always use genuine parts to keep your warranty from being void.
• If the 󽗉lter or nozzle becomes clogged, the vacuum will stop working shortly after being
turned on. Clear the tube to restore functionality.
• If the vacuum is not used for an extended period, fully charge it, unplug its charger, and
store it in a cool, low-humidity environment away from direct sunlight. To avoid over-
discharging the battery, recharge the vacuum at least once every three months.
Wipe the vacuum with a soft dry cloth.
The vacuum's cleaning ability will be reduced if the dust cup is 󽗉lled to the "MAX" mark.
To regain performance, empty the dust cup in a timely manner. Before emptying the dust
cup, make sure the vacuum is disconnected from the power, and do not press its power
button.
2. Push the dust cup release switch in the direction indicated by the arrow, then gently
remove the dust cup from the vacuum.
1. Press the dust cup bottom cover release button, then empty the contents.
2
1
1

13
EN
Care&Maintenance
3. Remove the pre-󽗉lter 󽗉rst, then lift the handle of the cyclone assembly and turn it
counterclockwise until it stops, then pull to lift out the cyclone assembly.
Note:
• It is recommended to clean the dust cup once every month.
• It is recommended to clean the pre-󽗉lter at least once every 3 months and the cyclone
system at least once every 6 months.
1
2
3
Pre-FilterDust Cup Cyclone Assembly
4. Rinse the cyclone assembly, pre-󽗉lter, and dust cup until they are clean. After washing,
air dry for at least 24 hours .
12
6
111
57
210
48
39 24 hrs

14
EN
InstallingtheDustCup,Pre-Filter,andCycloneAssembly
1. Insert the cyclone assembly vertically into the dust cup, and make sure that the handle
of the cyclone assembly line up with the slot on the left side of the dust cup. Turn the
handle clockwise until it locks, then 󽗊ip the handle down.
2. Place the pre-󽗉lter with its front side facing up into the cyclone assembly.
3. Slightly tilt the dust cup so the slot aligns with the clip on the vacuum. Then gently push
the dust cup until it clicks into place.
3
1
2
3
Care&Maintenance

15
EN
CleaningtheFilter
It is recommended to clean the 󽗉lter once every 4 to 6 months.
1. Remove the dust cup as shown in the
󽗉gure.
3. Clean the 󽗉lter with clean water.
Make sure you rotate the 󽗉lter 360° to
thoroughly and remove all dust caught
in the 󽗉lter. Lightly tap the 󽗉lter several
times to remove any excess dirt.
Note：
• Only use clean water to wash the 󽗉lter. Do not use detergent.
• Do not attempt to clean the 󽗉lter with a brush or 󽗉nger.
2. Remove the 󽗉lter from the vacuum by
pulling it down in the direction shown in
the 󽗉gure.
4. Allow the 󽗉lter to air dry for 24 hours.
12
6
111
57
210
48
39 24 hrs
12
6
111
57
210
48
39 24 hrs
Care&Maintenance
2
1

16
EN
InstallingtheFilter
1. Insert the 󽗉lter into the vacuum and
gently press down, as illustrated.
2. Reinstall the dust cup.
Care&Maintenance
