Dreamline Butterfly Shower Door & Base Kit User manual

Butterfly Shower Door & Base Kit
SHOWER Door AND SHOWER BASE KIT INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com web page.
STEP 1: Install Shower Base
Shower Base Installation Instructions
STEP 2: Install Shower Door
Shower Door Installation Instructions
Please read these instructions carefully before installing. If you have any questions regarding
installation, please call our technical support specialists Monday through Friday 9:00 AM –5:00
PM EST at Phone: [phone], Fax:[phone] or e-mail our technical support
group at [email protected].
For more information on DreamLine Shower Kit please visit www.BathAuthority.com

BUTTERFLY
SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com web page.
Please carefully read the instructions before installing. If you have any questions
regarding installation, please call our technical support specialists Monday through
Friday 9:00 AM – 5:00 PM EST at 1-866-731-8378, ext. 3 or e-mail our technical
support group at [email protected].
For more information on DreamLineTM Shower Door please visit www.BathAuthority.com
Rev 1.1 1

Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of
the needed parts are included in the package, by marking all the components on the
“Detailed Diagram of Shower Door Components”. Examine boxes and packages for
shipping damage. If the unit has been damaged, has a finishing defect, or has missing
parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine TM will not replace any damaged products
or missing parts free of charge after 3 business days or if the product has been
installed. Feel free to contact DreamLineTM if you have any questions.
2. If this unit is going to be installed in a new construction, please, install all of the required
plumbing and drainage before installing the shower. Use a competent and licensed (if
required by local code) plumber for all plumbing installation.
3. Please note that you should consult your local building codes on questions on
installation compliance standards. Building and plumbing codes may vary by location,
and DreamLine is not responsible for code compliance standards for your project.
4. Please insure that prior to the installation the installation surface is leveled and solid and
will be able to support the total weight of the unit. Also make sure the walls are at right
angles. While some adjustment in leveling of the door is possible, irregular installation
surface level or improper angle of side walls will result in serious problems for your
installation. Please, note that some adjustments and drilling might be necessary during
the installation process.
5. Please, NOTE! This door has an out-of-plumb adjustment of up to 1” on each side.

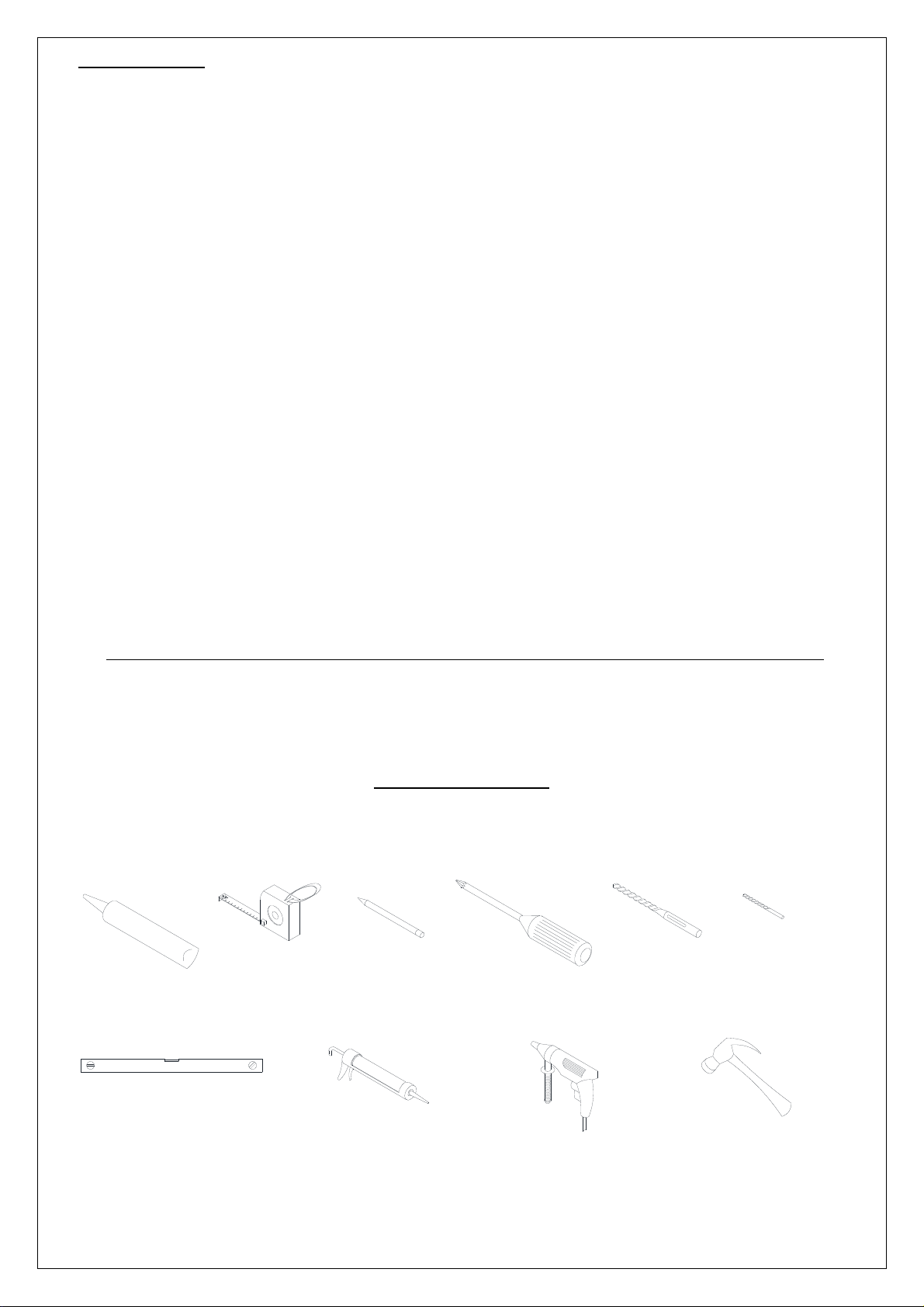

Tools Required
Caulk Tape
Measure Pencil Screwdriver
Phillips
Level Gun
Caulk Drill
Electric Hammer
Drill bit Drill bit
(Ø=5/16") (Ø=1/8")
Rev 1.1 2

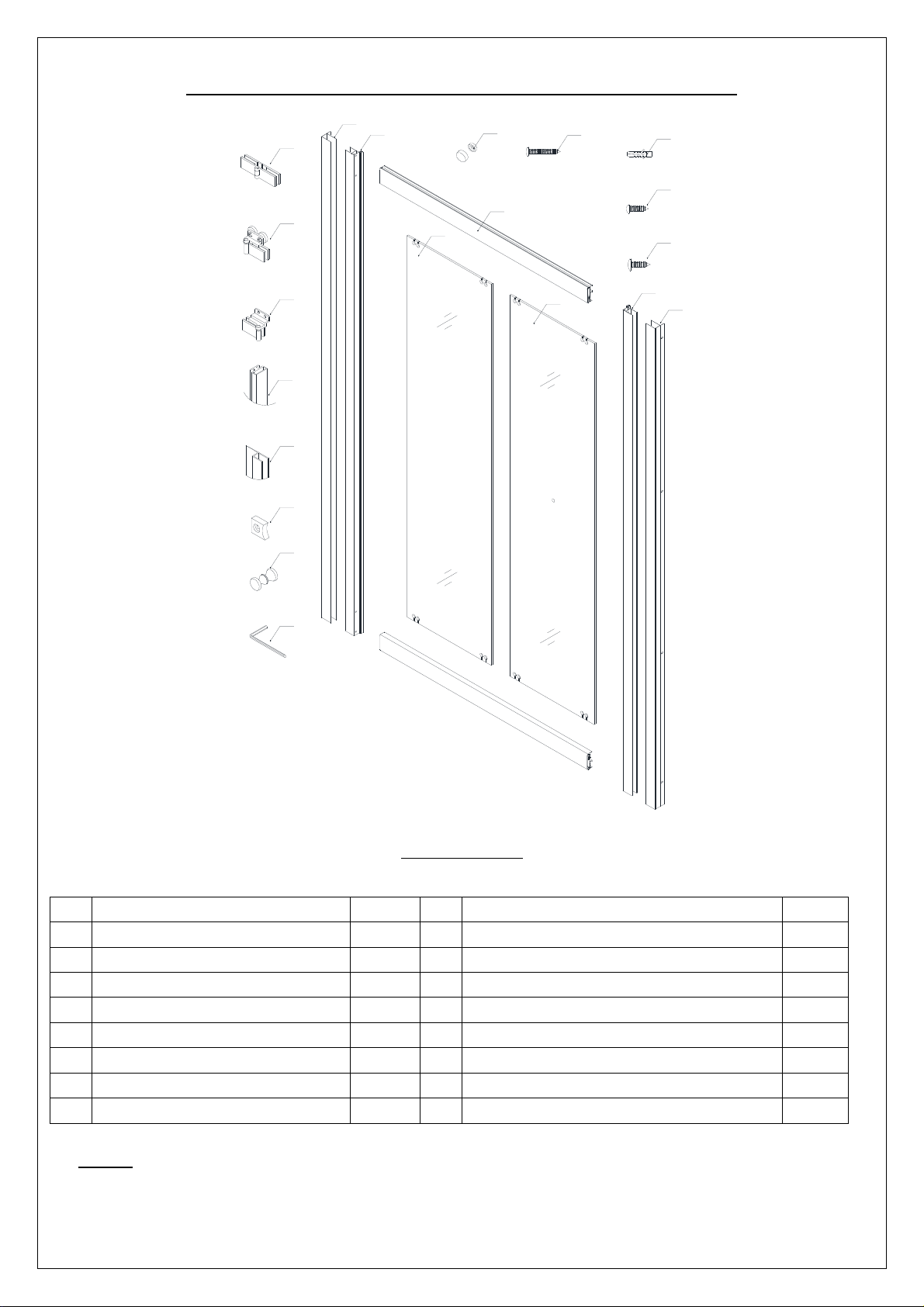

Detailed Diagram of Shower Door Components
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
B
A
18
1
2
Packing List
01 Wall profile 2pcs 10 Decorative cover 4pcs
02 Glass profile 2pcs 11 Middle hinge (top & bottom) 1set
03 Guide rail 2pcs 12 Roller (top & bottom) 1set
04 Glass door A 1pc 13 Hinge (top & bottom) 1set
05 Glass door B 1pc 14 Seal strip (pre-installed on part #2) 2pcs
06 Wall anchor 8pcs 15 Anti-water strip 1pc
07 Round head screw ST4.2×10 4pcs 16 Roller stopper 2pcs
08 Round head screw ST4.2×12 6pcs 17 Handle 1set
09 Round head screw ST4.2×30 16pcs 18 Hex wrench 1set
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the carton,
check for small hardware bags that tend to fall to the bottom of the box. If any parts are
damaged or missing, please contact DreamLineTM for replacement.
Rev 1.1 3

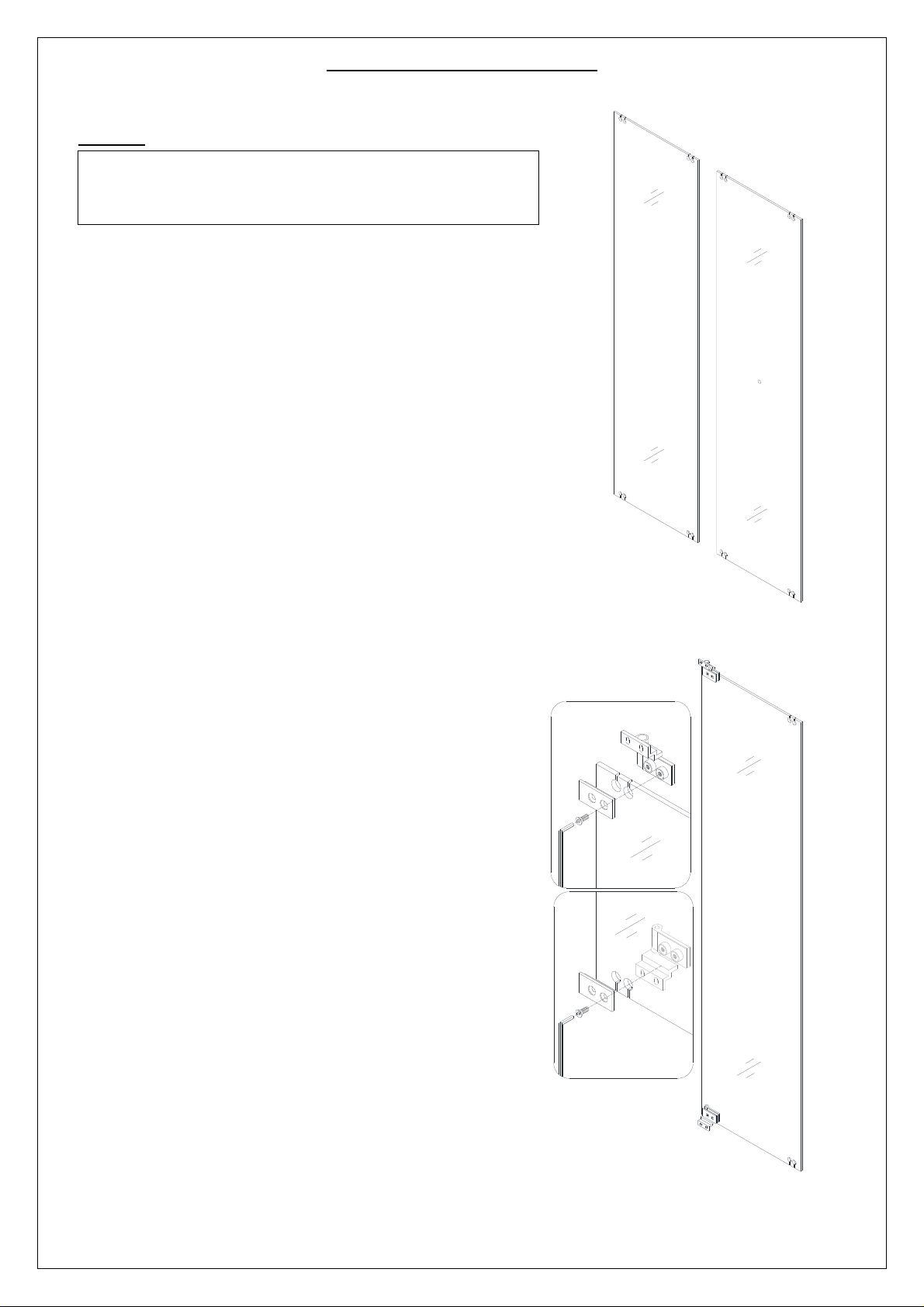

Shower Door Assembly
NOTICE:
T
he installation presented here is for the left door
opening. For the right door opening, you will need
to rotate the frame 180 degrees.
1. Place the Glass door A (04) and the Glass door B (05)
on a flat surface. The distances from the glass edge to the
paired holes on both sides of the Glass doors are
different. The side of each Glass door where the paired
holes are closer to the edges should be facing each other.
See Fig. 1 for details.
Fig. 1

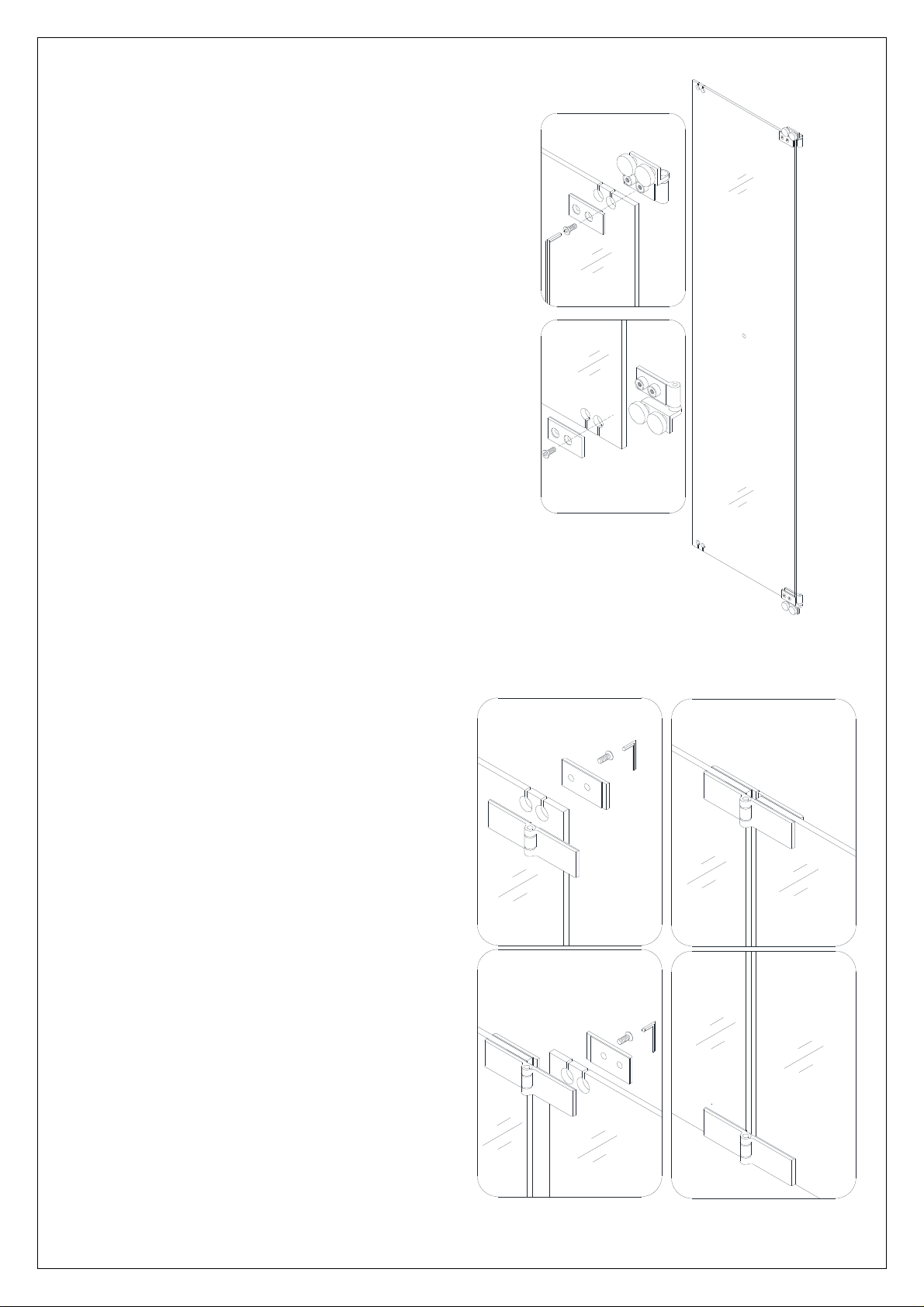

2. Attach the top and the bottom Hinges (13) to the
left edge of the Glass Door A (04).
See Fig. 2 and Fig. 5 for details.
Fig. 2
AB
A
2
1
Rev 1.1 4

B
3. Attach the top and the bottom Rollers (12) to
the right edge of the Glass Door B (05). Mind
the position of the rollers on the glass.
See Fig. 3 and Fig. 5 for details.
1
2
Fig. 3
4. Connect the Glass door A (04) to the
Glass door B (05) using the top and the
bottom Middle hinges (11). Mind the
position of the middle hinges on the
glass.
See Fig. 4 and Fig. 5 for details.
Fig. 4
A
AB
B
A
AB
4
3
2
1
Rev 1.1 5

Fig. 5
5. Locate the Guide rails (03) and the Glass profile (02).
Connect the left end of the Guide rails to the Glass
profile using the Round head screws ST4.2×30 (09).
See fig. 6 for details.
NOTICE:
Make sure that the Seal strip flange on the Glass profile,
pointing inside the Shower.
Fig. 6
AB
2
1
Rev 1.1 6

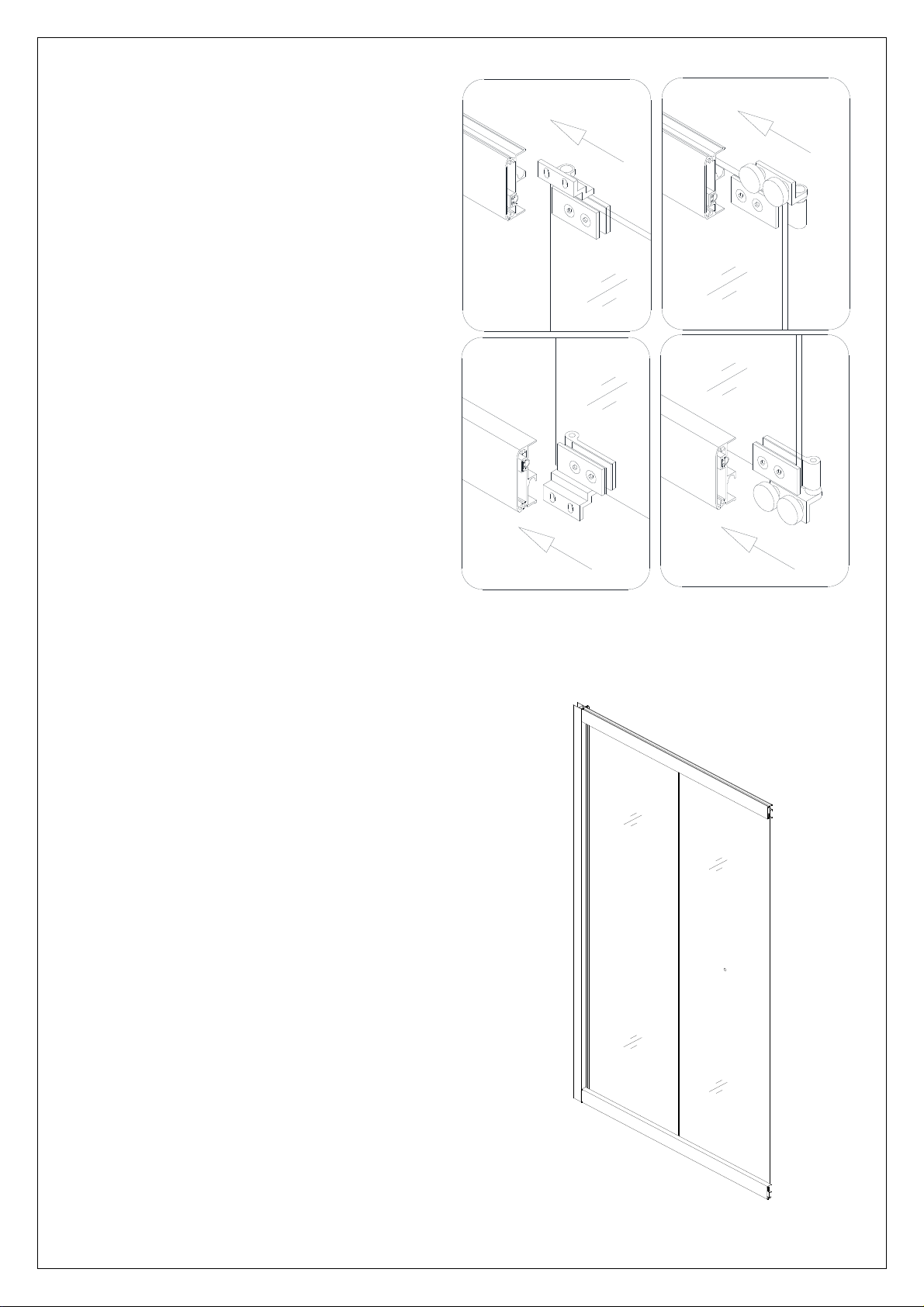

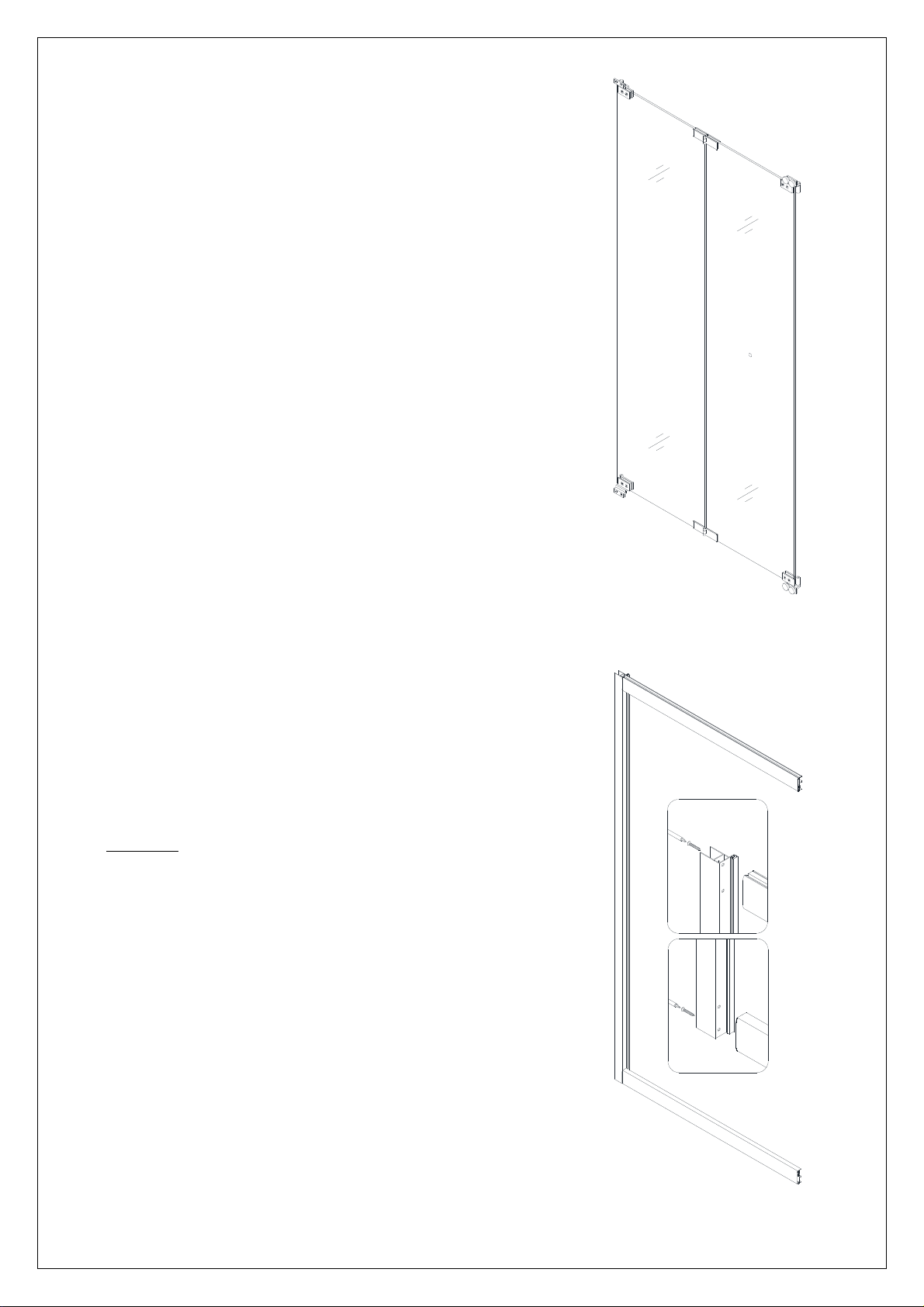

6. Slide the glass unit into the channel of
the Guide rails (03) from the right
side.
See Fig. 7 and Fig. 8 for details.
Fig. 7
Fig. 8
4
3
2
1
Rev 1.1 7

7. Secure the Hinges (13) inside the Guide rails (03)
using the Round head screws ST4.2×12 (08).
See Fig. 9 for details.
Fig. 9
8. Attach another Glass profile (02) at the right side of
the glass unit and fasten it to the Guide rails (03)
with the Round head screws ST4.2×30 (09).
See Fig. 10 and Fig. 11 for details.
NOTICE:
Make sure that the Seal strip flange on the Glass
profile is pointing inside the Shower.
Fig. 10
2
1
2
1
Rev 1.1 8

Fig. 11

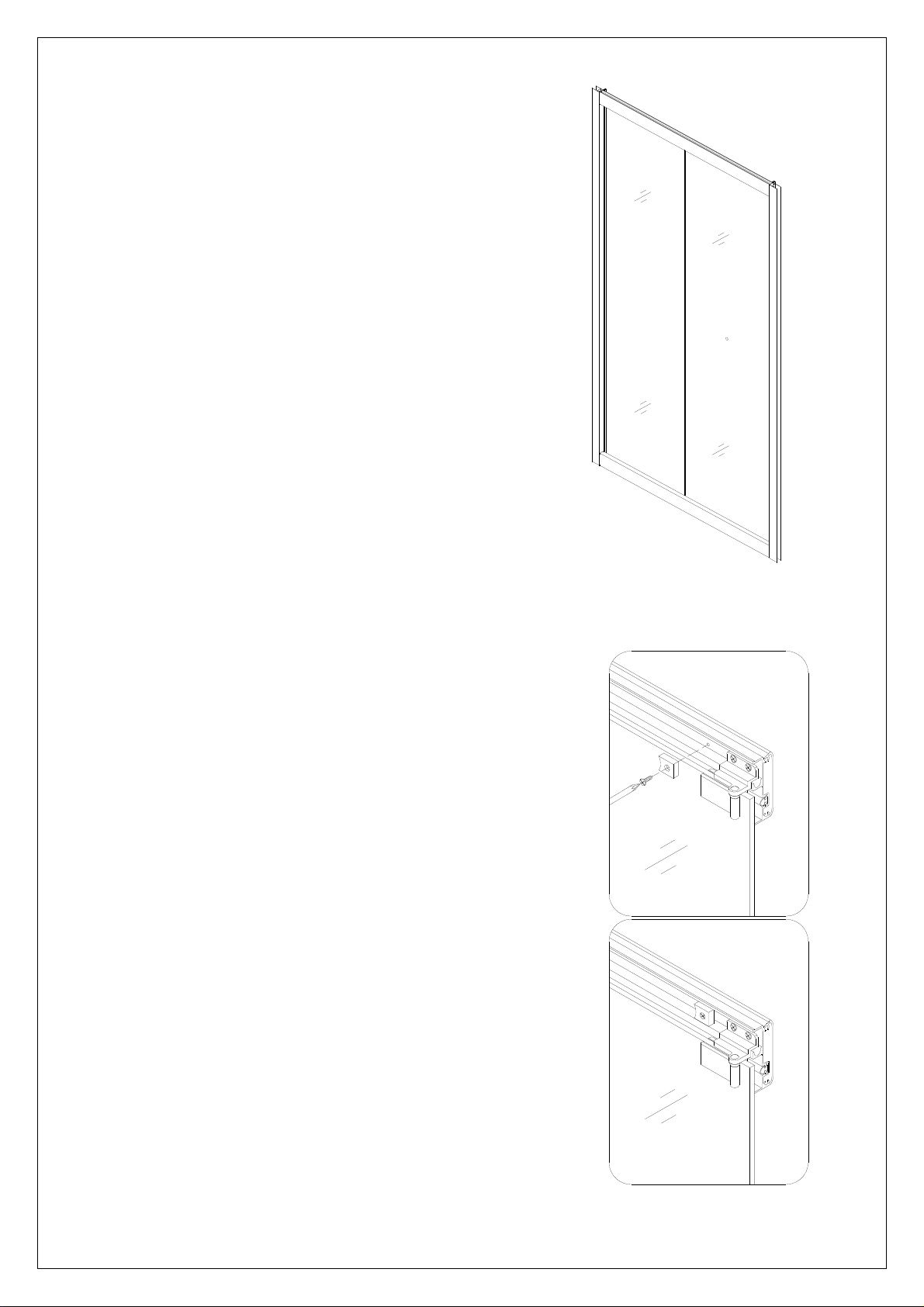

9. Secure the Roller stoppers (16) inside the top and
the bottom Guide rails (03) with the Round head
screw ST4.2×12 (08).
See Fig. 12 for details.
Fig. 12
2
1
Rev 1.1 9

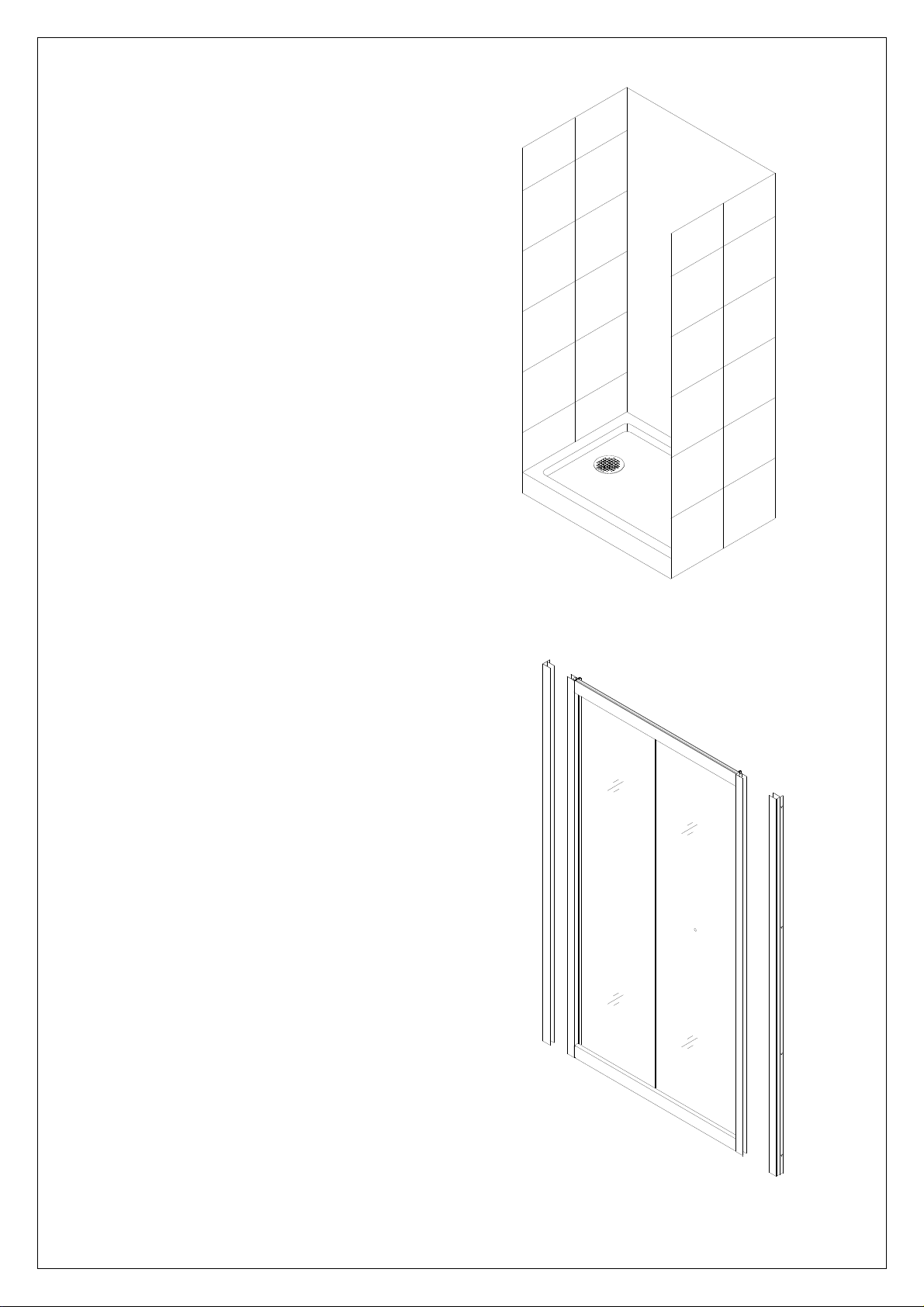

10. Install the Shower base according to the
Shower base installation manual
See Fig. 13 for details.
Fig. 13
11. Locate the Wall profiles (01) in the package.
See fig. 14 for details.
Fig. 14
Rev 1.1 10

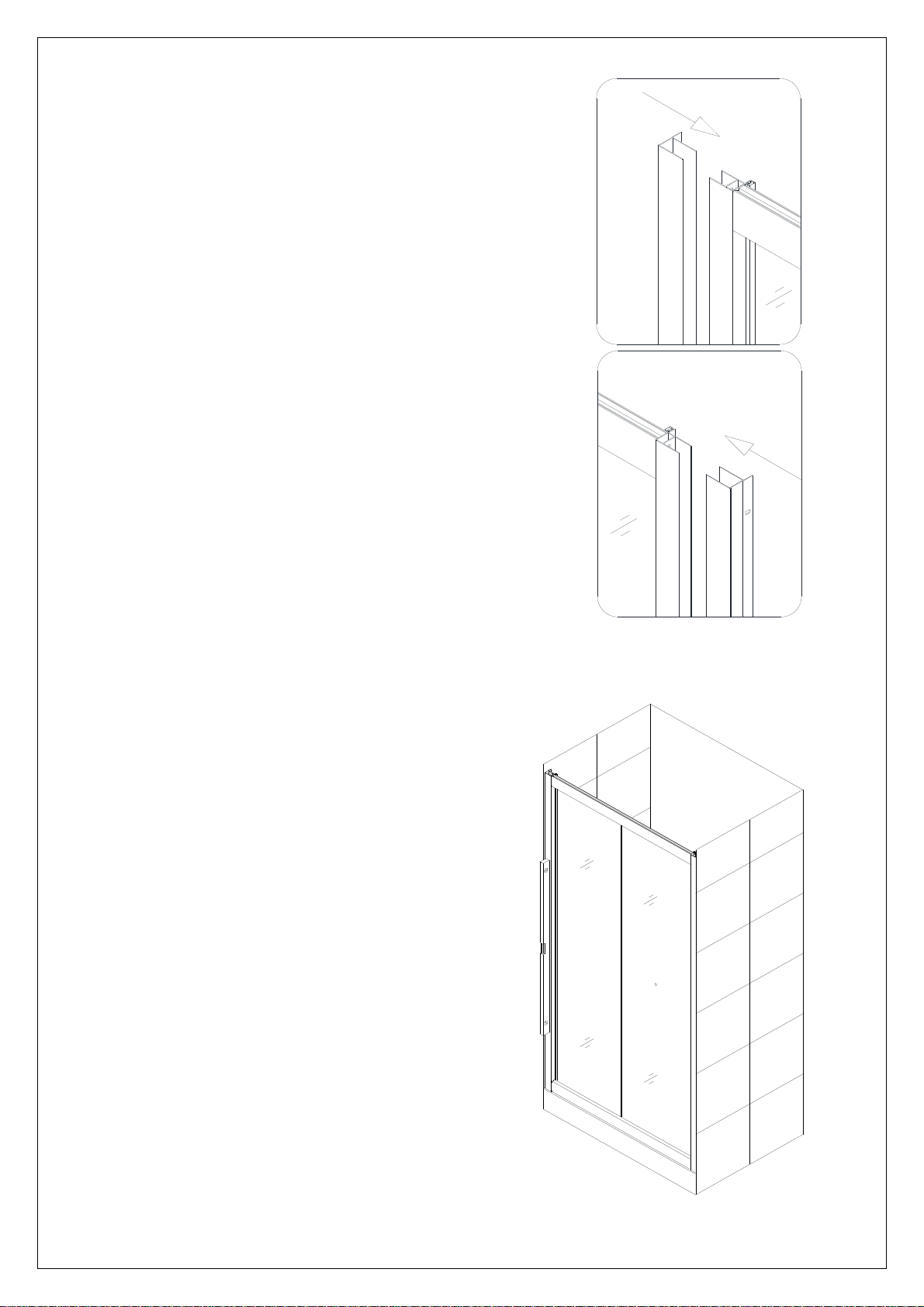

12. Push the Wall profiles (01) over the Glass profiles
(02) on both sides. Be sure to keep the flange with
predrilled holes inside the shower.
See fig. 15 for details.
Fig. 15
13. Move the assembled Glass unit on the Shower
base and butt up the Wall profiles (01)
against the walls.
Level the Glass unit vertically. You can adjust
position of the Glass unit by slightly pulling
the glass profiles out of the Wall profiles.
See Fig. 16 for details.
Fig. 16
2
1
Rev 1.1 11

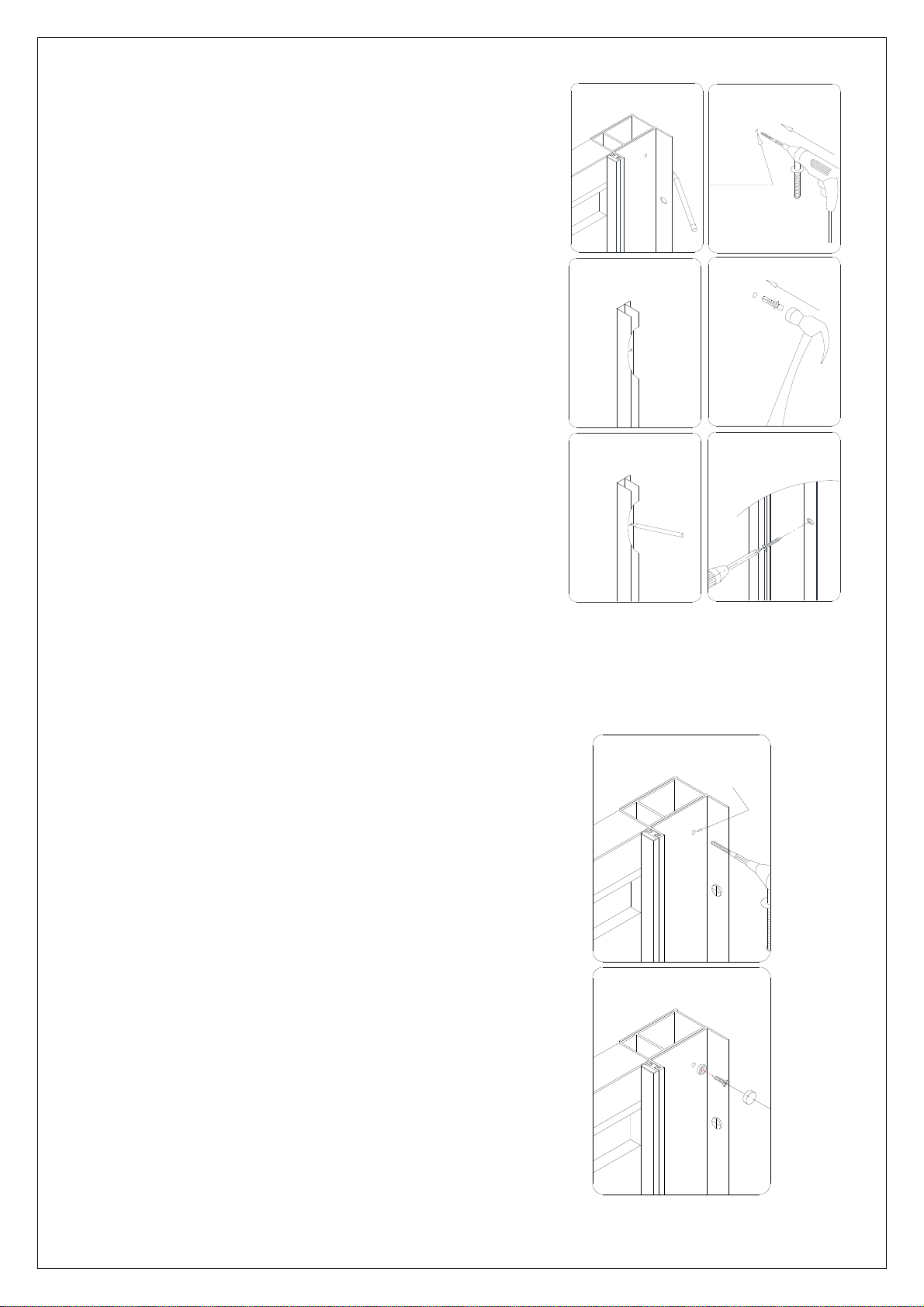

14. Outline the Wall profiles (01) from inside of the
Shower.
Move the Glass unit aside. Remove the Wall
profiles from the Glass unit and place them back on
the wall.
Mark the drill holes through the predrilled holes on
the Wall profiles (01).
Drill the holes on the wall using Ø 5/16 drill bit and
insert the Wall anchors (06).
Press the Wall profiles on the Glass profiles (02)
and place the assembled unit back to the
designated position on the Shower base.
Fasten the Wall profiles to the wall with the Round
head screws (09).
See Fig. 17 for details.
Fig. 17
15. Make final adjustment if required. Drill the holes into
the Glass profiles (02) using Ø 1/8 drill bit through
the predrilled holes in the Wall profiles (01).
Secure the Wall profile and the Glass profile with
the Round head screws ST4.2×10 (07). Cover the
screw heads with the Decorative Covers (10).
See fig. 18 for details.
Fig. 18
Ø 5/16
4
3
2
1
5
6
2
1
Ø=1/8
Rev 1.1 12

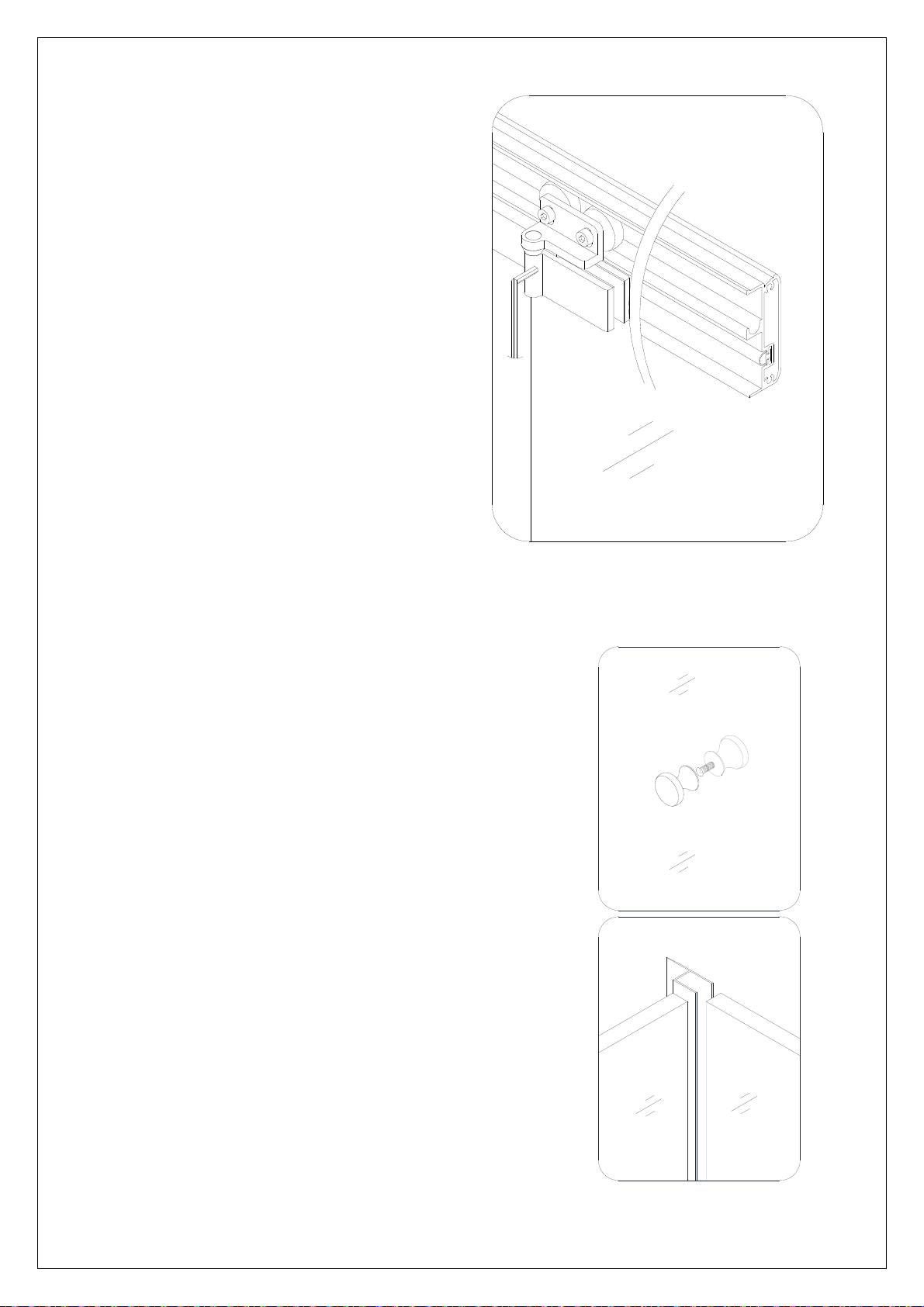

16. Fold the Glass door, and adjust the bolts
on the Rollers (12) to make the door
slide smoothly.
See fig. 19 for details.
Fig. 19
17. Mount the Handle (07) onto the glass door.
Open the door and attach Anti-water strip (15) to the
vertical edge of the Glass door. The strip flange should
point away from the shower faucet.
See Fig. 20 for details.
Fig. 20
Rev 1.1 13

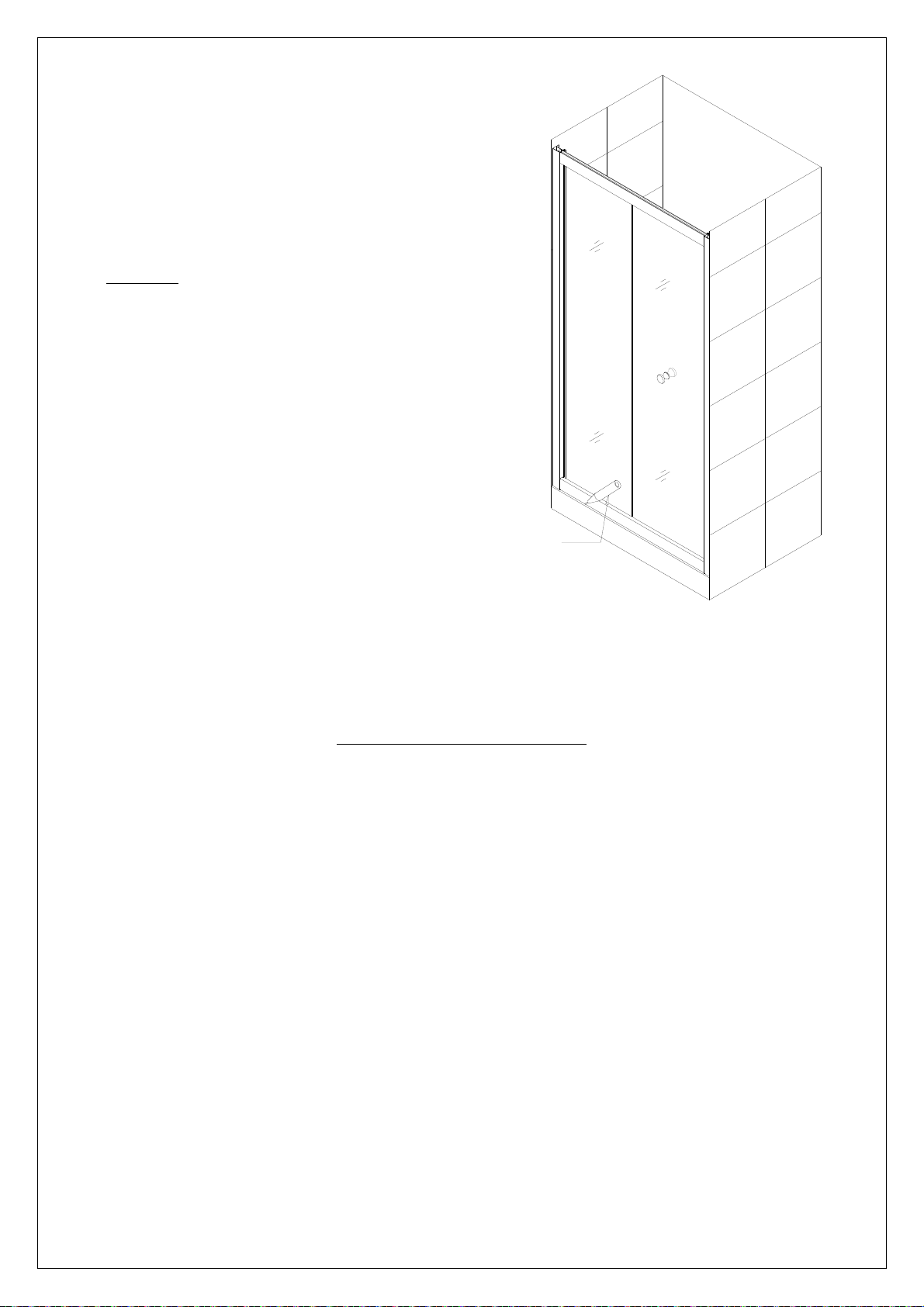

18. Apply the silicone along the Wall profiles
(01), as well as along the Guide rail (03).
See Fig. 21 for details.
NOTICE:
Any adjustment to make the door stable can
be applied on the bolts of hinges and
hardware during the installation or after use.
This door is reversible from right to left
opening.
Fig. 21
Product Maintenance
To insure long lasting life for your acrylic back walls, wipe them off after each use with a soft cloth.
To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive
cleansers, metal brushes or scrapers that could scratch or dull the surface.
To insure long lasting life for your glass shower products, wipe them off after each use with a soft
cloth. Rinse and wipe of the glass using either soft cloth or squeegee to prevent soap buildup. Never
use abrasive cleaners and cleaning products that contain scoring agent because this may scratch the
surface. Never use bristle brushes or abrasive sponges.
To assure a long lasting finish wipe off the metal parts after each use with a soft cloth. Do not use
abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse
the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny finishes,
rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week.
When applying stainless steel cleaner or polish, work with (not across) the grain. Never use abrasive
sponge or cloth, steel wool or wired brushes.
caulk
Rev 1.1 14

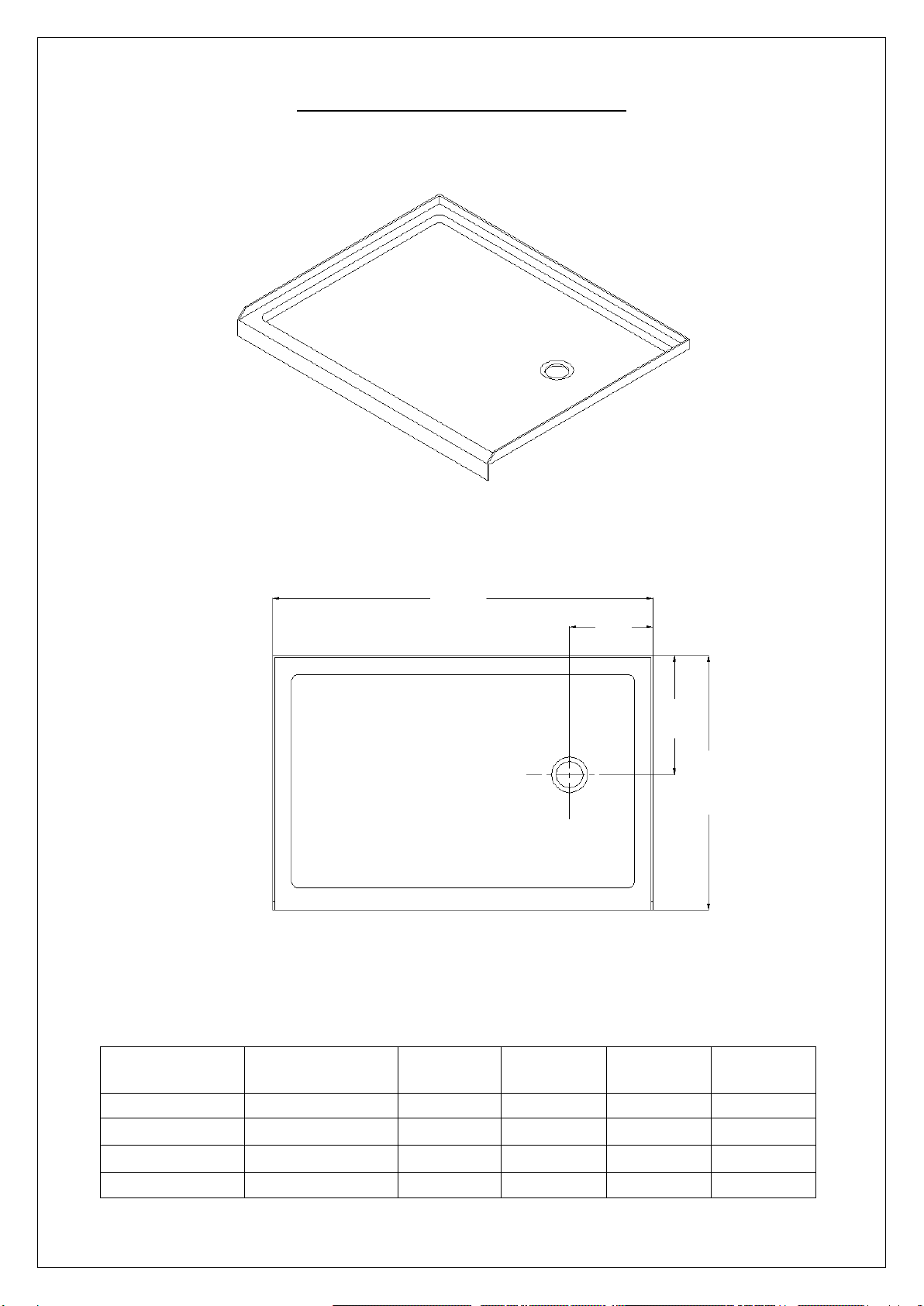

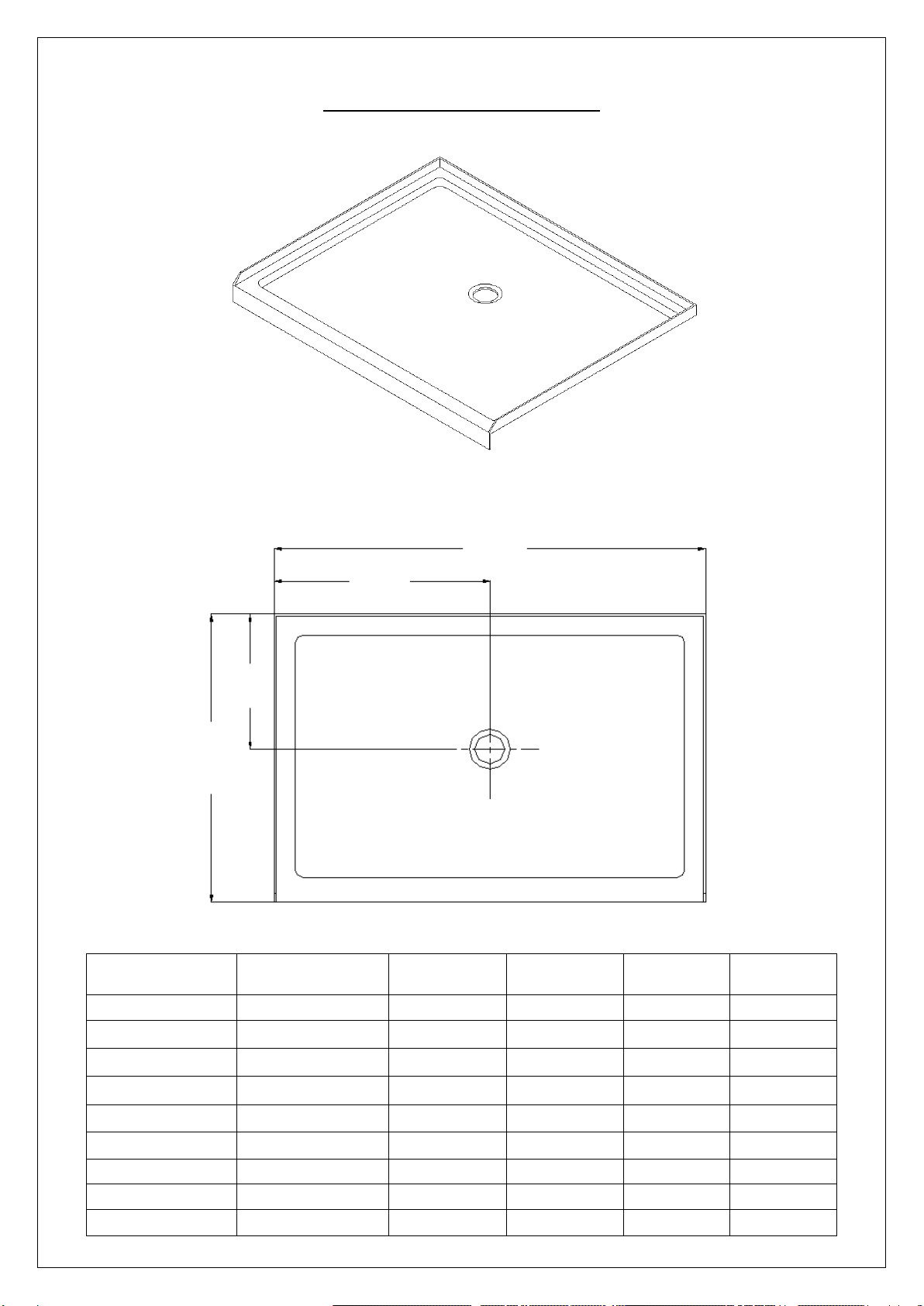

SLIMLINE SHOWER BASE
SHOWER BASE DIMENSIONS AND INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time without
prior notice. For the latest up-to-date technical drawings, manuals or any other details
please refer to your model’s web page on BathAuthority.com
Please read these instructions carefully before installing. If you have any questions
regarding installation, please contact our technical support specialists Monday
through Friday 8:00 AM –7:00 PM EST at: Phone: [phone], Fax: [phone]-
3638 or e-mail our technical support group at [e-mail]
For more information on DreamLineTM Shower Bases please visit www.BathAuthority.com

“SLIMLINE SHOWER BASE” Ver.5 Rev.5 06/2015
2

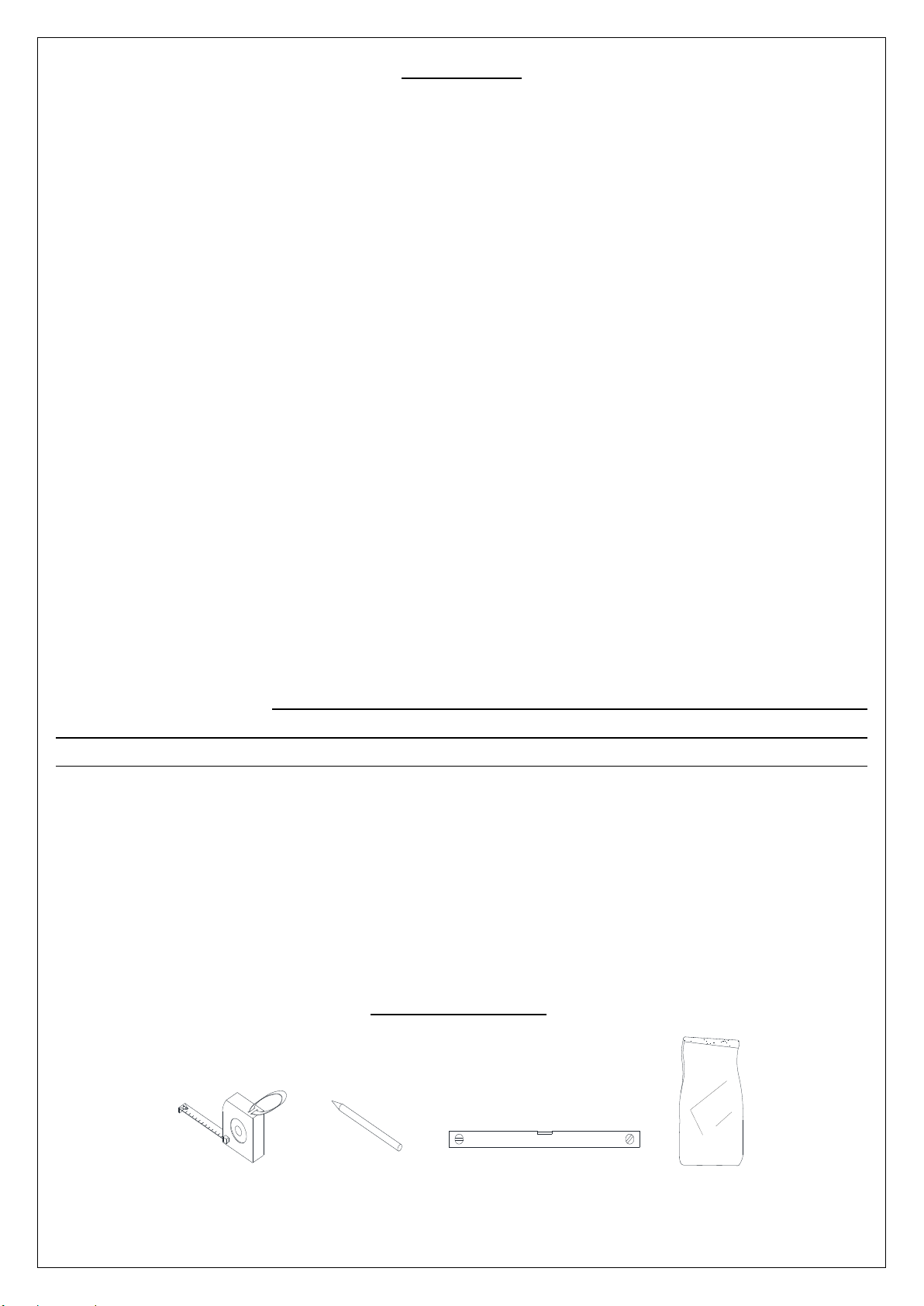

Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the
piece count with your packing slip. After opening all boxes and packages, read this introduction
carefully. Check that all of the needed parts are included in the package by checking off the
components on the “Detailed Diagram of Shower Door Components”. If the unit has been
damaged, has a finishing defect, or has missing parts, please contact our customer support
department within 5 business days of the delivery date. Please note that DreamLineTM will not
replace any damaged products or missing parts free of charge after 10 business days or if
the product has been installed. Feel free to contact DreamLineTM if you have any questions,
and please provide an order number, job name or other proof of purchase to help us identify
your original order.
2. Install all of the required plumbing and drainage before installing the shower base. Use a
competent and licensed (if required by local code) plumber for all plumbing installation.
3. Shower bases must be installed by a licensed plumber. Please note that you should
consult your local building codes with questions on installation compliance standards.
Building and plumbing codes may vary by location, and DreamLine is not responsible for
code compliance standards for your project.
4. Please insure that prior to the installation the installation surface is leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. While
some adjustment in leveling of the tray is possible, irregular installation surface level or
improper angle of side walls will result in serious problems for your installation. Please, note
that some adjustments may be necessary during the installation process.
IMPORTANT NOTE: Dimensions provided are for reference only. You must
measure the actual shower tray sizes before installation, this includes overall
dimensions and drain location. Allowed tolerance for center of the drain is
±1/2".
Tools Required
XXX
Tape
Measure
Pencil
Level
Mortar

“SLIMLINE SHOWER BASE” Ver.5 Rev.5 06/2015
3
SINGLE THRESHOLD SHOWER BASE
Center Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1132320
32"×32"
32"
32"
15"
16"
DLT-1136360
36"×36"
36"
36"
15"
18"
DLT-1134420
34” x 42”
34”
42”
15”
21”
DLT-1132480
32"×48"
32”
48”
15”
24”
DLT-1136480
36"×48"
36"
48"
15"
24"
DLT-1130600
30"×60"
30"
60"
15"
30"
DLT-1132600
32"×60"
32"
60"
15"
30"
DLT-1134600
34"×60"
34"
60"
15"
30"
DLT-1136600
36"×60"
36"
60"
15"
30"
W
D
W1
11
D1

“SLIMLINE SHOWER BASE” Ver.5 Rev.5 06/2015
4
SINGLE THRESHOLD SHOWER BASE
Left-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1130601
30"×60"
30"
60"
15"
12"
DLT-1132601
32"×60"
32"
60"
15"
12"
DLT-1134601
34"×60"
34"
60"
17"
12"
DLT-1136601
36"×60"
36"
60"
18"
12"
W
D
D1
W1

“SLIMLINE SHOWER BASE” Ver.5 Rev.5 06/2015
5
SINGLE THRESHOLD SHOWER BASE
Right-Hand Drain Configuration
MODEL
SPECIFICATION
D (in)
W (in)
D1 (in)
W1 (in)
DLT-1130602
30"×60"
30"
60"
15"
12"
DLT-1132602
32"×60"
32"
60"
15"
12"
DLT-1134602
34"×60"
34"
60"
17"
12"
DLT-1136602
36"×60"
36"
60"
18"
12"
W1
W
D
D1
