Dreamline DLG-36 User manual

Murano / DLG-36
Shower Enclosure User’s Guide
I. Mounting Preparation
1. After opening the case, read this introduction carefully, check all the packed parts, examine the shower cabinet
for shipping damage. If the unit has been damaged or has a finishing defect, please contact your local
distributor within 2 business days. Please note that DreamLine Guarantee will not cover shipping damage or
such finishing defects once the unit has been installed. Your distributor’s responsibility for damage in transit
is limited after the shower package has been transferred to the transportation company, so you may have to
contact the transportation company directly to report damage. Contact your distributor or DreamLine if you
have any questions.
2. You should make sure that the floor is leveled and solid and will be able to support the total weight of the unit
and its occupant. You should also consult your local building codes on any questions on installation
compliance with standards.
3. Install all of the required plumbing and drainage before securing the shower. Use a competent and licensed
(if required by local code) plumber for all plumbing installation.
4. Please insure that prior to the installation the floor is leveled and the walls are at right angles. While some
adjustment in leveling of the tray is possible, irregular floor level or improper angle of side walls will result
in serious problems for your installation.
5. Necessary Tools: Conventional woodworking tools, Screwdriver, Silicone sealant, Electric drill, Regular drill
bits (1/8”, 7/64”), Phillips screwdriver, Level, Measuring tape, Pencil and Stepladder. Bear in mind that you
will need at least two people to assemble the unit.

II. Packing List
Plastic Dowel 12pcs Glass entry door pivots 4sets
Tapping Screw ST4.2*30 20pcs Rotation pedestal 2sets
Wall Connecting Profile 2pcs Support bar door bracket 2sets
Doorframe, Panel Profile, Plastic Strip 2sets Pipe covering 2sets
Side glass panel with plastic strip 2pcs Connecting screw M4X15 4pc
Entry door glass with plastic strip 2pcs Handle 2sets
Stainless steel top support bar 1pc Tray 1pc
Glass clip 2sets J11-1900 Massager 1set

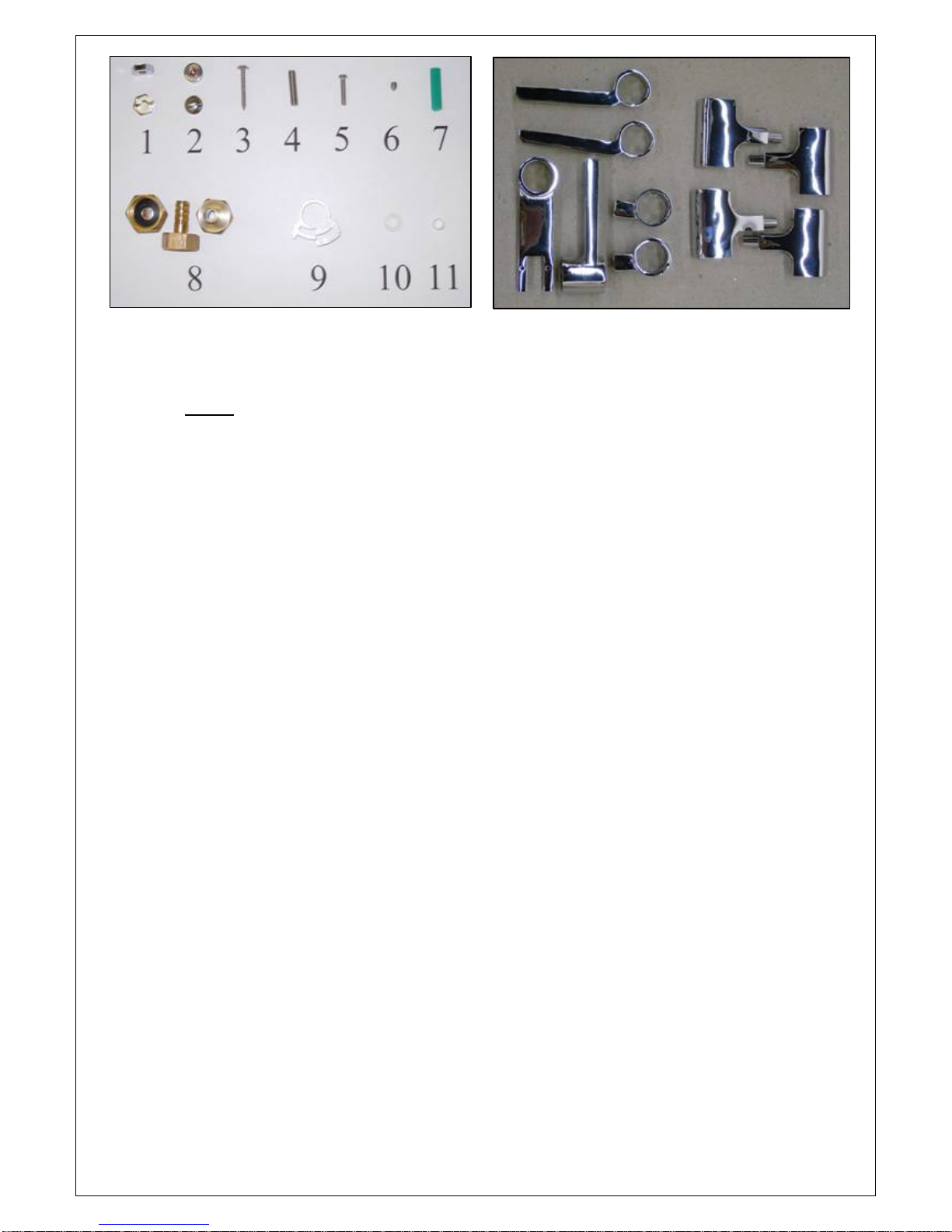

Dia. 1
Dia.2 Dia.3
16
9
614
4

PARTS
III. Mounting Process:
1. Put the tray in the designated position and level it using water level. (Step1)
NOTE: If the tray is not correctly leveled doors may not operate as required.
2. Apply caulking silicone to boarders of the tray and then to the edges to protect the unit from leaking.
Make sure all the seals are filled up. Push the tray all the way down into the corner and remove the
excess caulking using a soft cloth. Allow the caulk to dry before proceeding the shower enclosure
assembly. (Step2)
3. Put apart the middle column assembly with the showerhead. (Step3, Step4)
4. Fasten the back part of the middle column assembly to the wall using 4 self-tapping screws #3 and
dowels #7. (Step6)
5. Tighten up the water pipe connector using the part #8 (Step7), plug the water hose into the water pipe
connector and tighten it up using part #9. (Step8)
6. Plug the hot and cold water hoses to the water supply. (Step9)
7. Place the front part of the middle column back and fasten the assembly with the 4 original bolts #5.
(Step10)
8. Locate the wall connecting profiles, level them and mark the holes on the wall according to the holes on
the wall profiles. (Step11)
9. After drilling, insert plastic dowels (part #7) and apply caulking silicone to the back part of the profile
and then fasten the wall connecting profiles to the wall using (quantity) screws. (Step12)
10. To connect the water pipes from the side jet columns repeat Steps 7 and 8. Place the front cover parts
(Step13) and screw them tight. Keep in mind that you should not push the front parts of the columns by
the jets to prevent them from damaging. Make sure the jet columns are leveled (Step14).
11. Attach waterproof plastic strips to the side glass panels (Step15) and insert them into the side jetted
columns (Step16).

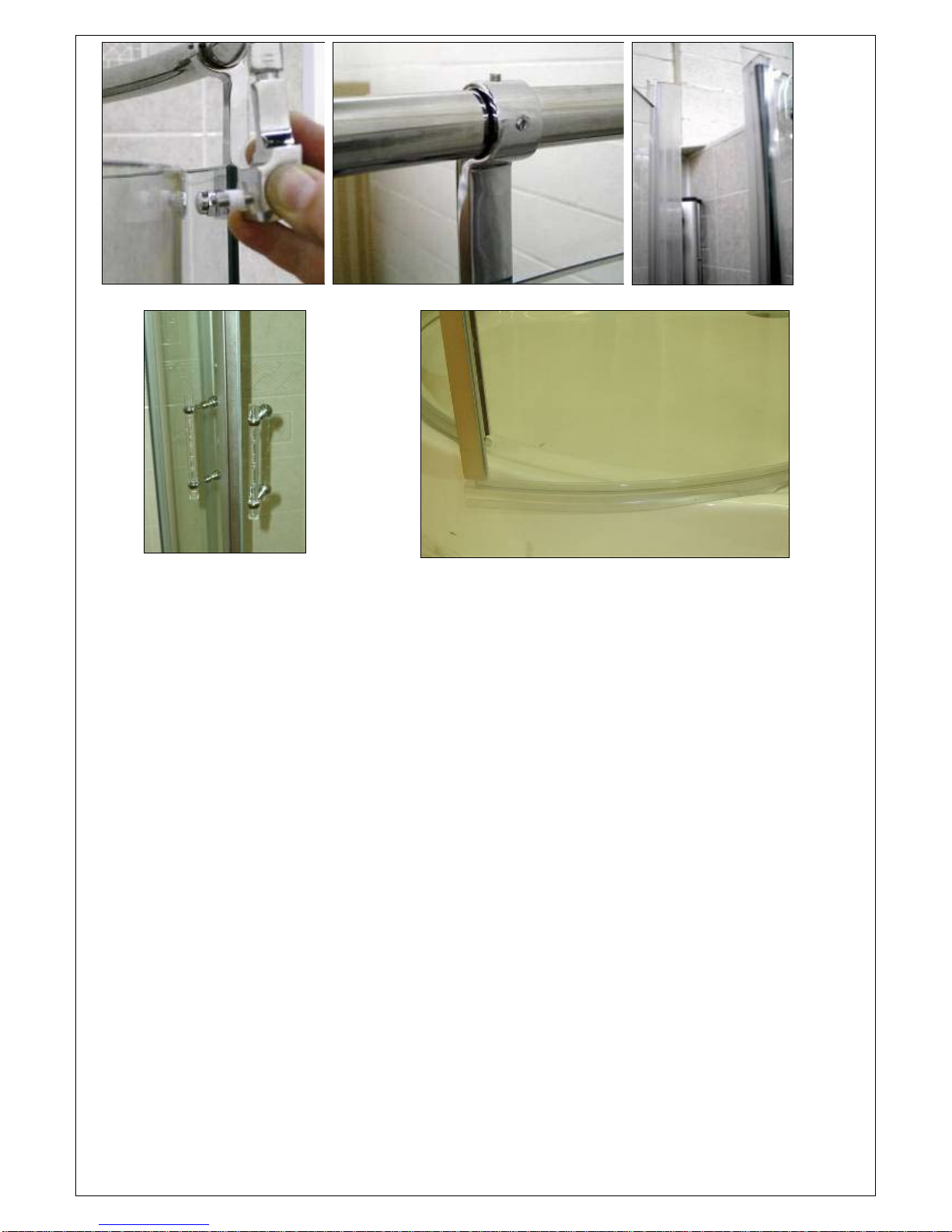

12. When the side glass panels are in the place (Step17), insert the metal brackets into the support bar in a
following order: see Step18.
13. Then insert the support bar into the slots of the side jet columns and fasten it (Step20).
14. Secure the side glass panel to the metal bracket using the parts #1, 2, 4, 10 and 11. (Step21)
15. Secure the bottom glass door pivot brackets to the entry door using the same parts #1, 2, 4, 10 and 11.
The bottom of the entry door is determined by the position of the holes for the brackets (Step22). Insert
the bottom pivots into the slots, then insert the top pivots into the slots and then secure the bracket to the
entry door making sure you place the plastic gaskets in between the glass and metal nuts (Step23).
16. Secure the brackets to the support bar to prevent them from sliding back and forth using part #6
(Step24).
17. Attach handles, making sure there are plastic gaskets in between the glass (Step 25).
18. Attach the bottom waterproof plastic strip to the bottom of the doors (Step 26).

IV. Sealing:
Apply clear silicone water sealant around the outside perimeter of any fixed shower
components (horizontally between bottom of any fixed side glass panels and tray, as well
as vertically between the wall, wall profiles and any side glass panels). Do not apply
silicone on the inside of the shower – this will cause your shower unit to leak.
NOTE: Allow 24 hours for the silicone to set before testing or using the shower.
NOTE: Improper application of silicone sealant may cause your shower to leak.
Step 1
Step 2 Step 3
Step 4
Step 5
Step 6
Step7 Step8 Step9

Step 10
Step 11
Step 12
Step 13
Step 14
Step 15
Step 16
Step 17
Step 18
Step 19
Step 20
Step 21

Step22 Step23
Step 24
Step 25
Step 26
