Dresser™ Model 6 Transfer Prover
Operation and Maintenance Manual
for 2/10M and 10M Versions

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 2 of 107
Contents
1Introduction .....................................................................................................................5
1.1 Symbols Used in This Manual..................................................................................................... 5
1.2 Certifications .............................................................................................................................. 6
2Overview..........................................................................................................................6
2.1 Operating Principle..................................................................................................................... 7
2.2 Software ..................................................................................................................................... 7
3Receiving, Handling, and Storage......................................................................................7
3.1 At Time of Delivery ..................................................................................................................... 7
3.2 Storage........................................................................................................................................ 8
4Parts Identification...........................................................................................................8
4.1 Equipment Provided with the Model 6 Prover........................................................................... 9
4.2 Optional Accessories ................................................................................................................ 11
5Problems with Installation or Operation .........................................................................12
Installation
6Precautions ....................................................................................................................13
7Setting Up Prover Equipment..........................................................................................15
8Accessing the Model 6 Prover Software ..........................................................................23
8.1 Connect to the Prover .............................................................................................................. 23
8.2 Log in to the Software .............................................................................................................. 24
8.3 Forgot Password....................................................................................................................... 26
8.4 Access Online Help ................................................................................................................... 26
8.5 Log Out ..................................................................................................................................... 27
8.6 About the Software User Interface .......................................................................................... 27
Operations
9Testing a Field Meter ......................................................................................................29
9.1 Set the Meter Test Parameters ................................................................................................ 30
9.2 Run Purge Test.......................................................................................................................... 34
9.3 Run Leak Test............................................................................................................................ 35
9.4 Run Meter Test......................................................................................................................... 36
9.5 Evaluate Meter Test Results..................................................................................................... 39
9.6 Save and Export Meter Test Results......................................................................................... 40

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 3 of 107
10 Generating Reports ........................................................................................................41
10.1 Generate a Report from Previous Data.................................................................................... 41
10.2 Modify the Report Template.................................................................................................... 43
10.3 Add Custom Fields .................................................................................................................... 44
11 Configuring Custom Equipment Settings .........................................................................44
11.1 Set Up Custom Test Equipment................................................................................................ 45
11.2 Set Up Custom Instrument....................................................................................................... 47
11.3 Set Up Custom Meter............................................................................................................... 51
12 Configuring Custom Tests ...............................................................................................55
12.1 Set Up Custom Test Points ....................................................................................................... 55
12.2 Set Up Custom Preconfigured Test .......................................................................................... 57
Maintenance
13 Purging the Field Meter Under Test ................................................................................59
14 Leak Testing the Prover System ......................................................................................62
15 Differential Pressure Testing the Master Meters .............................................................64
15.1 Run Differential Pressure Test.................................................................................................. 64
15.2 View and Export Differential Pressure Test Results ................................................................. 66
16 Calibrating Sensors.........................................................................................................67
16.1 Calibrate Temperature Sensor ................................................................................................. 67
16.2 Calibrate Pressure Sensor......................................................................................................... 69
17 Prover Preset Screen ......................................................................................................70
18 Setting and Saving Prover Defaults .................................................................................71
18.1 Set Prover Test Defaults ........................................................................................................... 72
18.2 Set Default Units of Measure ................................................................................................... 73
18.3 Smart Prover Configuration...................................................................................................... 74
18.4 Set Differential Pressure (DP) Readings Display....................................................................... 74
18.5 Backing Up and Reusing Prover Configuration Settings........................................................... 75
19 Recertification Recommendations ..................................................................................76
20 Maintenance Checklist ...................................................................................................76
20.1 Master Meter Inlet Screen Cleaning ........................................................................................ 76
20.2 Adapter Testing ........................................................................................................................ 76
20.3 Reference Meter Testing.......................................................................................................... 77
20.4 Blower Maintenance ................................................................................................................ 77
20.5 Prover Cart Maintenance ......................................................................................................... 79

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 4 of 107
20.6 Accessories ............................................................................................................................... 80
21 Managing User Roles and Information............................................................................80
21.1 Managing User Information ..................................................................................................... 80
21.2 Managing Role Access .............................................................................................................. 83
21.3 Change User Passwords............................................................................................................ 84
22 Accessing System Information ........................................................................................86
22.1 View Storage Information ........................................................................................................ 86
22.2 Download System Logs............................................................................................................. 86
22.3 View Version Information ........................................................................................................ 87
22.4 Run System Diagnostics............................................................................................................ 88
22.5 View Web Settings.................................................................................................................... 90
23 Upgrading Firmware.......................................................................................................90
24 Troubleshooting.............................................................................................................92
24.1 Common Connection Problems................................................................................................ 92
24.2 Common Software Problems ................................................................................................... 93
24.3 Common Operations Problems ................................................................................................ 94
24.4 Common Error Messages ......................................................................................................... 96
25 Warranty........................................................................................................................97
Specifications...............................................................................................98
Glossary.....................................................................................................100
Spare Parts Listing......................................................................................102
Temperature Compensated Unit Operational Check ...................................104

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 5 of 107
1Introduction
This manual provides information for using the Dresser Natural Gas (NGS) Model 6 Prover and its
software.
Operate and maintain the Prover in accordance with Factory recommendations as outlined in this manual
to ensure accurate and repeatable results. Please contact local IT personnel or Dresser Meters and
Instruments technical support for questions.
1.1 Symbols Used in This Manual
DANGER
DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or
serious injury.
DANGER: Indique une situation de danger imminente qui, si elle n’est pas évitée, entraînera des
blessures graves ou même la mort.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or
serious injury.
AVERTISSEMENT: Indique une situation de danger potentielle qui, si elle n’est pas évitée, peut
entraîner des blessures graves ou même la mort.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, could result in minor or
moderate injury.
MISE EN GARDE: Indique une situation de danger potentielle qui, si elle n’est pas évitée, peut
entraîner des blessures mineures ou modérées.

Note: Notes provide important related information, such as an explanation, tip, or comment
that is not hazard-related.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 6 of 107
1.2 Certifications
This equipment is certified to the following:
Electromagnetic Compatibility
FCC 47CFR 15 2019 Telecommunication, Radio Frequency Devices
ICES-003: 2016 Issue 6, Information Technology Equipment (including Digital Apparatus) – Limits and
Methods of Measurement
IEC 61326-1 Issued: 2012/07/10 Ed: 2 Electrical Equipment for Measurement, Control, and
Laboratory Use–EMC Requirements–Part 1: General Requirement
Safety Requirements for Electrical Equipment for Measurement, Control, And Laboratory
UL 61010-1:2012 Ed.3+R:29Apr2016
(R2017) CSA C22.2#61010-1-12:2012 Ed.3+U1;U2
IEC 61010-1:2010 (Third Edition)
2Overview
The Dresser Model 6 Prover is an integrated computer-controlled system designed for shop or field
proving of rotary, turbine, and diaphragm-type positive displacement gas meters. This Prover is designed
for transfer proving using only air as the test medium. Electric blowers mounted on a manifold or a skid
provide the test air flow (vacuum).
This Prover system consists of the following major components:
•Master Meter(s) as the measurement reference standard
•Pressure transducers and temperature probes
•Blowers
•Prover Hose(s)
•Electronic cables and accessories with a storage case
•Junction Box
•Controller Box
This Prover also has the unique capability to test Dresser NGS meters equipped with the Integral Micro
Corrector (IMCW2) and other Dresser NGS electronics, such as the ETC and ES3 Electronic Temperature
Compensating Devices.
The Model 6 Prover is a portable unit that can be transported into the field for on-site testing. Because
the Prover is a precision instrument, transport it with care and ensure that it is properly secured and
covered for protection from moisture and dirt.
This unit is designed for indoor and outdoor usage, but it is not designed for use in rain conditions. The
ambient operating temperature is from +32°F to 140°F. Maximum altitude is 6,500 feet above sea level
with an environment of pollution degree 2.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 7 of 107
2.1 Operating Principle
The Prover operates as a transfer test. Blowers are used to pull a vacuum, which draws ambient air into
the meter under test (MUT or Field Meter) and through a connecting hose directly into the Master Meter.
The Field Meter registers pressure, temperature, and volume that are compared to the values registered
by a Master Meter on the Prover. The Master Meter is a Reference Meter with known performance
characteristics that are traceable to national and international standards.
In the normal test set up, the mass of air passes through the Field Meter and then through the Master
Meter. Since the Master Meter’s characteristics are known, the meter under test can be characterized
based on the difference in its performance parameters as compared to the Master Meter. The difference
in performance is expressed in terms of accuracy. Proof and percent error are also displayed.
2.2 Software
Prover software is available for setting test configurations, performing calculations, and presenting the
Prover’s flow test data. The software stores predetermined Field Meter test configurations and allows
custom configurations to be created. It performs all calculations at the end of each test run and displays
the pressure and temperature readings, Field Meter proof, Field Meter accuracy, and percent error. Test
reports can be saved in different formats and downloaded. The software can be configured for Imperial or
Metric display and storage of data.
The software is accessed through a web browser and a connection to the Prover. The connection can be
wireless or through a Cat5e or Cat6 shielded Ethernet cable connected to the Prover. Any device with a
web browser and the ability to connect with the Prover, such as a laptop, desktop, tablet, or cell phone
can be used. No software needs to be installed on the connecting device. The device connects wirelessly
with a router on the Prover, so no Internet service is needed.
3Receiving, Handling, and Storage
Follow the steps and recommendations in this section to ensure your Prover and its accessories are ready
for use.
3.1 At Time of Delivery
Perform the following steps when you receive your shipment:
1. Check the packing list to verify all items have been received.
2. Inspect each item for damage and if necessary:
a. Record any visible damage or shortages on the delivery record.
b. File a claim with the carrier.
c. Immediately notify your Dresser prover supplier.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 8 of 107
CAUTION
Do not accept any shipment with evidence of mishandling without making an immediate inspection
for damage prior to signing the carrier’s delivery record. Do not attempt repairs or adjustments, as
doing so may be a basis for voiding all claims for warranty or insurance claim with carrier.
Refuser toute expédition présentant des signes de mauvaise manipulation sans faire une inspection
immédiate des dommages avant de signer le bon de livraison du transporteur. Ne tenter aucune
réparation ou aucun réglage; le faire peut constituer un motif suffisant pour annuler toutes les
demandes de garantie ou de réclamation d’assurance auprès du transporteur.
3.2 Storage
If the product is not tested or installed soon after it is received, store it in a dry location in the original
shipping container for protection with the Prover’s operating conditions:
•Temperature range of 32°F to 140°F (0°C to 60°C)
•Maximum altitude of 6,500 feet above sea level
•Environment pollution degree 2
4Parts Identification
The following is a list and physical description of the items available for the Dresser Model 6 Prover. Your
Prover order may or may not include all of the components listed below. If any items that you ordered are
missing or damaged, call Meters & Instruments at 1-800-521-1114 or 832-590-2303.
CAUTION
Only use manufacturer supplied parts. Failure to follow this instruction may lead to a safety or
operational hazard.
N’utiliser que des pièces d’origine. Le non-respect de cette consigne peut entraîner un risque de
sécurité ou de fonctionnement.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 9 of 107
4.1 Equipment Provided with the Model 6 Prover
Figure 1: 10M or 2M/10M Prover parts identification
Table 1: Model 6 Prover Parts Identification
Number Part Description
1 Master Meter(s) Reference Meter with known performance characteristics that are traceable to
national and international standards
The Prover may be purchased with one or two Master Meters.
2 Cam Lock Cap Cam-type cap to close off the inlet of the unused Master Meter
3
Master Meter
Instrument Box
Rectangular box mounted to the end cover of the Master Meters(s)
It contains the pressure, temperature, and volume input sensors for the
Master Meter.
4 Master Meter Cable Cable from the Master Meter to the Controller box
5 Blowers Devices attached to the Prover Cart that are responsible for producing a source
of airflow during Prover testing
6 Controller Aluminum or steel rectangular box with electronics and a number of sockets
for electrical and Ethernet connections
7 Throttle Valve Electrical actuator used to aid in the flow rate control for the Prover
8 Accessory Case Briefcase-sized, black container used for storing Model 6 Prover accessory
equipment
9 Prover Hose Flexible, ribbed hose with quick-disconnect couplings at each end
3. Master Meter
Instrument Box(es)
1. Master Meter(s)
2. Cam Lock Cap
6. Controller
9. Prover Hose
5. Blowers
(one on each side)
8. Accessory Case
7. Throttle Valve
4. Master Meter
Cable

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 10 of 107
Figure 2: Accessory Case Items
Table 2: Model 6 Prover Accessory Parts Identification
Number Part Description
1 Field Meter
Temperature Probe
6-inch-long, 1/4-inch diameter silver tube with a cable extending from it
The end of the cable has a push-pull connector.
2 Field Meter Instrument
Drive (ID) Pulser Cable
Cable with a 5-pin connector on one end and a push-pull connector on the
other end
3 Ethernet Cable Cat6 shielded cable used to connect a device to the Prover’s Ethernet jacks
4 Ethernet Cable Cat6 shielded cable used to connect the Field Meter Junction Box to the
Controller
5 Manual Start/Stop Cable
and Button
Cable with a 5-pin connector at one end and a push button at the other
end
6 Blower Brush Replacement Blower Brush
7 Instrument Drive (ID)
Pulser
Small, aluminum, rectangular box with two 90-degree angled metal feet
protruding from the underside and an L-shaped shaft that extends down
between the two metal feet
Two mounting clamps are included with the ID Pulser.
8 Cam Lock Cam-type to close off the inlet of the unused Master Meter
9 Hose Plug Cam-type plug to seal the flexible Prover Hose end when the hose is not in
use
10 Field Meter Pressure
Adapter
“L”-shaped brass pipe fitting with a 1/4-inch NPT threaded end and a
quick-disconnect fitting end that serves as a pressure-dampening device
11 Field Meter Pressure
and Temperature (P&T)
Adapter
Brass “T”-assembly with a 1/4-inch NPT threaded end, a compression
fitting for the temperature probe, and a quick-disconnect fitting for the
pressure fitting
12 25-foot power cord Electric extension cord
13 Field Meter Junction Box Rectangular box with connectors for an Ethernet cable, pressure lines, and
temperature and pressure testing.
1
2
3
4
5
6
7
8
9
10
11
12
13

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 11 of 107
Number Part Description
Not
Shown
Pressure Lines 1/4-inch diameter nylon tubing with compression nuts attached to each
end
One (1) set of blue and black pressure lines is included. Blue is for inlet,
and black is for outlet.

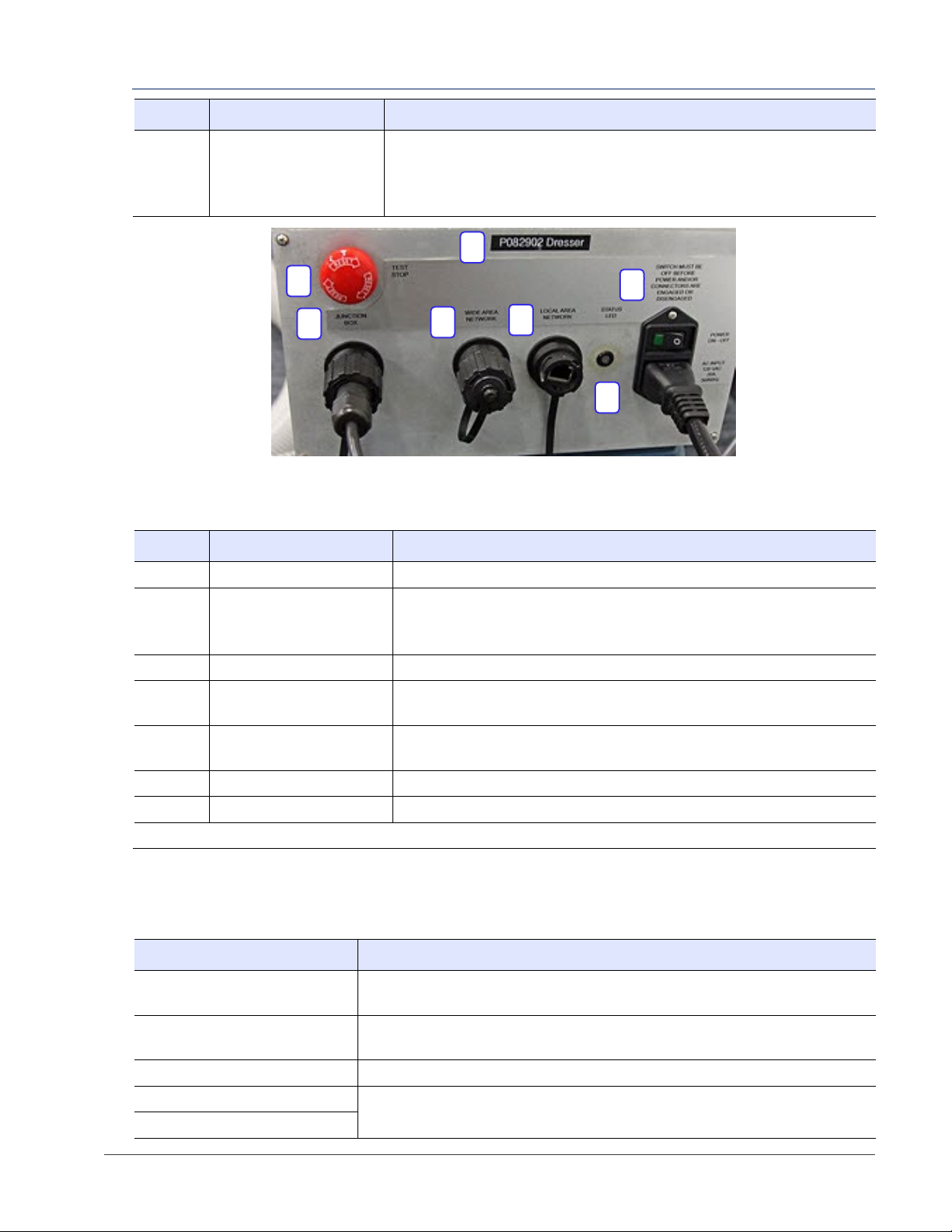

Figure 3: Controller Connections and Test Stop button
Table 3: Model 6 Prover Controller Identification
Number Part Description
1 Serial number label Shows the Prover’s assigned serial number
2 Test Stop button
In case of emergency, press to disable the Blowers and immediately stop
a Meter Test.
If engaged, twist to release and enable the Blowers.
3 Junction Box connection* Ethernet connection to the Field Meter Junction Box
4 WAN port* Ethernet connection to connect to another network, such as a company
network
5 LAN port* Ethernet connection to connect directly to the Prover from a device. This
port runs a DHCP server.
6 Power connection/switch Power cable connection and power switch.
7 Status indicator LED light to indicate the status of the Controller.
* These connections should be covered when not in use.
4.2 Optional Accessories
The following accessories can also be purchased from Dresser and used with the Model 6 Prover:
Part Description
Optical Scanner Used when testing meters with dial indexes and odometers with black and
white graduated marks
Acoustic filter Used when testing ultrasonic meters to reduce or eliminate resonance induced
by pulsation from the Master Meter at some flow rates
Inverter Provides a power source when AC power is not available (120V and 60Hz)
3-inch quick disconnect (female) NPT Cam Lock couplings used to connect the Master Meter to the Field Meter
3-inch quick disconnect (male)
2
3
4
5
7
6
1

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 12 of 107
Part Description
Smart Prove Cable Used for Smart Prove testing to connect the field meter to the Prover’s
Junction Box. The cable can be serial or telemetry/serial (Y-cable).
Reference Meters
Used when validating the transfer Prover’s accuracy between recertifications.
Note: Testing the Prover with a Reference Meter is not a substitute for Prover
recertification.
5Problems with Installation or Operation
If you encounter any serious problems during installation or initial operation of the Prover, immediately
notify your Dresser Prover supplier.

Note: Do not attempt repairs or adjustments. Doing so might void all claims for warranty.
When reporting a suspected problem, complete the following steps:
1. Provide the following information to your Customer Service Representative:
•Purchase order number and/or sales order number
•Product model, serial number, and/or bill of material number
•Description of the problem
2. Pack all returns in the original shipping container or similar, if available, and use shipping material that
protects the product from damage during transit.
3. Contact your Dresser meter supplier to obtain a Return Materials Authorization (RMA) number.
The Dresser Product Services Department offers professional services for all Dresser Meters and
Instruments products. Authorization for return is required for all products shipped to the Factory for
repair, calibration, warranty, exchange, or credit. An RMA number is required to obtain authorization.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 13 of 107
Installation
6Precautions
Ensure that everyone using the Dresser Model 6 Prover takes the following precautions:
DANGER
The Blowers are not explosion proof. Do not operate them when testing in a hazardous area. Do not
operate the Prover in the presence of explosive or flammable gases or an explosion may result. The
Prover system is not designed for intrinsic safety.
Les soufflantes ne sont pas à l’épreuve des explosions. Éviter de les faire fonctionner lors d’essais
dans une zone dangereuse. Ne pas faire fonctionner l’appareil d’étalonnage en présence de gaz
explosifs ou inflammables au risque de provoquer une explosion. L’appareil d’étalonnage n’est pas
équipé de protection à sécurité intrinsèque.
DANGER
At NO time should power be applied when the Prover is in a possibly explosive atmosphere. Observe
all company safety rules, regulations, and procedures.
En AUCUN moment ne convient-il de mettre l’appareil d’étalonnage en marche en atmosphère
potentiellement explosive. Respecter toutes les règles de sécurité, les règlements et les procédures
de l’entreprise.
DANGER
For safety reasons, always use positive pressure to purge the Field Meter (meter to be tested) prior
to initiating a test using the vacuum test method. Failure to purge a Field Meter can result in severe
personal injury and/or equipment damage. For the Meter Purging Procedure, refer to Section 13.
Pour des raisons de sécurité, toujours purger le débitmètre (l’appareil sous essai) avec une pression
positive avant de lancer toute mise à l’essai sous vide. Le non-respect de cette consigne de purge du
débitmètre peut provoquer des blessures graves ou des dommages matériels. Voir la Section 13 pour
la procédure de purge de l’appareil.
WARNING
To avoid a potential electrical shock, do not operate the Dresser Model 6 Prover in the rain or while
standing in water.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 14 of 107
WARNING
The Blowers contain rotating parts. Keep hands clear. Entanglement of hands, feet, hair, clothing, or
accessories can occur causing death or serious injury. Stop and unplug Blowers and wait for all
moving parts to stop before cleaning or servicing.
WARNING
The Controller box might be hot to the touch when operating the Prover outdoors. Do not touch
Controller box when it might be hot. Contact with the hot surface may cause burns.
CAUTION
Do not lay cords, cables, or hoses across a walkway or other location that can create a slip or trip
hazard. Move them out of the way or keep them secured by using a cable cover or other means, as
needed.
CAUTION
Arrange the Prover, cords, cables, hoses, and other accessories to allow sufficient freedom of
movement for users to safely and easily access and use them. Avoid creating a cramped or strained
work location.
•Check upstream and downstream blocking or bypass valves to ensure that they operate properly and
are leak tight in the closed position before powering any device.
•If the Dresser Model 6 Prover is equipped with both the 2M and the 10M Master Meters, make
certain that the unused Master Meter has the inlet capped or plugged to prevent any possibility of
overspeeding the unused Master Meter.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 15 of 107
7Setting Up Prover Equipment
CAUTION
Important: Before setting up your Dresser Model 6 Prover, review this manual for all operating and
safety instructions. Read all instructions within a specific step before executing any of the actions
associated with that step. This equipment should only be operated in the manners specified in this
manual. Failure to follow this manual may cause the protection provided by the equipment to be
impaired.
Important: Avant de paramétrer votre appareil d’étalonnage Dresser Modèle 6, il est important de
lire attentivement toutes les consignes de sécurité et d’utilisation contenues dans ce manuel. Lire
toutes les instructions relatives à chaque étape particulière avant d’exécuter l’une ou l’autre des
mesures correspondant à chacune des étapes. Cet équipement doit uniquement être utilisé de la
manière stipulée dans le manuel. Tout manquement aux instructions contenues dans ce manuel peut
rendre inutilisables les dispositifs de protection intégrés à l’appareil.
CAUTION
This equipment should be maintained and repaired only by Factory-trained personnel. Failure to
follow this direction may result in an injury to personnel or improper functioning of equipment.
Cet équipement doit être entretenu et réparé uniquement par du personnel formé en usine. Le non-
respect de ces directives peut occasionner des blessures au personnel ou un mauvais fonctionnement
de l’équipement.
DANGER
For safety reasons, always use positive pressure to purge the Field Meter (meter to be tested) prior to
initiating a test using the vacuum test method. Failure to purge a Field Meter can result in severe
personal injury and/or equipment damage. For the Meter Purging Procedure, refer to Section 13.
Pour des raisons de sécurité, toujours purger le débitmètre (l’appareil sous essai) avec une pression
positive avant de lancer toute mise à l’essai sous vide. Le non-respect de cette consigne de purge du
débitmètre peut provoquer des blessures graves ou des dommages matériels. Voir la Section 13 pour
la procédure de purge de l’appareil.
This procedure assumes that the Model 6 Prover (and associated hardware) has been unpacked from the
shipping container, all of the packing material has been removed, and the Prover is ready to be properly
configured for testing. Maintain the Prover Cart in a horizontal position during operation and keep it as
level as possible.
Isolate the Field Meter to be tested from any gas before testing. Follow all recommended and/or
company safety procedures.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 16 of 107
To set up the Prover for testing, perform the following steps:
1. Position the Field Meter for testing.
CAUTION
The Field Meter air intake functions as a vacuum during testing and foreign material may be
drawn into the Prover. Remove all loose objects, foreign debris, and litter from in front of the
Field Meter air intake and keep it clear during Prover testing.
2. Connect the 25-foot flexible Prover Hose to the outlet of the Field Meter, and connect the other end
of the hose to the inlet quick-disconnect coupling of the appropriate Master Meter (Figure 4).
Where possible, put a loop in the hose between the Master Meter and the Field Meter.
3. If the Prover has two Master Meters, ensure the Cam Lock Cap is firmly attached to the inlet
quick-disconnect coupling of the unused Master Meter (Figure 5).
Figure 4: Connect Prover Hose to Master Meter Figure 5: Hose connected to Master Meter
to be used and other is capped

Note: In Figure 5, the lower Master Meter is being used for the test, so the upper
Master Meter is capped.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 17 of 107

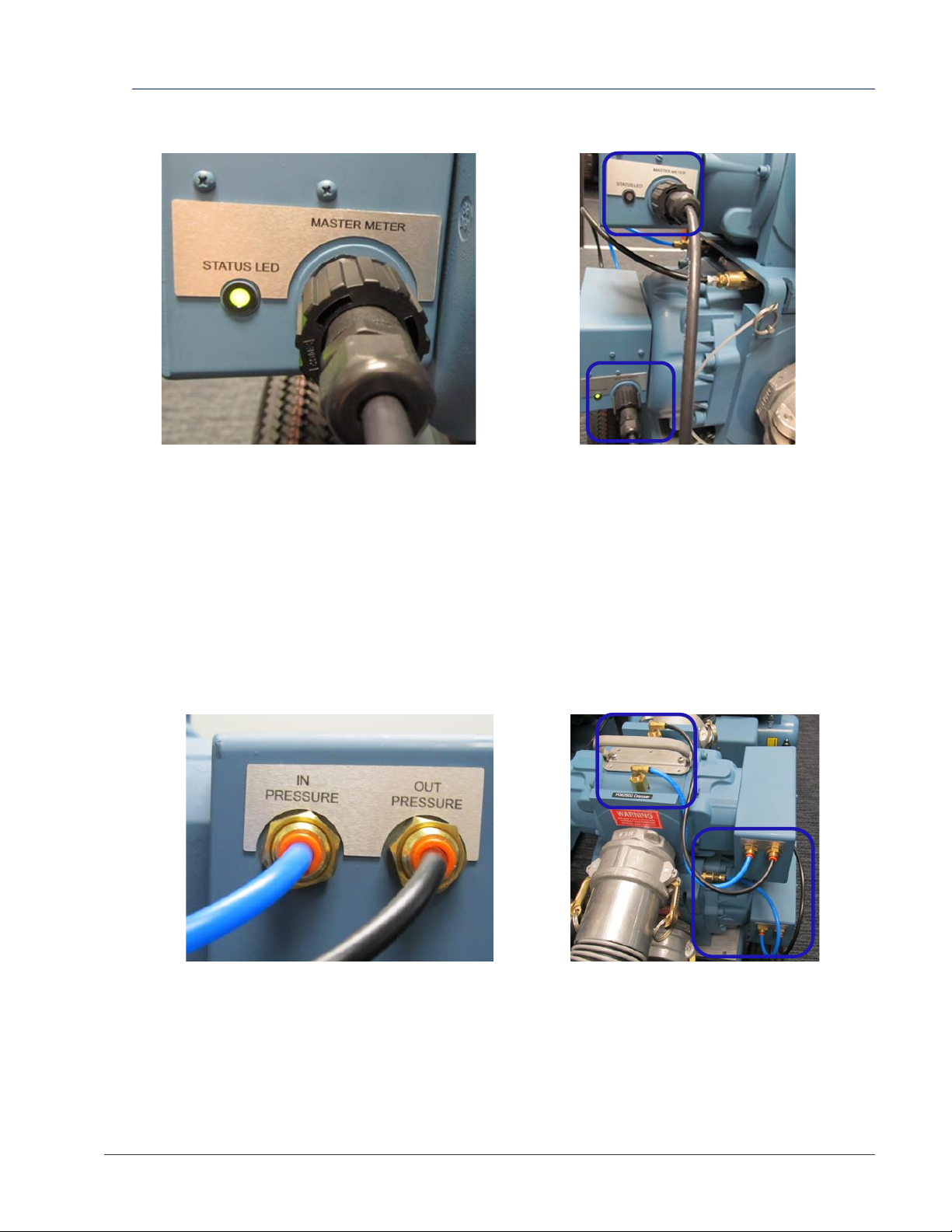

4. Verify the Master Meter communication cables connections are locked into place into each respective
Master Meter’s Instrument Box (Figure 6 and Figure 7).
Figure 6: Verify Master Meter communication
cables connected
Figure 7: Master Meter communication cables
connected
5. Verify the pressure lines are properly connected from the Master Meter pressure fittings to the
appropriate Master Meter Instrument Box (Figure 8 and Figure 9):
•One end of a blue inlet pressure line connects into the selected Master Meter inlet pressure
fitting and the other end connects into the inlet pressure port on the Master Meter Instrument
Box (labeled IN PRESSURE).
•One end of a black outlet pressure line connects into the selected Master Meter outlet pressure
fitting and the other end connects into the outlet pressure port on the Master Meter Instrument
Box (labeled OUT PRESSURE).
Figure 8: Master Meter blue inlet and black
outlet pressure lines connected
Figure 9: Master Meter pressure lines
connected

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 18 of 107
6. Connect an Ethernet cable from the Field Meter Junction Box Ethernet jack (Figure 10) to the Ethernet
jack labeled JUNCTION BOX on the Controller (Figure 11).
Figure 10: Connect Ethernet cable from the
Field Meter Junction Box
Figure 11: Connect Junction Box Ethernet cable
to the Controller
7. Install the P&T Adapter into the appropriate port on the Field Meter:
•For rotary and diaphragm meters, install the P&T Adapter into the inlet pressure port.
•For turbine meters, install the P&T Adapter into the outlet pressure port.
8. Install the Field Meter Pressure Adapter into the outlet pressure port of the Field Meter for rotary and
diaphragm meters.
9. Insert the Field Meter temperature probe into the P&T Adapter vertical port until the temperature
probe is in the center of the air stream, and then hand tighten the compression fitting.
If installing the P&T Adapter into the top of a diaphragm meter, do not extend the probe to the point
where it will engage with the tangent linkage.
If an opening is not available, install the probe in the pipeline as close to the meter outlet as possible.
CAUTION
Make sure that the Field Meter temperature probe or the meter being tested cannot be damaged
due to the positioning of the Field Meter temperature probe. Avoid leakage at or around the P&T
Adapter or Field Meter temperature probe.
S’assurer que la sonde thermique du débitmètre ou l’appareil mis à l’essai ne peut pas être
endommagé en raison de la position de la sonde de température. Éviter toute fuite de, ou autour
de, l’adaptateur ou de la sonde de température P&T.
10. Plug the end of the Field Meter temperature probe cable into the Field Meter Junction Box
connection labeled TEMP PROBE.
11. Ensure the pressure lines are properly connected from the P&T Adapter (the T-shaped brass piece) at
the silver quick-disconnect fitting to the Field Meter Junction Box:
•One end of a blue inlet pressure line connects into the P&T Adapter and the other end connects
to the port labeled IN PRESSURE on the Field Meter Junction Box.
•One end of a black outlet pressure line connects into the Pressure Adapter, and the other end
connects to the port labeled OUT PRESSURE on the Field Meter Junction Box.

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 19 of 107
Figure 12: Field Meter with ID Pulser attached
Figure 13: Attach blue inlet and black outlet
pressure lines
12. If using an ID Pulser as the test equipment, perform this step and then skip to step 15.

Note: Use an ID Pulser to test only non-compensated (non-TC) rotary meters.
Figure 14: Instrument Drive Pulser test setup
As the drive dog travels around the interior hole of the adapter plate during testing, it is critical that
continuous contact is maintained between the drive dog and the follow pin before securing the ID
Pulser to the adapter plate:
Figure 15: ID Pulser detail of the drive dog connected to the follow pin on a CD version meter

Dresser™ Model 6 Transfer Prover Operation and Maintenance Manual for 2/10M and 10M Versions
© 2019 Natural Gas Solutions North America, LLC Page 20 of 107
CAUTION
Improper alignment and engagement of the instrument drive dog can lead to equipment damage.
Un mauvais alignement et l’engagement du toc d’entraînement peut endommager l’instrument.
a. Place the ID Pulser over the center hole of the adapter plate. Determine which set of mounting
holes in the adapter plate to use to get the ID Pulser shaft most closely centered over the adapter
plate and drive dog.
b. Fasten the ID Pulser to the adapter plate. This can be done by using the two (2) mounting clamps
provided.
You may need to make fine adjustments to the position of the ID Pulser when the meter test
begins, so do not tighten the mounting clamps all the way down yet.
c. Plug the ID cable into the Field Meter Junction Box at the connection labeled VOLUME INPUT.
13. If using an Optical Scanner as the test equipment, perform this step.

Note: Mounting the Optical Scanner and positioning the lens relative to the target is
critical for the reliable operation of the device.
a. Align the Optical Scanner as indicated in Table 4 and hand tighten. For illustrations of the test
wheel and dials, refer to Figure 17 and Figure 18.
For Series A1, refer to Figure 19. For Series B2, refer to Figure 20. For series B3, refer to Figure 16.
For correct focusing and positioning, refer to steps c and d.

Note: The distance X shown in Figure 19 and Figure 20 should be approximately 1/2 inch
(or about the width of your small finger). Set angle A slightly off-center at approximately
15 degrees.
Table 4: Dresser NGS Meters Optical Scanner Alignment
Series Temperature Compensated (TC)
Combined Test Uncorrected (UC) Test
B2 (TQM)
B3 (Life-lubed)
Aim the Optical Scanner at the dial containing
10 white and 10 black squares of the
temperature compensated Volume
Odometer dial.
Aim the Optical Scanner at the dial
containing 10 white and 10 black squares of
the non-compensated Volume Odometer
dial or at the high-speed half-black and
half-white dial.
Series A1
(LMMA)
Aim the Optical Scanner at the dial containing
10 white and 10 black sections.
Aim the Optical Scanner at the dial that is
half white and half black.
