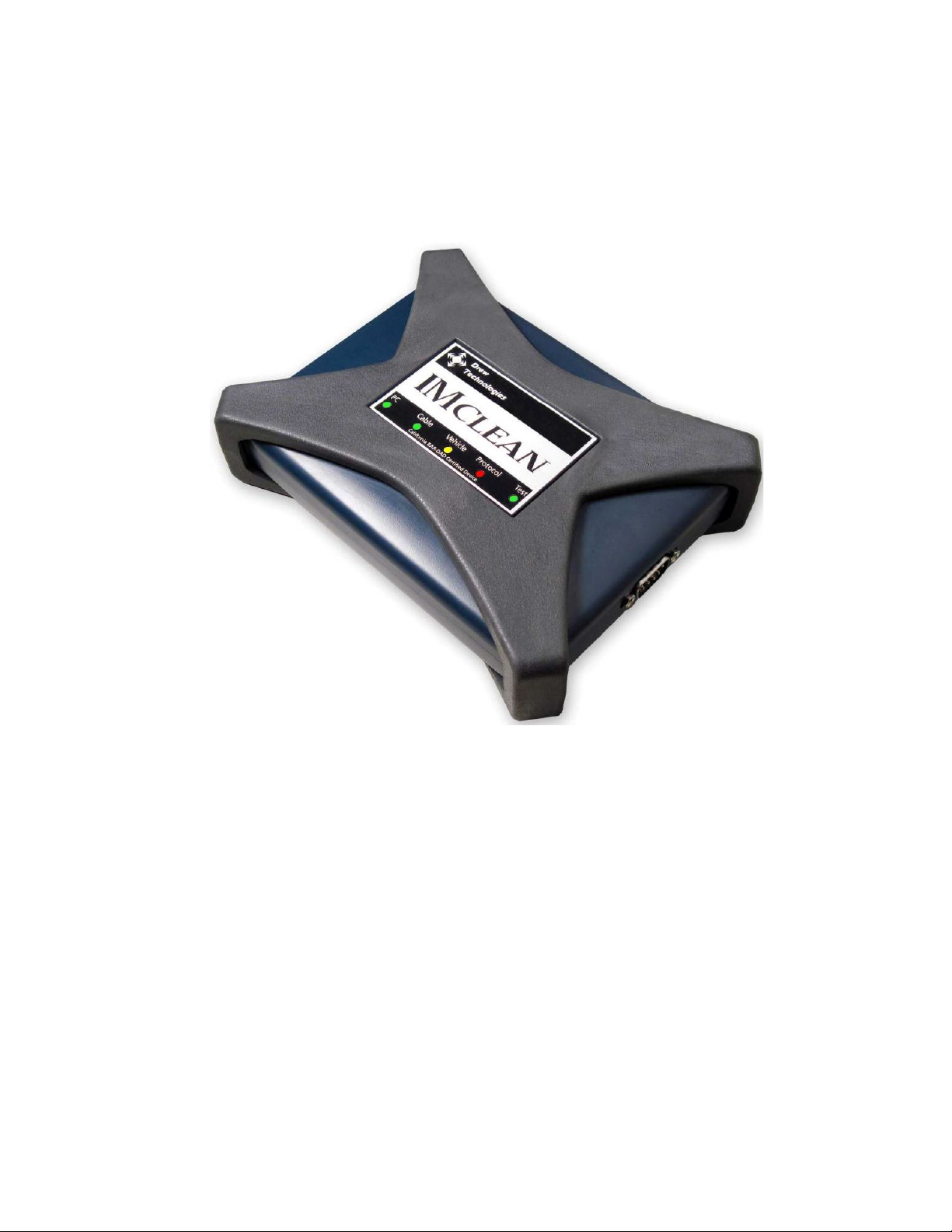

IMclean Manual

LIMITED WARRANTY
OPUS IVS formerly Drew Technolgies. guarantees that every IMClean device as well as
included accessories are free from physical defects in material and workmanship under normal
use for one year from the date of purchase. If the product proves defective during this
warranty period, email OPUS IVS Customer Support ([email protected]) in order to
obtain a Return Authorization number. When returning a product, mark the Return
Authorization number clearly on the outside of the package and include your original proof of
delivery.
IN NO EVENT SHALL OPUS IVS formerly DREW TECHNOLOGIES, INC.'S LIABILITY
EXCEED THE PRICE PAID FOR THE PRODUCT.
OPUS IVS formerly Drew Technologies SHALL BE EXEMPT FROM ALL OTHER
CLAIMS WHETHER BASED UPON DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGESRESULTING FROM THE USE OF THE PRODUCT, ITS
ACCOMPANYING
SOFTWARE, OR ITS DOCUMENTATION. OPUS Ivs . makes no warranty or
representation, expressed, implied, or statutory, with respect to its products or the contents or
use of this documentation and all accompanying software, and specifically disclaims its
quality, performance, merchantability, or fitness for any particular purpose. Drew
Technologies, Inc. reserves the right to revise or update its products, software, or
documentation without obligation to notify any individual or entity. Please direct all
inquiries to:
OPUS IVS formerly Drew Technologies
7322 Newman Blvd
Building 3
Dexter, MI 48130
Phone: [phone]
Fax: [phone]
FCC Statement
The wireless module has been tested and found to comply with the FCC part 15 and IC
RSS-210 rules. These limits are designed to provide reasonable protection
against harmful interference in approved installations. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference may not occur
in a particular installation. This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Modifications or changes to this equipment not expressly approved by the part
responsible for compliance may render void the user’s authority to operate this
equipment.
– Modular Approval, FCC and IC
FCC ID: X3ZBTMOD3
IC: 8828A-MOD3
In accordance with FCC part 15, the SPT2632C1A.AT2 is listed above as a
modular transmitter device
2

Introduction
Thank you for choosing IMClean! This Quick Start Guide covers the
initial setup of your device.
Your IMclean Kit includes:
• IMClean
• Driver CD
• Vehicle Cable
• USB cable
• Self Test Cable
• Cigarette Lighter Adaptor Cable.
• External power cable w/Battery clamps
• Bluetooth dongle(only with Bluetooth units)
The vehicle cable is custom made by OPUS IVS formerly Drew
Technologies, Inc. To obtain replacement/additional vehicle cables,
please contact OPUS IVS, Inc. Generic vehicles cables, or cables
provided from other tools/devices will not
function with the IMClean interface.
DAD Device, CD, and Bluetooth
dongle
Cables included
DAD Indicator Lights
PC
Cable
Vehicle
Protocol
Test
Green = USB
active
Blue = Bluetooth
active
Red = no drivers
installed
Green = ok
Red = no cable
connected or
improper cable
connected
Green = vehicle
connected
No indication =
voltage less than
8V on OBD port.
Try external cable
Green flashing =
communicating
with vehicle
Green solid =
connected to
vehicle
Green = self test
is active
Red = test failed
3

IMclean Cables
The cables provided with the IMclean are proprietary. Attempting to
use the IMclean with cables not produced by OPUS IVS will cause
the IMclean to not communicate with vehicles or the PC.
Using a NON-OPUS IVS vehicle cable will cause the Cable light to be
red on the IMclean.
Cable extensions for either the USB or Vehicle cable is not approved
and is a modification to the certified hardware package. OBD
extenders can cause CAN communication failures. Using USB
extenders can cause data to et lost when going over the USB maximum
distance.
Initial IMclean Setup
When getting started with your IMclean, we recommend starting using
the wired connection to the PC. You MUST have the red vehicle cable
connected to the IMclean, or else the IMclean will NOT communicate
with the PC and the Cable LED will be red.
If you do not have a vehicle available to power your IMclean, make
sure you have a reliable source of power available, either a known
good power source with a cigarette lighter adaptor or a good car
battery that you can clip the battery clip cable to.
4

Installing DAD Drivers
Insert the provided driver CD and run the setup application prompted
by the Autorun feature. Follow the steps on-screen to install the
IMclean DAD drivers and vendor applications.
Once installed, all IMclean firmware and USB driver updates will be
performed from the IMClean Support and Updater application located
in Start All Programs Drew Technologies, Inc 
Connecting your DAD - Wired
Note: Even wireless DAD devices will work in wired mode. If you
have purchased a wireless DAD, follow this step to ensure your
wireless DAD also works in wired mode.
Once the setup application is complete, attach your IMclean DAD
device to your PC using the USB port and allow the driver install to
complete. A balloon will appear in the lower right hand corner of your
screen by the system try when the device installation is completed.
5

Connecting your DAD -
Wireless
If you have purchased a wireless DAD, you can now configure it for
wireless use. If you did not purchase a wireless DAD, skip this section.
1. Unpack the TrendNET Bluetooth dongle that you received
2. Plug the Bluetooth dongle into a USB port on your PC and
allow Windows to install the generic drivers. DO NOT use the
manufacturer's drivers.
3. Power your DAD device up. Plug into a vehicle and wait 30
seconds. If you power it up thru USB, Bluetooth will be
disabled.
4. To pair your IMClean, right click on the Bluetooth Icon in the
system tray.
5. Click on "Add Device"
6

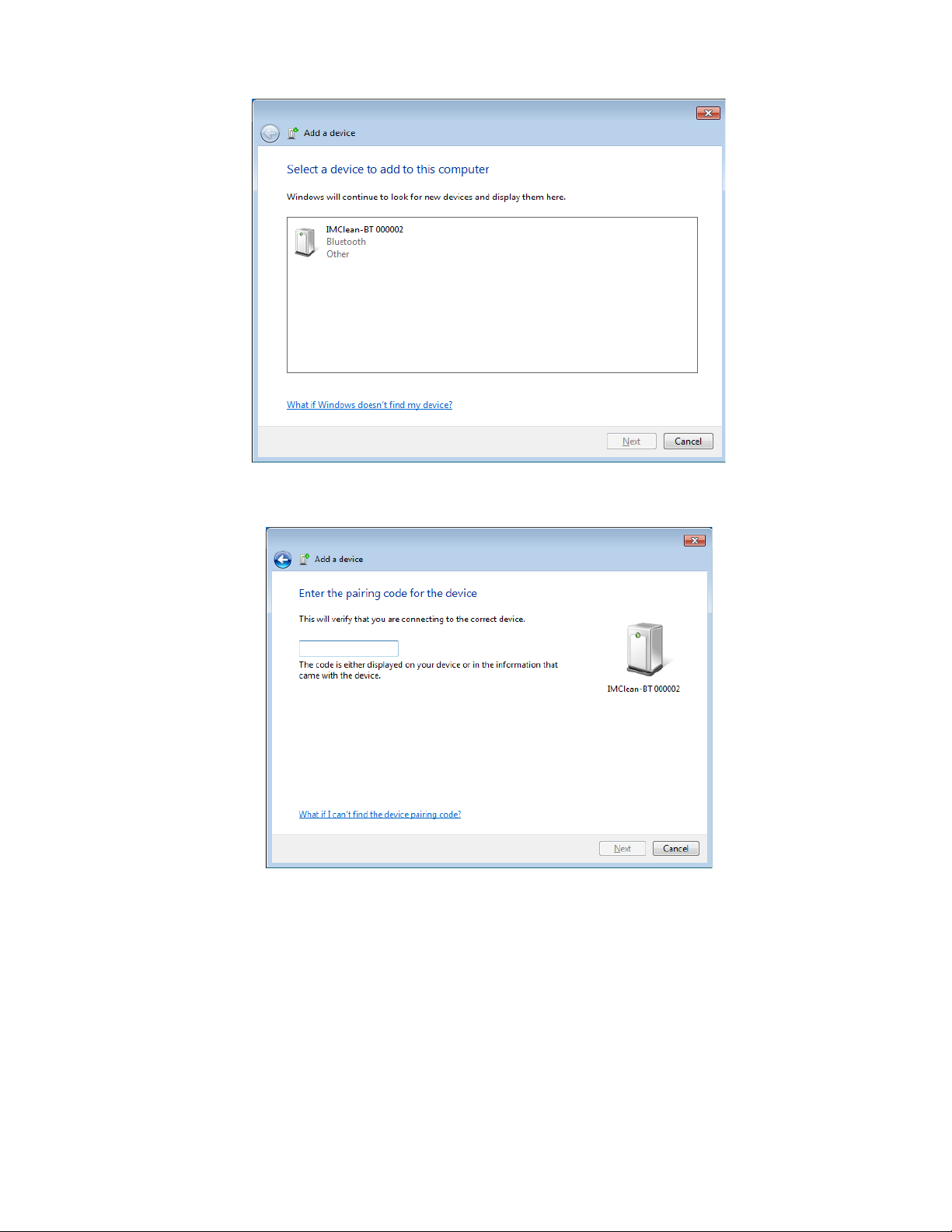

6. Select your device from the available options, then click next
7. Enter "2534" in the text box and click next pair the IMClean
BT.
7

8. Your IMClean BT has been successfully paired with your
PC.
Install the BAR OIS Software
1. Go to the registration page provided by BAR.
2. Register your Station.
3. Download and run the installer.
4. Start the BAR OIS application; Follow onscreen instructions
regarding setting up your DAD unit.
8

• For Windows 10 or 11, click on the IMclean Support and
Updater application from the Start page.
Open the application and click next.
9

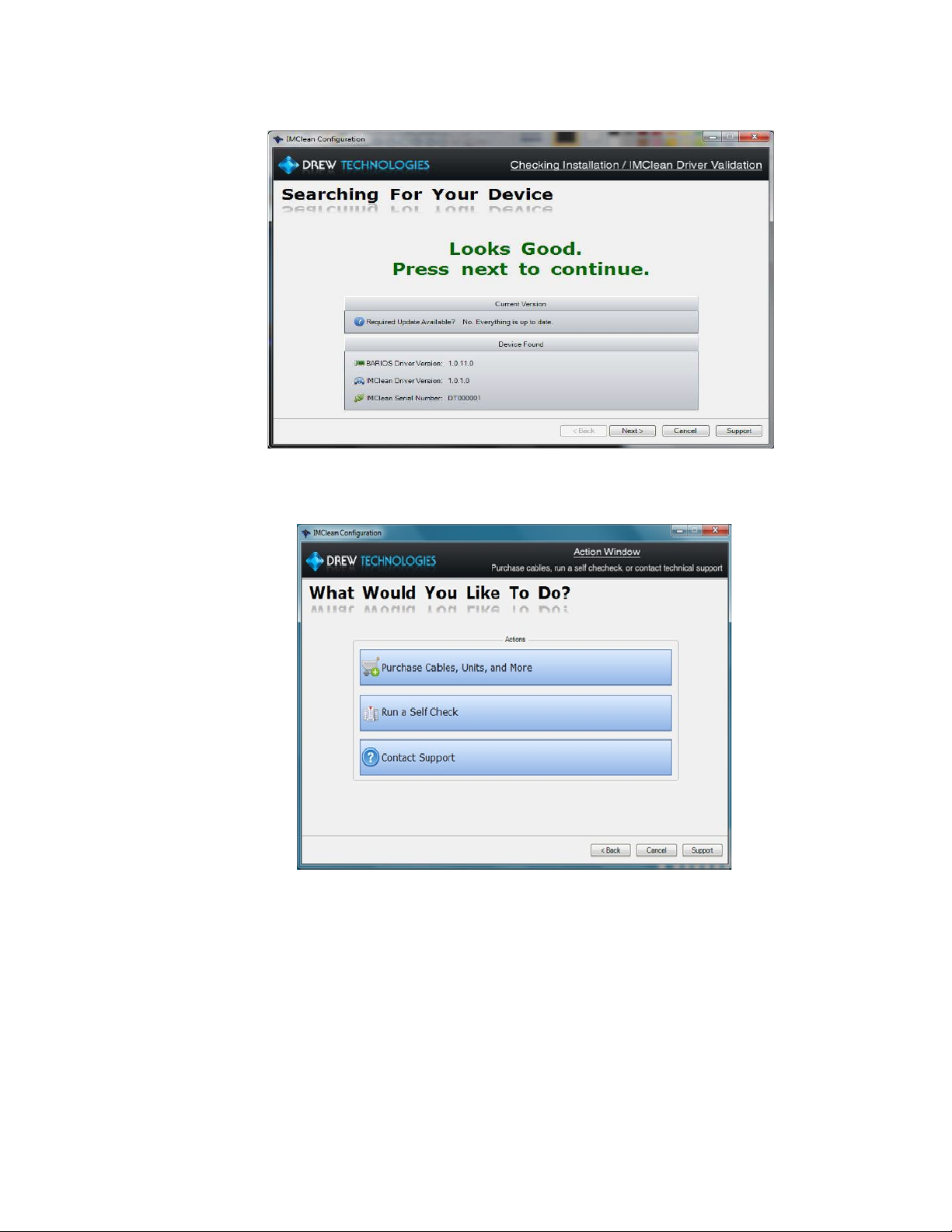

Support & Updater
Application

• If you device is up to date, you will see this screen. If your
device requires an update, you can click the update button
in the current version box or click next.
• Additional options for your IMClean are available on this
page.
10

Using Wireless
1. You must only have One (1) IMclean BT paired with your PC at any time.
The IMclean driver will inform you if you have multiple devices paired to
your PC and will stop functioning.
2. The IMclean DAD wireless connection has a range of up to 100 feet.
Actual wireless range depends on the environment the DAD is operated in.
As the DAD is moved away from the PC with the Bluetooth connection,
performance will decrease and eventually the connection will fail.
3. When connecting the IMclean Wireless DAD to the vehicle, you may need
to wait up to 30 seconds for the Bluetooth to power up and be detected by
Windows.
Using Auxiliary Power
1. If the Vehicle LED is not lit or there is a "Low Voltage" message from the
system tray application when the IMClean is connected to the DLC, there
may be a lack of power or bad ground at the DLC.
2. Plug the cigarette lighter adaptor in the cigarette lighter port and Check the
red LED on the cigarette lighter adaptor is lit, if so go to step 4.
3. If there is not power at the cigarette lighter, disconnect it and use the 12V
battery cable and connect the clamps to the battery.
4. Plug the opposite end into the IMClean.
5. Check the Vehicle LED.
6. If the LED is lit, Proceed with test. If not, diagnose power issue.
11

Performing a Self Test
1. Connect the IMClean to the PC, and you must power the unit via the
cigarette lighter adaptor or cable with battery clamps.
2. Plug in the Self Test cable to the female DB9 port by the external power
connection.
3. Log into the BAR OIS application.
4. Open the DAD Diagnostic section.
5. Click Ready when the IMclean is ready to test.
6. If either function returns a failure, contact Technical Support.
12

Firmware & DLL Update
Once a Firmware or DLL update has been released, you will have two
weeks to update your device. If you exceed the two-week window, your device will
no longer communicate with the BAR OIS application until you update the firmware
in your device. You cannot downgrade your software.
To check and upgrade firmware, go to Start All Programs Drew Technologies,
Inc BAR OISIMClean Support and Updater.
If you device is up to date, you will see this screen. If your device requires an
update, you can click the update button in the current version box or click next.
13

Uninstalling your DAD
Drew If you wish to remove the IMclean device from your computer permanently,
you can remove all software by using the uninstall feature from Windows control
panel.
Technical Support &
Repairs
OPUS IVS is available Monday through Friday to answer any technical support
questions. Please email [e-mail] if you need assistance or call (734)
222-5228 (option 2,1).
If technical support finds it necessary to return the IMclean for repair, you will be
asked for your contact information and provided with a Return Merchandise
Authorization number (RMA#) that OPUS IVS will use to track the unit. Please
write this number on the outside of your shipping box so it can be routed to the
correct department. If the necessary repair is not covered by OPUS IVS' warranty,
you will be contacted for payment arrangements.
14
