Drew Technologies opus IMclean DAD4 User manual

IMclean DAD4
FORMERLY DREW TECHNOLOGY
FORMERLY DREW TECHNOLOGY
MANUAL

IMclean DAD4 Manual
CONTENTS
Contents of Box .............................................................................
Installing DAD4 Drivers ...............................................................
Updating IMclean DAD4 Drivers ................................................
Connect IMclean DAD4 with Bluetooth ...................................
Performing a Self-Test .................................................................
DAD4 Indicator Lights ..................................................................
IMclean Cables ................................................................................
Initial IMclean Setup .....................................................................
Selecting Your IMclean Gen4 in California BAR OIS .............
Uninstalling Your DAD ..................................................................
Support and Warranty Information .........................................
1
2
4
6
8
12
13
13
13
13
14

1
IMCLEAN GEN4
CONTENTS OF BOX
1 IMcleanGEN4-BT-03 unit
1 Bluetooth Dongle
1 IMclean OBD2 Cable 9'
1 IMcleanself-Test Cable
1 IMclean External Charger
1 IMclean Cigarette Lighter Cable 15'
1 IMclean USB Cable 6'
1 IMcleanGEN4-BT-03 Manual

IMclean DAD4 Manual2
INSTALLING DAD4 DRIVERS
Navigate to www.opusivs.com
Choose Support >Downloads
Scroll to IMclean®DAD4.
Click on the DOWNLOAD link.
Open Downloads folder.
Double-click the downloaded
“IMcleanGen4_setup”to run.
1.
2.
3.
4.
5.
6.

3
Read the End-User License Agreement and check the "I accept..."box.
Click Install.
Follow on-screen prompts to complete installation.
Click Finish.
Connect the IMclean to the USB cable and plug the USB cable
into your PC.
7.
8.
9.
10.

IMclean DAD4 Manual4
Open this folder >C:\Program Files (x86) >
Drew Technologies, Inc >IM_DA >IMCleanUpdater
Confirm that the USB
cable and vehicle cable
are plugged into the
IMclean DAD4. Click OK
1.
3.
UPDATING IMCLEAN
DAD4 DRIVERS
Windows (C:) > Program Files (x86) > Drew Technologies, Inc > IM_DA
Double-click
IMcleanUpdater
to run.
2.

5
Click Update Now
Follow on-screen directions.
Click OK.
4.
5.
6.

IMclean DAD4 Manual6
Insert the Bluetooth dongle into a USB port on your PC
(if your PC does not have built-in Bluetooth).
Note: if your computer already has an internal Bluetooth antenna, do not
use the USB Bluetooth dongle supplied with the kit. If you plug in the
dongle redundantly, it can cause communication problems.
Note: the device must be connected to 12v
external power in order to enter pairing
mode, using the IMclean External Charger
or the IMclean Cigarette Lighter Cable.
Click “Add a Bluetooth Device”
Click “Add a Bluetooth or other Device”
Click on Bluetooth
Right-click the Bluetooth icon in the system tray in
the lower right corner of your screen.
Note: the USB cable can not be connected at all if you wish to use Bluetooth
PAIRING CODE/PIN IS: 2534
1.
3.
4.
5.
2.
CONNECT IMCLEAN DAD4
WITH BLUETOOTH

7
Note: if your computer already has an internal Bluetooth antenna, do not
use the USB Bluetooth dongle supplied with the kit. If you plug in the
dongle redundantly, it can cause communication problems.
Wait until you see “IMclean-GEN4-######” and click on it.
You may be prompted to enter a pairing code. The code is 2534.
You may only have one (1)IMclean BT paired with your PC at any time.
The IMclean driver will inform you if you have multiple devices paired
to your PC and will stop functioning.
6.
7.

Windows (C:) > Program Files (x86) > Drew Technologies, Inc > IM_DA
IMclean DAD4 Manual8
PERFORMING A SELF-TEST
Confirm that the USB cable and vehicle cable are plugged into the
IMclean DAD4. Click OK.
1.
Open this folder >C:\Program Files (x86) >
Drew Technologies, Inc >IM_DA >IMCLeanUpdater
2.

9
Click Next.
Click OK.
5.
4.
Click Next.
3.

IMclean DAD4 Manual10

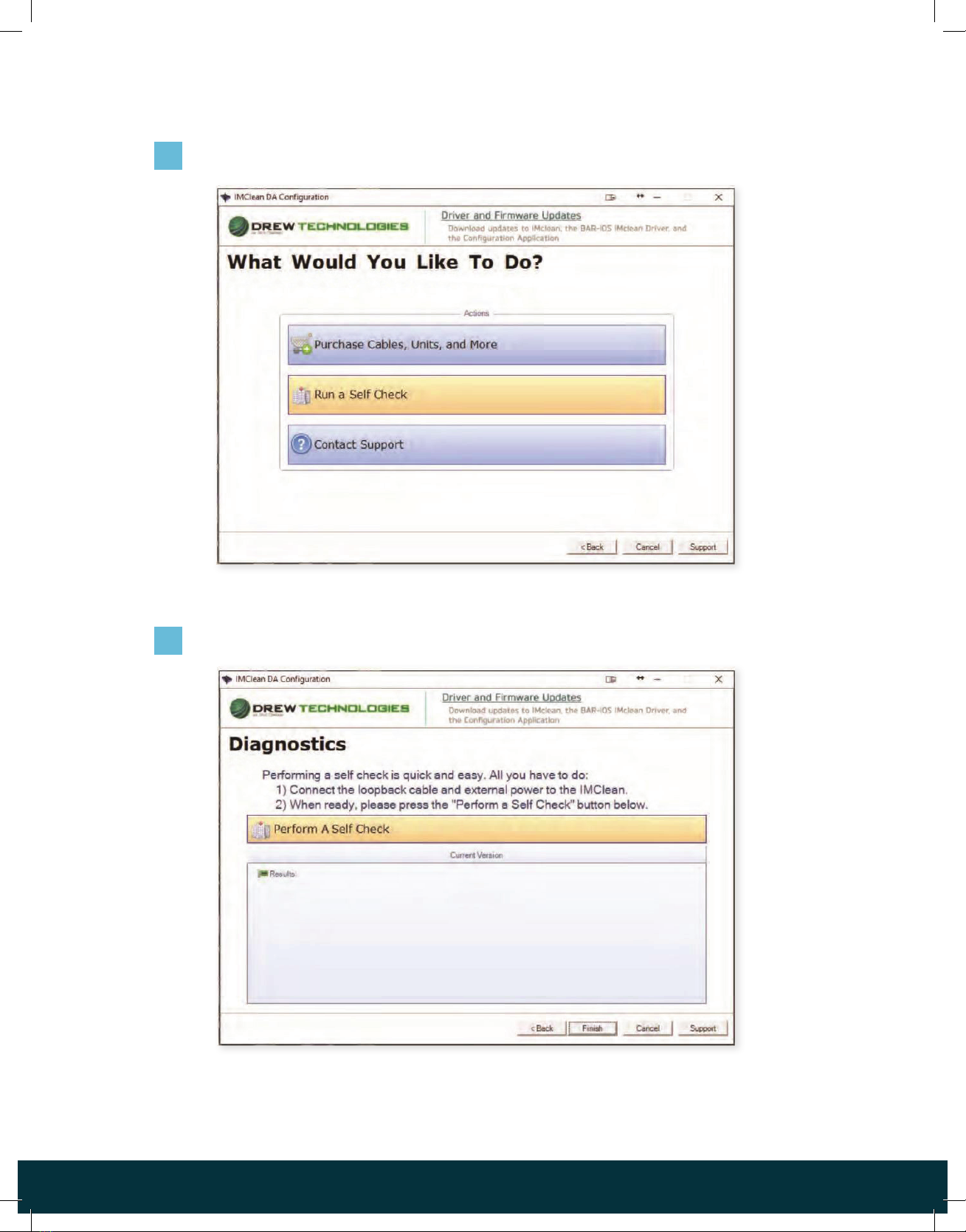

Click “Run a Self Check”.
Click “Perform a Self Check”.
6.
7.

11
If the DAD does not pass the test, leave this screen up when you
contact Technical Support as it will help them diagnose the issue
you are having.
b. Fail Example:a. Pass Example:
8.
Code 0: Passed the test
Code 7 or 8:
•No devices detected. Please connect
one and retry.
oNeed to plug in IMClean USB cable;
repair Bluetooth.
•Firmware Error e7: efailed ‘OpenDevice:
Cable not connected’
oNeed to plug in the proprietary
IMClean OBD2 cable
•[0201]No +12V test voltage available:
Expected >8000mV, found #v
oNeed to plug in external power, using the
the IMClean External Charger or IMClean
Cigarette Lighter Cable
•[0202]Pin 16 voltage test FAILED:
expected >11040mV, found ##LESS##
oNeed to plug in IMClean Self-Test Cable
•[0301]Pin 4 ground test FAILED:
expected 2650mV OC voltage,
found #m
oGenerally this indicates hardware damage.
oSometimes swapping 12v sources can
resolve this.
IMCLEAN DAD ERROR CODE STRING INFORMATION:
•[0302]Pin 5 ground test FAILED:
expected 2650mV OC voltage,
found #m
oGenerally this indicates
hardware damage.
oSometimes swapping 12v
sources can resolve this.
•[0905]J1850PWM Remote Static Test:
Remote shows deasserted while local
TX asserted
oGenerally this indicates
hardware damage.
•[1002]K-Line Static Test: Idle state
voltage too low:
Expected >10370mV, Found 160mV
oGenerally this indicates
hardware damage.

IMclean DAD4 Manual12
DAD4 INDICATOR LIGHTS
AUXILIARY POWER CABLE USAGE:
There are two types of auxiliary power cables:
•External Battery Charger –used to charge the battery or perform
a self-test. If the IMclean shuts down after removed from DLC plug
into charger.
•Cigarette Lighter Power Adapter –used when there is no power at
the DLC for performing a vehicle test or a self-test
Either of the cables can be plugged into the barrel port between the
vehicle cable and self-test cable ports.
PC CABLE VEHICLE PROTOCOL BATTERY
LED
Slower Green Flash
=USB OK
Fast Green Flash
=Pairing Mode
Solid Green
=Connected
Blue
=Bluetooth OK
Red
=No drivers
installed
Green =OK
Red =no cable
connected, or
improper cable
connected
Green =vehicle
connected
No indication =
voltage less than
8V on OBD port
Green flashing =
communicating
with vehicle
Green solid =
connected to
vehicle
Green =
Charged —Not
charging anymore
Red =Charging

13
IMCLEAN CABLES
INITIAL IMCLEAN SETUP
UNINSTALLING YOUR DAD
SELECTING YOUR IMCLEAN
GEN4 IN CALIFORNIA BAR OIS
The cables provided with the IMclean are proprietary. Attempting to use the
IMclean with cables not produced by Drew Technologies will cause the IMclean
to not communicate with vehicles or the PC.
Using a NON-DrewTech vehicle cable will cause the cable light to be red on
the IMclean.
Cable extensions for either the USB or vehicle cable are not approved and are a
modification to the certified hardware package. OBD extenders may cause CAN
communication failures. Using USB extenders may cause data to be lost when
going over the USB maximum distance.
When getting started with your IMclean, we recommend using the wired
connection to the PC. You MUST have the red vehicle cable connected to the
IMclean, or else the IMclean will NOT communicate with the PC and the cable LED
will be red.
If you wish to remove the IMclean device from your computer permanently, you
can remove all software by using the uninstall feature from the Windows
control panel.
Open OIS from the Desktop icon. Click File > Self Diagnostics. Scroll to the bottom
of the page. Click Configure. Select “DrewTechnologiesSeriesDA”from the dropdown
menu. Leave the DAD port blank. Click Continue.

IMclean DAD4 Manual14
SUPPORT AND
WARRANTY INFORMATION
BAR-OIS
• BAR Help Desk: [phone]
• BAR Home Page: https://www.bar.ca.gov/Industry/BAR-OIS
• BAR-OIS Software Download (Scroll to bottom):
https://start.calbarois.com/calvis-registration/
• BAR Contact Page: https://www.bar.ca.gov/Contact_Us
Opus IVS
• Opus IVS Downloads page: https://www.opusivs.com/support/downloads
• [phone] Option (2 → 3)
• [e-mail]
Opus Inspection
• ESP Website: https://www.esp-global.com/en_US/IM/California
• ESP Customer Support: [phone]
• [e-mail]
Warranty information
• IMclean-DAD comes with a 3 year warranty, beginning on date of purchase
• Adapters/Cables have a (90) day warranty. In cases where customer receives
a defective cable, we will credit them upon confirming the device is defective.
• When we REPAIR a device, there is a (90) day warranty.
