DT Research ACC-DC262-01 Assembly instructions

BASIC OPERATION GUIDE
Instruc�ons:
Connect the AC-DC adapter cable to the DC-input jack,
and then insert the Tablet system and/or the baery
pack properly for charging.
Thank you for purchasing the Desktop Charging Cradle
by DT Research, available for charging one (1) DT362 or
DT363 series Rugged Tablet and one (1) baery pack.
CAUTION:
This charger must only be used with the specic tablet models for which it is designed. Failure
to do so may result in baery or charger damage, or personal injury.
Package Contents:
1. Desktop Cradle
2. Basic Operaon Guide
Desktop Charging Cradle
Precau�ons
1. Always exercise care when operang and handling.
2. Do not disassemble any poron of the charger and adapter, as this will void any product
warranty.
3. Do not use any power adapter other than the one provided with the device or acquired
from the manufacturer or its partners.
4. In the unlikely event that abnormal noise, strange odor, or smoke is present, immediately
disconnect all power sources. Please report the problem to your device provider
immediately.

signage dtri com
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 www.dtresearch.com
Copyright © 2020, DT Research, Inc. All Rights Reserved. BOG 090120 DC262DC263 ENG
ACC-DC262-01 ACC-DC263-01 ACC-DC262MD-01
I/O Ports
DC-in Port 1 (USB Type-C) 1 (USB Type-C) 1 (USB Type-C)
LAN Port 111
USB Ports 244
HDMI Output N/A 1 1
Mechanical and Environmental
AC/DC Adapter* Input: 100 – 240V AC;
Output: 20V DC, 3.25A
Input: 100 – 240V AC;
Output: 20V DC, 3.25A
Input: 100 – 240V AC;
Output: 20V DC, 3.25A
Dimensions
(H x W x D)
1.57 in x 5.12 in x 1.46 in /
40 mm x 130 mm x 137 mm
1.57 in x 5.12 in x 1.46 in /
40 mm x 130 mm x 137 mm
1.57 in x 5.12 in x 1.46 in /
40 mm x 130 mm x 137 mm
Weight 0.7 lb/ 318 g 0.72 lb / 325 g 0.72 lb / 325 g
Temperature Operaon: 0°C – 40°C;
Storage: -20°C – 60°C
Operaon: 0°C – 40°C;
Storage: -20°C – 60°C
Operaon: 0°C – 40°C;
Storage: -20°C – 60°C
Humidity 0% – 90% non-condensing 0% – 90% non-condensing 0% – 90% non-condensing
* The AC/DC Adapter is not included in the standard package.
** Specicaons subject to change without noce.
Specifica�ons
CAUTION:
Only use the Power Adapter that is provided from DT Research.
The power adapter, charger, and the tablet may become hot during normal use. Allow for
proper venlaon around the power adapter, charger, and charging tablet.
Never force a tablet into a charging bay. Check for any obstrucons before inseron.

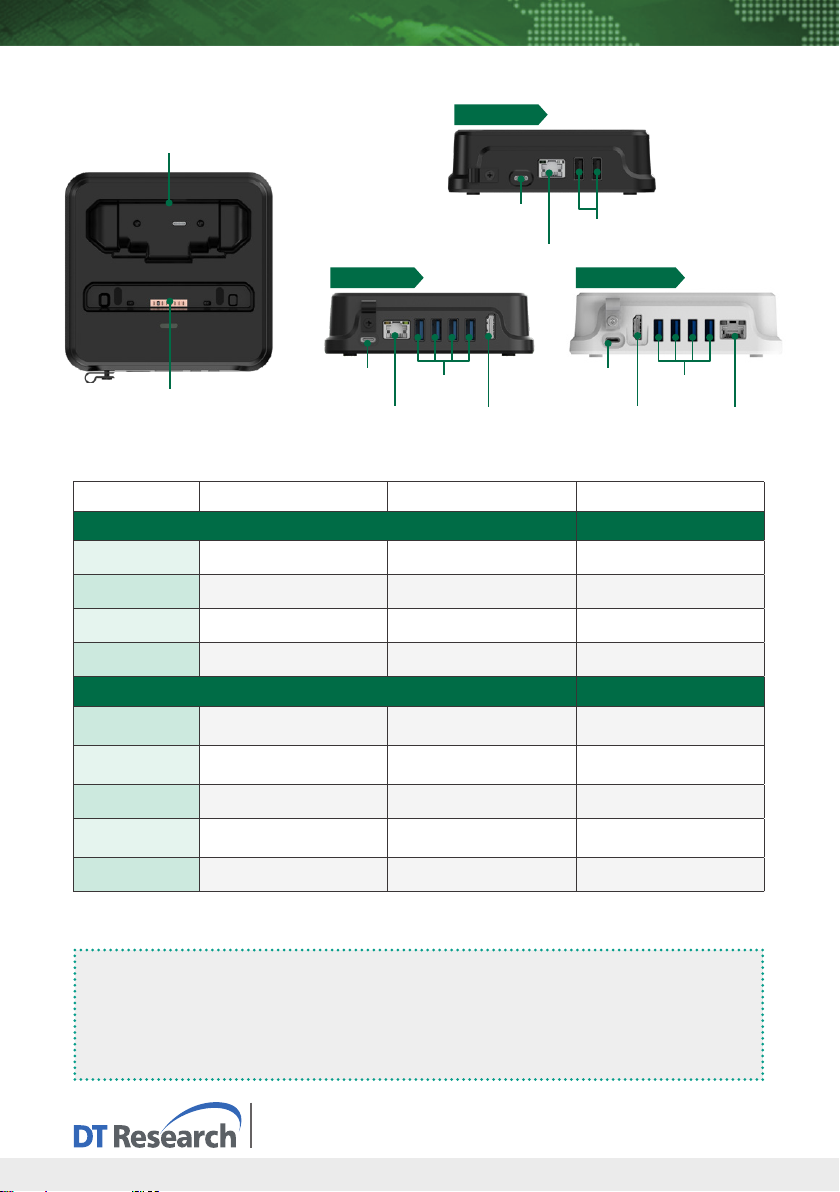

Top View Back View
Tablet Charging Slot
Baery Charging Slot
DC-in Port
(USB Type-C) USB Ports
LAN Port
DC-in Port
(USB Type-C) USB Ports
LAN Port HDMI Output
DC-in Port
(USB Type-C) USB Ports
LAN PortHDMI Output
ACC-DC262-01
ACC-DC262MD-01ACC-DC263-01
