DT SWISS CLASSIC 2014 XRC 950 T User manual

WHEELS
CLASSIC Wheels
Technical Manual
V2015.06_EN

CLASSIC Wheels - Technical Manual 1
V2015.06_EN
1 General 2
1.1 General Maintenance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 SicherheitSafety 6
3 Conversion of the Hub 8
3.1 CLASSIC Wheels 2014 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 CLASSIC Wheels 2015 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Converting the Hub [Screwed on End Caps] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Converting the Hub [Inserted End Caps] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Maintenance of the Hub 16
4.1 Service Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Maintenance of the Rear Wheel Hub [Ratchet System] . . . . . . . . . . . . . . . . . . . . . 17
5 Maintenance of the Wheel 22
5.1 Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.2 Truing the Wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3 Changing a Single Spoke [MTB] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.4 Rebuilding the Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6 Technical Data 29
6.1 Spoke Tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 Tolerances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

CLASSIC Wheels - Technical Manual 2
GeneralV2015.06_EN
1 General
Validity
This manual describes the component specified on the front page and the footer. It is valid for the construction
level of the component on the 2015-07-25. Deviations are possible and all items are subject to technical chan-
ges.
Safety
The safety instructions are classified as follows:
Target Group
This manual is intended for end users and dealers.
It offers the possibility for experienced users to carry out small maintenance works on their own. If there are
any doubts concerning the own skills, a DT Swiss service center should be contacted.
Warranty will expire if works are not done properly.
Layout
The cover page and the footing provide information about the type of product and manual as well as the ver-
sion of the manual.
The backside provides a list of the DT Swiss service centers. A list of all DT Swiss service centers can be found at
www.dtswiss.com.
This manual is intended for being printed as an A5 booklet. Only print this manual if electronic usage is not pos-
sible.
DANGER
...indicates a hazardous situation that, if not avoided, will result in death or serious injury.
CAUTION
...indicates a hazardous situation that, if not avoided, could result in a minor or moderate injury.
NOTICE
...indicates information considered important, but not hazard-related.
...characterizes further information, or information which supplement the respective steps.

CLASSIC Wheels - Technical Manual 3
GeneralV2015.06_EN
DT Swiss Manual Concept
The DT Swiss manuals are split into the following types of manuals:
•User Manual
Information for the end user on how to install and use the component.
•Technical Manual
Detailed information for the end user and the dealer on how to maintain the component, spare parts
and technical data.
How to Use this Manual
The steps described in this manual must be carried out in the order they are shown. If steps are ignored or exe-
cuted in a wrong order, the function of the component cannot be guaranteed.
Instructions begin with the table «Preparatory Steps» and end with the table «Closing Steps». The instructions
in these tables must be carried out.
Moving parts, threads, O-rings and sealings must be greased before assembling.
Cross References
In order to simplify the use of this manual, some text is edited as hypertext. Whenever the text is formatted
blue and underlined, it is a reference to a chapter. If the text is formatted black and underlined, it is a reference
to a figure. After clicking you will be automatically redirected to the target of the reference.
Example: Click here: chap. 1, page 2 to jump to the beginning of this chapter.
Warranty (Europe)
In addition to the general guarantee required by law, DT Swiss AG based in Biel/Switzerland, provides a gua-
rantee for 24 months from the date of purchase. DT Swiss AG shall reject any liability for both indirect damage
caused by accidents and consequential damage.
Any contradictory or extended national rights of the purchaser are not affected by this warranty. Place of per-
formance and jurisdiction is Biel/Switzerland. Swiss law shall apply.
Submit any warranty claims to your retailer or a DT Swiss service center. Any defects recognized by DT Swiss AG
as a warranty claim will be repaired or replaced by a DT Swiss service center.
Warranty and guarantee claims can only be made by the original purchaser with a valid sales receipt.
There shall be no claim under the guarantee for:
•Normal wear and tear caused by use of the components
•Incorrect assembly
•Incorrect or nonexistent maintenance
•Incorrectly completed repairs
•Use of unsuitable products
•Modification of components
•Incorrect use or misuse
•Carelessness
•Leasing, commercial use or use in competitions
•Damage caused by accidents
•Delivery and transport damage
•Modification, defacing or removal of the serial number

CLASSIC Wheels - Technical Manual 4
GeneralV2015.06_EN
Limited Equipment Warranty USA
DT Swiss LTD makes every effort to assure that its product meets high quality and durability standards and war-
rants to the original retail consumer/purchaser of our product that each product is free from defects in materi-
als and workmanship as follows:
2 YEAR LIMITED WARRANTY ON THIS DT SWISS PRODUCT. This warranty does not apply to defects due directly
or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities or to a lack
of maintenance.
DT SWISS LTD LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF TWO YEARS FROM THE DATE OF INITIAL
PURCHASE AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FIT-
NESS ARE EXCLUDED. SOME STATES MAY NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. DT SWISS LTD SHALL IN NO EVENT BE LIABLE FOR
DEATH, INJURIES TO PEOPLE OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES MAY NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY
NOT APPLY TO YOU.
To take advantage of this warranty, the product or part must be returned for examination, postage prepaid, to
the dealer where you bought the product or to a DT Swiss service center. Proof of purchase date and an expla-
nation of the complaint must accompany the product. If our inspection discloses a defect, DT Swiss will either
repair or replace the product or refund the purchase price, if we cannot readily and quickly provide a repair or
replacement. DT Swiss will return repaired product or replacement at DT Swiss expense, but if it is determined
there is no defect, or that the defect resulted from causes not within the scope of this warranty, then the user
must bear the cost of shipping. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. Legal venue and place of performance is Biel (Switzerland). Swiss law shall apply.
Subject to technical changes. Please keep the user manual and warranty for future use.

CLASSIC Wheels - Technical Manual 5
General Maintenance InformationV2015.06_EN
1.1 General Maintenance Information
Cleaning
For an optimal result of the maintenance works, every component that will be disassembled must be cleaned.
Only cleaners which do not damage the components may be used. Especially the cleaning of O-rings and
sealings requires mild cleaners. Always consider the instructions of the respective cleaner.
DT Swiss recommends the following cleaners:
•Motorex Rex
•Motorex Swissclean
•Motorex OPAL 2400, OPAL 3000, OPAL 5000
Use soap water or similar mild cleaners for external cleaning.
Tools
To ensure a damage-free mounting and dismounting of the components, only use the tools which are menti-
oned in this manual. The tools must be in good order and condition.
The usage of differing tools is up to the user. If components are being damaged by the usage of differing tools,
the user is liable.
DT Swiss special tools are precision tools. Damage-free mounting and dismounting of the components can only
be ensured, if the tools are working properly and if the conditions of the tools are perfect.
Always keep the tools in their original packaging or adequate devices to save them from damages.
Expendable Material
If special materials like grease or oil are needed, they will be specified in the table «Required Material» at the
beginning of a chapter. The symbol «» refers to the table «Required Material» in the respective steps.
Environmental Protection
Whenever possible, waste has to be avoided. Waste, especially carbon, lubricants, cleaners and any other fluids
must be disposed in an environmentally compatible manner.
Only print this manual if electronic usage is not possible.
Disclaimer
The operations described in this manual should only be performed by experts. The user is liable for any damage
or consequential damage caused by wrong maintained or wrong installed components. If you have doubts, ple-
ase contact a DT Swiss service center.

CLASSIC Wheels - Technical Manual 6
SafetyV2015.06_EN
2 Safety
DANGER
Incorrect handling, installation, maintenance or servicing can lead to accidents causing severe injuries or
death!
• Compliance with the following provisions is a prerequisite for accident-free use and faultless functio-
ning.
• Assembly and maintenance of the component requires a basic knowledge of handling bicycle compo-
nents. If in any doubt, consult your retailer.
• Components should only be used in accordance with their intended use, otherwise the user shall as-
sume full responsibility.
• The component must be compatible with all parts of the bicycle.
• Only use original spare parts.
• The components must not be changed or modified.
• The component must not be used if it is damaged or there are any signs of damage. If in any doubt,
consult a DT Swiss service center.
DANGER
Risk of death caused by incorrectly assembled or faulty wheels and hubs!
• Check that the wheel is connected correctly before each ride.
• Before every use, check the function of the rear wheel hub. Make sure that the freewheel and engage-
ment connection function impeccably. Should there be any malfunction, the rear wheel hub must not
be used.
• Check the wheel for damage before and after each ride.
• Regularly check the spoke tension, rotation and wear of the wheel.

CLASSIC Wheels - Technical Manual 8
Conversion of the HubV2015.06_EN
3 Conversion of the Hub
The hubs can be converted to the following axle versions:
3.1 CLASSIC Wheels 2014
3.2 CLASSIC Wheels 2015
Front Wheel Option Rear Wheel Option
5/100 mm QR 9/100 mm Thru Bolt 15/100 mm Thru Axle 20/110 mm Thru Axle
Link
5/135 mm QR 10/135 mm Thru Bolt 12/135 mm Thru Axle 12/142 mm Thru Axle 12/150 mm Thru Axle
Link
XRC 950 T ●○chap.3.3, p.9
●●
chap.3.4, p.14
XRC 950 T ○○●
EXC 1550 ○○
●/ ○●/ ○chap.3.3, p.9 ○●/ ○●/ ○●/ ○chap.3.4, p.14
EX 1750 ○○
●/ ○●/ ○chap.3.3, p.9 ●/ ○○○ ●/ ○● chap.3.4, p.14
●Standard ○Option * Not convertible
Front Wheel Option Rear Wheel Option
5/100 mm QR 9/100 mm Thru Bolt 15/100 mm Thru Axle 20/110 mm Thru Axle
Link
5/135 mm QR 10/135 mm Thru Bolt 12/135 mm Thru Axle 12/142 mm Thru Axle 12/150 mm Thru Axle
Link
XRC 950 T ●○chap.3.3, p.9
●●
chap.3.4, p.14
XRC 950 T ○○●
FR 1950 ○○
●/ ○●/ ○chap.3.3, p.9 ○●/ ○●/ ○●/ ○● chap.3.4, p.14
●Standard ○Option * Not convertible

CLASSIC Wheels - Technical Manual 9
Converting the Hub [Screwed on End Caps]V2015.06_EN
3.3 Converting the Hub [Screwed on End Caps]
Figure 3-1: 240 Oversize
* Only required, if the end caps cannot be dismounted without dismounting the axle.
Preparatory Steps Link
Remove the brake disc. see instructions of the
manufacturer
Clean the hub.
1endcap 3axle
2 ball bearing 4 hub shell
Required Material Specification Amount
DT Swiss multipurpose grease HXTXXX00NMG20S as required
tool kit set front wheel oversize HWTXXX00NTKFRS 1*
HXTXXX00N5046S
HXTXXX00N5038S
special textile fabric strap HXTXXX00N5139S 1*

CLASSIC Wheels - Technical Manual 10
Converting the Hub [Screwed on End Caps]V2015.06_EN
Removing the End Caps
Dismounting the Axle
1. Loosen the end caps (fig. 3-1/1) using a wrench
and remove it from the axle.
20 mm, 15 mm und 9 mm end caps: 22 mm
open-end wrench
QR end caps: 5 mm Allen key
2. If the end caps cannot be loosened this way, the
axle has to be dismounted (see following).
The axle only has to be dismounted, if the end caps cannot be dismounted like shown in the previous
section.
1. Slide the disassembly tool onto the axle
(fig. 3-1/3).
Required material. see table on page 9.
2. Tap the bearing (fig. 3-1/2) and the axle out of the
hub shell using the disassembly tool and a ham-
mer.

CLASSIC Wheels - Technical Manual 11
Converting the Hub [Screwed on End Caps]V2015.06_EN
Assembling Bearings and Axle
3. Clamp the axle with the special strap into the vise.
Required material, see table on page 9.
4. Unscrew the end cap and remove it.
20 mm, 15 mm und 9 mm end caps:
22 mm open-end wrench
QR end caps: 5 mm Allen key
5. Remove the bearing from the axle.
1. Slightly grease the seating of the bearings and the
inner surface of the hub shell using multipurpose
grease.

CLASSIC Wheels - Technical Manual 12
Converting the Hub [Screwed on End Caps]V2015.06_EN
2. Put the axle (fig. 3-1/3) onto the mounting tool.
Required material, see table on page 9.
3. Put the non disc side of the hub shell onto the tool
and the axle.
4. Slightly grease the bearing (fig. 3-1/2) and put it
onto the disc side with the colored side facing out-
wards.
5. Put the dismounting tool onto the axle.
6. Put the mounting tool onto the bearing.
The dismounting tool centers the mounting tool
on the axle.
Required material. see table on page 9.
7. Tap the bearing into the hub shell with slight ham-
mer strokes.
The lower mounting tool must lay on an even
surface.
8. Remove the tool from the hub.

CLASSIC Wheels - Technical Manual 13
Converting the Hub [Screwed on End Caps]V2015.06_EN
Putting on the End Caps
9. Check the bearing.
The hub must turn smoothly.
The hub must not have axial play.
10. If necessary, tap in the bearing on the non disc side
or loosen the bearing.
11. Repeat previous steps until the hub is turning
smoothly.
1. Grease the bearings and the inner surface of both
end caps (fig. 3-1/1).
2. Screw on both end caps (fig. 3-1/1) by hand.
3. Tighten the end cap (fig. 3-1/1) with 15 Nm using a
wrench.
20 mm, 15 mm und 9 mm end caps: 22 mm
open-end wrench
QR end caps: 5 mm Allen key
Closing Steps Link
Mount the brake disc. see instructions of the manufacturer

CLASSIC Wheels - Technical Manual 14
Converting the Hub [Inserted End Caps]V2015.06_EN
3.4 Converting the Hub [Inserted End Caps]
Removing the End Caps
Preparatory Steps Link
Rear wheel: Remove the cassette if necessary. see instructions of
the manufacturer
Remove the brake disc.
Clean the hub.
Required Material Specification Amount
DT Swiss multipurpose grease HXTXXX00NMG20S as required
NOTICE
Risk of damaging the end caps!
To avoid damages, only use grind clamping jaws, aluminum clamping jaws or special tools to clamp the
end caps.
For simplification, the conversion of the hubs is only shown with a rear wheel QR hub. The following
actions are valid all axle version of front an rear wheel hubs with inserted end caps.
1. Clamp the left end cap into a vise.
2. Pull the hub or the wheel upwards.
3. Clamp the right end cap into a vise.
4. Pull the hub or the wheel upwards.

CLASSIC Wheels - Technical Manual 15
Converting the Hub [Inserted End Caps]V2015.06_EN
Cleaning and Greasing the End Caps
Putting on the End Caps
1. Clean both end caps and the accessible parts of the hub with a dry cloth.
2. Grease both bearings and the contact surface of
the end caps.
Required material, see table on page 14.
1. Put both end caps onto the hub by hand.
Note: The short end cap must be placed on the drive
side.
Closing Steps Link
Rear wheel: Mount the cassette if necessary. see instructions of
the manufacturer
Mount the brake disc.

CLASSIC Wheels - Technical Manual 16
Maintenance of the HubV2015.06_EN
4 Maintenance of the Hub
This chapter describes a small hub service. It includes:
•Rotor: Dismounting, cleaning, greasing and re-mounting
•Freewheel system: Cleaning and greasing
The description of a big hub service can be found in the Technical Manual of the required hub at
www.dtswiss.com.
4.1 Service Intervals
The following periodic maintenance and service works are recommended by DT Swiss:
4.2 Safety
Action Interval
Small service (see following)
•normal operating conditions
•extreme operating conditions (frequent rides in rain, mud, snow):
6months
as required
Big service (see Technical Manual at www.dtswiss.com)
•normal operating conditions:
•extreme operating conditions (frequent rides in rain, mud, snow):
12 months
as required
Check the hub for damages. before and after each ride
Cleaning with a soft sponge and an appropriate cleaner (see section
„Cleaning“, page 5).
Do not use high pressure cleaners or aggressive cleaners.
after each ride
DANGER
Danger to life due to incorrect maintenance or wrong spare parts!
Wrong maintenance, wrong assembly or wrong spare parts can lead to unpredictable errors.
• Maintenance must only be done by professionals.
• Only use original spare parts or spare parts released by DT Swiss.
• In case of any doubts, contact a DT Swiss service center.

CLASSIC Wheels - Technical Manual 17
Maintenance of the Rear Wheel Hub [Ratchet System]V2015.06_EN
4.3 Maintenance of the Rear Wheel Hub [Ratchet System]

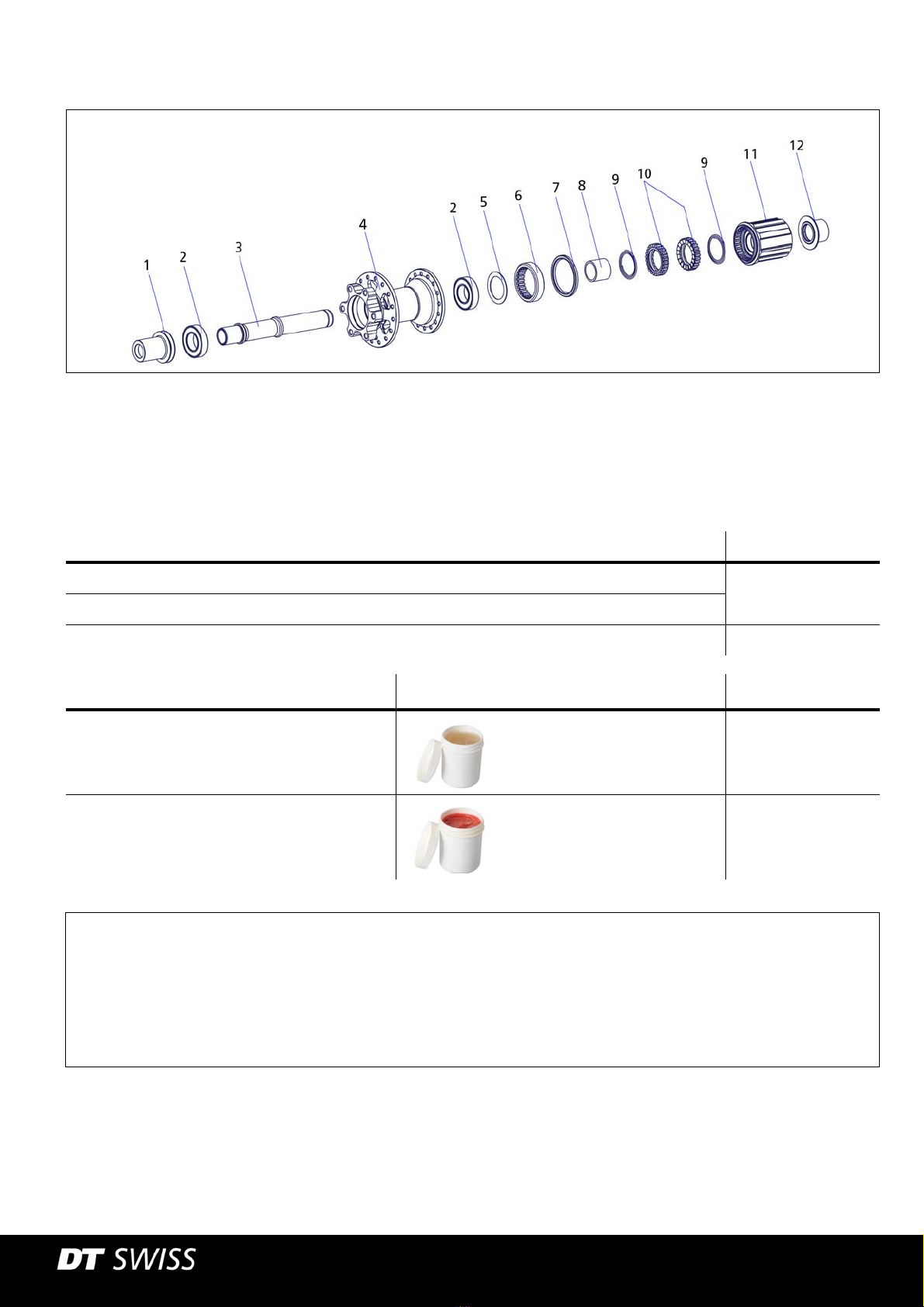

Figure 4-1: Overview: Ratchet System
1 end cap left 5 shim ring 9 spring
2 ball bearing 6 ring nut 10 star ratchet
3 axle 7 seal hub shell / rotor 11 rotor
4 hub shell 8 spacer 12 end cap right
Preparatory Steps Link
Remove the cassette. see instructions of
the manufacturer
Remove the brake disc.
Clean the hub.
Required Material Specification Amount
DT Swiss multipurpose grease HXTXXX00NMG20S as required
DT Swiss special grease for ratchet system HXTXXX00NSG20S as required
NOTICE
Risk of damaging the end caps!
To avoid damages, only use grind clamping jaws, aluminum clamping jaws or special tools to clamp the
end caps.

CLASSIC Wheels - Technical Manual 18
Maintenance of the Rear Wheel Hub [Ratchet System]V2015.06_EN
Removing End Caps, Rotor and the Ratchet System
1. Clamp the left end cap (fig. 4-1/1) into a vise.
2. Pull off the wheel, respectively the hub.
3. Clamp the left end cap (fig. 4-1/13) into a vise.
4. Pull off the wheel, respectively the hub. Take care
that the rotor does not fall off.
5. Pull the rotor (fig. 4-1/12) off the hub.
6. Take the springs (fig. 4-1/10), the star ratchet
(fig. 4-1/11) and the spacer (fig. 4-1/9) off the hub.

CLASSIC Wheels - Technical Manual 19
Maintenance of the Rear Wheel Hub [Ratchet System]V2015.06_EN
Cleaning and Checking the Parts
Putting on the Ratchet System
1. Clean all parts of the hub (see section „Cleaning“, page 5).
2. Check all parts for damages and wear.
3. Check the bearings.
If the hub doesn‘t turn smoothly, change the bearings (see Technical Manual at www.dtswiss.com).
4. Clean the toothing of the rotor and the ring nut.
5. Check the rotor for damages.
Grooves from the cassette are no damages. These
are normal signs of usage.
6. Remove bad notches from the rotor using a file.
7. Clean the rotor. Metal filings must be removed
completely.
1. Clean the outer and the inner toothing of the star ratchets using DT Swiss special grease.
For an optimal functionality, a thin layer of grease is sufficient.
Required material, see table on page 17.
2. Put on the spacer (fig. 4-1/9) and the first spring
(fig. 4-1/10).
The big diameter of the spring must be placed on
the bearing of the hub.

CLASSIC Wheels - Technical Manual 20
Maintenance of the Rear Wheel Hub [Ratchet System]V2015.06_EN
Putting on the Rotor and the End Caps
3. Put on both star ratchets (fig. 4-1/11) and the se-
cond spring (fig. 4-1/10).
The small diameter of the spring must be placed
on the star ratchet.
1. Grease the rotor and put it onto the hub.
2. Check if the rotor can be turned easily and if the
star ratchets are locking.
3. Grease both bearings and the contact surface of
the end caps (fig. 4-1/1/13).
Required material, see table on page 17.
4. Put both end caps (fig. 4-1/1/13) onto the hub by
hand.
Note: The short end cap must be placed on the drive
side.
